Graphtec F-MARK2 Automatic Sheet Feeder 15" w/ BONUS Software

CUT LABELS Quickly and Efficiently with the Graphtec F-MARK2 Automatic Sheet Feeder

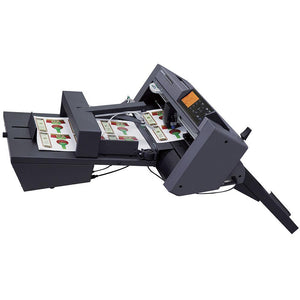

The F-MARK2 Automatic Sheet Feeder, which includes the CE7000-40 cutting plotter, is designed to feed and cut the contour of a design on materials up to 13”x 19” without the need for someone to operate it. An arm with a suction cup system allows you to feed the plotter by lifting the material and placing it inside the plotter. It includes Software and a CCD Camera that allows the material to be precisely aligned to efficiently perform cutting and perforation functions on pre-printed graphics and thus occupy human resources in other tasks. Once the cut is completed, each sheet will fall freely into the Exit Tray. Additional sheets of the same design can be loaded during cutting without re-submitting the job from the computer, thus improving productivity.​

The F-Mark2 can handle up to 200 sheets (depending on thickness) of material in a continuous cycle but with the ability to add more sheets without being required to interrupt the cutting process. This is a feature that will differentiate the F-MARK2 and place it above any sheet feeding system.

450 grams of cutting force allows the user to carry out small or medium productions of: Labels, business cards, thermal textile transfer and more. Using an EPS file from Adobe Illustrator or Corel Draw, simply add registration marks to your design and import into iMark Plus software for faster, higher-quality results.​

  • Hands-free continuous sheet feeding and processing
  • Dedicated software to ensure accurate alignment
  • CCD Camera to quickly scan 2 points of registration marks​
  • Contour cutting and perforation of printed graphics
  • Add additional sheets to the feeder without resending the job

The automatic sheet feeder reloads the material into the cutting plotter automatically. The cutting process is executed repeatedly by reloading the material. This allows increased productivity by cutting large amounts of material with the same design. The following steps are repeated continuously automatically until the set number of copies are made.

Perfect sheet alignment is achieved by reading registration marks for each sheet with a camera equipped with ASC technology allowing adjustments in the reading of marks in a fraction of seconds. Software which, through algorithms, compensates for any distortion in the printing process to allow precise cutting and reduce waste. It also has an option to make perforated lines during file creation. ​​​

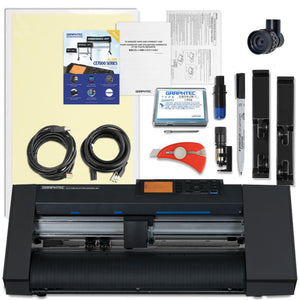

The 15 inch cutter includes:

  • CE7000-40 15" High Quality Industrial Grade Cutting Machine
  • Sheet Feeder Attachment
  • BONUS: Graphtec PRO Studio Software - 1 License:  Extremely Powerful Design Software
    • Design Creation, Registration Marks, Tiling, Weed Lines, Tool Assignment
    • Offline Use via USB, Outline, Fill, Auto Trace, Line Patterns, & Much More
    • Use in replacement of Adobe Illustrator and CorelDRAW or Import from Adobe Illustrator and CorelDRAW without Converting the File
  • CB09UB Blade Holder
    • CB09UB Blade - .9mm Diameter - 45 Degree
    • Continuous hands free shet media loading and processing
    • Dedicated software ensures accurate alignment
    • Includes Graphtec ARMS (Advanced Registration Mark Sensor)
    • 450 grams of cutting force - strongest in the market
    • Pen Adapter - works well with Staedtler Lumocolor Pens
    • Staedtler Lumocolor Pen - Black
    • Roll Feeder
    • Loupe
    • 11.5 Inch x 16.5 Cutting Mat
    • Vinyl Trimmer
    • USB Connector
    • Cutting Master 4
    • Supported OS - Widows 10, 8.1, 8.7
    • CE7000 Machine Training Video
    • Set Up Manual
    • Cutting Blade Manual
    • 2 Year Warranty

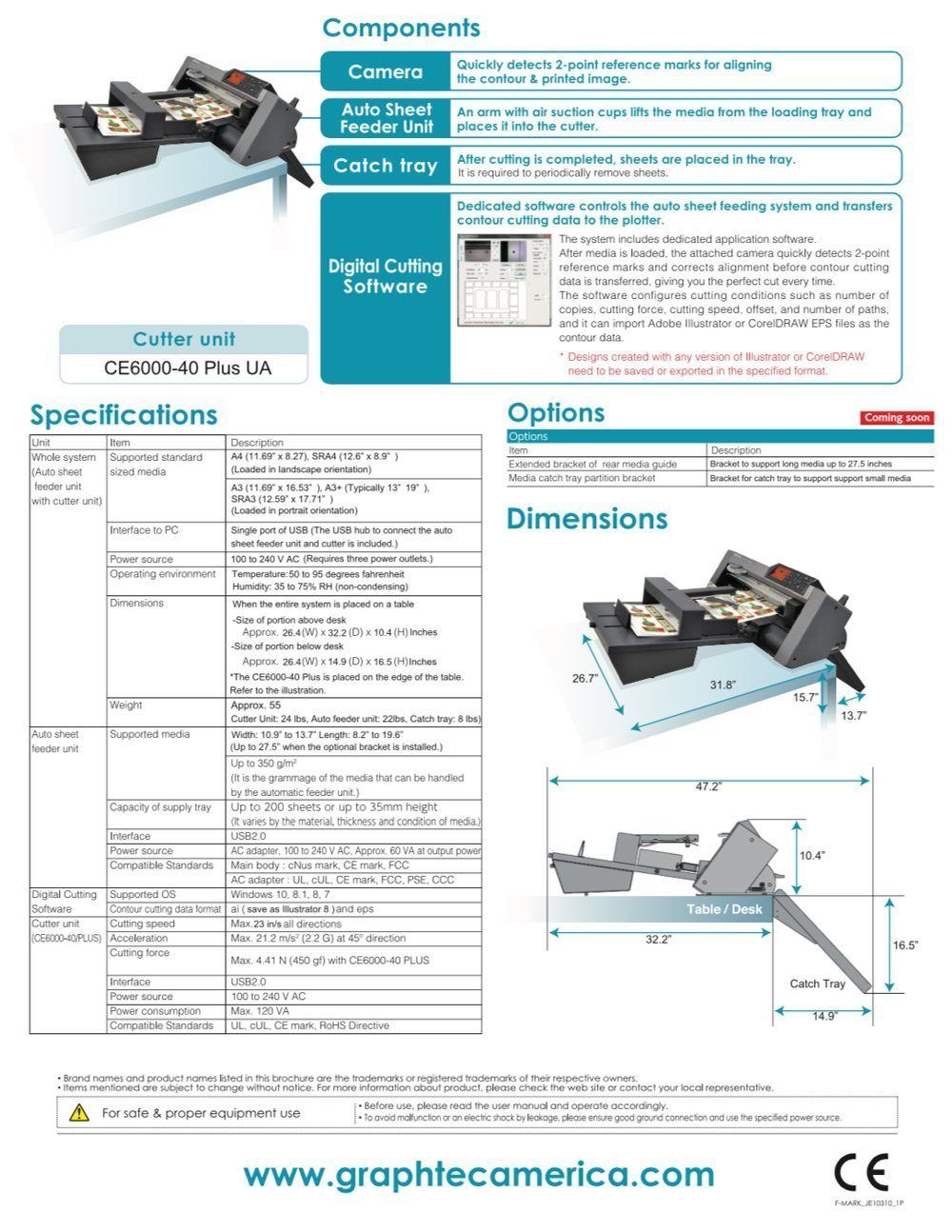

    Spec Sheet
    Graphtec CE7000 User Manual

      Learn how to import Silhouette Studio Business files into your Graphtec Pro Software HERE
