xTool P3 80W CO2 Laser Cutter & Engraving Machine with Rotary, Rail System
$6,995.00$9,047.00
$6,995.00
Add-ons
xTool P3 5W IR Laser Add-on Module for Metal Engraving
$799.00$679.00
xTool SafetyPro AP2 MAX Industrial Air Purifier with SuperCyclone System
$2,499.00$2,299.00
xTool Ultimate Laser Material Kit - 155 Pieces
$199.99$134.99
xTool P3 80W CO2 Laser Cutter & Engraving Machine
The xTool P3 is xTool’s flagship 80W CO2 laser for shops that have outgrown a hobby bed. It cuts thicker wood and acrylic in one pass, engraves at up to 1200 mm/s, and gives you a 36" × 18" workspace—about 2.3× larger than the P2S—inside a Class 1 enclosed machine with LiDAR autofocus, a built-in AutoLift base, and ACS™ automation.
This is the P3 for production studios, schools, and small manufacturers who need desktop-sized footprint with industrial cutting power. Optional add-ons unlock metal marking, unlimited-length conveyor work, and RA3 rotary engraving.
80W CO2 Power for Real Production
The P3 uses an 80W CO2 glass tube with an integrated water chiller, so power stays consistent on long jobs.
One-pass cutting capacity:
- Basswood up to 0.79" (20 mm)
- Acrylic up to 0.98" (25 mm)
Rated tube life is up to 10,000 hours. Dual-cylinder air assist at 200 kPa helps keep edges cleaner on wood, acrylic, fabric, and leather.
Cut: wood, acrylic, fabric, leather, paper, rubber, and similar organics.
Engrave: wood, acrylic, glass, ceramic, stone, coated metals, and more.
Optional 5W 1064 nm IR module adds bare-metal and plastic marking the CO2 tube cannot do alone.
36" × 18" Bed. Twice the Speed of P2S.
- Working area: 36" × 18" (915 × 458 mm)
- Max speed: 1200 mm/s
- X-axis acceleration: 19,600 mm/s²
- Bitmap engraving: up to 1200 mm/s
- Vector processing: up to 400 mm/s
That combination is what makes batch signs, nested sheet work, and multi-piece orders realistic on a desktop CO2. Add the Intelligent Conveyor Feeder when you need material longer than the bed.
ACS™ Automation: Less Setup, Fewer Missed Jobs
ACS™ (Automated Creation System) is the P3 workflow that removes the usual CO2 busywork.
- LiDAR ranging measures material height
- AutoLift base raises the bed to focus—no separate riser to buy for standard height work
- Autofocus sets the job without a manual gauge
- 16 MP SkyView panoramic camera plus a close-range camera and two side cameras for positioning and monitoring
- Smart camera preview and dual-camera placement
- AI nesting to pack more parts on a sheet
- Passthrough / conveyor stitching for oversized length
- Batch filling for repeat production
Max processing height: 8.66" (220 mm) with the AutoLift base.
Rotary diameter with RA3: 0–7.87" (0–200 mm).
Built to Run Safely Indoors
The P3 is a Class 1 enclosed CO2 laser when used as designed.
- Fully enclosed cutting chamber
- Multi-sensor flame and temperature monitoring
- Built-in fire-suppression module (install the CO2 cylinder to enable discharge)
- Dual side cameras for process visibility
- SafetyPro IF2 2.0 inline fan included with the machine
- Pair with SafetyPro AP2 Max when you want full indoor filtration
Note: conveyor use can change the laser class. Follow xTool’s enclosure and exhaust rules for that setup.
xTool Studio Software
The P3 runs xTool Studio on Windows and macOS over USB or Wi-Fi.
Supported files: SVG, DXF, JPG, JPEG, PNG, BMP, TIF.
AImake compatible. LightBurn support varies by workflow; Studio is the native P3 path for ACS, cameras, LiDAR, and AutoLift.
Ideal For
- Sign shops cutting large acrylic and wood panels
- Gift and merch businesses running batch personalization
- Schools and makerspaces that need Class 1 CO2 safety
- Production studios moving up from P2 / P2S
- Shops that want rotary, conveyor, and IR metal marking in one ecosystem

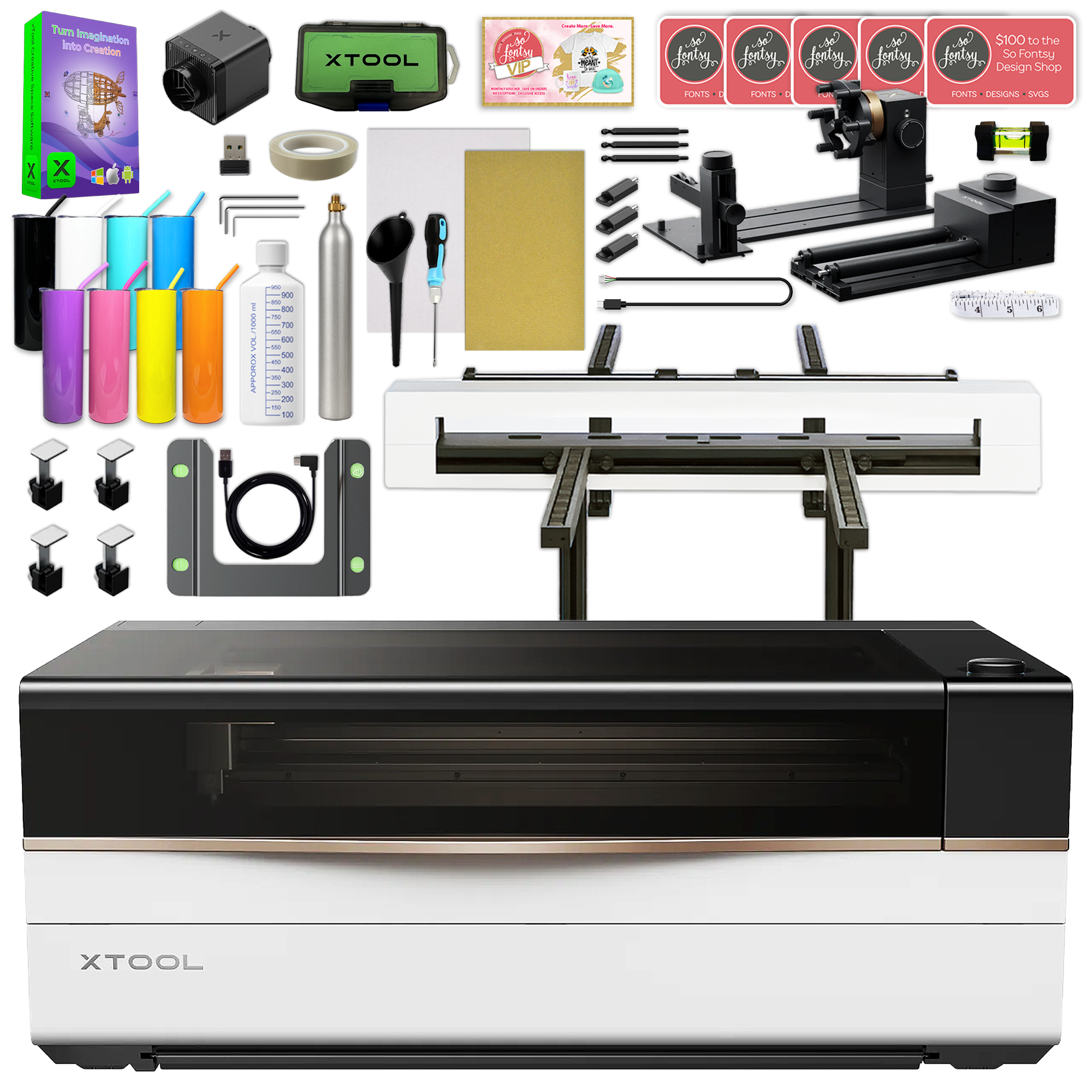

xTool P3 Bundle Includes:
- xTool P3 80W CO2 Laser Cutter & Engraver
- xTool Creative Space Software
- 80 Watt Laser
- 4 Vision Cameras
- Intelligent Conveyor Feeder - 59"

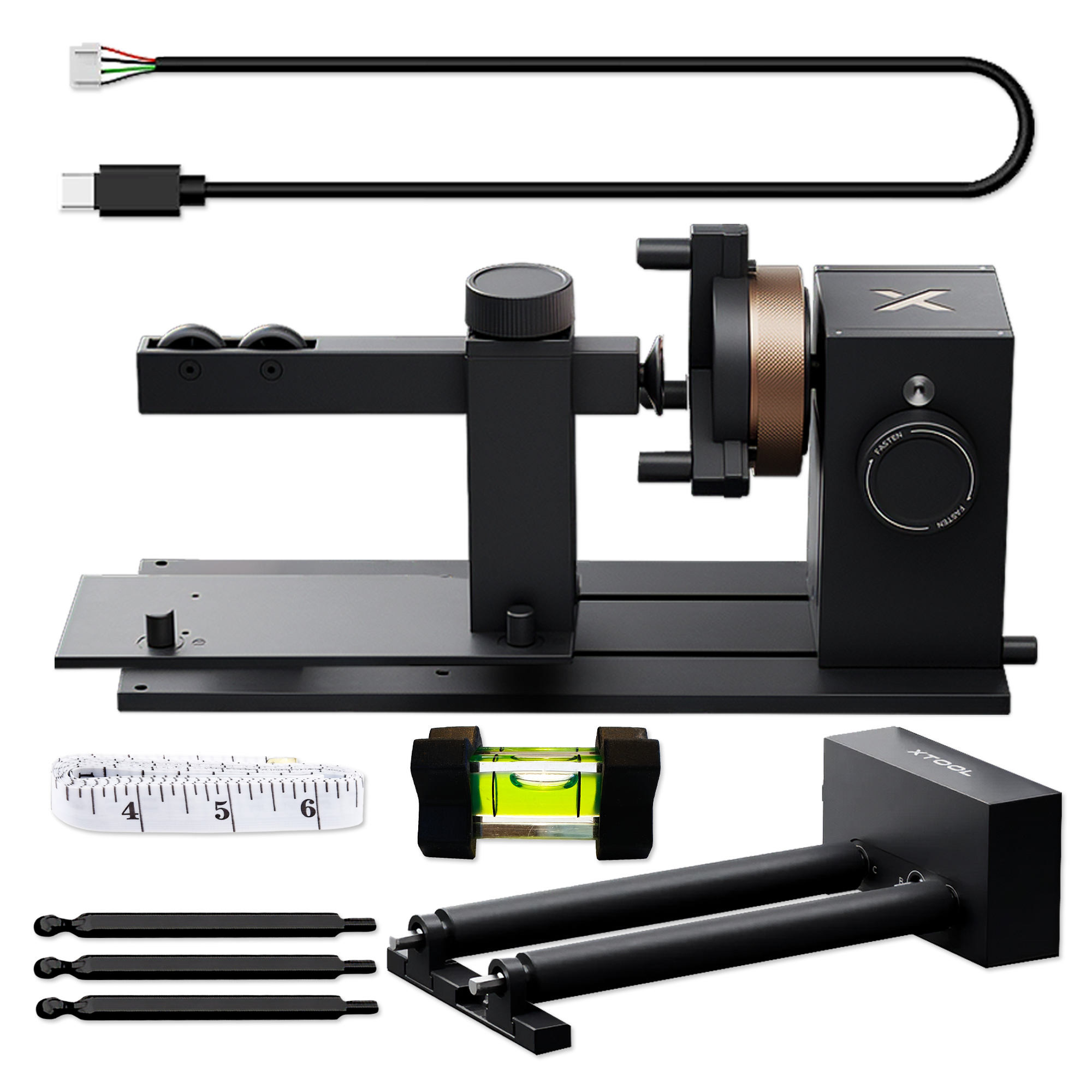

- RA3 PRO Quick Change Rotary Tool
- BONUS: CO2 Canister
- Auto-Lift Riser Base
- Auto-Positioning & Auto-Focus
- 8 Engravable Assorted Tumblers
- Air Exhaust Kit
- IF2 2.0 Hyper Flow Inline Duct Fan
- Material Sample Kit
- $500 in Design Rewards from So Fontsy - SVGs, Laser Files, Commercial Use (Please note that the card is valid for the card redemption portion of the site)
- 1st Month Membership to SoFontsy VIP Enterprise
- Material Clamps
- Masking Tape
- Screw Driver
- Hex Keys
- Manual
- Quick Start Guide
- USB Cord
- WiFi & Ethernet Connection
- Powder Adaptor & Power Cable
- 1 Year xTool Trouble Free Warranty
xTool P3 vs. xTool P2S Comparison Chart
|
Feature |
xTool P3 |
xTool P2S |
|---|---|---|
|
Laser Power |
80W CO2 + Optional 5W IR |
55W CO2 |
|
Max Engraving Speed |
1200 mm/s |
600 mm/s |
|
X-Axis Acceleration |
2G (20,000 mm/s²) |
6,400 mm/s² |
|
Working Area |
36” x 18” (915 x 458 mm) |
23.6” x 12” (600 x 305 mm) |
|
Max Cutting Thickness |
20mm basswood, 25mm acrylic (one pass) |
18mm basswood, 20mm acrylic (one pass) |
|
Air Assist Pressure |
200 kPa |
200 kPa |
|
Exhaust Fan |
Dual high-speed fans with IF2 2.0 Inline Fan |
Dual high-speed fans with magnetic filters |
|
Camera System |
16MP SkyView + close-range, 0.0079" precision |
AI-assisted dual 16MP cameras |
|
Automation |
ACS™ (Auto-Positioning, Autofocus, LiDAR Ranging, Auto-Lifting Base) |
Manual focus, CurveAce mode |
|
Curved Surface Engraving |
Smart RA3 Rotary with LiDAR mapping |
Supported via CurveAce mode |
|
Passthrough Capability |
Automatic with Conveyor Feeder |
Manual + automated with feeder accessory |
|
Cooling System |
Inverter Water Chiller |
Standard water cooling |
|
Safety Features |
Class 1, active fire protection, scrap alerts |
Class 1, standard safety features |
Specifications
| Spec | Detail |
|---|---|
| Product Name | xTool P3 80W CO2 Laser Cutter & Engraving Machine |
| SKU | P0101000119 |
| Laser Type | 80W CO2 (10,600 nm) |
| Optional Laser | 5W 1064 nm IR Module |
| Working Area | 36" × 18" (915 × 458 mm) |
| Max Speed | 1200 mm/s |
| X-Axis Acceleration | 19,600 mm/s² |
| One-Pass Cut, Basswood | 0.79" (20 mm) |
| One-Pass Cut, Acrylic | 0.98" (25 mm) |
| Max Processing Height | 8.66" (220 mm) with AutoLift |
| Max Rotary Diameter | 0–7.87" (0–200 mm) with RA3 |
| Cameras | 16 MP SkyView + Close-Range + 2 Side Cameras |
| Focus | LiDAR + Autofocus + AutoLift Base |
| Motion Accuracy | 0.01 mm |
| Camera Positioning | 0.2 mm |
| Standard Lens | M Focal (0.15 × 0.18 mm spot) |
| Optional Lenses | S (detail) and L (thicker cutting) |
| Software | xTool Studio |
| OS | Windows / macOS |
| Connection | USB / Wi-Fi |
| Safety | Class 1 Enclosed |
| Cooling | Integrated Water Chiller, 1.4 L |
| Air Assist | 200 kPa Dual Cylinder |
| Exhaust Fan | 233.3 CFM |
| Machine Size | 49.2" × 30.7" × 19.5" (1250 × 780 × 496 mm) |
| Machine Weight | 231.5 lb (105 kg) |
| Tube Life | Up to 10,000 Hours |
