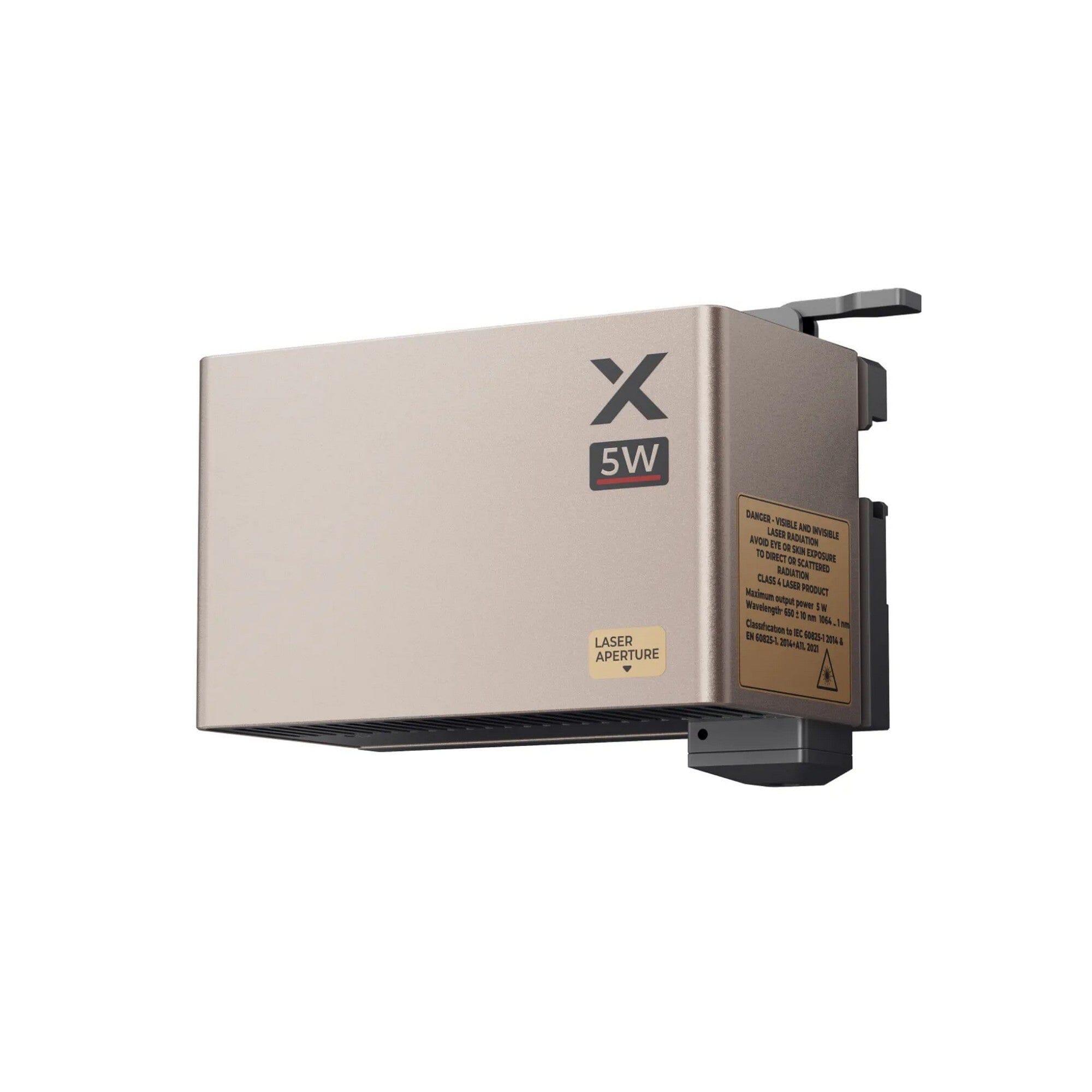

The xTool P3 5W IR Laser Add-on Module is the powerful infrared (IR) laser upgrade engineered exclusively for the xTool P3 flagship 80W CO2 laser cutter/engraver, unlocking professional-grade metal engraving and precise marking on materials that standard CO2 or blue diode lasers can't handle effectively. This modular 1064nm IR laser head transforms your xTool P3 into a versatile dual-laser system: switch seamlessly between high-power CO2 for deep cutting thick wood, acrylic, and more, and the 5W IR module for detailed, high-contrast engraving on metals and plastics.

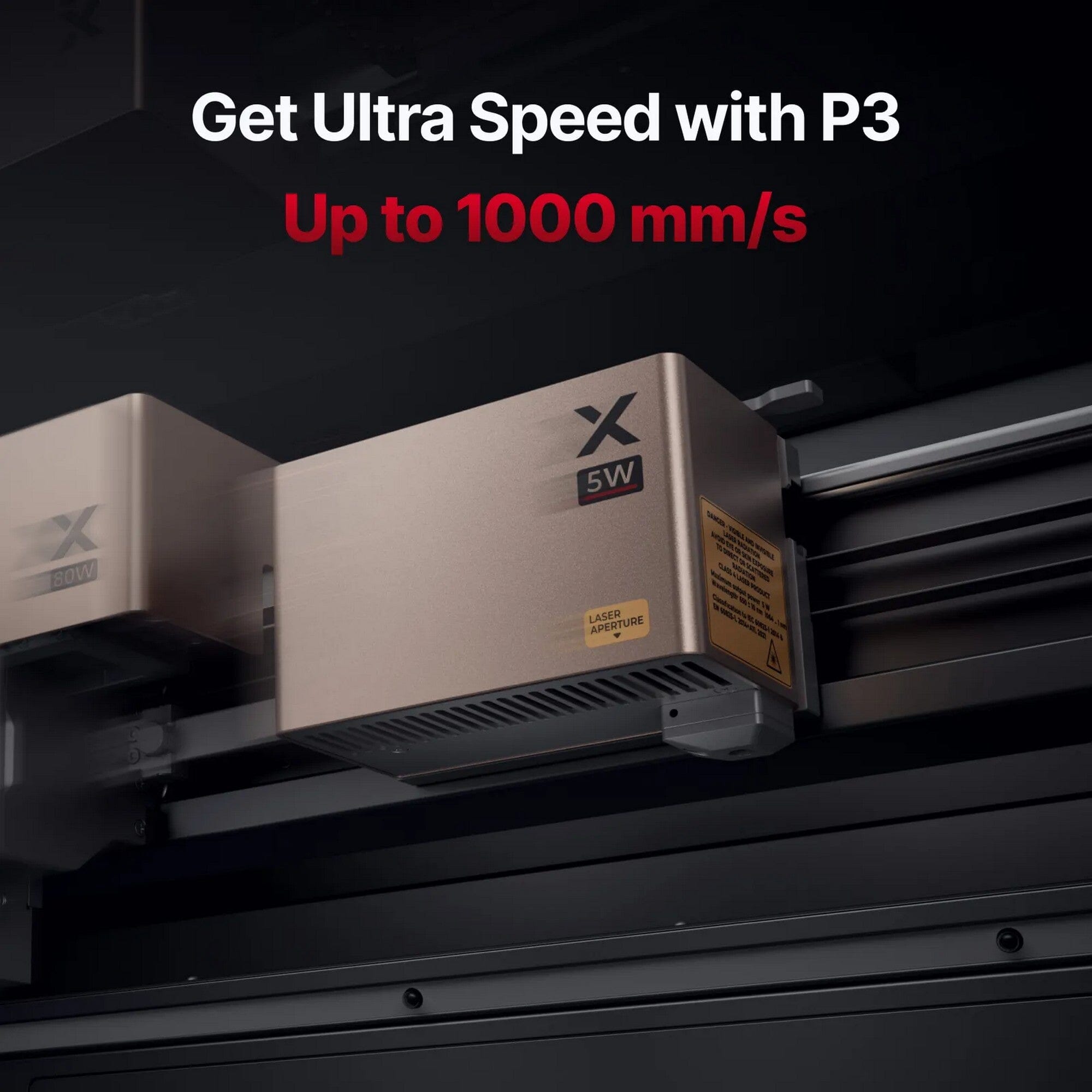

Featuring a 5W output, 1064nm ±1nm wavelength, ultra-fine 0.03mm spot size (red indicator), 4ns pulse width, 25-30kHz repetition rate, peak power up to 65KW, and single pulse energy >0.14mJ, this air-cooled module delivers exceptional speed (up to 1000mm/s engraving, 300mm/s scoring) and crisp results across a massive 650mm × 426mm working area (with max material height 180mm). It excels at permanent, fade-resistant marking on uncoated/stainless steel, aluminum, brass, copper, titanium, chrome, anodized metals, and various plastics — ideal for industrial parts, tools, jewelry, promotional items, custom hardware, signage, and personalized gifts.

Key standout features:

• Quick-swap modular design — Install or remove in minutes with easy mounting (no extra power supply needed — powered directly by the P3 host unit); select the 5W IR module in xTool Creative Space software for instant switching.
• Superior metal performance — 1064nm IR wavelength absorbs better on metals for deeper, faster, higher-contrast engravings compared to weaker 2W alternatives (users report "way more powerful" and "impressive metal marking and speed").
• Precision & durability — Air-cooled for reliable operation (0-35°C working temp), expected 8000-hour lifespan, compact head (136.5 × 94.5 × 92.5mm, 850g) maintains the P3's intelligent automation, 4-camera vision alignment, and safety features.
• Expanded creativity — Combine with P3's ultra-large workspace (36" × 18"), 1200mm/s max speed, and accessories like rotary or conveyor for batch production of metal tags, nameplates, serial numbers, logos, or prototypes.
• User-friendly & safe — Plug-and-play setup, guided calibration, no complex tools required.

Whether you're a professional maker, small business owner, jeweler, or industrial fabricator upgrading your xTool P3 for metal capabilities, this 5W IR laser module adds industrial-level precision without needing a separate fiber laser machine — more affordable, more integrated, and easier to use.

Compatible with: xTool P3 80W CO2 Laser Cutter
