Bambu Lab R1 Automatic Conveyor Feeder - 59in
$499.00$519.00
$499.00
New Product Launch, Estimated Shipping Nov/Dec 2026

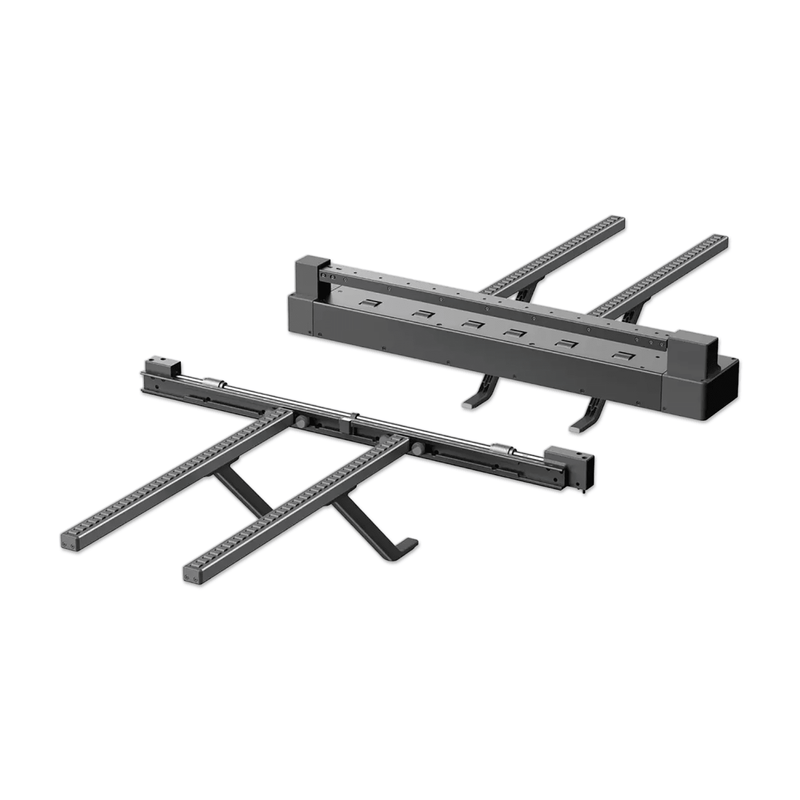

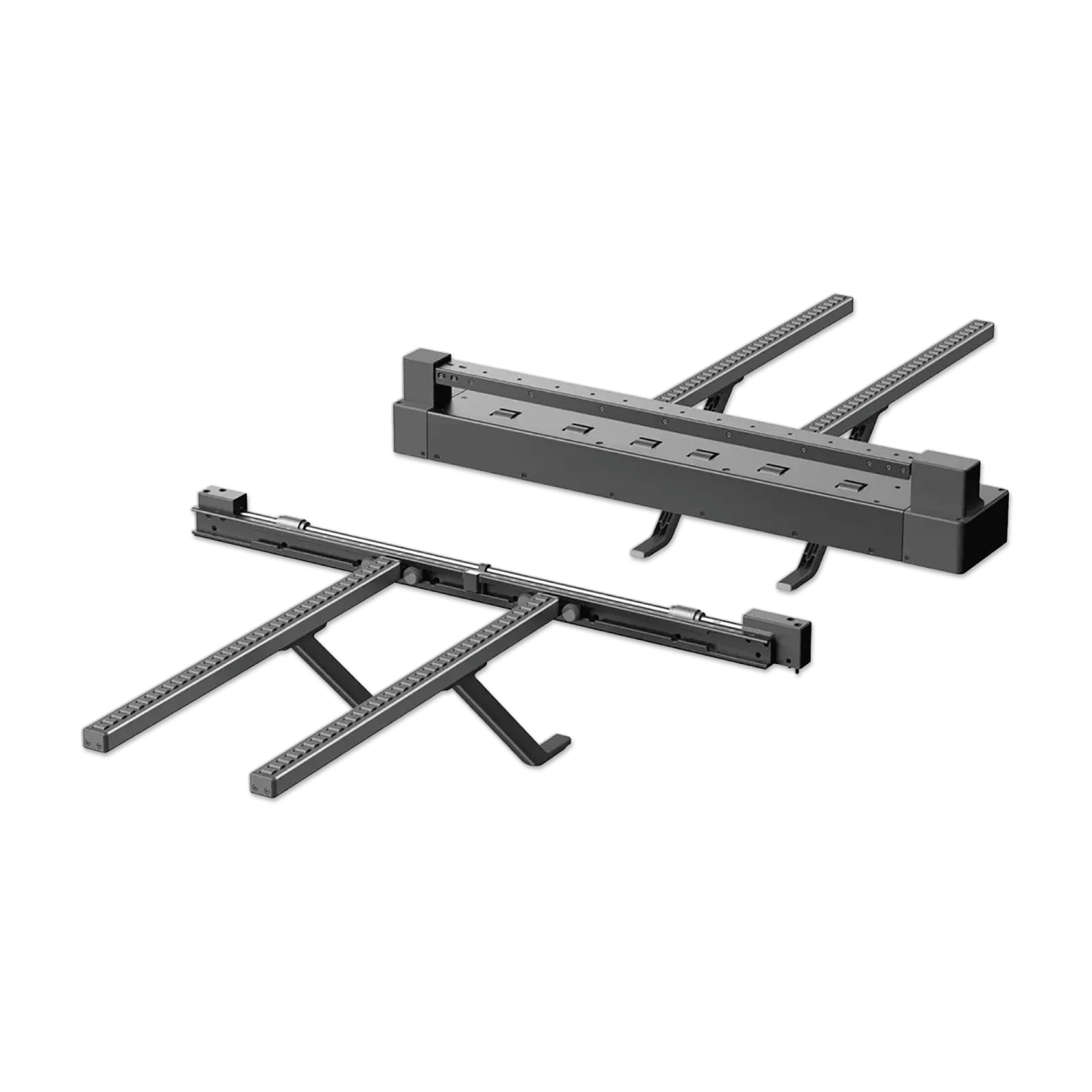

Bambu Lab Automatic Conveyor Feeder — Process Long Materials Up to 3,000 mm (118 in) on the R1
Feed long materials through your Bambu Lab R1 and extend processing length to 3,000 mm (118 in). The Automatic Conveyor Feeder handles signs, panels, furniture parts, and other large-format projects that exceed the standard bed size.
Why the Conveyor Feeder Exists
Standard R1 processing is limited by bed size. The Conveyor Feeder automatically advances material during the job so you can work on pieces far longer than the machine’s native workspace without manual repositioning.
Key Benefits
- Up to 3,000 mm (118 in) processing length: Guide rail alone covers roughly 450–1,500 mm (17.7–59.1 in); add up to three extensions to reach 3,000 mm (118 in).
- Quick install and removal: Switch between long-material and standard jobs without a permanent setup change.
- Compatible with R1: Designed specifically for the Bambu Lab R1 and powered through the machine’s riser base.
- Stable long-material handling: Support and conveyor rollers keep material aligned and moving smoothly during laser fill, image, line, or cut operations.
How It Connects
The feeder mounts using the R1 Riser (required for installation and use). A 6-pin Bambu Bus cable connects the unit to the riser base for power. Follow the Auto-Passthrough Processing Guide for correct riser and conveyor setup before first use. Material length should not exceed 200 mm (7.9 in) beyond the total rail length plus the machine.
Specifications
| Item | Detail |
|---|---|
| Applicable to | Bambu Lab R1 |
| Dimensions | Approx. 117 × 1,234 × 756 mm (4.6 × 48.6 × 29.8 in) |
| Net weight | Approx. 9.2 kg (20.3 lb) |
| Max workpiece size (guide rail only) | 450–1,500 mm (17.7–59.1 in) |
| With 1 extension | Up to 2,000 mm (78.7 in) |
| With 2 extensions | Up to 2,500 mm (98.4 in) |
| With 3 extensions | Up to 3,000 mm (118 in) |
| Max processing speed | Laser Fill / Image: 1,000 mm/s (39.4 in/s) Laser Line / Cut: 200 mm/s (7.9 in/s) |
| Power | Via 6-pin cable to the R1 riser base |
What’s Included
- Smoke Curtain Mount
- Support Roller Assembly
- Conveyor Roller Assembly
- Guide Rails (4)
- Guide Rail Supports (4)
- Bambu Bus Cable 6-pin
- Sensor Light Shield
- Mounting screws and Allen key
Who It’s For
Choose the Automatic Conveyor Feeder if you regularly process long signs, panels, or large parts on a Bambu Lab R1 and want to avoid manual material shifting. It is not needed for standard-size jobs that fit within the native bed.
FAQ
Does this work with any Bambu Lab machine?
No. It is designed for the Bambu Lab R1 and requires the Riser.
What is the maximum material length?
Up to 3,000 mm (118 in) when using three guide-rail extensions. Do not exceed 200 mm (7.9 in) beyond the total rail length plus the machine.
Is the Riser included?
No. The Riser is required for installation and must be obtained separately.
How is it powered?
Through the included 6-pin Bambu Bus cable connected to the R1 riser base.
