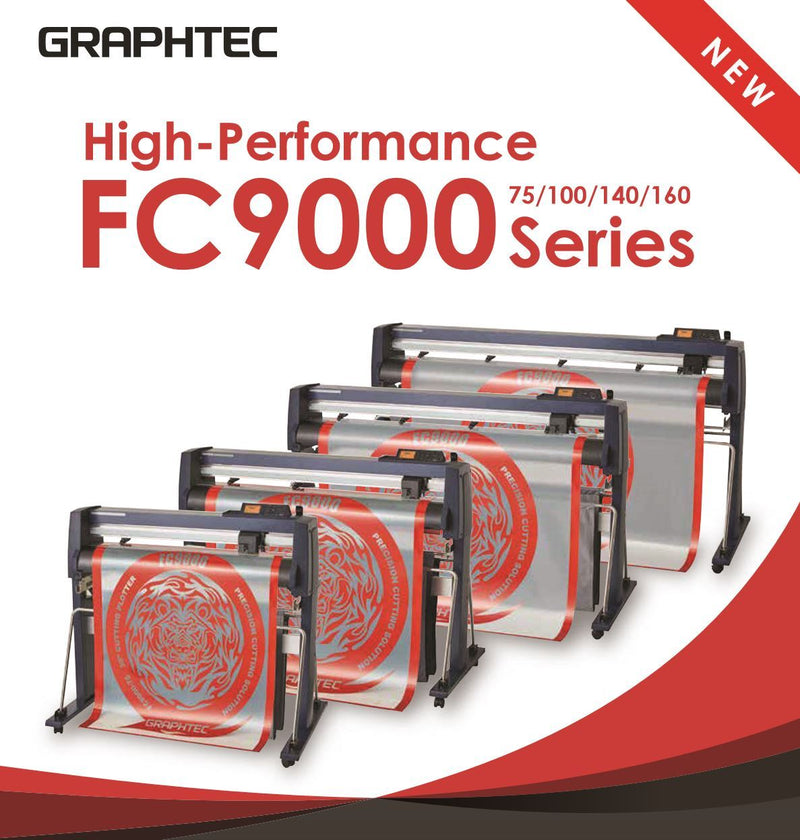

The flagship FC9000 Series is Graphtec’s most advanced, versatile roll fed cutting plotter to date. Revered around the world for its dependable, high-precision cutting capabilities with both printed and unprinted materials, the FC Series is the ultimate finishing solution for the wide format signage, apparel, and automotive industries. A newly developed feeding system and cutting head has further improved cutting quality of thin and thick materials ranging from delicate window tint to rigid magnet and high intensity reflective. ARMS 8.0 features the introduction of Graphtec’s Datalink barcode generation system which efficiently loads and processes your jobs automatically.
Available in 30", 42", 54", & 64" widths. Order your bundle HERE. Free Shipping & 0% Financing Available.
DATALINK BARCODE
Save time and reduce the chance of production errors by using barcodes to automatically process multiple jobs at the touch of a button.
DataLink supports any combination of RIP software & printer in addition to included Cutting Master 4 and Graphtec Pro Studio software.
The FC9000 detects barcode-linked cutting data from the operator's PC or USB flash memory, opens the correct file, sets the cutting conditions, and starts cutting automatically.
CONTOUR & DIE CUT
Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.
UNRIVALED PRINT / CUT ACCURACY
Graphtec’s Advanced Registration Mark Sensing technology delivers precise Print / Cut results in addition to efficiency boosting features.
The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.
HEAVY DUTY CUTTING
No flatbed? no problem.
A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types.
Add additional push rollers for increased precision when cutting heavy, rigid materials such as magnet, rubber, and diamond-grade high intensity reflective. Three pressure settings ensure strong media hold-down without leaving track marks.
TAKE-UP REEL
The optional take-up reel boosts production efficiency by automatically winding rolls of media up to 65 feet long with equipped infrared sensor.
Compatible with the FC9000-140 and FC9000-160.
Graphtec FC6000 SPECIFICATIONS
| Model | FC9000-75 | FC9000-100 | FC9000-140 | FC9000-160 |
|---|---|---|---|---|
| CPU | 32-bit CPU | |||
| Configuration | Grit rolling plotter | |||
| Drive method | Digital servo drive | |||
| Max. cutting speed | 58.5 inches per second (45 degree direction) 41.3 (axis direction) | |||
| Cutting force | Max. 600 gf in 48 steps | |||
| Axial acceleration | Max. 39.2 m/s2 (4 G) in 8 steps | |||
| Max. cutting area
(W x L) (*1) |
30 in x 164 ft 762 mm x 50 m |
42 in x 164 ft 1067 mm x 50 m |
54 in x 164 ft 1372 mm x 50 m |
64 in x 164 ft 1626 mm x 50 m |
| Guaranteed precision cutting area (*1) | 29.21 in x 50 ft |
41 in x 32 ft, 35.2 in x 50 ft |
53 in x 32 ft, 35.2 in x 50 ft |
63 in x 32 ft, 35.2 in x 50 ft |
| Mountable media width(*2) |
Min. 1.96 in |
Min. 1.96 in |
Min. 1.96 in |
Min. 1.96 in |
| Max. cross cut width | 30 in | 42 in | 54 in | 64 in |
| Number of push rollers | 2 rollers | 3 rollers | 4 rollers | 4 rollers |
| Compatible roll media diameter | Min. 2.99 in Max 7.8 in. (Max diameter is 6.29 in when included flange is installed) | |||
| Mechanical resolution | 0.005 mm | |||
| Programmable resolution | GP-GL: 0.1 / 0.05 / 0.025 / 0.01 mm, HP-GL™: 0.025 mm | |||
| Distance accuracy (*2) | Max. 0.1 mm or 0.1 % of plotted length | |||
| Repeatability (*2) | Max. 0.1 mm in plot up to 2 m (excluding the expansion and contraction of the media) | |||
| Minimum character size | Approx. 5 mm alphanumeric (varies depending on character font and media) | |||
| Mountable number of tools | 1 tool (cutting blade, plotting pen or pouncing tool) in standard; 2 tools (cutting blade and plotting pen) when second penholder (optional) is installed |
|||
| Blade types | Supersteel (0.9 mm or 1.5 mm diameter) | |||
| Pen types | Water-based fiber-tip pen, Oil-based ballpoint pen | |||
| Pouncing tool type | Steel pin 1.2 mm diameter, required optional pouncing tool (PPA 33-TP12) | |||
| Media types (*3) | Self-adhesive marking film (vinyl, fluorescent, reflective, high-intensity reflective film) up to 0.25 mm thick, Sandblast resist rubber up to 1 mm thick |
|||
| Compatible paper for pouncing | Regular paper from 0.06 to 0.13 mm thick | |||
| Cross-cutter | Built into the tool carriage | |||
| Perforation cutting | Supported (performed by force control) | |||
| Interface | USB 2.0(Full Speed), Ethernet 10BASE-T/100BASE-TX | |||
| Buffer memory | 2 MB | |||
| Command sets | GP-GL / HP-GL™ emulation (Set by menu or command, and selects from GP-GL, HP-GL™, or Auto select) | |||
| Condition settings | Dual configuration (save two (2) user settings with eight (8) separate condition settings per user) | |||
| Display | Graphic type LCD (3.7-inch, backlight) | |||
| Power source | 100 V to 240 V AC, 50 / 60 Hz | |||
| Power consumption | AC100-240 V, 50/60 Hz | |||
| Operating environment | 50 to 95 ºF, 35 to 75 % R.H. (non-condensing) | |||
| Guaranteed accuracy environment | 60 to 89 ºF, 35 to 70 % R.H. (non-condensing) | |||
| External dimensions (W x D x H) |
Approx. 50" x 28" x 48" (1270 x 711 x 1219 mm) |
Approx. 61.8" x 28" x 48" (1570 x 715 x 1219 mm) |
Approx. 73.6" x 28" x 48" (1870 x 711 x 1219 mm) |
Approx. 84" x 28" x 48" (2130 x 711 x 1219 mm) |
| Weight (*8) | 108 lbs. | 123 lbs. | 141 lbs. 178 lbs. /w take-up |
154 lbs. 195 lbs. /w take-up |
| Included software (*6) | Windows driver, Plotter controller, Graphtec Pro Studio (*5), Cutting Master 4, Graphtec Studio for Mac |
|||
| Compatible OS (*5) | Windows 10 / 8.1 / 7 Mac OS X 10.6 to 10.11 Mac OS 10.12 to 1.14 Graphtec Studio: 10.6 to 10.14 Cutting Master 4: 10.7-10.14 |
|||
| Safety | PSE, UL/cUL, CE mark) | |||
| EMC | VCCI Class A, FCC Class A, CE mark | |||
