xTool O1 Omni Dual Head Ink & Maintenance Tank Refill Set

Official xTool O1 Omni Dual Head Ink & Maintenance Tank Refill Set | Dual UV CMYKWV, Rigid White, Flexible White & Fluorescent Inks

Keep your xTool O1 Omni Dual UV Edition printing at full quality with the official Dual Head Ink & Maintenance Tank Refill Set. This complete starter-and-refill kit pairs the core CMYKWV colors with Dual Head–only specialty inks—Rigid White, Flexible White, Fluorescent Yellow, and Fluorescent Red—plus two UV Maintenance Tanks, so both Epson F1080 printheads stay supplied for color, underbase, neon effects, varnish, and Smart Cycle 2.0 care.

Engineered for the O1 Omni’s dual Epson F1080 printheads and closed cartridge system, this set is the correct consumable match for Dual UV / Dual Head workflows: direct UV on rigid and flexible goods, and UV DTF transfers (laminator required). The second head adds specialty channels (RW / FW / FR / FY); it is not a substitute for DT fabric ink.

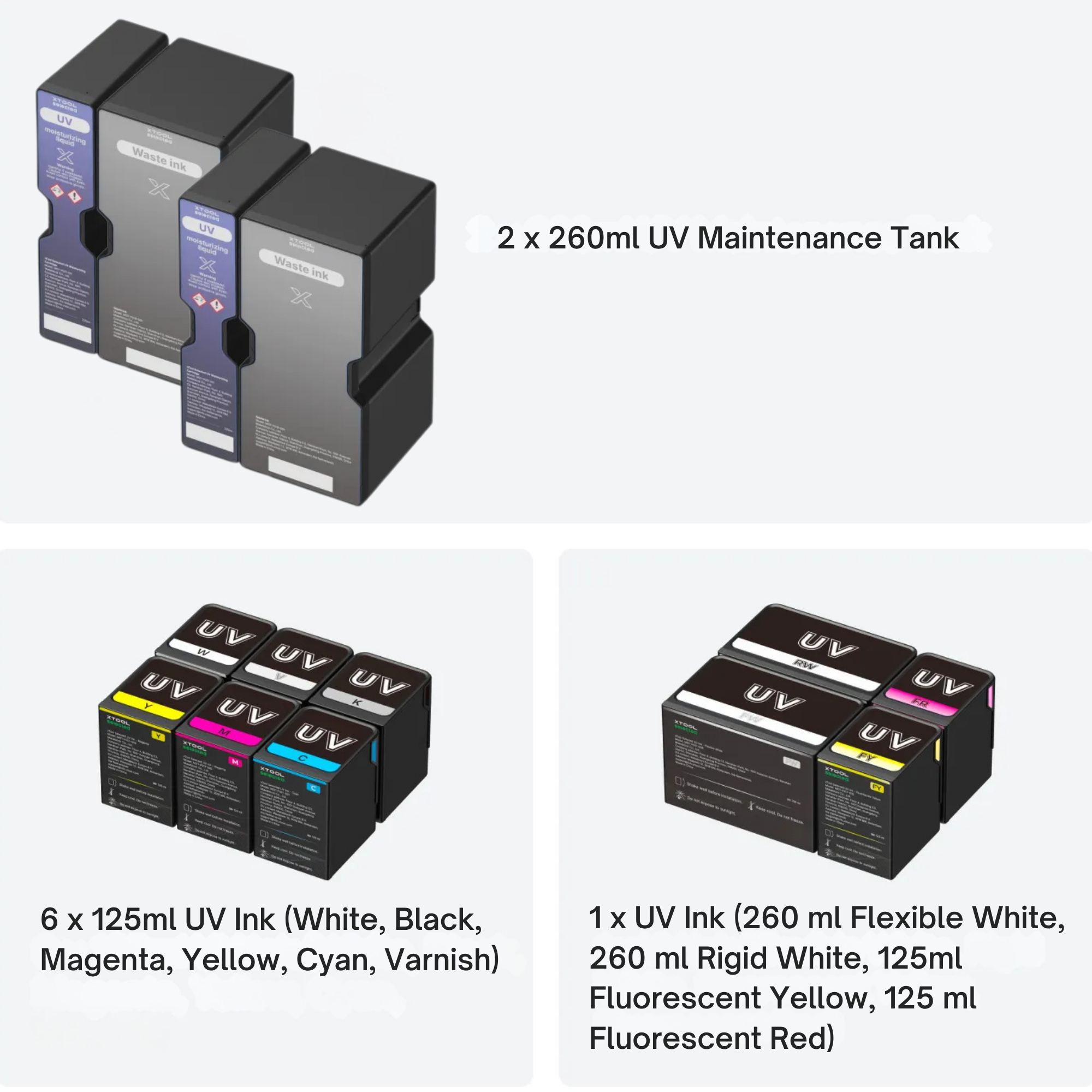

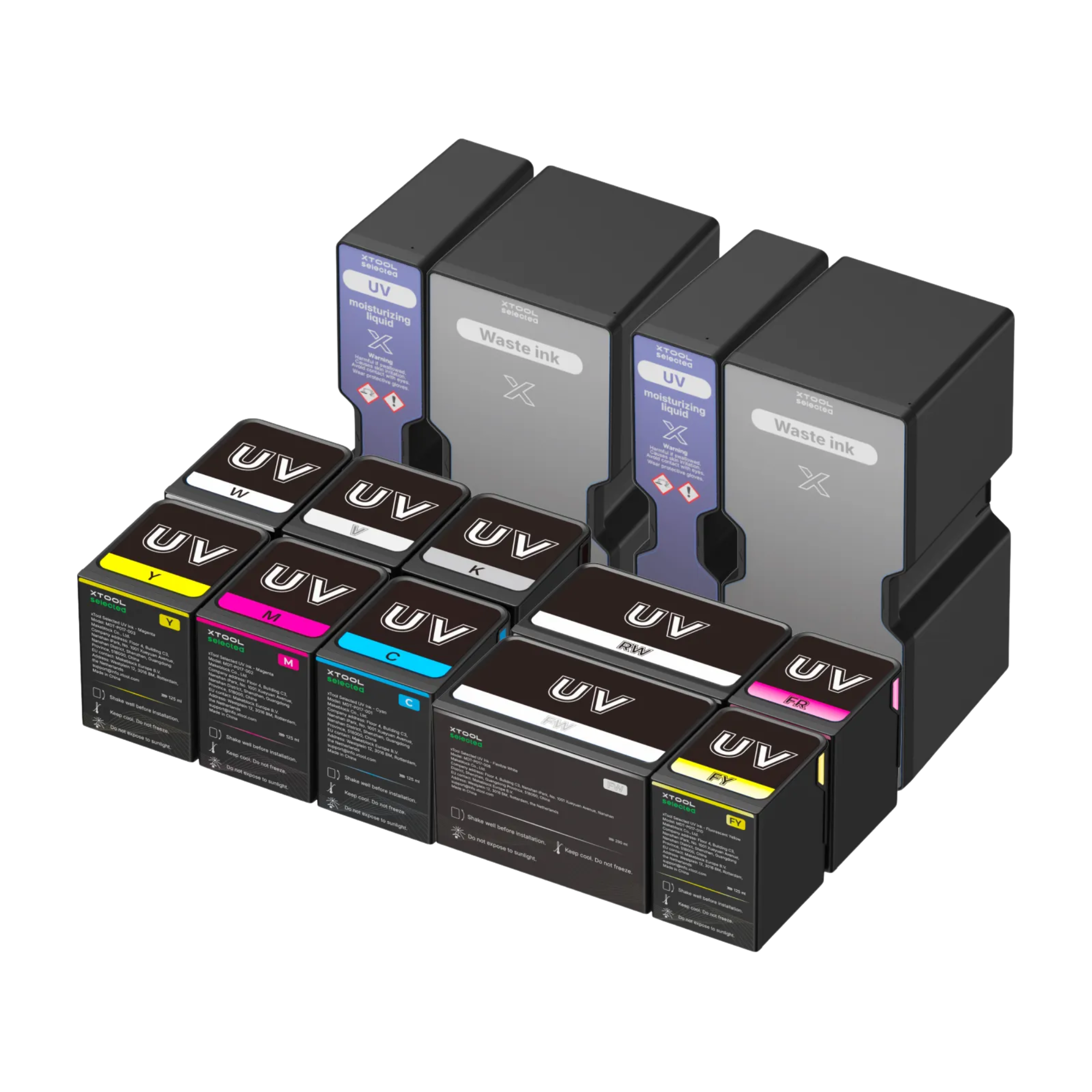

What’s Included

• UV Cyan — 125 ml
• UV Magenta — 125 ml
• UV Yellow — 125 ml
• UV Black — 125 ml
• UV White — 125 ml (standard white channel)
• UV Varnish (3-in-1) — 125 ml (gloss, matte, and foil-prep effects)
• UV Rigid White (RW) — 290 ml high-capacity cartridge
• UV Flexible White (FW) — 290 ml high-capacity cartridge
• UV Fluorescent Yellow (FY) — 125 ml
• UV Fluorescent Red (FR) — 125 ml
• UV Maintenance Tanks × 2 — each with a 260 ml moisturizing liquid cartridge + waste / used ink cartridge

Shake every ink cartridge well before install. Press large 290 ml white cartridges in with both hands until they click. Do not peel the protective film from the back of the moisturizing liquid cartridges. Match cartridge markings to the printer bay.

Why Genuine xTool Selected Ink Matters

The O1 Omni is a closed cartridge printer. Color profiles, droplet waveform, white-ink circulation, curing response, and Smart Cycle 2.0 were tuned as one system—not as a generic tank you can top off with any UV ink.

Factory-sealed xTool Selected UV ink stays protected from air until the moment you click it in. That cuts oxidation, pigment settling, and batch-to-batch color drift. Third-party ink can change opacity, curing, and flow enough to cause banding, satellite drops, clogged nozzles, and inconsistent white. xTool does not support third-party inks, and non-genuine fluid can affect printhead-related warranty coverage.

If you want the colors your ICC profiles expect and the maintenance system both Dual Head printheads depend on, use this official refill set.

What Each Cartridge Does

CMYK
Photo-grade process color at 720 × 1440 dpi for logos, gradients, photos, and product art on acrylic, wood, metal, glass, ceramic, phone cases, signage, and gifts.

Standard White
The core white channel on the primary UV head for everyday underbases and layered builds.

Rigid White (RW)
High-capacity white formulated for hard goods. Use it for heavier underbases and multi-layer white or relief work on acrylic, metal, glass, ceramic, and other rigid blanks—up to 7 mm (0.28") of raised texture.

Flexible White (FW)
High-capacity white formulated for materials that bend. Use it on leather, canvas, TPU patches, and similar flexible surfaces so the print is less likely to crack when the blank flexes. Flexible White is exclusive to the Dual UV Edition.

Fluorescent Yellow & Fluorescent Red
Spot neon colors for high-visibility graphics and details that glow under blacklight. On the O1 Omni these are special-effect channels, not a way to expand the CMYK gamut. Fluorescent inks are exclusive to the Dual UV Edition.

3-in-1 Varnish
One clear channel, three finishes:

• Gloss — wet-look highlights and protective topcoat
• Matte — soft, low-sheen contrast
• Foil stamping prep — print the dedicated foil profile, then transfer gold, silver, or holographic foil with a heated laminator

Use varnish as spot UV, full flood coat, or tactile relief without a second machine.

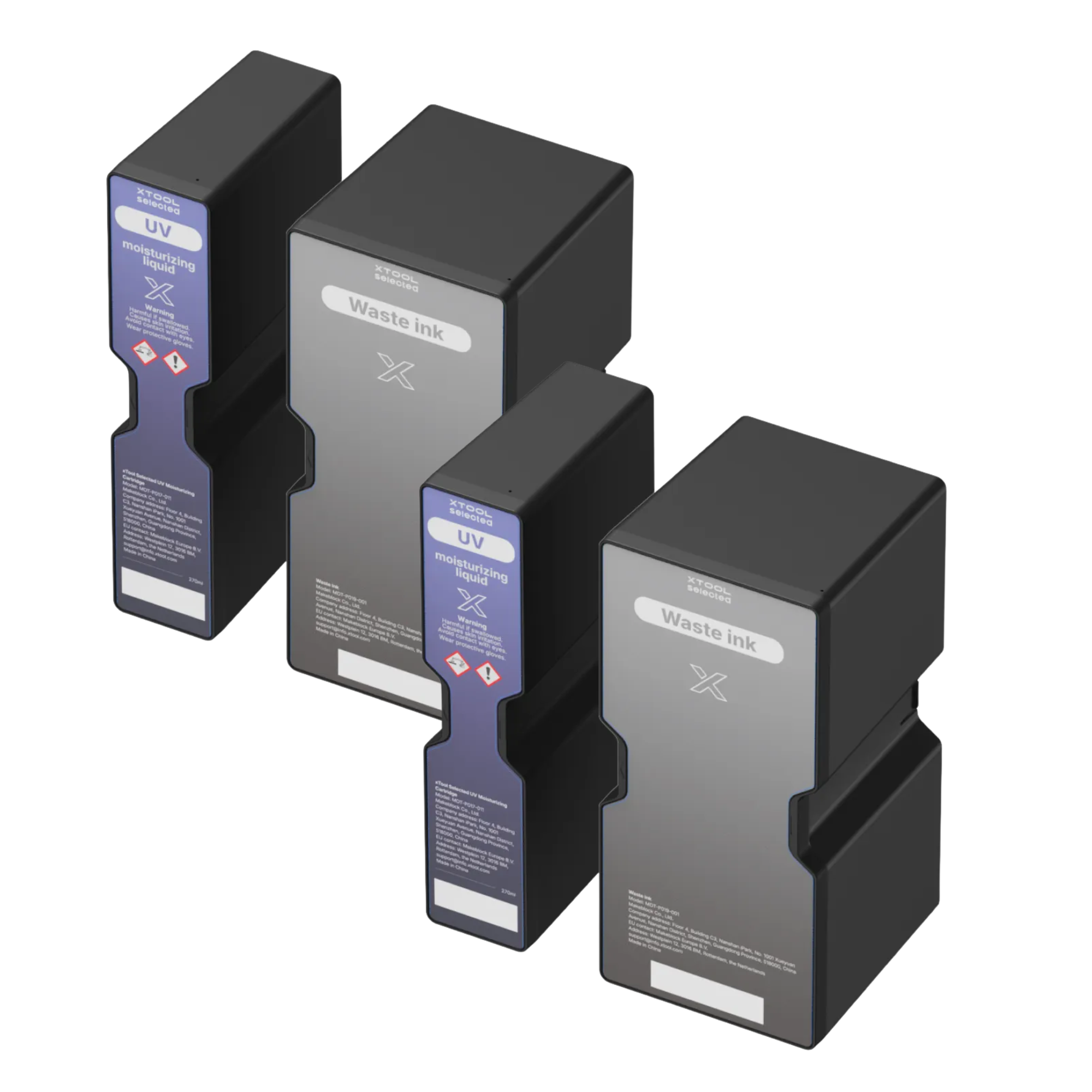

UV Maintenance Tanks: The Parts That Protect Both Heads

Ink is only half of uptime. Dual Head needs two UV Maintenance Tanks so Smart Cycle 2.0 can care for both printheads:

• 260 ml moisturizing liquid in each tank hydrates the printhead during idle, Sleep, and Vacation Mode so nozzles don’t dry out
• Waste / used ink cartridges collect fluid from Standard Clean, Deep Clean, and automatic maintenance

Leave the printer powered. Before a long break, enter Vacation Mode so the system can switch from ink to moisturizing fluid instead of leaving pigment sitting in the heads. Keep spare tanks on the shelf; a full waste cartridge or empty moisturizer on either head is a production stop, not a “print tomorrow” problem.

Compatibility

Designed for

• xTool O1 Omni Dual UV Edition (Dual Head / two Epson F1080 printheads, channels CMYKWV + RW/FW/FR/FY)

Not a substitute for

• Single UV / Single Head kits (no Rigid White, Flexible White, or fluorescent channels)
• UV + DT Fabric ink sets (no DT fabric CMYK or DT white)

Match the kit to the edition you own. Dual Head specialty inks will not run on a Single Head machine.

Typical substrates: acrylic, wood, coated metal, glass, ceramic, phone cases, awards, keychains, signage, leather, canvas, TPU patches, promotional hard goods, and UV DTF film.

Built for Smart Cycle 2.0

This refill set is formulated for the O1 Omni’s automated care loop:

• Auto white-ink stirring and active circulation
• Ceramic temperature control for consistent jetting
• Printhead moisture protection and Vacation Mode
• Humidity-aware cycling and multiple clean modes

Result: fewer surprise clogs, more predictable color, and less time spent on manual purge cycles—across both UV heads.

Safety & Indoor Use

xTool O1 UV ink is specified as non-reprotoxic and GREENGUARD® Gold certified, so it is intended for home studios and shared workshops when the printer’s filtration is used as directed. Always wear nitrile gloves when handling cartridges and waste ink. Follow xTool’s install videos for the dual-UV printhead model.

Specifications

Who This Set Is For

• Dual Head O1 Omni owners who need a full CMYKWV + specialty restock in one order
• Shops printing rigid goods and flexible materials such as leather and canvas
• Makers who want fluorescent spot colors, heavier rigid-white underbases, and 3-in-1 varnish
• Anyone who wants official ink and two fresh moisturizing / waste tanks so Smart Cycle 2.0 doesn’t stall mid-job

Stock Rigid White, Flexible White, and both maintenance tanks as carefully as CMYK. Those are the Dual Head items that quietly halt production when they run out.

Setup Tips

1. Confirm you have the Dual UV edition before ordering a Single Head or DT+UV kit.
2. Shake each ink cartridge thoroughly.
3. Seat 290 ml Rigid White and Flexible White with both hands until they click and stay down.
4. Install both moisturizing liquid and waste cartridges with the markings aligned; do not remove the rear protective film on the moisturizers.
5. Keep the machine plugged in so Smart Cycle 2.0 can stir white ink and run idle protection on both heads.
6. Run a nozzle check after a cartridge change; use Standard Clean before Deep Clean.
7. Replace either waste cartridge or moisturizer when the printer prompts—don’t wait for a failed job.

Why Buy From Swing Design

Order the official Dual Head set with confidence from xTool's largest dealer that stocks the matching O1 Omni printer, genuine xTool Selected ink, and the maintenance supplies your printhead actually needs. Available at Swing Design, xTool’s U.S. source for xTool O1 Omni printers, genuine inks, and accessories.

FAQ

Is this the official ink for the xTool O1 Omni Dual Head?
Yes. It is the genuine xTool Selected UV set matched to the Dual UV / Dual Head configuration: CMYKWV plus Rigid White, Flexible White, Fluorescent Yellow, and Fluorescent Red.

Does it include the maintenance tanks or only ink?
Both. You get the full Dual Head ink load plus two UV maintenance tanks (260 ml moisturizing liquid and a waste ink cartridge each).

Can I use this on a Single Head Omni?
The six standard UV colors are the same family, but Rigid White, Flexible White, and the fluorescent cartridges are Dual Head channels. Do not buy this kit for a Single UV machine.

Does Dual Head print garments?
No. Dual UV is still a UV printer. For DTG and DTF apparel you need the UV + DT Fabric Edition and that edition’s ink set.

Will third-party UV ink work?
xTool does not support third-party ink. Off-brand fluid can shift color, clog the F1080s, and put printhead warranty at risk.

What is 3-in-1 varnish?
One clear cartridge for gloss, matte, and foil-prep. Foil transfer is finished with heat and pressure on a compatible laminator, not by the varnish staying tacky on the bed.

Are fluorescent inks mixed into CMYK?
No. On the O1 Omni they are spot / special-effect colors. They are not used to expand the process-color gamut.

How often do I replace the maintenance tanks?
When a moisturizer is low, a waste cartridge is full, or the printer tells you to. Dual Head uses two tanks—keep at least one spare pair if you print regularly.

Do I need to shake white ink?
Yes—shake standard, rigid, and flexible white before install. After that, Smart Cycle 2.0 handles stirring and circulation while the printer stays powered.
