xTool O1 Omni Single Head UV Printer with Roll & Sheet Laminator
$0.00
$0.00
Demand is very high for the O1 Omni. Swing Design will have early access to inventory. Be the first to secure your printer. Estimated shipping August, subject to change.
xTool O1 Omni Single Head UV Printer with Roll & Sheet Laminator
Demand is very high for the O1 Omni. Swing Design will have early access to inventory. Be the first to secure your printer. Estimated shipping August, subject to change.
xTool O1 Omni Single UV Printer | Desktop A3+ UV Flatbed Printer with 7mm 3D Texture, Pixel-Scan Vision & Smart Maintenance
Unlock professional UV printing on virtually any rigid surface — with stunning 3D texture and zero-alignment headaches. The xTool O1 Omni Single UV Printer (Single Printhead Edition) brings premium, full-color UV printing to your desktop. Powered by a precision Epson F1080 printhead, groundbreaking Pixel-Scan™ Vision System, and intelligent Smart Cycle 2.0 maintenance, it delivers vibrant, durable, raised prints up to 7 mm thick on acrylic, wood, metal, glass, ceramic, and more — plus high-quality UV DTF transfers.
This is the accessible, high-performance entry into serious UV personalization. Finally, a desktop UV printer that produces sellable, professional results without the constant clogs, alignment frustration, or steep learning curve that plague other machines.
Why Makers, Small Businesses & Personalization Pros Choose the xTool O1 Omni Single UV
- Pixel-Scan™ Vision System – Perfect Placement Every Time The world’s first pixel-scan vision technology (1440 × 1200 dpi) combines CIS imaging with full-area laser sensing for true 1:1 object mapping and ±0.2 mm accuracy — with zero distortion. Print confidently on irregular shapes, pre-existing products, curved surfaces, or textured items. No more wasted prints or manual guesswork.
- Smart Cycle 2.0 – The Maintenance System That Actually Works Auto white ink stirring & active circulation, printhead moisture protection, 4 intelligent cleaning modes, Vacation Mode (switches to moisturizing liquid during long idle periods), and an industrial ceramic heating module for consistent performance even in cold environments. This dramatically reduces the #1 pain point of UV printers: clogs. Spend your time creating and selling, not unclogging.
- Stunning Professional Effects in a Single Pass Achieve eye-catching 7 mm (0.28") raised 3D embossed texture — thicker and more dramatic than most competing desktop UV printers. The 3-in-1 varnish channel delivers matte, gloss, or premium foil effects alongside vibrant CMYK + White. UV-cured prints are instantly dry, scratch-resistant, and water-resistant on rigid surfaces.
- Large A3+ Format in a True Desktop Footprint Massive 13" × 16.5" (330 × 420 mm) print area handles bigger projects, batches, signage, and multiple items at once — while the compact 28.1" × 14.7" × 18.4" body fits beautifully in home studios, workshops, or small retail spaces.
- AI-Powered Design & Seamless xTool Ecosystem One-click AI generators turn ideas into effects (stained glass, embroidery looks, oil painting styles, and more). Real-time previews, auto-cutout, and intelligent print parameters. Works perfectly with your existing xTool lasers for hybrid print-then-cut or print-then-engrave workflows. App remote control and cleaning included.
Endless High-Margin Applications
Turn ideas into profitable custom products in minutes:
- Personalized tumblers, water bottles, travel mugs & drinkware (add rotary attachment)
- Custom phone cases, tech accessories, wallets & keychains
- Branded corporate gifts, awards, plaques & signage
- Unique home décor — coasters, trays, frames, tiles & wall art
- UV DTF transfers & decals for hard goods or apparel (add laminator)
- Wood signs, acrylic displays, metal tags, glassware, ceramics & more
Whether you’re a hobbyist turning passion into profit or a growing maker business expanding your product line, the O1 Omni Single UV delivers the quality and reliability that commands premium prices.
Technical Specifications – Single UV Edition
- Printhead: 1× Epson F1080
- Resolution: Up to 720 × 1440 dpi
- Maximum Print Area: 13" × 16.5" (330 × 420 mm) – A3+
- Maximum Embossed/3D Texture Height: 7 mm (0.28")
- Ink Configuration: CMYK + White + 3-in-1 Varnish (matte / gloss / foil effects); 125 ml cartridges
- Vision System: Pixel-Scan™ (1440 × 1200 dpi) with ±0.2 mm positioning accuracy
- Maintenance: Smart Cycle 2.0 – auto stirring/circulation, moisture protection, 4 cleaning modes, Vacation Mode, ceramic heater
- Software: Windows & macOS compatible; xTool Creative Space + Atomm Craft AI integration
- Connectivity: USB + mobile app remote control & cleaning
- Dimensions (Main Unit): 28.1" × 14.7" × 18.4" (714 × 374 × 468.5 mm)
- Weight: 89.5 lbs (40.6 kg)
- Certifications: GREENGUARD certified inks, non-reprotoxic
- Warranty: 12 months
Ready to Add Pro UV Printing to Your Workshop?
The xTool O1 Omni Single UV Printer isn’t just another piece of equipment — it’s a powerful new revenue stream and creative advantage for your business. With its precise Pixel-Scan vision system, dramatically reduced maintenance, and the ability to produce up to 7mm of raised 3D texture, you can quickly create high-margin personalized products like custom tumblers, corporate gifts, home décor, and UV DTF transfers with professional results and far less frustration. Whether you’re expanding your current offerings or bringing new capabilities in-house, this machine helps you move faster and more profitably. Backed by Swing Design’s expert support and available now at special preorder pricing with exclusive launch perks, the xTool O1 Omni Single UV Edition gives you the tools to strengthen your business and stand out from the competition.

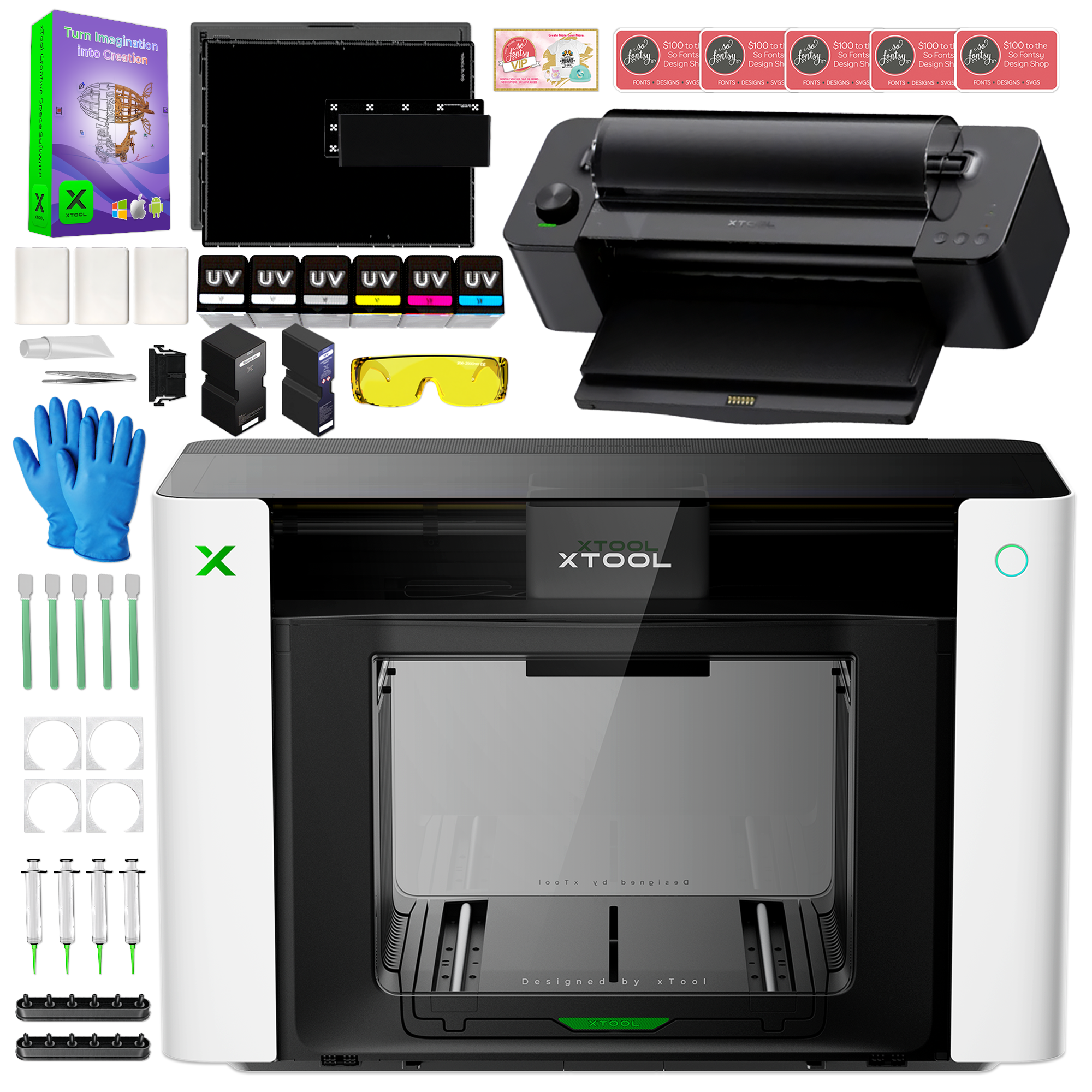

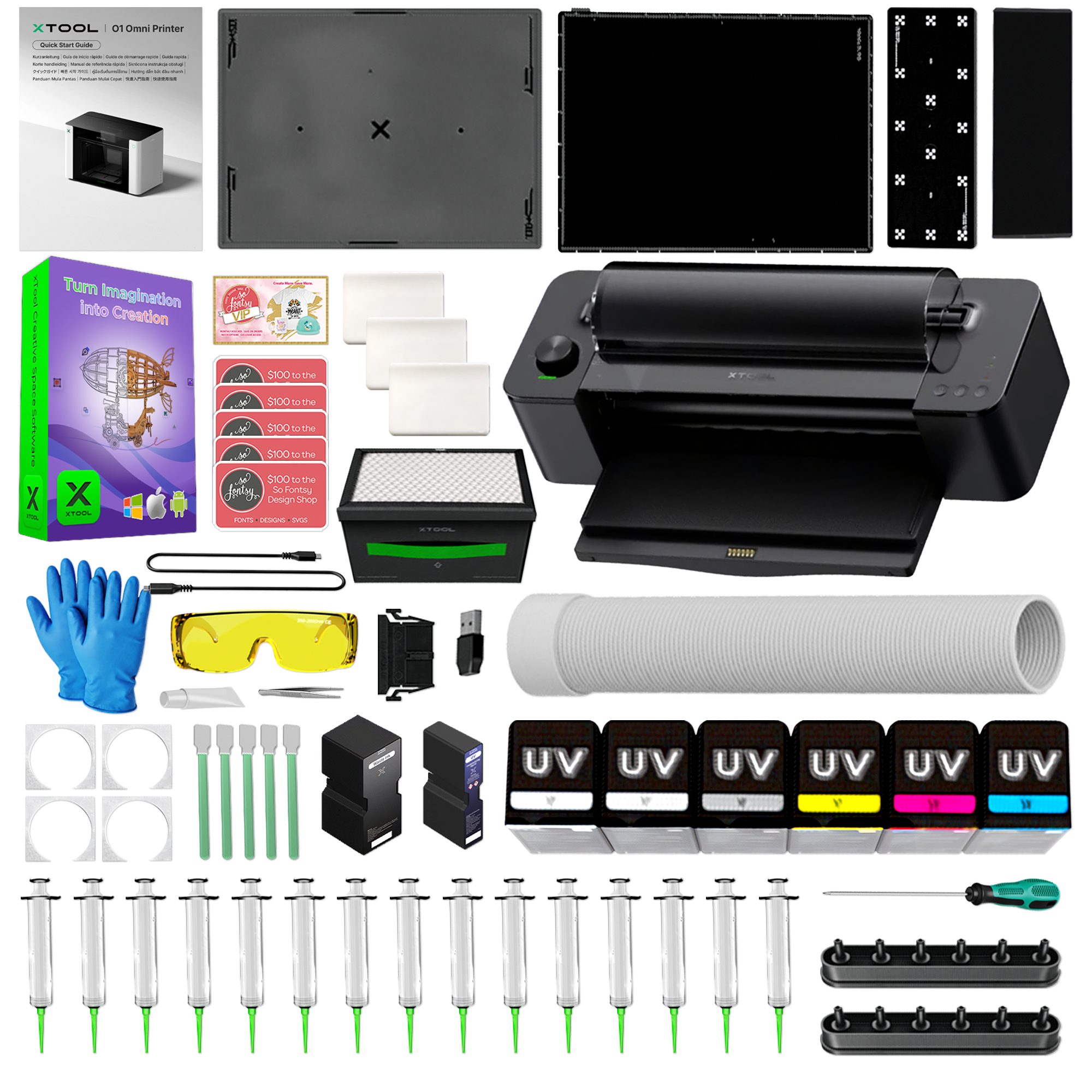

xTool O1 Omni Single Head UV Printer Bundle Includes:
- xTool O1 Omni Single Head UV DTF & Direct to Object Printer
- O1 Omni Laminator Attachment for Direct to Film Rolls & Sheets
- Full CMYK UV Ink Cartridge Set
- Rigid White Ink Cartridge (For Hard Goods)
- Varnish Cartridge
- UV Moisturizing Liquid Cartridge
- Standard Flatbed Platform Baseplate
- Mini Flatbed Platform Baseplate
- Standard Reusable Adhesive Platform Mat
- Mini Reusable Adhesive Platform Mat
- xTool Studio Workspace Software
- Ink Waste Cartridge
- Air Filter
- Safety Glasses
- Air Exhaust Pipe
- Nitrile Gloves
- Lubricating Oil
- Screwdriver & Tweezers
- 4 Ink Absorber Foam Pads
- Cotton Cleaning Swabs
- 3 Sample Fridge Magnet Blanks
- 11 Ink Extractors
- 2 Ink Tube Plugs
- Spare Ink Scraper
- Power Cable & USB Cable
- $500 in Design Rewards from So Fontsy - SVGs, Laser Files, Commercial Use (Please note that the card is valid for the card redemption portion of the site)
- 1st Month Membership to SoFontsy VIP Enterprise
- Quick Start Guide & Safety Instructions
- Exclusive Lifetime U.S. Based O1 Omni Product Support
- 1 Year xTool Trouble Free Warranty
Why Buy the xTool O1 Omni from Swing Design?
As xTool’s largest authorized U.S. dealer and a trusted partner for thousands of makers and small businesses, we stand behind every machine with expert support, training resources, competitive bundles, and fast shipping. Pair the O1 Omni with your xTool lasers, heat presses, or embroidery equipment for a complete, integrated creative ecosystem.
Flexible financing available through Affirm (0% APR options), Clicklease and other options to fit your need.
Shop Now | Build Your Bundle | Contact Our Team for Recommendations
Direct from Swing Design – your trusted source for premium xTool equipment and maker supplies. Questions? Our knowledgeable team is here to help you choose the right configuration and accessories for your goals.
** PLEASE NOTE THAT YOU CAN NOT USE FLEXIBLE WHITE INK WITH THE SINGLE HEAD UV PRITNER. THE SINGLE HEAD CAN ONLY PRINT ON HARD FLAT SURFACES OR TRANSFER TO FLAT HARD SURFACES VIA DIRECT TO FILM TRANSFER SHEETS. FOR DUAL USE OF FLEXABLE INK & RIGID INK, YOU WILL WANT THE DUAL HEAD UV PRINTER
XTOOL O1 OMNI UV PRINTER USER MANUAL
XTOOL O1 OMNI UV PRITNER USERS GROUP
xTool O1 Omni • Single UV Edition
Professional UV Personalization for Hard-Surface Products
A focused entry into the O1 Omni platform for direct UV printing and UV DTF decal production on hard-surface products.
1 Epson F1080 PrintheadUV Direct + UV DTFCMYKWV InkUp to 7 mm Texture
The Focused UV Choice
Start With the Products Your Customers Already Want
The Single UV Edition is designed for makers, personalization businesses, and growing shops focused on rigid products. Print directly on popular hard materials or create UV DTF decals for items that are curved, irregular, or difficult to place under a flatbed printhead.
- Acrylic signs, plaques, awards, and branded displays
- Wood, glass, ceramic, metal, and compatible plastic products
- Phone cases, promotional goods, gifts, and small-batch merchandise
- UV DTF transfers for tumblers and irregular hard-surface blanks when paired with the laminator
Best fit: Choose this edition when your business is centered on hard goods and you do not need fluorescent UV effects, flexible-white UV ink, DTG, or DTF apparel production.
Why This Edition
High-Value Capabilities, Streamlined Configuration
Direct UV Printing
Apply cured color, white, and varnish directly to compatible rigid materials for finished products that can move from printer to sale with minimal extra handling.
UV DTF Decals
Create transferable graphics for curved and irregular surfaces. UV DTF capability is part of the UV platform, with the laminator required to complete the decal workflow.
CMYKWV Output
Produce full-color designs with white underbase and varnish effects, including matte, gloss, and foil-style creative finishes.
Texture & Finish
Give Every Print a Dimensional Edge
Raised texture and varnish work together so a finished piece feels as premium as it looks.
Up to 7 mm Texture
Build raised layers for tactile logos, dimensional artwork, textured details, and premium embossed effects.
Varnish Effects
Create matte, gloss, and foil-style finishes using the varnish capabilities supported by the selected edition and workflow.
Shared Omni Platform
Smarter Tools Built Into Every Print
Every O1 Omni edition is built around the same core platform: high-resolution output, intelligent object positioning, app-based controls, an automated maintenance system, and software that keeps the whole process moving.
Remote Controls
Use supported app functions for remote cleaning and machine control as part of the Omni maintenance workflow.
Built for the xTool Ecosystem
Pair the O1 Omni with a compatible xTool laser to move between cutting, engraving, and printing in one connected workflow.
Pixel-Scan™ Vision
Captures the work area at a 1:1 scale to reduce the perspective distortion associated with traditional overhead camera placement.
One-Click AI Generator
Generate print-ready artwork variations inside xTool Creative Space, so a design idea can move to output without leaving the software.
xTool Creative Space Software
Design, preview, and manage every print job from one desktop application built around the Omni's positioning and maintenance tools.
What You Can Make
Turn Everyday Blanks Into Premium Products
The Single UV Edition is especially well suited to product lines that benefit from personalization, short runs, detailed color, white ink, and premium surface effects.
Home & Events
Signs, décor, ornaments, place cards, wedding pieces, keepsakes, and photo gifts.
Business & Branding
Awards, plaques, labels, displays, promotional items, packaging accents, and branded merchandise.
Personalized Gifts
Phone cases, frames, coasters, small accessories, drinkware graphics, and custom keepsakes.
UV DTF Applications
Transfers for compatible curved, uneven, or awkwardly shaped hard goods.
Smart Cycle 2.0 & Shop-Friendly Design
A White-Ink System Built for Real Shops
White ink is essential for vivid output on dark and transparent materials, but it also requires active care. Smart Cycle 2.0 brings circulation, stirring, temperature management, humidity-aware cycling, and cleaning modes into one coordinated system — and the same enclosed design keeps daily operation cleaner and more predictable.
- Automatic white-ink stirring and circulation help keep pigments moving through the ink path.
- Closed cartridges reduce unnecessary air exposure and contamination.
- Ceramic heating supports target ink temperatures of approximately 30°C for UV ink and 25°C for DT ink, helping keep print quality consistent even in cooler shop environments.
- Humidity sensing allows maintenance behavior to respond to the surrounding environment.
- Standard, deep-clean, sleep, and wake-up modes provide different levels of care and help prevent clogs between jobs.
- Vacation Mode is designed to protect the ink path during longer idle periods by using moisturizing liquid, so the machine is ready to print after extended downtime.
- Air filtration helps manage odor and airborne particles during UV curing, supporting a more comfortable indoor working environment.
- Sealed ink handling — closed cartridges and a sealed circulation path reduce direct ink exposure during normal operation and routine maintenance.
Ink matters: xTool cautions against third-party ink because color profiling, waveform compatibility, white-ink stability, and warranty coverage may be affected.
Auto White-Ink Circulation
4 Cleaning Modes
Consistent Prints, Even in the Cold
Ready After Long Idle
Technical Specifications
Single UV Edition at a Glance
Every core spec for the focused, hard-goods configuration of the O1 Omni platform.
| Category | Single UV Edition Shop ↗ | Dual-Head UV Shop ↗ | UV + DT Fabric Shop ↗ |
|---|---|---|---|
| Best For | Focused rigid personalization | Advanced UV effects | Rigid goods + apparel |
| Primary Use | Rigid-goods UV printing and UV DTF decal production | Advanced UV direct printing and UV DTF with specialty inks | Rigid-goods UV printing plus DTG and DTF apparel production |
| Printheads | 1 × Epson F1080 | 2 × Epson F1080 | 2 × Epson F1080 |
| Ink Configuration | CMYKWV | CMYKWV plus rigid white, flexible white, fluorescent red, and fluorescent yellow | UV: CMYKWVDT; Fabric: CMYKWW |
| Supported Workflows | UV Direct; UV DTF with laminator | UV Direct; UV DTF with laminator | UV Direct, UV DTF, DTG, and DTF |
| Fluorescent Support | No | Yes — the only edition with fluorescent color | No |
| Flexible White Ink | No | Yes | No |
| Lenticular Motion Effects | No | Yes | No |
| DTG / DTF Apparel | No | No | Yes |
| Fabric Focus | Not applicable | Not applicable | DTG for cotton; DTF for polyester, nylon, blends |
| DTG Platen | No | No | Included |
| Fabric Ink | Not applicable | Not applicable | OEKO-TEX certified DT fabric ink |
| Up to 7 mm Texture | Yes | Yes | Yes |
| Varnish Effects | Yes | Yes | Yes |
| Print Resolution | 720 × 1440 dpi | 720 × 1440 dpi | 720 × 1440 dpi |
| Vision Resolution | 1440 × 1200 dpi | 1440 × 1200 dpi | 1440 × 1200 dpi |
| Positioning Accuracy | ±0.2 mm | ±0.2 mm | ±0.2 mm |
| Operating Systems | macOS and Windows | macOS and Windows | macOS and Windows |
| Machine Weight | Approximately 89.5 lb | Approximately 90.7 lb | Approximately 90.7 lb |
| App Remote Cleaning / Control | Supported | Supported | Supported |
| Smart Cycle 2.0 | Shared platform feature | Shared platform feature | Shared platform feature |
| Not Included | No DTG, DTF apparel, fluorescent colors, or flexible-white UV package | No DTG or DTF apparel workflows | No fluorescent or flexible-white UV package |
| Future Apparel Upgrade | No | No | Already included |
Expand the Workflow
One Platform, Multiple Production Paths
Optional accessories extend the Omni beyond flat direct printing. Build the setup around the products you plan to sell instead of forcing every business into the same workflow.
Rotary Printing
Use supported rotary accessories and 3D model preview tools to position artwork on mugs, tumblers, bottles, and other cylindrical objects.

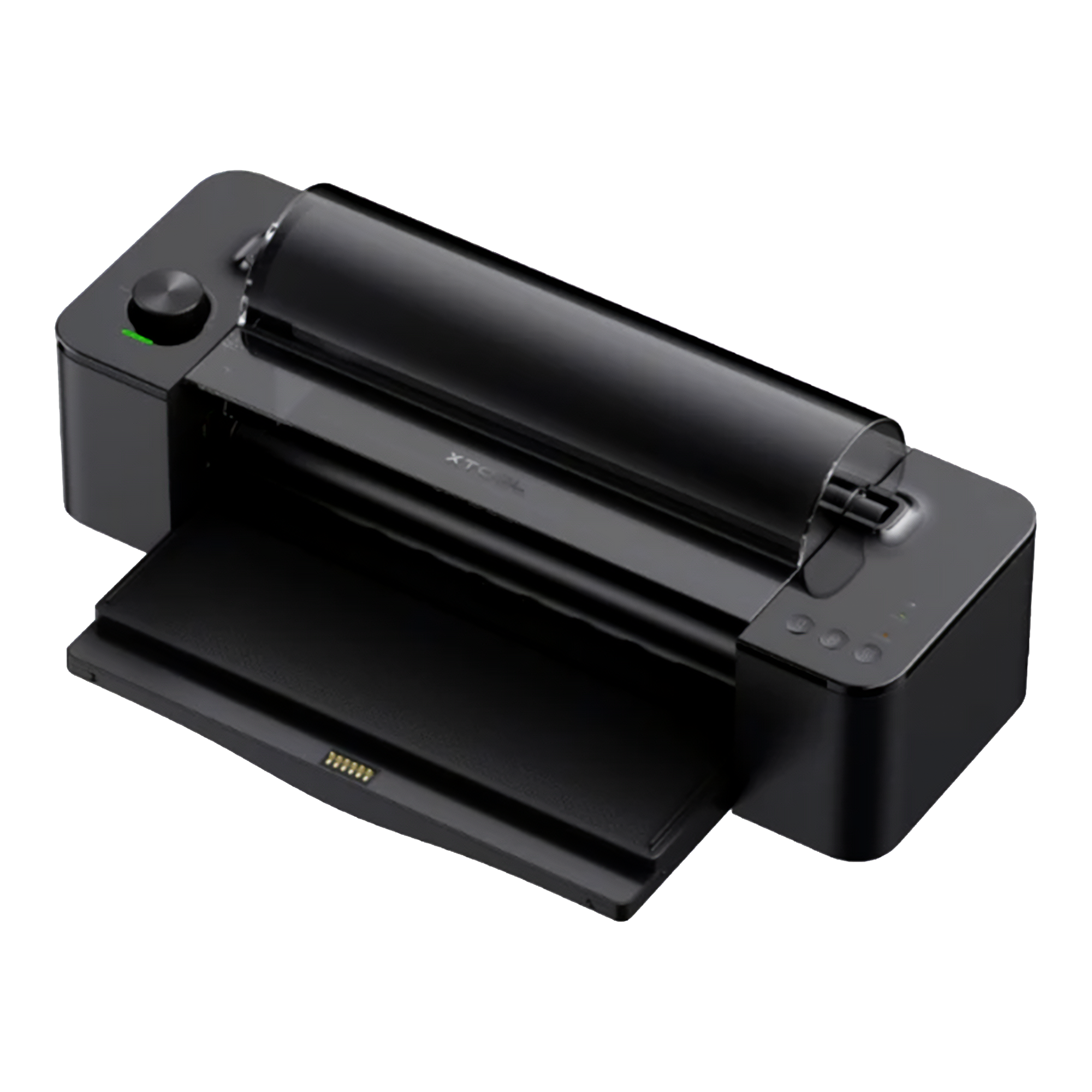

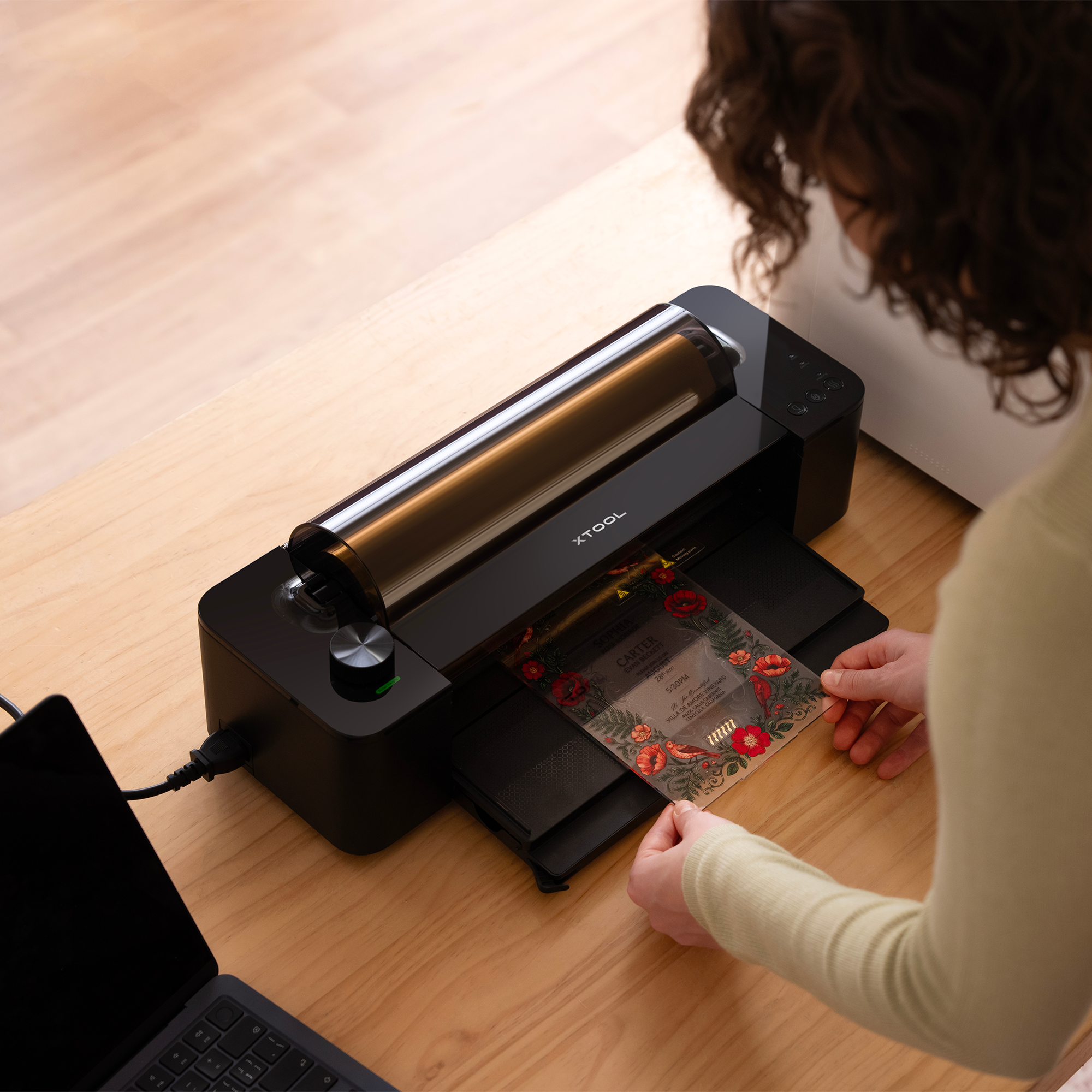

UV DTF Laminating
The laminator is required for UV DTF decal production, allowing printed graphics to be transferred to curved and irregular hard goods.
Roll-Fed Production
Optional feeding accessories support extended UV DTF output and continuous printing on compatible vinyl or canvas media.
Premium Foiling
Add metallic, gold, holographic, and other foil-style effects to compatible premium applications.
Frequently Asked Questions
Know Before You Choose
Can the Single UV Edition print shirts?
No. This edition supports UV Direct and UV DTF hard-goods workflows. It does not include DTG or DTF fabric printing.
Can it make UV DTF decals?
Yes. UV DTF is supported, but the laminator is required to complete the transfer-film workflow.
Can I add apparel printing later?
xTool states that UV-only configurations cannot later be upgraded into the UV + DT Fabric configuration.
Does it support fluorescent ink?
No. Fluorescent red and yellow are features of the Dual-Head UV Edition.
What is this edition best for?
It is best for signs, awards, gifts, promotional items, hard-surface personalization, and UV DTF applications where apparel is not part of the plan.
Does it include varnish effects?
Yes. The CMYKWV configuration supports varnish-based matte, gloss, and foil-style effects.
How does it handle white ink maintenance?
It uses the Smart Cycle 2.0 framework with circulation, stirring, temperature management, cleaning modes, humidity sensing, and Vacation Mode features described by xTool.
Build a Hard-Goods Product Line With Less Workflow Overhead
The Single UV Edition keeps the Omni experience focused on profitable rigid personalization and transferable UV graphics.
Choose Single UV
