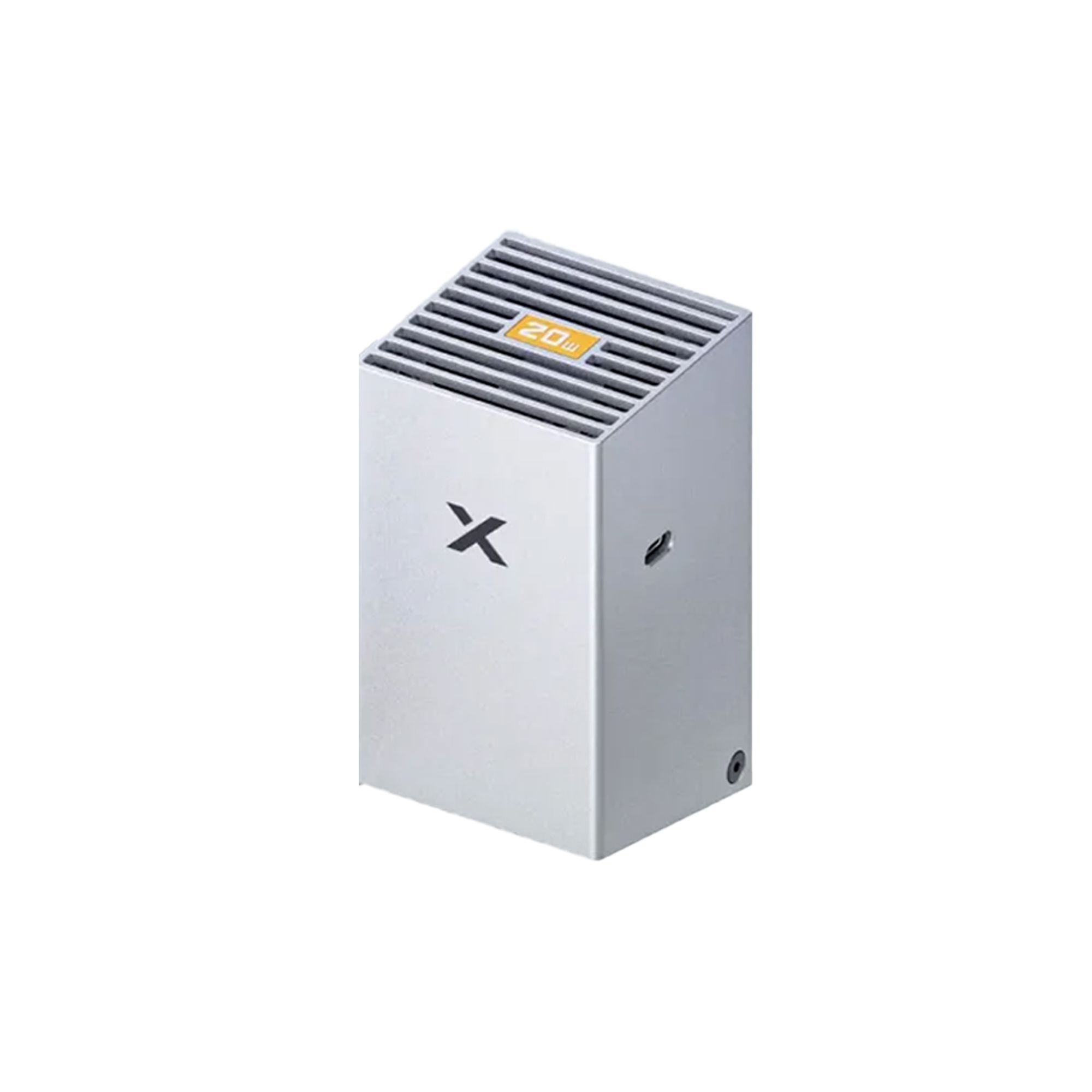

xTool M2 20W 455nm Diode Laser Module – High-Power Upgrade for Faster Cutting & Engraving on M2 Color Craft

Supercharge your xTool M2 Color Craft laser with the xTool M2 20W 455nm Diode Laser Module – the ultimate power upgrade that takes your machine from good to pro-level performance. If you’re currently running the 10W laser head, switching to this 20W module delivers up to 200-250% higher work efficiency, dramatically faster engraving speeds, and the ability to cut thicker materials in a single pass.

Double the optical power means you’ll finish projects in a fraction of the time, tackle thicker stock without multiple passes, and boost productivity for small-batch production or high-volume custom orders — all while keeping the precision and ease of the modular M2 Color Craft system.

Why Upgrade from 10W to the xTool M2 20W Diode Laser Module

• 200-250% Faster Workflow – Cut and engrave at significantly higher speeds compared to the 10W module, slashing project time and increasing daily output.

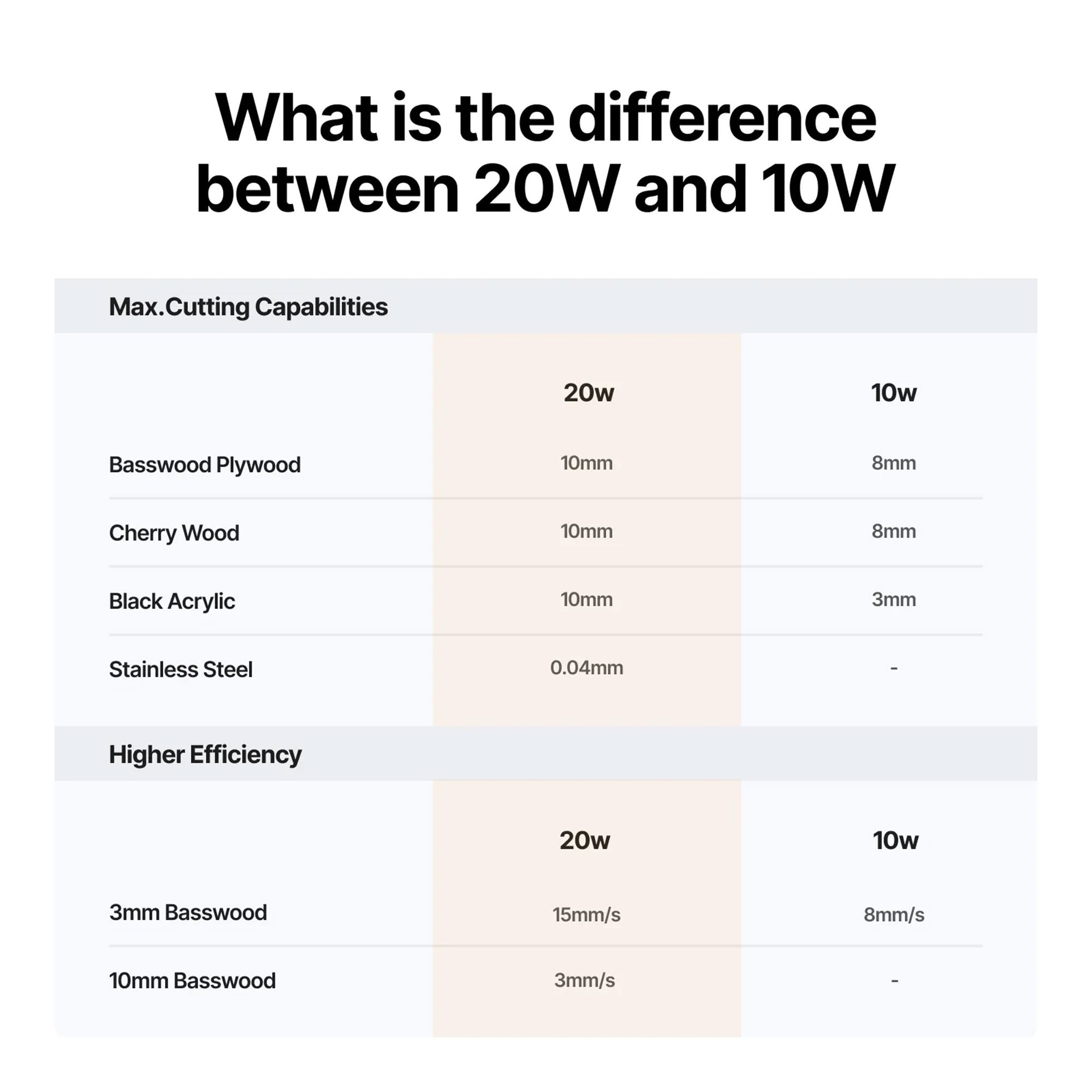

• Thicker Material Cutting in One Pass – Effortlessly handles 10mm basswood plywood, 8mm solid wood, 5mm acrylic, and more in a single pass (where 10W often needs 2–4+ passes).
• Deeper, Higher-Contrast Engraving – Richer results on wood, leather, acrylic, anodized aluminum, and coated metals with less time and heat buildup.

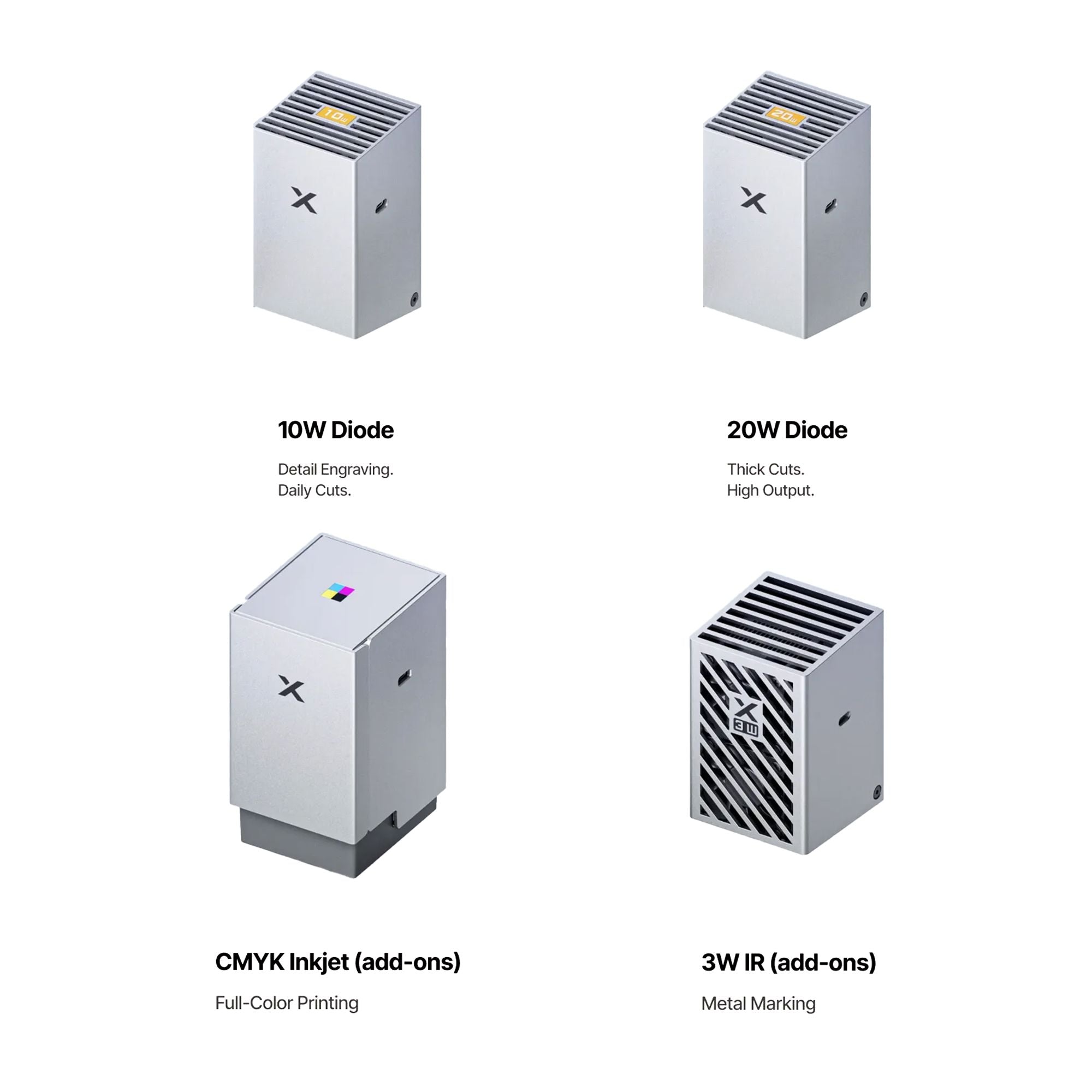

• Tool-Free MagSwap™ Quick Swap – Instantly switch between your 10W, 20W, 3W IR, or CMYK inkjet modules in seconds — no tools, no downtime.
• Professional-Grade Precision – 0.06 mm × 0.08 mm ultra-fine spot size delivers crisp details, sharp text, and intricate designs while maintaining the speed advantage.
• Perfect Companion for Full-Color Crafting – Pair with the CMYK inkjet module for vibrant print-then-cut workflows and the rotary tool for 360° cylindrical projects.

Perfect For

• High-volume Etsy shops, small businesses, and makers needing faster throughput
• Cutting thicker woods, acrylics, and craft materials with clean edges
• Detailed engravings on signs, gifts, jewelry boxes, coasters, and home décor
• Production runs of personalized products, prototypes, and custom orders

Key Specifications

• Laser Type: 455nm Blue Diode Laser
• Optical Power: 20W (double the power of the 10W module)
• Spot Size: 0.06 mm × 0.08 mm
• Max Cutting Thickness: Up to 10mm basswood / 8mm solid wood in 1 pass
• Compatibility: xTool M2 Color Craft Laser series (10W/20W models)
• Installation: Magnetic tool-free MagSwap™ quick-swap design
• Software: Fully supported in xTool Studio / XCS with smart presets

Stop settling for slower speeds and limited thickness. The xTool M2 20W 455nm Diode Laser Module is the smartest, most powerful upgrade you can make to your M2 Color Craft — delivering faster, deeper, and more efficient laser cutting and engraving without sacrificing quality.

Compatible exclusively with the xTool M2 Color Craft Laser series.

Order your xTool M2 20W Diode Laser Module today and experience the massive productivity boost of going from 10W to 20W. Turn your M2 into a high-speed, high-power crafting powerhouse ready for any project!
