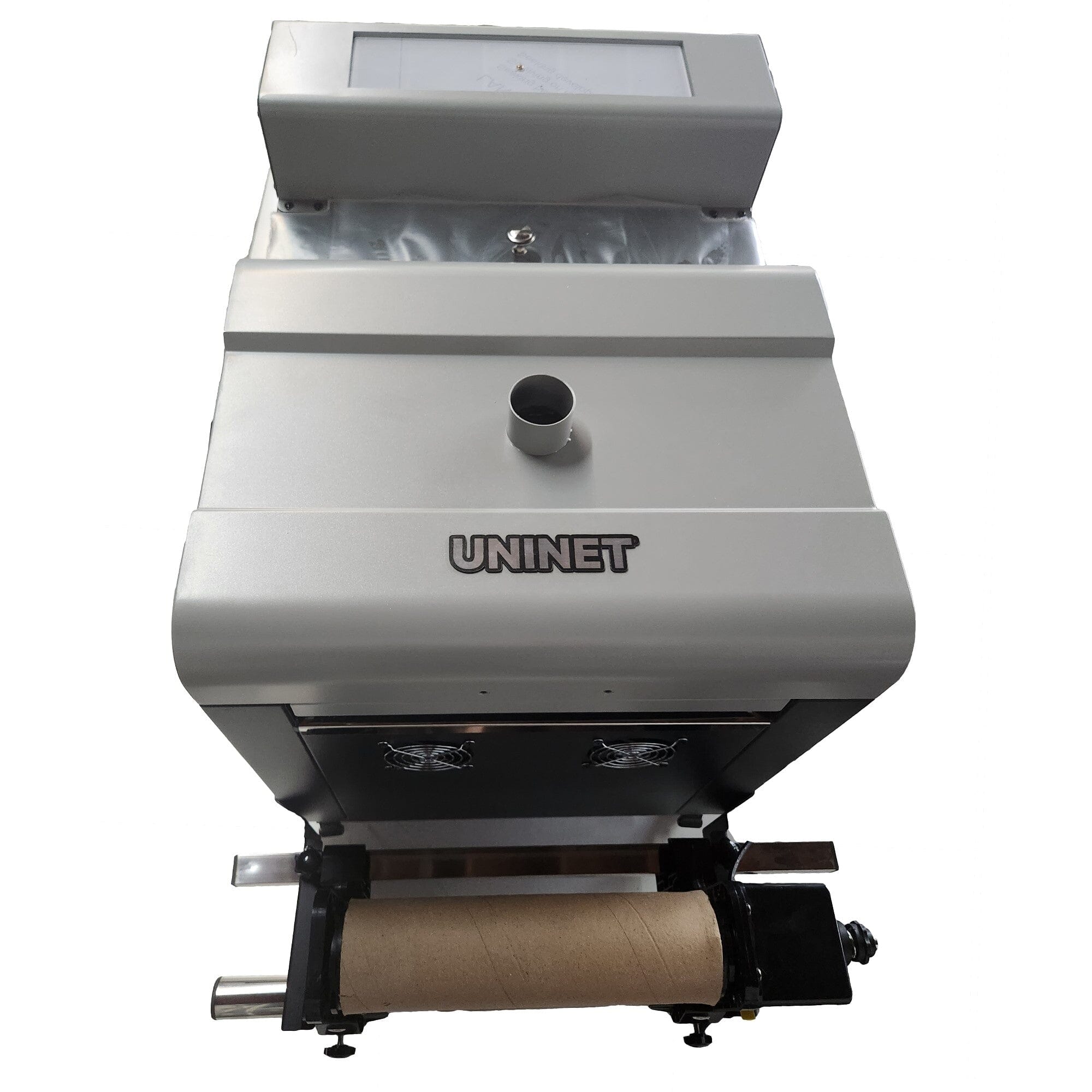

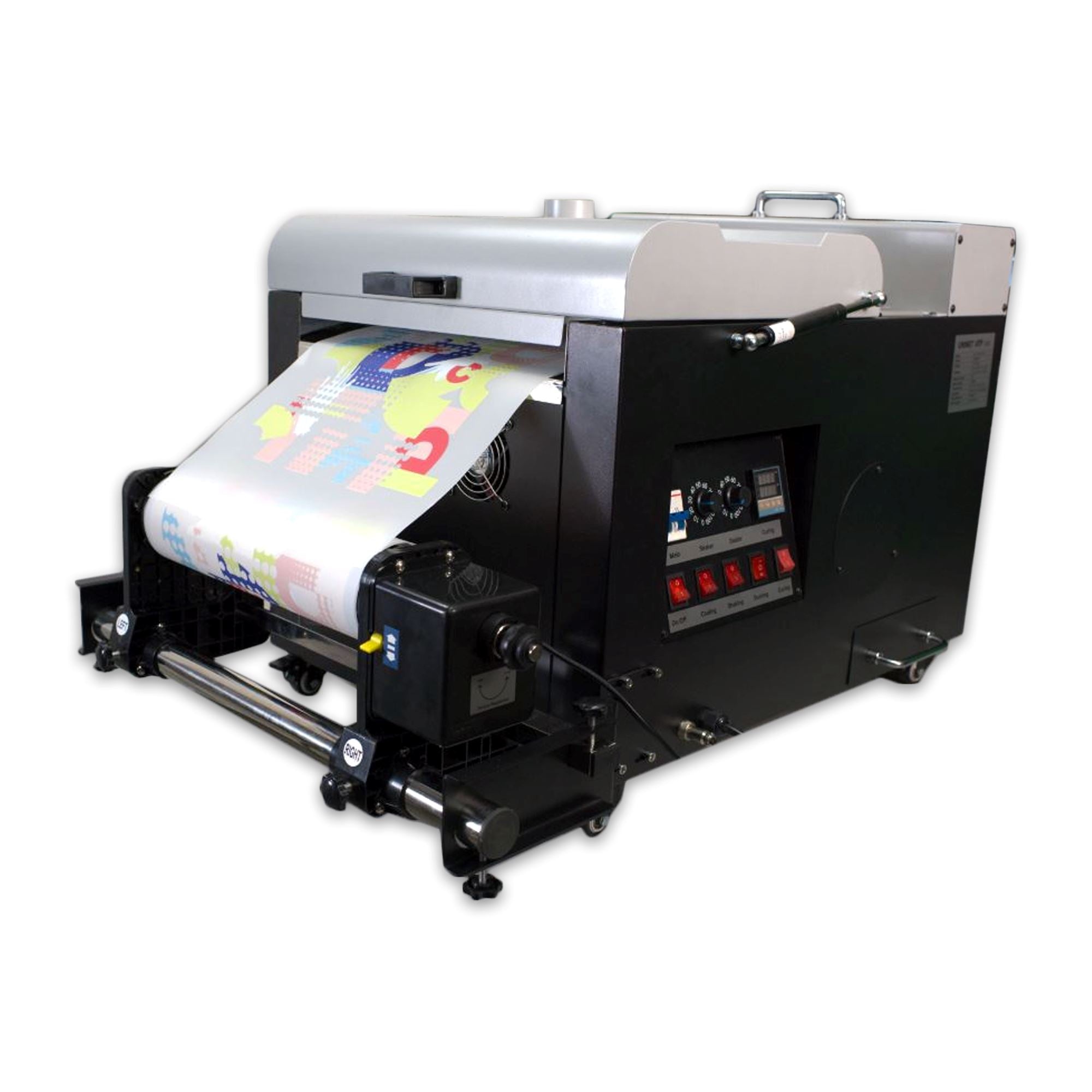

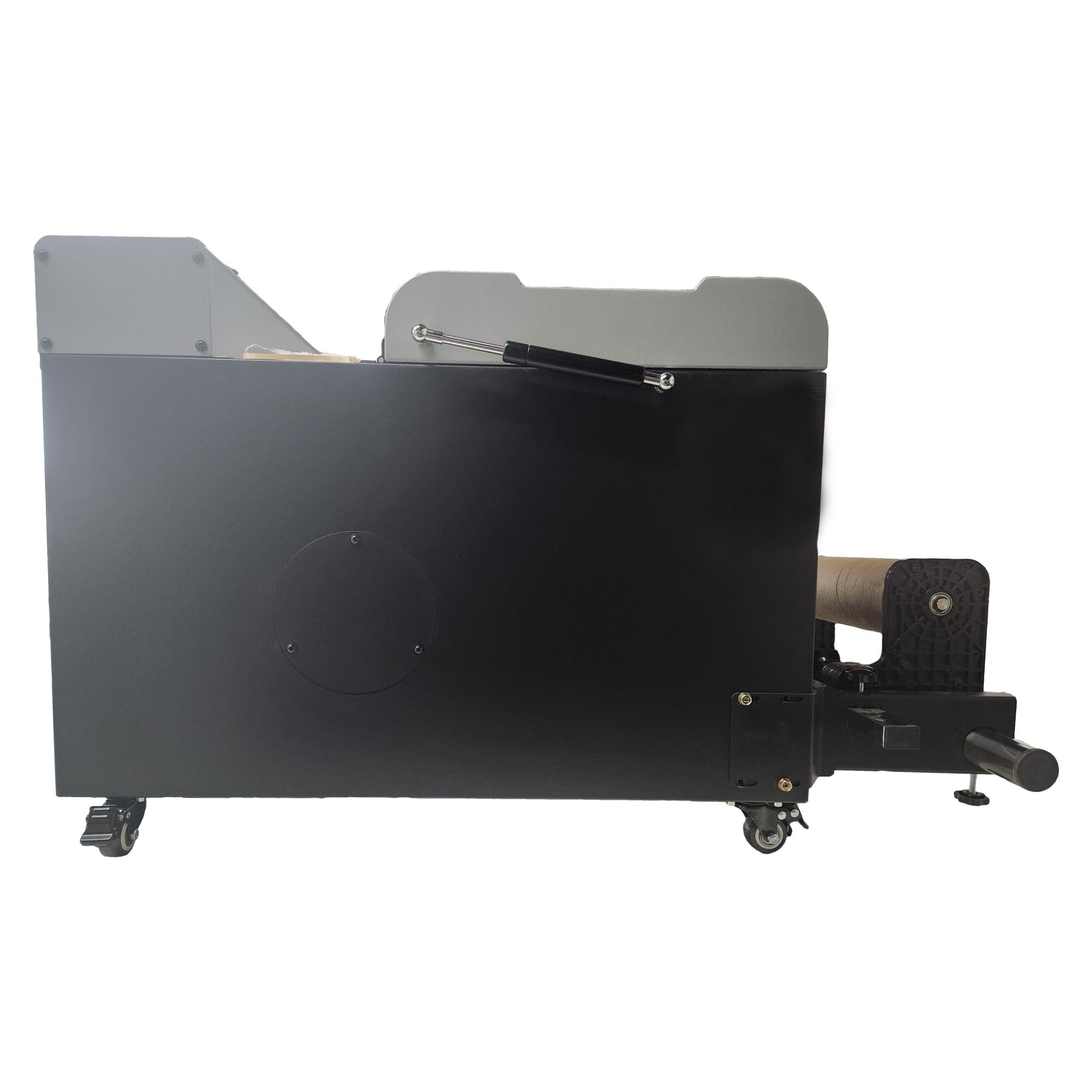

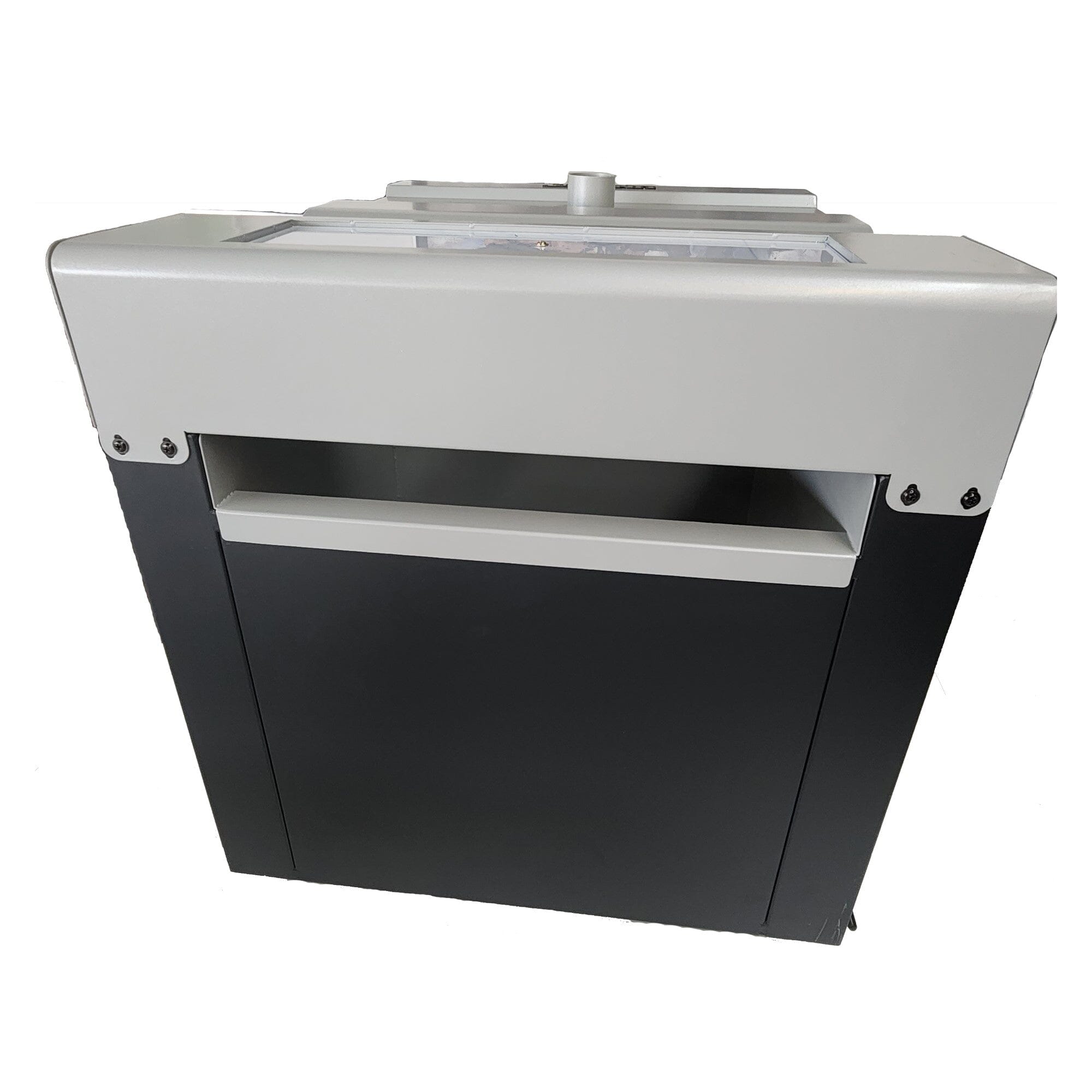

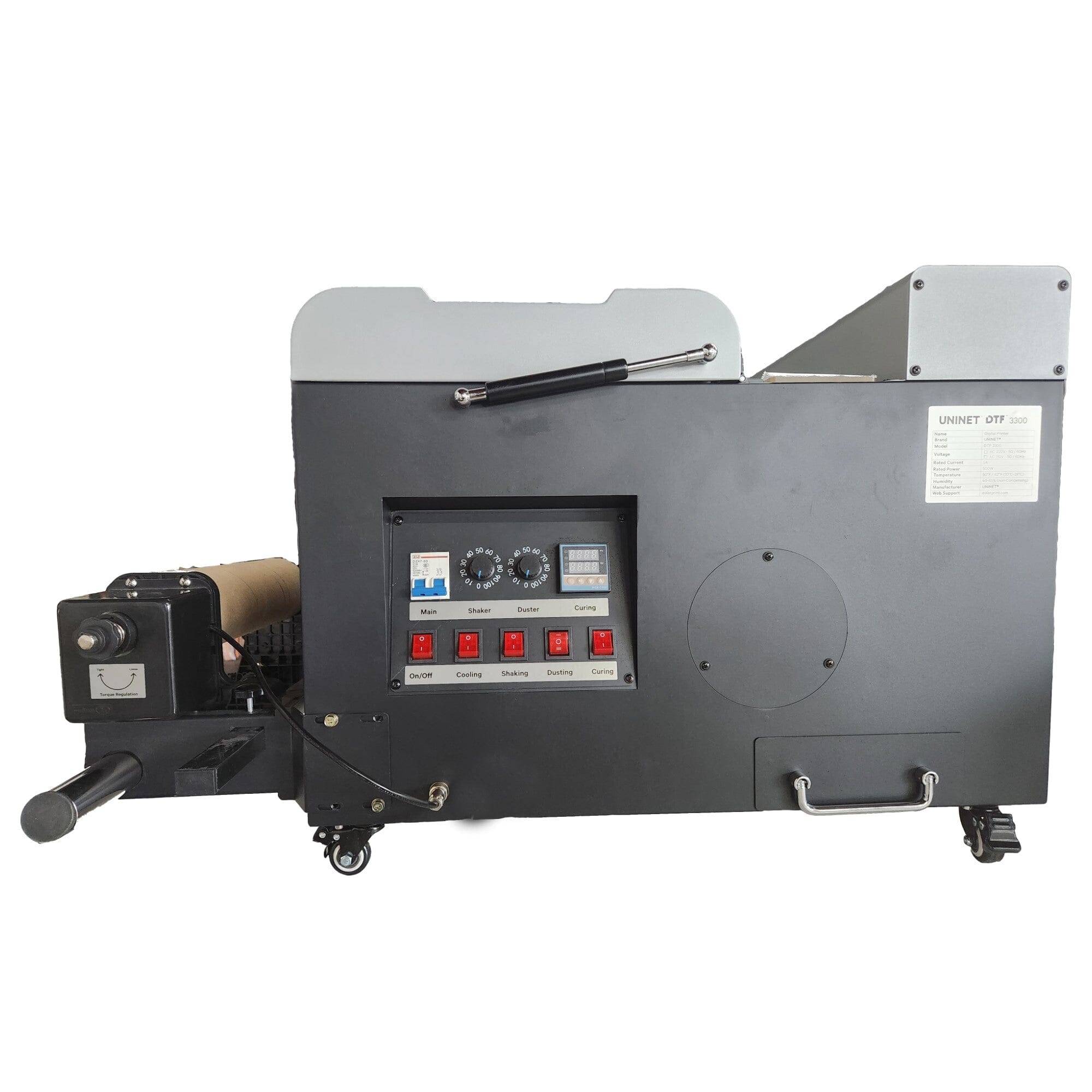

The UNINET DTF 14" Powder Applicator and Curing Machine can cure DTF film rolls and work as an in-line addition with the DTF™ 1000 (or any roll-to-roll Direct to Film printer). Take your DTF pipeline to the next level with automatic DTF powder application and drying.
-
Automatic Powder Application: Simply pour powder into the powdering section, and it will be applied evenly to your prints with variable adjustable speed controls.
-
Automatic Powder Removal & Powder Collect/Re-Use: Excess powder will be shaken off the film, and collect in a powder collection chamber for easy re-use of powder.
-
Sensor Film Detector: With the built-in film sensor, the roll-collection turns ON or OFF automatically to wind up and collect the printed and cured DTF™ roll.
-
Advanced Take-Up System: Additional tension bar to roll up the finished DTF™ films better.
-
Easy-Attach Fume Exhaust Port: Easily attach any fume extractor to the existing fume-exhaust port (fume extractor not included, sold separately).
- Handles DTF™ media rolls up to 14" wide.
- REQUIRES A MATCHING DTF ROLL FED PRINTER - THIS ITEM DOES NOT PRINT - IT CURES THE ADHESIVE APPLIED TO THE PRINTED SHEET
33.4" x 25.5" x 23.6" - 180 lbs
120V
NOTE: Color and external shell style may vary depending on option and availability; Typically Black/Gray or Red.
WARNING: WORK IN A WELL VENTILATED AREA and use Protective Equipment when working with DTF™ products and processes as fumes may be hazardous. DTF™ inks and film require a good humidity environment - over 0% humidity is highly recommended to minimize risk of ink clogs and film buckling. Add part # DTF™FUME to this package for sufficient fume extraction.
USER MANUAL
