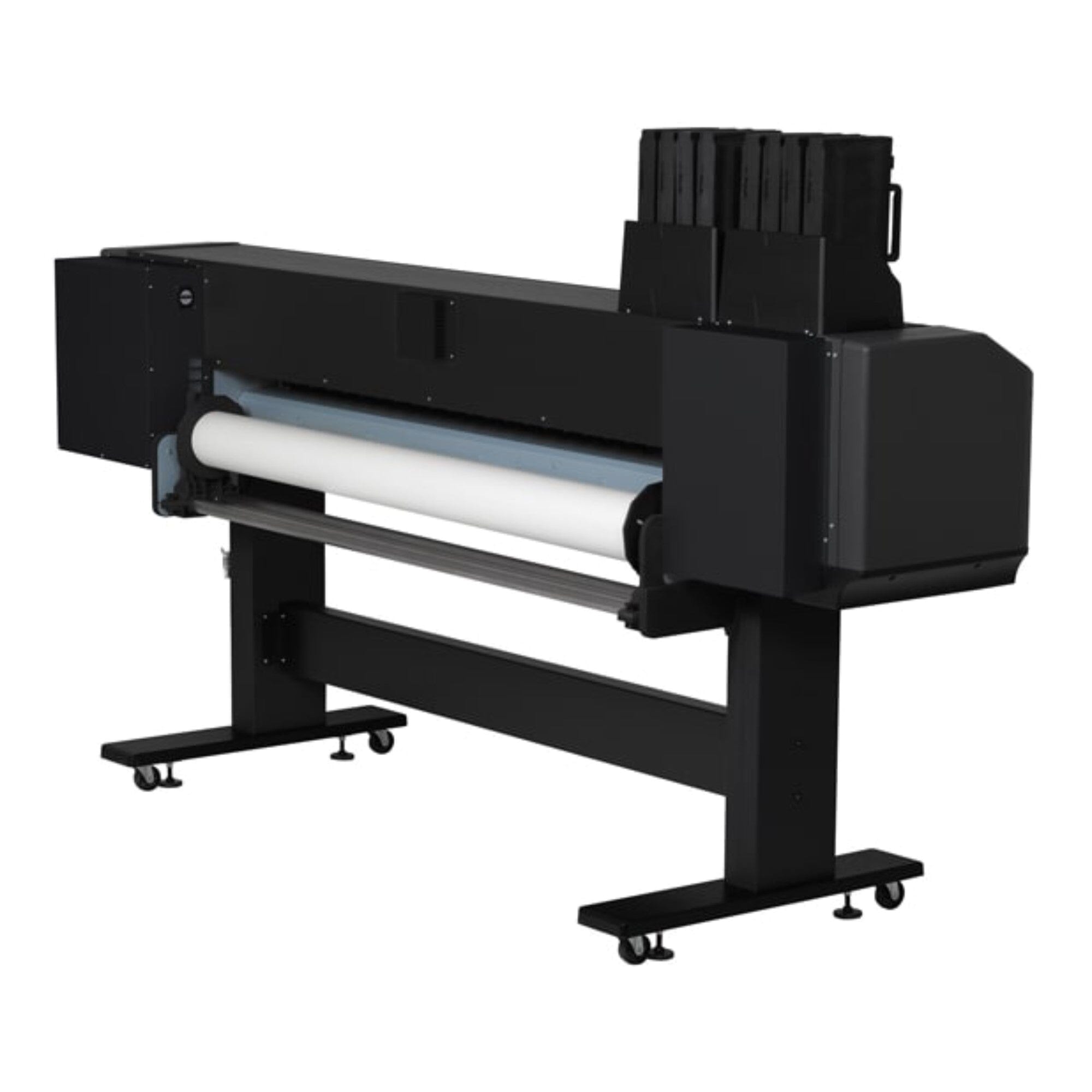

STS Direct to Film (DTF) XPJ-1682D Printer Bundle - 64"

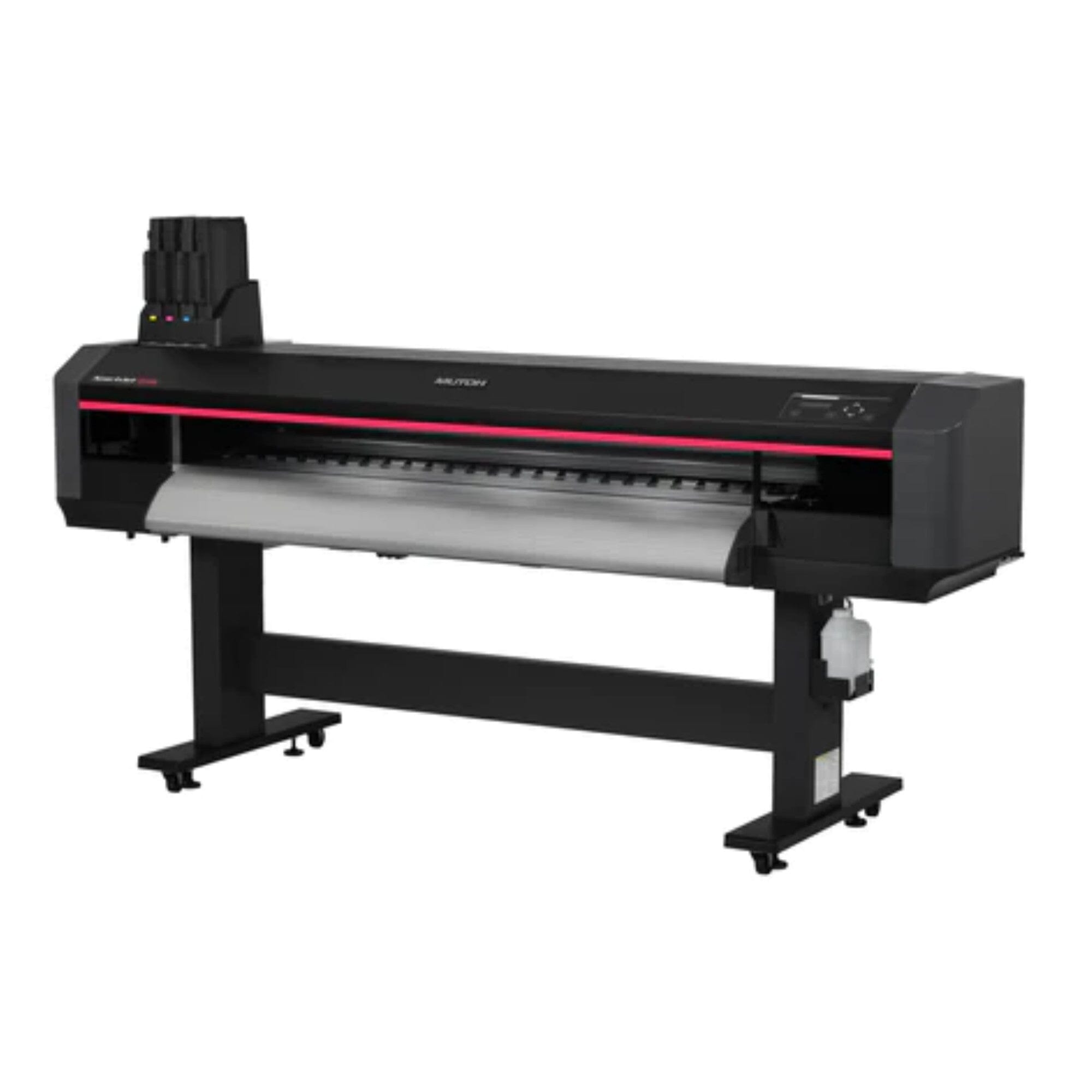

The STS XPJ 1682D 64” DTF Printer from Japan has a staggered dual-head design that provides ultra-fast print speeds. It produces smooth gradations while delivering high-quality printing even with reduced resolution.

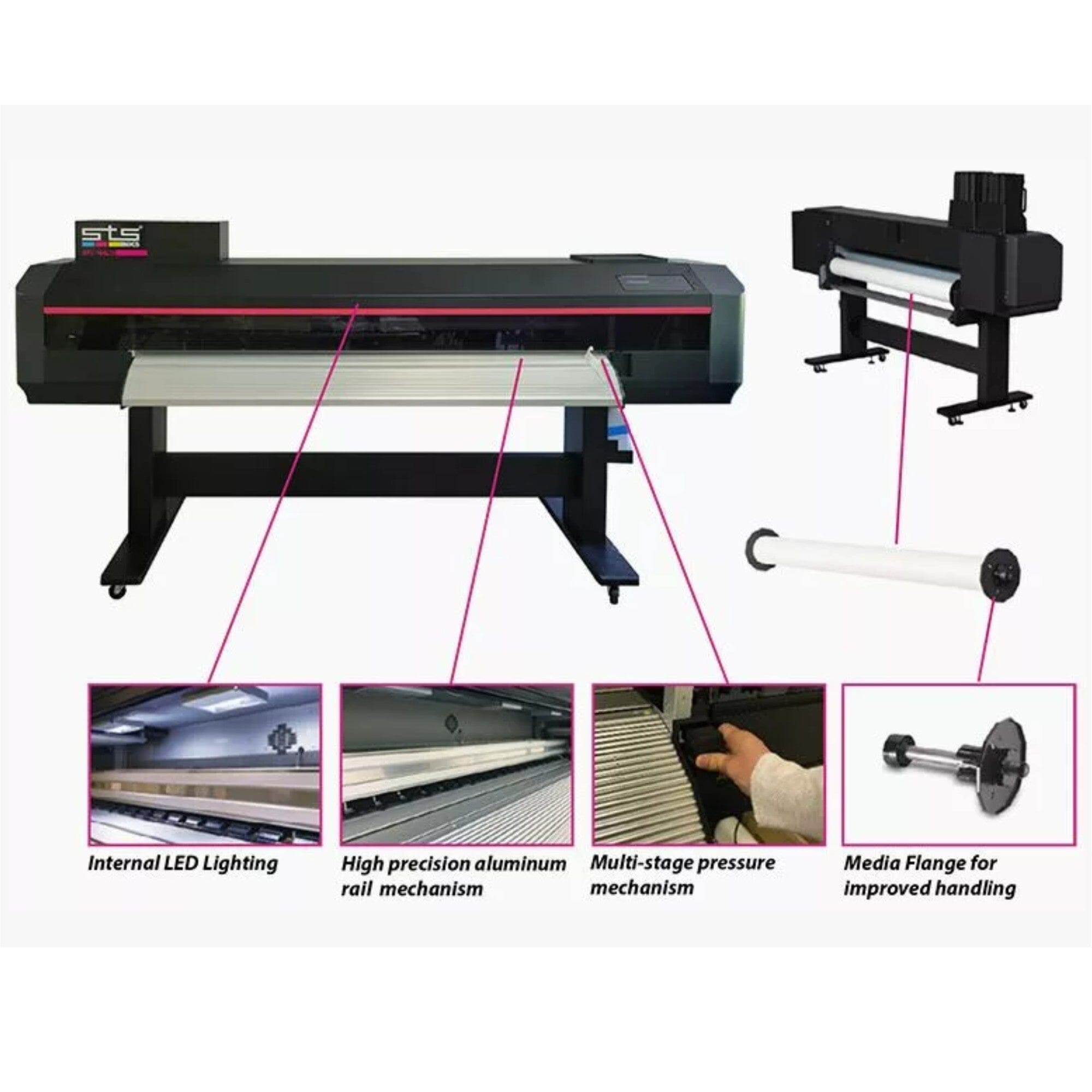

It has SAI’s Flexi DTF Edition RIP Software, bundled with Flexi DTF Editor. The XPJ-1682D also features automatic bi-directional alignments, a user-friendly touch panel, added LED lighting, and an upgraded media feed flange that allows operators to easily and quickly load media and exchange multiple rolls. These features are designed to increase user friendly operation and maintenance while continuing to offer high production, high-quality direct to film printer output. The XPJ-1682D is paired with STS’s DTF ink, which offers users excellent color gamut and outstanding durability.

Since DTG technology works best on cotton pre-treated fabrics. DTF opens the door to a wide range of choices and is capable of printing onto non-treated cotton, silk, polyester, denim, nylon, leather, 50/50 blends, and more. It works equally well on white and dark textiles.

  • STS DTF Inks (CMYK Lm Lc White x8)
  • White ink circulation
  • Built-in color sensor for auto bidirectional alignments
  • Media flange allows for easy media loading
  • Nozzle area selection
  • Drop Master 2 Technology
  • Improved feed mechanism corresponding to a wide range of media
  • MUTOH Status Monitor (MSM) checks printer status in real time and print history
Printing systems Drop-on-demand Micro Piezo Inkjet Technology
Print head height Three level adjustment: Low 1.5mm, Mid. 2.5mm, High 4.0mm
Print head 2 (staggered set-up)
Max print resolution 1440x1440dpi
Print modes 1440/1080/720/360dpi
Media width 64”
Media capacity ø 5.9” dia / 2” & 3” cores /Roll media 66lbs or less
Max media thickness Low 0.3mm, Mid. 1.3mm, High 2.8mm
Max printable width 63.6 in
Height adjustment Automatic
RIP software Flexi 22 DTF Edition
Type DTF Water Based
Ink Set CMYK Lm Lc WW
Volume 1000mL CMYK Lm Lc / 900mL White
No. of slots 8
Interface Gigabit-Ethernet (1000BASE-T )
Power Requirements AC 100-120V± 10%, 50/60Hz ± 1Hz
Printing Environment Operating temperature: 68°F – 75°F
Operating humidity range: 35% – 45%
Power Consumption Main: Operation status 77W or less | Standby: 52W or less
Dimensions (WxDxH) Printer including stand: 108.26”x35.23”x56.22” cover closed
Weight Body: 321.87lb | Stand: 70.54lb

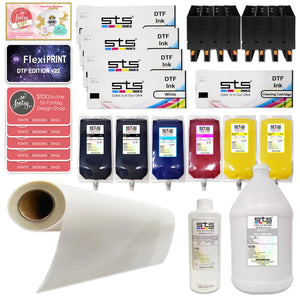

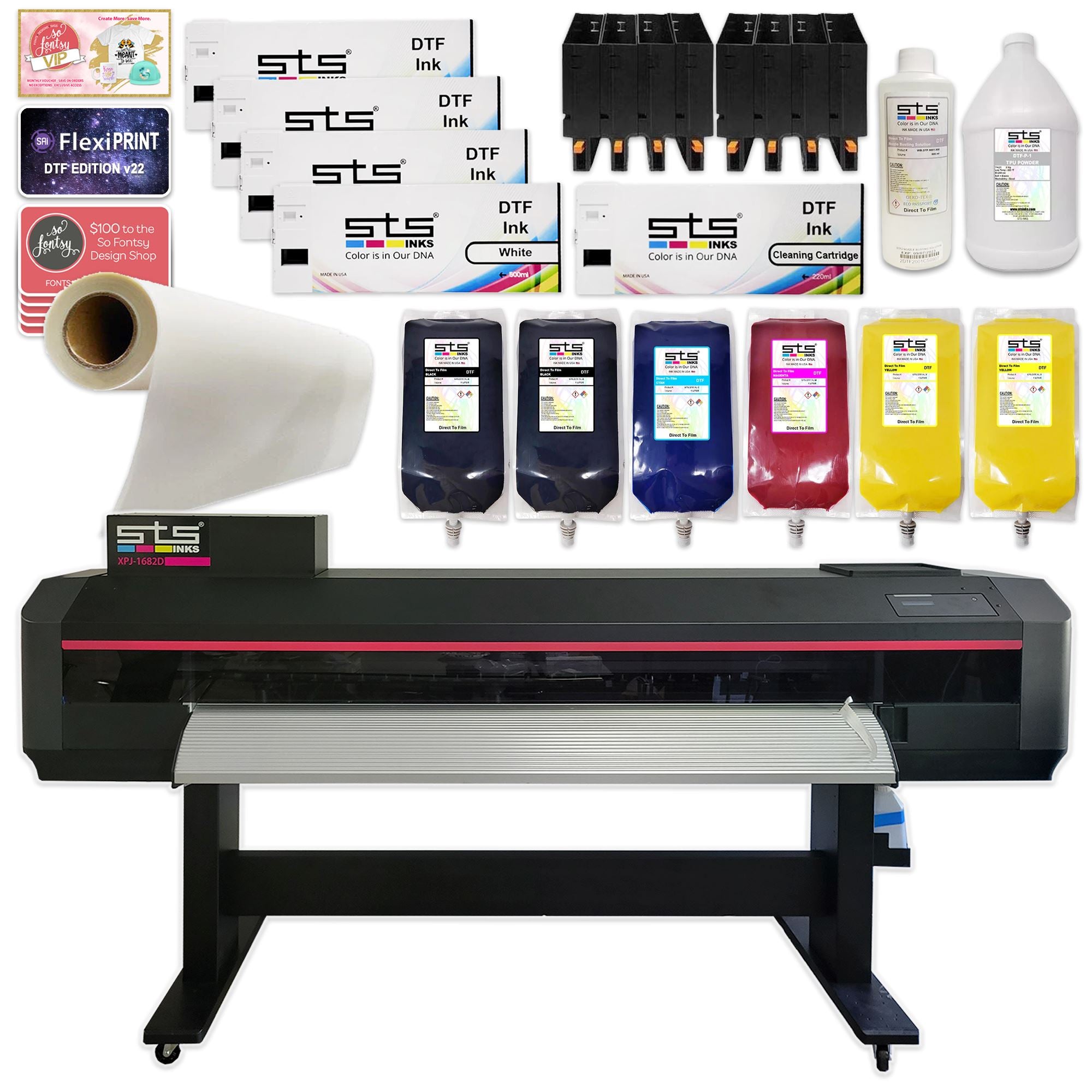

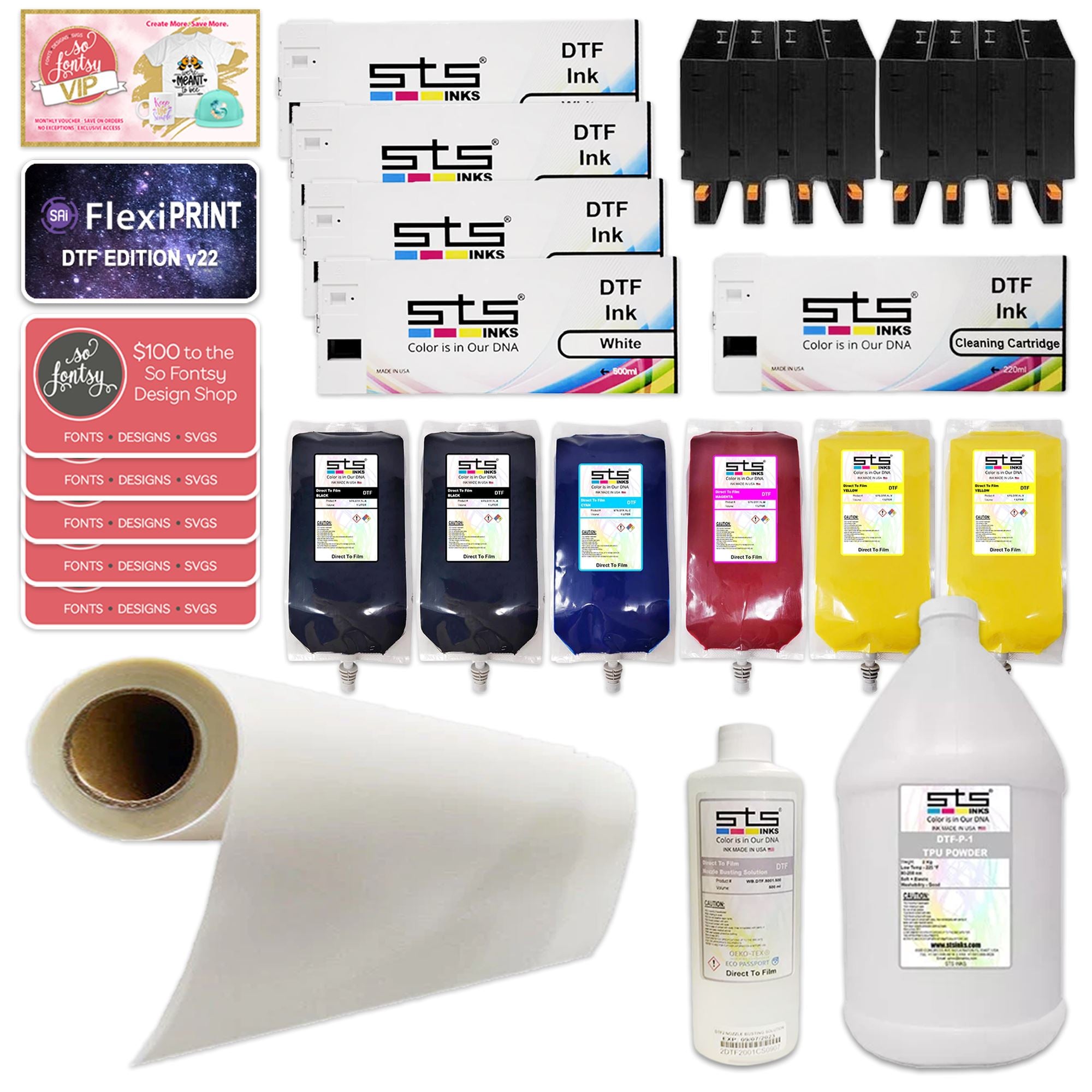

Bundle Includes:

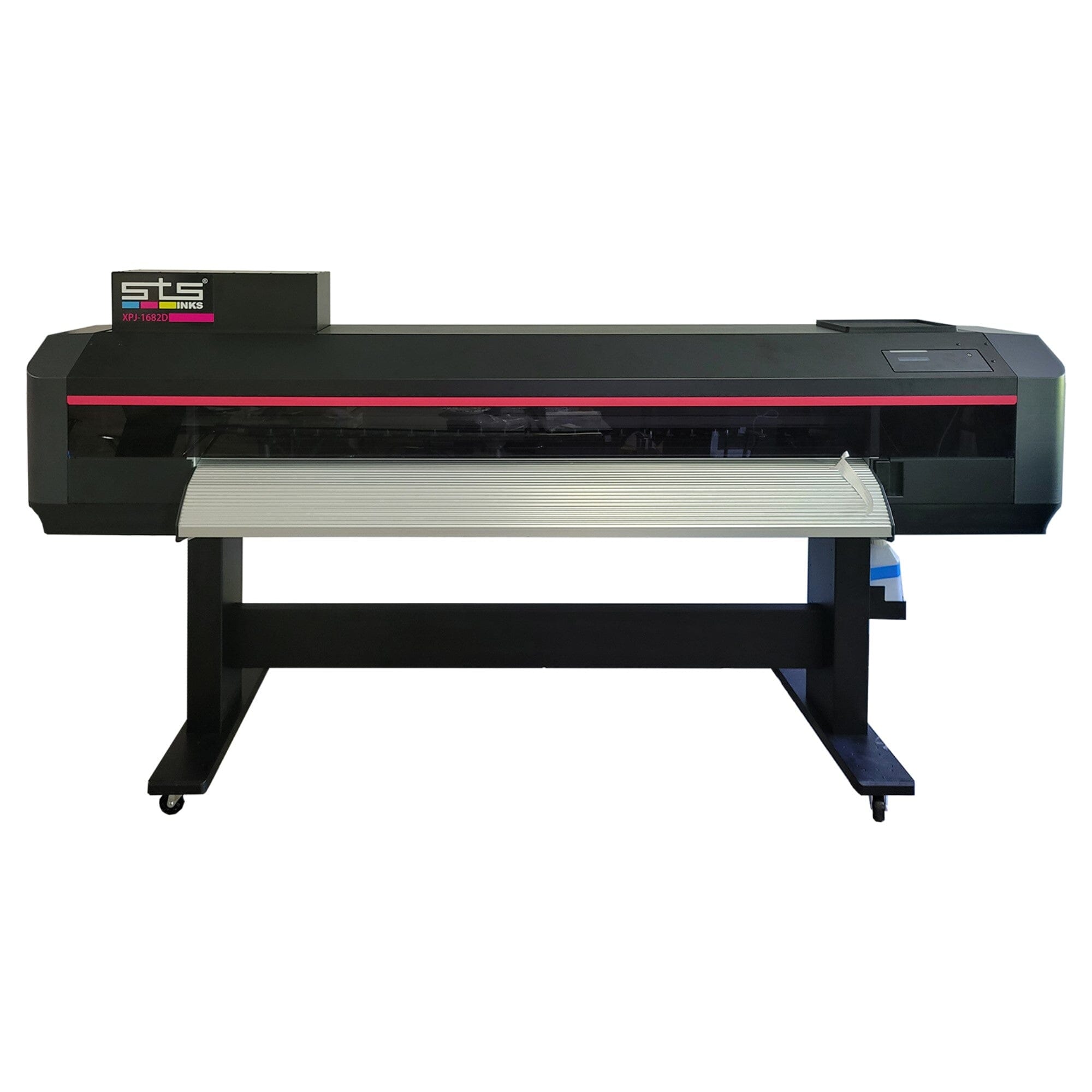

  • STS XPJ 1682D/Ink Adaptor/High Capacity - 64"
  • Printer Stand
  • Flexi Direct to Film RIP Software - $999.99 Value
  • DTF Ink 1 Liter Bag – Cyan
  • DTF Ink 1 Liter Bag – Magenta
  • 2 - DTF Ink 1 Liter Bag – Black
  • 2 - DTF Ink 1 Liter Bag – Yellow
  • 4 - DTF Ink 500ml Cartridge – White

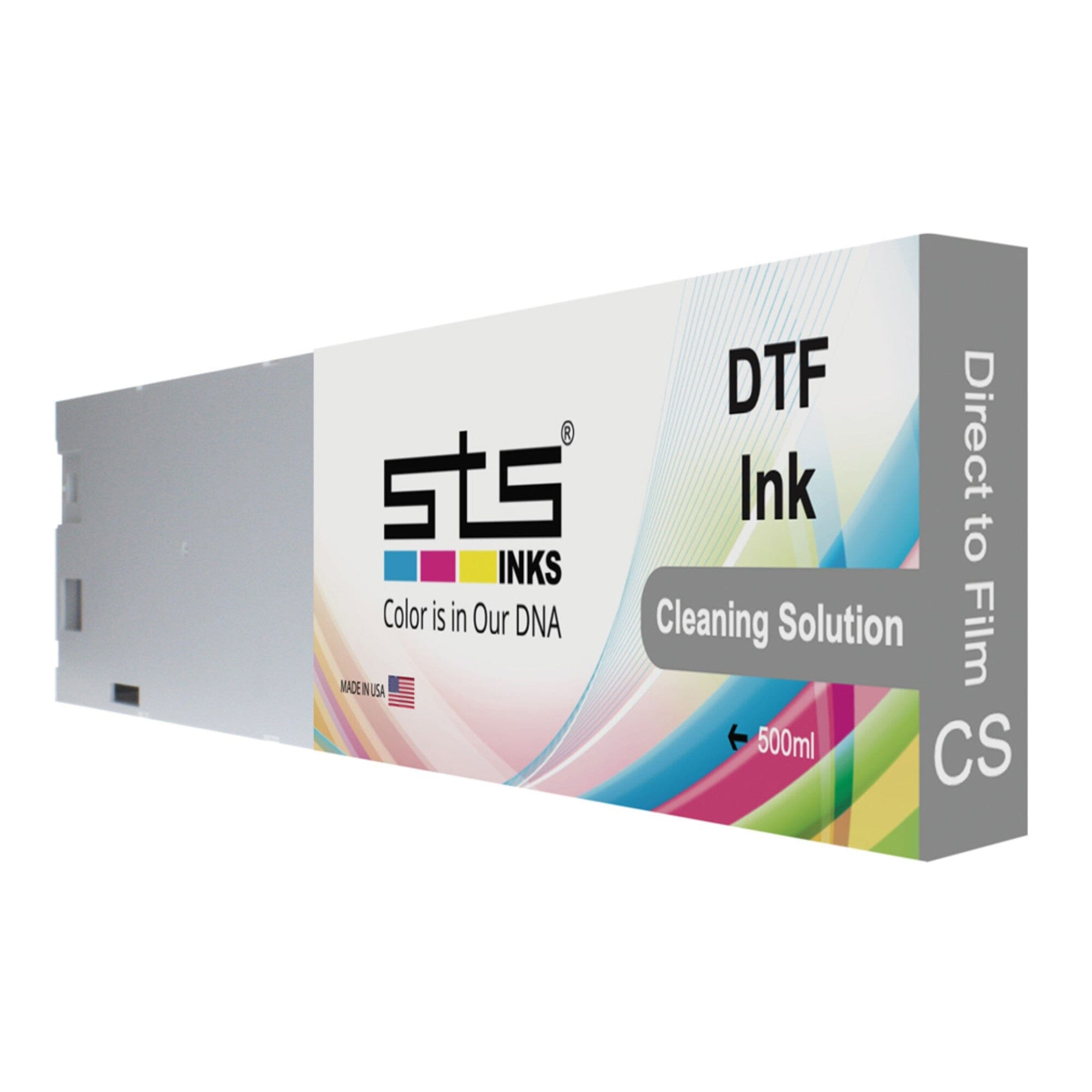

  • 10 - STS/MUT DTF 220ml Cartridge - Cleaning Solution

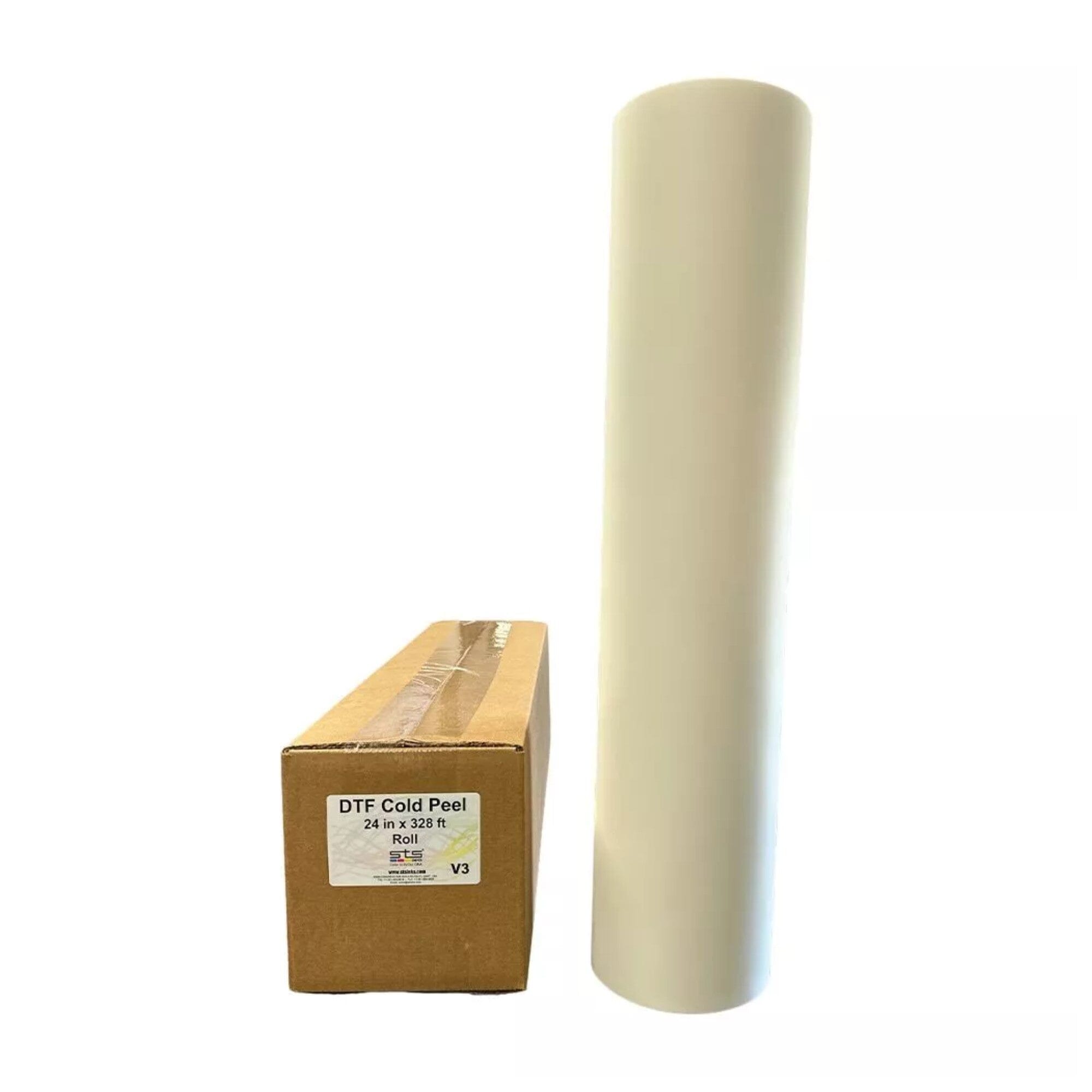

  • Cold Peel DTF Film Roll - 24" x 328 FT

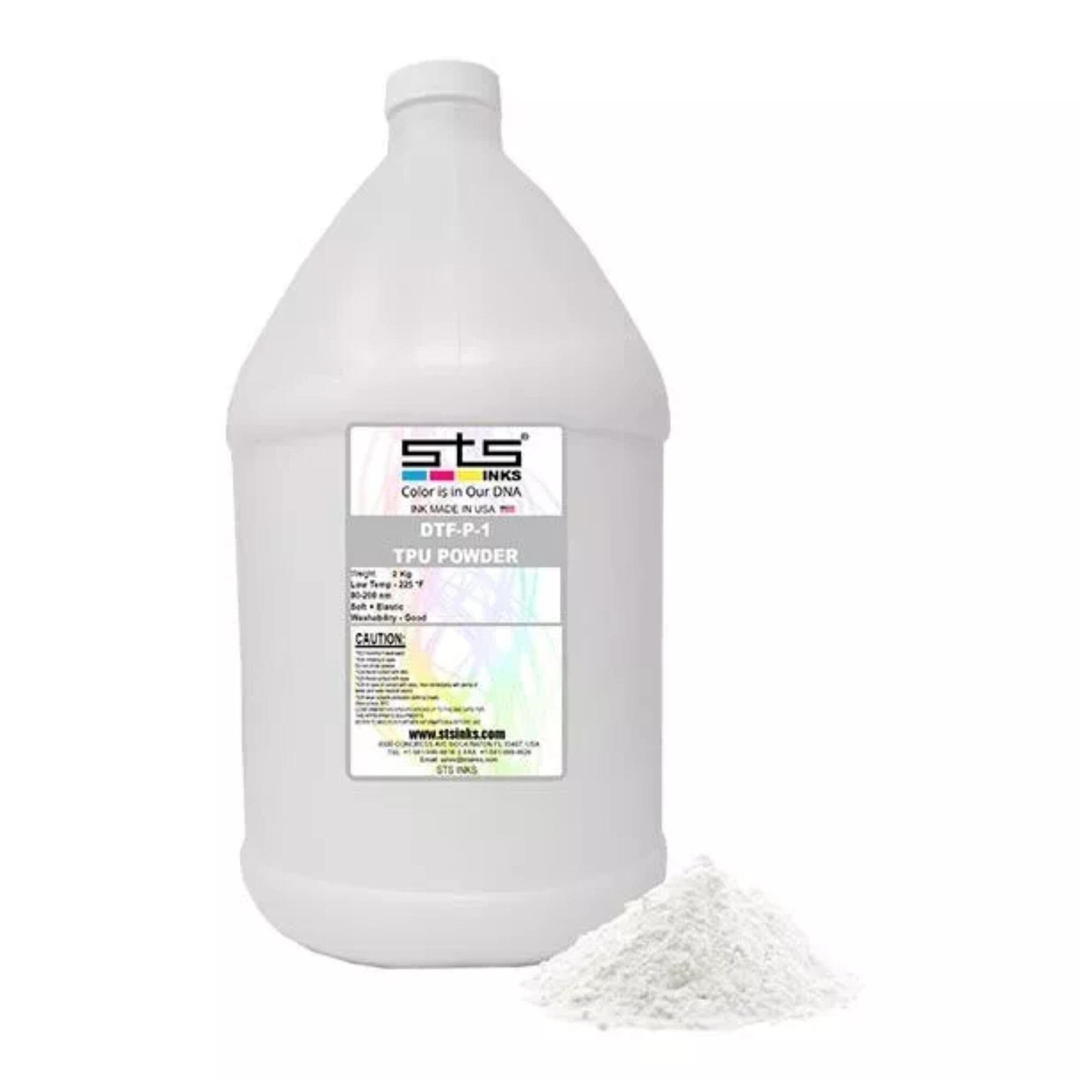

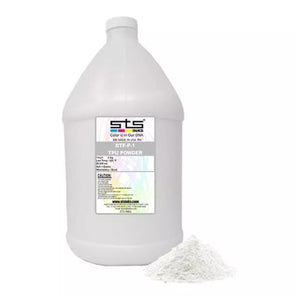

  • Direct To Film Powder - 2 KG

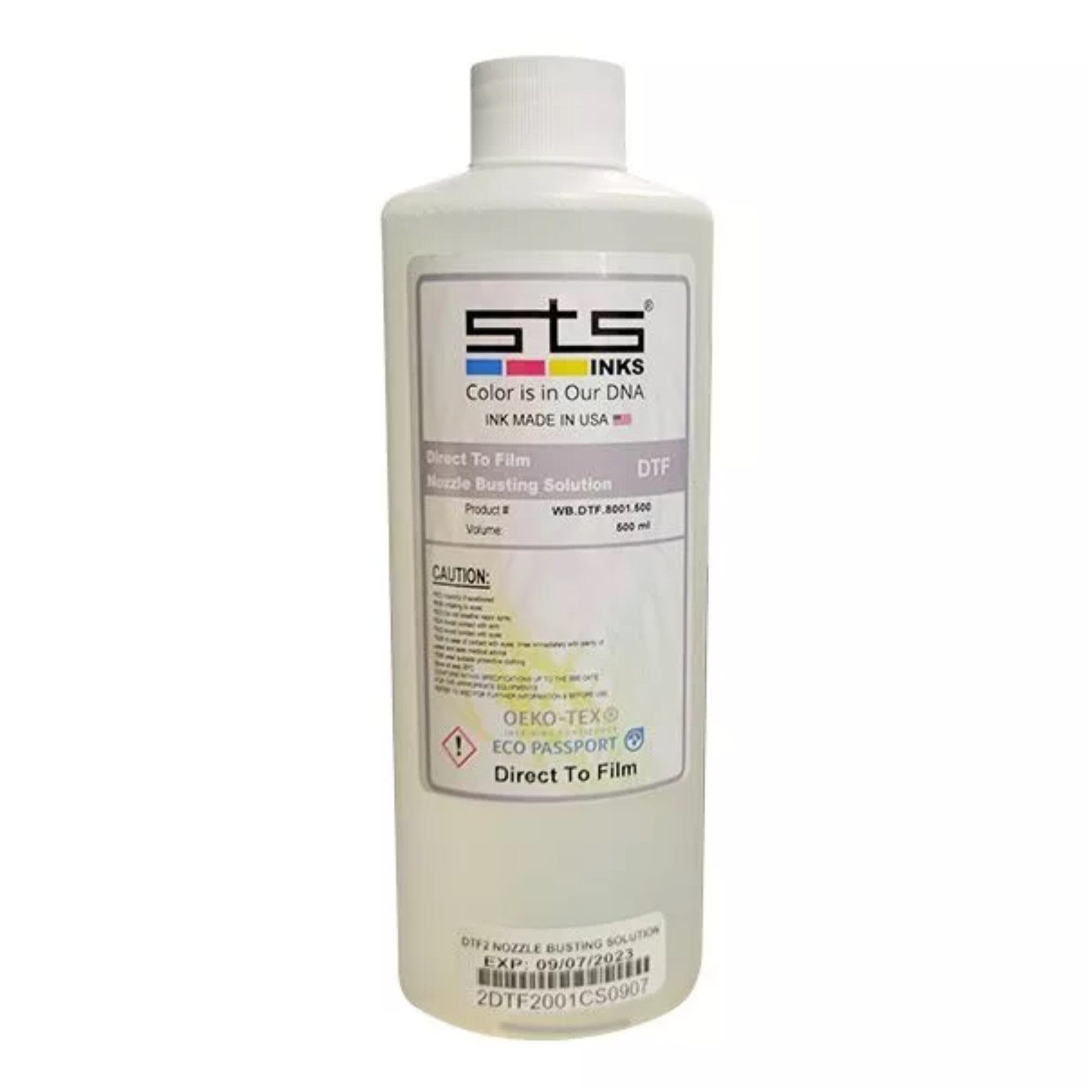

  • STS Direct to Film Nozzle Busting Solution 500ml
  • 1st Month Membership to SoFontsy VIP Enterprise
  • $500 in Designs from So Fontsy - SVGs, JPGs, Commercial Use (Please note that the card is valid for the card redemption portion of the site)
  • 1 Year Warranty

All STS XPJ Printer Bundles Ship via Insured Freight
