Revopoint Trackit Marker-Free Handheld Optical Tracking 3D Scanner – Ultra-High Precision Laser Scanning for Small to Large Objects

Experience professional-grade 3D scanning without the hassle of markers with the Revopoint Trackit, the advanced marker-free optical tracking 3D scanner designed for industrial precision, reverse engineering, quality control, and metrology applications. Combining powerful blue laser technology with real-time infrared optical tracking, the Trackit delivers exceptional accuracy on feature-rich or featureless surfaces — including dark, shiny, black, reflective, and metallic objects — without scanning spray.

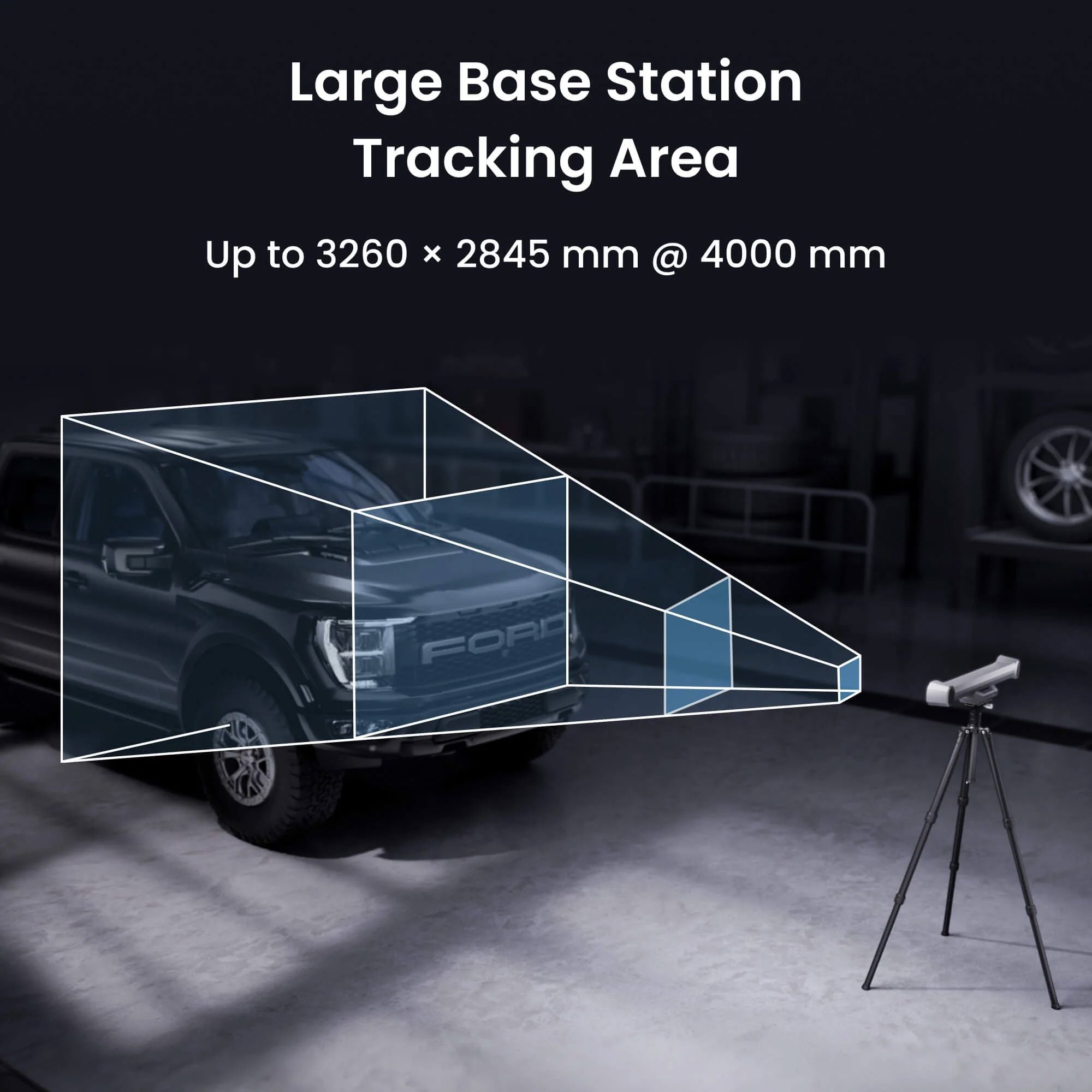

Scan everything from tiny intricate parts as small as 10 mm to massive objects up to 6 meters with confidence. This high-accuracy laser 3D scanner eliminates marker placement and repositioning errors, saving you time while maintaining volumetric accuracy of 0.02 mm + 0.04 mm × L(m) across an impressive 11 m³ tracking volume.

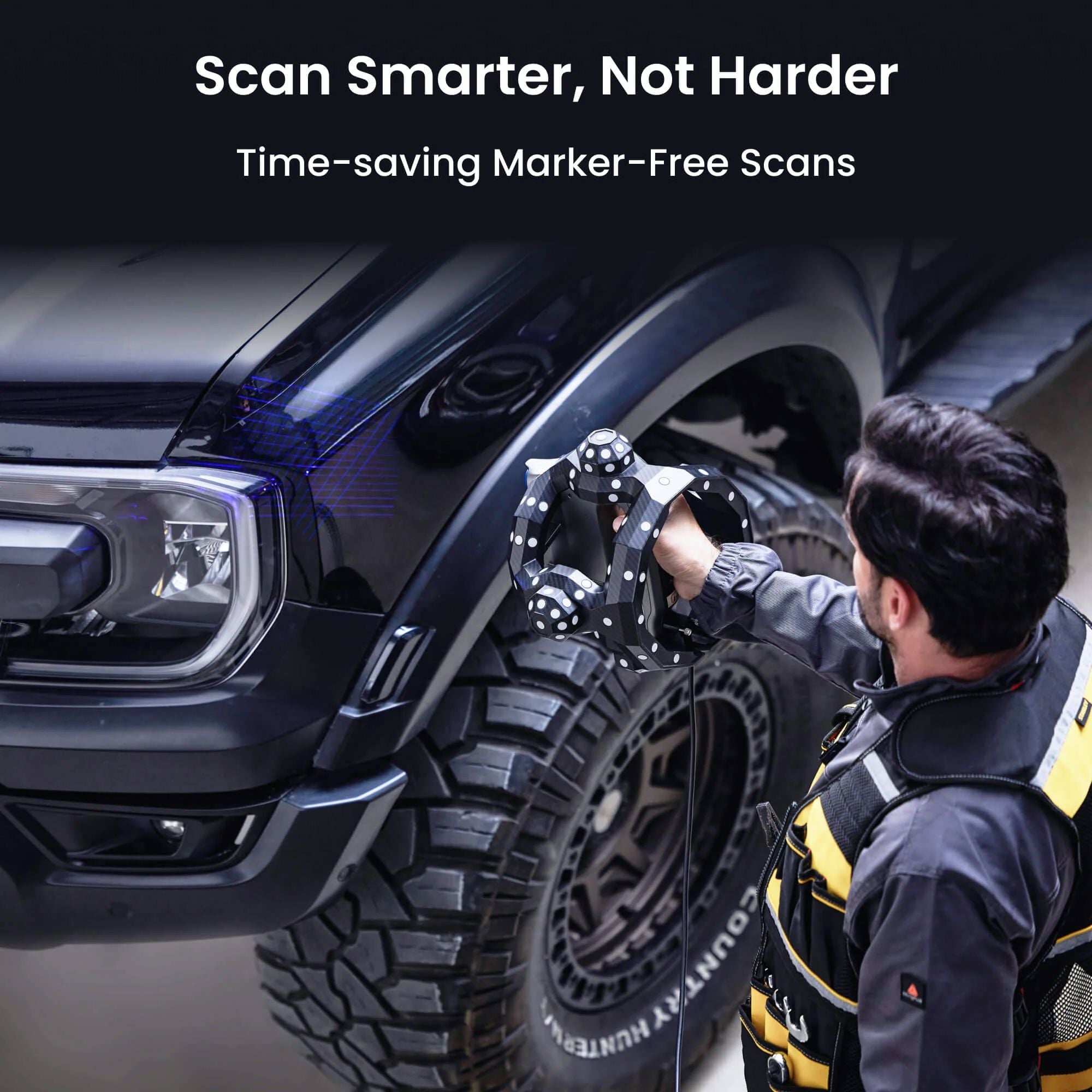

Marker-Free Optical Tracking for Effortless, High-Precision Scans

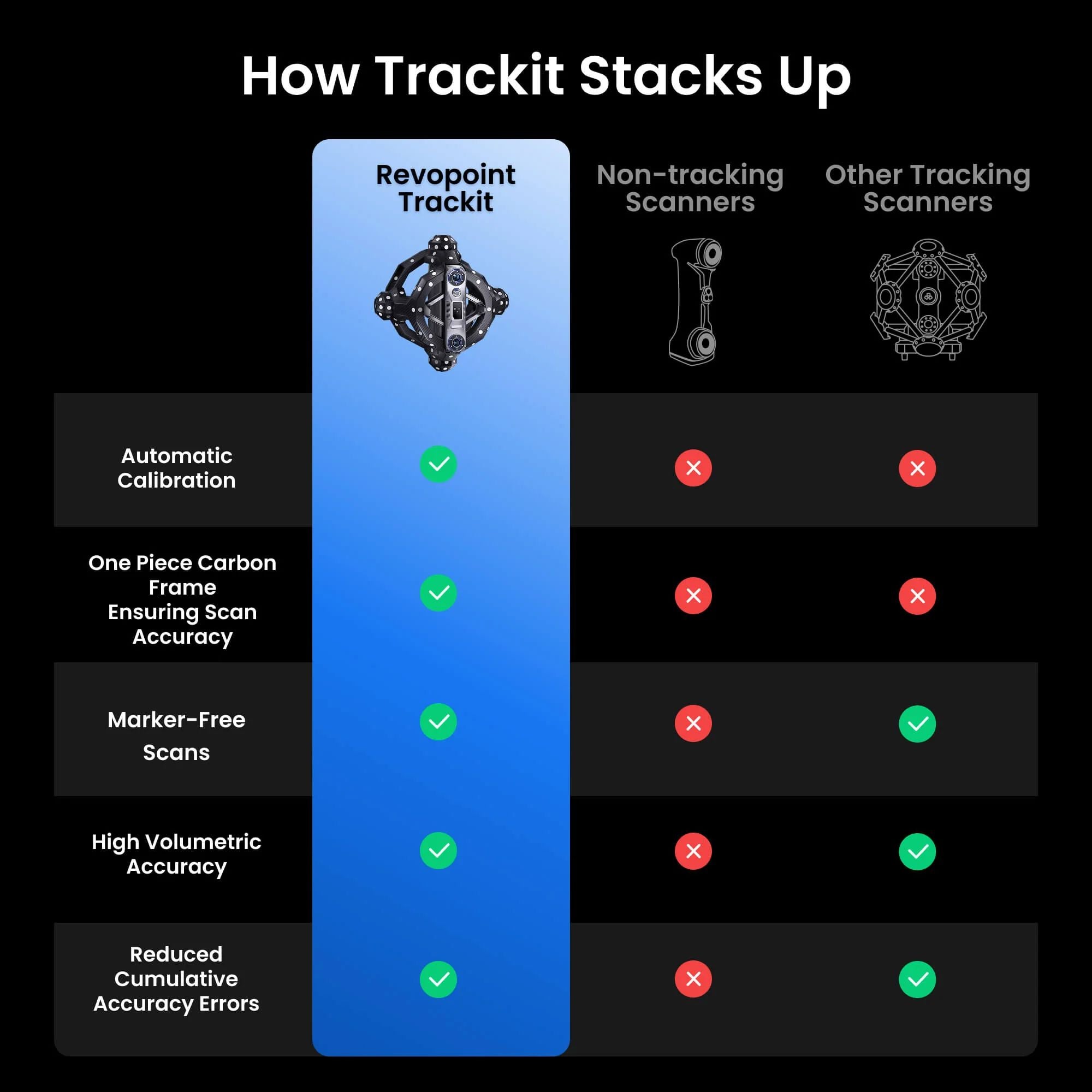

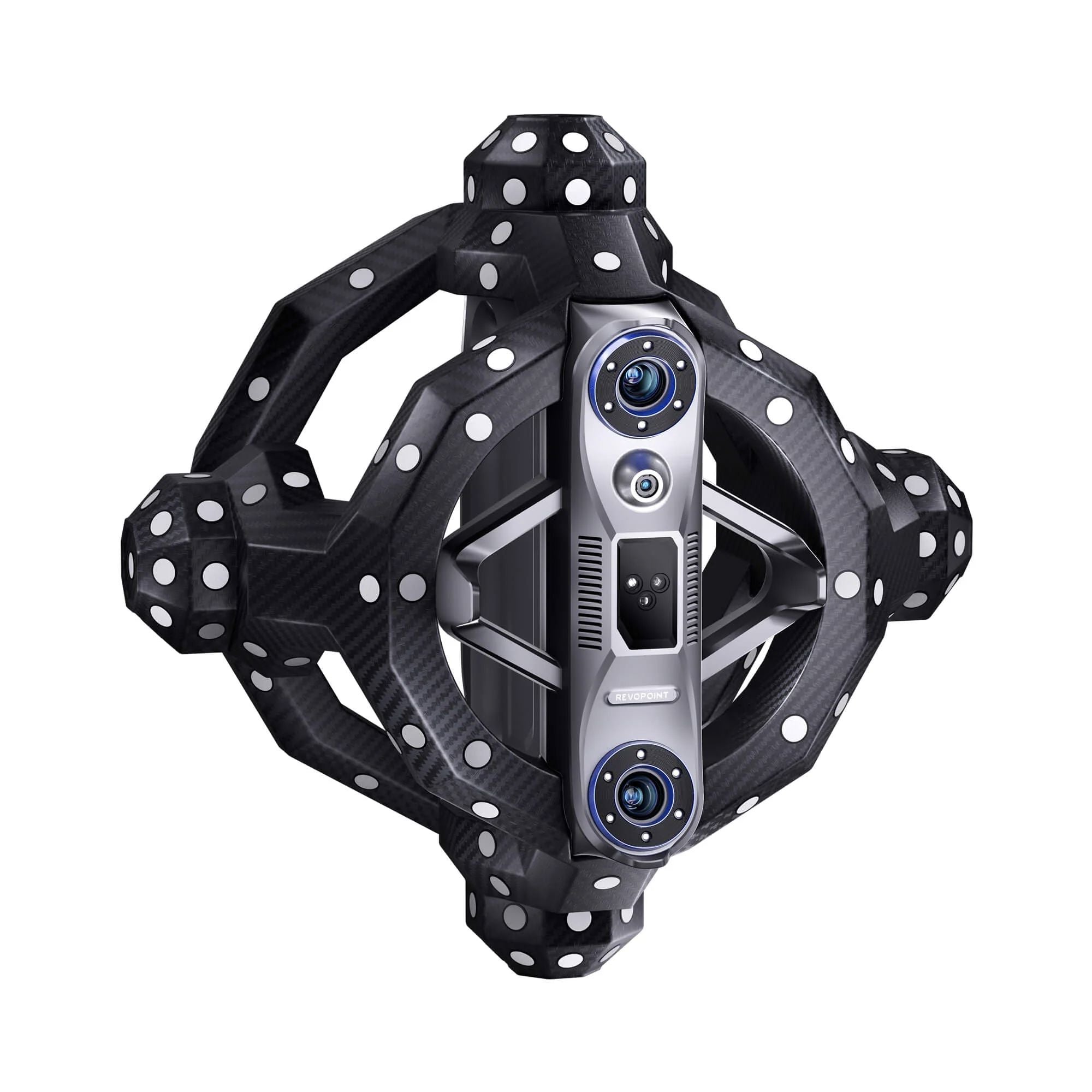

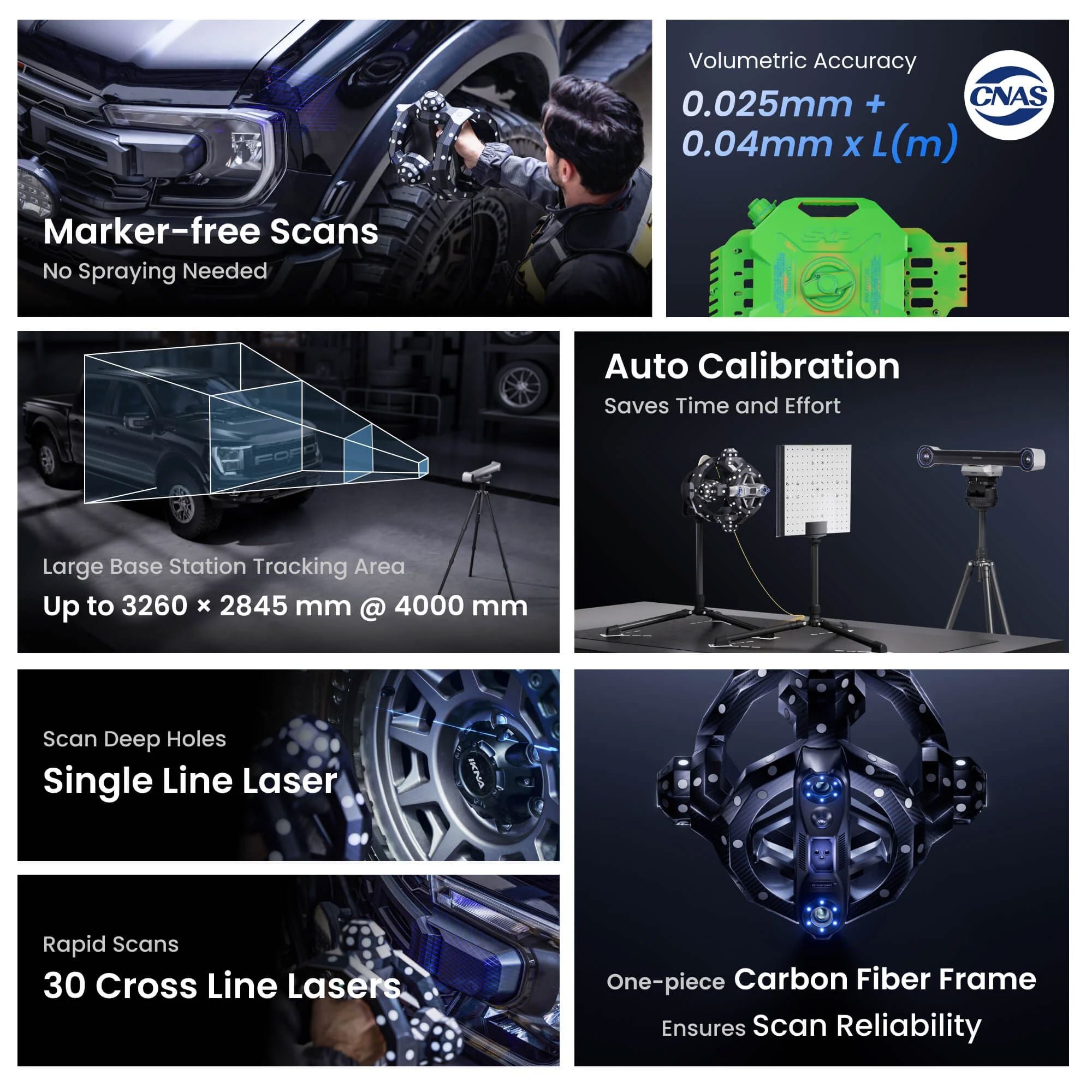

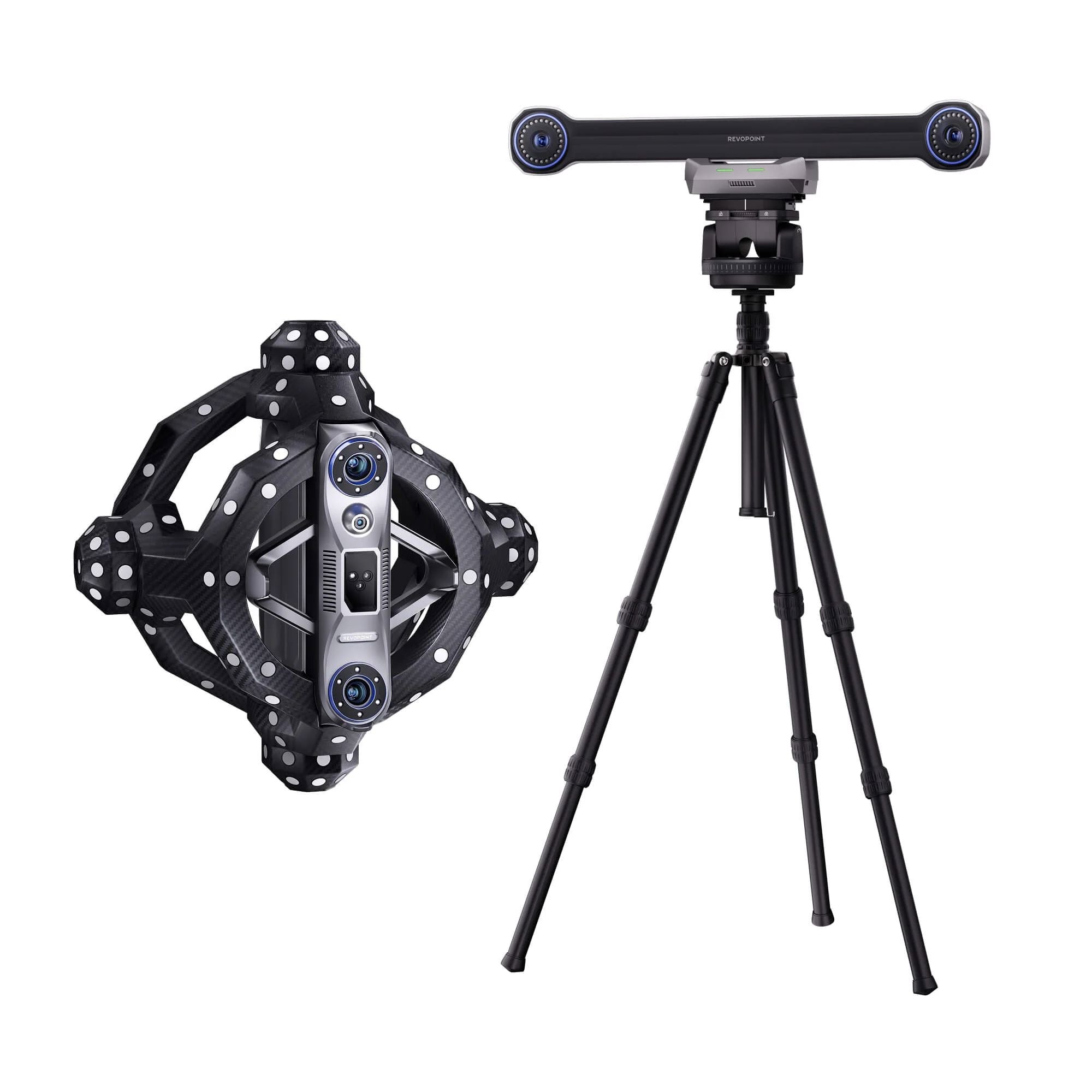

Unlike traditional marker-based 3D scanners, the Revopoint Trackit uses a sophisticated dual-camera infrared optical tracking system paired with a robust carbon fiber scanner frame. The handheld scanner features 30 blue cross-line lasers for rapid surface coverage and a single blue laser line mode for capturing deep holes, gear teeth, narrow crevices, and recessed areas with pinpoint detail.

• Single-frame accuracy: Up to 0.02 mm
• Fused point distance: Up to 0.05 mm
• Scanning speed: Up to 1,500,000 points per second
• Working distance: 200–400 mm (scanner) / 1,500–4,000 mm (tracker)
• Single capture area: 160 × 70 mm (near) to 320 × 215 mm (far)

The system automatically tracks the scanner's position in real time, enabling smooth, drift-free scanning even on challenging surfaces. Built-in high-resolution RGB camera provides realistic texture mapping, while auto-calibration (including dual-axis gimbals) ensures consistent results with minimal setup.

Built for Industrial and Professional Workflows

Engineered for demanding environments, the Revopoint Trackit excels in:

• Reverse engineering
• Quality inspection
• Automotive parts scanning
• Aerospace components
• Cultural heritage digitization
• Mold and die measurement
• Batch automated scanning (via Metrohub integration)

Its stable carbon fiber construction resists deformation, and intelligent temperature monitoring prevents thermal drift. Connect via USB 3.0 to a compatible Windows PC (recommended: 64 GB RAM, high-end CPU/GPU) and use the free Revo Track software for seamless scanning, point cloud processing, meshing, editing, and CAD comparison with Revo Measure.

Supported output formats include PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX — fully compatible with popular CAD, 3D printing, and metrology software.

Complete Professional Package

The Trackit comes ready for immediate use with a full accessory kit: optical tracker with tripod, auto-calibration gimbals, calibration boards and pole, sturdy carrying cases with wheels, cables, and more. The 6-meter cable provides excellent maneuverability, and the system supports standalone handheld scanning for tight interior spaces.

Whether you're scanning small mechanical parts or large-scale industrial objects, the Revopoint Trackit marker-free optical tracking 3D scanner sets a new standard for speed, accuracy, and convenience in professional 3D scanning.

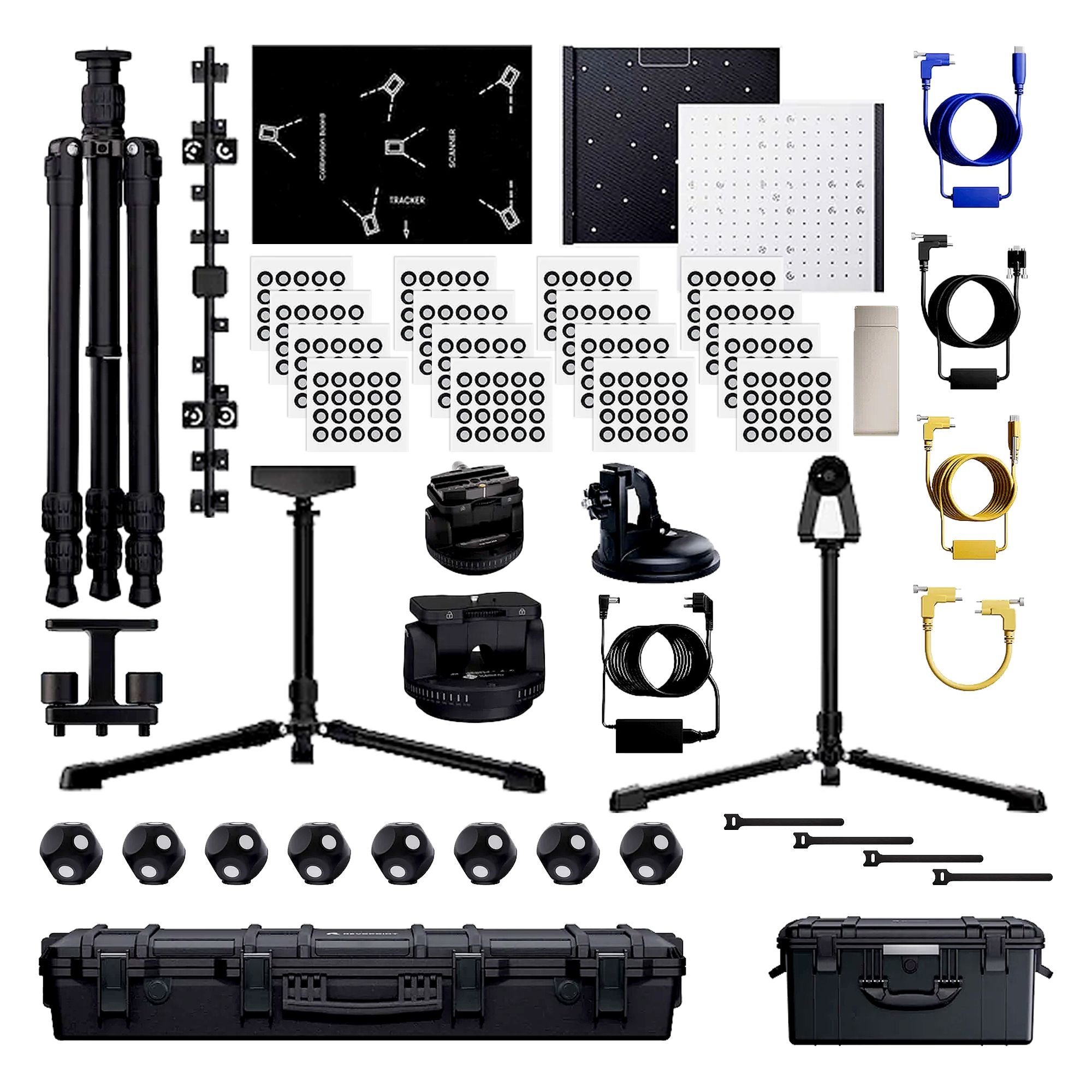

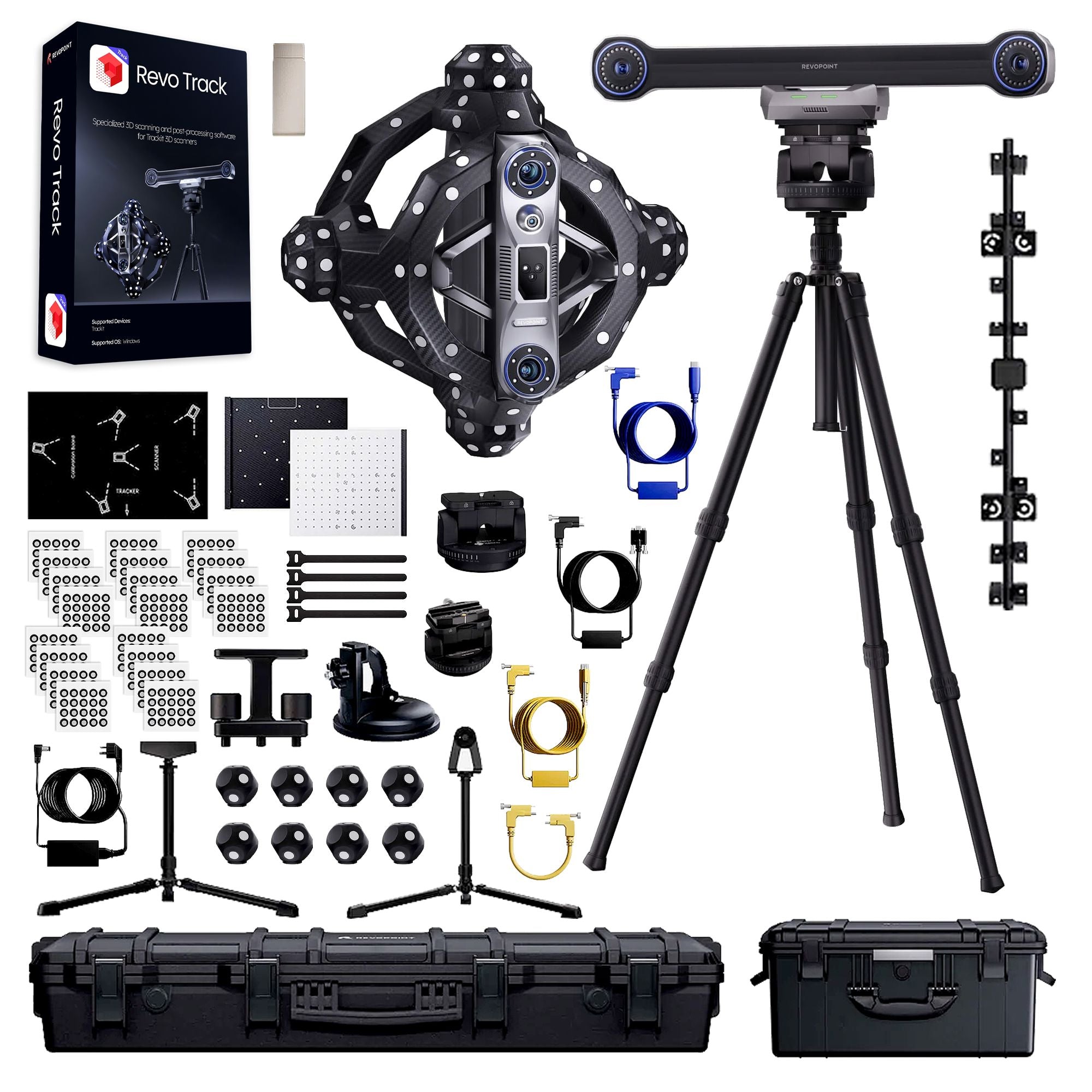

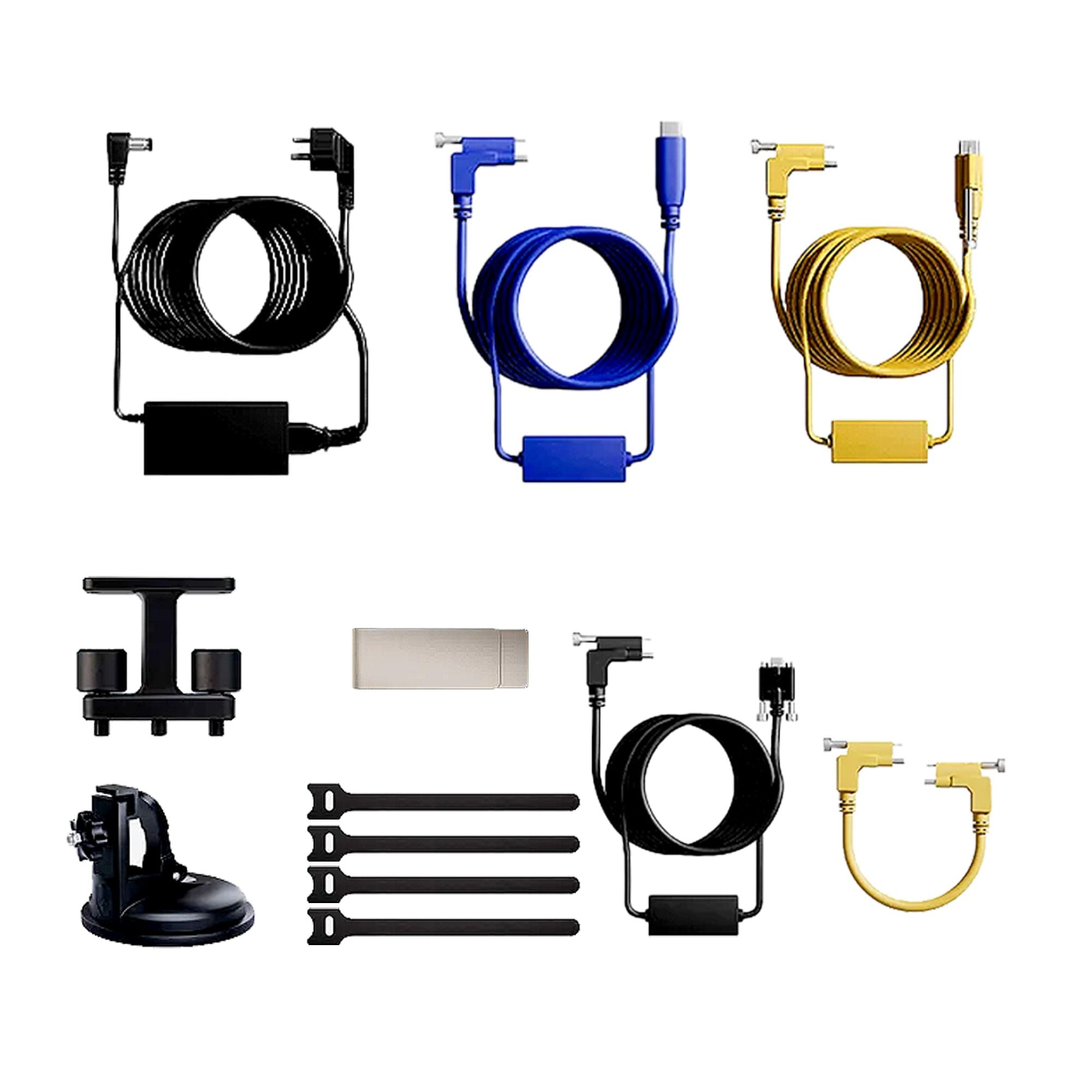

Bundle Includes:

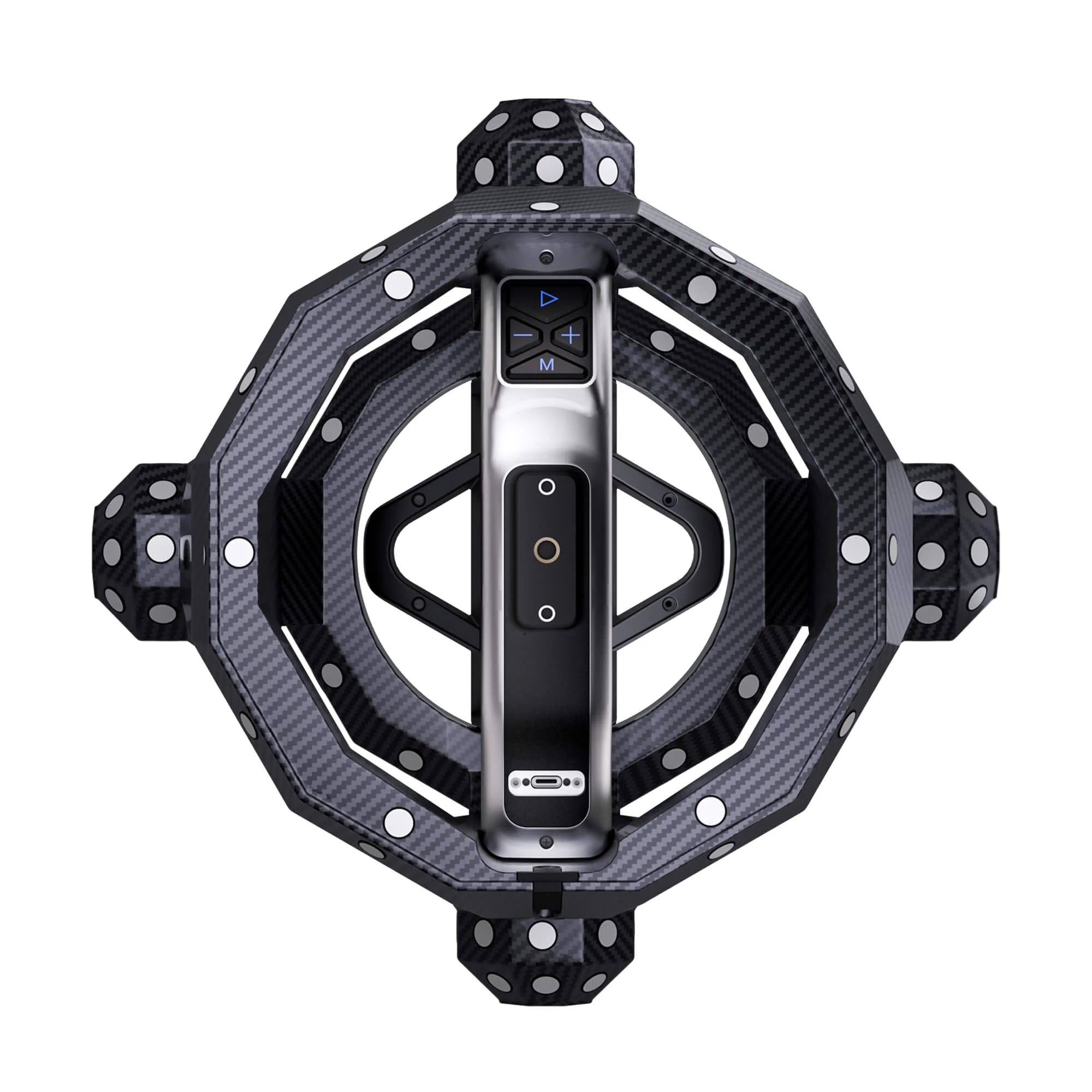

• Trackit Marker Free Handheld Optical 3D Scanner

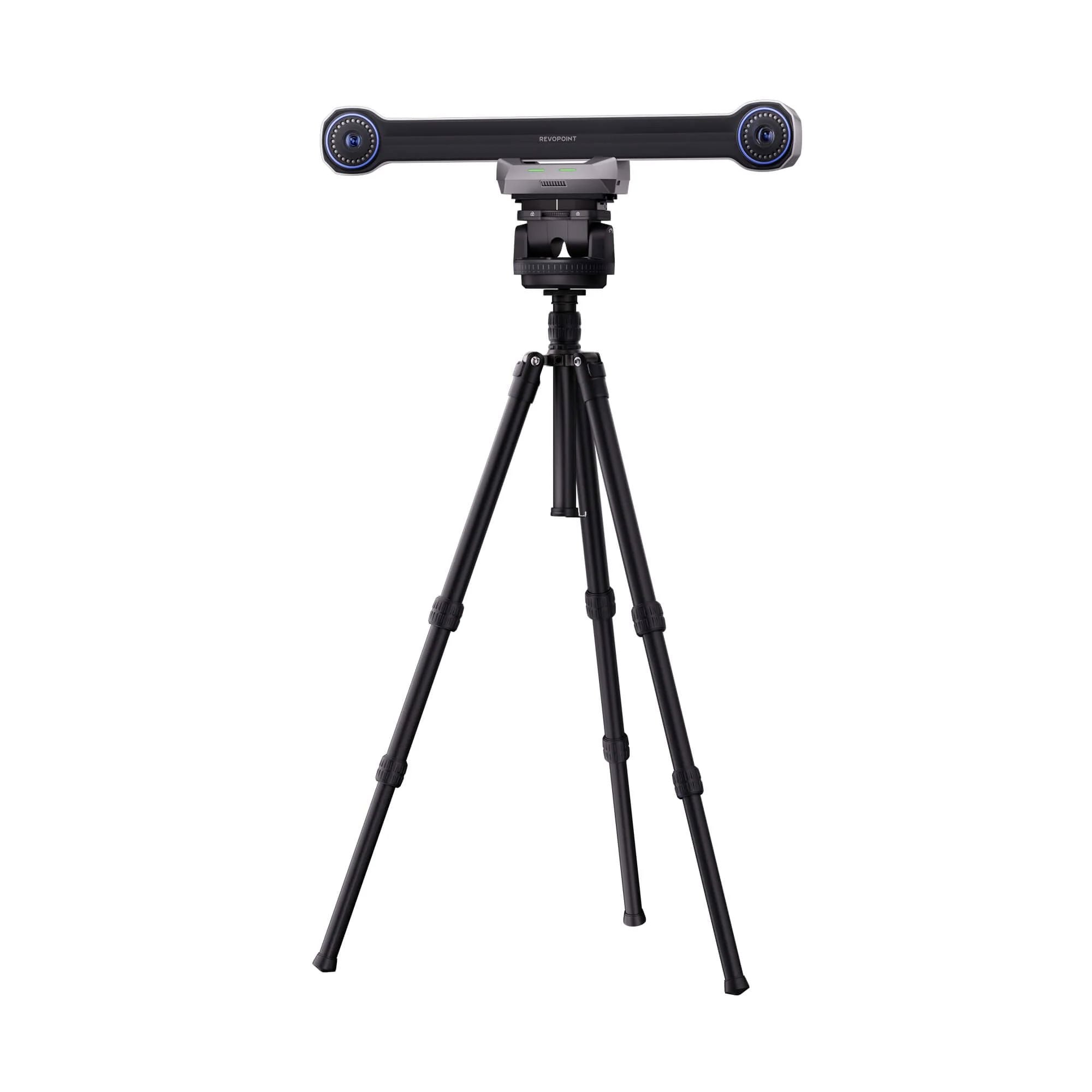

• Tracker System

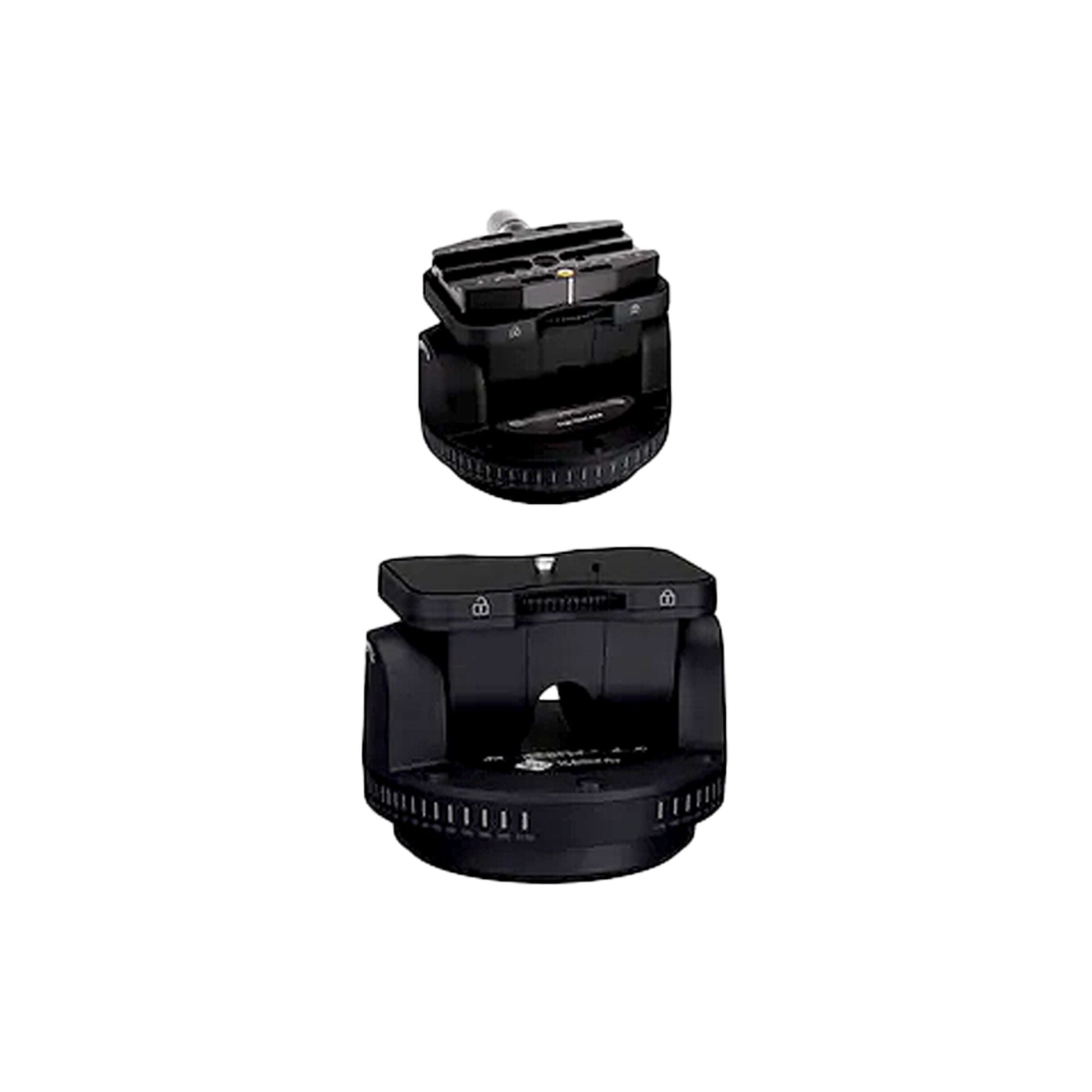

• Auto Calibration Dual Axis Scanner Gimbal
• Auto Calibration Dual Axis Tracker Gimbal

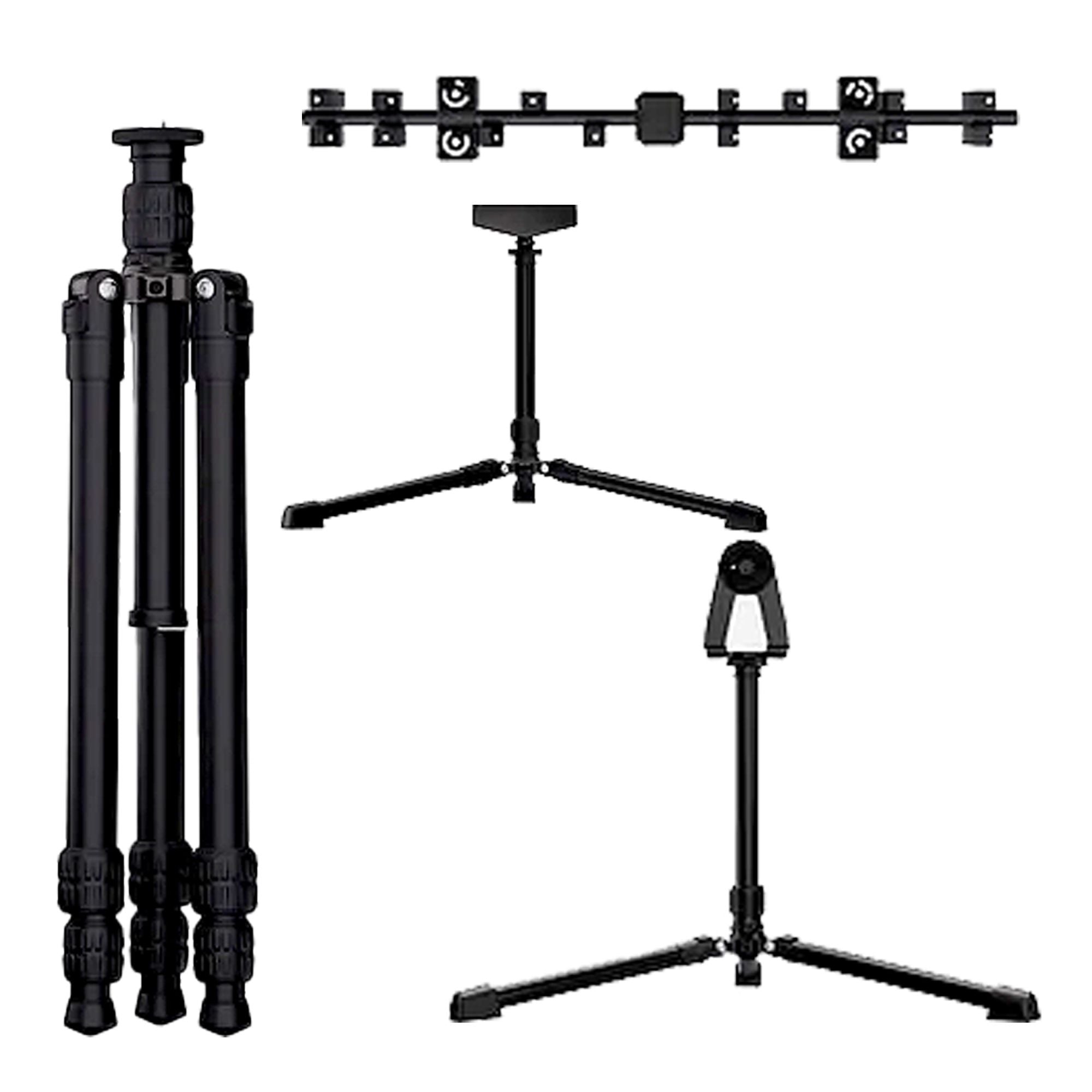

• Tracer Tripod
• Scanner Tripod

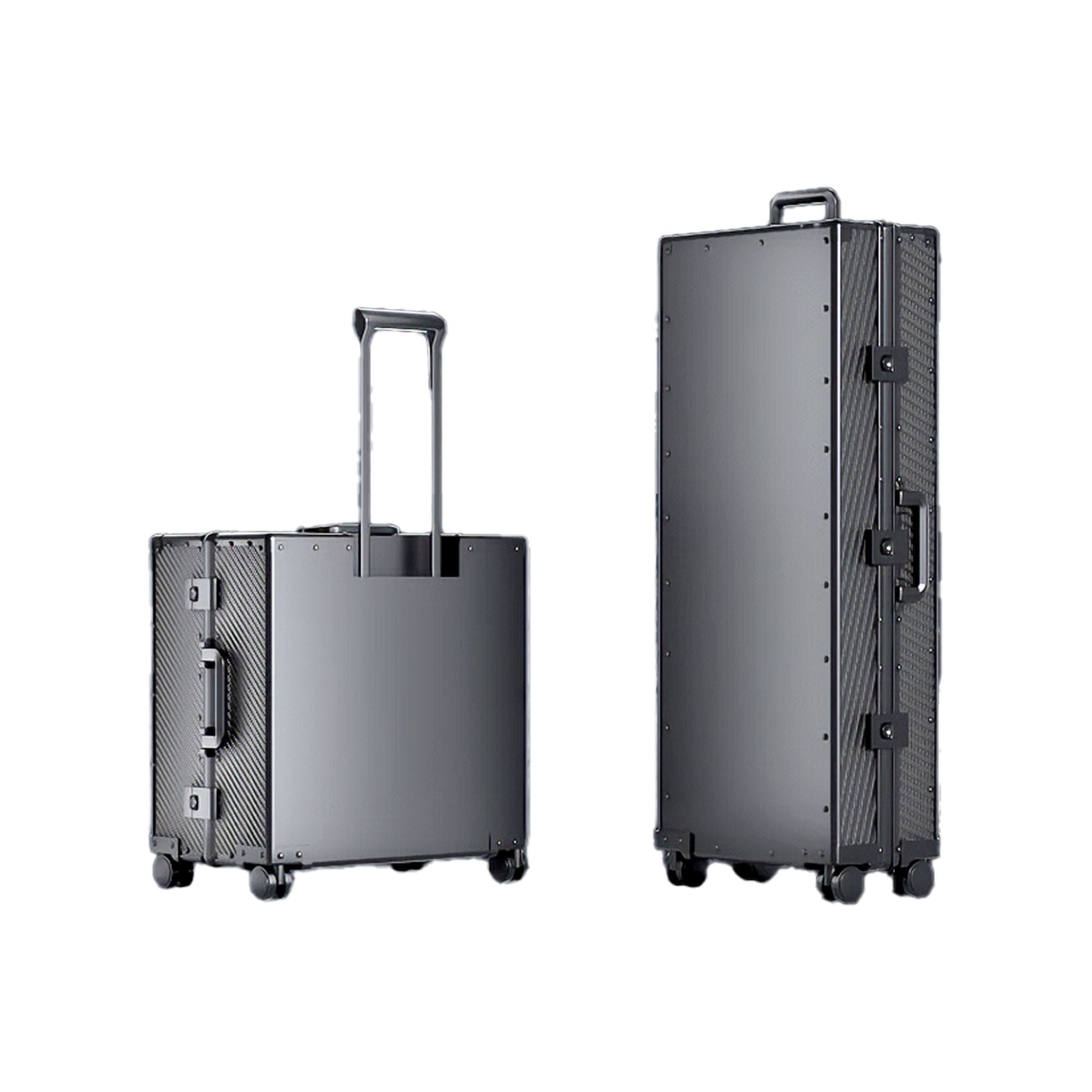

• Tracker Hard Case with Wheels
• Scanner Hard Case with Wheels

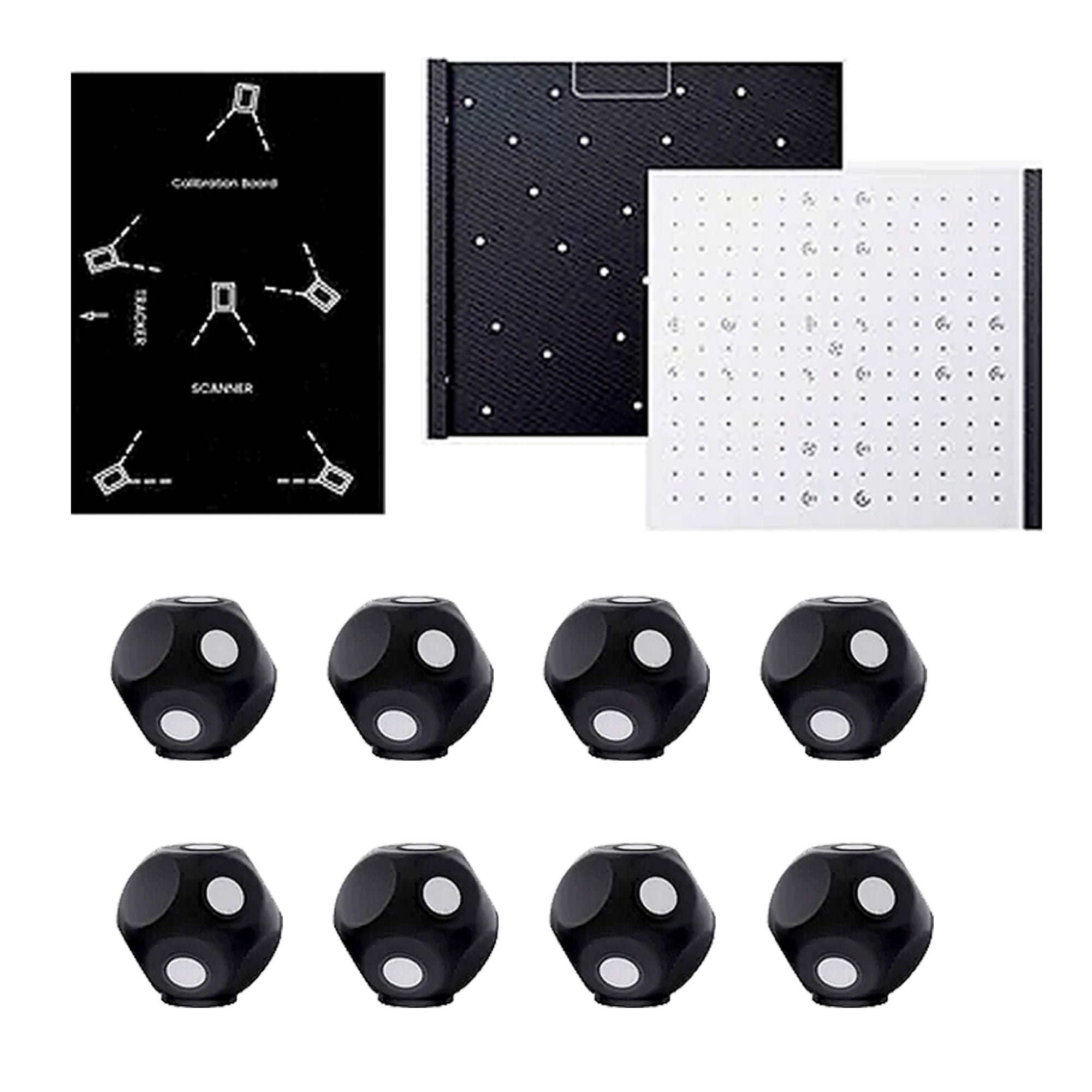

• Calibration Board & Calibration Pole
• Calibration Board Tripod
• Power Adapter
• Scanner Gimbal Cable

• Tracker Gimble Cable
• Scanner Adapter
• Anchor Blocks x8
• Positioning Pad

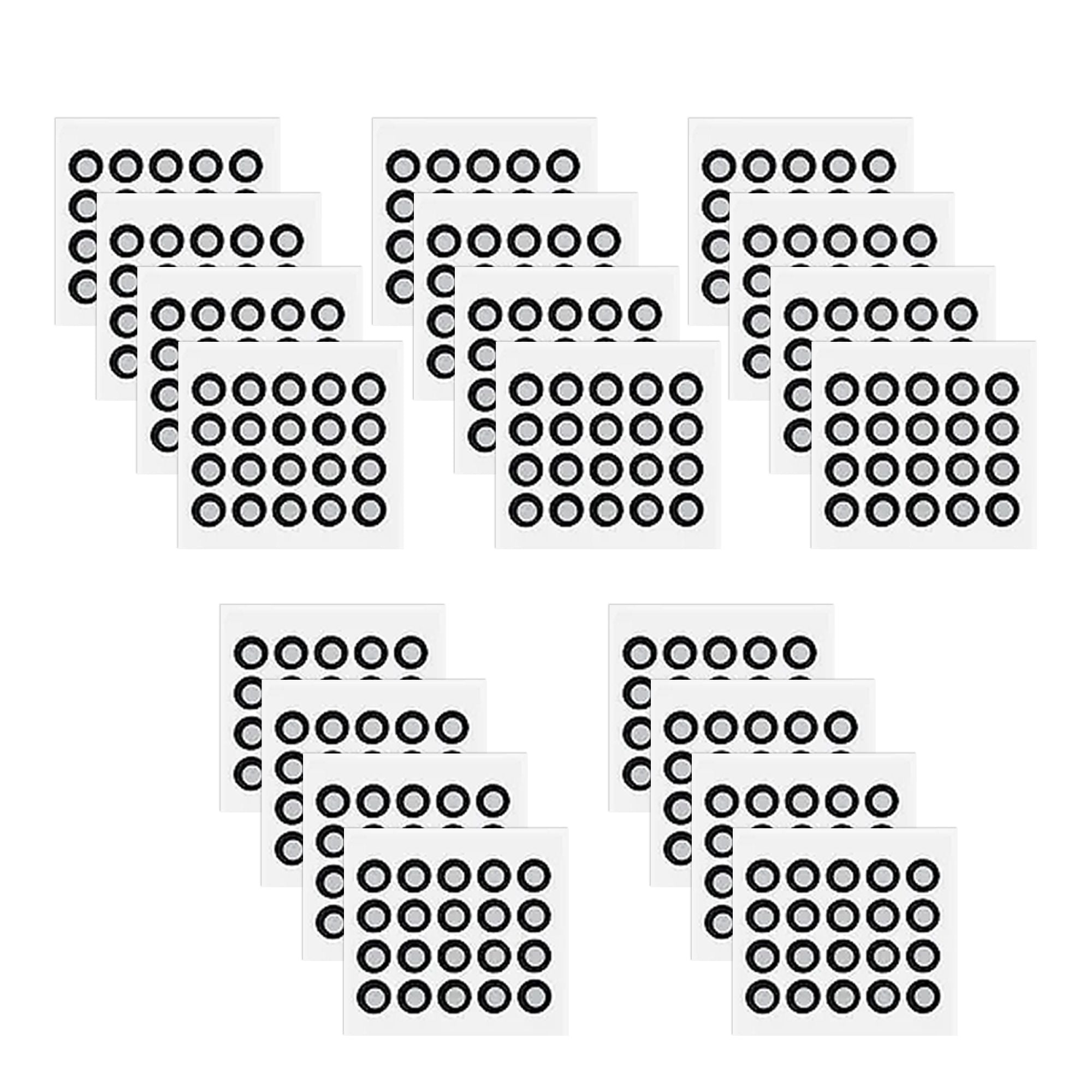

• Magnetic Markers x 20
• USB Flash Drive
• Cable Ties
• Suction Cup Cable Holder
• Revo Track 3D Scanning Software Mac & PC

• Quick Start Guide
• 2 Year Scanner Warranty / 1 Year Accessory Warranty
• 24/7 Customer Service
• 1-on-1 Free Training

Upgrade to marker-free precision today — achieve metrology-grade results faster, with less preparation and superior tracking stability. Ideal for engineers, manufacturers, designers, and quality control teams who demand reliable, high-performance 3D data capture without compromises.
