Revopoint RANGE 3 Standard Edition Wireless 3D Scanner
$351.00$369.00
$351.00
New Product Launch, Estimated Shipping November 2026
Add-ons
Revopoint 3D Scanning Large Electric Bluetooth Turntable
$499.00$400.00
Revopoint 529 Piece 3D Scanning Marker Block Kit
$499.00$220.00
Revopoint Revo Design 3D Scan to CAD Software
$599.00$540.00
Revopoint Revo Measure – Professional 3D Measurement and GD&T Software
$599.00$499.00
1 Year License / 1 PC License
Bambu Lab P2S 3D Printer Bundle with Filament Rolls & AMS 2 PRO
$1,199.99$949.99

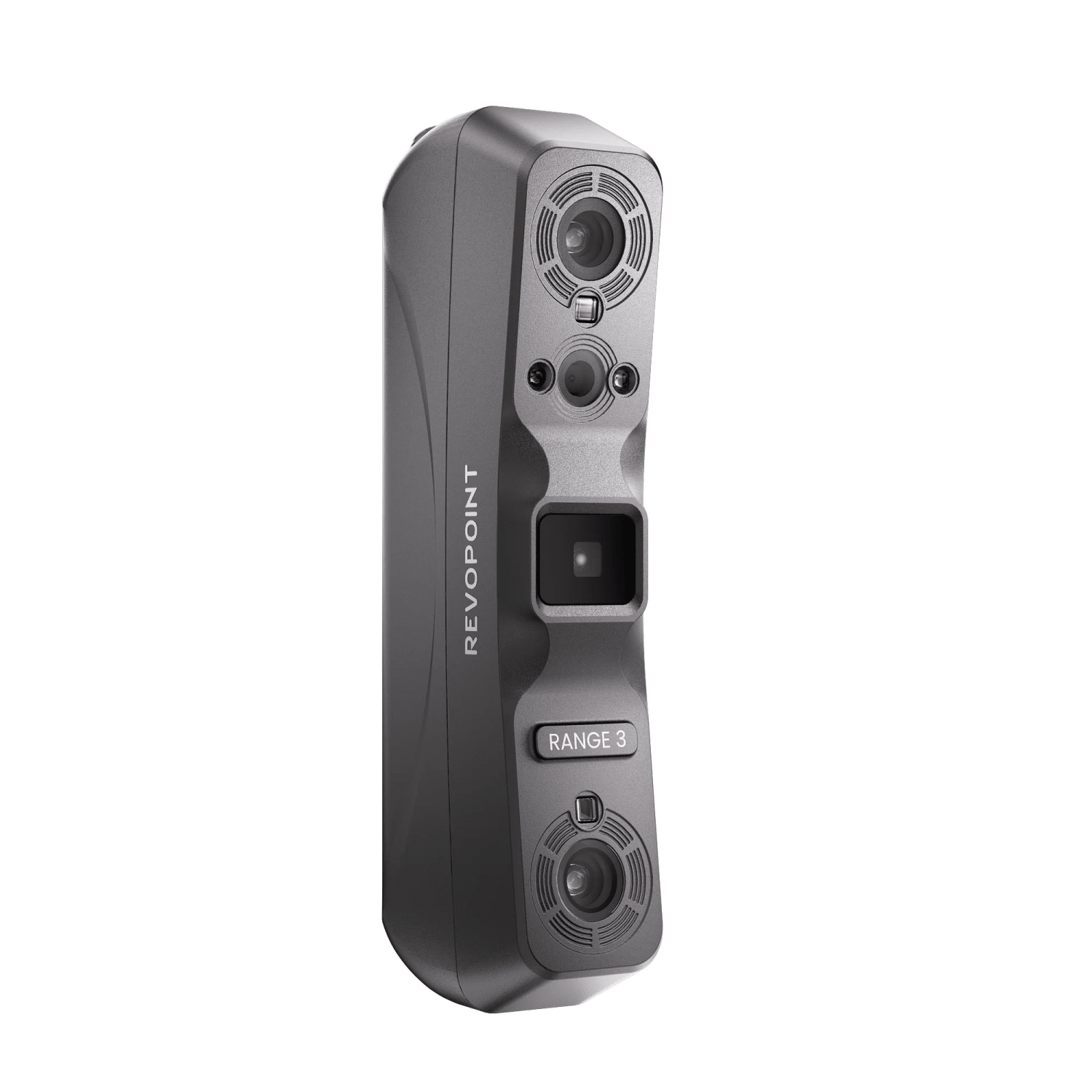

Revopoint RANGE 3 Wireless Handheld 3D Scanner — Wide-Area Capture for Medium-to-Large Objects

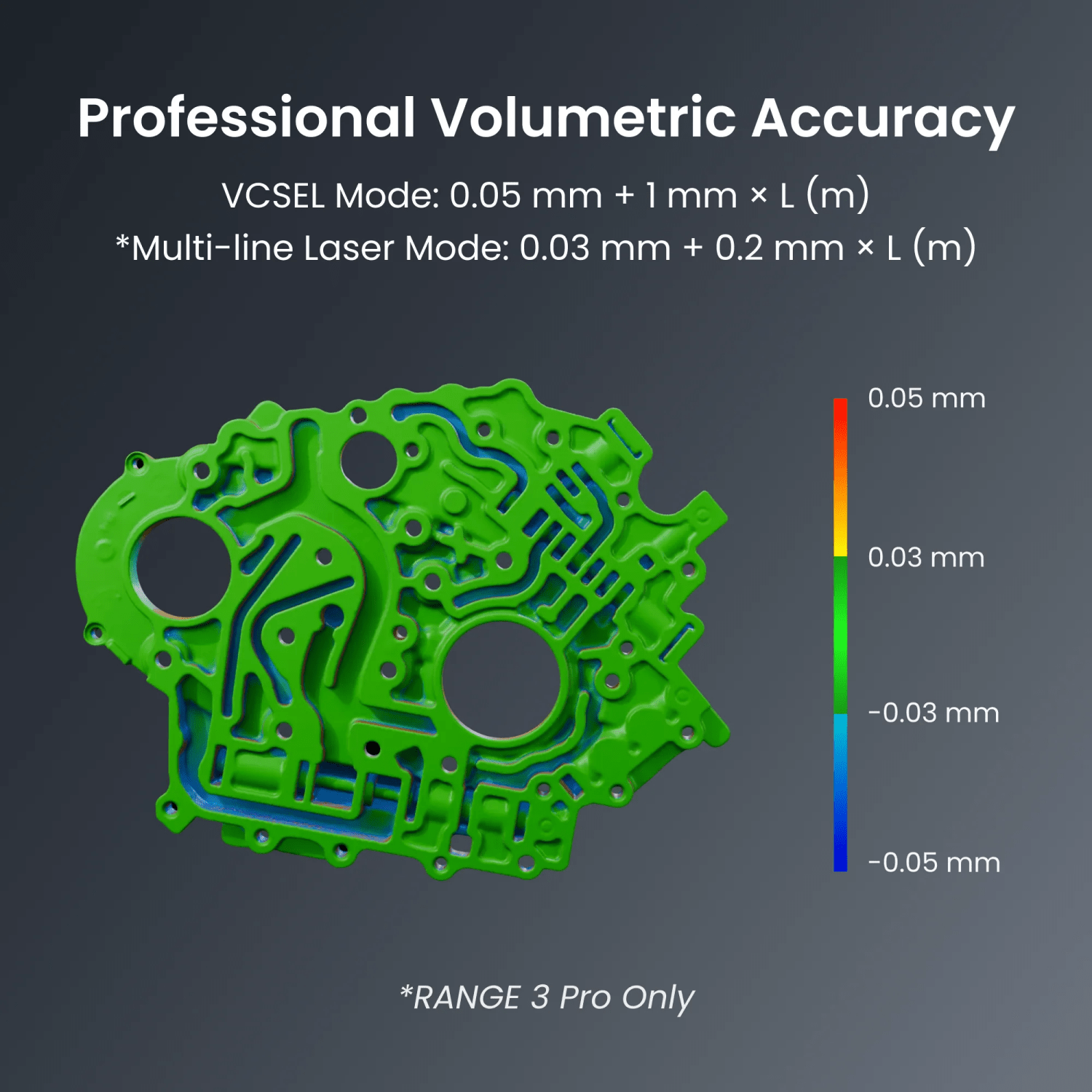

Scan medium-to-large objects with the Revopoint RANGE 3, a lightweight wireless handheld 3D scanner built for people, sculptures, furniture, equipment exteriors, and scenes up to 4 × 4 × 4 m. It uses near-infrared VCSEL structured light with a single capture area up to 687 × 672 mm at 1,000 mm, so you cover more surface in fewer passes. Volumetric accuracy is 0.05 mm + 1 mm × L (m), with fused point distance up to 0.1 mm.
The RANGE 3 weighs just 218 g, connects via Wi-Fi 6, and supports feature, color, and marker tracking. It includes a 1.3-megapixel RGB camera for color and texture capture and works outdoors in ambient light up to 100,000 lux. Data is processed in Revo Scan 6 and can move into Revo Design and Revo Measure for reverse engineering and inspection workflows.
Key Features

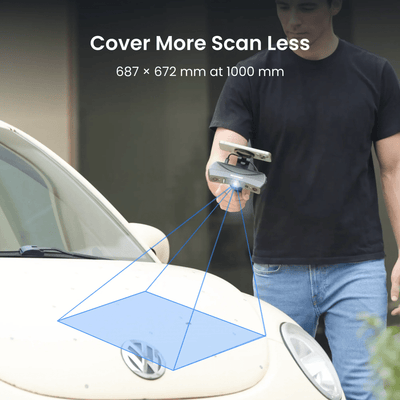

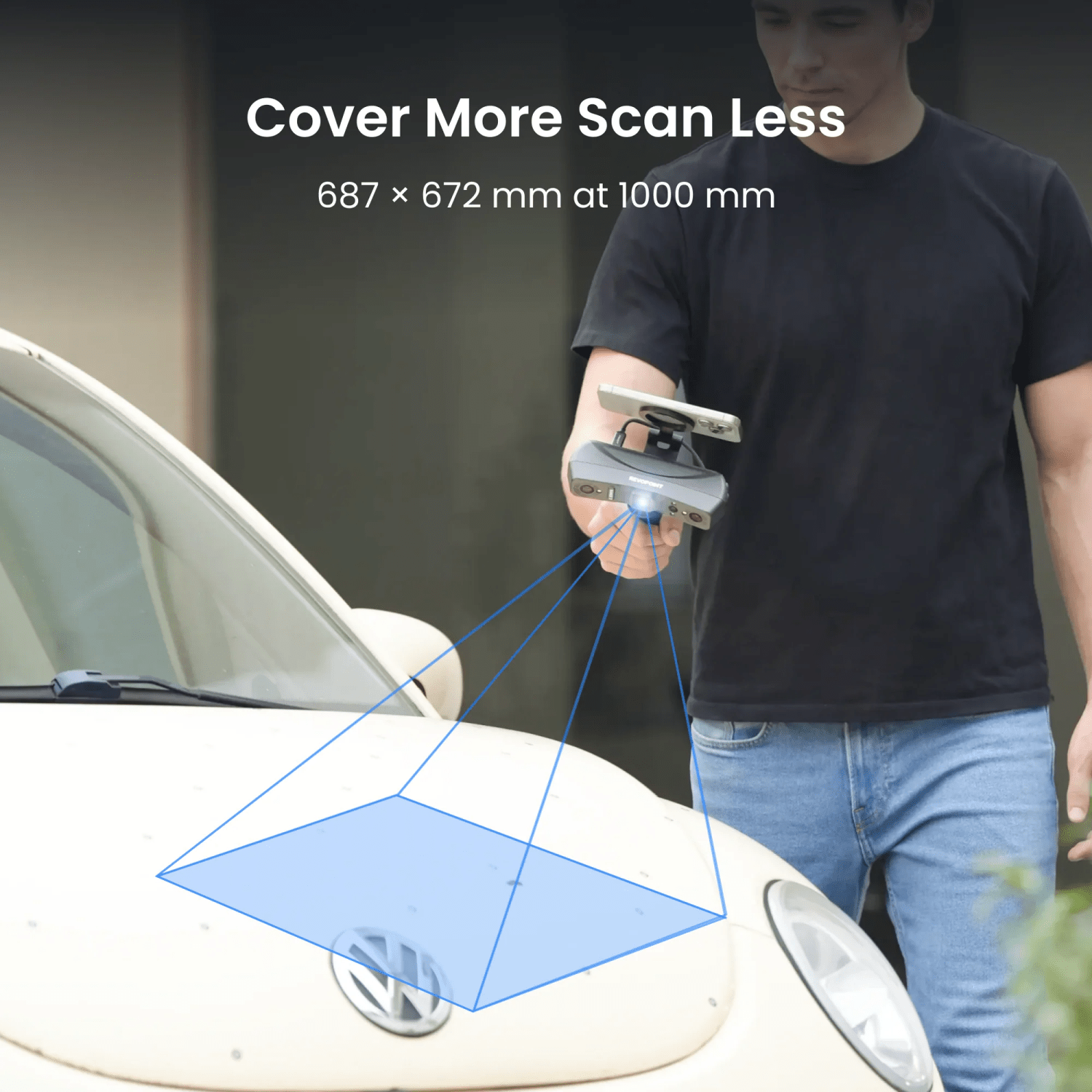

- Wide Single-Frame Coverage — Up to 687 × 672 mm at 1,000 mm working distance for faster scanning of medium-to-large objects.
- VCSEL Structured Light — Near-infrared mode at 20–30 fps with volumetric accuracy of 0.05 mm + 1 mm × L (m).
- Scan Volume from 30 mm to 4 m — Handles small components (30 × 30 × 30 mm minimum) through large scenes up to 4 × 4 × 4 m.

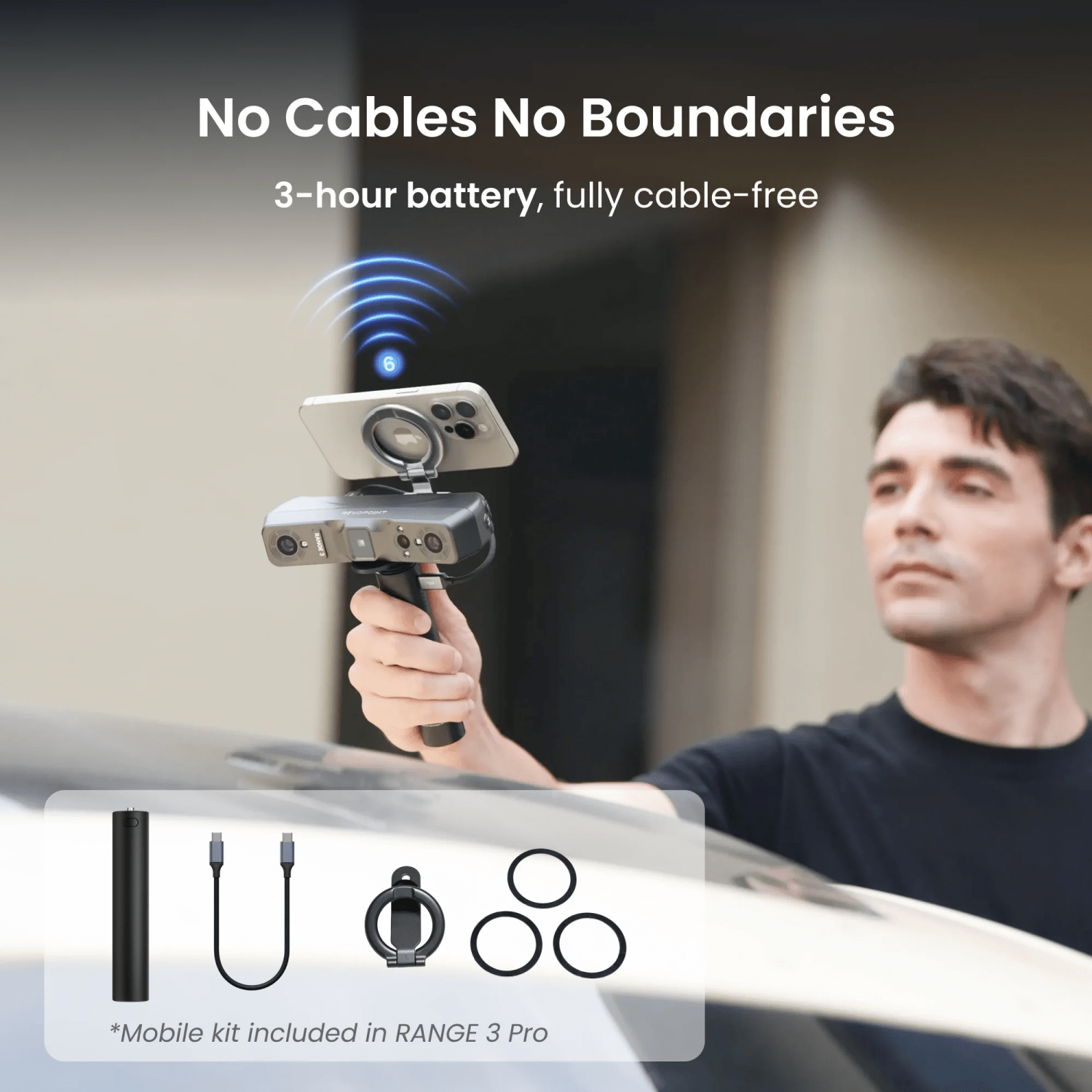

- Wireless Wi-Fi 6 — Cable-free operation with optional 5,000 mAh battery grip for up to 3 hours of continuous use.
- Color and Texture Capture — 1.3 MP RGB camera with fill lights for color tracking and textured models.

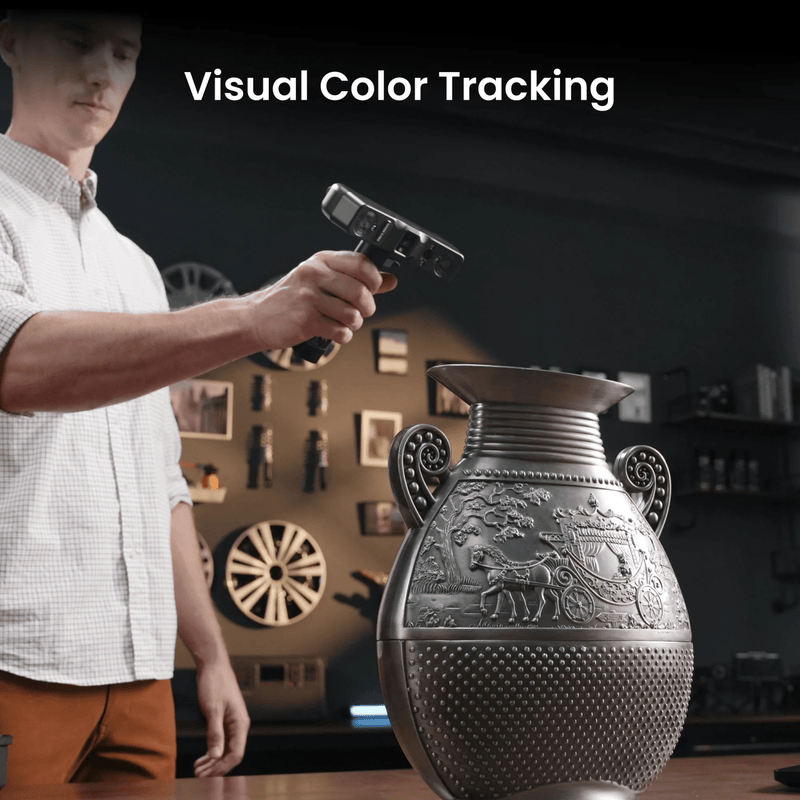

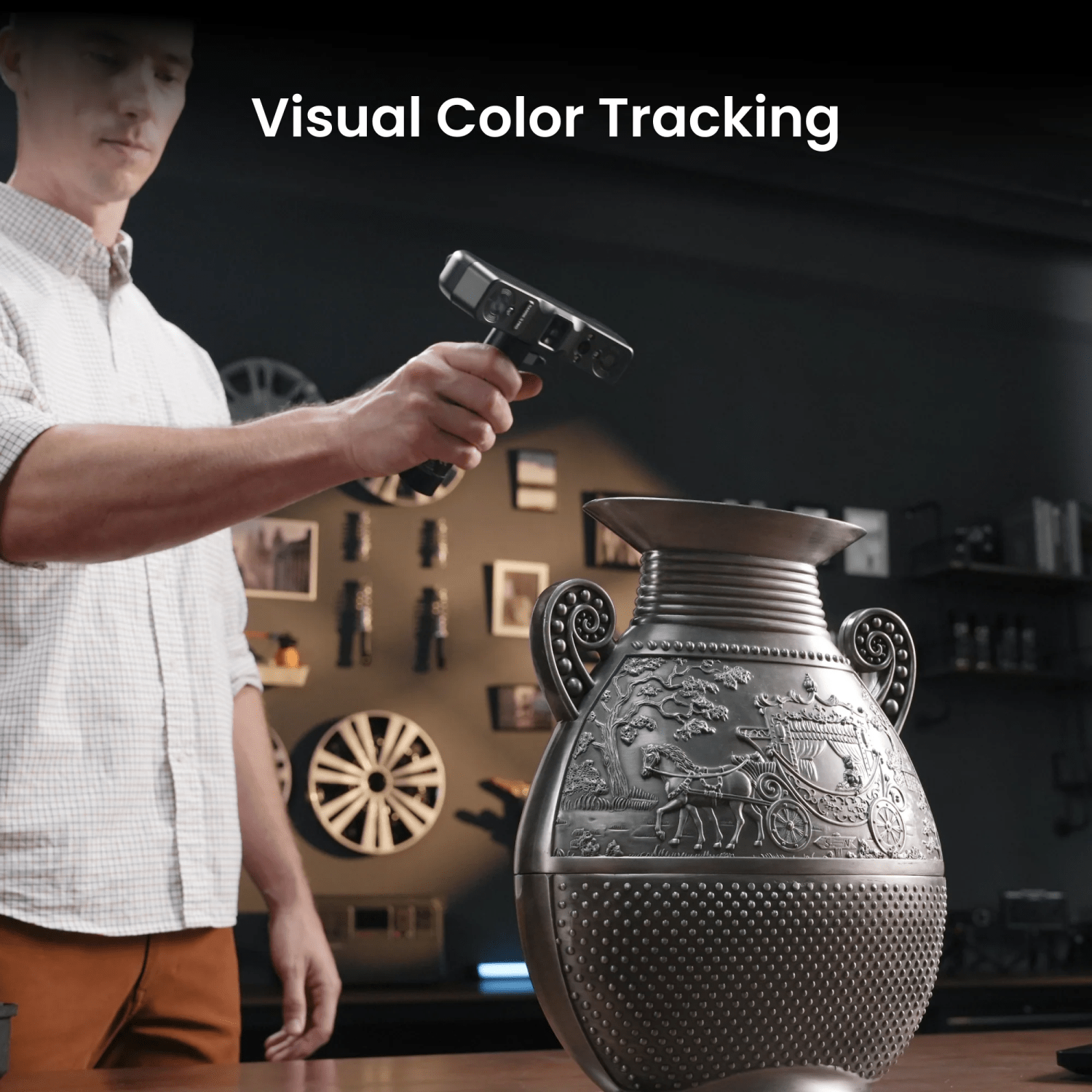

- Multiple Tracking Modes — Feature, color, and marker tracking for flexible registration.

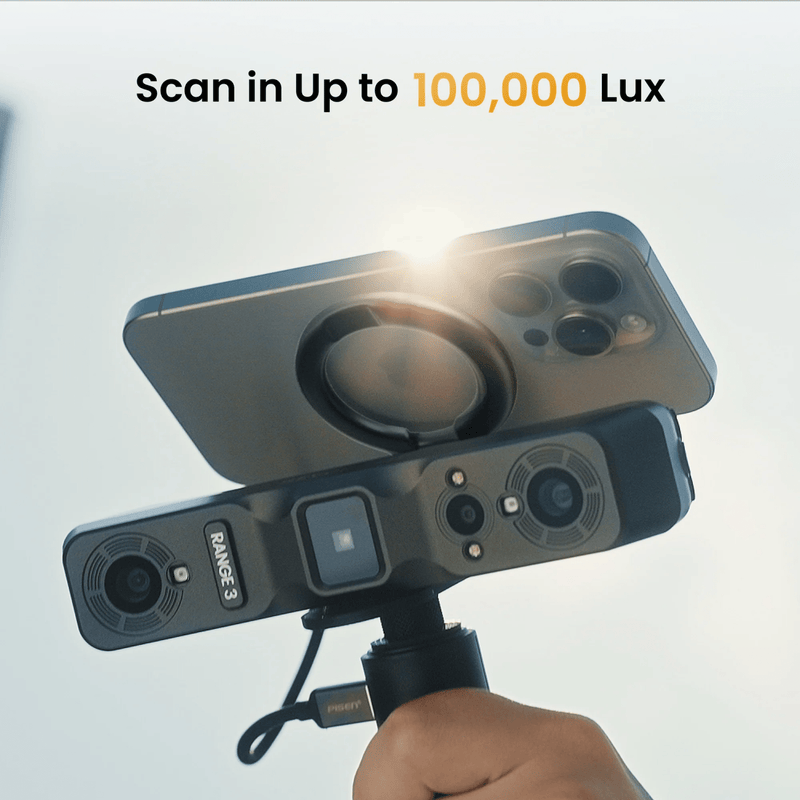

- Outdoor Capable — Supports ambient light up to 100,000 lux for scanning outside controlled environments.

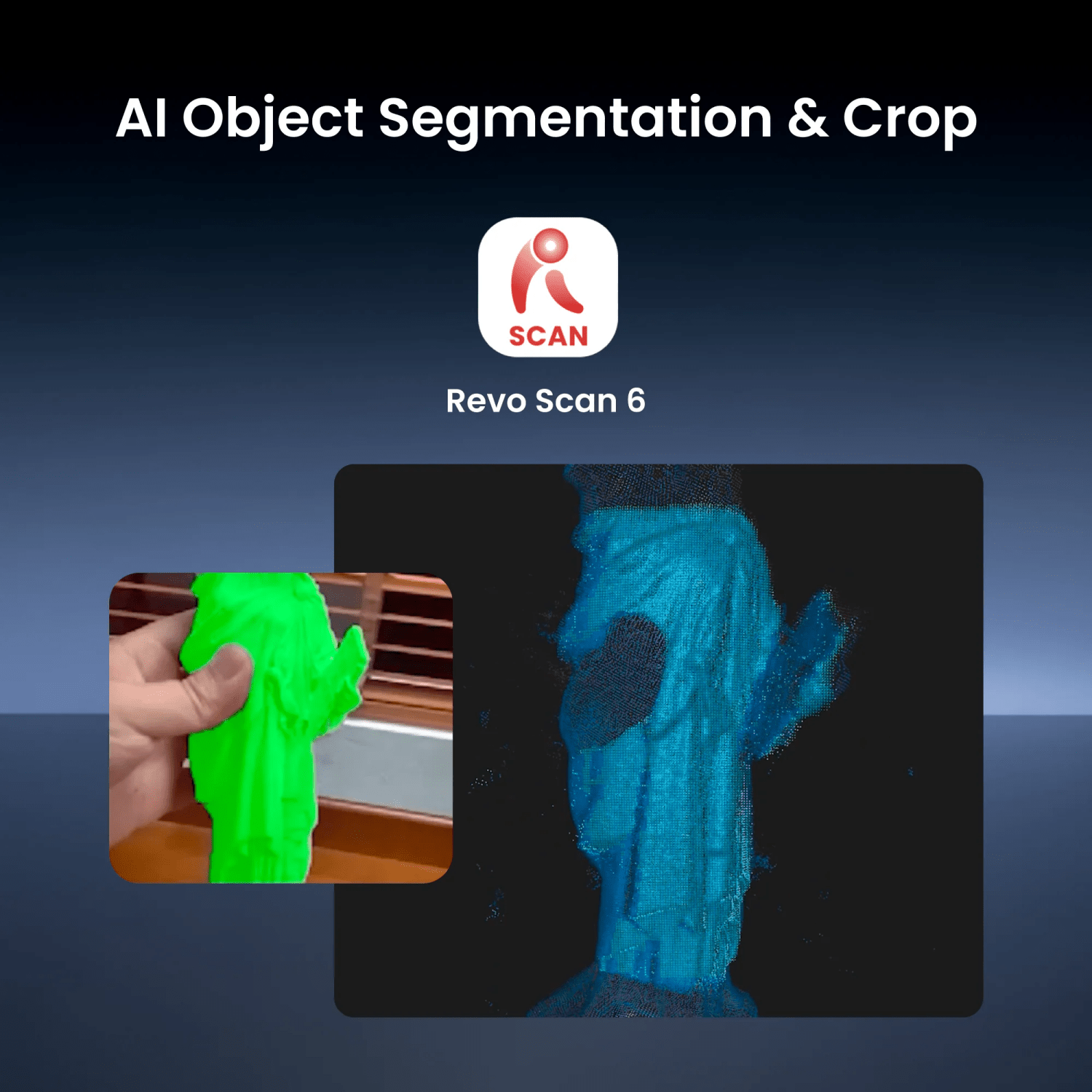

- AI-Assisted Processing — One-click AI background removal and crop in Revo Scan 6.

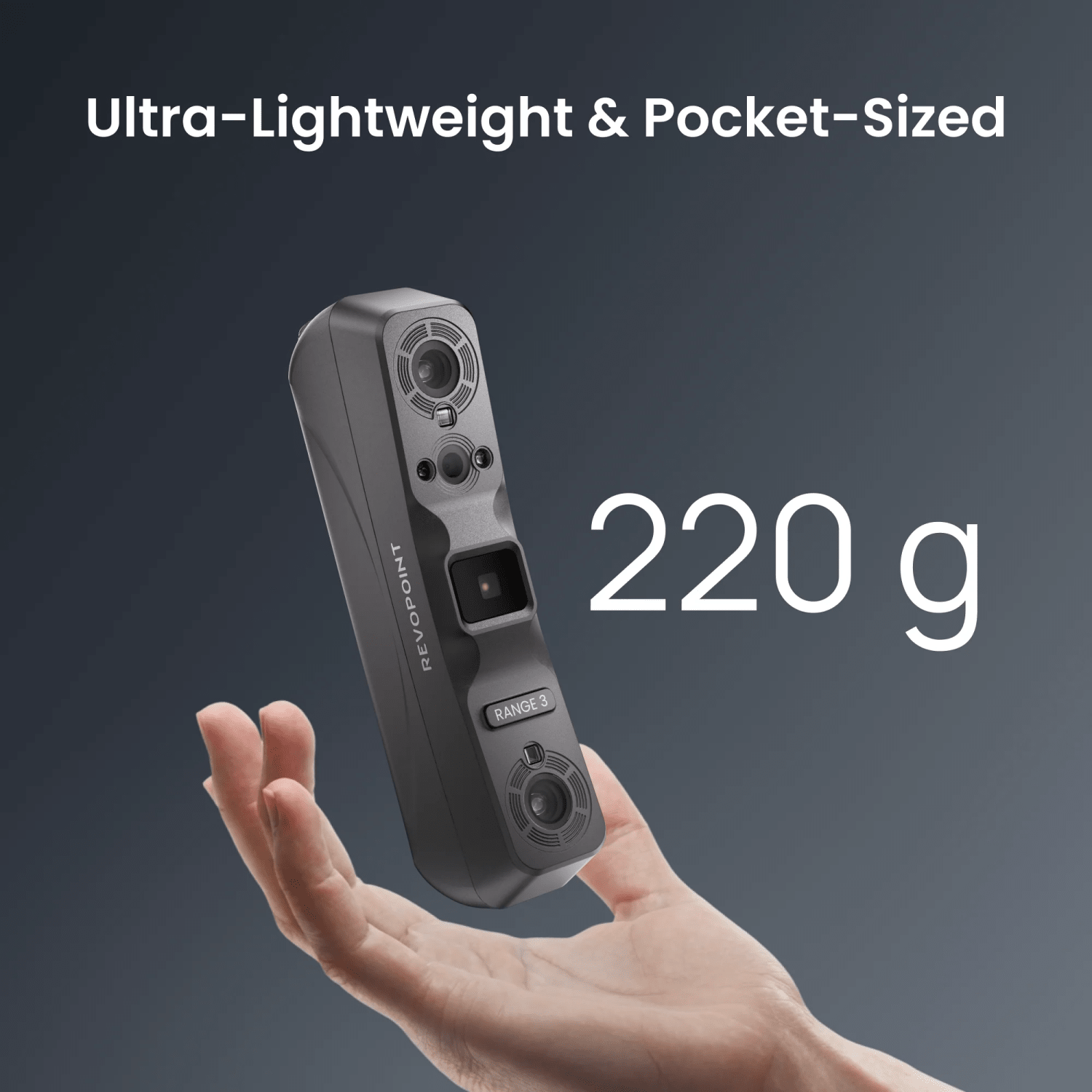

- Lightweight and Compact — 218 g, 163 × 57 × 32 mm body that fits in a pocket.

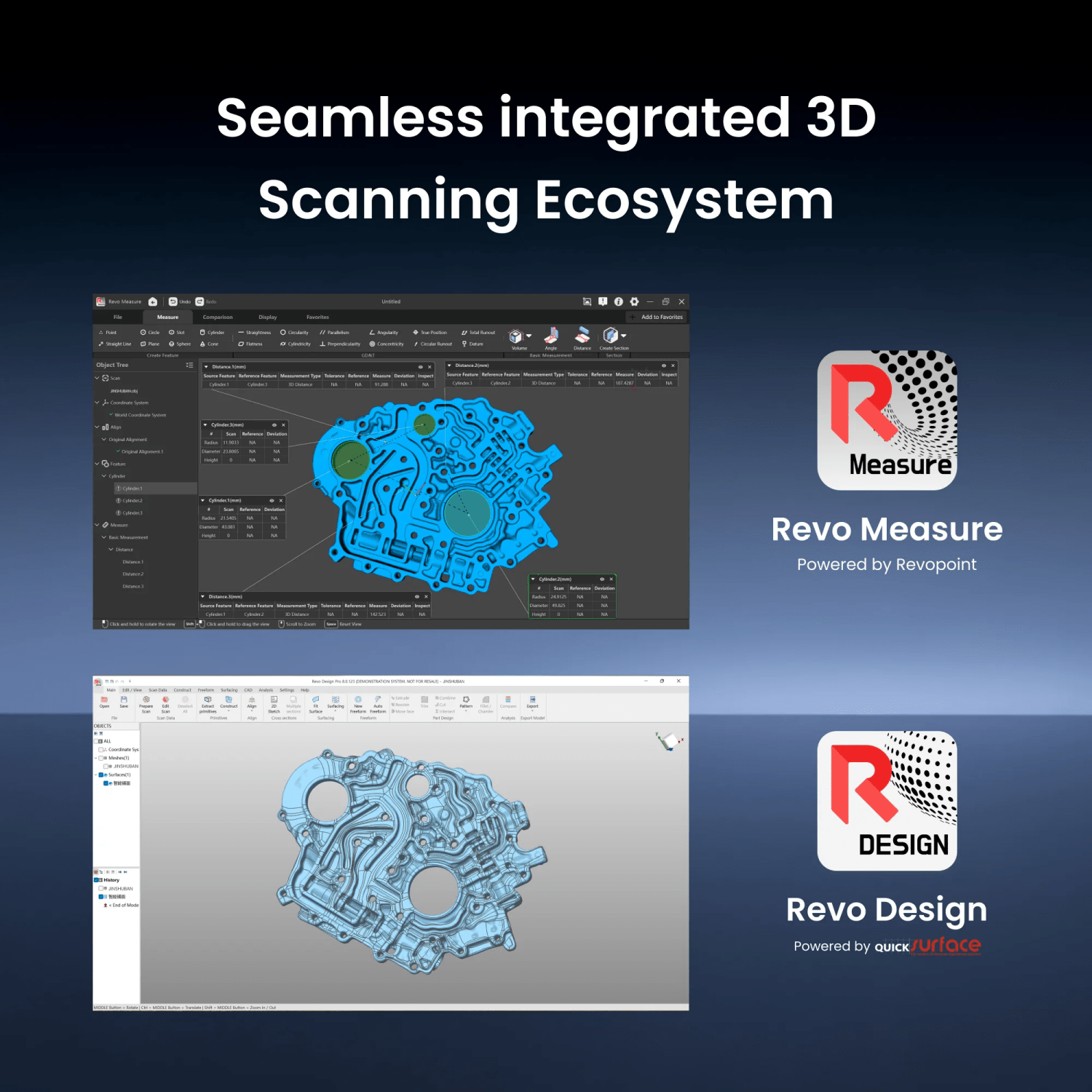

- Revo Software Ecosystem — Works with Revo Scan 6, Revo Design, and Revo Measure for scan-to-CAD and inspection.
Software Info

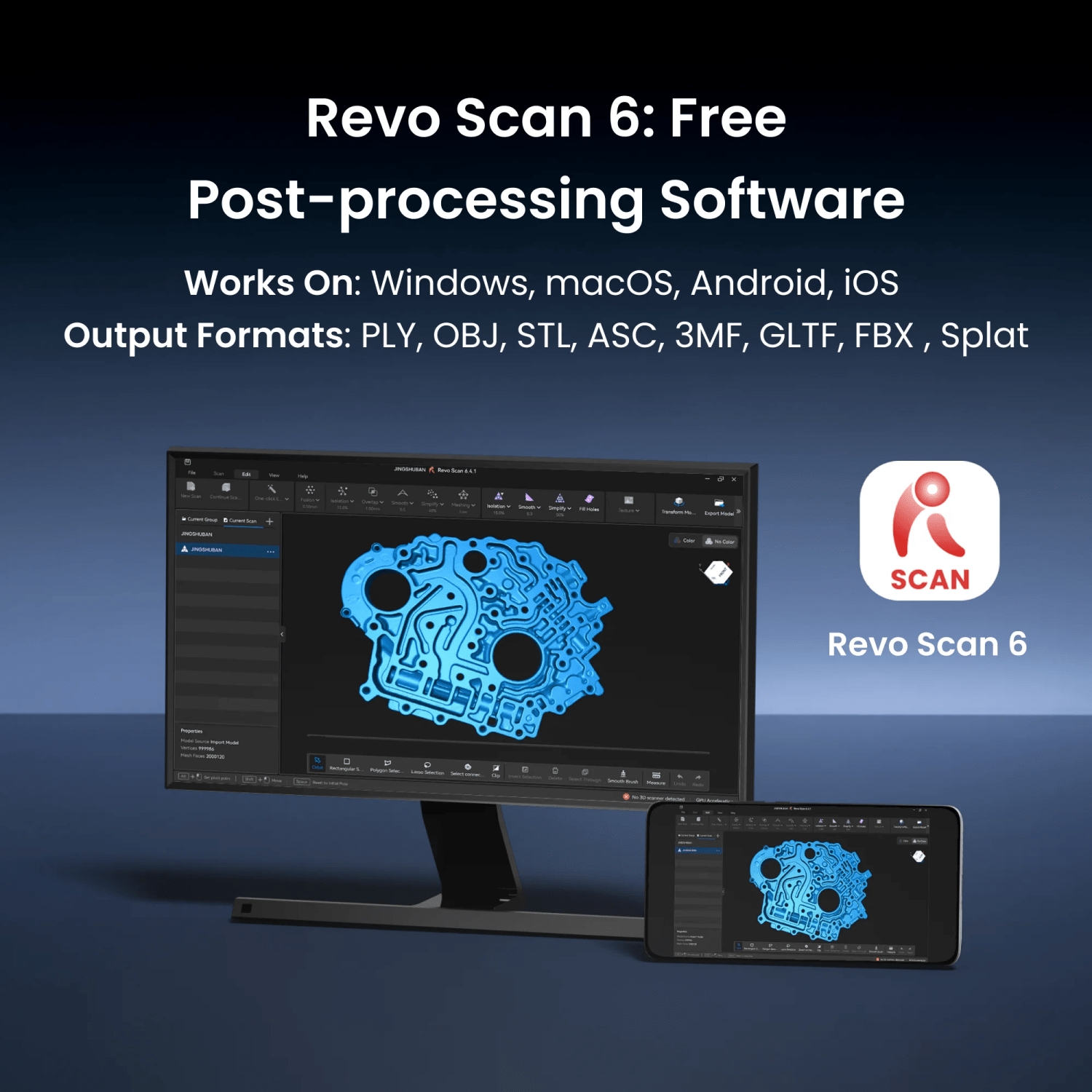

Revo Scan 6 is the companion software for scanning, processing, and export. It runs on Windows, macOS, Android, and iOS and includes AI-powered tools for background removal and cropping. Supported export formats include PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, and Splat. Models can be prepared for 3D printing or further use in design and inspection workflows.
Revo Mirror enables cross-platform screen mirroring from computers to mobile devices, letting you preview and monitor your 3D scanning process in real-time when paired with Revo Metro/Revo Scan 6/Revo Track.
Setup Tips
- Connect wirelessly via Wi-Fi 6 or with the included USB-C cable.
- Use the calibration board for user recalibration when needed.
- For transparent or highly reflective surfaces, apply scanning spray before capturing.
- For longer sessions or fully wireless work, attach the optional 5,000 mAh battery grip.
- Start with feature or color tracking on textured objects; add markers only when the surface lacks sufficient features.
Specifications
| Item | Detail |
|---|---|
| Model | RANGE 3 |
| Scanning type | Handheld |
| Technology | VCSEL structured light |
| Scannable object size | Small to large |

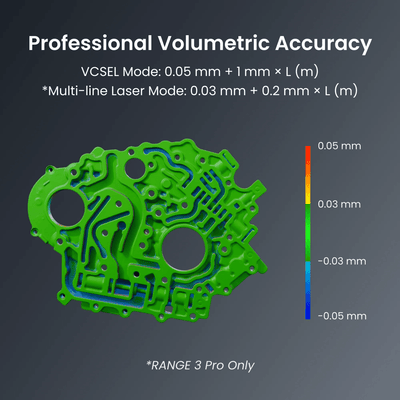

| Volumetric accuracy | 0.05 mm + 1 mm × L (m) in VCSEL mode |
| Working distance | 200–1000 mm (7.9–39.4 in) |
| Single capture area | 113 × 134 mm (4.4 × 5.3 in) at 200 mm; 687 × 672 mm (27.0 × 26.5 in) at 1000 mm |
| Scan volume | Approx. 30 × 30 × 30 mm (1.2 in) minimum to 4 × 4 × 4 m (13.1 ft) maximum |
| Scanning speed | 20–30 fps (VCSEL) |
| Color scanning | Yes |
| Tracking methods | Feature, color, marker |
| Outdoor scanning | Yes, up to 100,000 lux |
| Wi-Fi | Wi-Fi 6 |
| Scanner weight | 218 g (7.7 oz) |
| Dimensions | 163 × 57 × 32 mm (6.4 × 2.2 × 1.3 in) |
| Output formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat |
| Power | DC 5V, 2A; USB or optional 5,000 mAh battery grip |

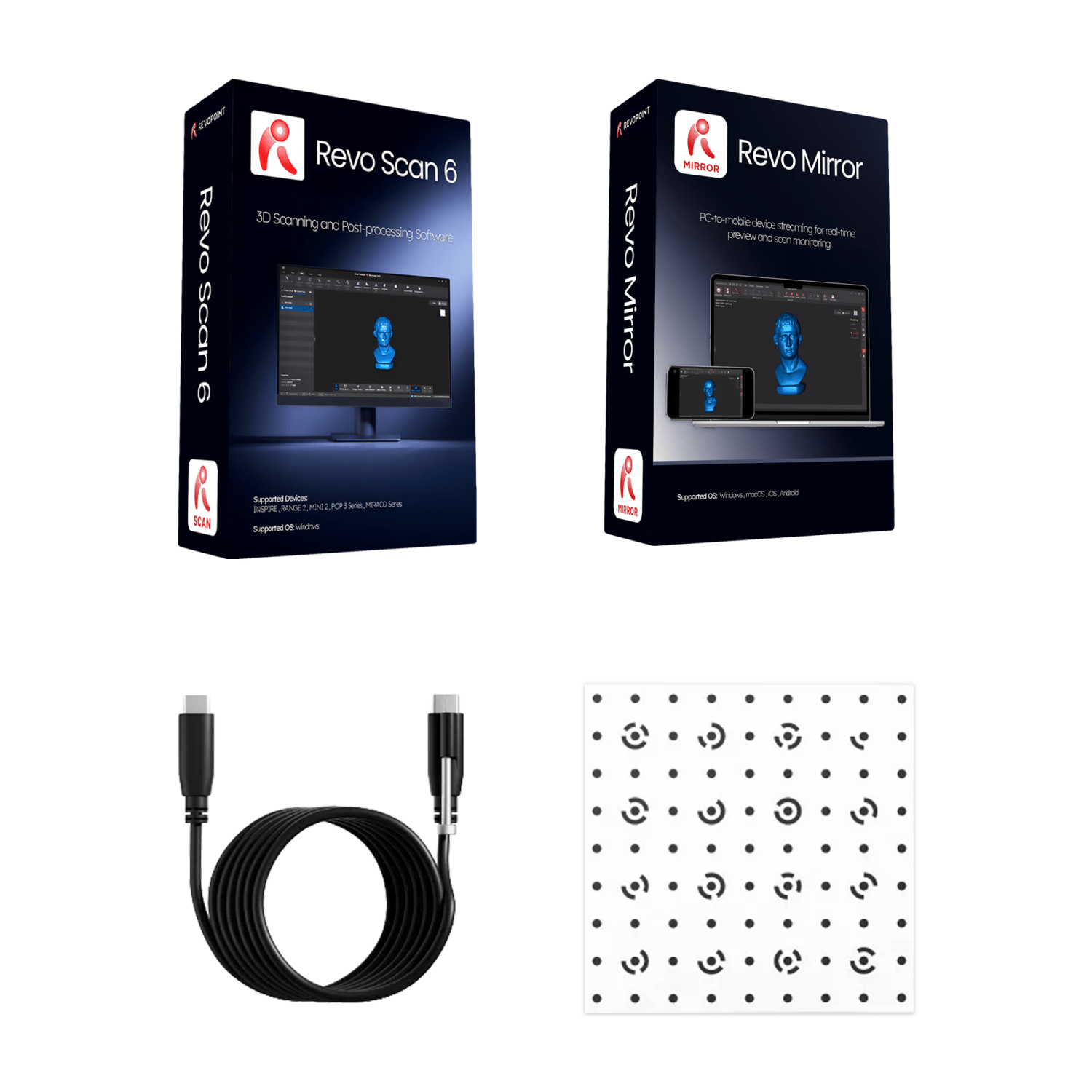

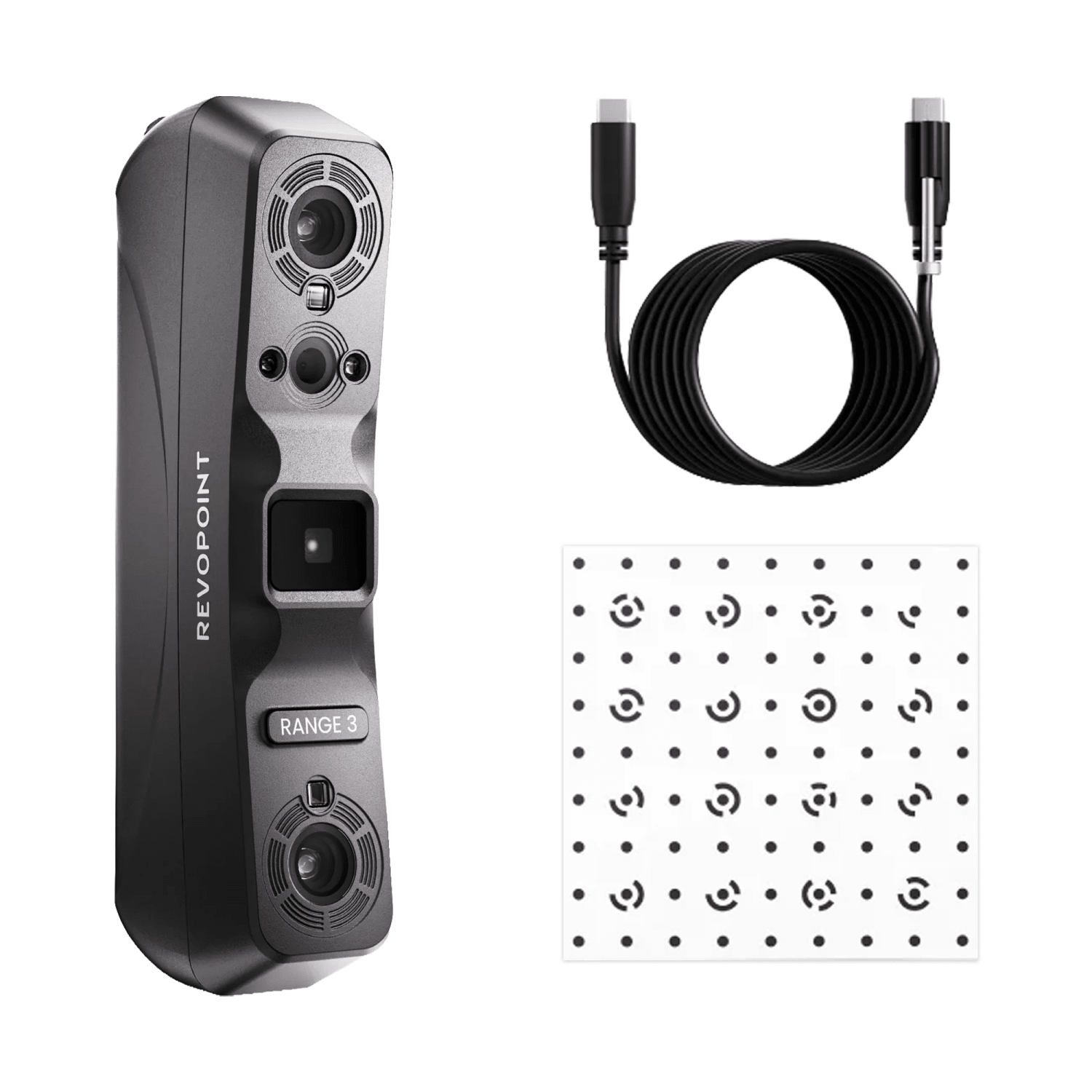

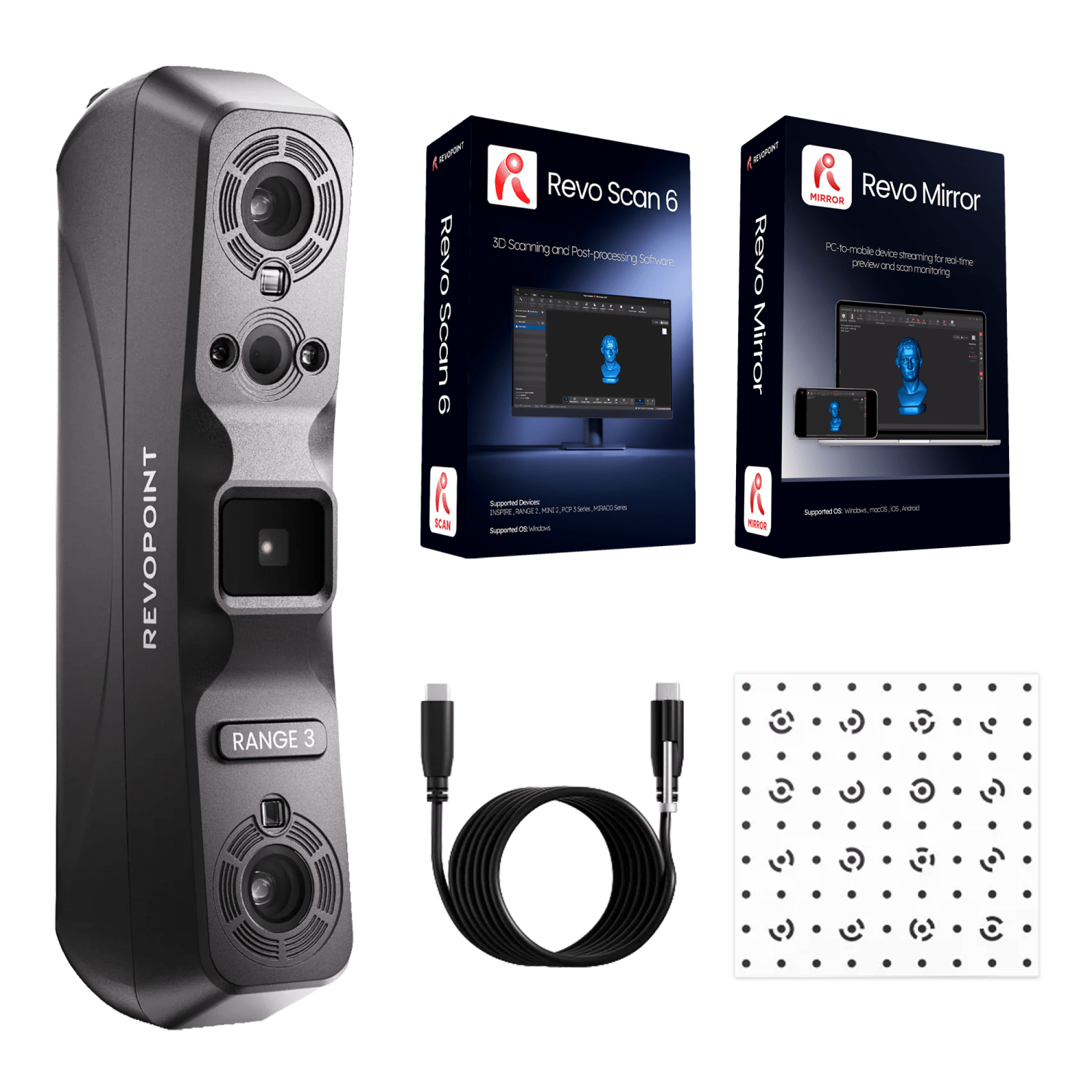

What’s Included
- RANGE 3 3D Scanner
- USB-C to USB-C Cable (2 m)
- Calibration Board
- Revo Scan 6
- Revo Mirror
- Manufacturer Warranty
- Lifetime Product Support
Who It’s For
Choose the RANGE 3 if you need a portable wireless scanner for medium-to-large objects, reverse engineering, 3D printing preparation, or outdoor capture. It fits users who want wide coverage and color tracking with less marker prep on many jobs.
FAQ
What size objects can it scan?
From roughly 30 mm (1.2 in) minimum volume up to 4 m (13.1 ft) scenes.
Does it work outdoors?
Yes. It supports ambient light up to 100,000 lux.
Is it wireless?
Yes. It includes Wi-Fi 6 and supports up to about 3 hours of continuous use with the battery grip.
What software does it use?
Revo Scan 6 on Windows, macOS, Android, and iOS. Exports include PLY, OBJ, STL, and other common formats.
Do I always need markers?
No. Feature and color tracking are supported. Markers help on low-feature surfaces. Scanning spray is recommended for transparent or specular objects.
