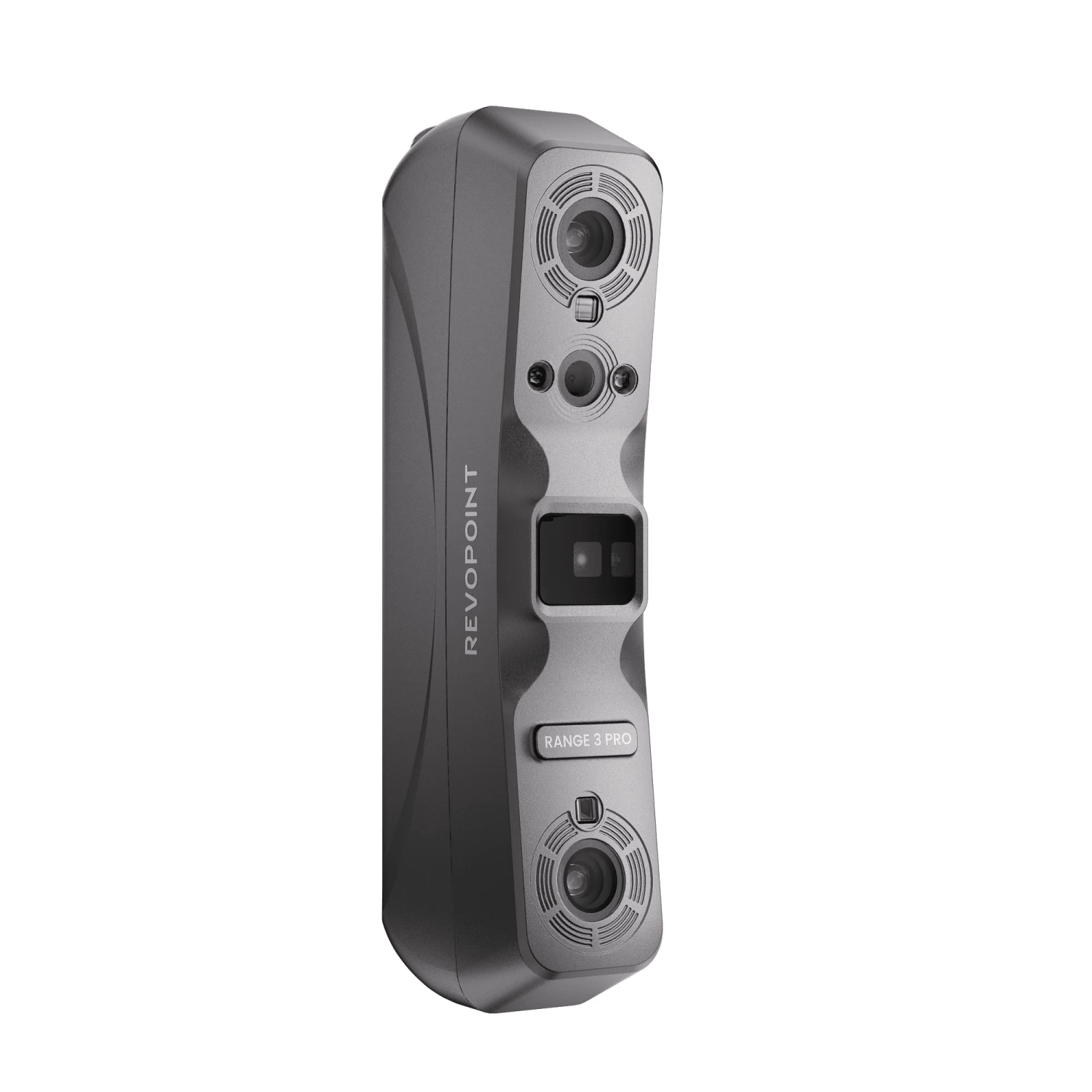

Revopoint RANGE 3 Pro Edition Wireless 3D Scanner

Revopoint RANGE 3 Pro Wireless Handheld 3D Scanner | Markerless Scanning | Dual-Mode VCSEL + Laser for Large Objects

Scan medium-to-large objects with the Revopoint RANGE 3 Pro, a lightweight wireless handheld 3D scanner that adds 11 parallel infrared laser lines to the VCSEL structured light system. It covers up to 687 × 672 mm in a single frame at 1,000 mm and handles scenes up to 4 × 4 × 4 m. In laser mode it reaches volumetric accuracy of 0.03 mm + 0.2 mm × L (m) and supports markerless scanning using feature and color tracking.

The RANGE 3 Pro weighs about 220 g, connects via Wi-Fi 6, and includes a 5,000 mAh battery grip for up to 3 hours of continuous use. It captures color and texture with a 1.3-megapixel RGB camera and works outdoors in ambient light up to 100,000 lux. Process scans in Revo Scan 6 and move them into Revo Design and Revo Measure for reverse engineering and inspection.

Key Features

• Dual Scanning Modes — VCSEL structured light (20–30 fps) plus 11 parallel infrared laser lines (up to 105 fps with NVIDIA GPU) for speed or higher accuracy.
• Wide Single-Frame Coverage — Up to 687 × 672 mm at 1,000 mm working distance for faster scanning of medium-to-large objects.
• Laser Mode Accuracy — Volumetric accuracy up to 0.03 mm + 0.2 mm × L (m) in multi-line laser mode.
• Scan Volume from 20 mm to 4 m — Handles small components (20 × 20 × 20 mm minimum) through large scenes up to 4 × 4 × 4 m.
• Markerless Laser Scanning — Feature-based and color tracking in laser mode reduces the need for markers on many surfaces.

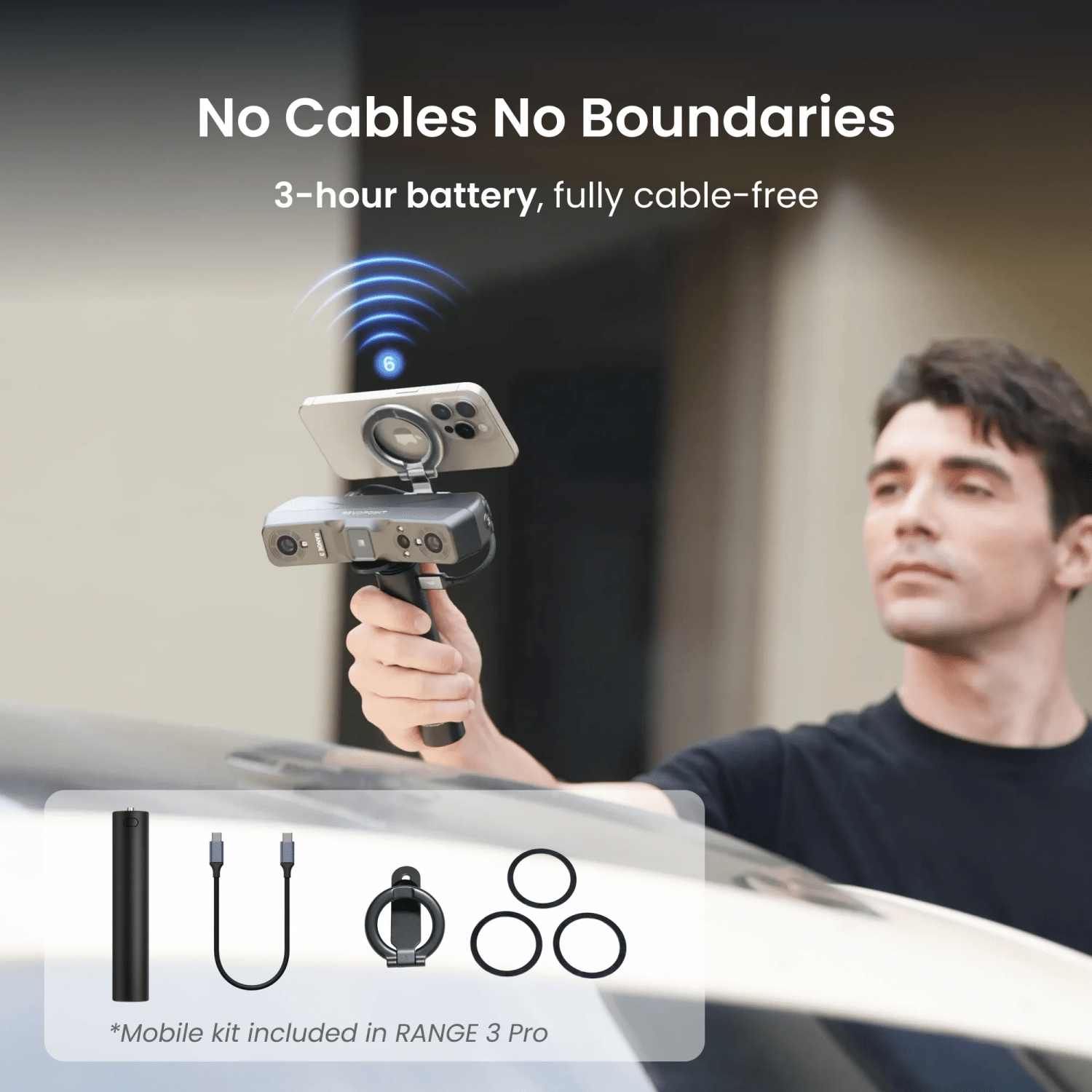

• Wireless Wi-Fi 6 + Battery Grip — Includes 5,000 mAh battery grip for up to 3 hours of continuous cable-free operation.
• Color and Texture Capture — 1.3 MP RGB camera with fill lights for color tracking and textured models.
• Multiple Tracking Modes — Feature, color, marker, and global marker tracking.

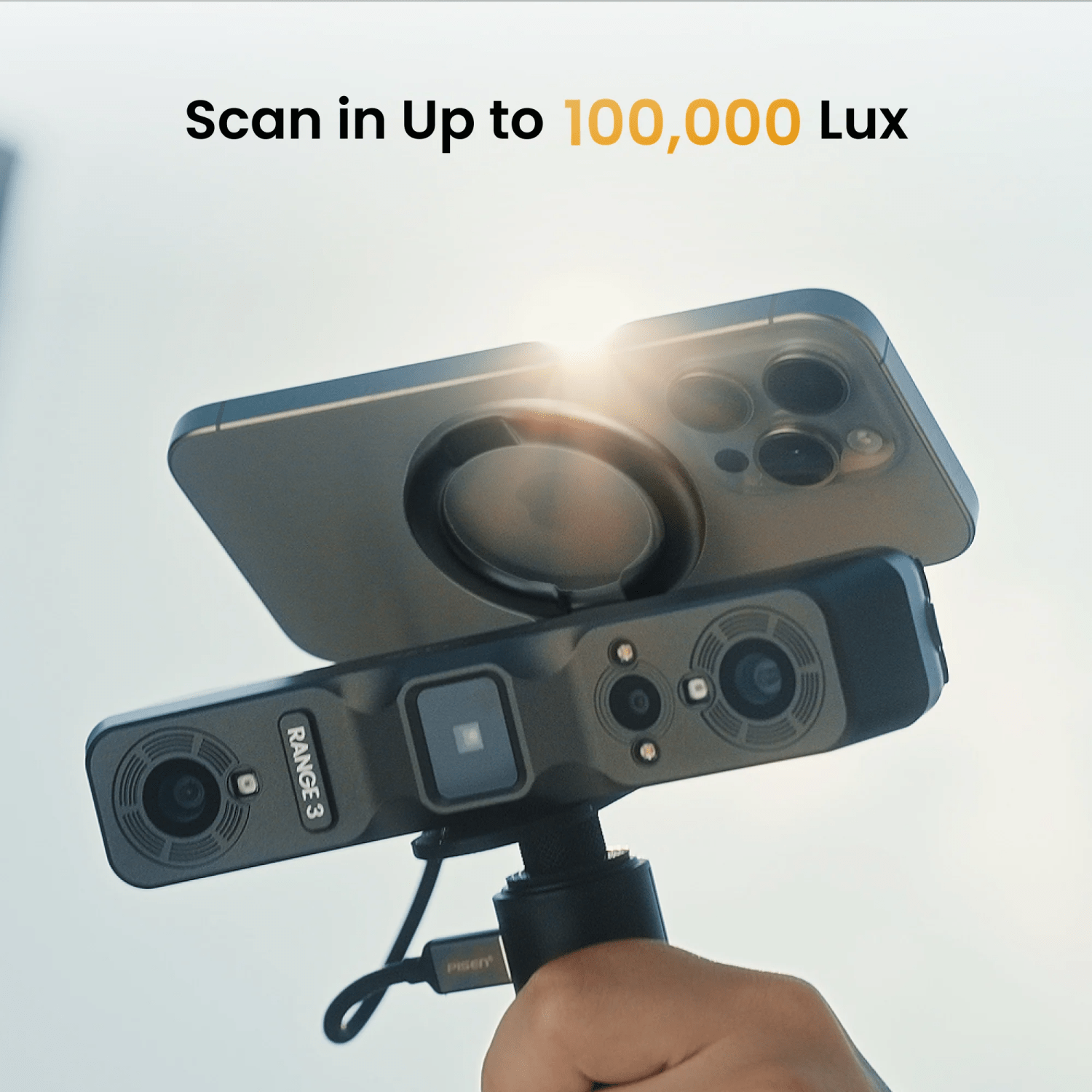

• Outdoor Capable — Supports ambient light up to 100,000 lux.

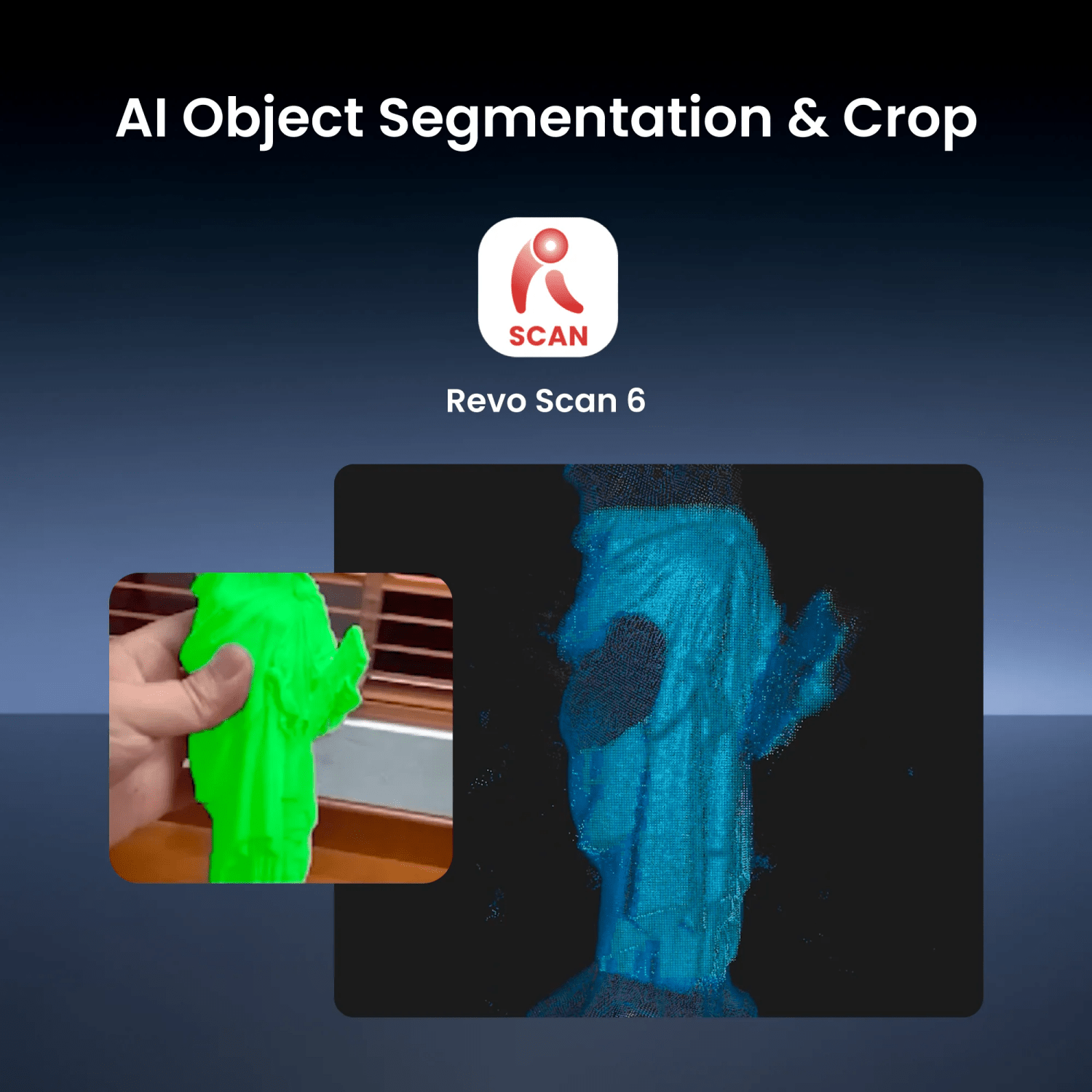

• AI-Assisted Processing — One-click AI background removal and crop in Revo Scan 6.

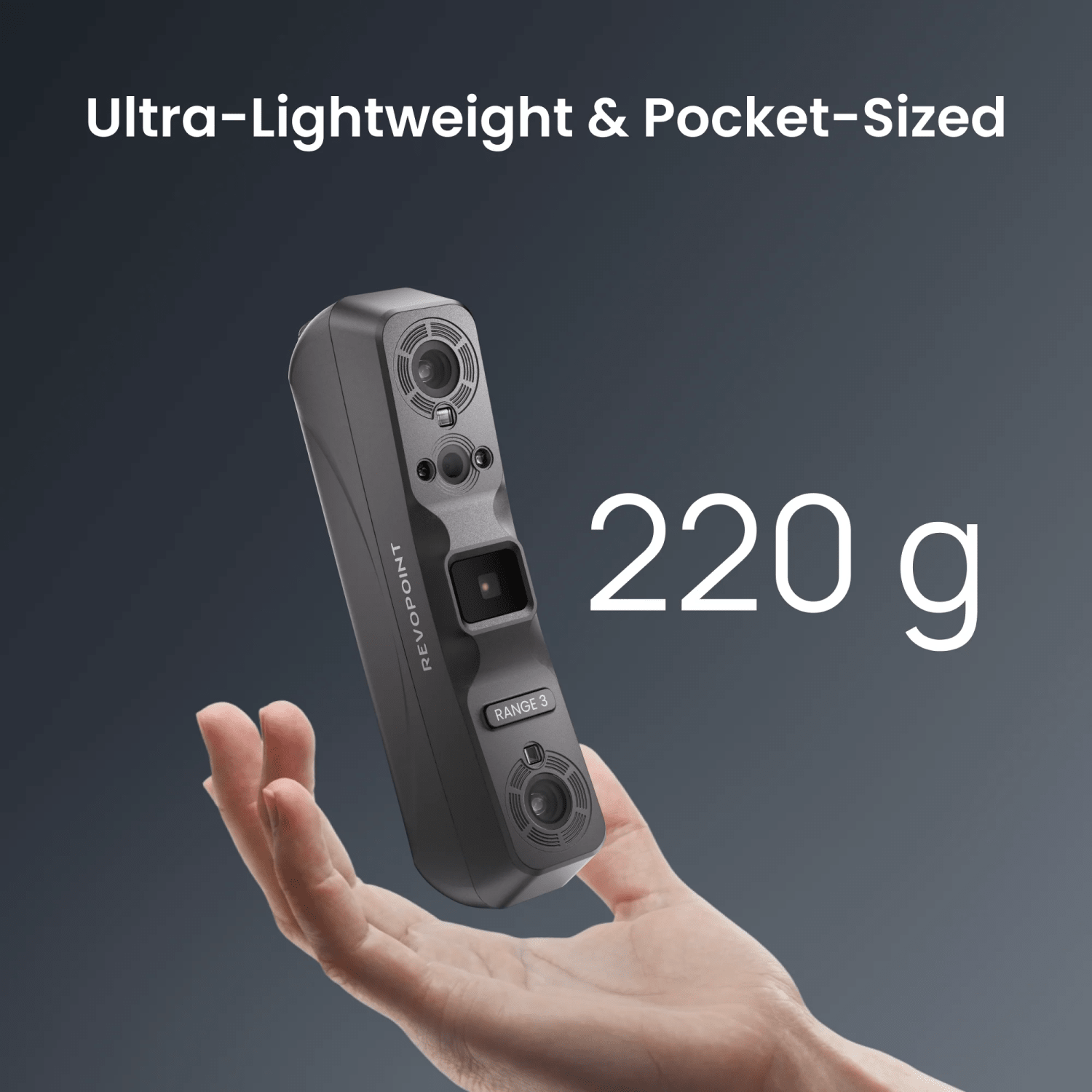

• Lightweight and Compact — Approximately 220 g, 163 × 57 × 32 mm body.

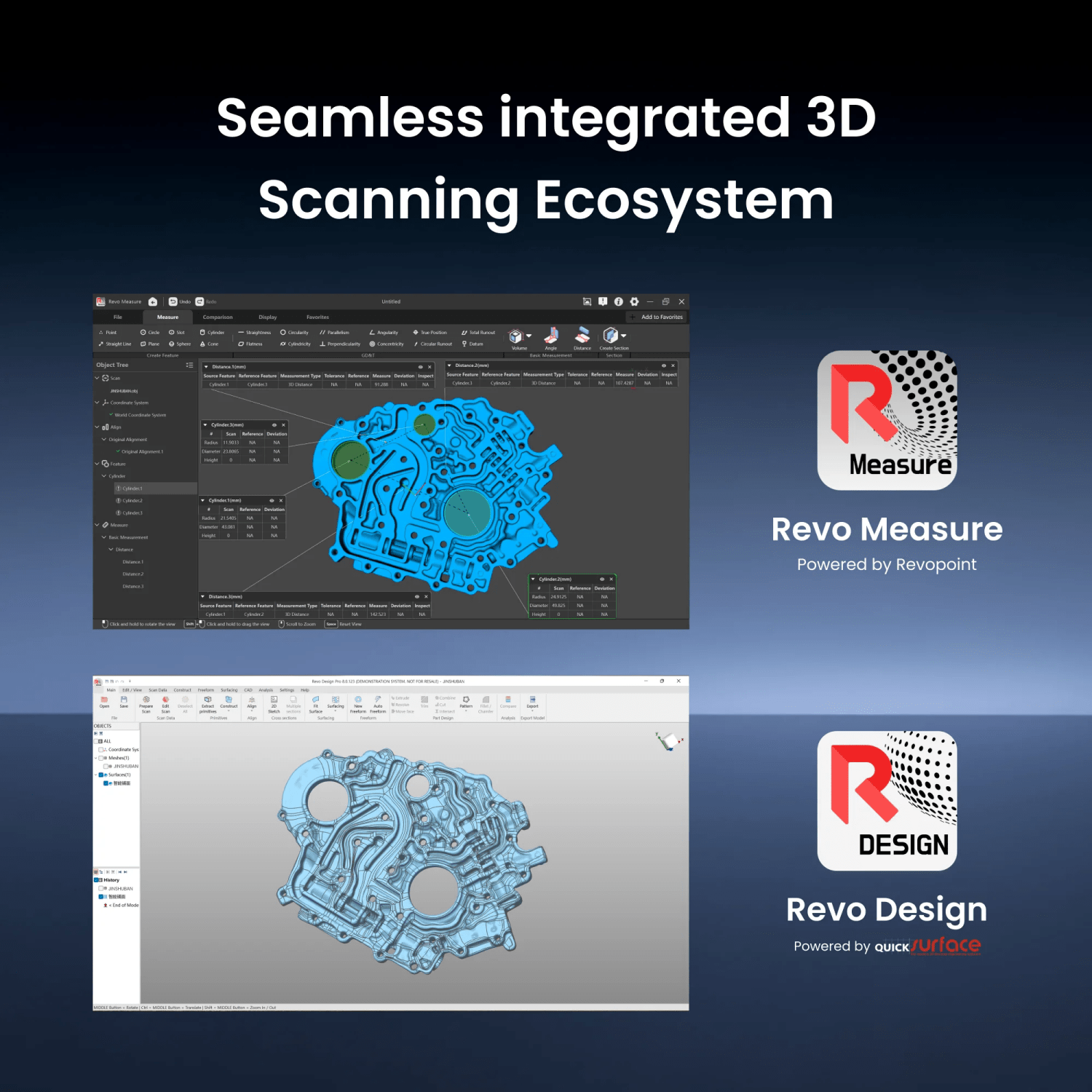

• Revo Software Ecosystem — Works with Revo Scan 6, Revo Design, and Revo Measure for scan-to-CAD and inspection.

Software Info

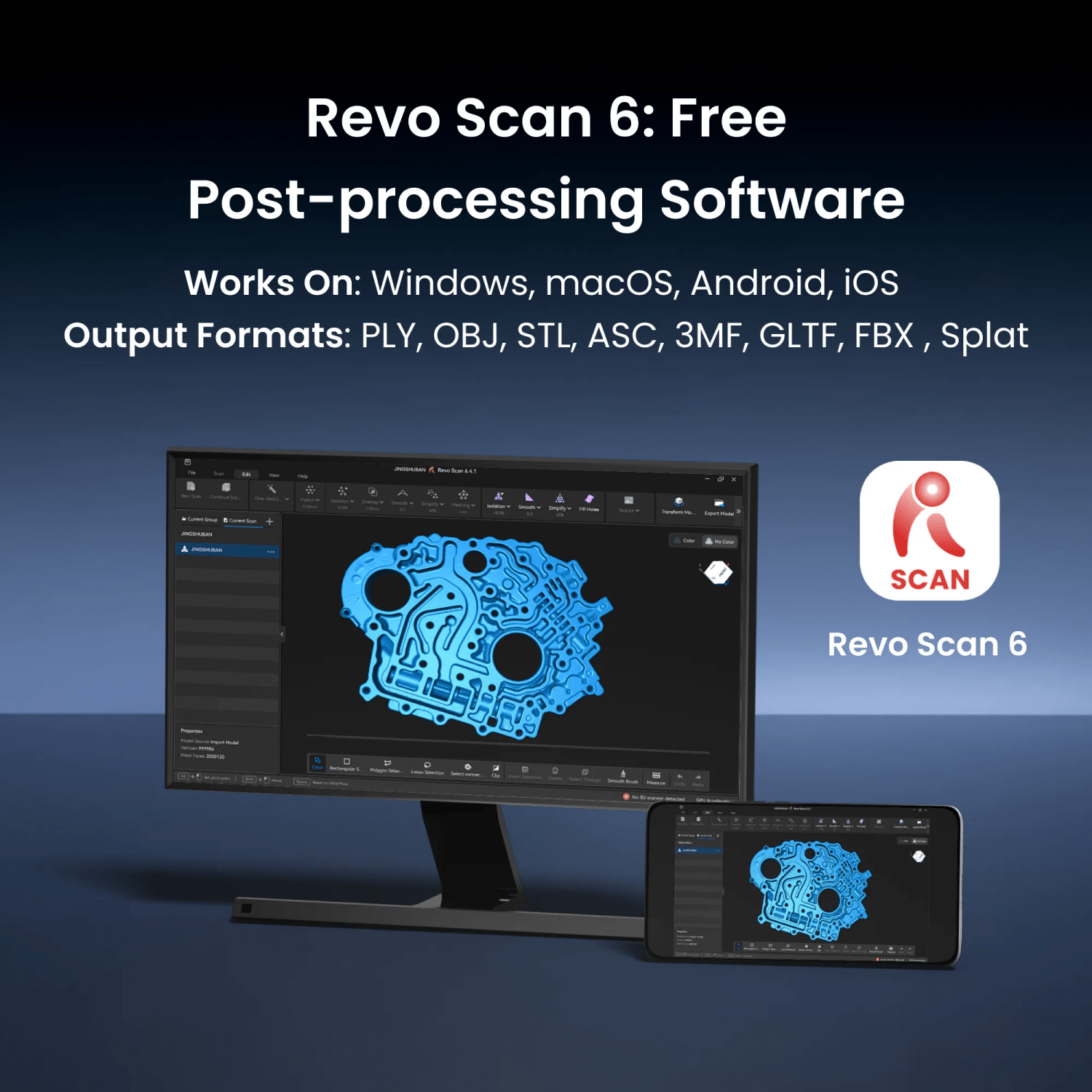

FREE: Revo Scan 6 handles scanning, AI-powered segmentation and cropping, and export. It runs on Windows, macOS, Android, and iOS. Supported formats include PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, and Splat. Optional Revo Design integration is available for further modeling and inspection workflows.

FREE: Revo Mirror enables cross-platform screen mirroring from computers to mobile devices, letting you preview and monitor your 3D scanning process in real-time when paired with Revo Metro/Revo Scan 6/Revo Track.

Revo Design Personal is Revopoint’s scan-to-CAD software for personal and non-commercial projects. It integrates with Revopoint scanning software for one-click mesh transfer and provides tools to clean, align, and convert scan data into basic CAD surfaces. Users can import STL, OBJ, or PLY meshes, perform mesh editing, extract primitives, create freeform and lofted surfaces, and run model-to-mesh comparisons. Export is limited to scan data and CAD as STL. It is intended for hobbyists, students, and personal reverse-engineering work rather than commercial production.

Revo Design is Revopoint’s reverse-engineering and surface-modeling software for basic-to-moderate CAD workflows. It supports importing mesh data (STL, PLY, OBJ), polygon reduction, mesh smoothing, hole filling, outlier removal, and de-featuring. Users can fit surfaces, create 2D and 3D sketches, extrude and revolve surfaces, and perform scan-to-CAD comparison with real-time deviation control. Models can be exported as IGES or STEP for use in other CAD programs. It is suited for reverse engineering, simple surface reconstruction, and design projects that do not require the advanced industrial features found in Revo Design Pro.

Setup Tips

• Connect via Wi-Fi 6 or the included USB-C cable.
• Use the glass calibration board for laser-line mode calibration.
• Choose VCSEL mode for speed on larger objects or multi-line laser mode when higher accuracy is needed.
• Apply scanning spray on transparent or specular surfaces.
• The included battery grip and magnetic phone holder support fully wireless or mobile-assisted sessions.
• Start with feature or color tracking; add markers only when the surface lacks sufficient features.

Specifications

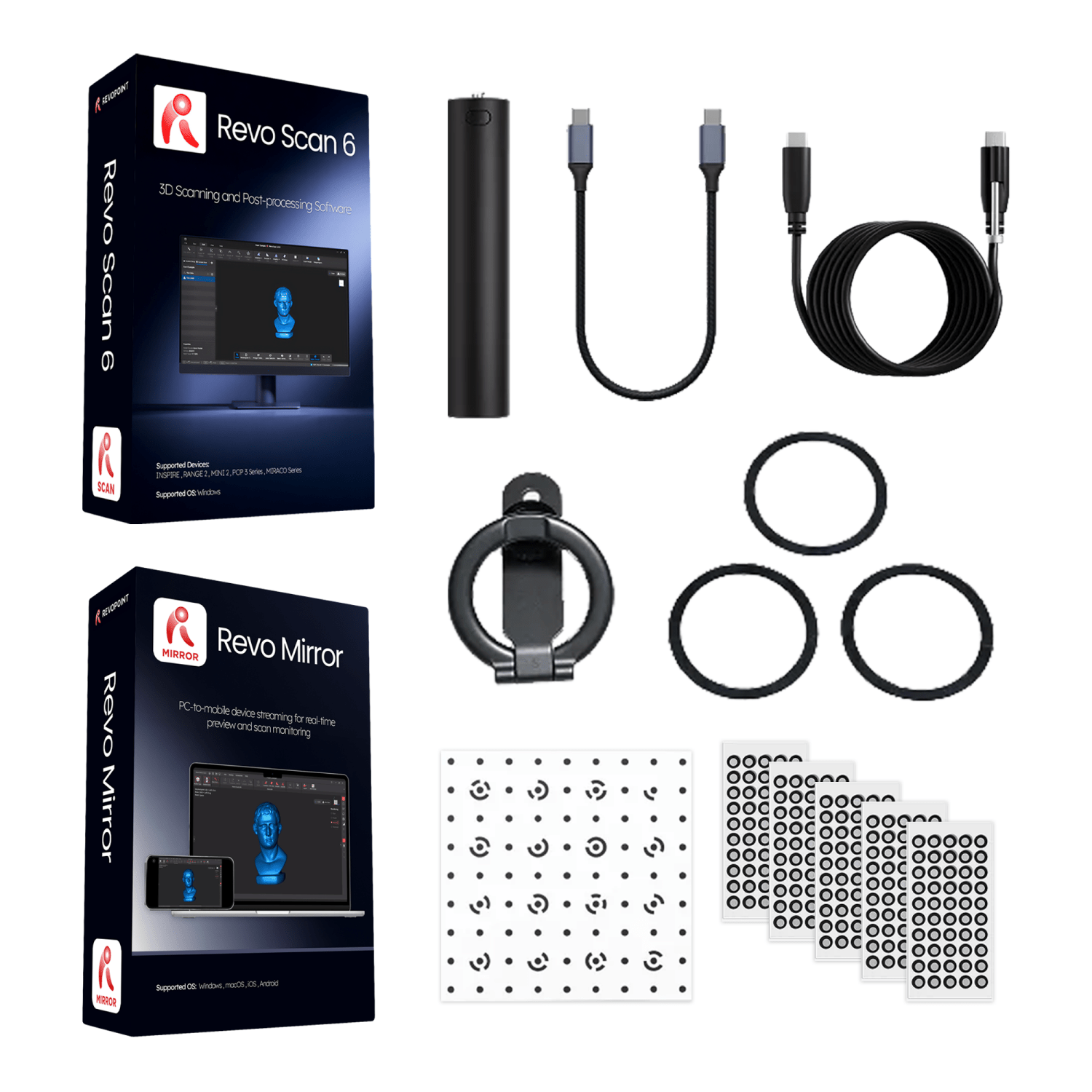

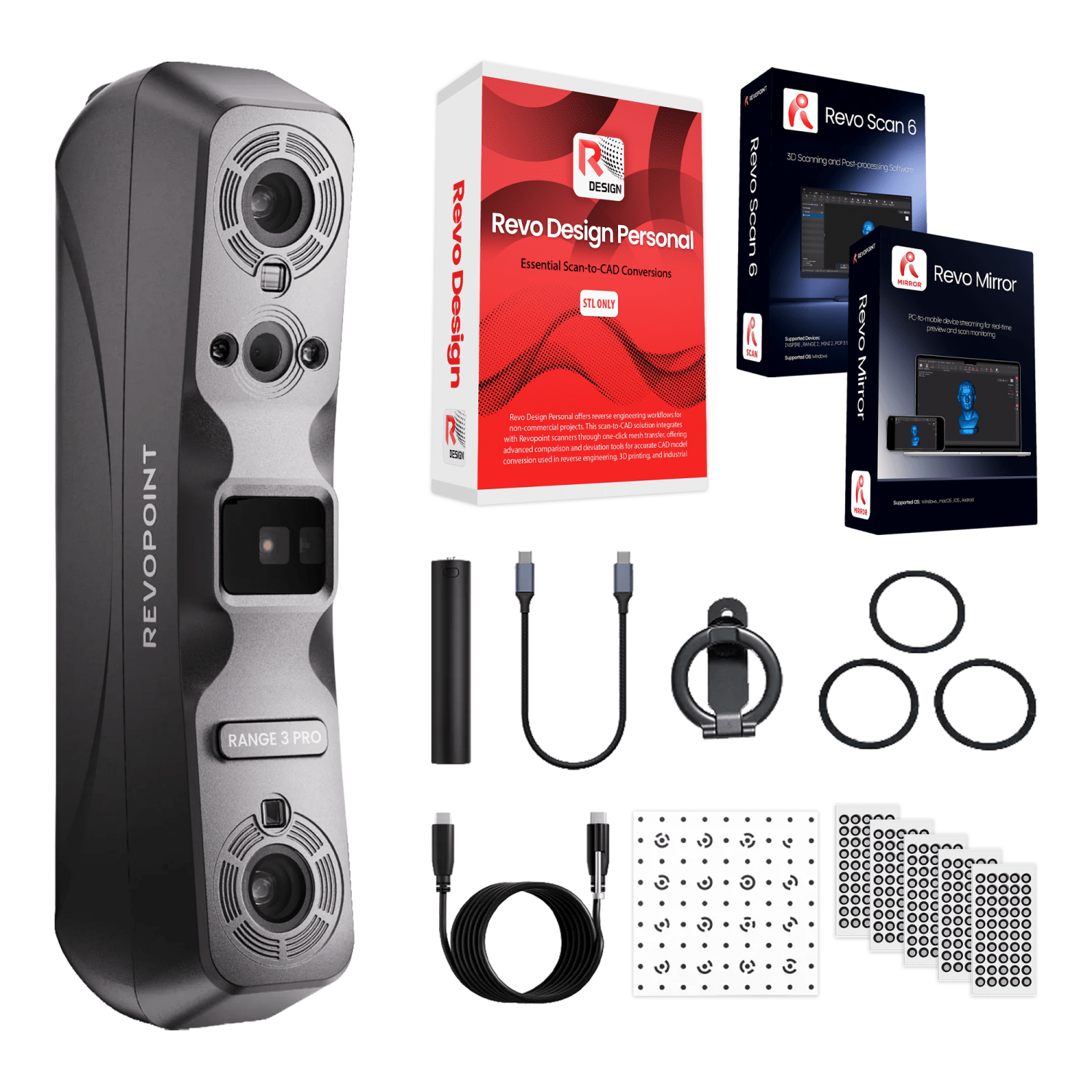

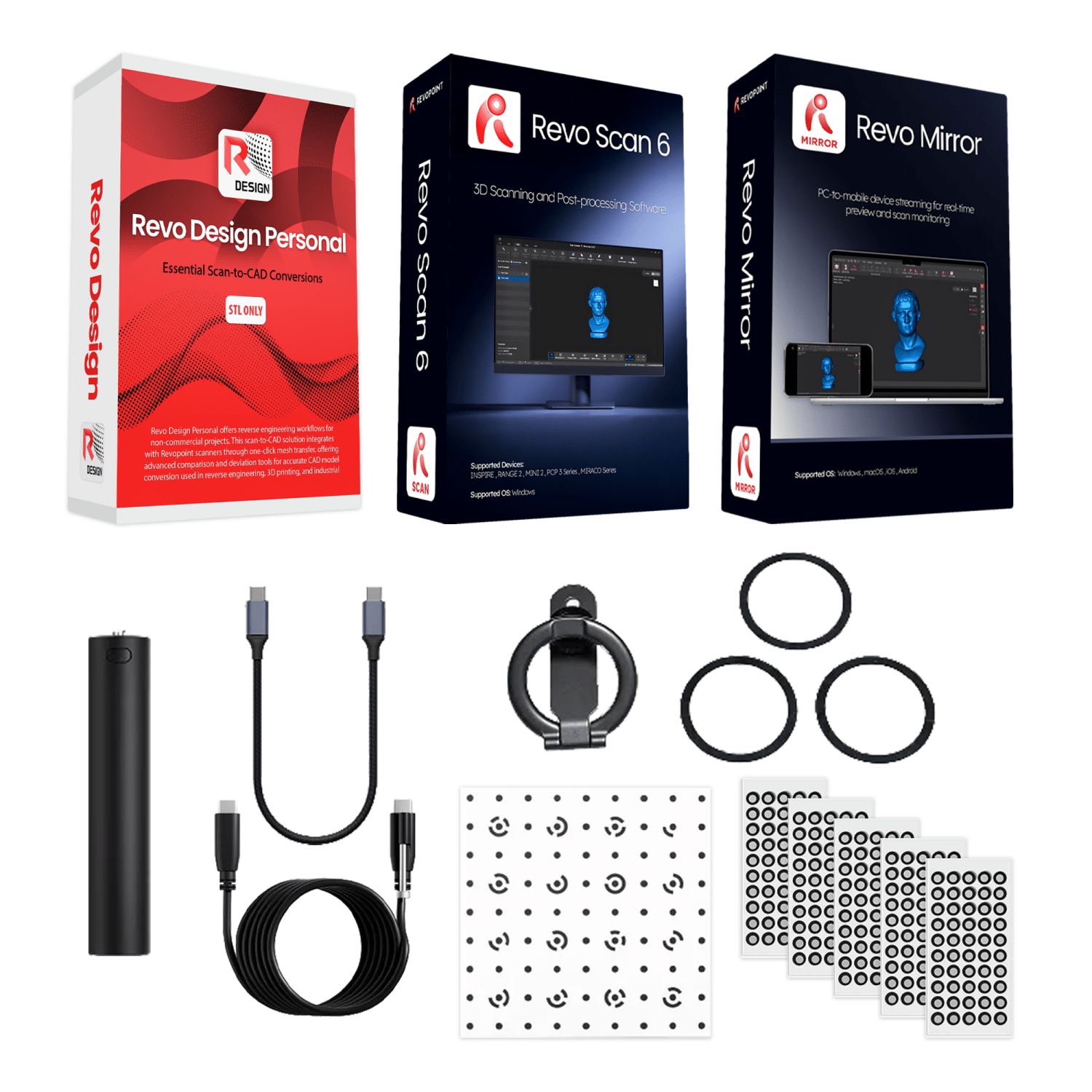

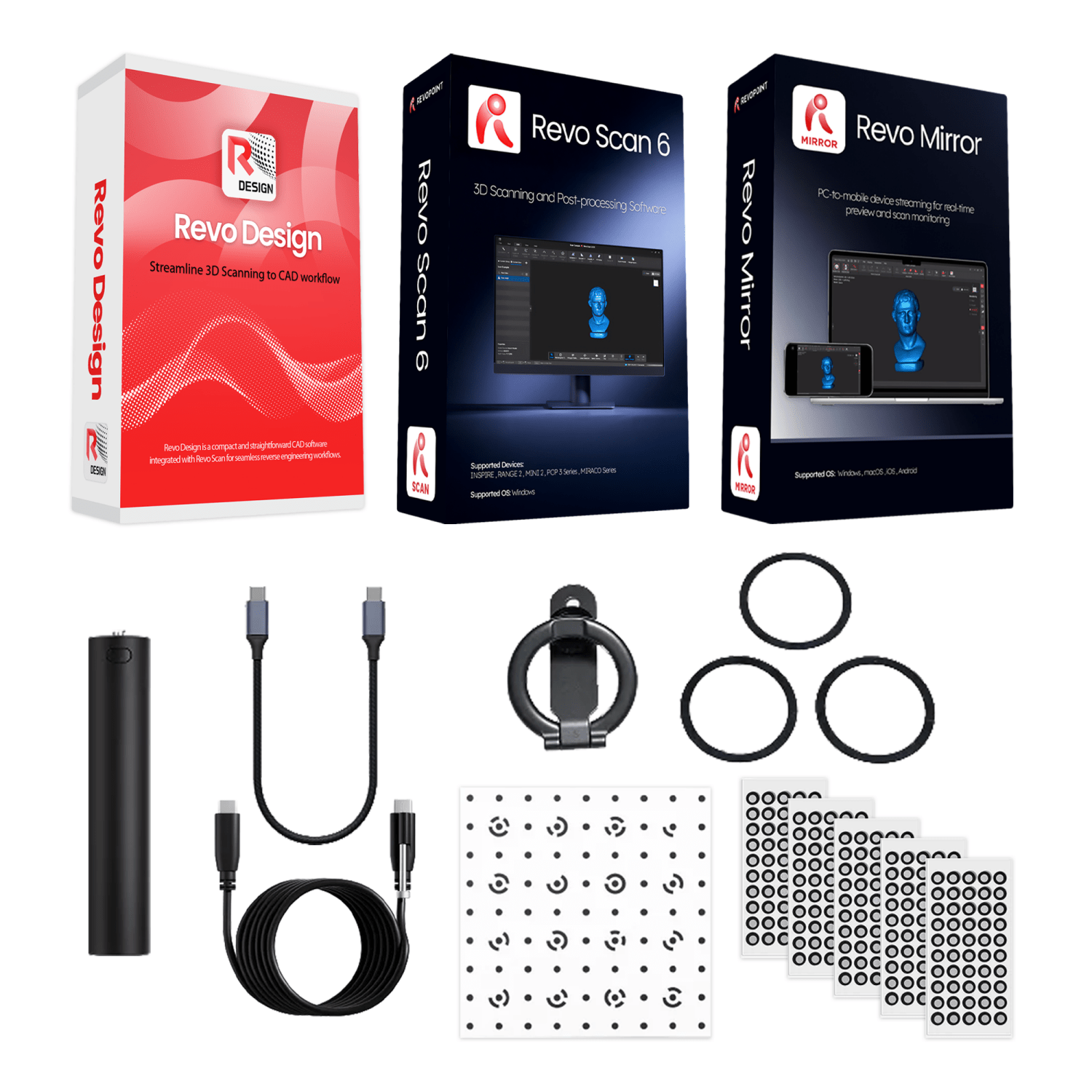

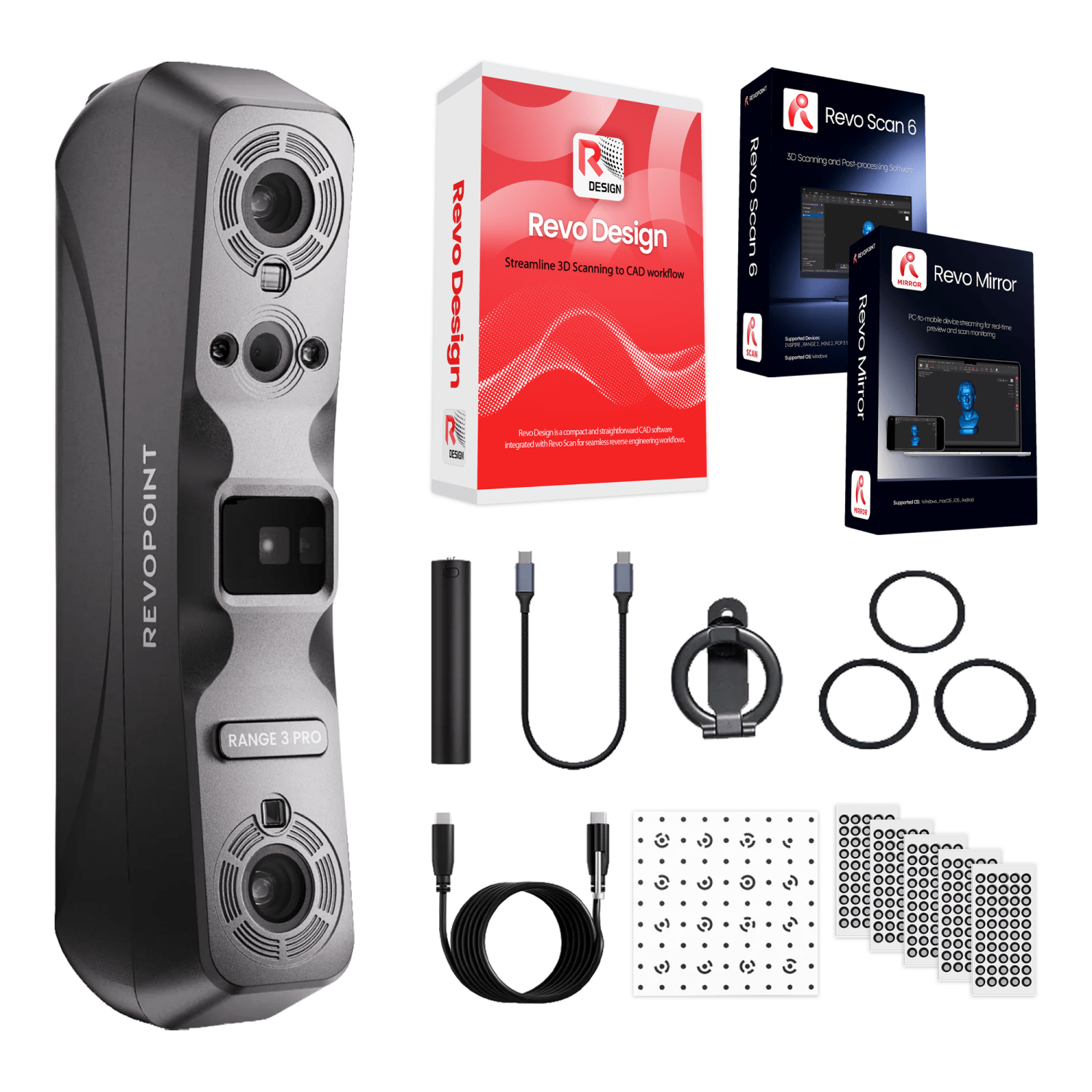

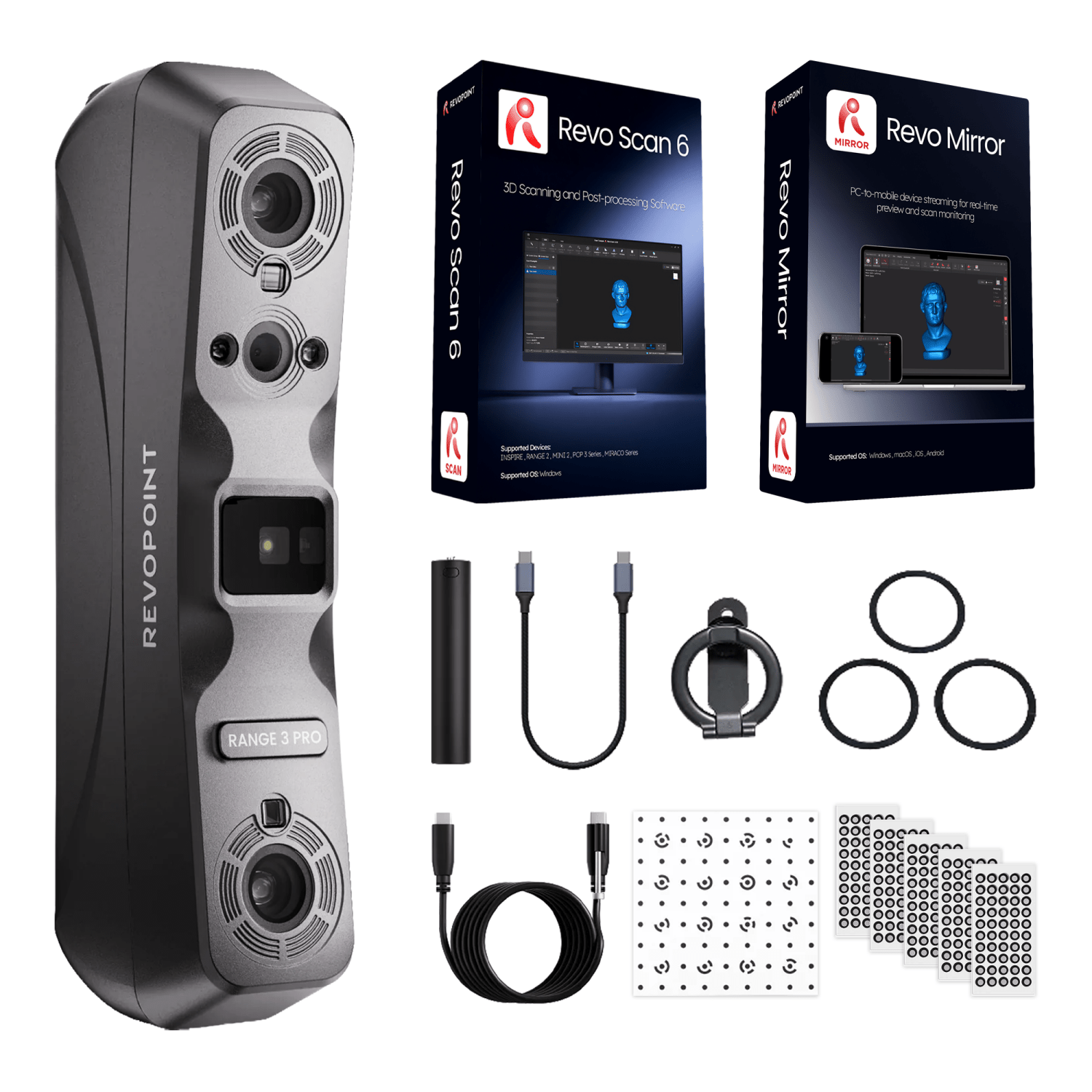

What’s Included

• RANGE 3 Pro 3D Scanner
• USB-C to USB-C Cable (2 m)
• Calibration Board (glass board for laser-line calibration)
• Markers × 200
• Battery Grip 5000 mAh
• Battery Grip Power Cable
• Magnetic Phone Holder
• Revo Scan 6
• Revo Mirror
• Manufacturer Warranty
• Lifetime Product Support

Who It’s For

Choose the RANGE 3 Pro if you need higher accuracy, markerless laser-mode scanning, or both speed and precision on medium-to-large objects. It suits reverse engineering, 3D printing preparation, and outdoor capture where the standard RANGE 3’s VCSEL-only performance is not enough.

FAQ

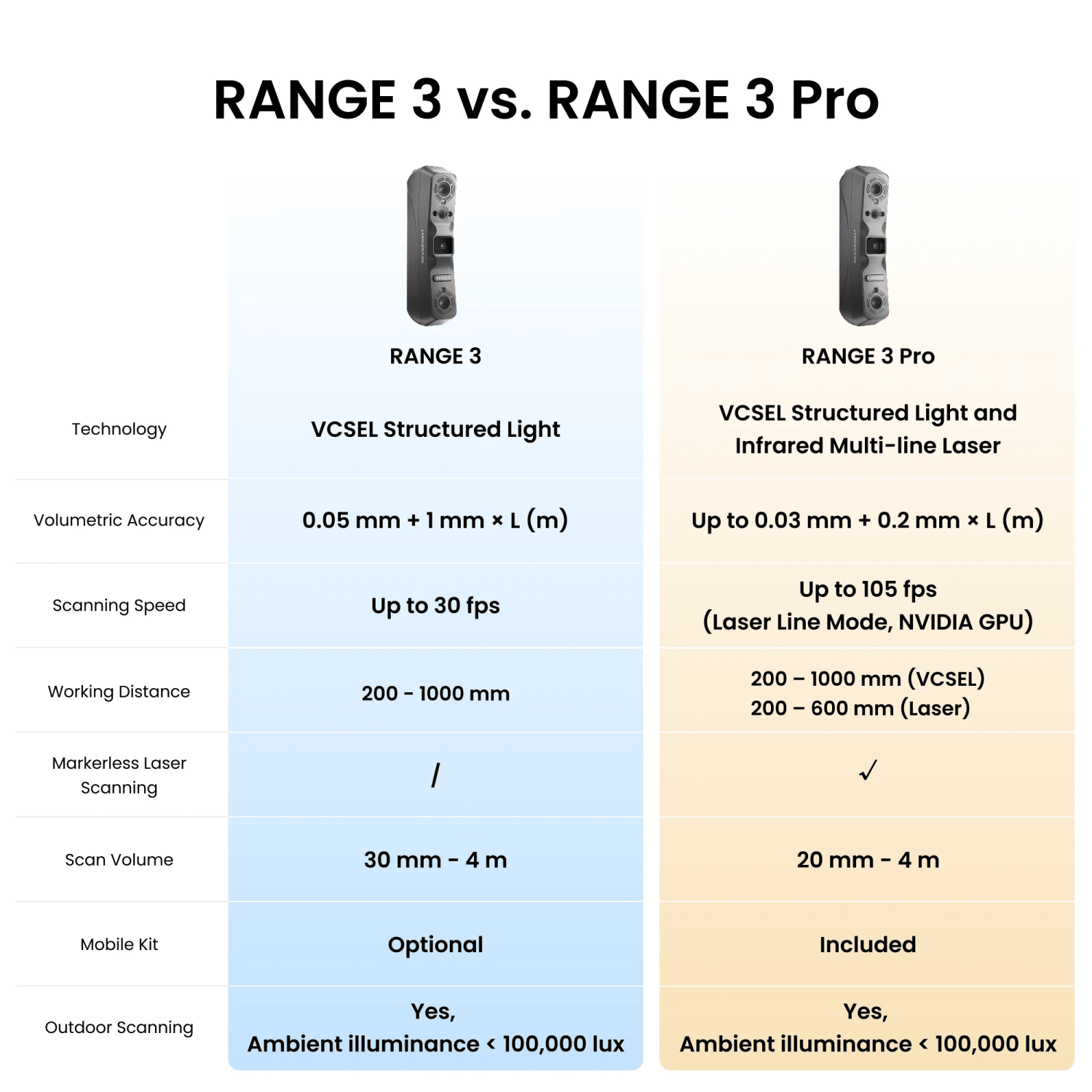

What is the difference between RANGE 3 and RANGE 3 Pro?
The Pro adds multi-line laser mode for higher accuracy (up to 0.03 mm + 0.2 mm × L (m)), markerless capability in laser mode, a lower minimum scan volume, and includes the battery grip and markers in the box.

Does it work outdoors?
Yes. It supports ambient light up to 100,000 lux.

What is the accuracy of the RANGE 3 Pro?

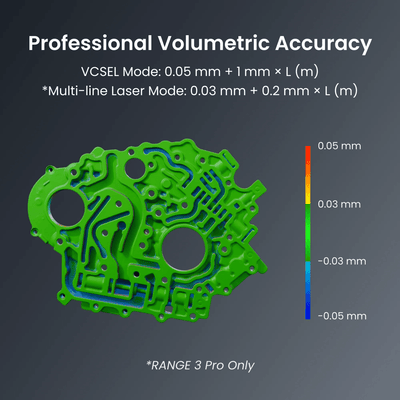

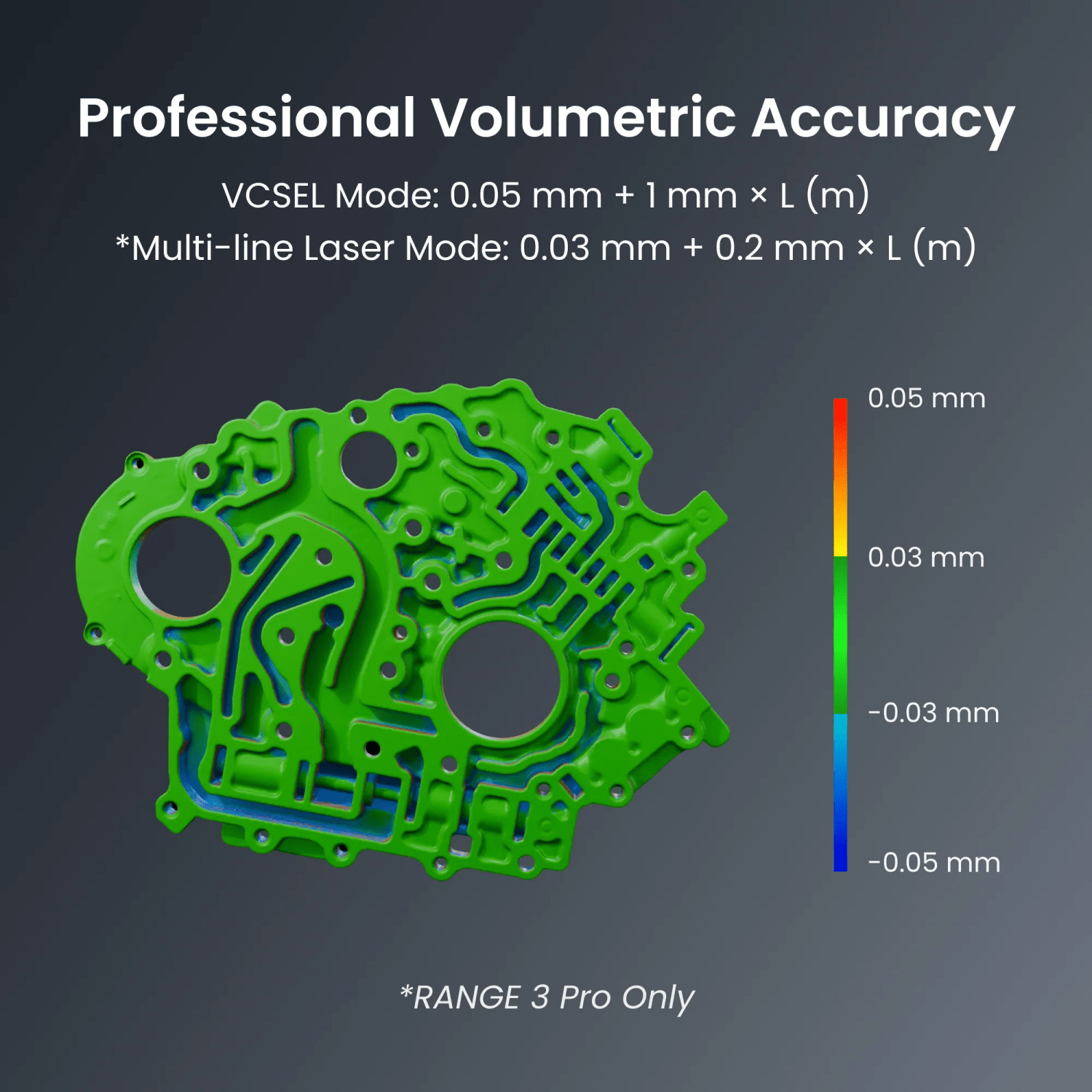

In VCSEL mode: 0.05 mm + 1 mm × L (m). In multi-line laser mode: up to 0.03 mm + 0.2 mm × L (m), where L is the length of the object in meters. Fused point distance is up to 0.1 mm.

Is it wireless?
Yes. It includes Wi-Fi 6 and a standard 5,000 mAh battery grip for up to about 3 hours of continuous use.

What software does it use?
Revo Scan 6 on Windows, macOS, Android, and iOS. Exports include PLY, OBJ, STL, and other common formats. It also integrates with Revo Design and Revo Measure.

Do I always need markers?
No. In laser mode the Pro supports markerless scanning via feature and color tracking. Markers are still useful on low-feature surfaces. Scanning spray is recommended for transparent or specular objects.
