Revopoint POP 4 Premium Edition: 5-in-1 Handheld Wireless Hybrid 3D Scanner with Blue Laser & Infrared Light

The Revopoint POP 4 Premium Edition is a next-generation 5-in-1 handheld wireless hybrid 3D scanner that combines industrial-grade blue multi-line laser technology with advanced near-infrared structured light (including VCSEL) in one compact, lightweight device. Designed for makers, designers, engineers, reverse-engineering professionals, and serious 3D printing users, the POP 4 Premium delivers exceptional versatility, high precision, and intelligent workflow features that previously required multiple specialized scanners — now fully unlocked with true wireless freedom and outdoor readiness.

Whether you need to digitize small mechanical parts, shiny metal surfaces, dark objects, deep holes, human faces and bodies, medium-sized workpieces, or outdoor subjects, the POP 4 adapts instantly. With real-time AI object segmentation, photorealistic 3D Gaussian Splatting export, and seamless integration into modern design pipelines, this hybrid 3D scanner removes traditional limitations of consumer and prosumer scanning.

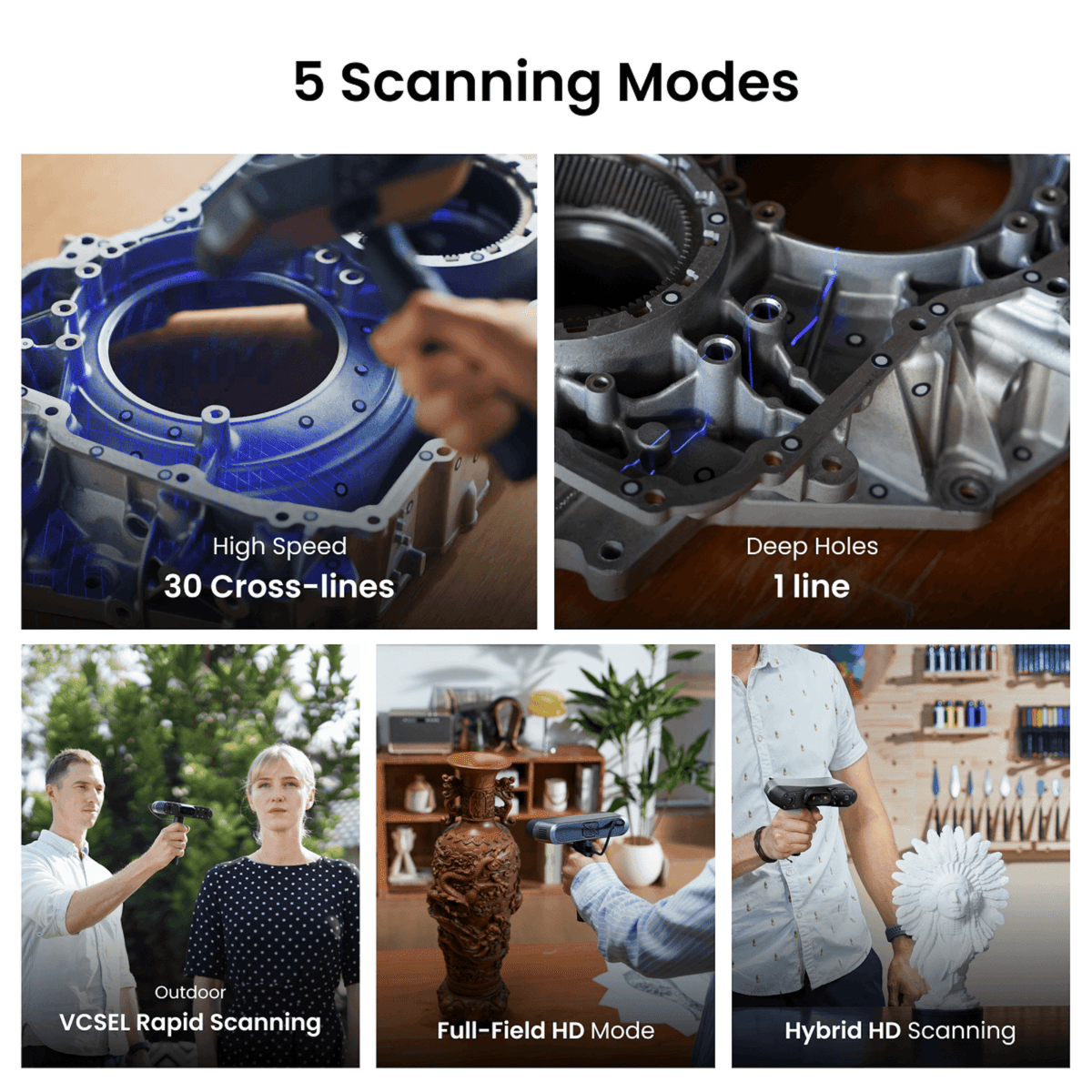

True 5-in-1 Scanning Modes for Maximum Versatility

Switch seamlessly between five optimized scanning modes to handle nearly any surface or object:

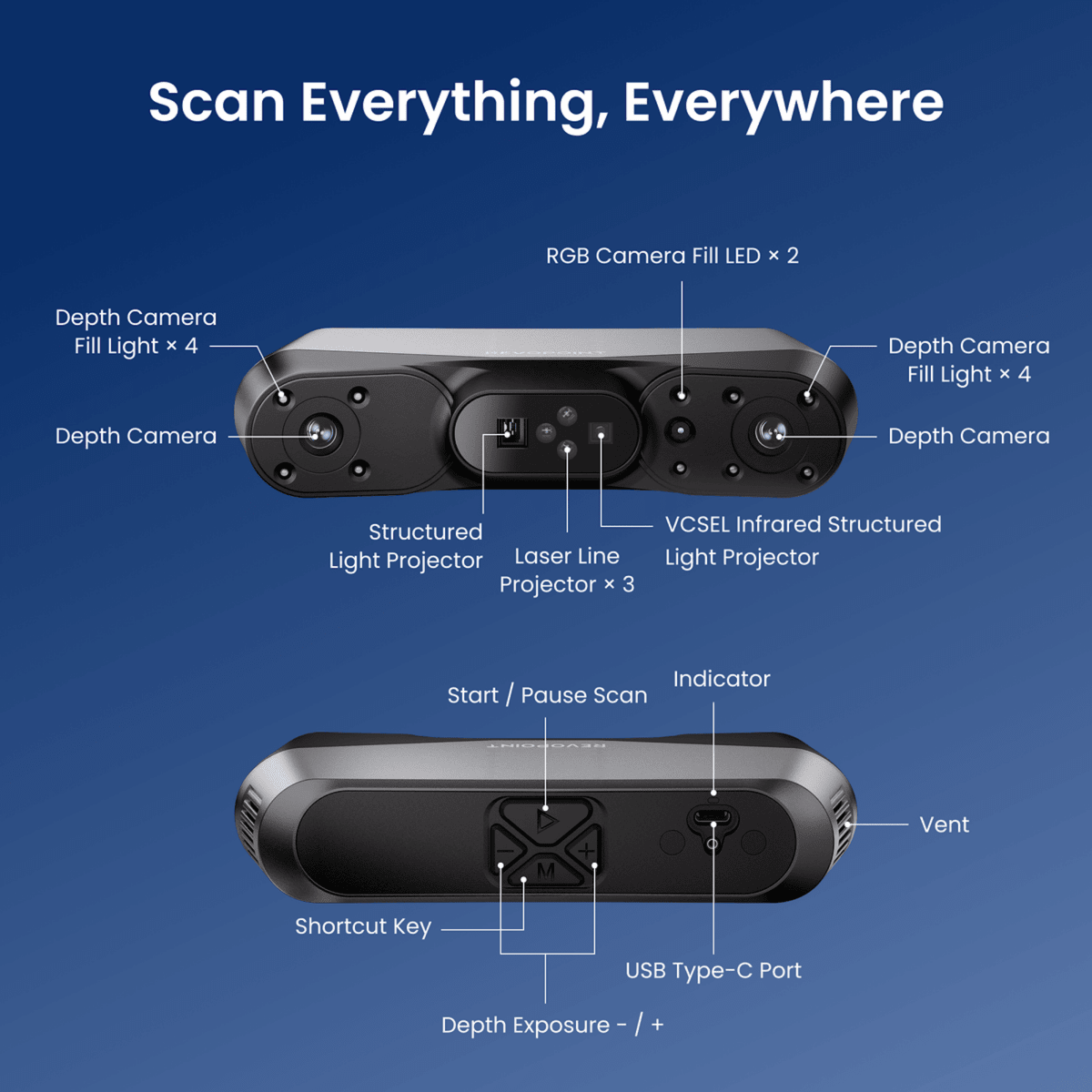

• 30-Cross Blue Laser Lines (High-Speed Mode) Project 30 intersecting blue laser lines for rapid, high-accuracy capture of flat, shiny, reflective, or dark surfaces. Achieve up to 105 frames per second (with NVIDIA GPU) or 60 fps on CPU, and up to 2 million points per second. Single-frame accuracy reaches 0.03 mm with volumetric accuracy of 0.03 mm + 0.05 mm × L (m). No scanning spray is required for most difficult materials.
• Single-Line Blue Laser (Deep Hole Mode) Switch to a single blue laser line to penetrate deep holes, grooves, narrow crevices, and complex internal geometries that multi-line or structured-light scanners often miss.
• Full-Field HD Infrared Structured Light Ideal for marker-free scanning of feature-rich objects, faces, bodies, and organic shapes. Captures dense data at up to 5 million points per second with excellent surface detail and smooth tracking.
• VCSEL Rapid Mode Optimized for larger objects and outdoor environments. Scan at up to 30 fps with stable performance in bright conditions up to 100,000 lux — perfect for medium workpieces, people, or outdoor scanning.
• Hybrid HD Mode Combines the strengths of Full-Field HD and VCSEL technologies for balanced speed, tracking reliability, and high-quality point clouds with accurate color data.

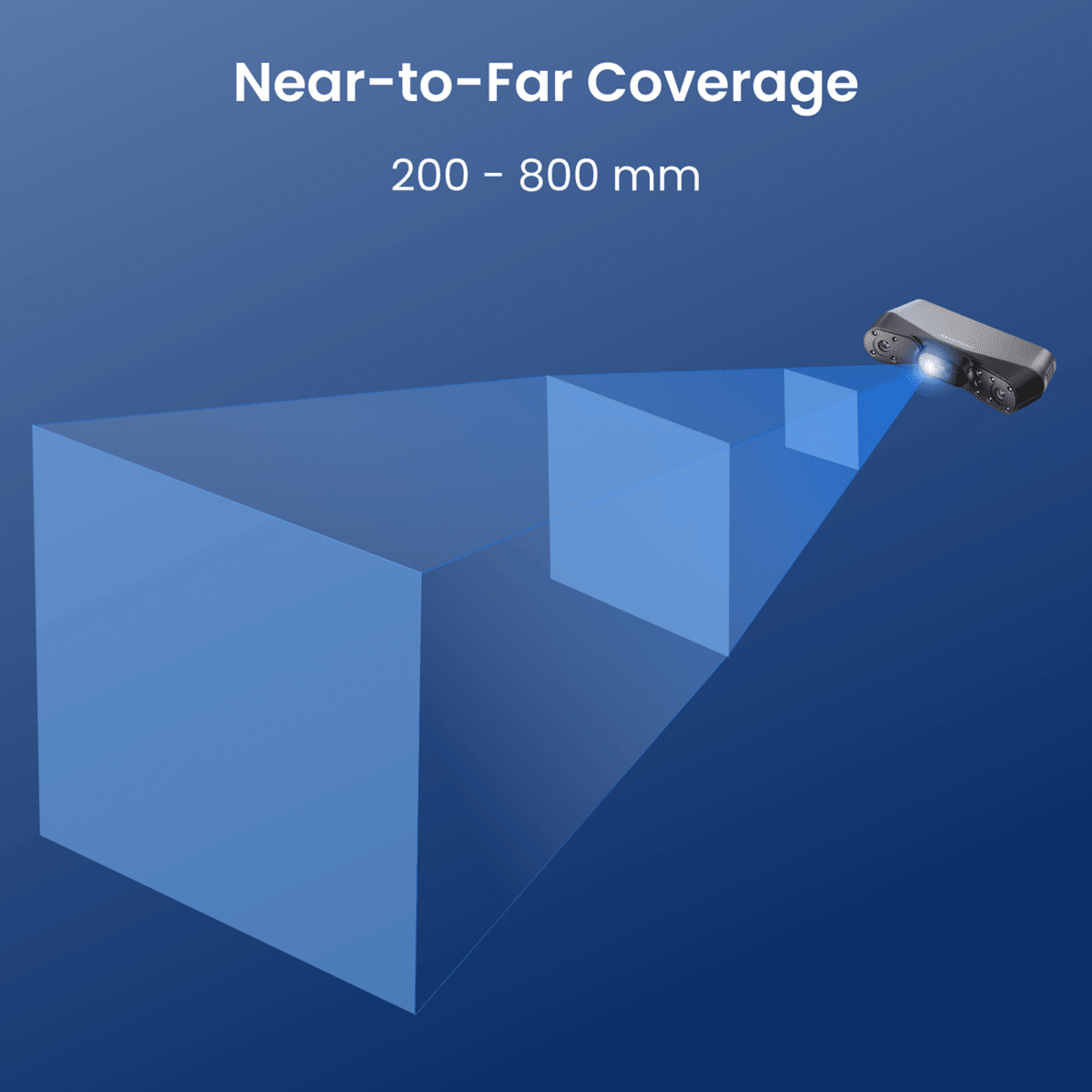

Working distances range from 200–400 mm in laser modes to 250–500 mm in Full-Field/Hybrid modes and 300–800 mm in VCSEL mode. The scanner handles objects as small as 10 × 10 × 10 mm up to 2 × 2 × 2 m, with a fused point distance of up to 0.05 mm for fine surface resolution.

Professional Accuracy, Speed & Outdoor Capability

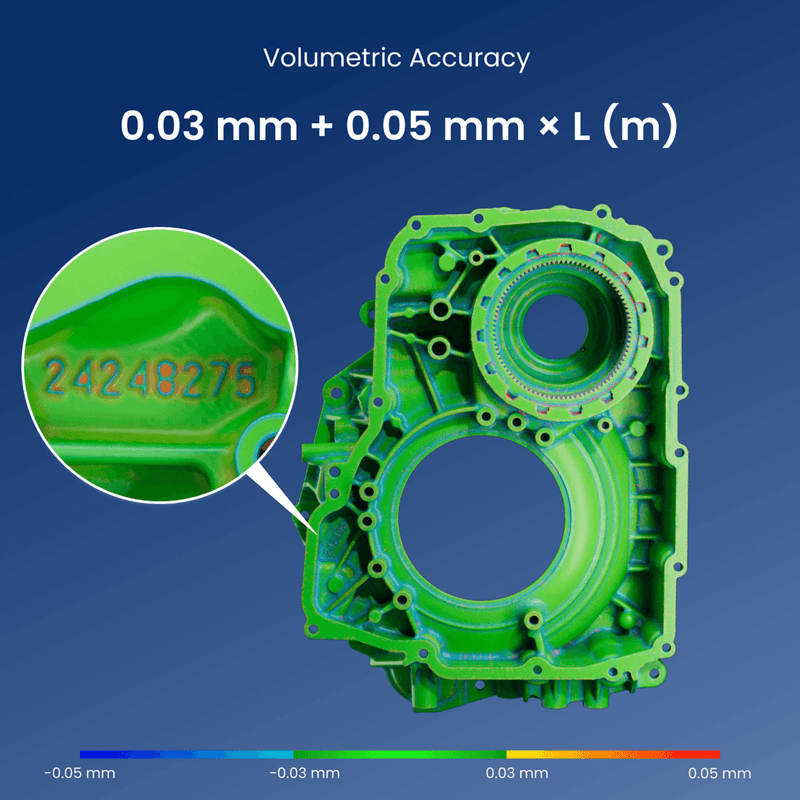

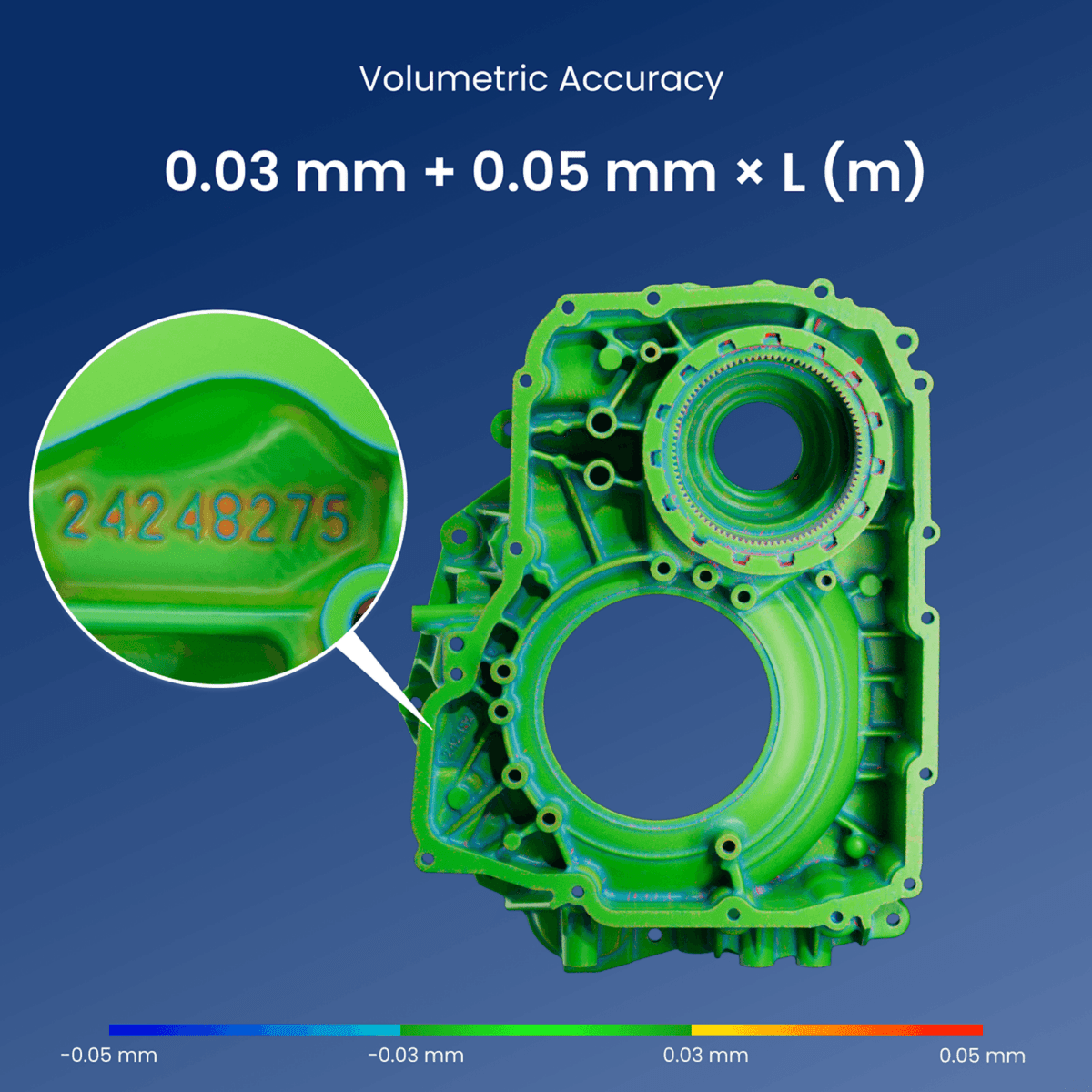

In multi-line laser mode the POP 4 delivers volumetric accuracy of 0.03 mm + 0.05 mm × L (m) and single-frame accuracy up to 0.03 mm — performance that supports reverse engineering, quality inspection, and high-fidelity 3D printing preparation. The combination of blue laser and infrared technologies allows reliable scanning of black, shiny, and low-texture surfaces that challenge traditional infrared-only scanners.

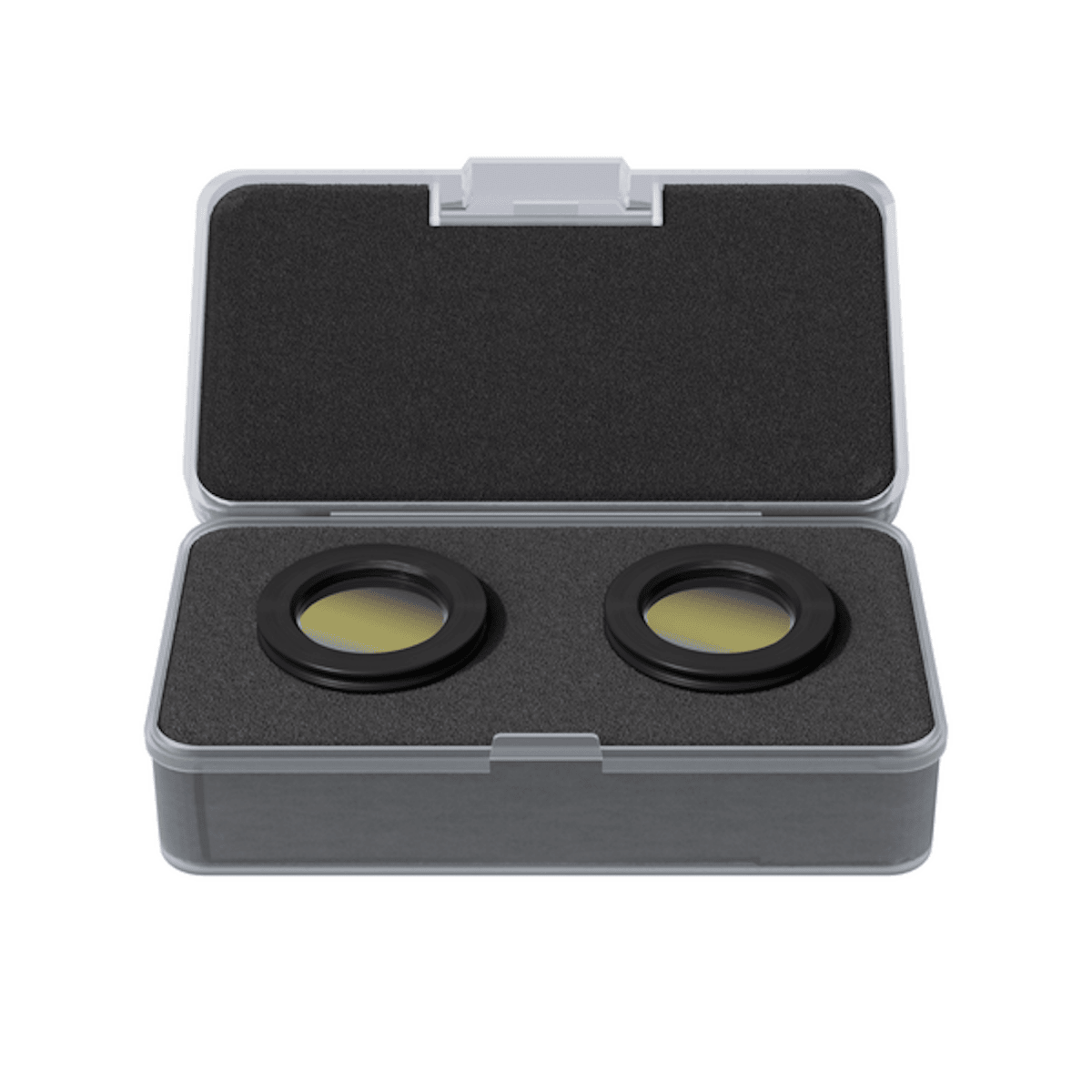

With the included magnetic Outdoor Blue Filters, the Premium Edition extends high-performance scanning into bright outdoor environments, supporting up to 100,000 lux even in multi-line laser mode.

AI-Powered Efficiency & Photorealistic 3D Gaussian Splatting

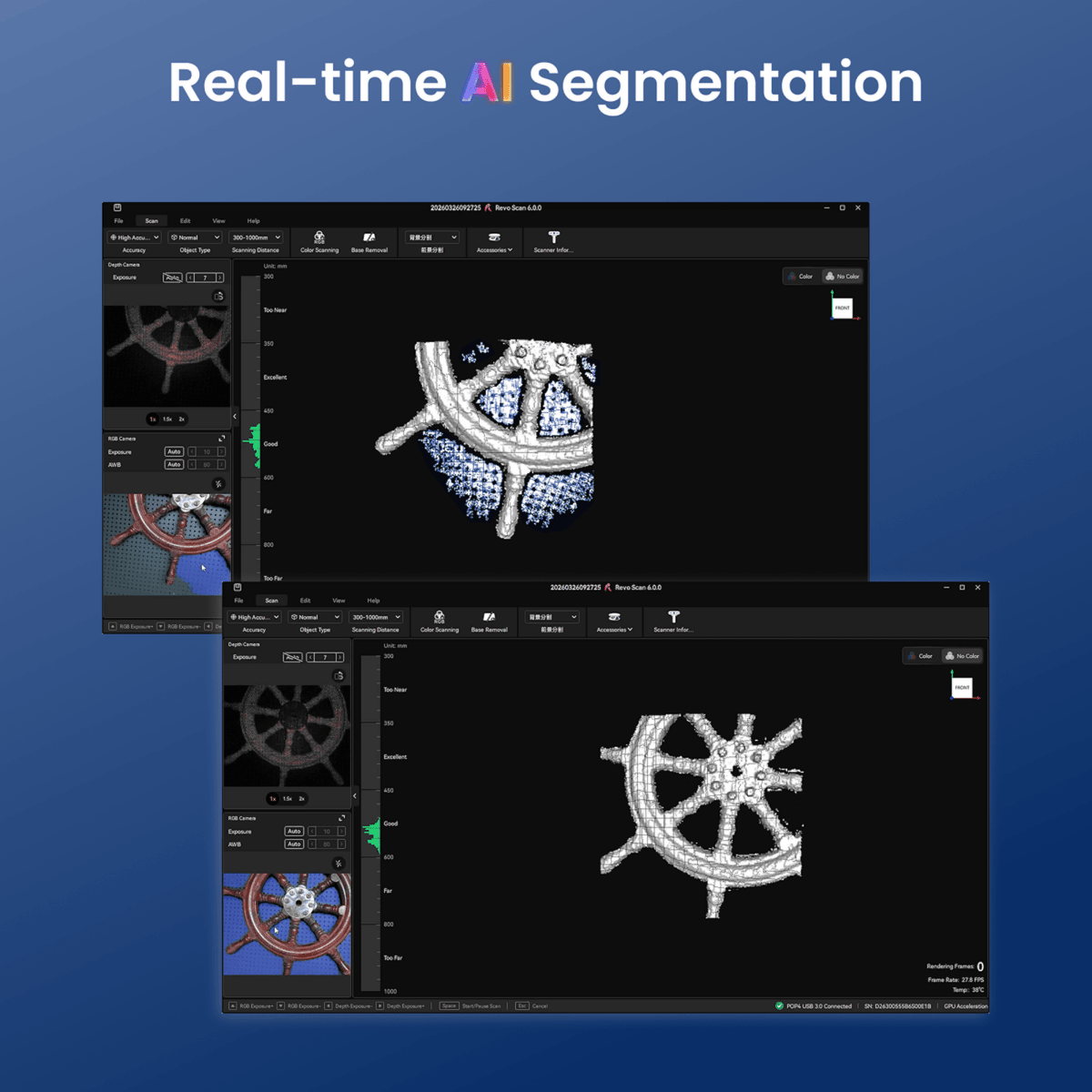

Built-in real-time AI object segmentation automatically identifies and isolates the target object while filtering out background clutter, tables, and even your hands. This dramatically reduces post-processing time and improves tracking stability during handheld scans.

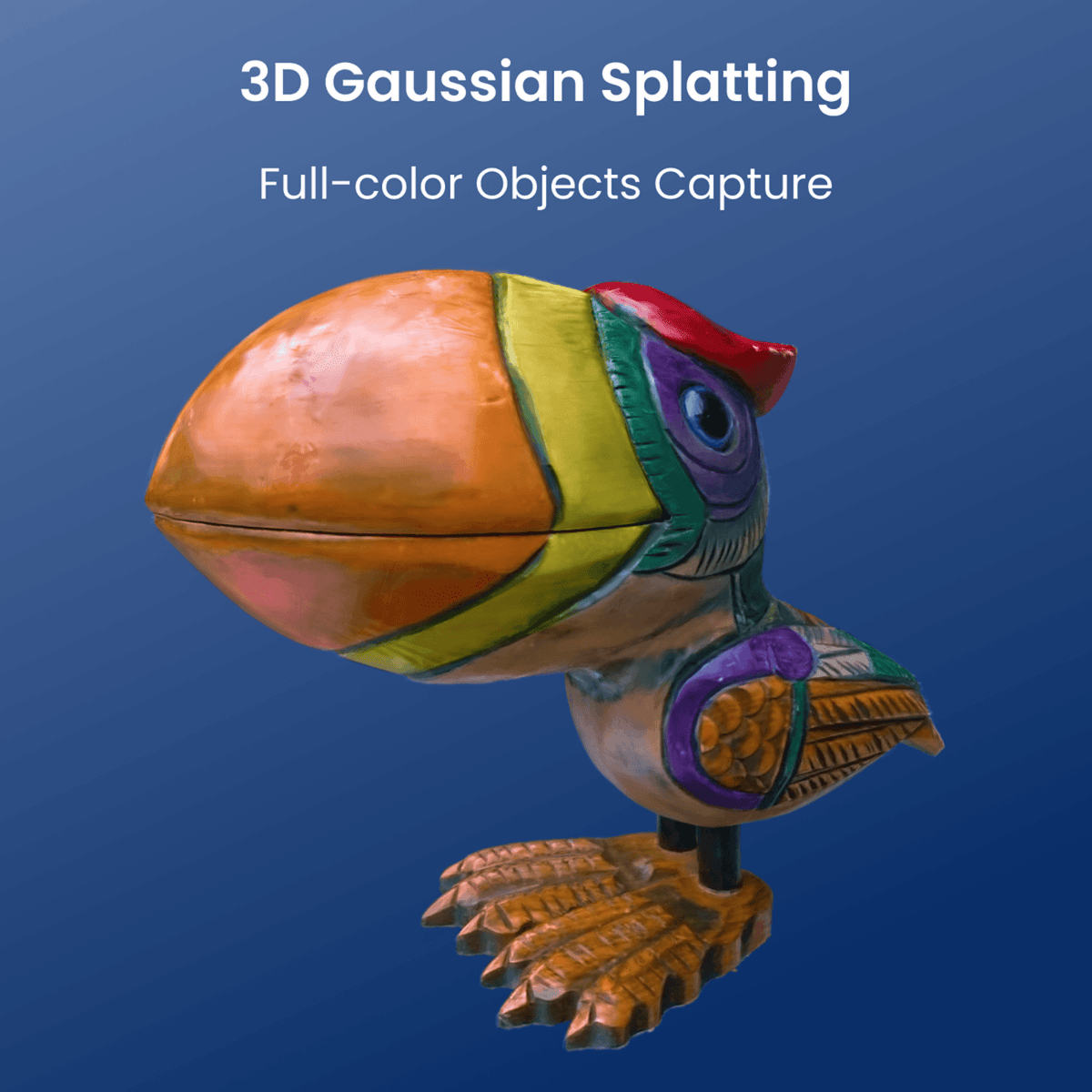

The POP 4 also supports photorealistic 3D Gaussian Splatting. Export models in .splat format that combine the visual fidelity of modern neural rendering with the dimensional accuracy of laser and structured-light data. These photorealistic models are ideal for visualization, digital archiving, VR/AR content, product presentation, and creative applications.

Color scanning is handled by a 1.3 MP RGB camera, producing textured models ready for further use.

Software Ecosystem & Complete Workflow

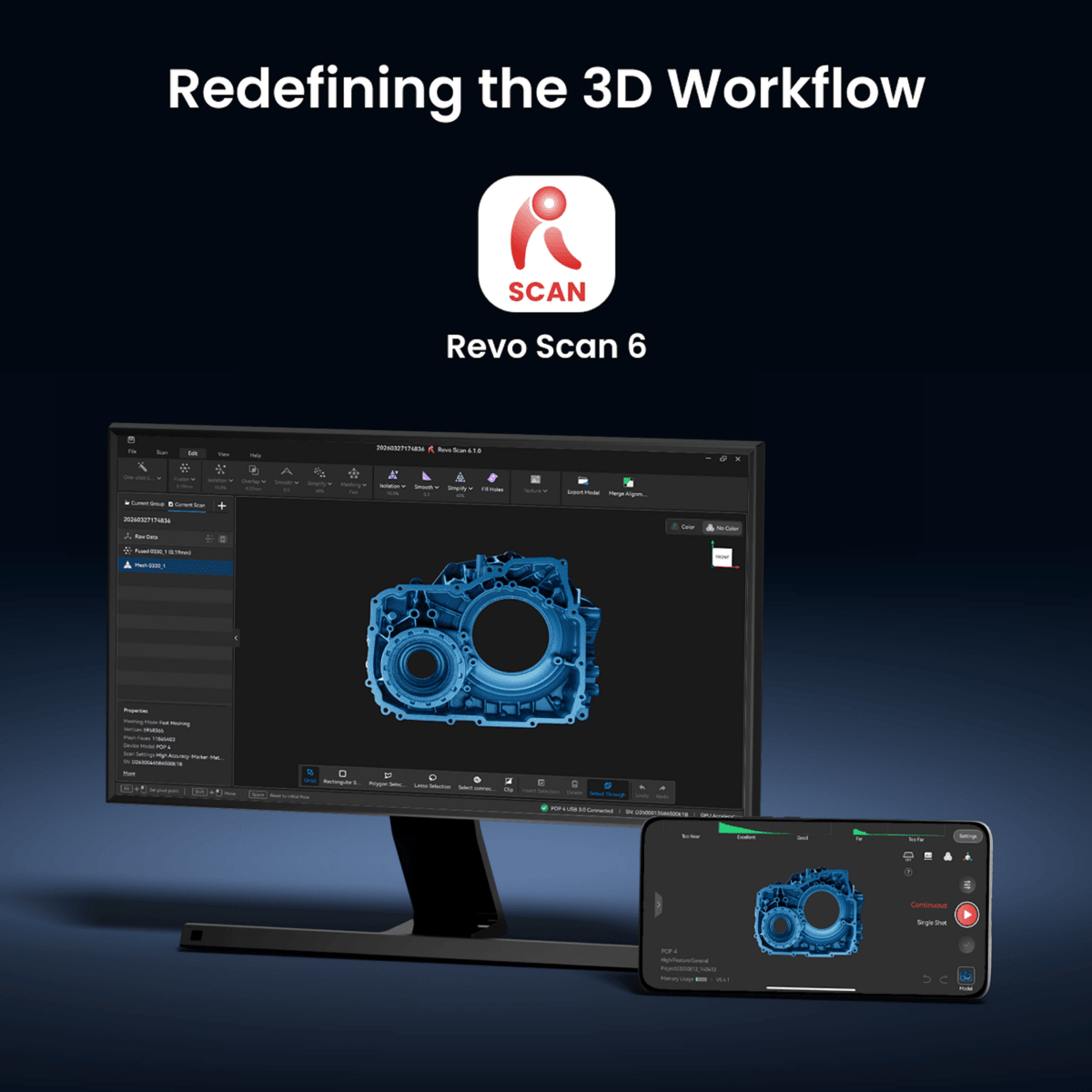

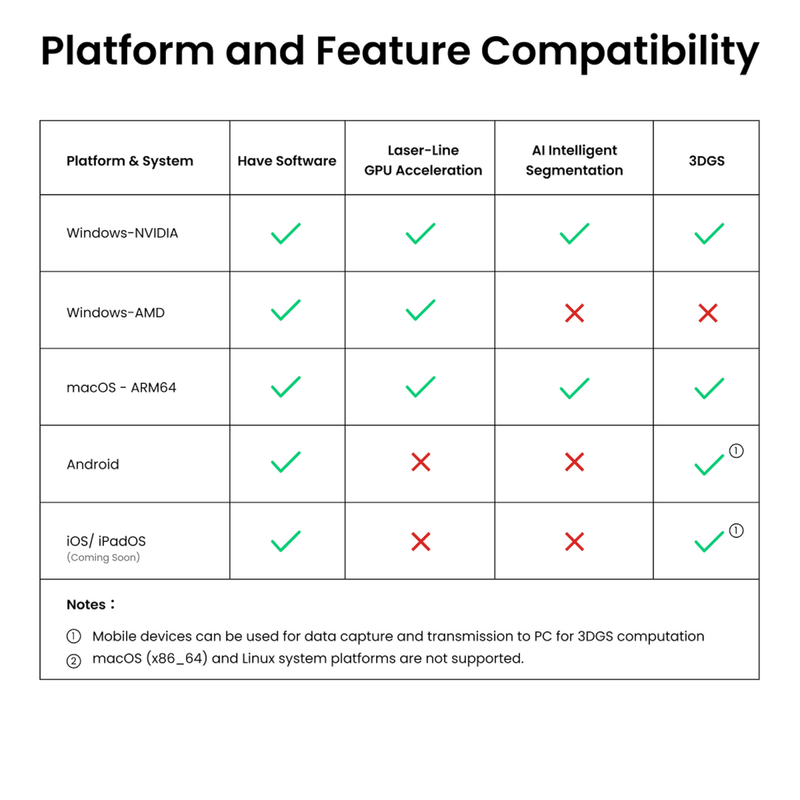

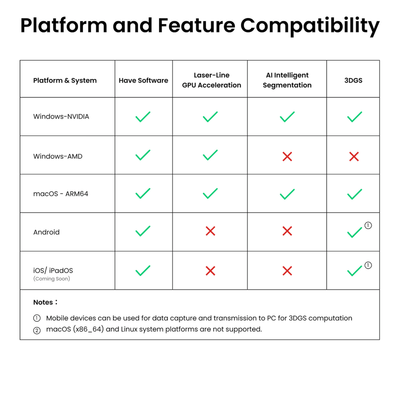

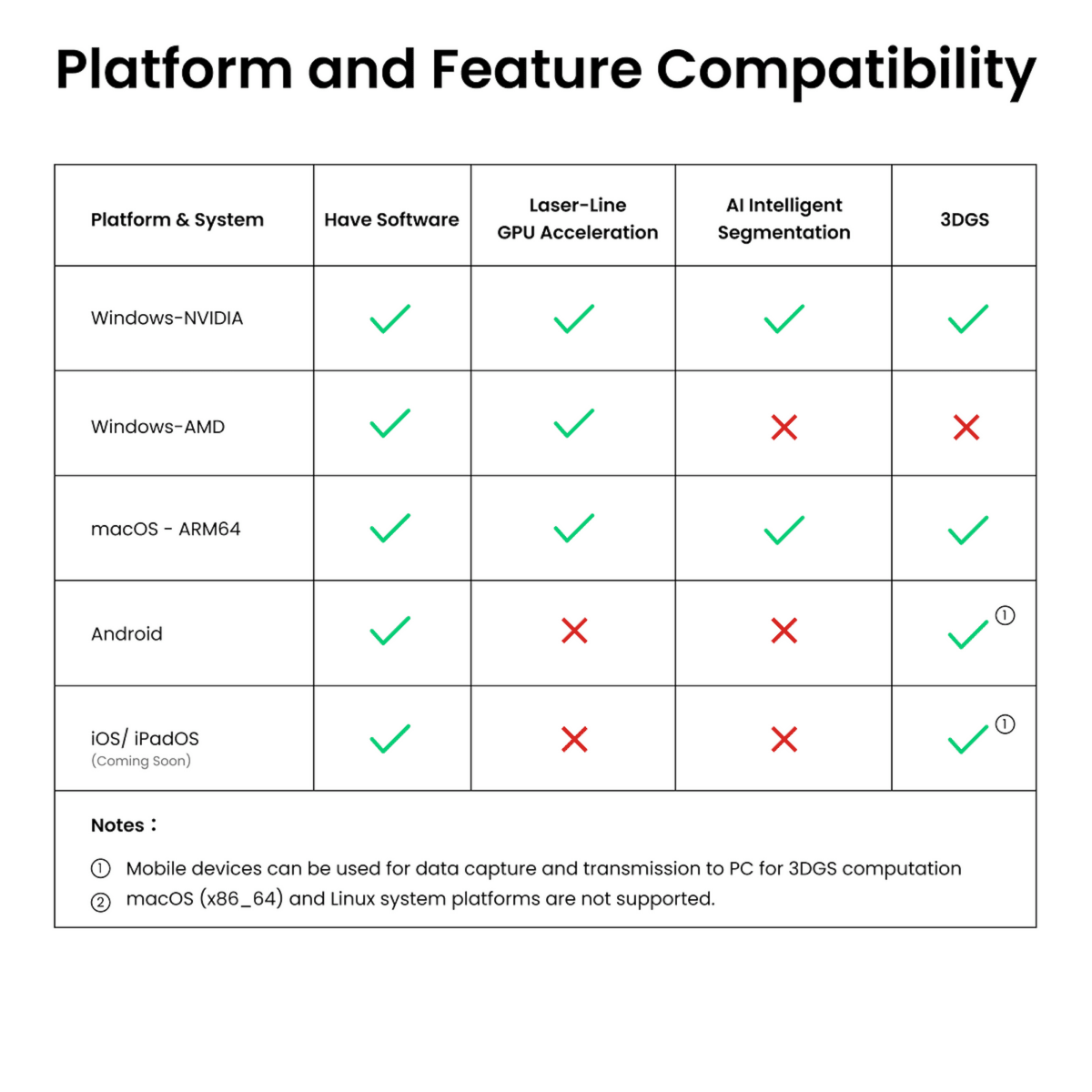

The free Revo Scan 6 software provides a modern interface for scanning, editing, merging, and exporting. Supported platforms include Windows 10/11, macOS, Android, and iOS. Export formats include PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, and Splat.

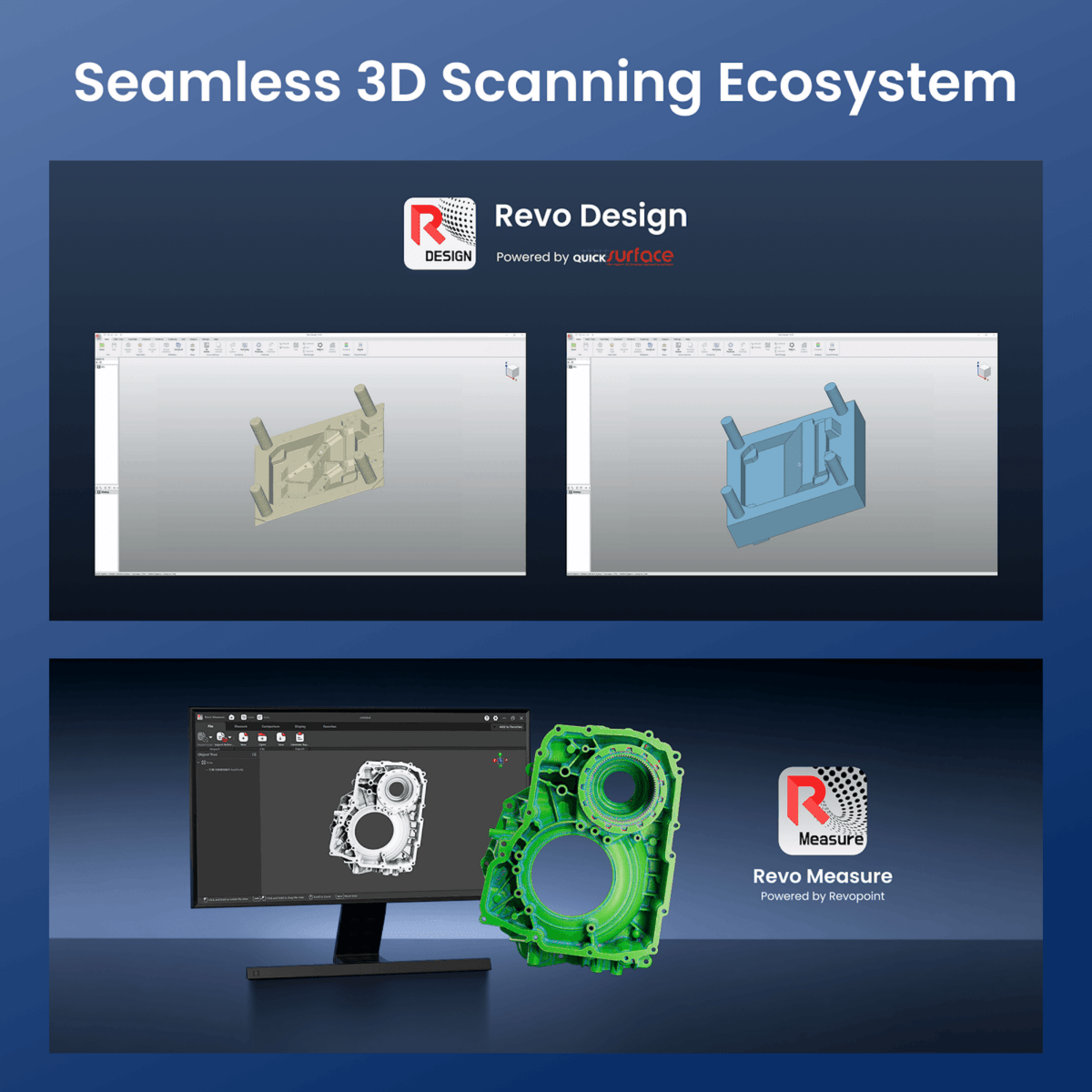

Scans transfer with one click into Revo Design for reverse engineering and surface modeling or Revo Measure for dimensional inspection and quality control — creating a unified scan-to-CAD-to-inspection pipeline.

Compact, Portable Design with True Wireless Freedom

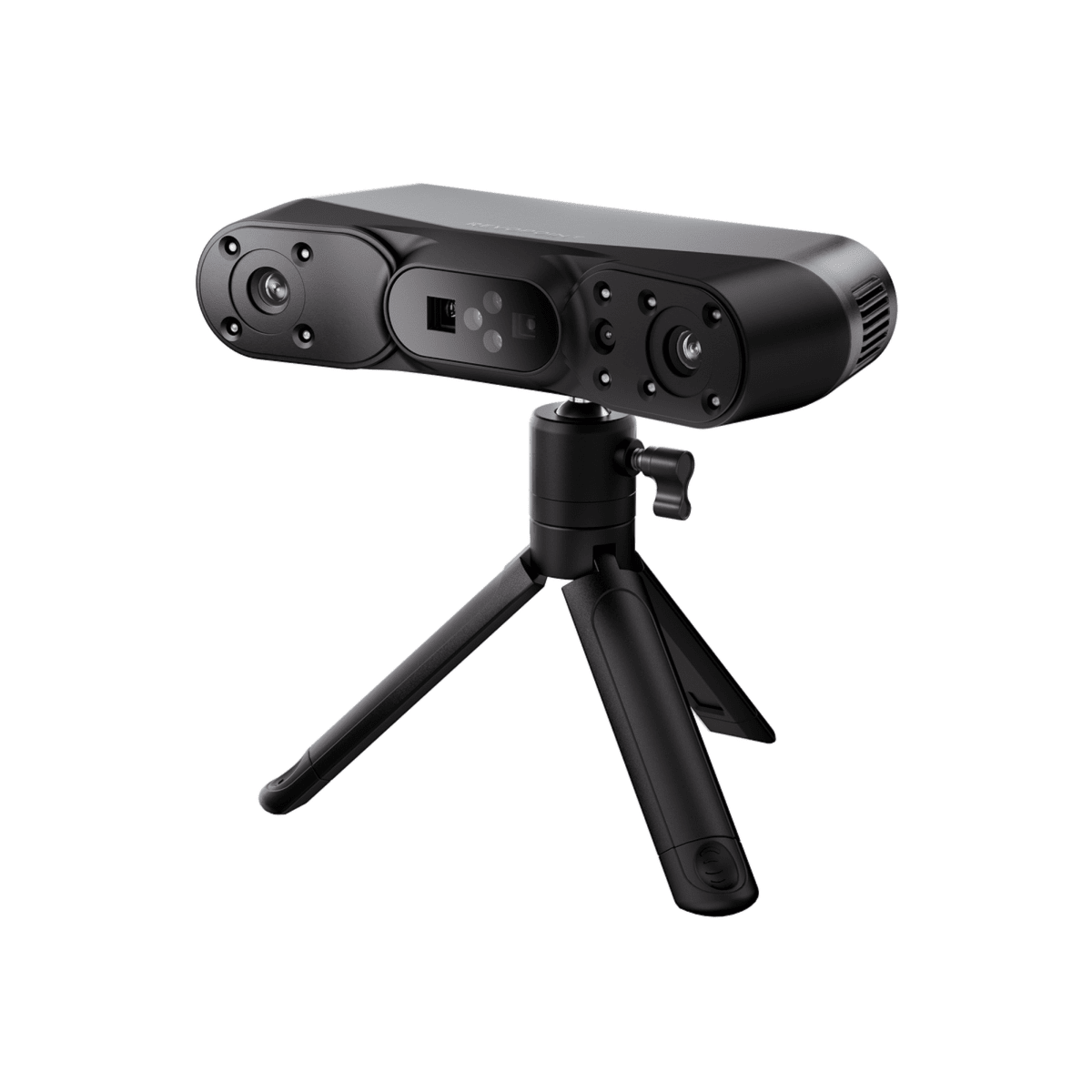

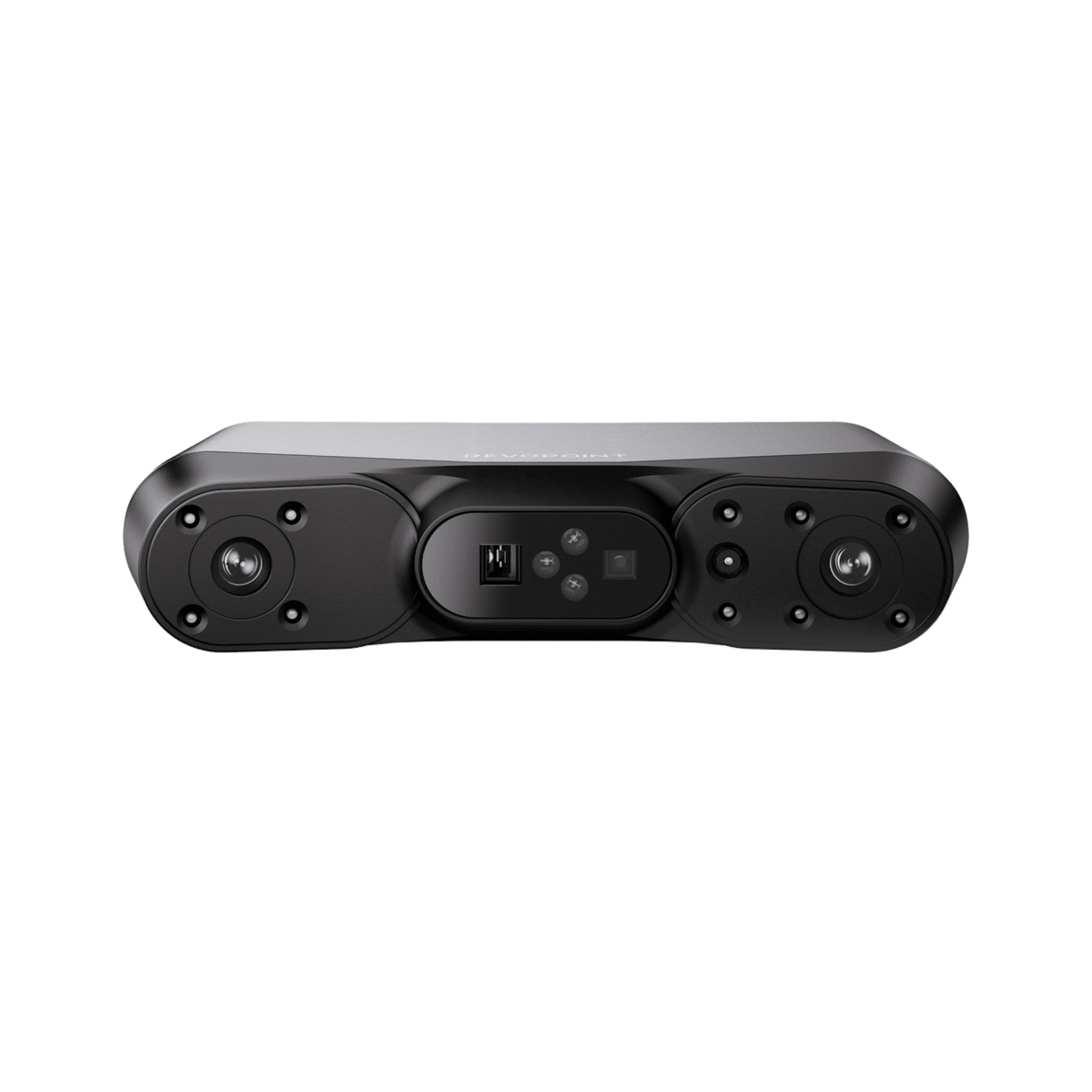

At just 286 grams and measuring 160 × 30 × 72 mm, the POP 4 is comfortable for extended handheld use while remaining stable on the included tripod for desktop scanning. The Premium Edition includes a 5500 mAh Battery Grip that delivers approximately 4 hours of runtime, enabling fully wireless scanning with a phone or tablet via Wi-Fi 6. No cables. No limits.

Tracking modes include Feature, Marker, Global Marker, and Color, giving you flexibility across different object types and lighting conditions.

Ideal Applications

The Revopoint POP 4 Premium Edition is purpose-built for:

• Reverse engineering mechanical parts and assemblies
• Preparing high-accuracy models for 3D printing
• Product design and prototyping
• Scanning dark, shiny, or reflective materials without spray
• Capturing deep holes and complex geometries
• Face, body, and organic object scanning
• Outdoor and on-site digitization in bright conditions
• Digital archiving of artwork, artifacts, and cultural objects
• Creating photorealistic assets for visualization and VR/AR

Whether you are a professional engineer, a product designer, a 3D printing studio, or a serious hobbyist looking for one versatile scanner that can handle almost any job — indoors or outdoors, wired or completely wireless — the POP 4 Premium Edition delivers an outstanding combination of precision, speed, intelligence, and freedom.

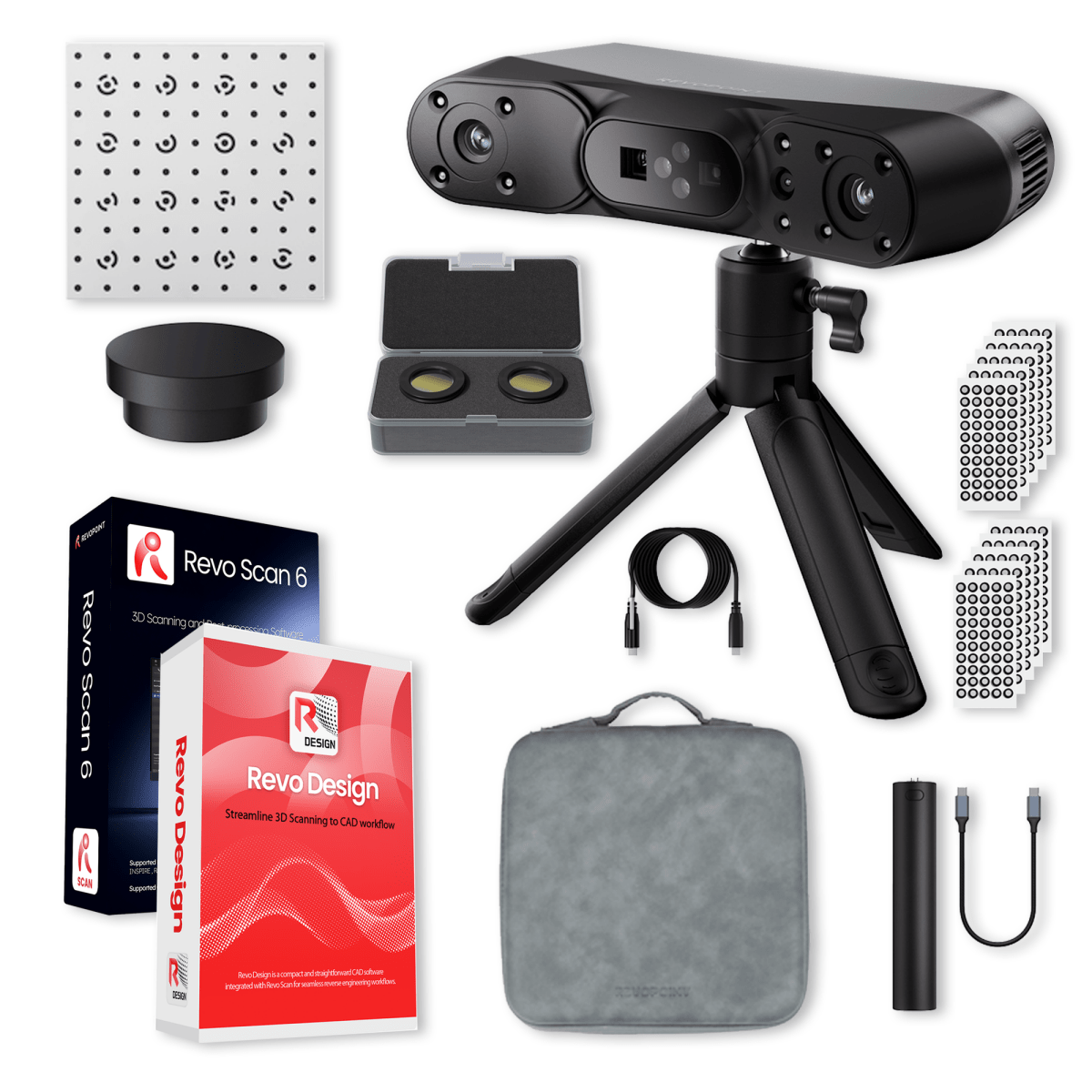

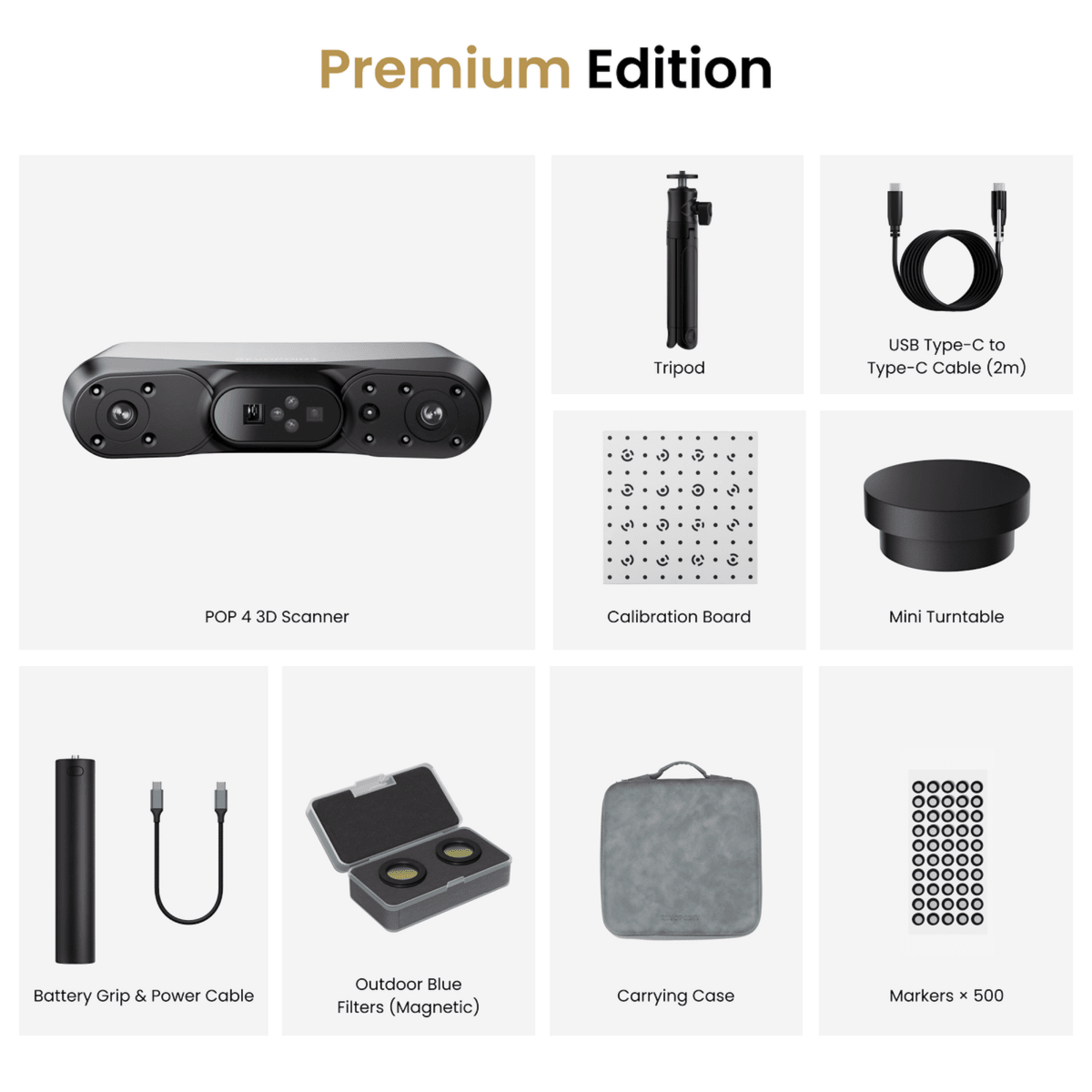

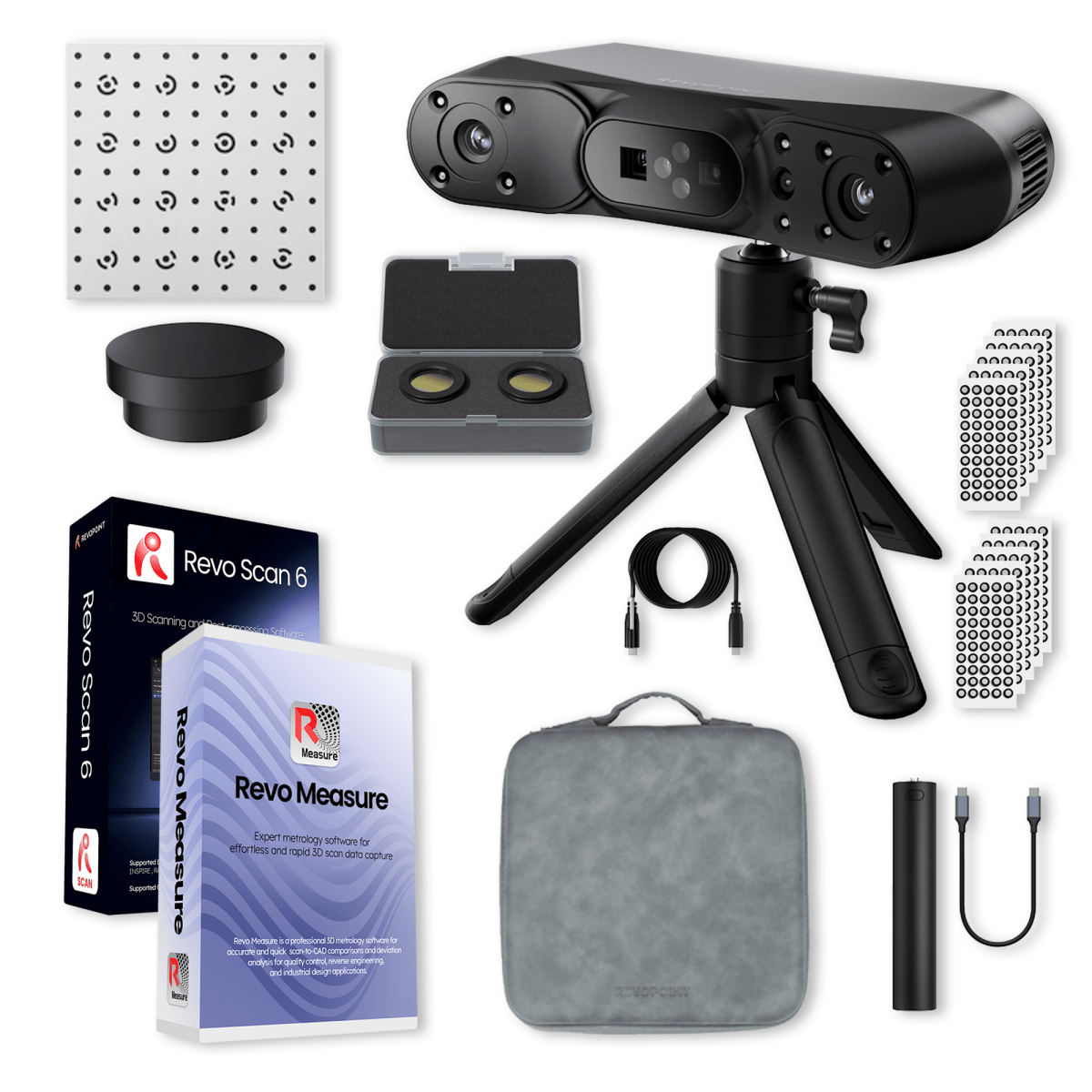

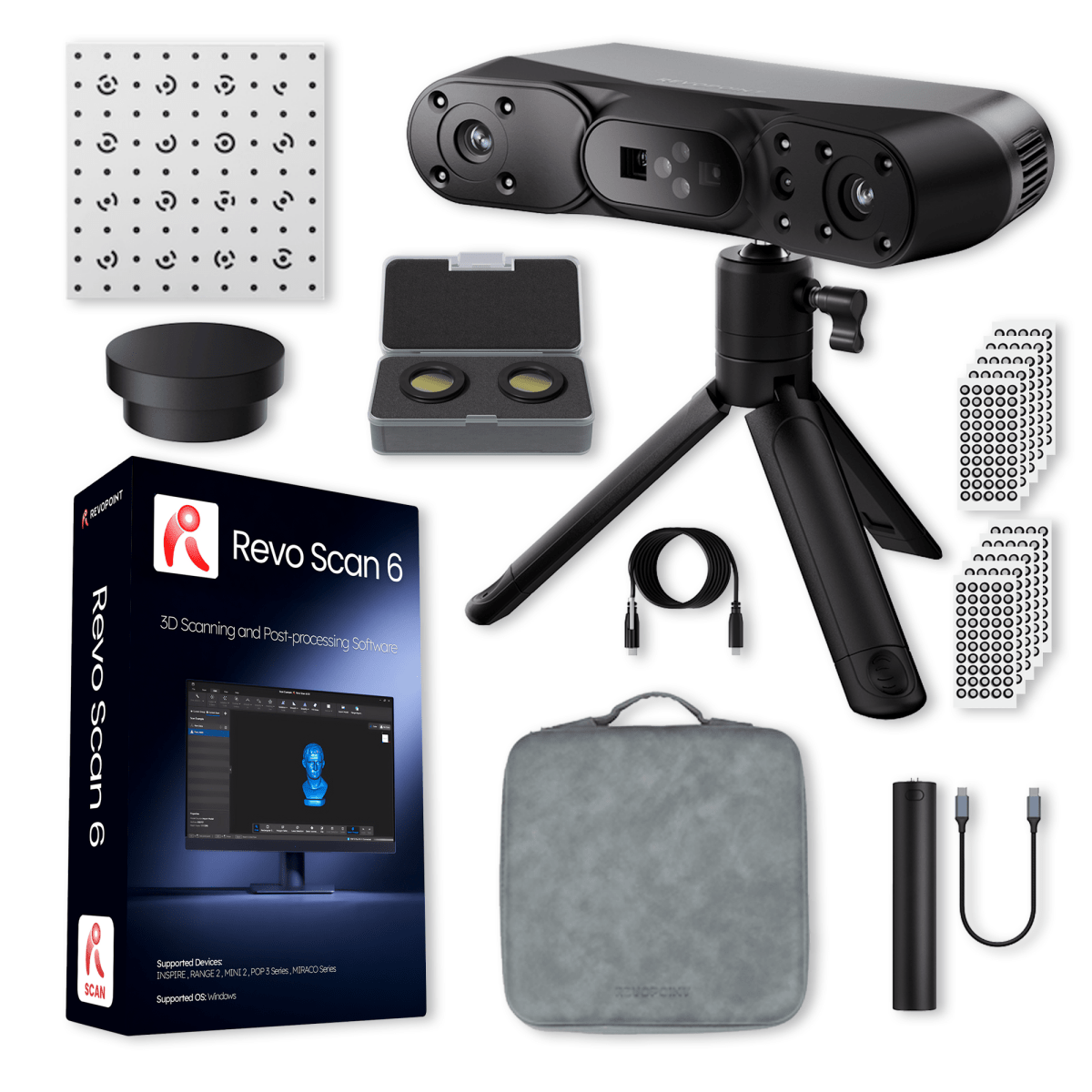

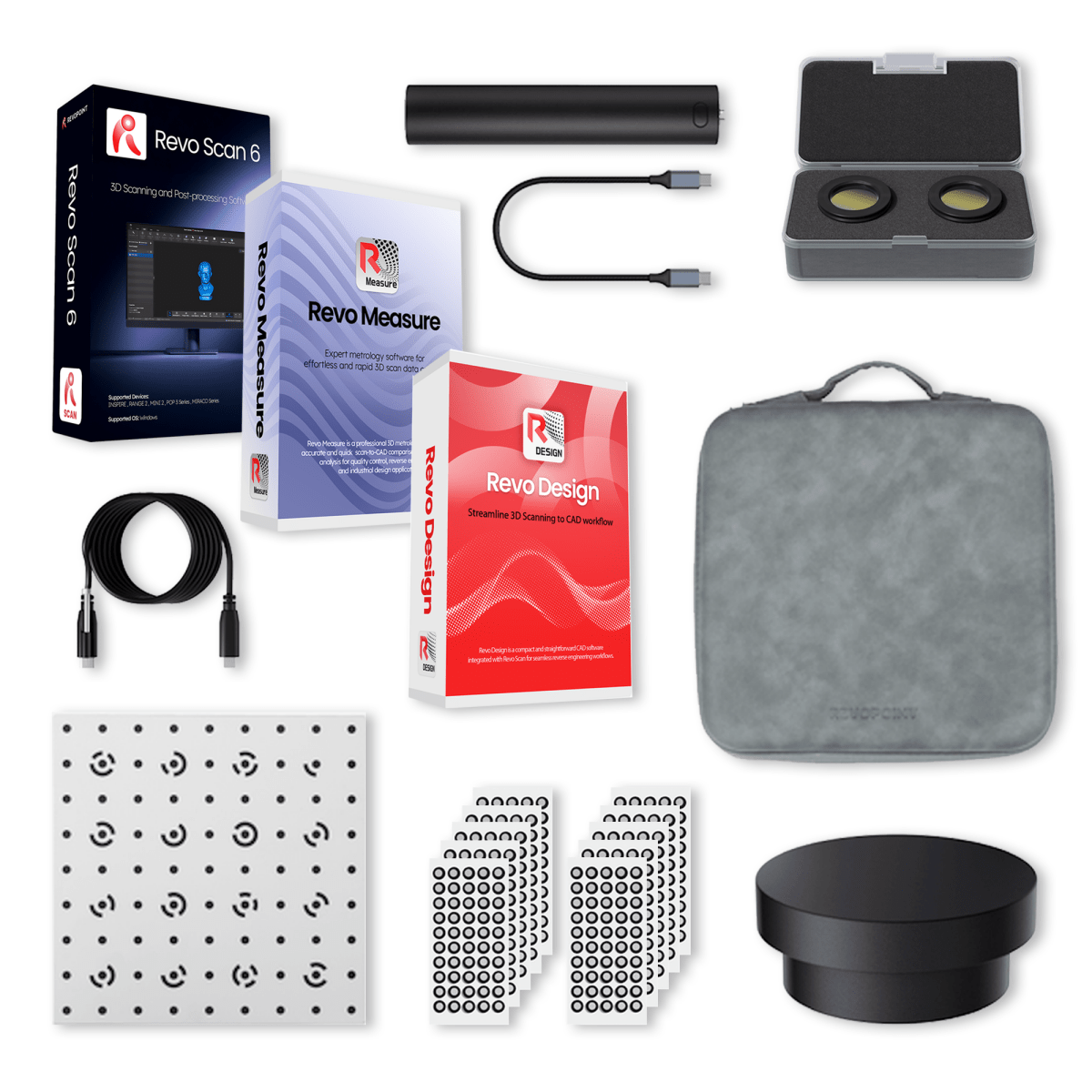

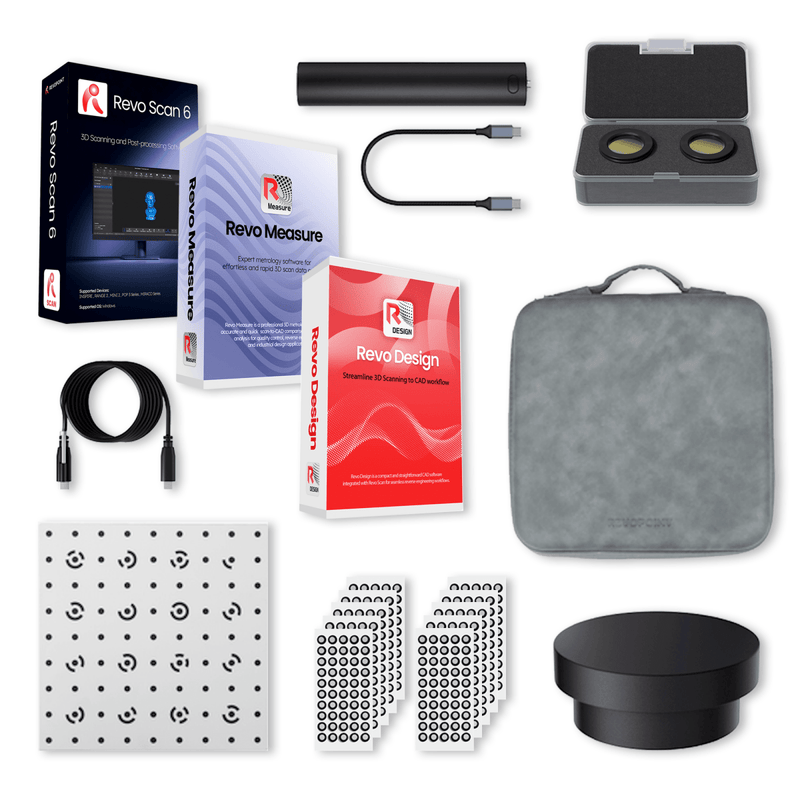

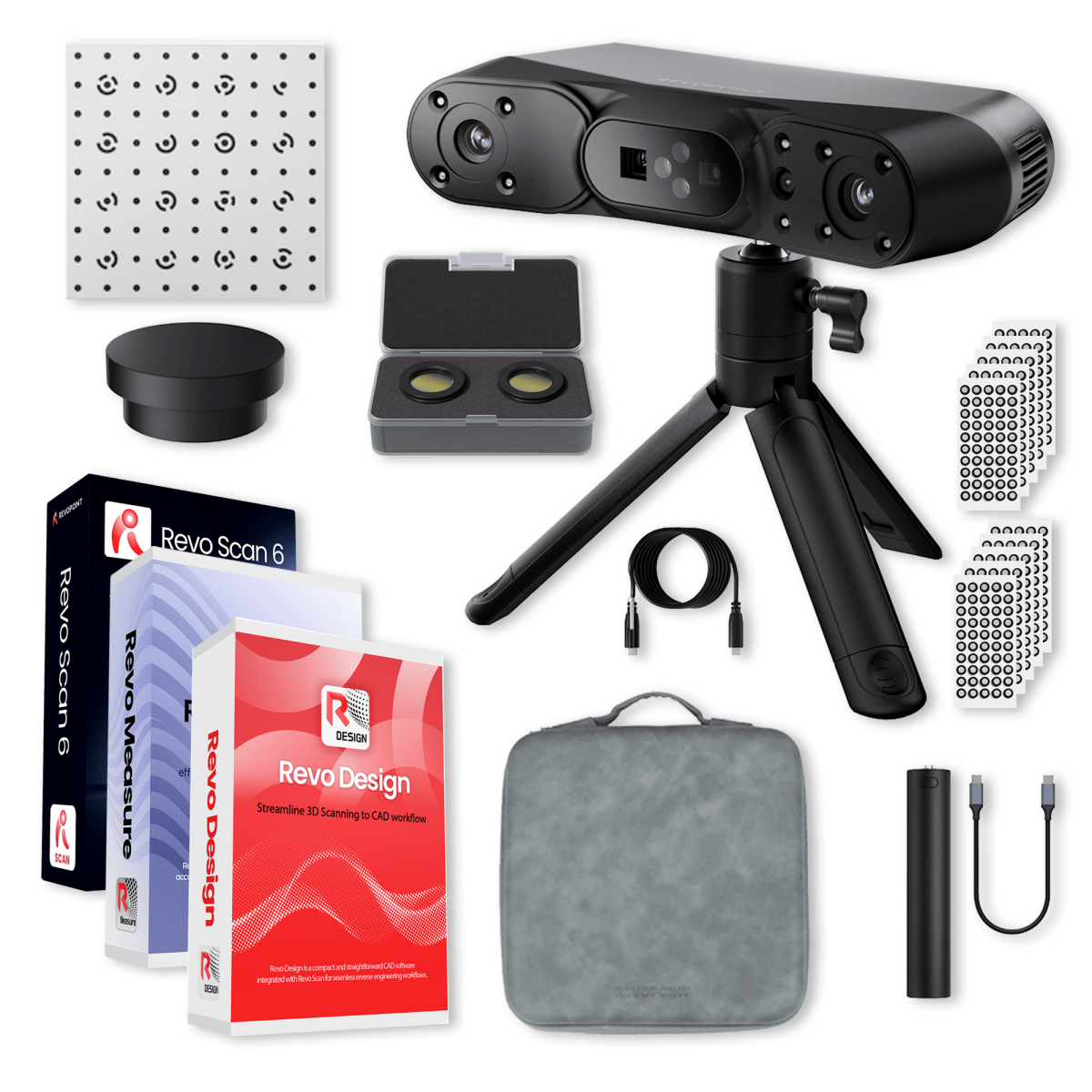

Revopoint POP 4 PREMIUM Bundle Includes

• Revopoint POP 4 3D Scanner

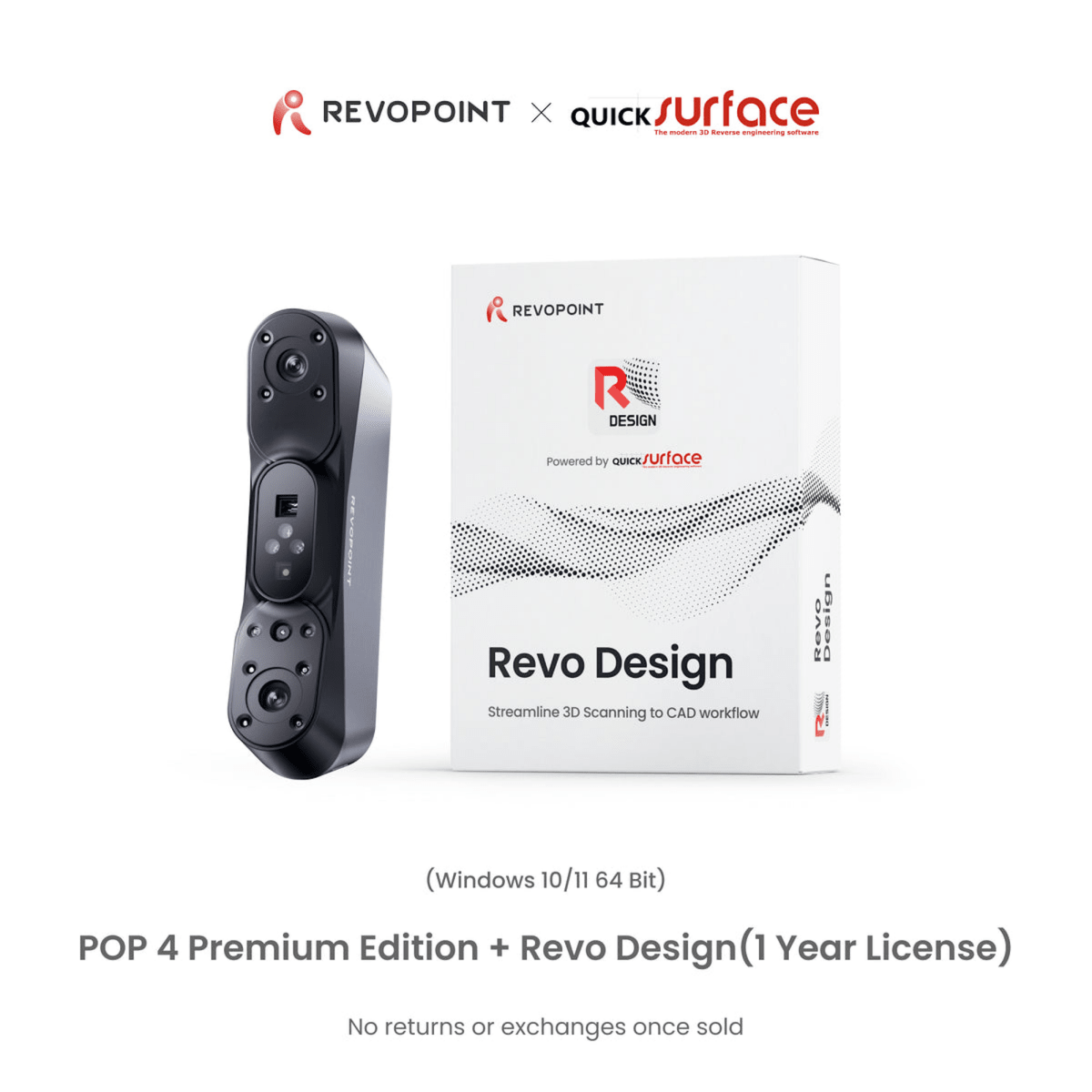

• Optional 1 Year Revo Design | Revo Measure
• POP 4 Scanner Tripod

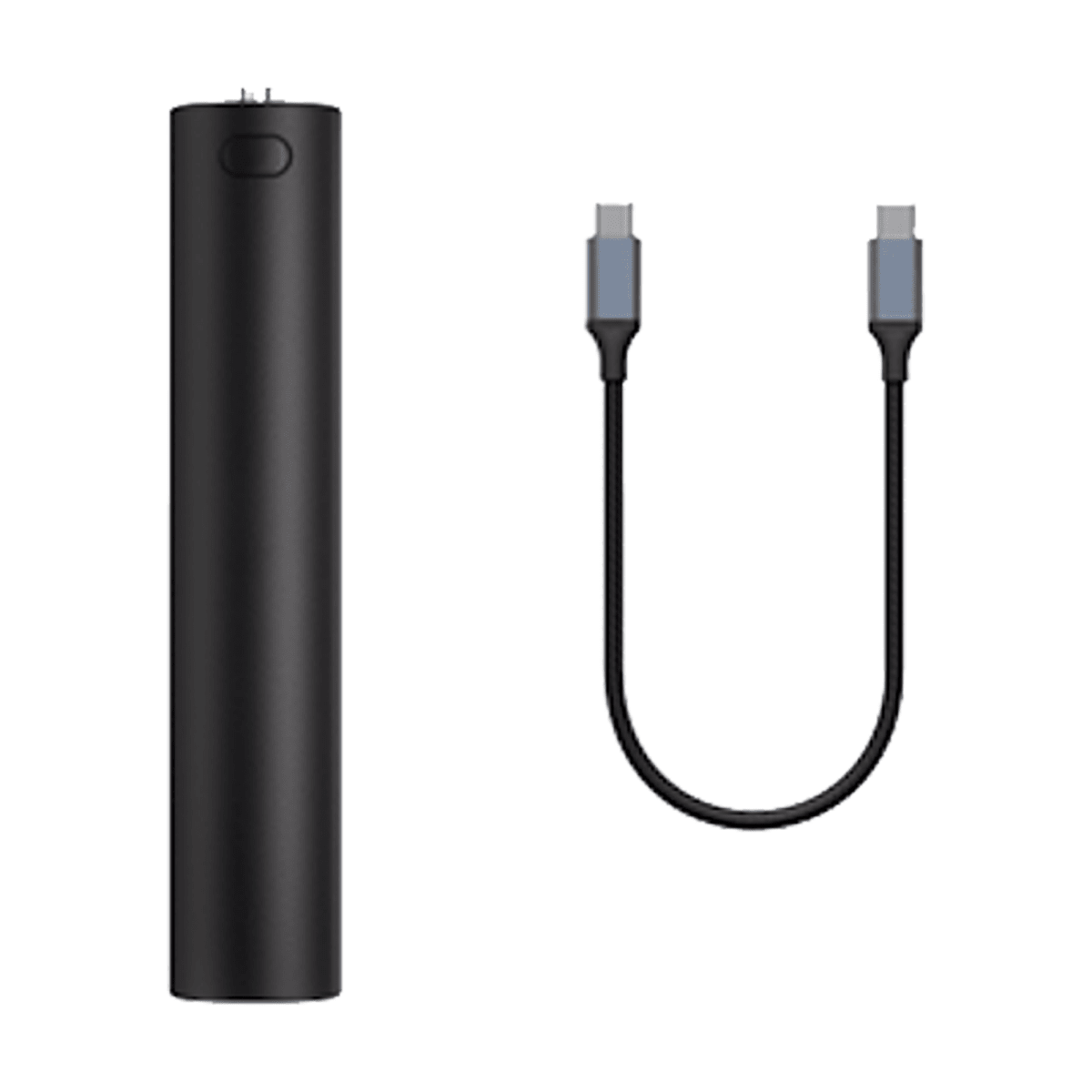

• Battery Grip & Power Cable
• USB Type C to Type-C Data Cable
• Outdoor Blue Magnetic Filters
• Mini Turntable with USB Power Cable
• 300 Reflective Markers
• Calibration Board

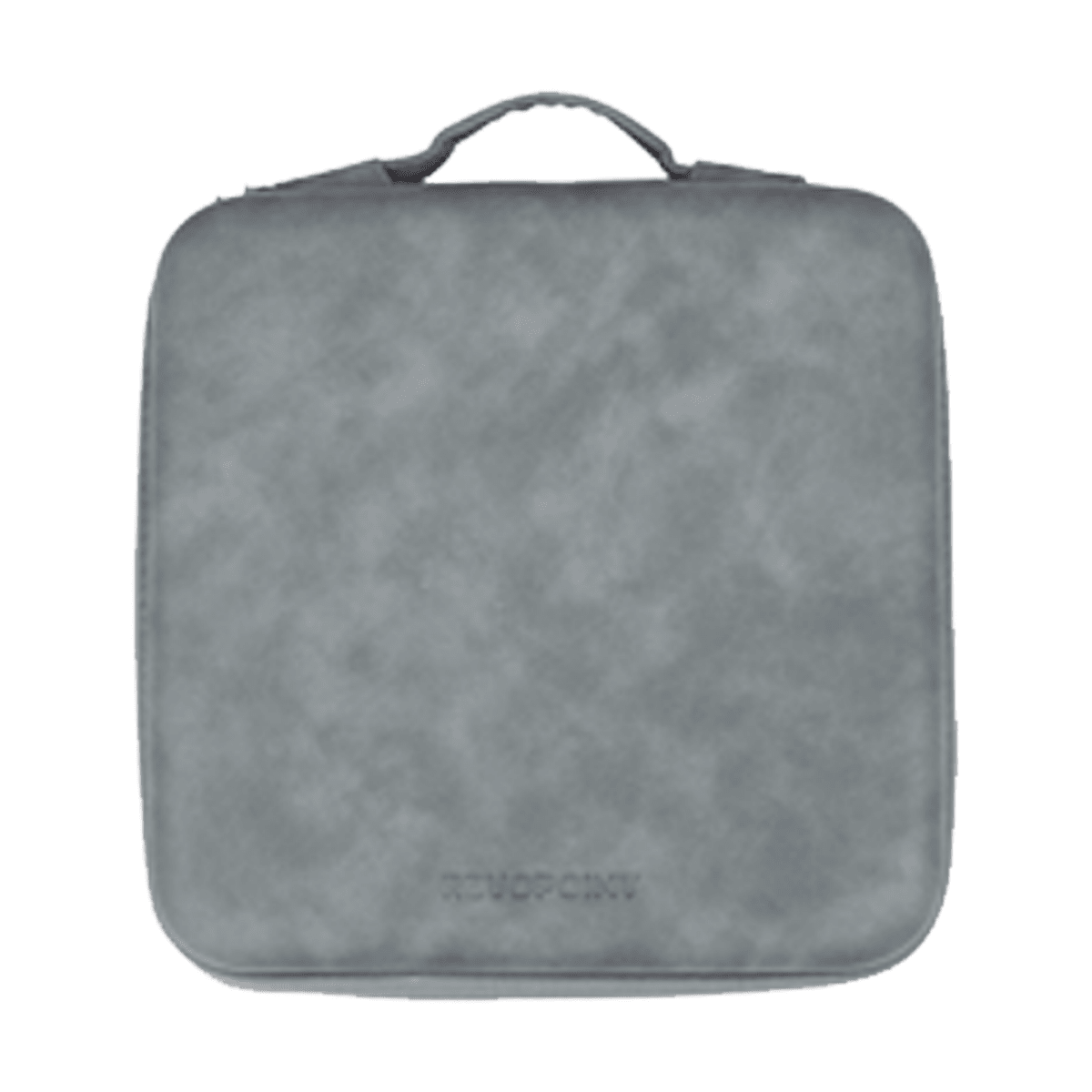

• Carrying Case
• Revo Metro 3D Scanning Software Mac & PC
• Revo Mirror Screen Mirroring Assistant Mac & PC
• Quick Start Guide
• 24/7 Manufacturer Support + U.S. Based Support
• 2 Year Scanner Warranty / 1 Year Accessory Warranty

Experience the power of hybrid blue laser and infrared 3D scanning with AI assistance and modern photorealistic output. The Revopoint POP 4 Standard Edition is available now at swingdesign.com.
