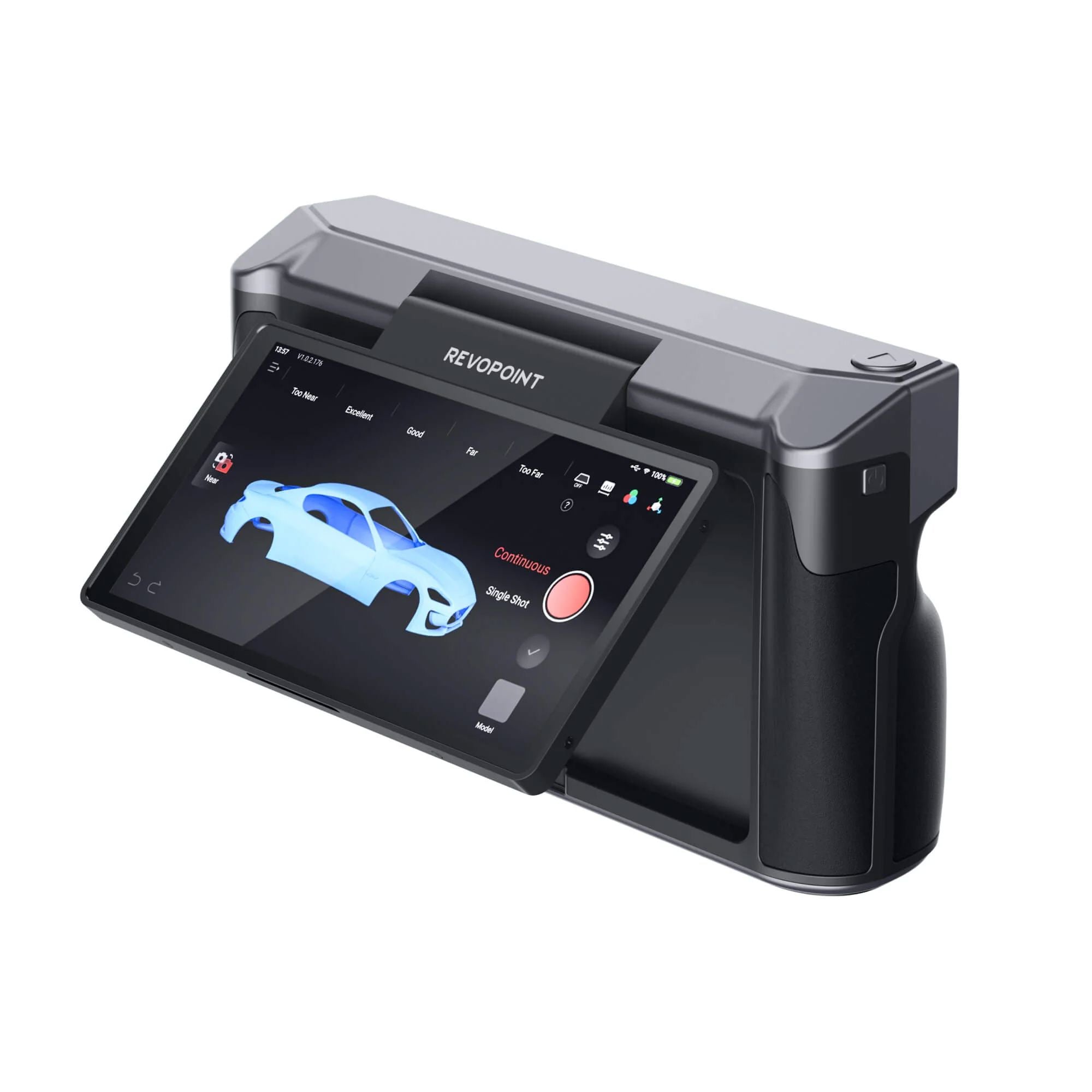

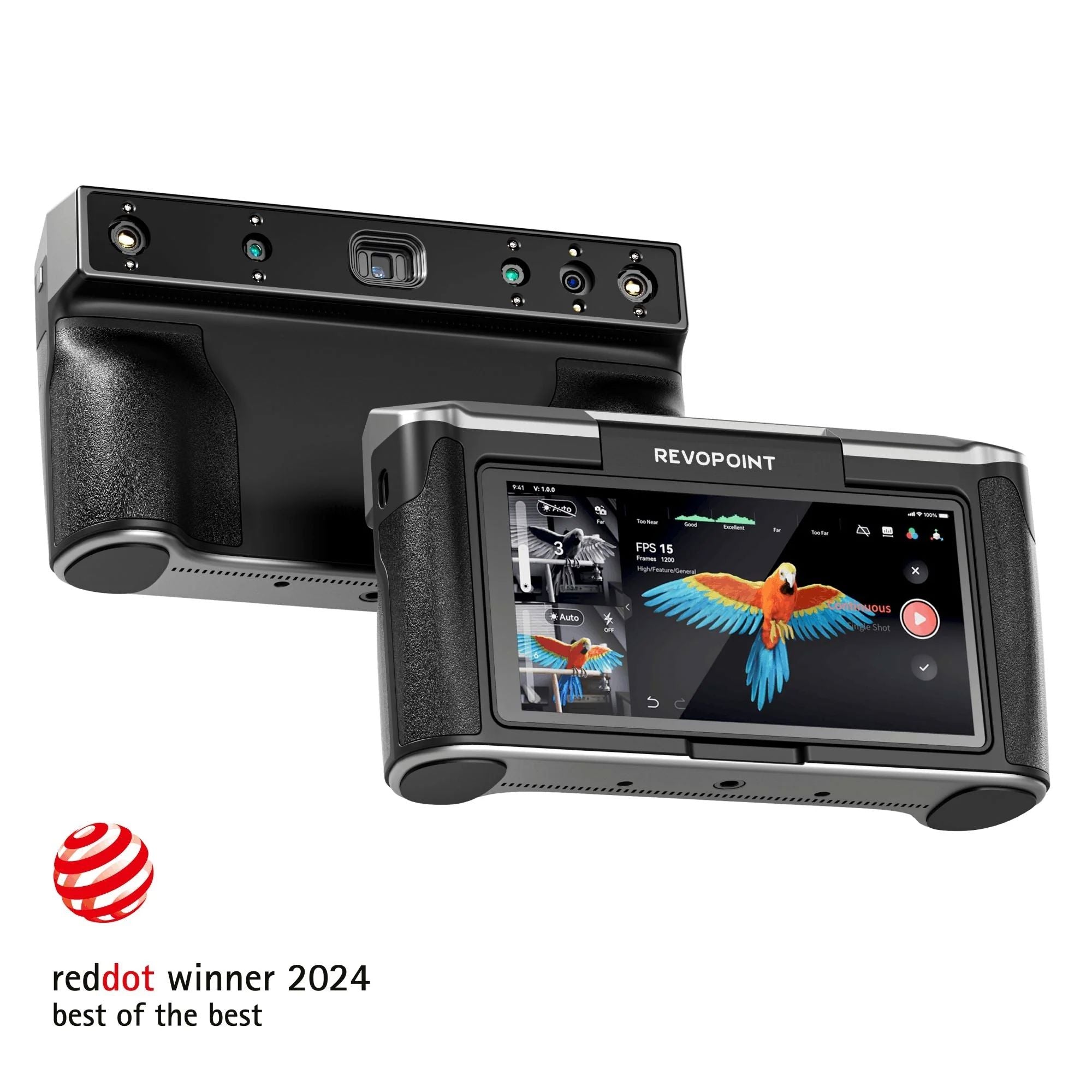

Revopoint MIRACO PLUS 3D Scanner with Photogrammetric Metrology Kit

Unlock professional-grade 3D scanning and metrology in one truly standalone device. The Revopoint MIRACO PLUS 3D Scanner is the world’s first cost-effective all-in-one handheld scanner with built-in photogrammetric metrology capabilities. Engineered for engineers, manufacturers, quality control professionals, and advanced makers, it delivers metrology-level accuracy on objects ranging from tiny components (as small as 10 × 10 × 10 mm) to large industrial parts and assemblies up to 4 × 4 × 4 m.

Scan anywhere without a PC. Review results on the device. Then transfer to your computer for advanced processing. Whether you need high-precision inspection, reverse engineering, or full-color textured models ready for 3D printing, the MIRACO PLUS gives you everything in one powerful, portable package.

Why the Revopoint MIRACO PLUS Stands Out

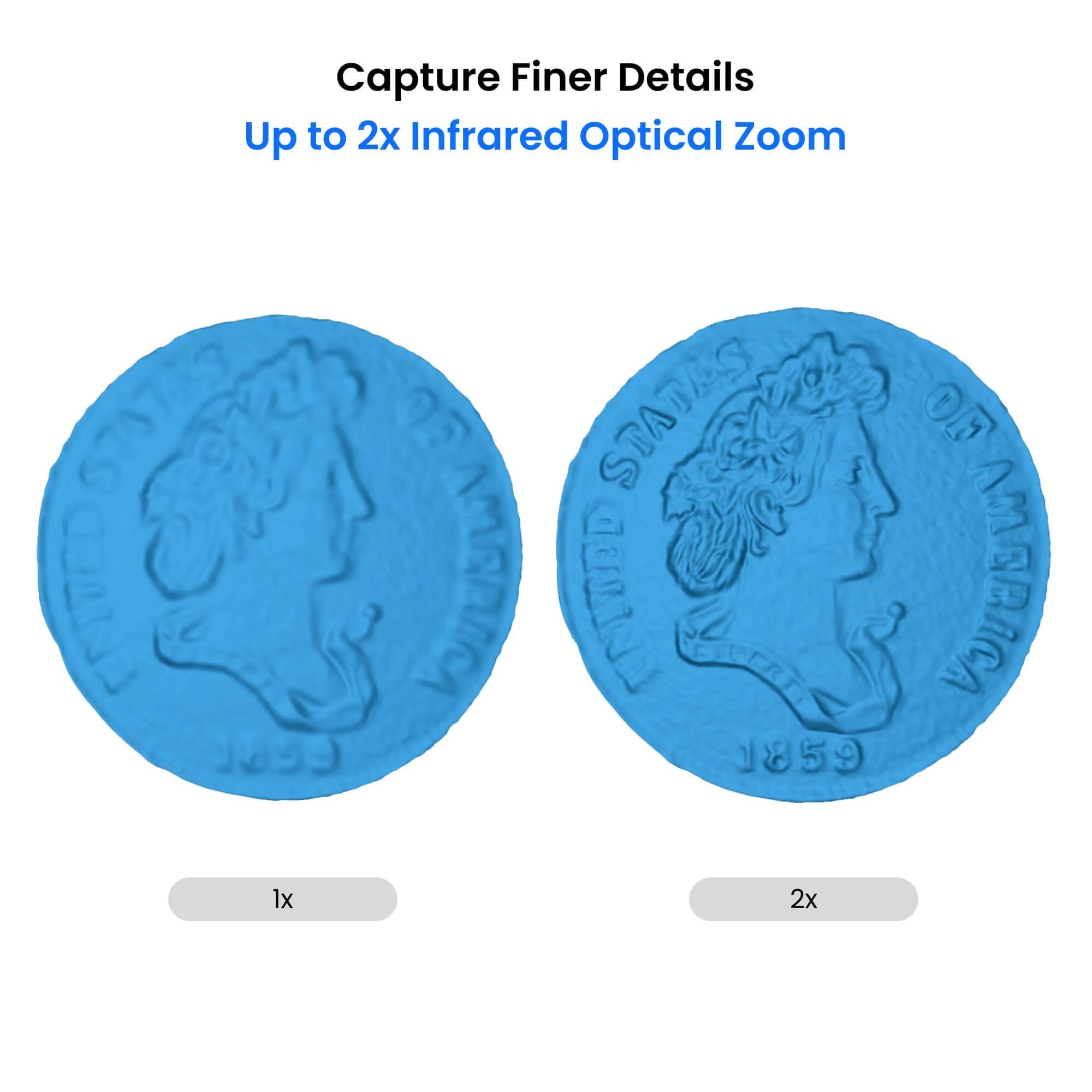

• True All-in-One Versatility — Switch between Near and Far modes with 2× infrared optical zoom to capture fine details or large surfaces with equal ease.
• Photogrammetric Metrology Built In — The included Photogrammetric Metrology Kit (PMK) uses the scanner’s 48 MP RGB camera and coded targets to achieve photogrammetric length accuracy of $0.02 \, \text{mm} + 0.05 \, \text{mm} \times L$ (m) — ideal for large-object measurement and inspection.
• Genuine Standalone Power — Onboard 8-core processor, 32 GB RAM, 256 GB storage, and 5000 mAh battery let you scan, review, and process completely independently. Wi-Fi 6 makes data transfer simple when needed.

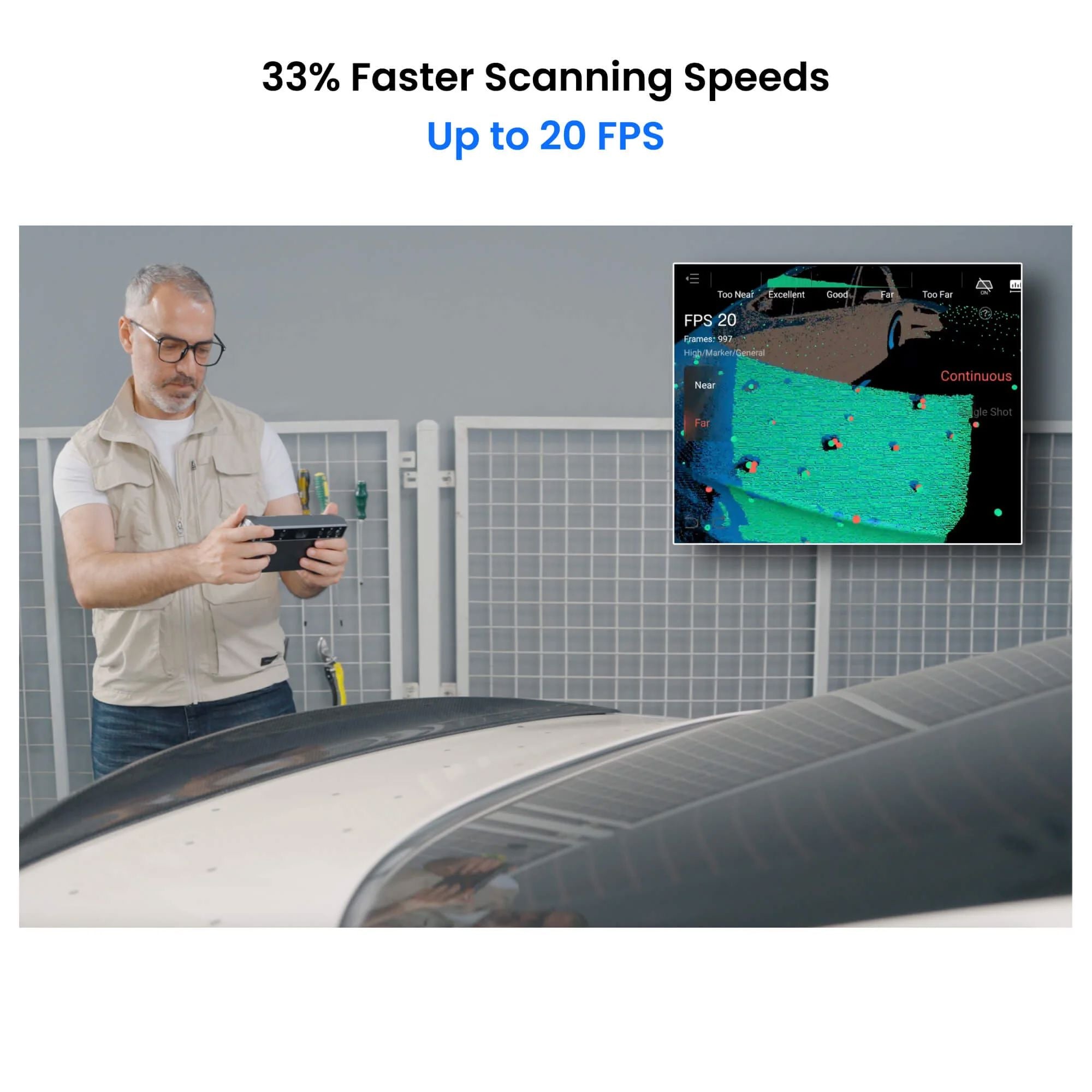

• Fast & Highly Accurate — Up to 20 FPS with single-frame accuracy up to 0.04 mm and precision up to 0.02 mm. Full-color 48 MP RGB camera delivers rich textures.
• Reliable Tracking — Feature tracking, marker tracking, and global marker tracking work across a wide range of surfaces and object types.
• Field-to-Finish Workflow — Capture professional data on the factory floor or job site, then move to Revo Scan 5 (PC) for mesh optimization and export.

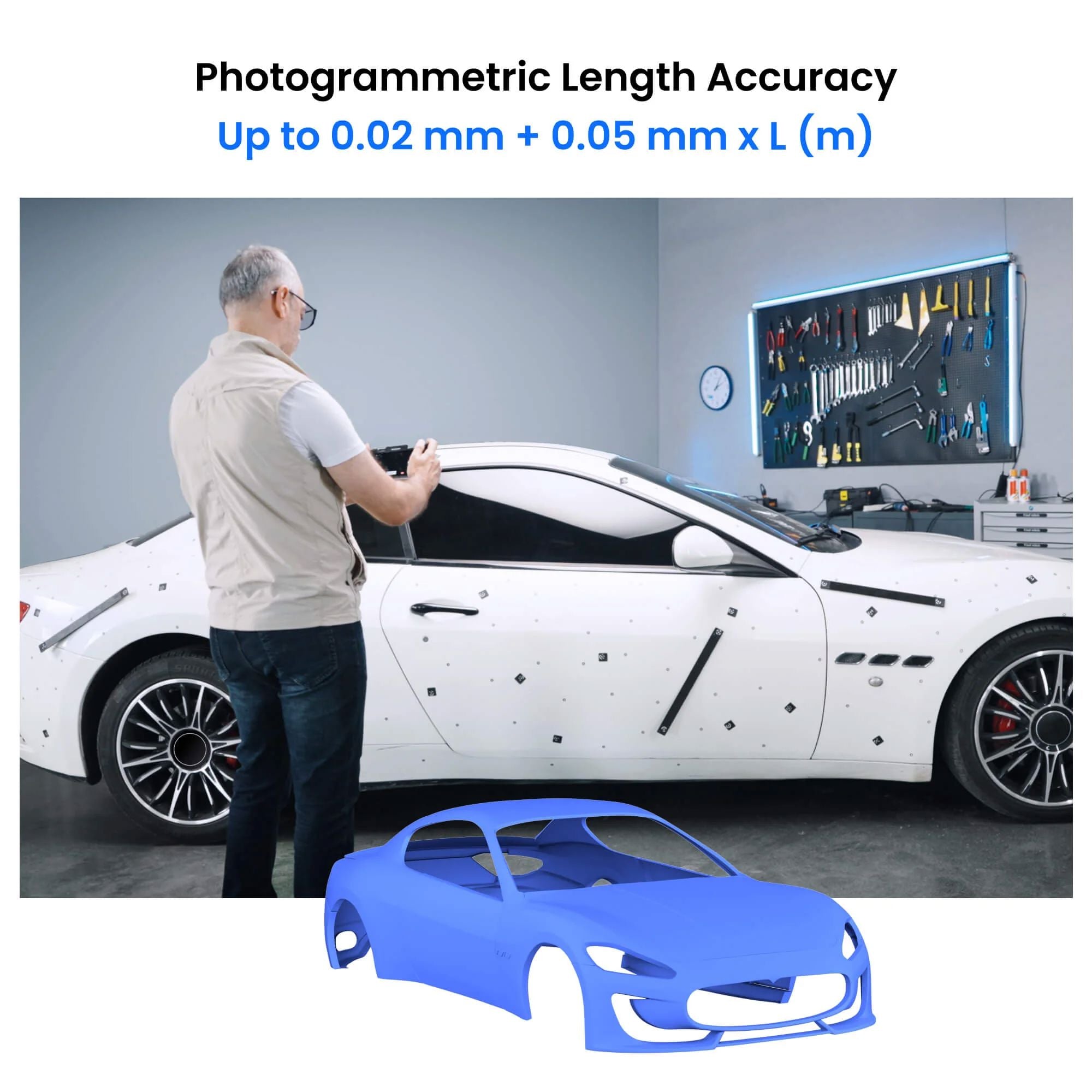

Photogrammetric Metrology: Precision at Scale

Place the precision carbon fiber scale bars and coded targets, capture multi-angle images with the 48 MP camera, and let the MIRACO PLUS reconstruct global coordinates with metrology-grade accuracy. This hybrid structured-light + photogrammetry approach minimizes drift and stitching errors on large objects.

Technical Specifications

Accuracy & Performance

• Single-frame accuracy: Up to 0.04 mm
• Single-frame precision: Up to 0.02 mm
• Photogrammetric length accuracy: $0.02 \, \text{mm} + 0.05 \, \text{mm} \times L$ (m)
• Scanning speed: Up to 20 FPS
• Working distance: 100 – 1,000 mm
• Minimum scan volume: 10 × 10 × 10 mm
• Maximum scan volume (with PMK): 4 × 4 × 4 m

Hardware

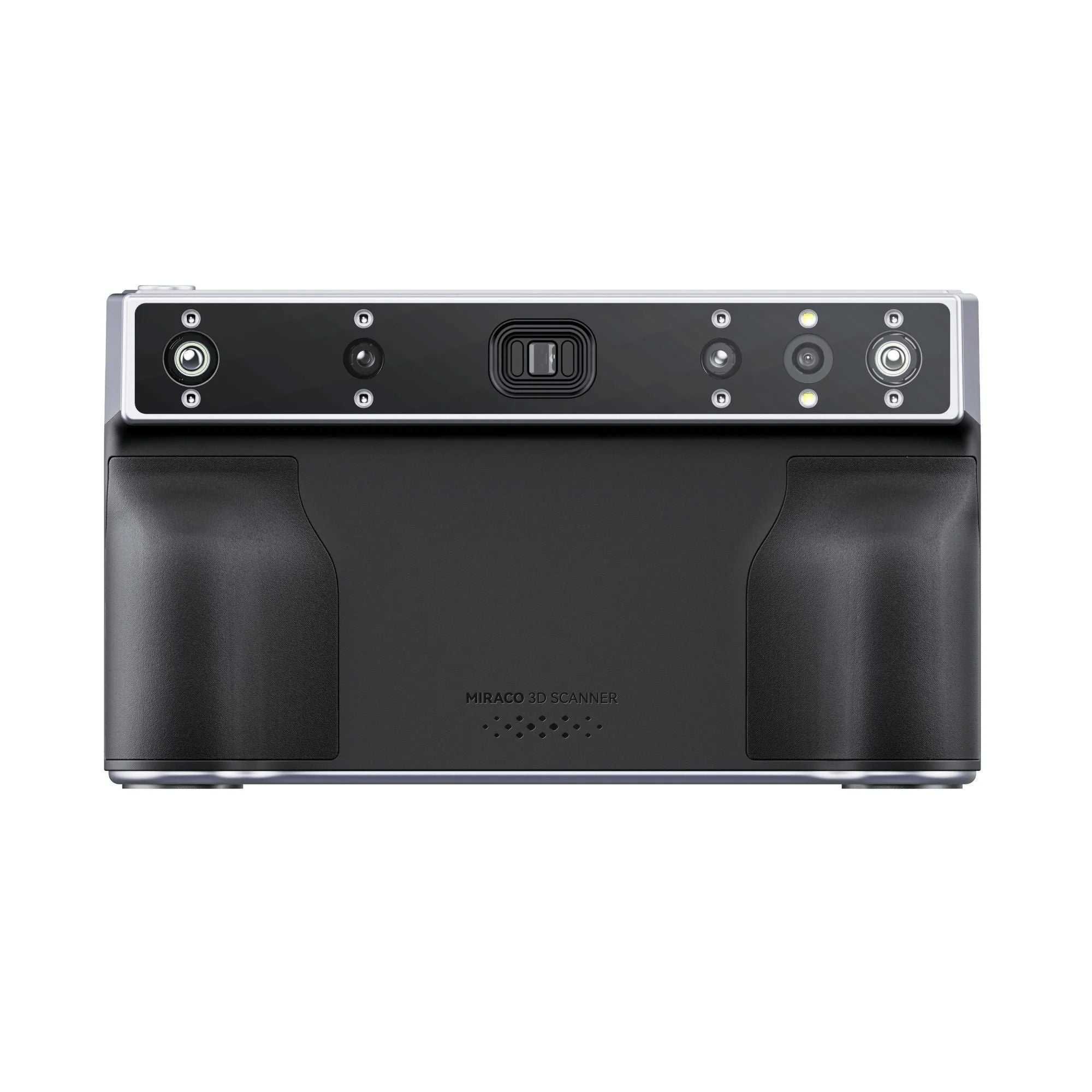

• Technology: Quad-camera infrared structured light with 2× optical zoom + photogrammetric metrology
• RGB camera: 48 MP
• Onboard storage / RAM: 256 GB / 32 GB
• Battery: 5000 mAh
• Weight: 750 g | Dimensions: 200 × 50 × 110 mm
• Connectivity: Wi-Fi 6, Bluetooth 4.1, USB-C (65W fast charging)
• Tracking modes: Feature, Marker, Global Marker
• Output formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX

Software & Compatibility

• On-device: Revo Scan (standalone)
• PC: Revo Scan 5 (v5.4.12+)
• Professional tools: Compatible with Revo Design (reverse engineering) and Revo Measure (metrology & inspection)
• Exports to SolidWorks, Fusion 360, Blender, and most CAD / 3D printing software

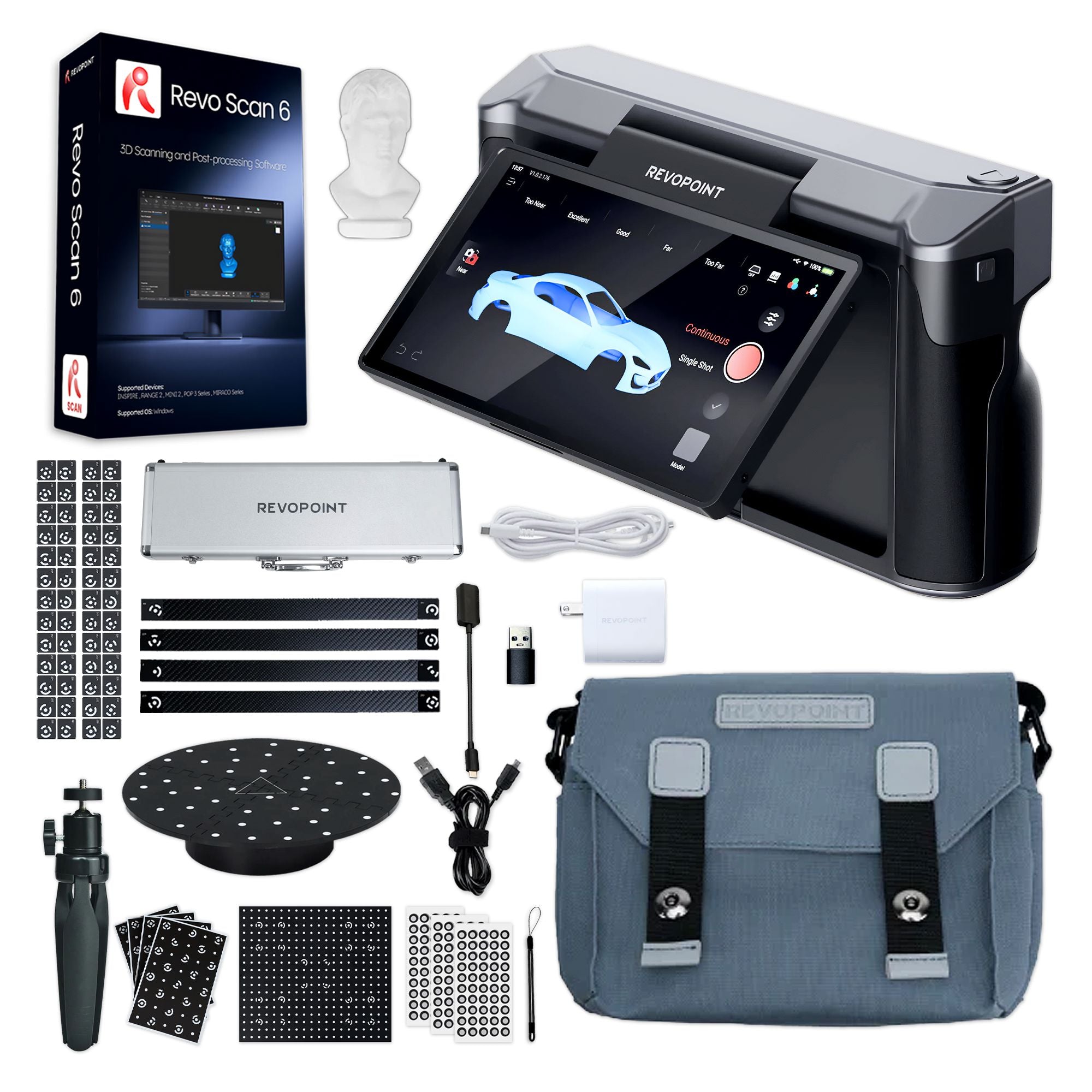

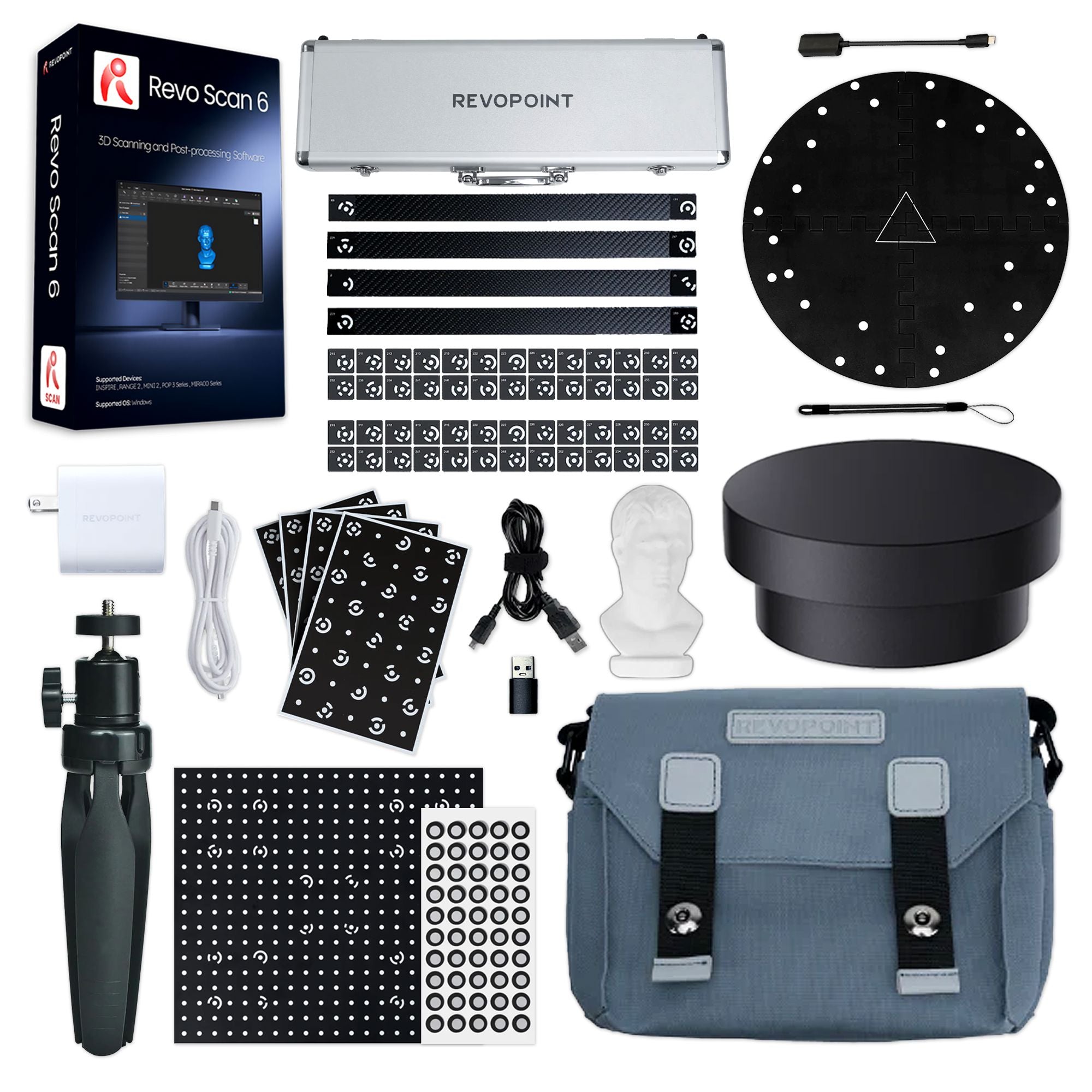

Bundle Includes:

• MIRACO PLUS All-in-One Wireless 3D Scanner
• MIRACO Carrying Bag

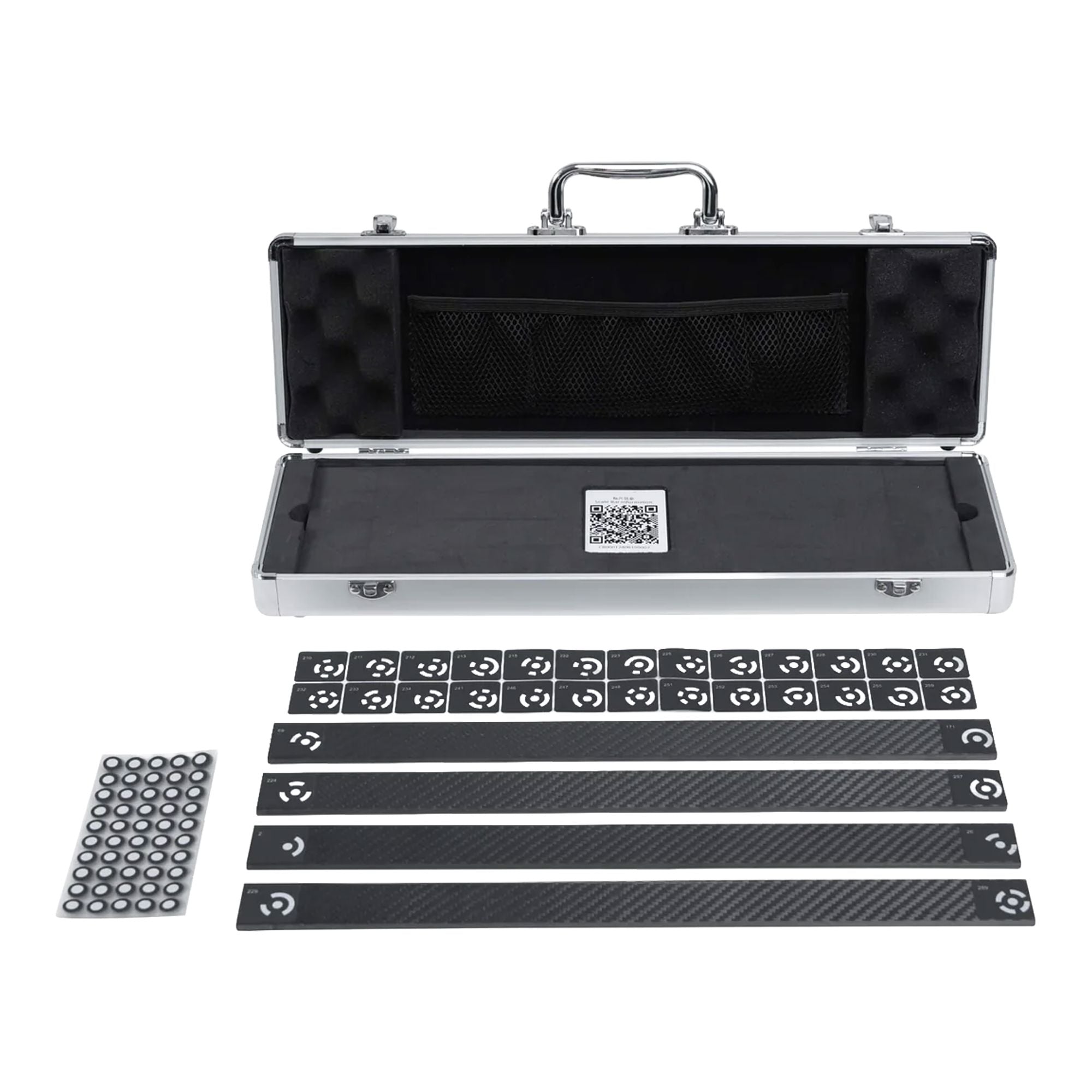

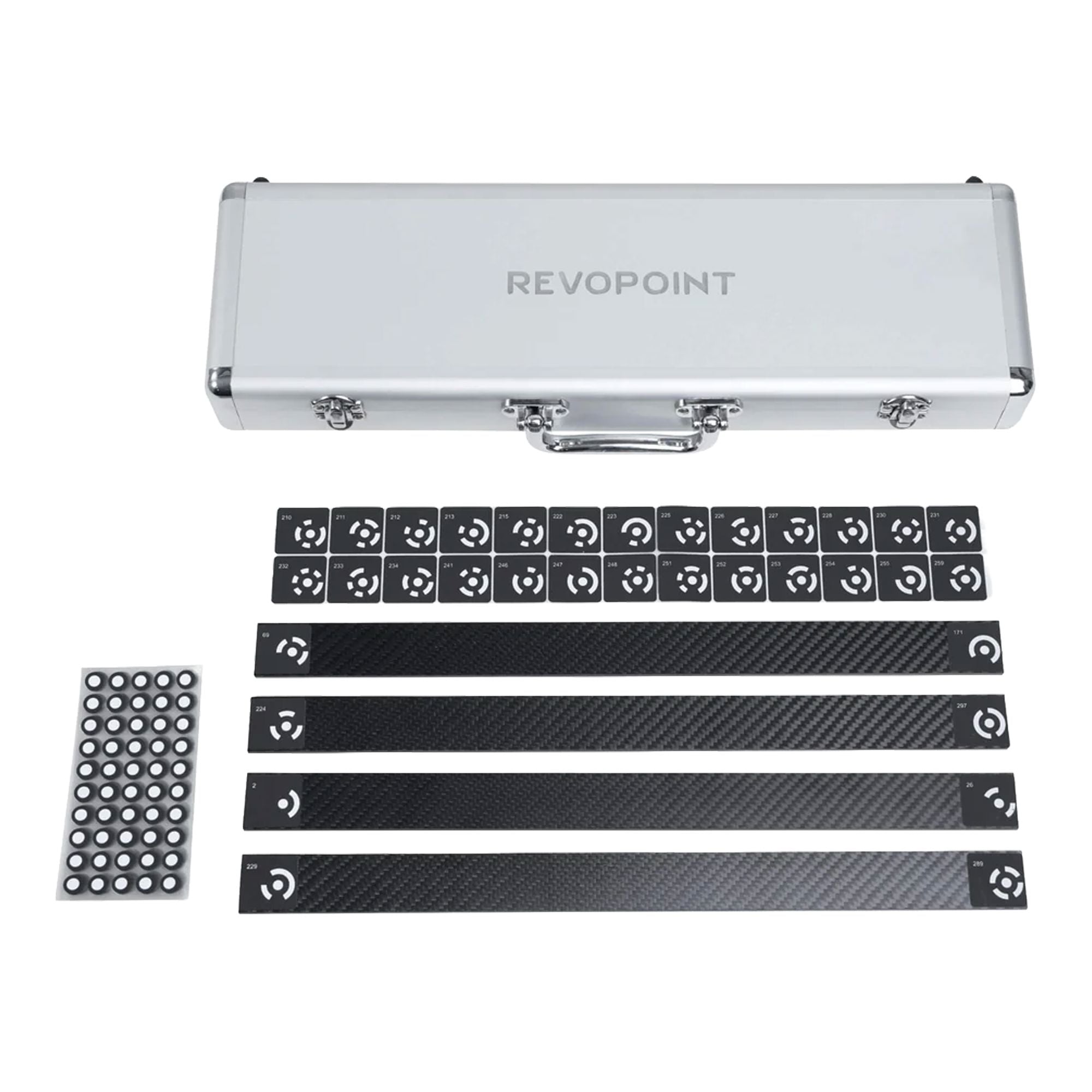

• Photogrammetric Metrology Hard Case
• 4 Scale Bars
• Magnetic Coded Targets x208
• Sticky Coded Targets x208
• Tripod
• Near-Mode Calibration Board
• 3D Scan Markers x700
• Mini Scanning Turntable
• 3D Scanning Sample
• 65W Dual USB Type-C Port Power Adapter
• Wrist Strap
• Revo Metro 3D Scanning Software Mac & PC

• Quick Start Guide
• 2 Year Scanner Warranty / 1 Year Accessory Warranty

Elevate your workflow today with the Revopoint MIRACO PLUS standalone 3D scanner — the portable, high-accuracy solution trusted by makers, engineers, designers, and professionals worldwide for capturing small to large objects with exceptional detail and color fidelity.

Ideal Applications

• Reverse engineering & product development
• Industrial metrology, quality inspection & dimensional verification

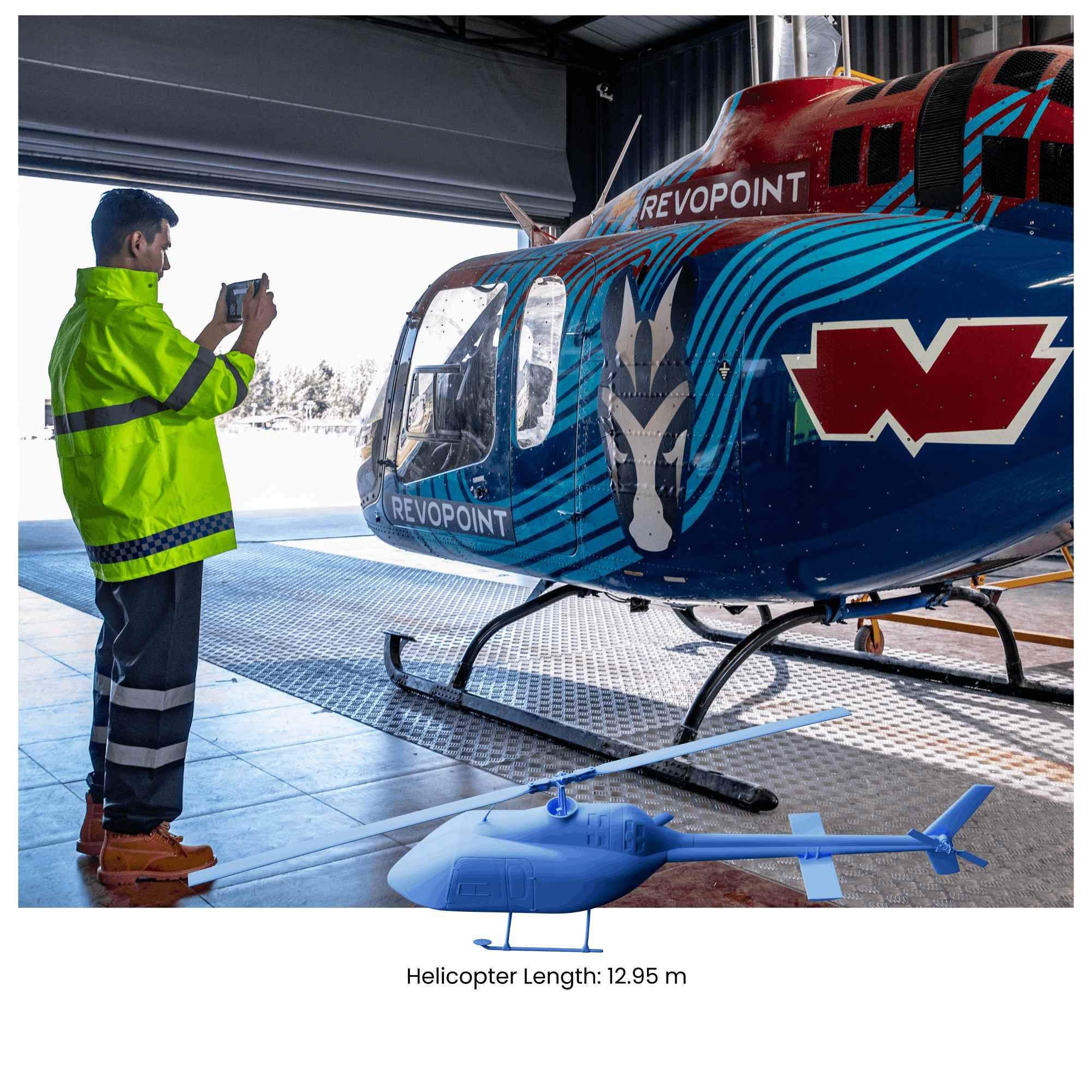

• Large-part scanning (automotive, aerospace, heavy equipment, marine)
• Tooling, jigs, fixtures & custom manufacturing
• 3D printing workflows — create accurate, ready-to-print models
• Heritage preservation, art, and complex assemblies
