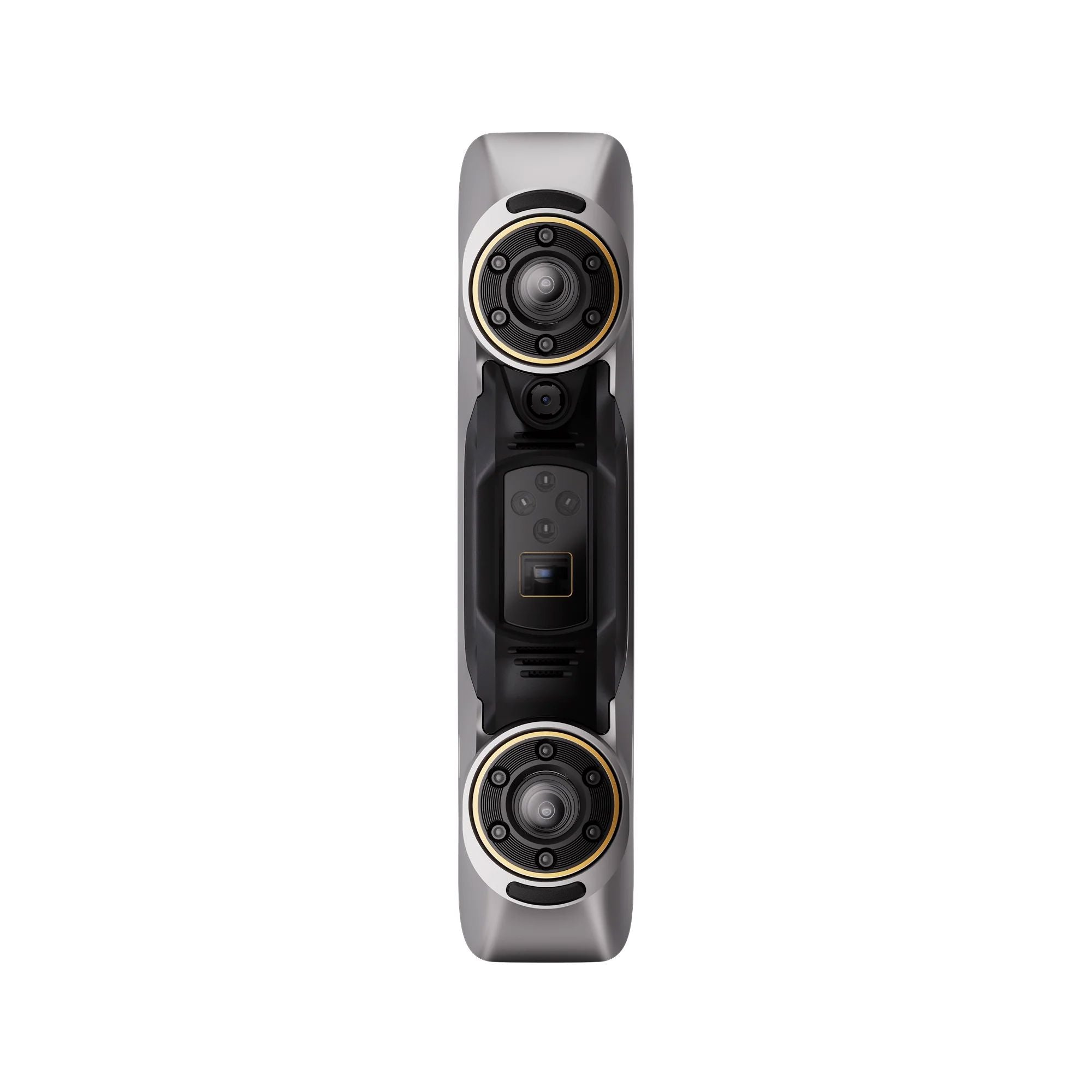

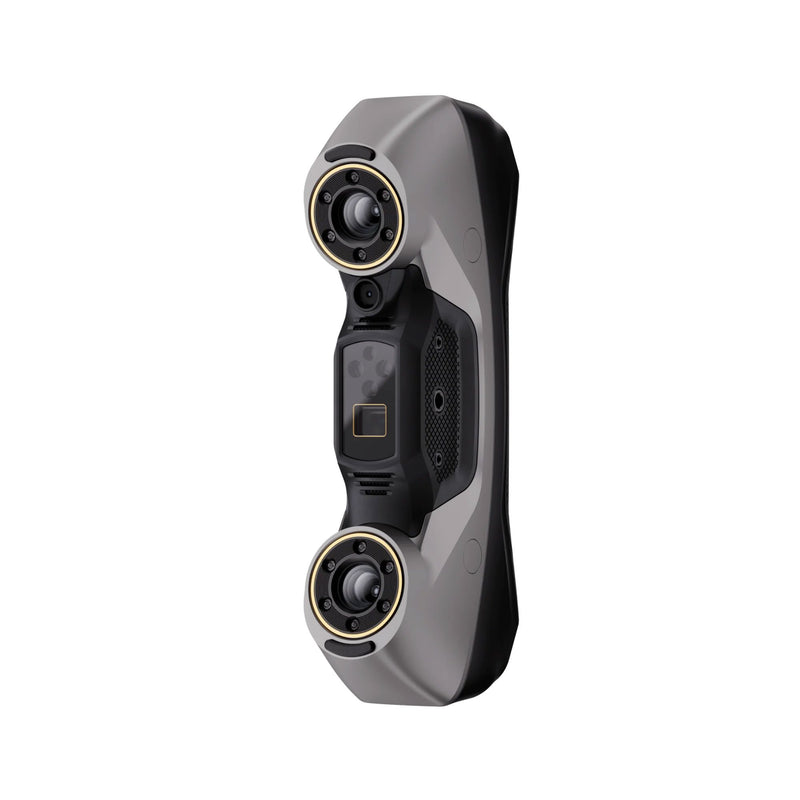

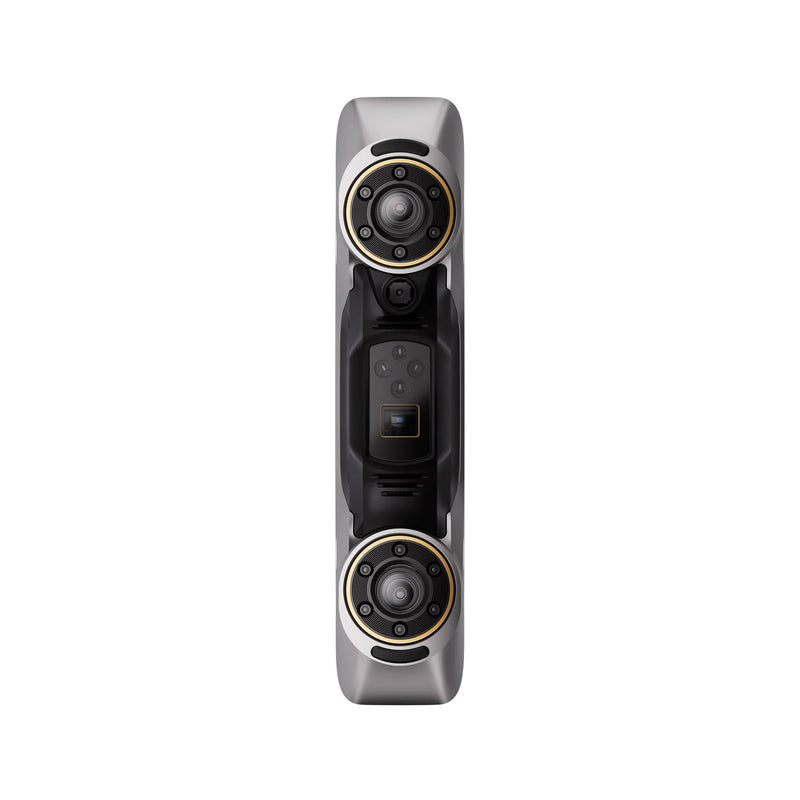

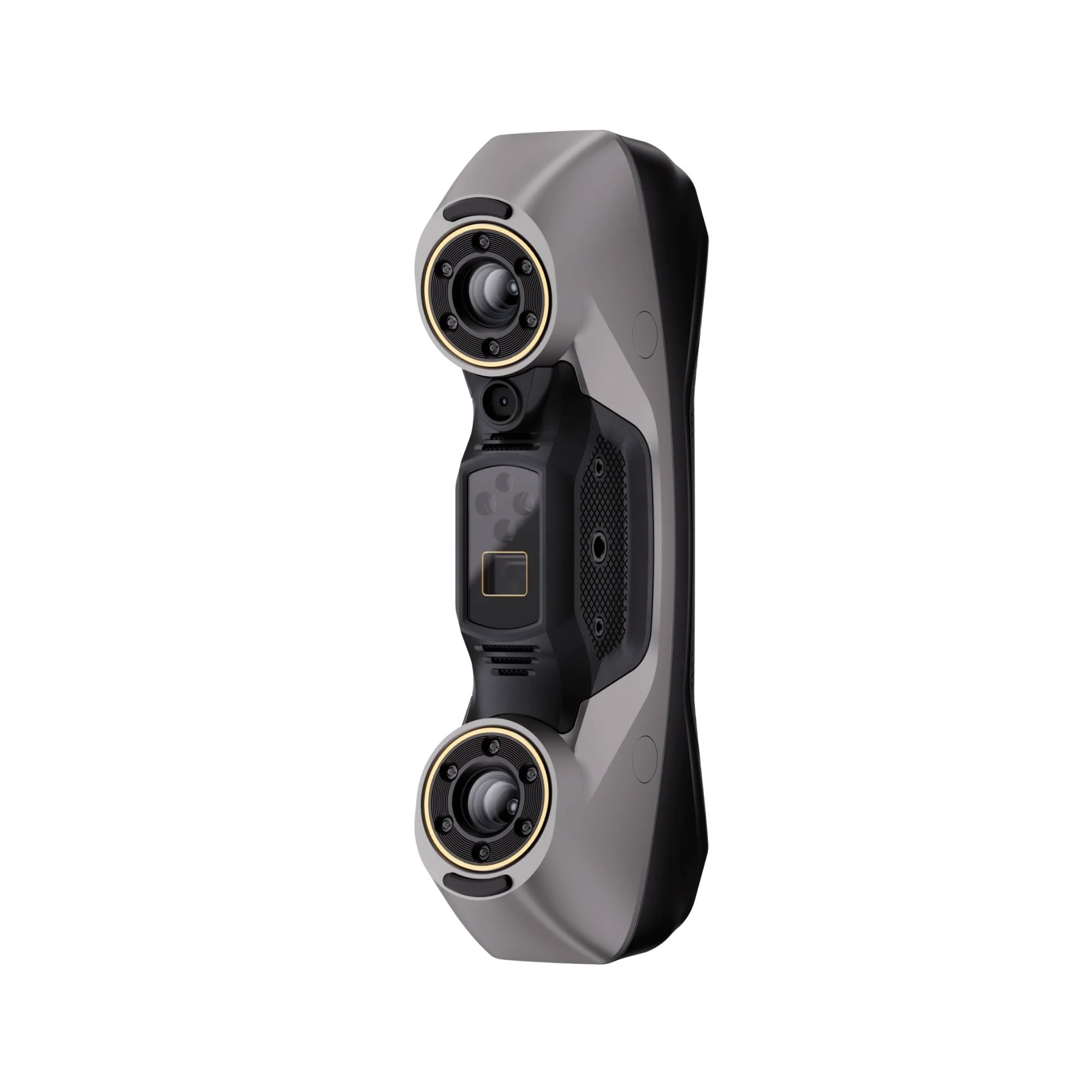

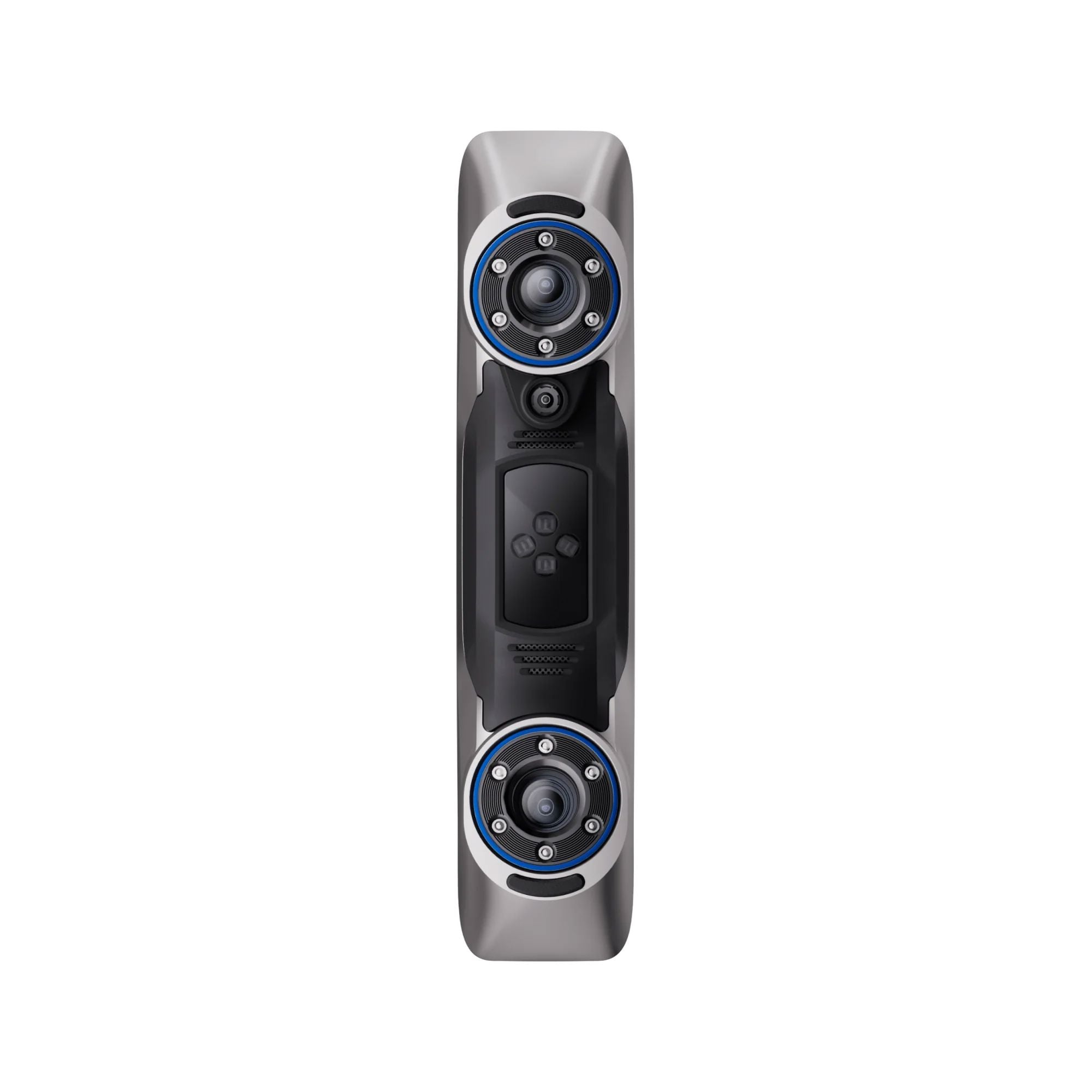

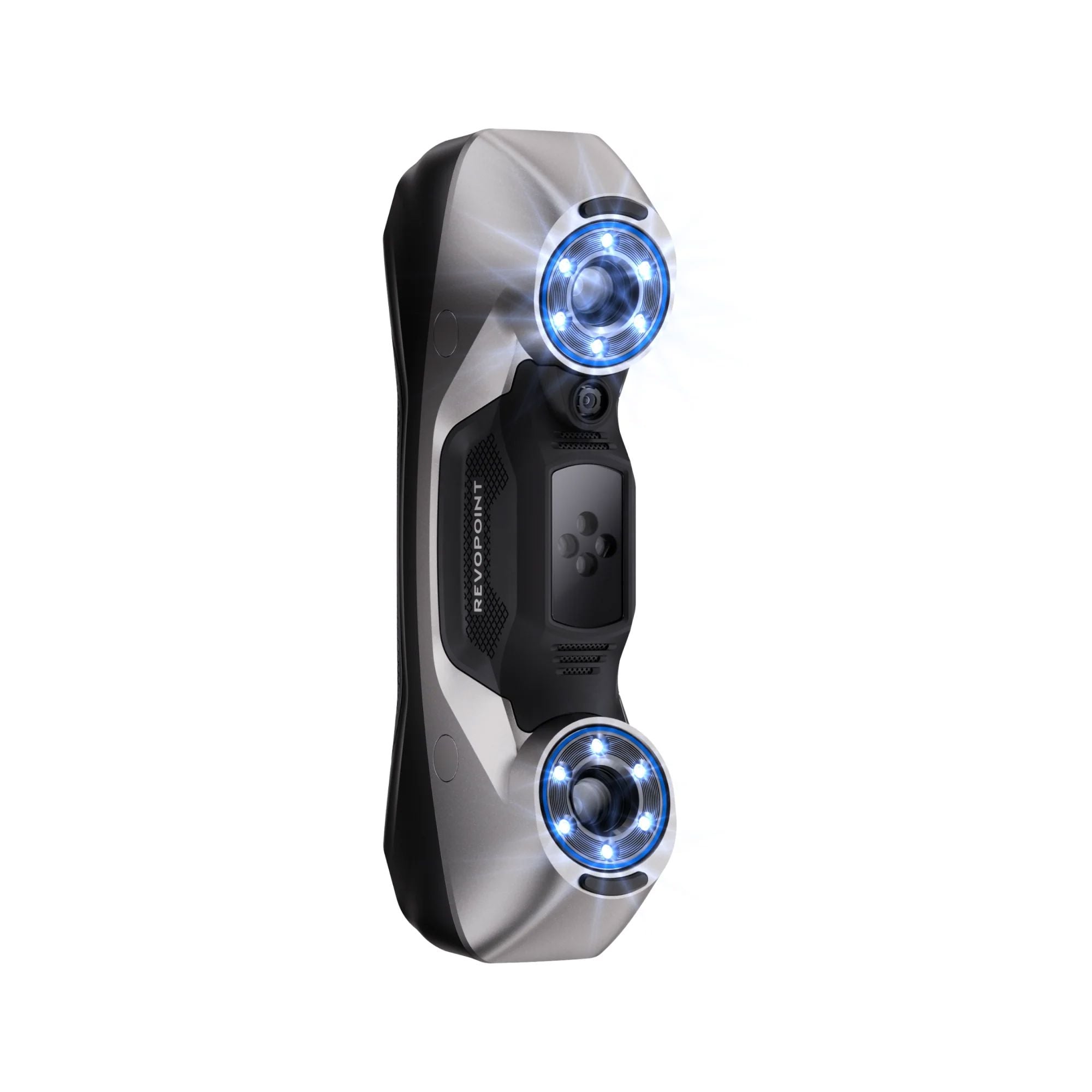

Revopoint MetroY Blue Laser 3D Scanner – High Precision Portable 3D Scanning for Small to Medium Objects

Unlock professional-grade accuracy and unmatched versatility with the Revopoint MetroY Blue Laser 3D Scanner. Designed for engineers, designers, manufacturers, and 3D printing enthusiasts, this compact handheld blue laser 3D scanner delivers metrology-level performance for reverse engineering, quality inspection, industrial design, and precise 3D modeling of small to medium-sized workpieces.

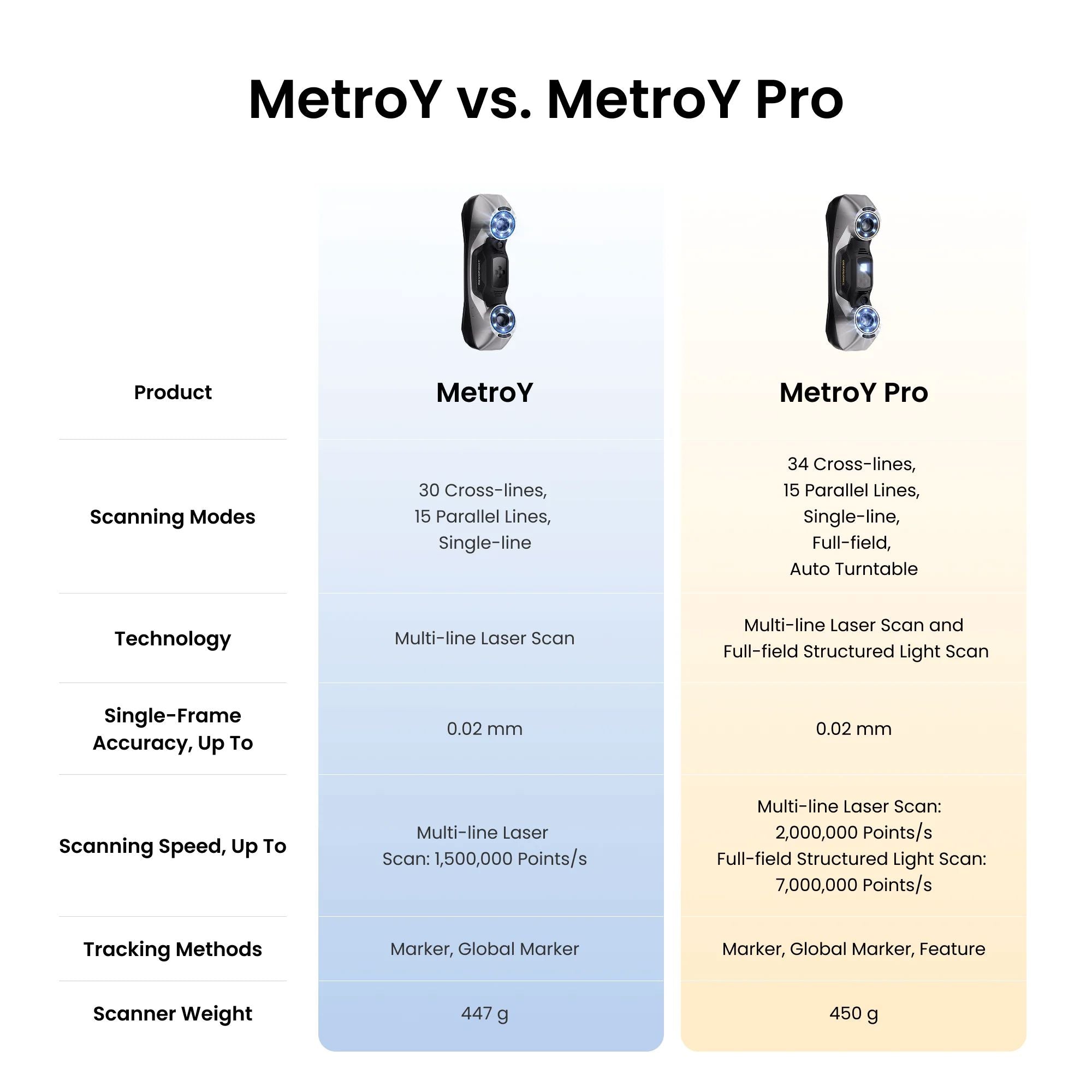

Featuring advanced multi-line blue laser technology, the MetroY captures intricate details on challenging surfaces—including shiny, dark, and black objects—often without the need for scanning spray. Choose from multiple scanning modes powered by up to 30 blue cross laser lines, 15 blue parallel laser lines, and a single blue laser line for optimal results on flat surfaces, complex edges, deep holes, crevices, and fine geometries.

Exceptional Accuracy and Speed

• Single-frame accuracy up to 0.02 mm and precision up to 0.01 mm
• Volumetric accuracy of 0.02 mm + 0.04 mm × L (m)
• Fused point distance as fine as 0.05 mm
• Blazing-fast scanning speed of up to 1,500,000 points per second

With a working distance of 200–400 mm and a single capture area ranging from 123 × 130 mm to 290 × 260 mm, the MetroY excels at scanning objects from as small as 10 × 10 × 10 mm up to 1 × 1 × 1 m. Its stable tracking via markers ensures reliable results even on complex or featureless parts.

Portable, Wireless, and User-Friendly Design

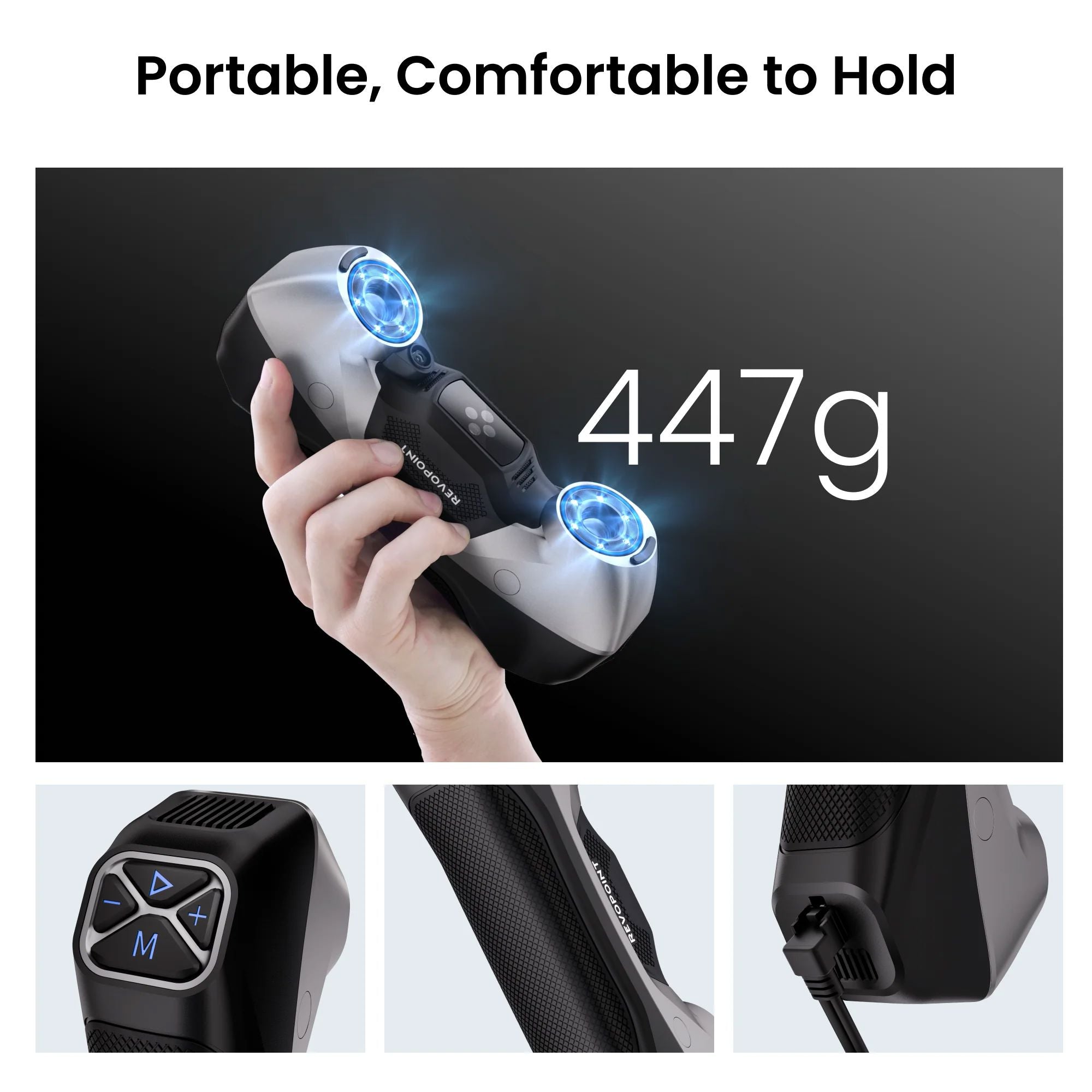

Weighing just 447 g and measuring a compact 211 × 94 × 47 mm, the MetroY is truly portable. Built-in Wi-Fi 6 support allows real-time scan streaming to your mobile device via the Revo Mirror app, giving you wireless freedom during fieldwork or workshop sessions. The scanner connects easily to your PC via USB-C and is compatible with both Windows 10/11 and macOS 11.0+.

Powered by a robust 4-core ARM processor with real-time temperature monitoring and fan cooling, it maintains consistent accuracy during extended scanning sessions. The intuitive Revo Metro software makes it easy to scan, edit, merge point clouds, generate meshes, and export in popular formats including PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX—ready for 3D printing, CAD integration, or further analysis.

Ideal Applications for the MetroY Blue Laser 3D Scanner

• Reverse engineering and scan-to-CAD workflows
• Quality control and dimensional inspection (pair with Revo Measure for GD&T)
• Industrial design, mold scanning, and prototyping
• 3D printing preparation for detailed models
• Vehicle modification, arts & design, and cultural heritage preservation

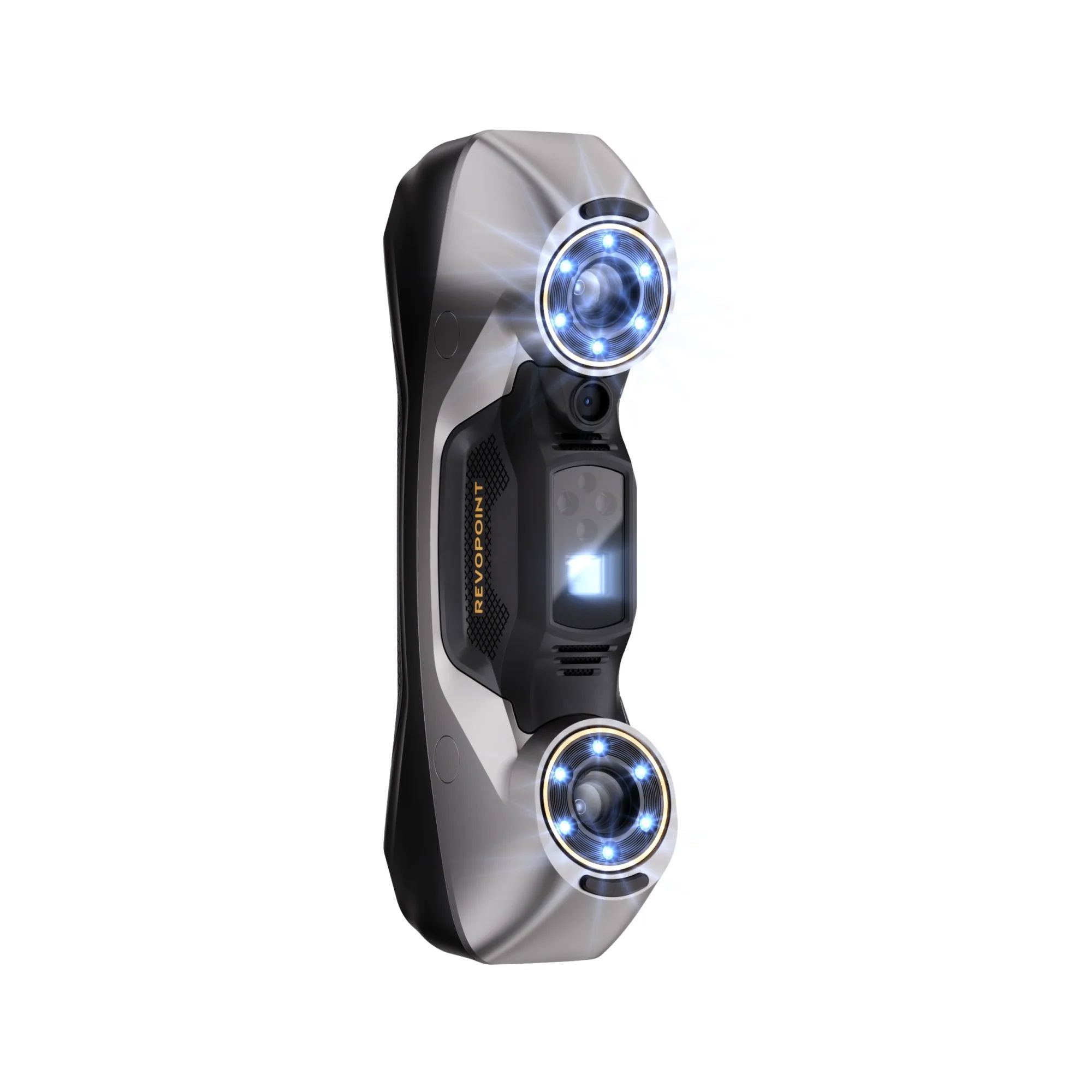

Whether you're capturing a precision mechanical part, a detailed prototype, or a complex assembly, the MetroY handles shiny metals, dark plastics, and intricate surfaces with confidence thanks to its flexible blue laser modes and 12 blue LED fill lights.

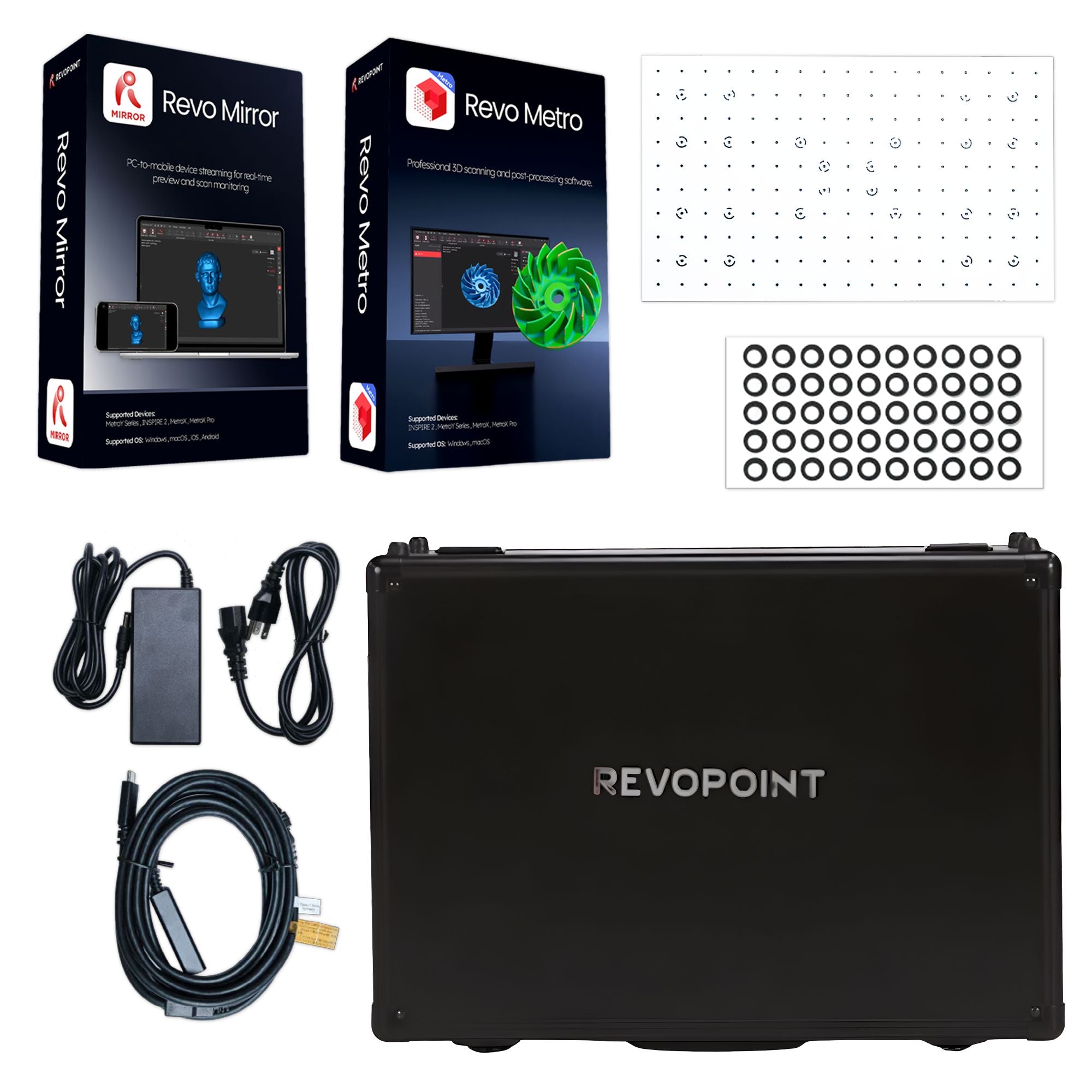

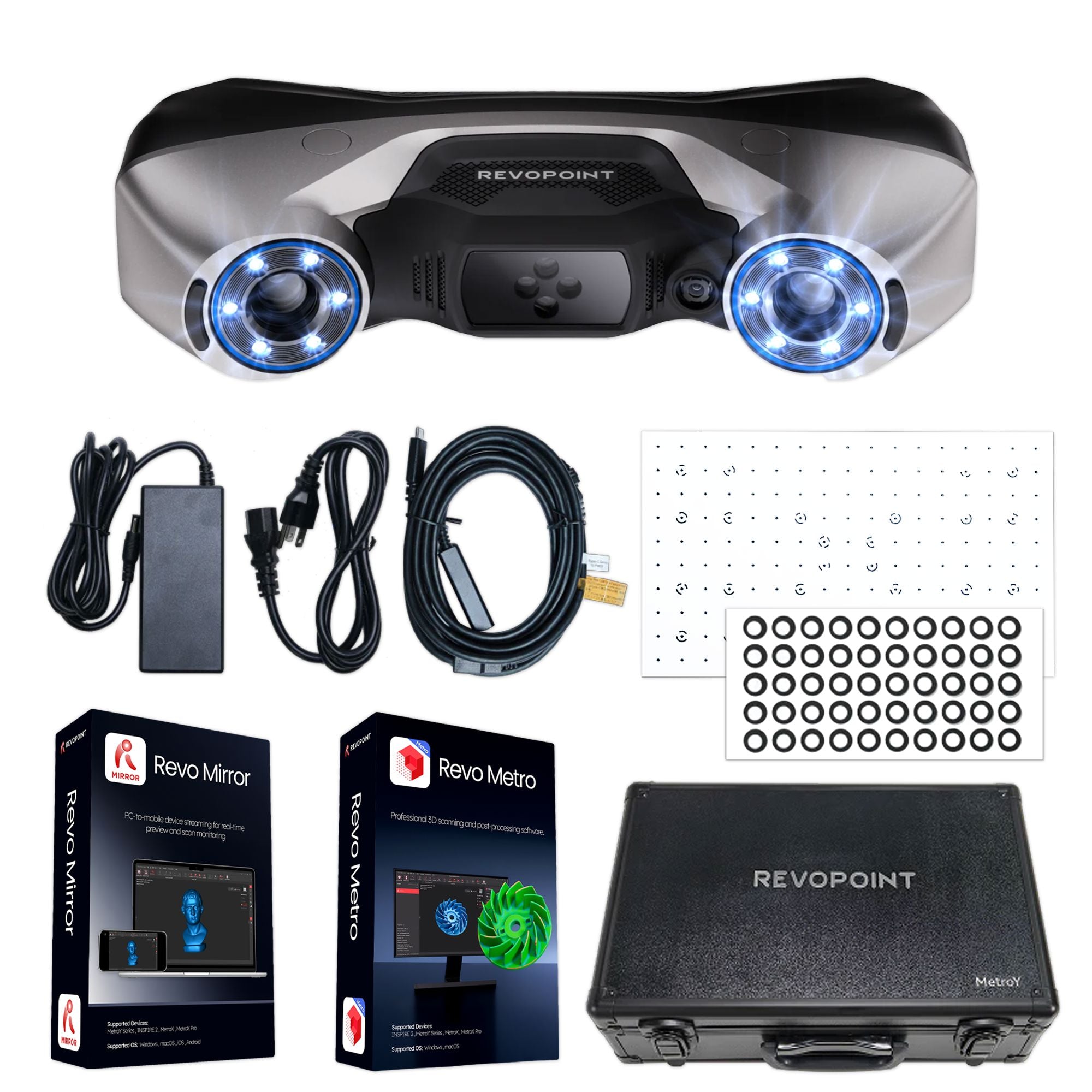

Bundle Includes:

• MetroY Wireless 3D Scanner
• Hard-shell Carrying Case

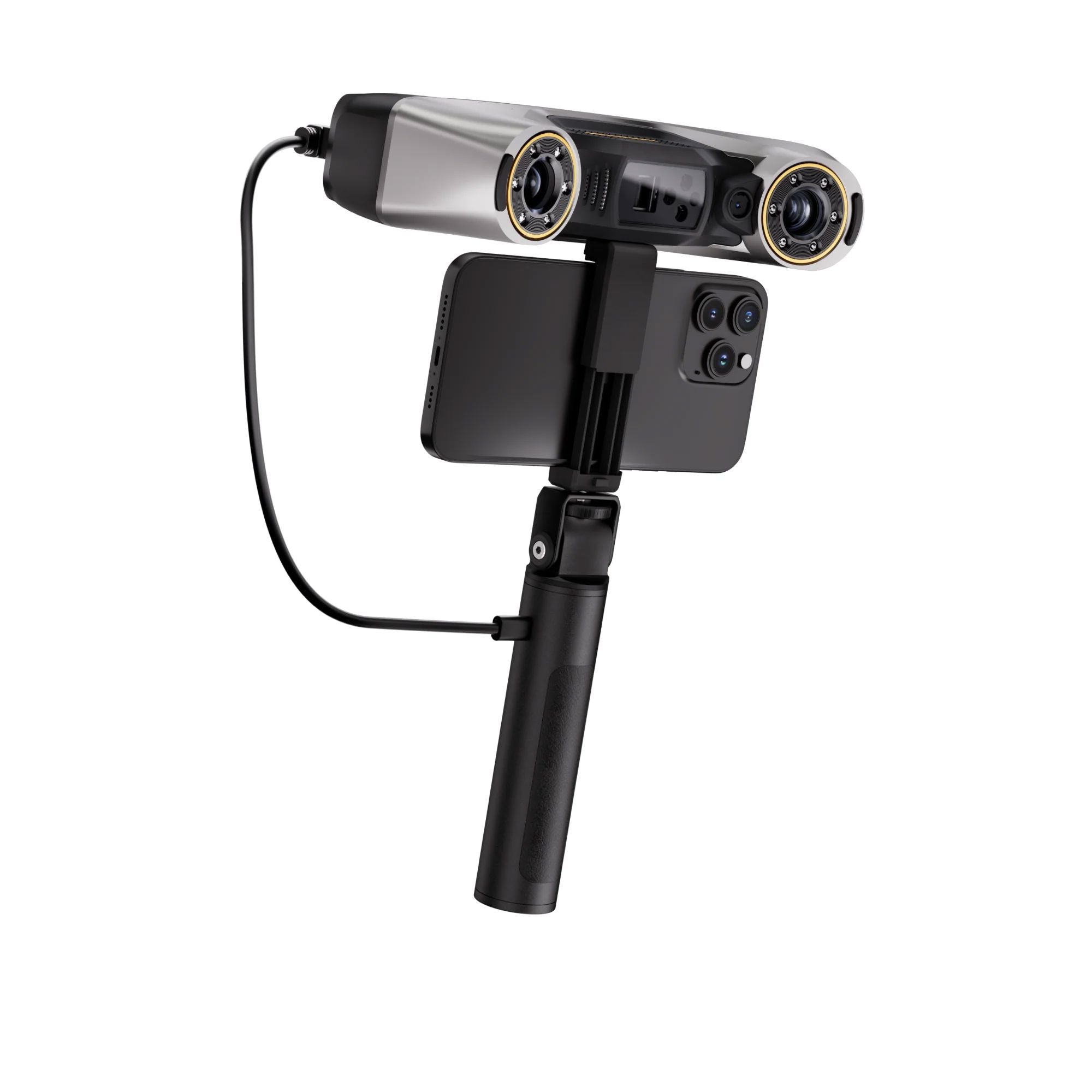

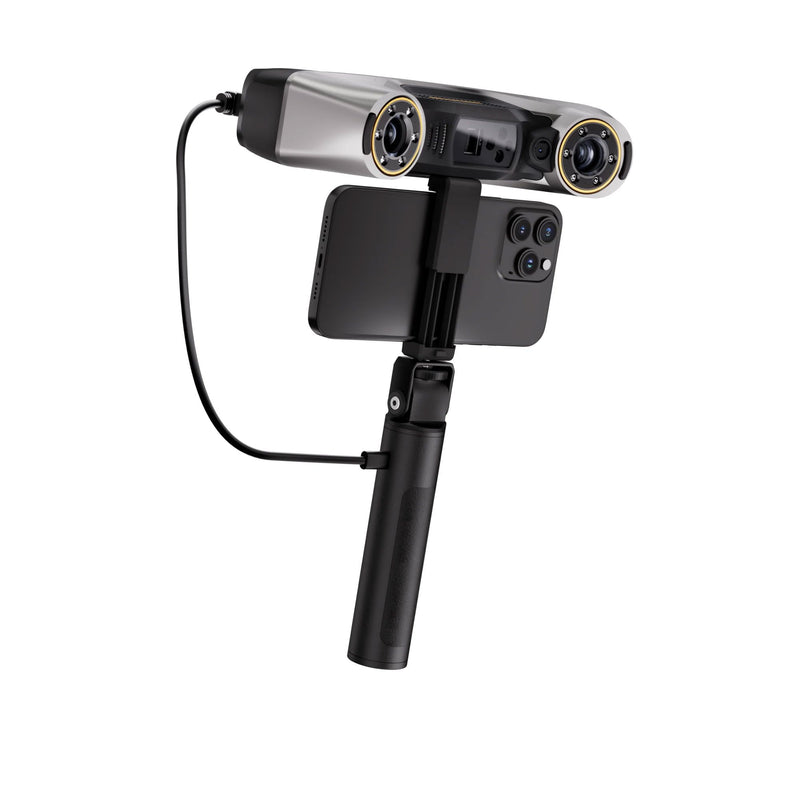

• Mobile Kit
• Tripod
• Calibration Board
• 3D Scan Markers x200
• USB Type-C to Type-C Cable
• Power Adapter
• Revo Metro 3D Scanning Software Mac & PC
• Revo Mirror Screen Mirroring Assistant Mac & PC
• Quick Start Guide
• 2 Year Scanner Warranty / 1 Year Accessory Warranty

Elevate your 3D workflow with the Revopoint MetroY—the affordable, high-precision blue laser 3D scanner that brings professional metrology performance to your desktop or on-site projects. Perfect for users seeking a reliable, portable solution for accurate 3D scanning without compromise.
