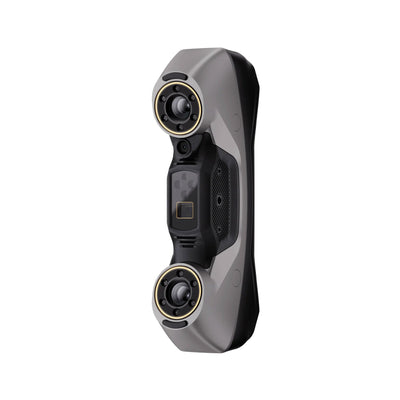

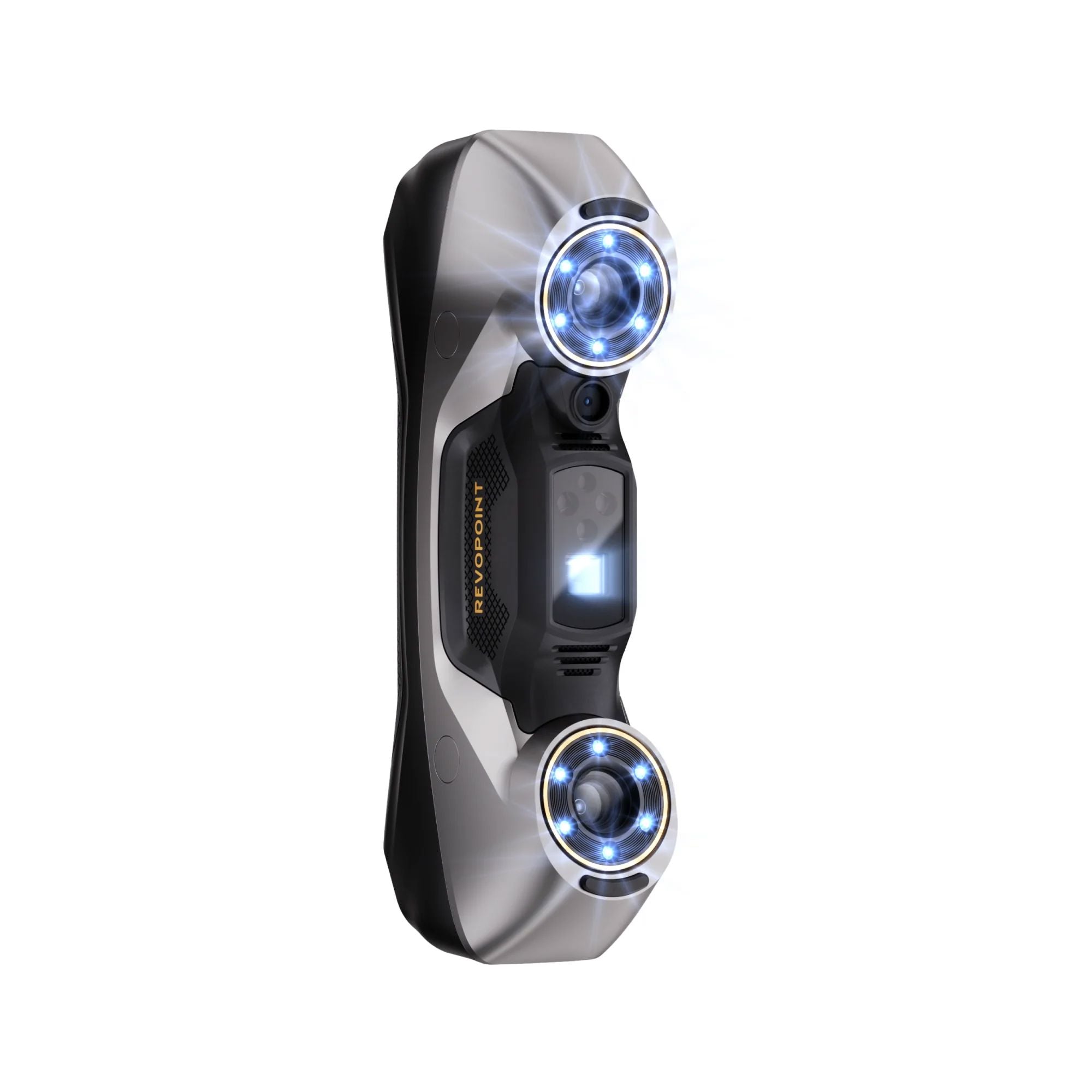

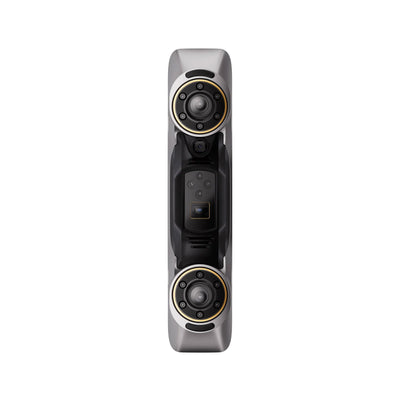

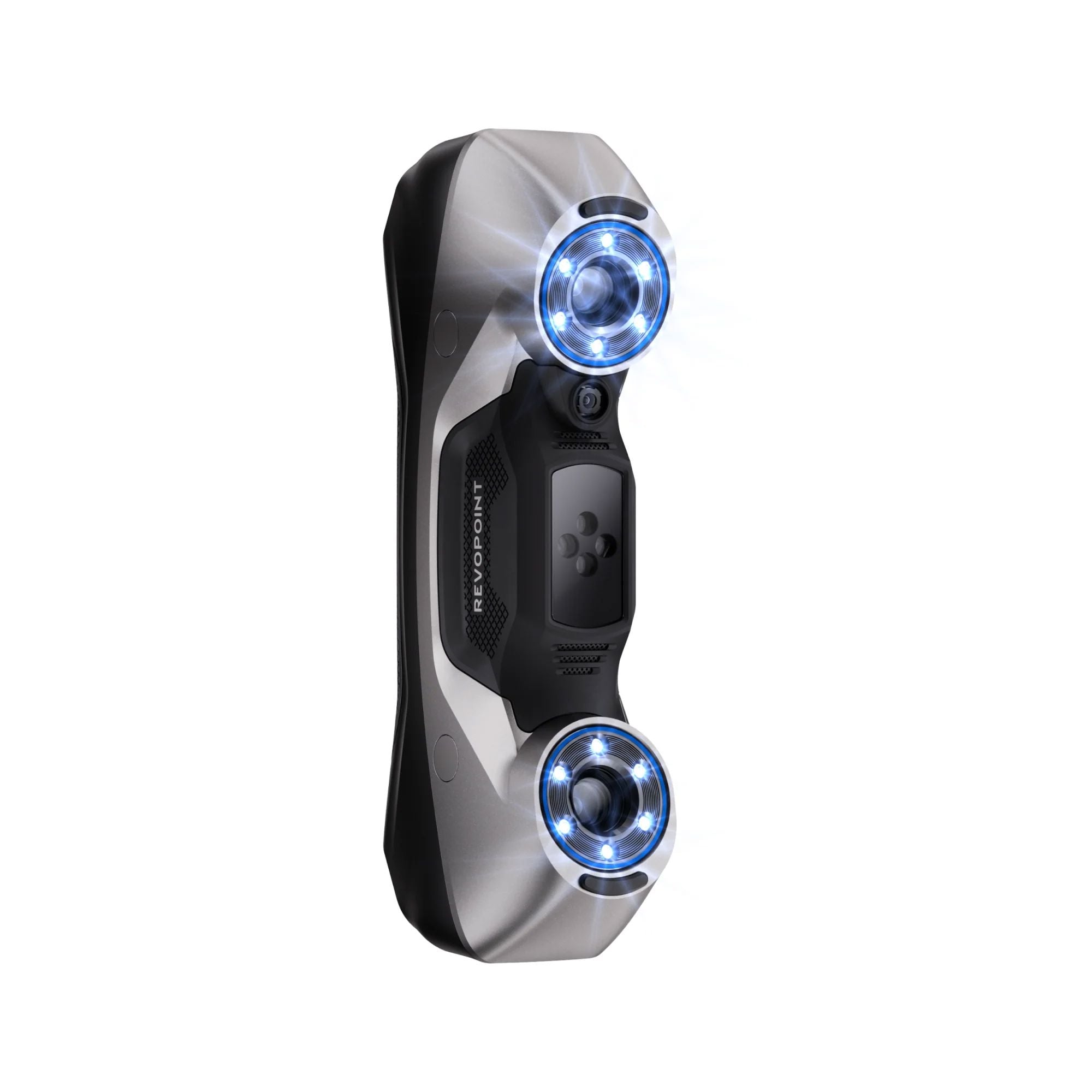

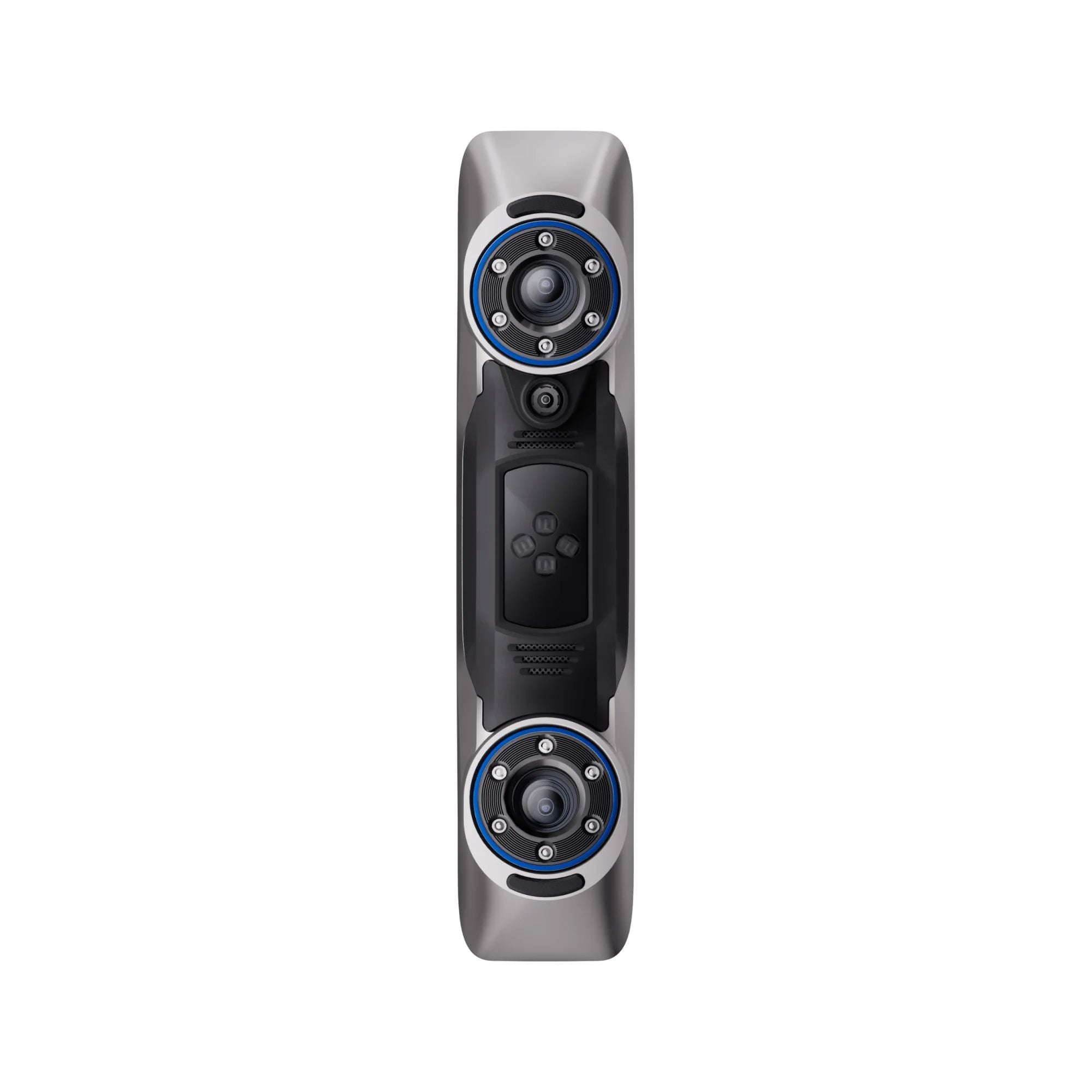

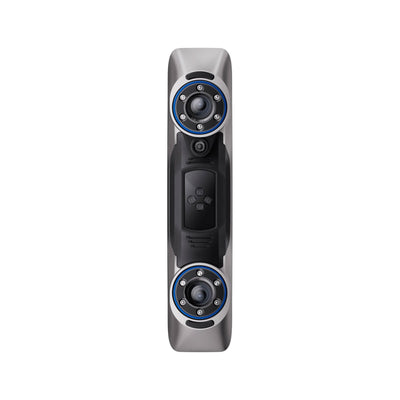

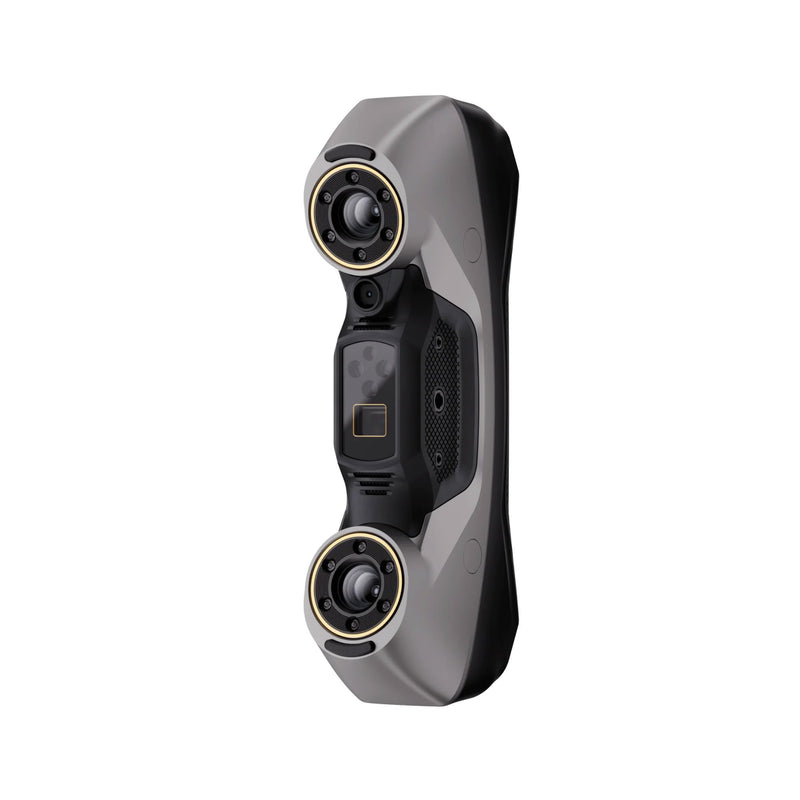

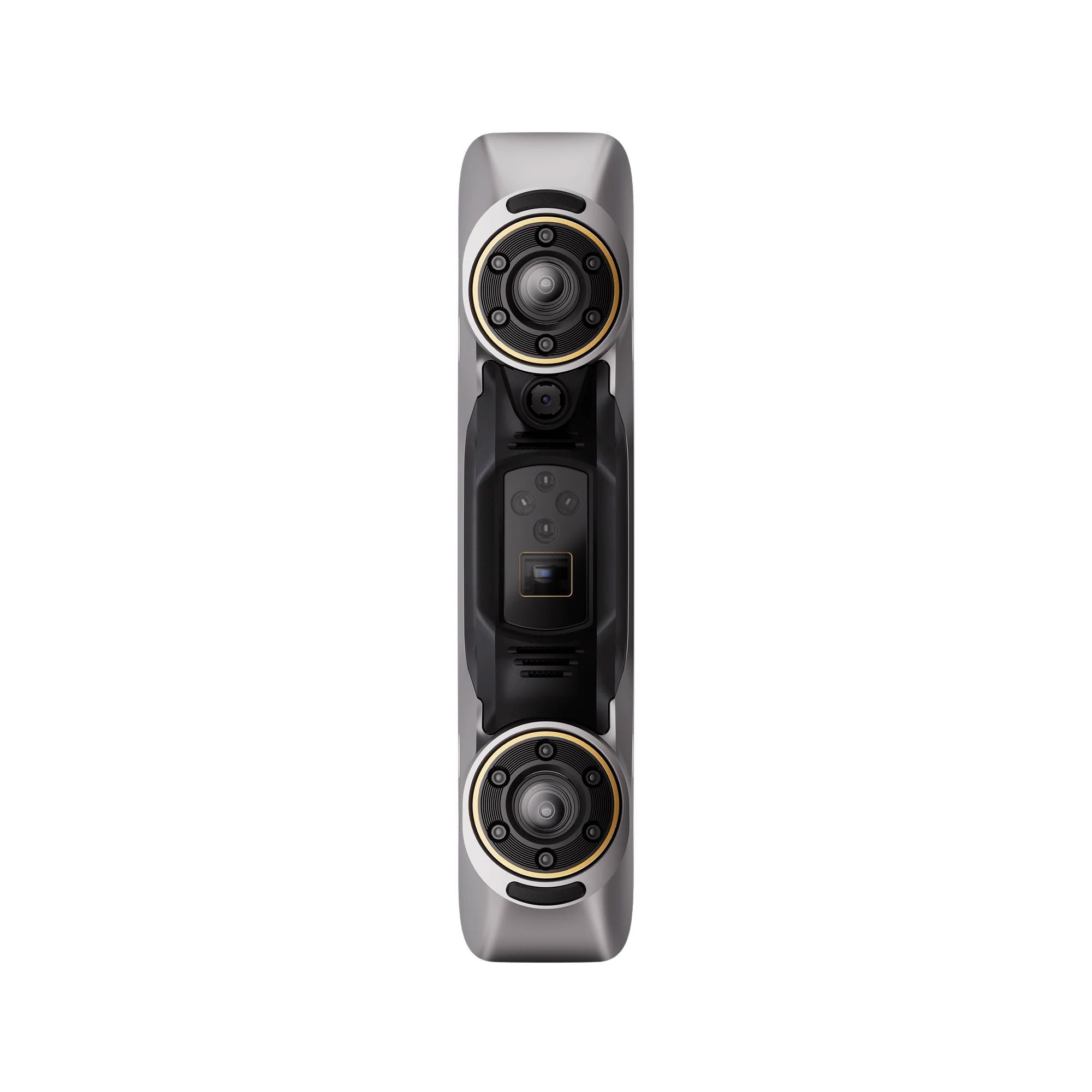

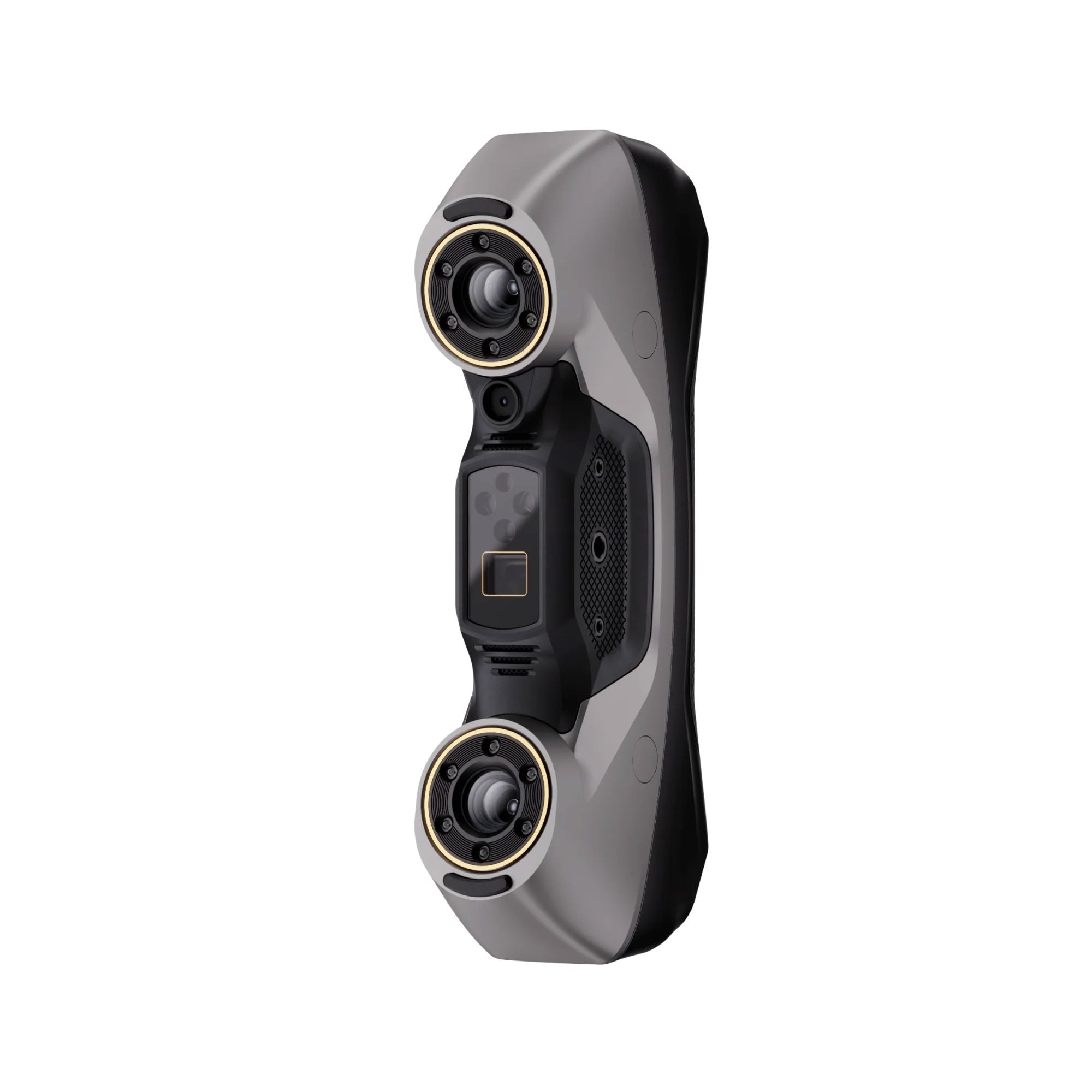

Revopoint MetroY PRO Blue Laser 3D Scanner – High Precision Handheld & Desktop Metrology Scanner

Experience ultimate versatility and professional-grade performance with the Revopoint MetroY PRO Blue Laser 3D Scanner. This advanced handheld and desktop 3D scanner combines powerful multi-line blue laser technology with ultra-fast full-field structured light scanning, delivering exceptional accuracy for small to medium-sized objects in reverse engineering, quality control, industrial design, and 3D printing workflows.

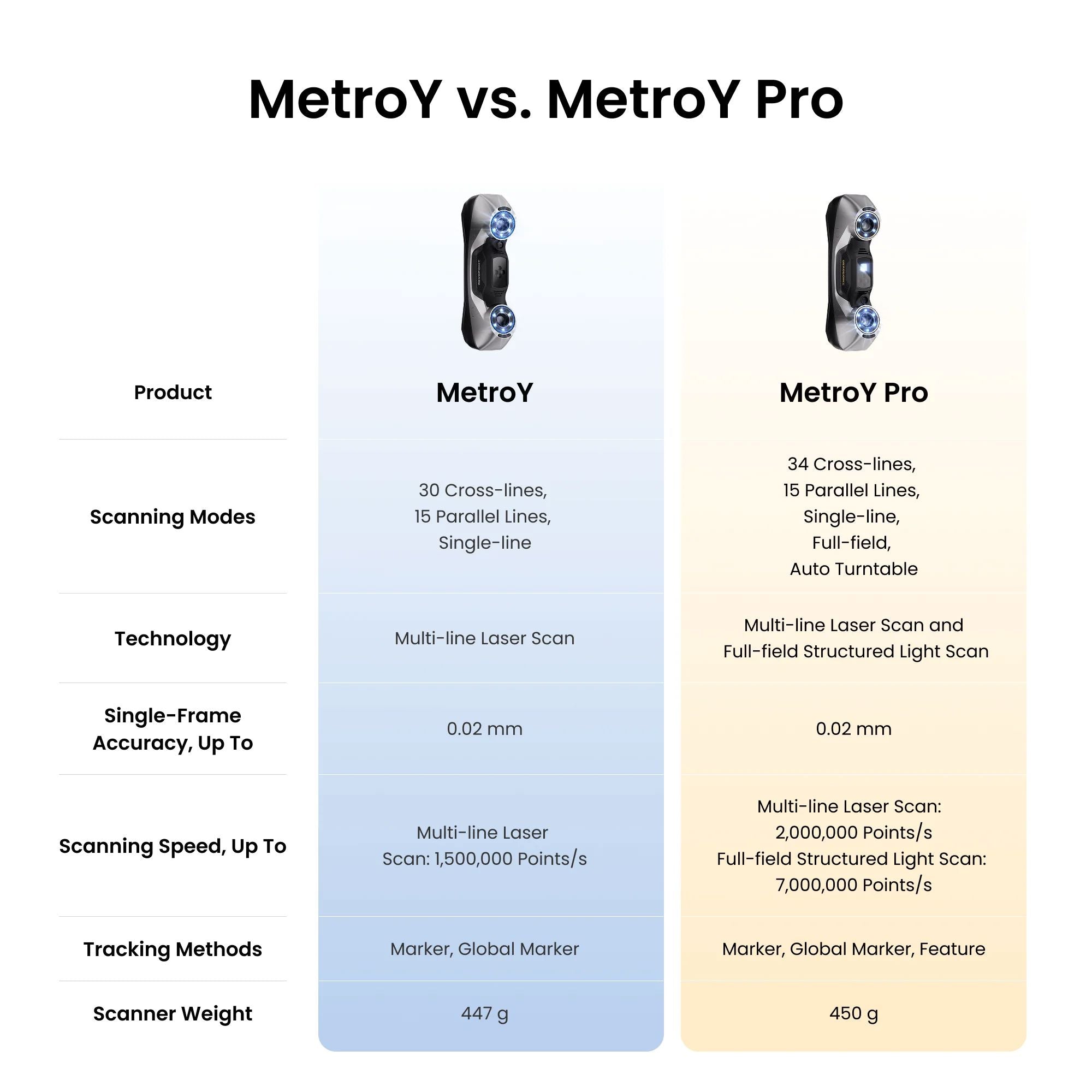

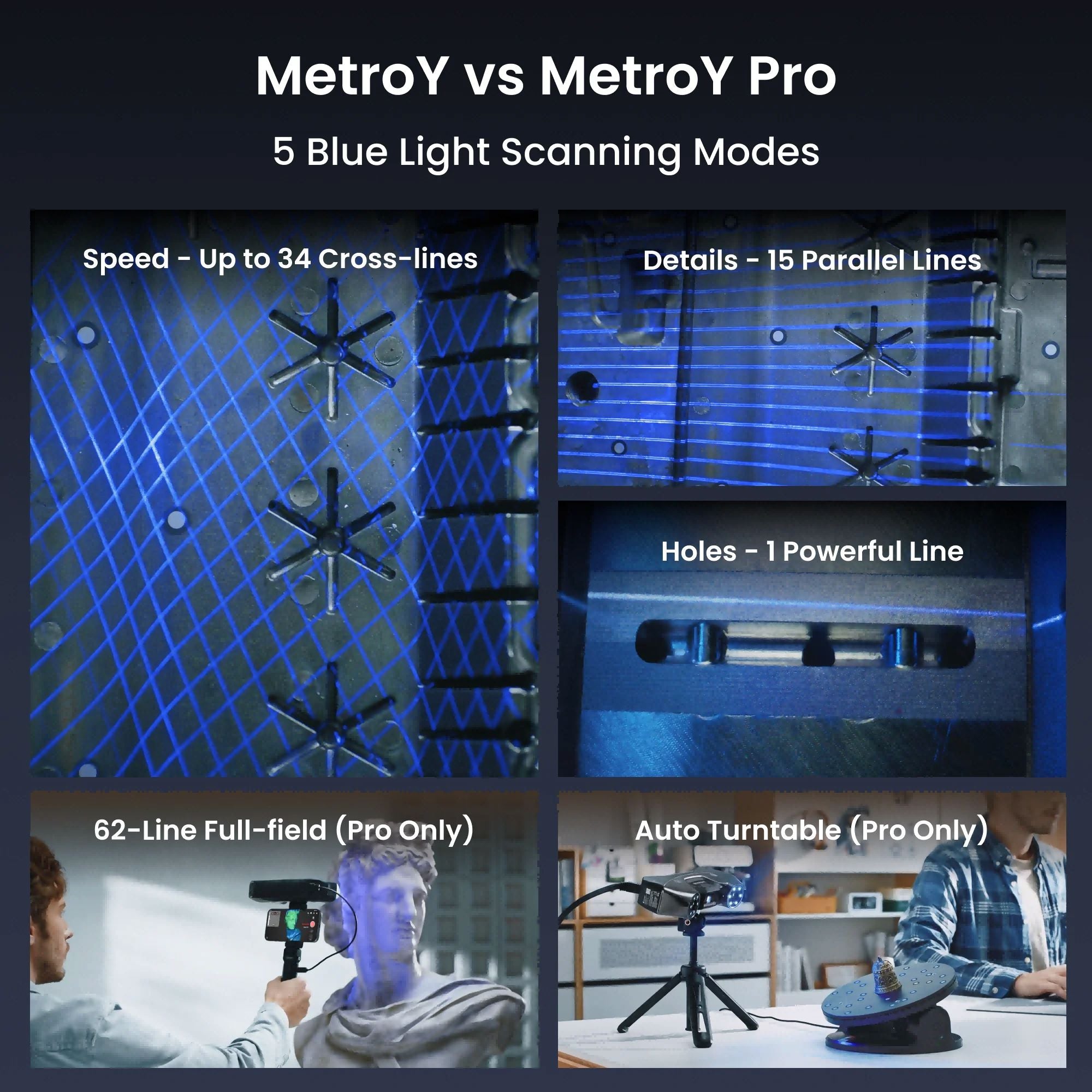

With five powerful scanning modes, the MetroY PRO gives you unmatched flexibility:

• 34 blue cross laser lines for fast surface coverage
• 15 blue parallel laser lines for detailed features
• Single blue laser line for deep holes and tight crevices
• 62-line blue full-field structured light for marker-free, ultra-high-density scans on feature-rich objects
• Auto turntable mode with the included dual-axis turntable for one-click, fully automated, high-accuracy 3D models (with color texture support)

Superior Accuracy and Blazing-Fast Speed

• Single-frame accuracy up to 0.02 mm and precision up to 0.01 mm
• Volumetric accuracy of 0.02 mm + 0.04 mm × L (m)
• Fused point distance as fine as 0.05 mm
• Scanning speeds up to 2,000,000 points per second in multi-line laser modes and an incredible 7,000,000 points per second in full-field structured light mode

The MetroY PRO excels at capturing intricate details on challenging surfaces—including shiny metals and dark plastics—often without scanning spray. Its wider field of view and larger single capture area (up to 332 × 276 mm) make it more efficient than standard models, while marker tracking, global markers, and feature tracking ensure stable, reliable results every time.

Portable, Wireless & Desktop-Ready Design

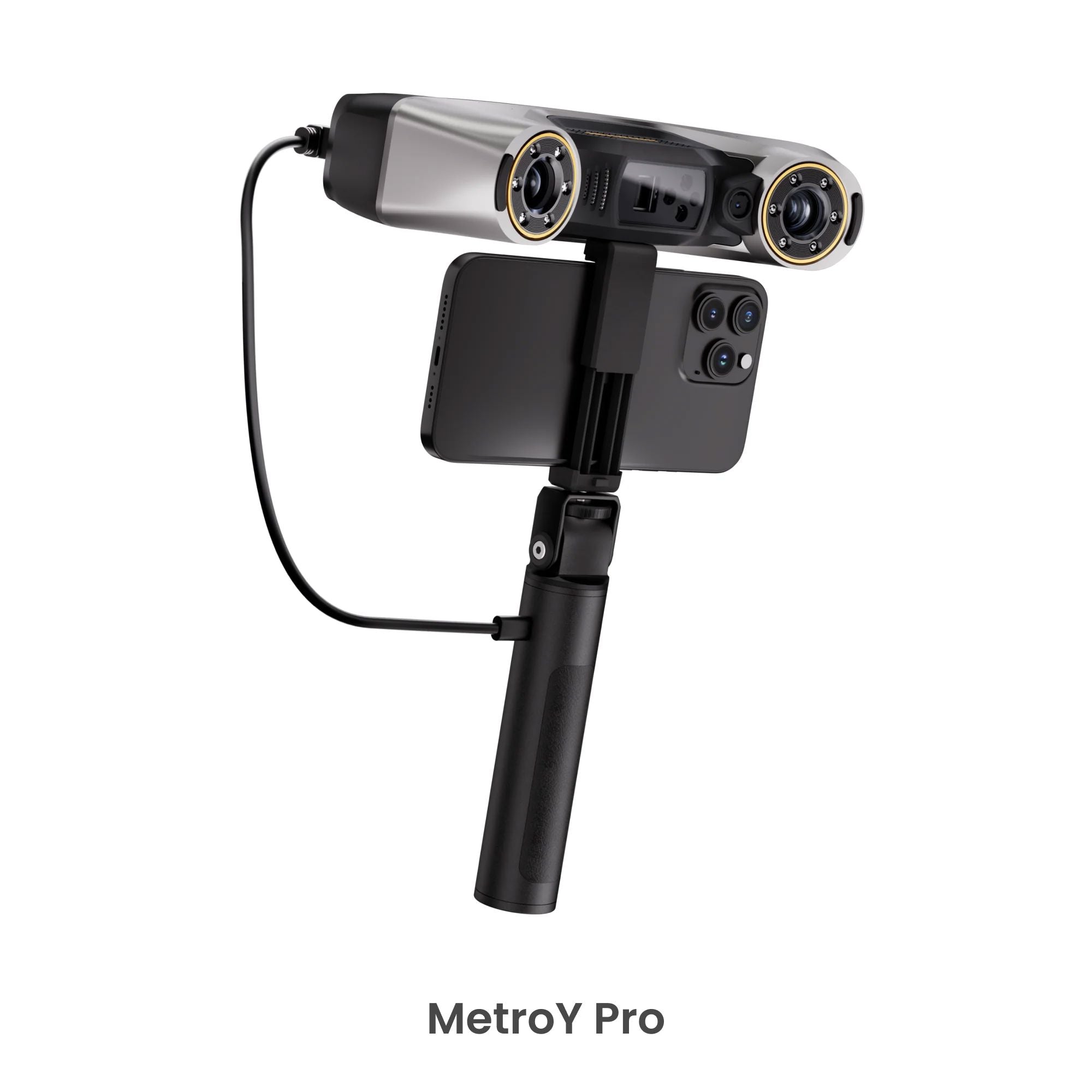

Weighing only 450 g with compact dimensions of 211 × 94 × 47 mm, the MetroY PRO is highly portable yet powerful enough for desktop use. Built-in Wi-Fi 6 enables real-time wireless scanning and streaming to your mobile device via the Revo Mirror app. Connect via USB-C to Windows 10/11 or macOS systems and enjoy consistent performance thanks to the 4-core ARM processor, real-time temperature monitoring, and active fan cooling.

The intuitive Revo Metro software simplifies the entire workflow—from scanning and point cloud editing to mesh generation and export in formats like PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX. Pair it with Revo Measure for precise GD&T inspection or Revo Design for advanced scan-to-CAD workflows.

Perfect For Professional Applications

• Reverse engineering and scan-to-CAD projects
• Dimensional inspection and quality control
• Industrial design, prototyping, and mold scanning
• High-detail 3D printing preparation
• Automotive parts, cultural heritage, and complex assemblies

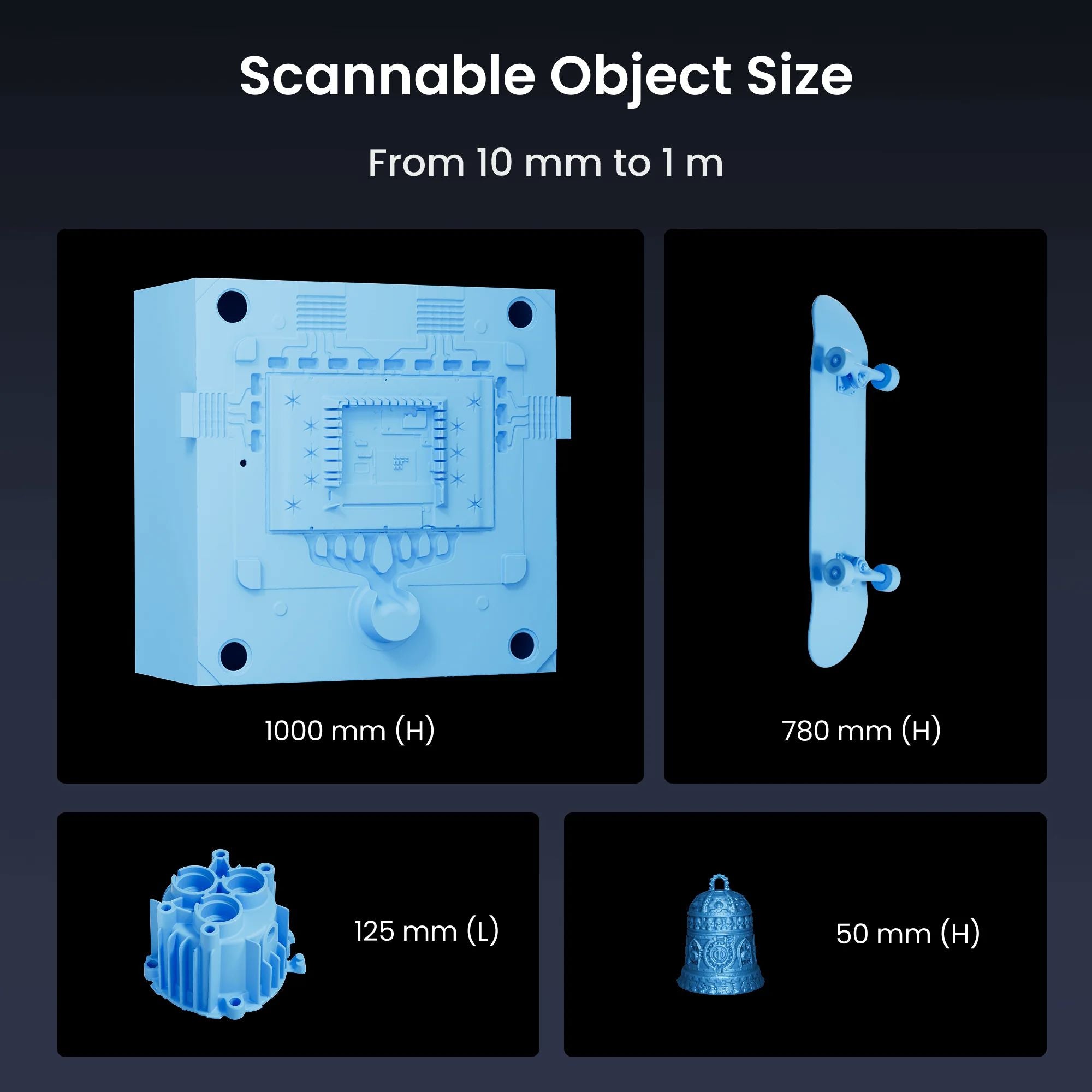

The MetroY PRO handles everything from tiny 10 × 10 × 10 mm parts to 1 × 1 × 1 m objects with ease, making it the ideal all-in-one solution for engineers, manufacturers, and designers who demand both handheld freedom and automated desktop precision.

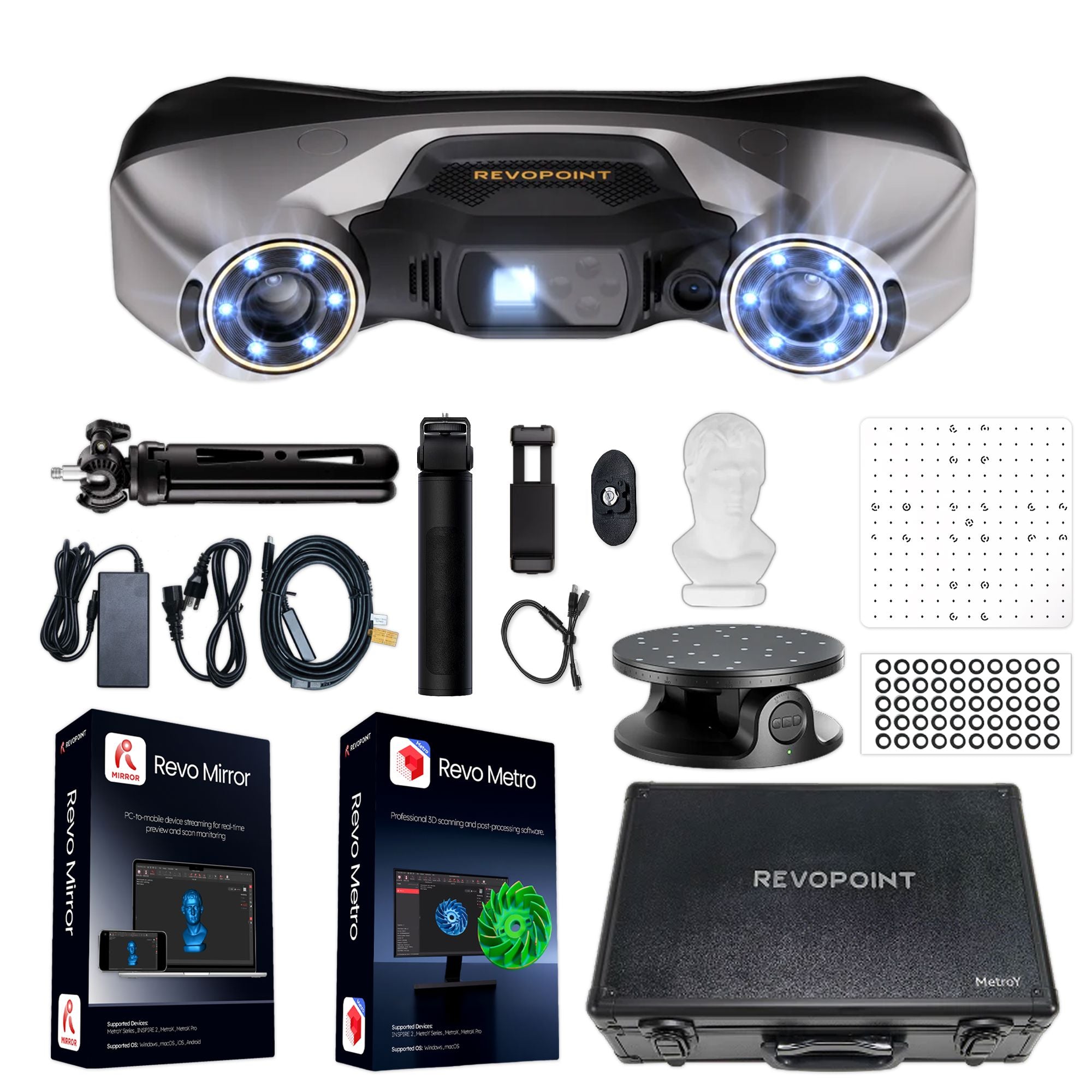

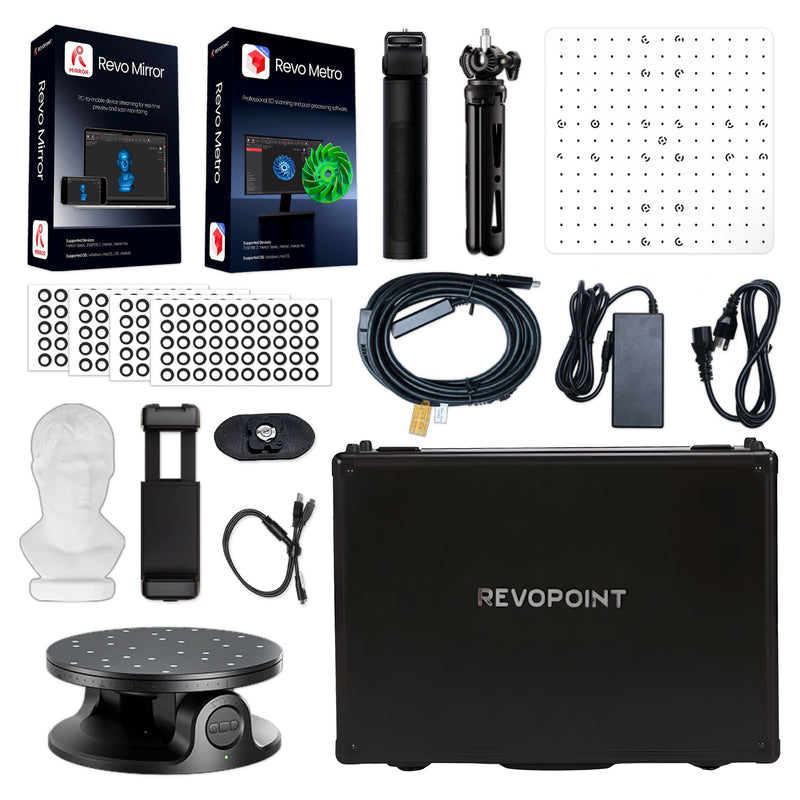

Bundle Includes:

• MetroY Wireless 3D Scanner
• Hard-shell Carrying Case

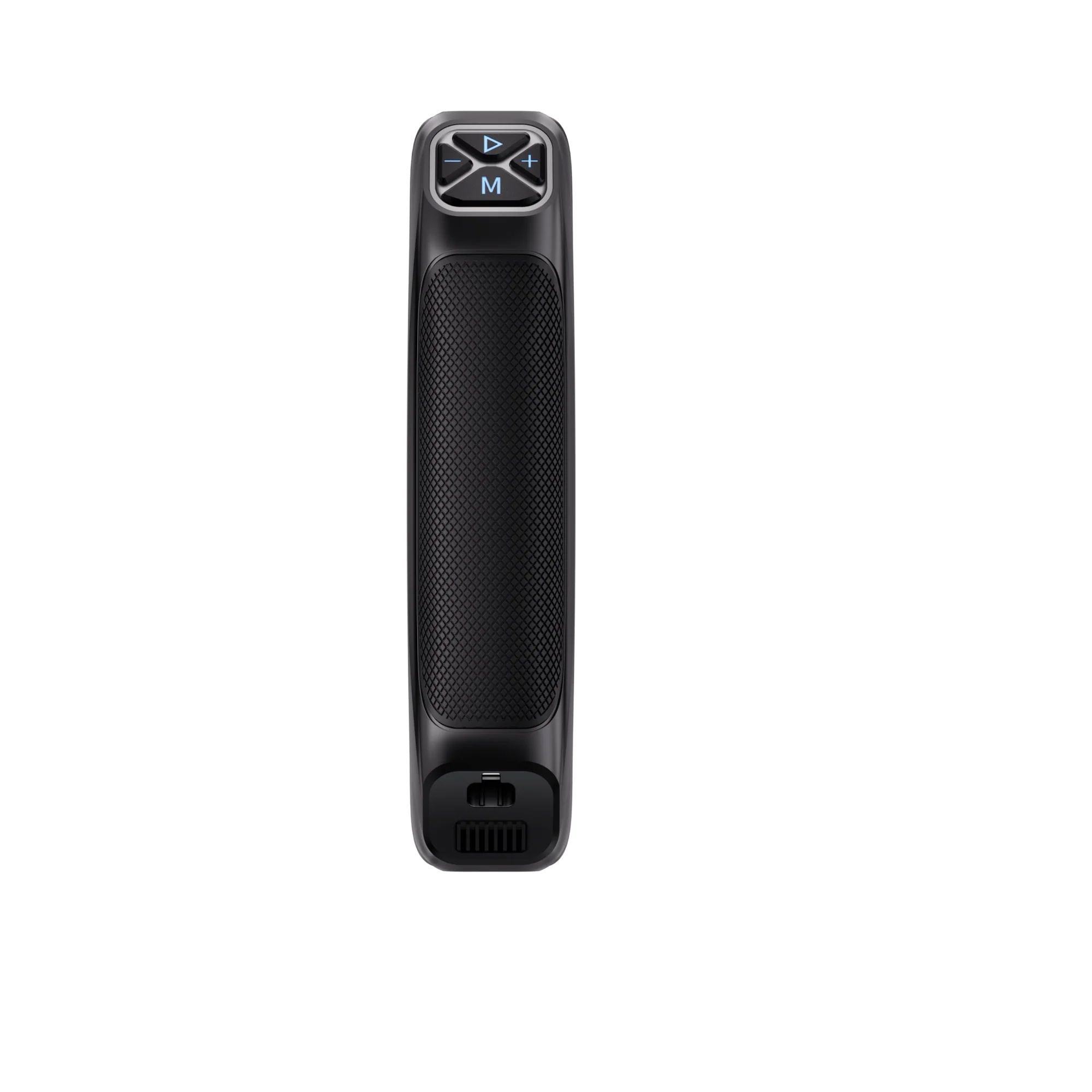

• Mobile Kit
• Tripod
• Calibration Board
• 3D Scan Markers x200
• Dual Axis Turntable
• 3D Scanning Sample
• USB Type-C to Type-C Cable
• Power Adapter
• Revo Metro 3D Scanning Software Mac & PC
• Revo Mirror Screen Mirroring Assistant Mac & PC
• Quick Start Guide
• 2 Year Scanner Warranty / 1 Year Accessory Warranty

Take your 3D scanning to the next level with the Revopoint MetroY PRO—the versatile blue laser + full-field structured light 3D scanner that delivers faster scans, more modes, and true metrology performance in both handheld and automated setups.
