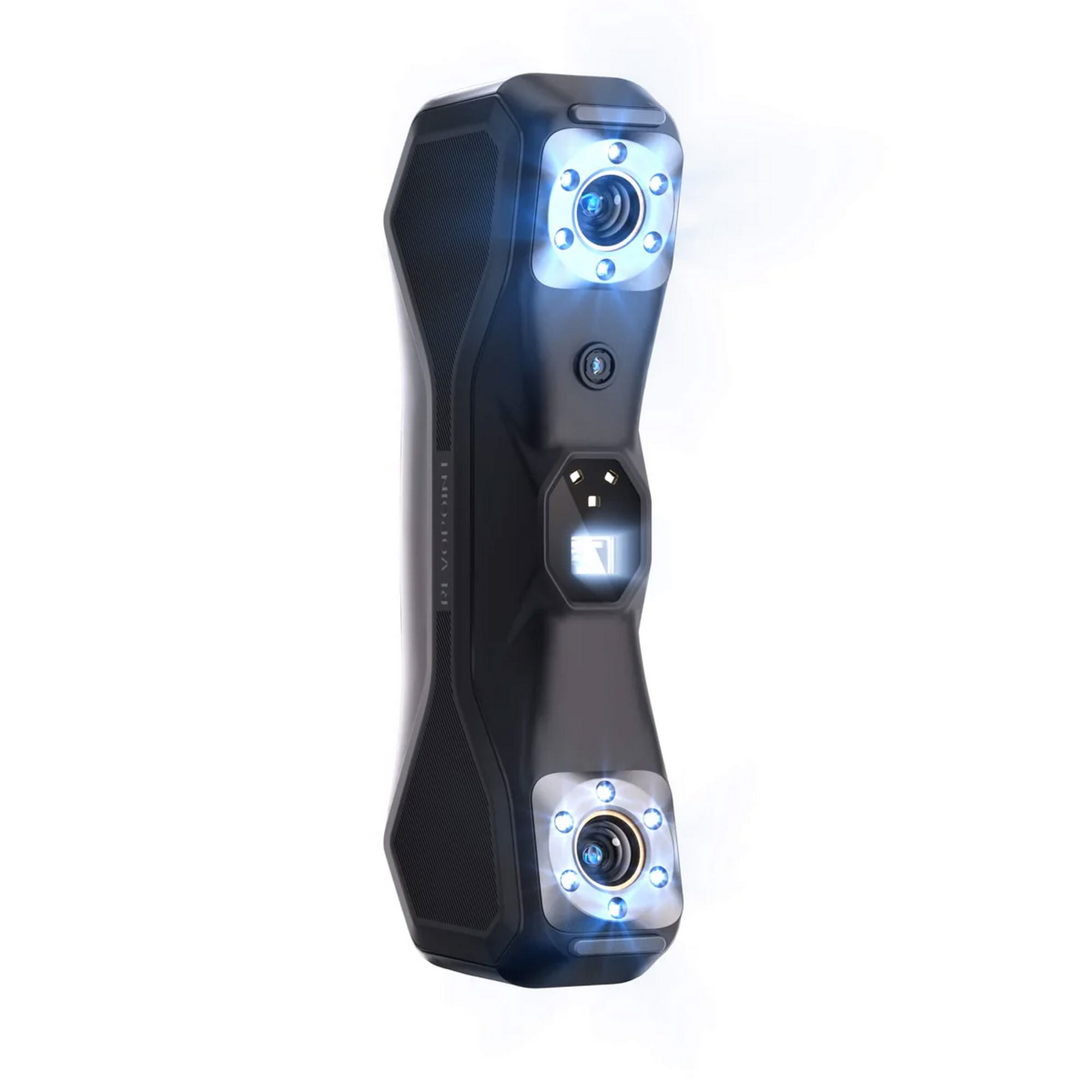

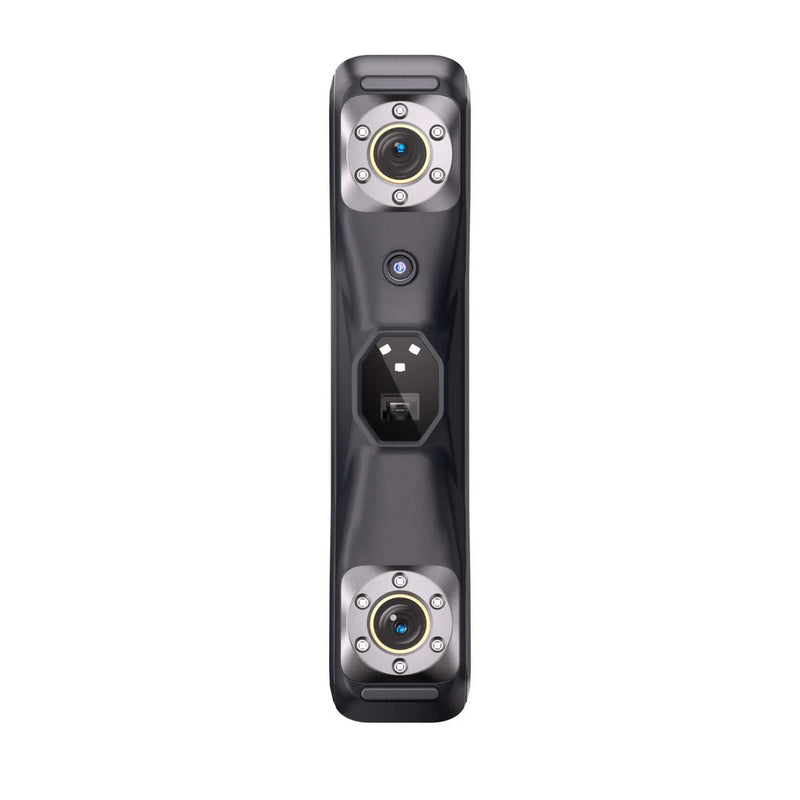

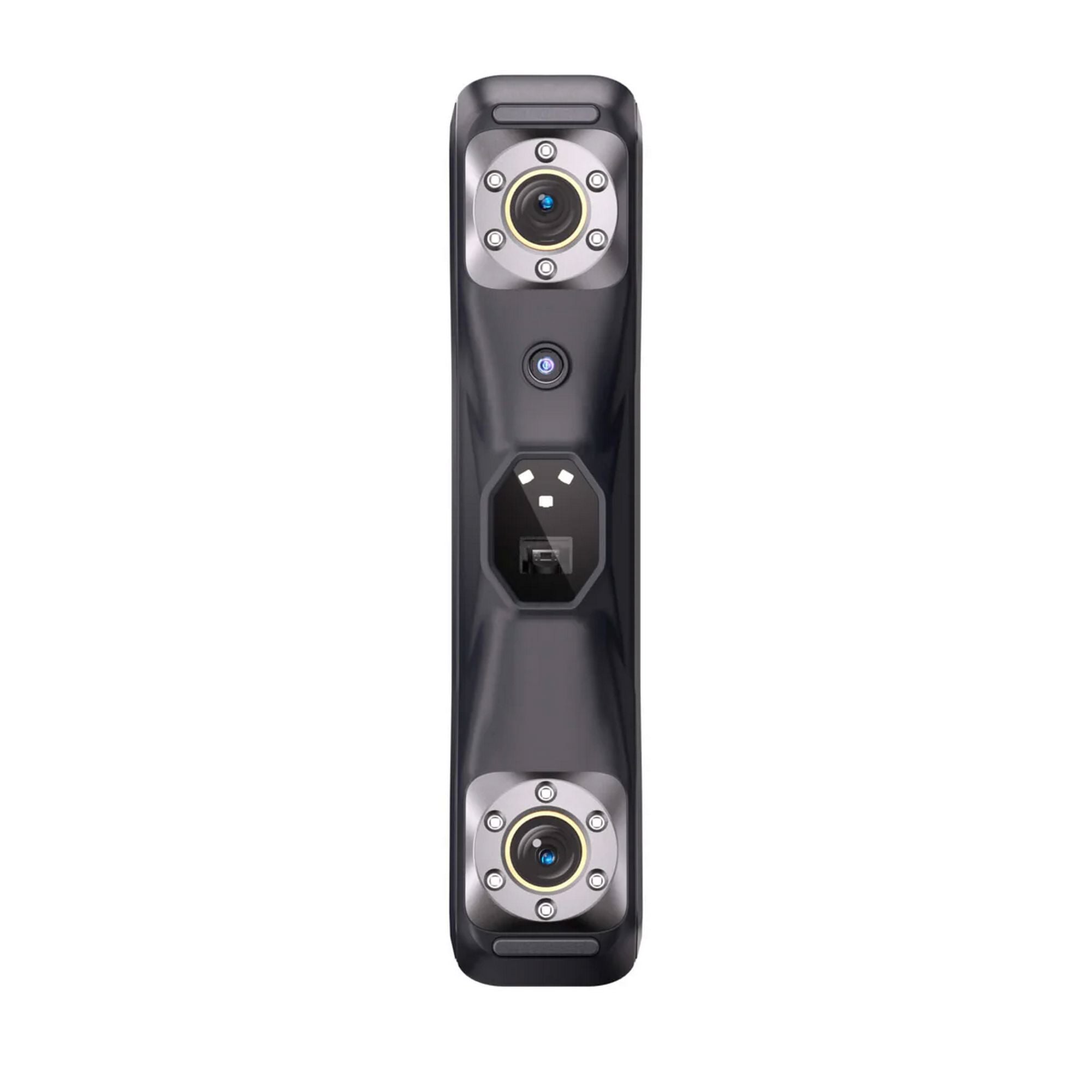

Revopoint MetroX PRO 3D Scanner – Professional Blue Laser Line & Full-Field Structured Light Handheld Scanner | Industrial-Grade Accuracy up to 0.02mm for Reverse Engineering, Quality Inspection, 3D Printing & Metrology

Experience metrology-grade precision with the Revopoint MetroX PRO 3D Scanner — the ultimate hybrid blue laser and full-field structured light professional scanner engineered for demanding applications. Featuring 30 blue cross laser lines + 15 parallel lines and 62-line blue full-field structured light, this upgraded PRO model delivers 20% better volumetric accuracy and 150% faster multi-line laser scanning compared to the standard MetroX, making it the top choice for engineers, manufacturers, designers, and precision-focused makers.

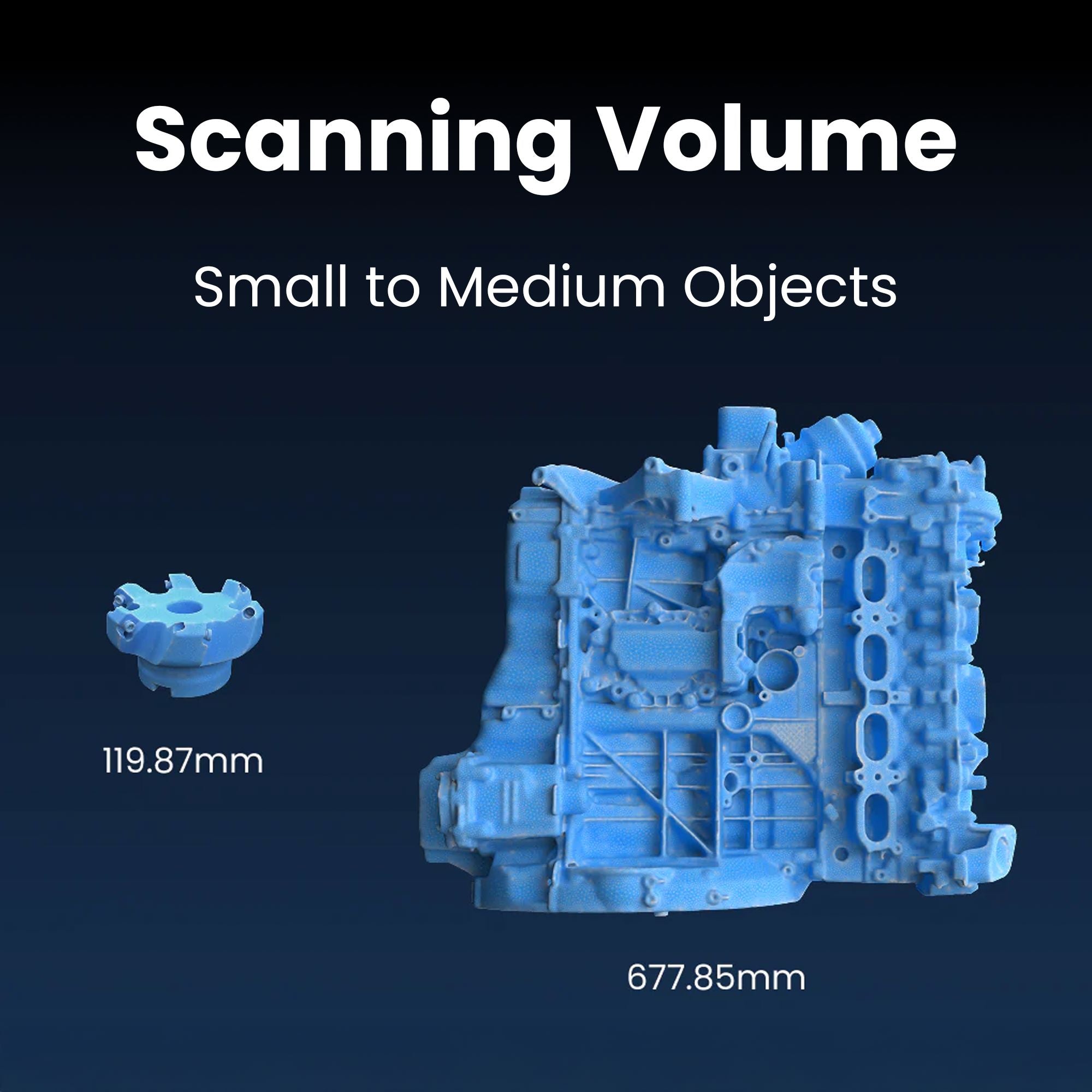

Ideal for scanning small to medium-sized objects with complex geometries, sharp edges, dark, or reflective surfaces — without the need for scanning spray in laser modes. Perfect for reverse engineering, quality control, 3D printing preparation, automotive parts, jewelry, prototypes, cultural heritage preservation, and industrial inspection.

Key Features & Specifications of the Revopoint MetroX PRO:

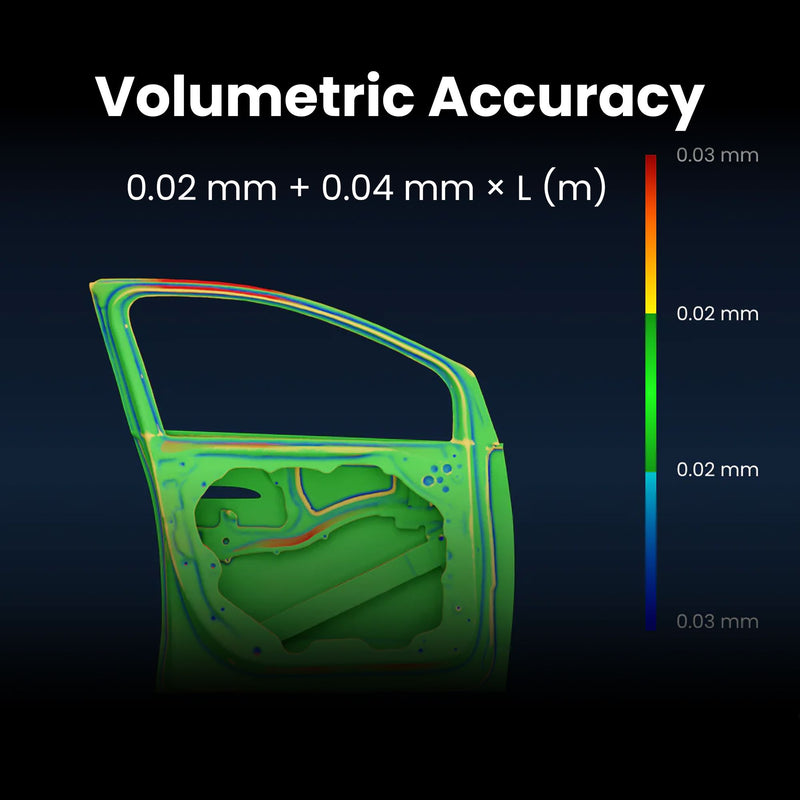

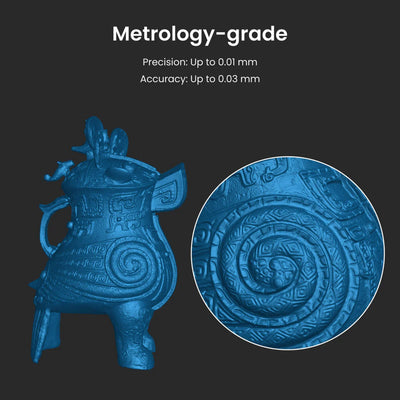

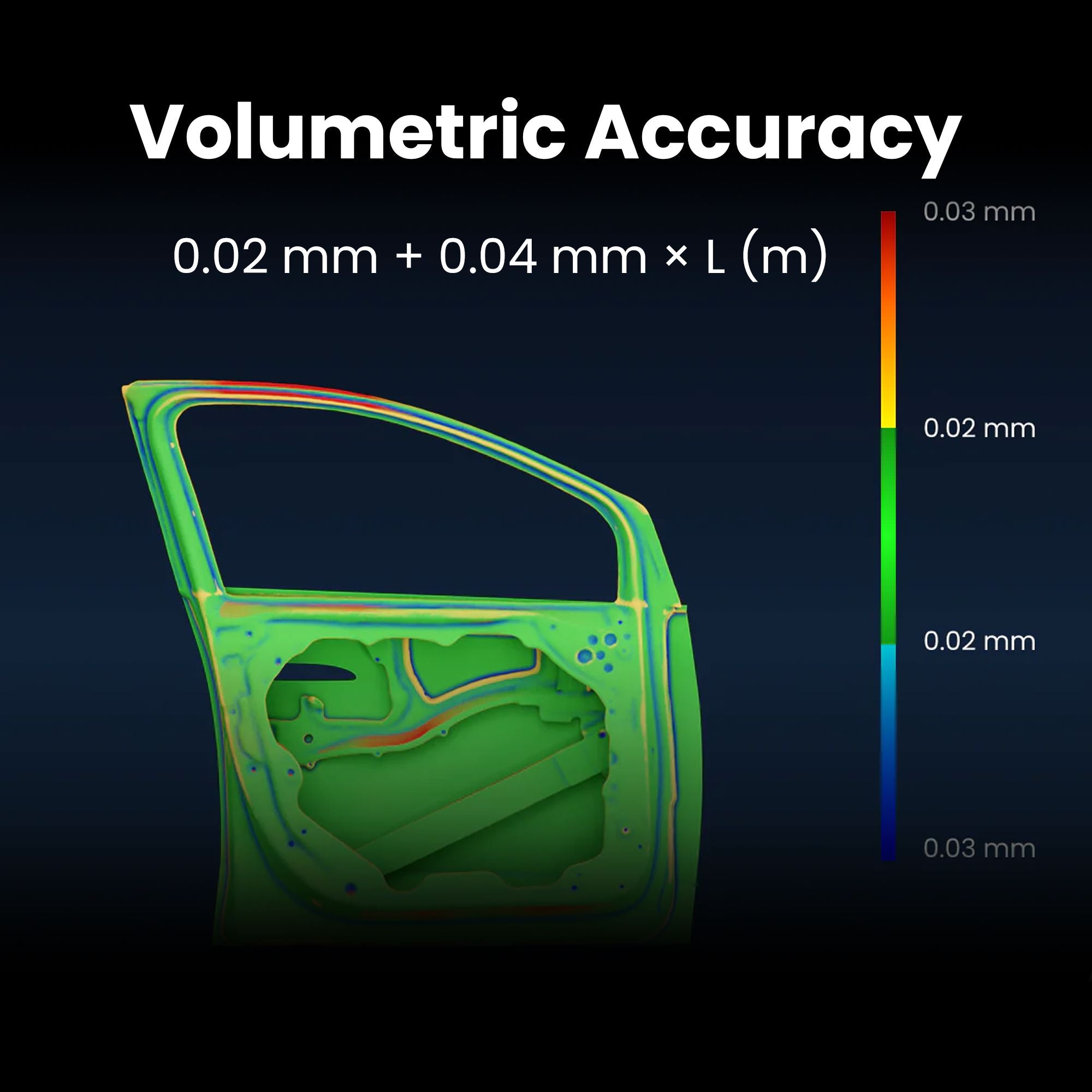

• Industrial-Grade Accuracy: Single-frame accuracy up to 0.02 mm, single-frame precision up to 0.01 mm, and volumetric accuracy up to 0.02 mm + 0.04 mm × L (m) — 20% better than the standard model
• Ultra-High Resolution: Fused point distance up to 0.05 mm for capturing fine surface details

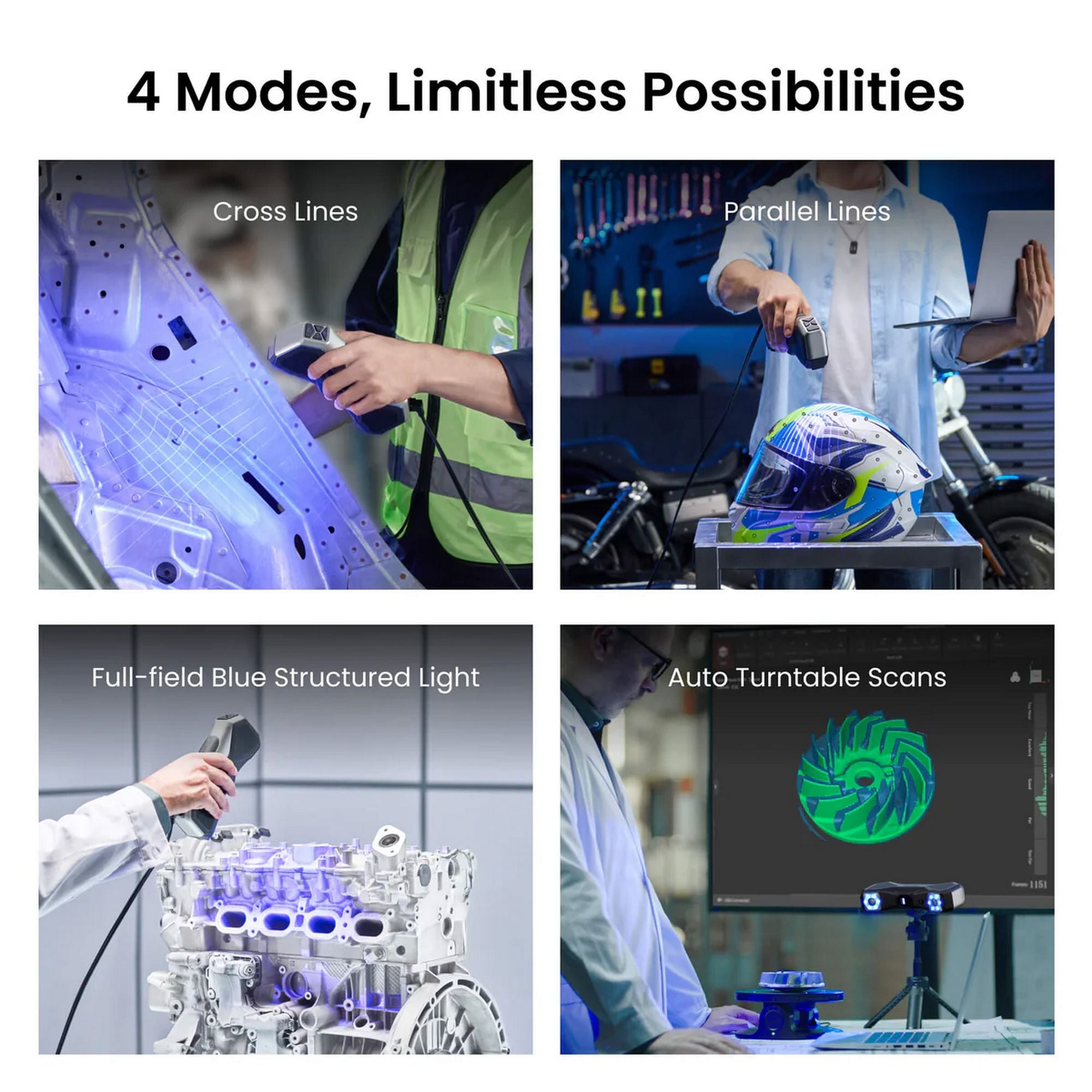

• Powerful Scanning Modes: 4 flexible modes including Multi-line Blue Laser (up to 30 cross lines or 15 parallel lines) and Full-Field Structured Light (62 lines) + Auto Turntable mode for effortless 360° scans
• Exceptional Speed: Up to 2,000,000 points/s in multi-line laser mode and 7,000,000 points/s in full-field structured light mode, with real-time preview at up to 60 FPS

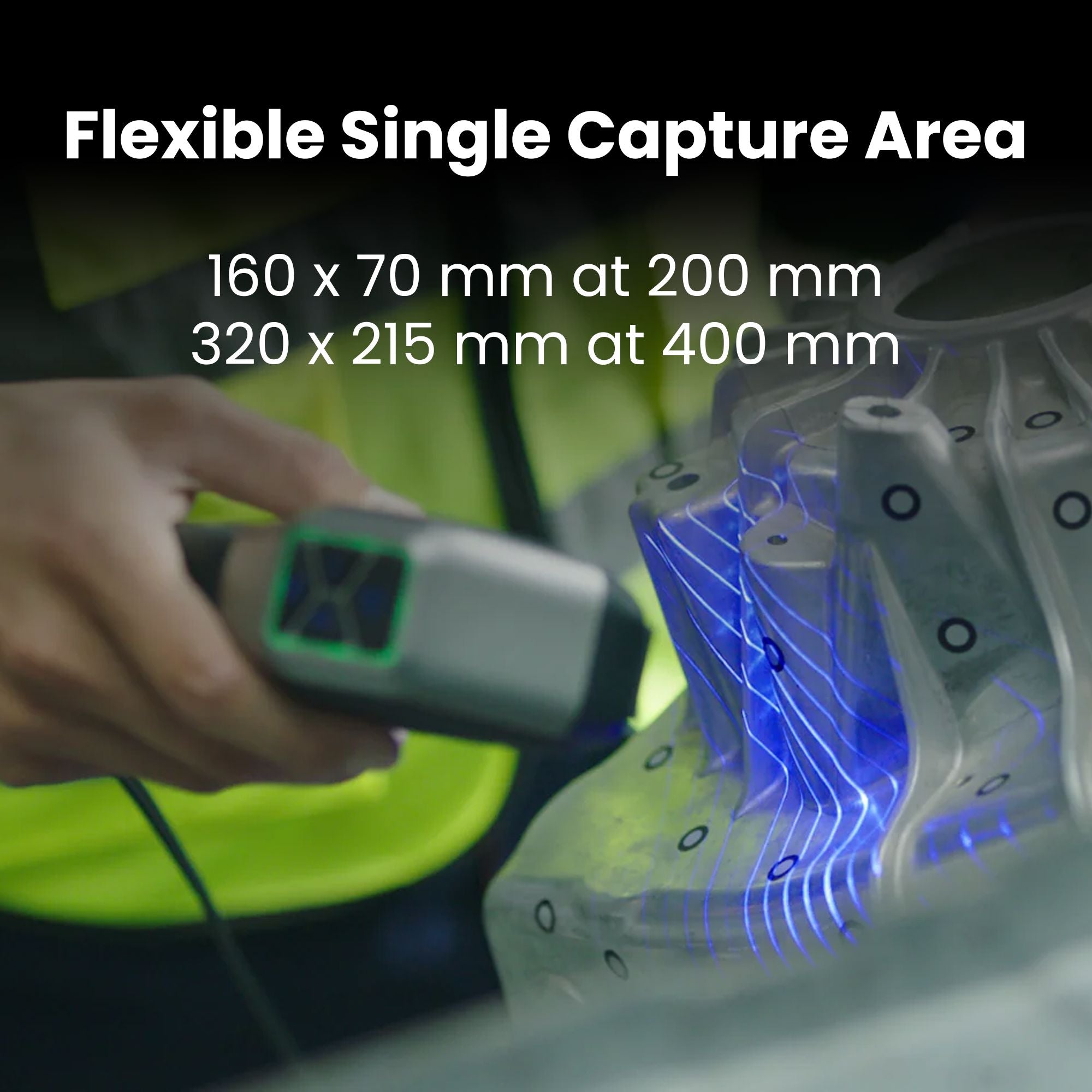

• Optimal Working Distance: 200–400 mm with single capture range from 160×70 mm to 320×215 mm
• HD Color Texturing: Built-in 2MP RGB camera for vibrant full-color 3D models (available in auto turntable mode)

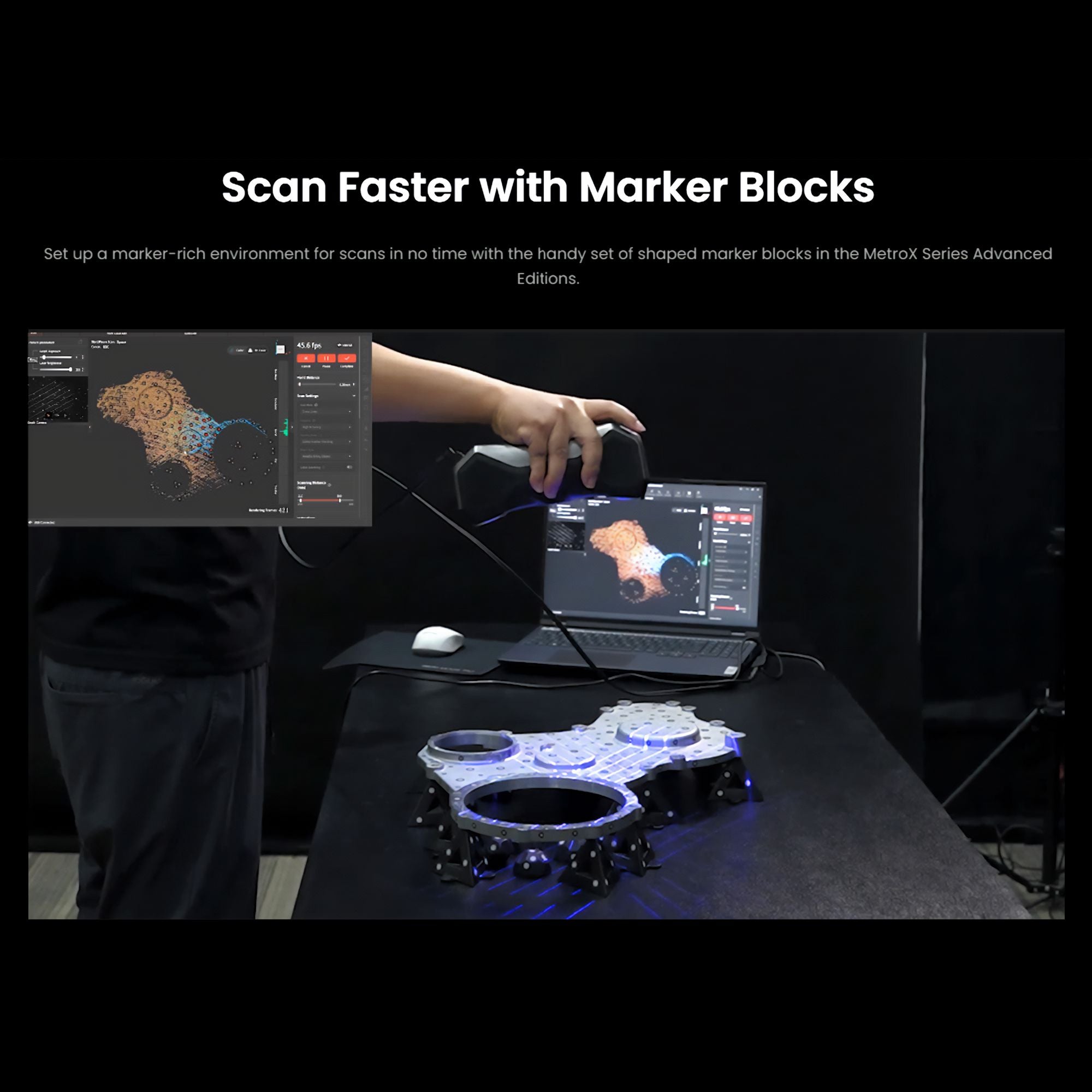

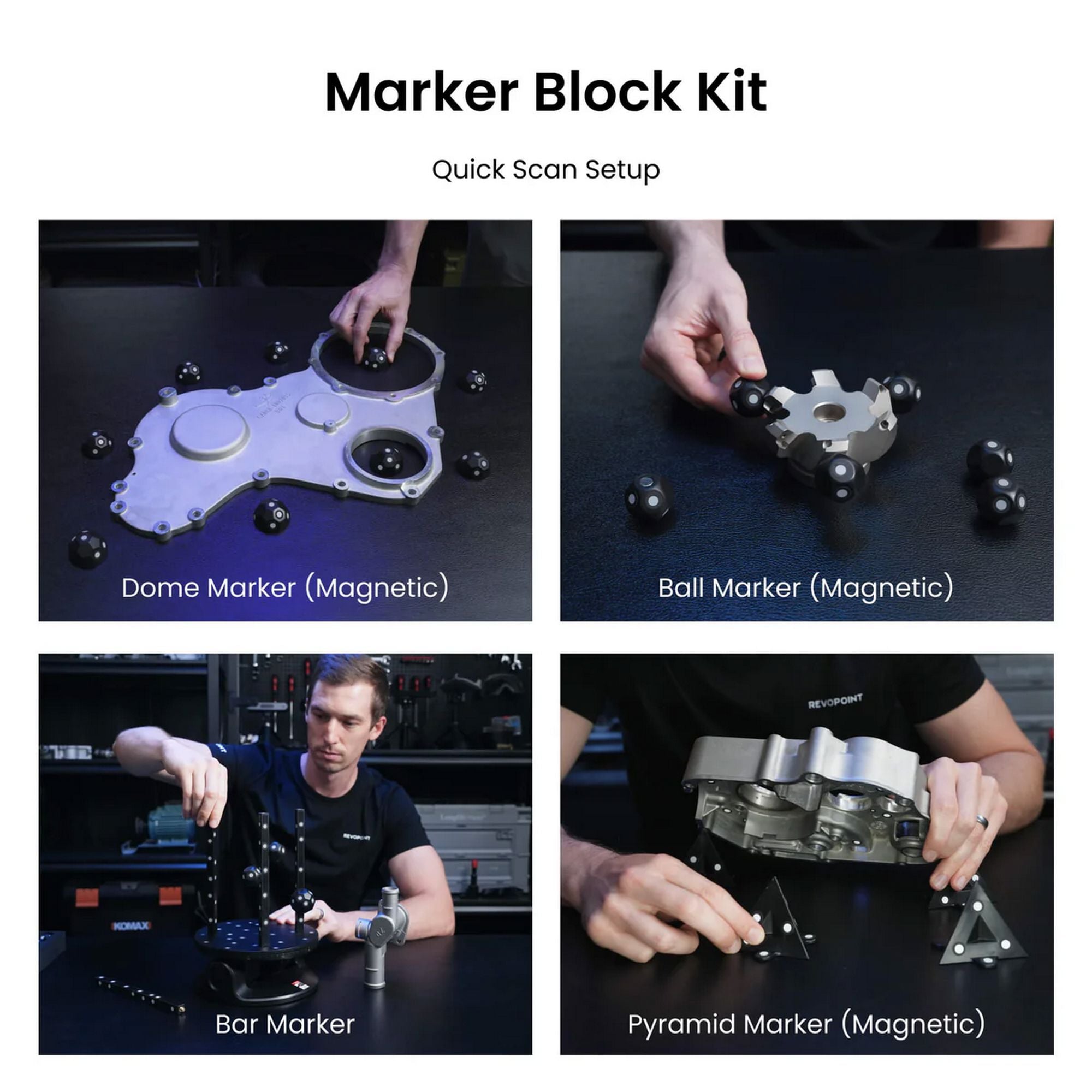

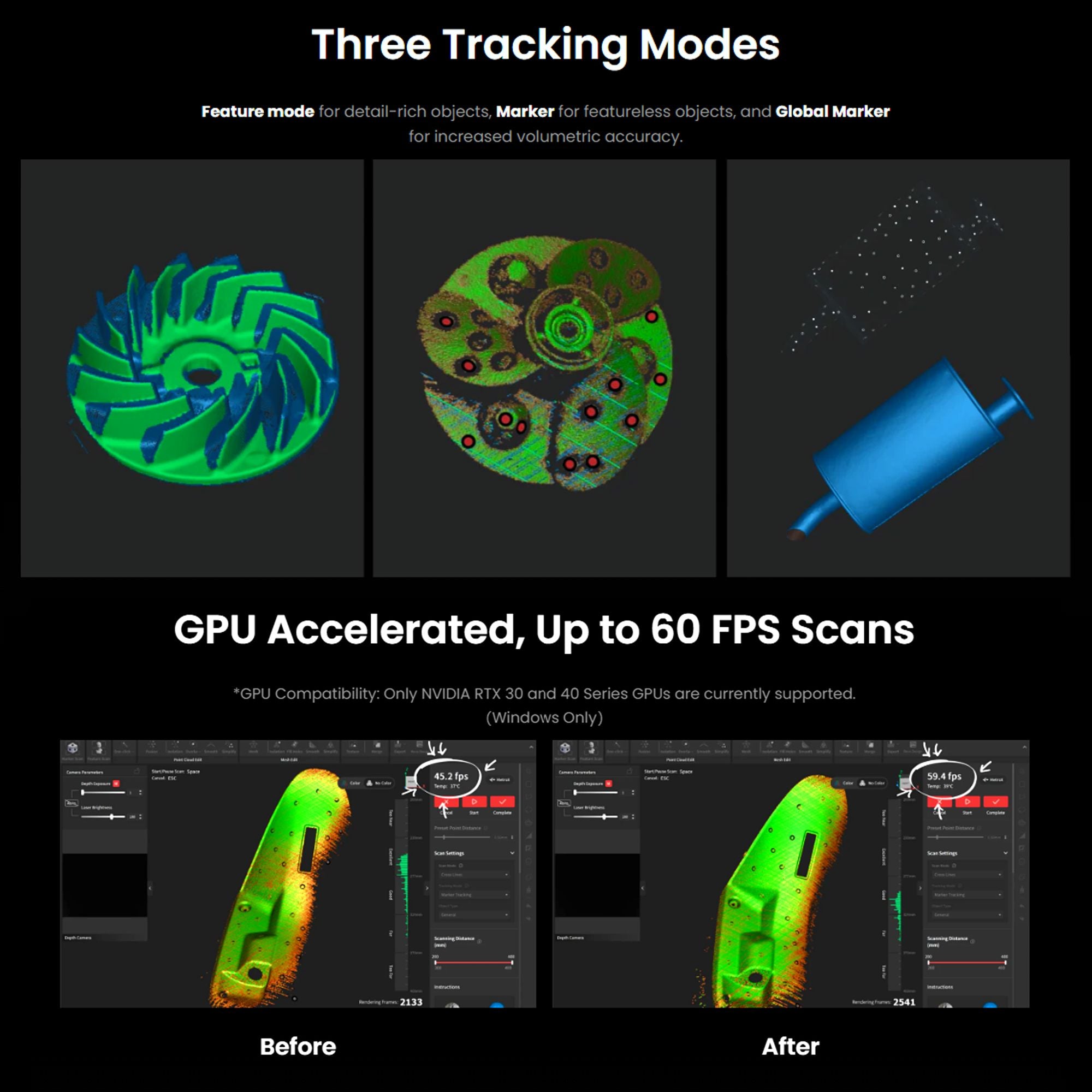

• Versatile Tracking: Feature tracking, marker tracking, and global marker support for stable alignment on challenging objects

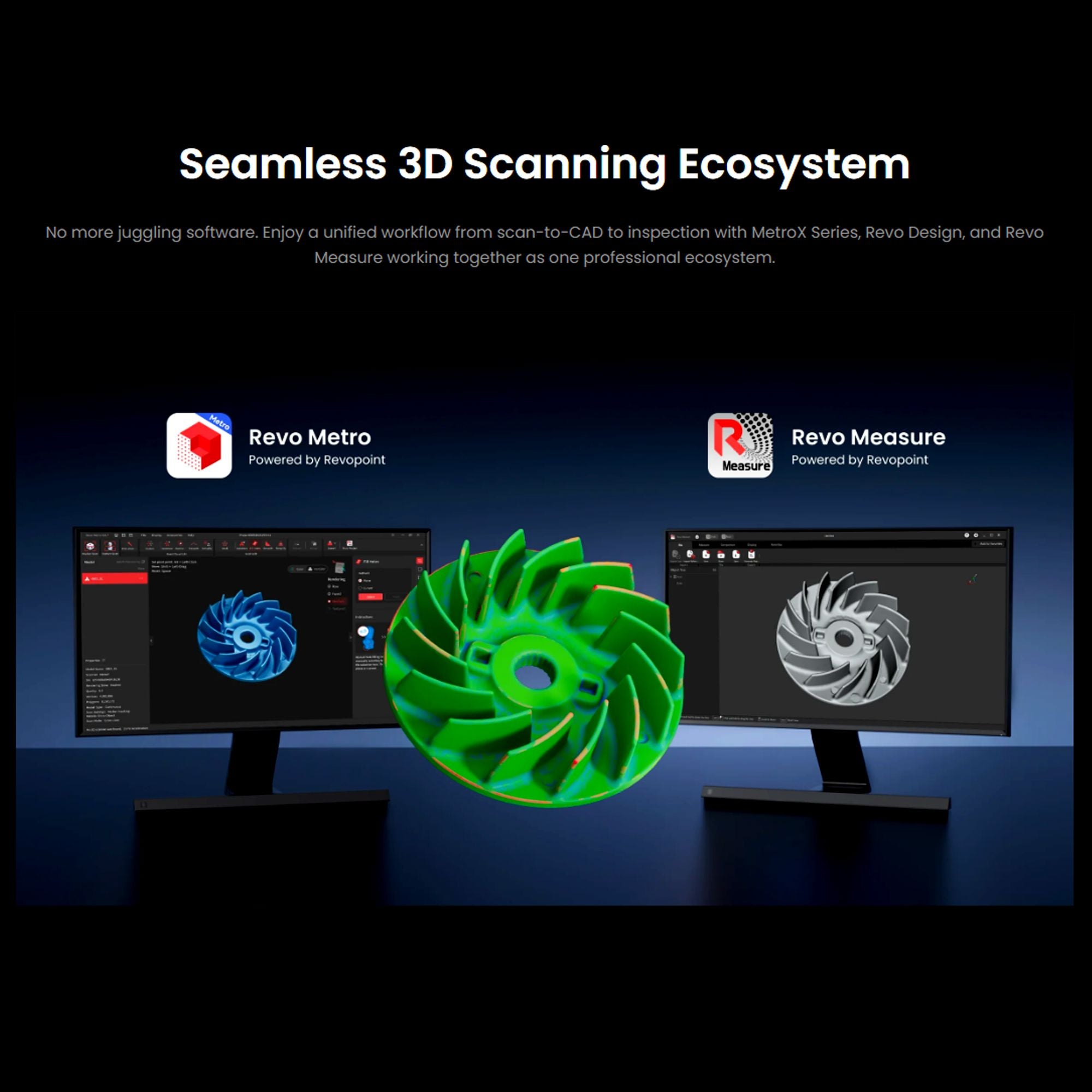

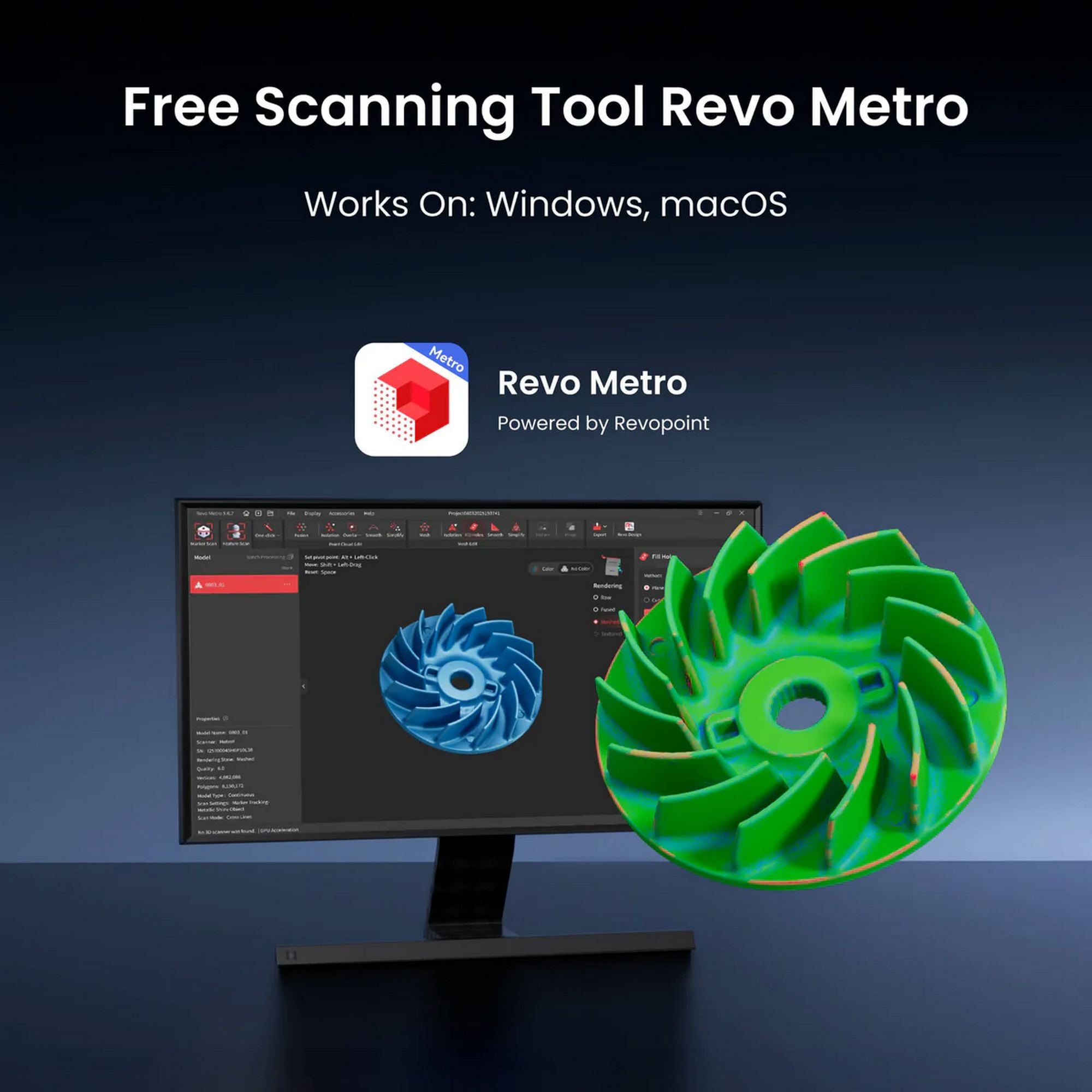

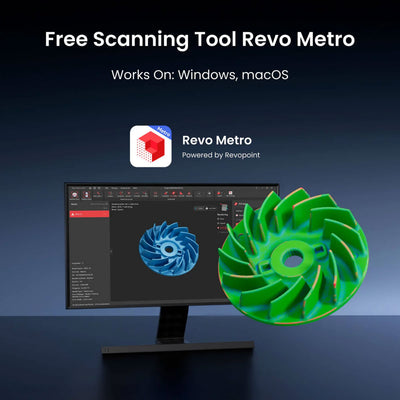

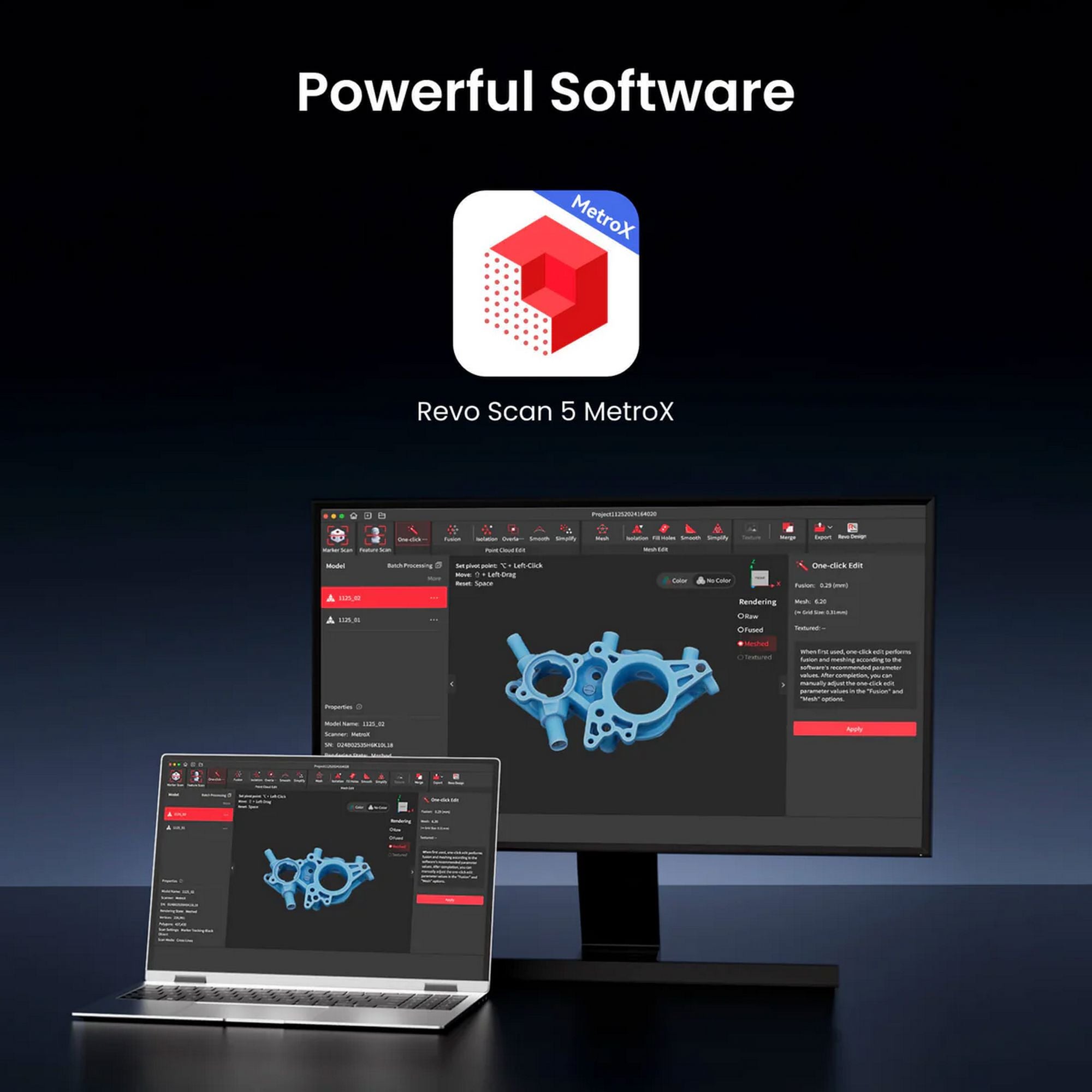

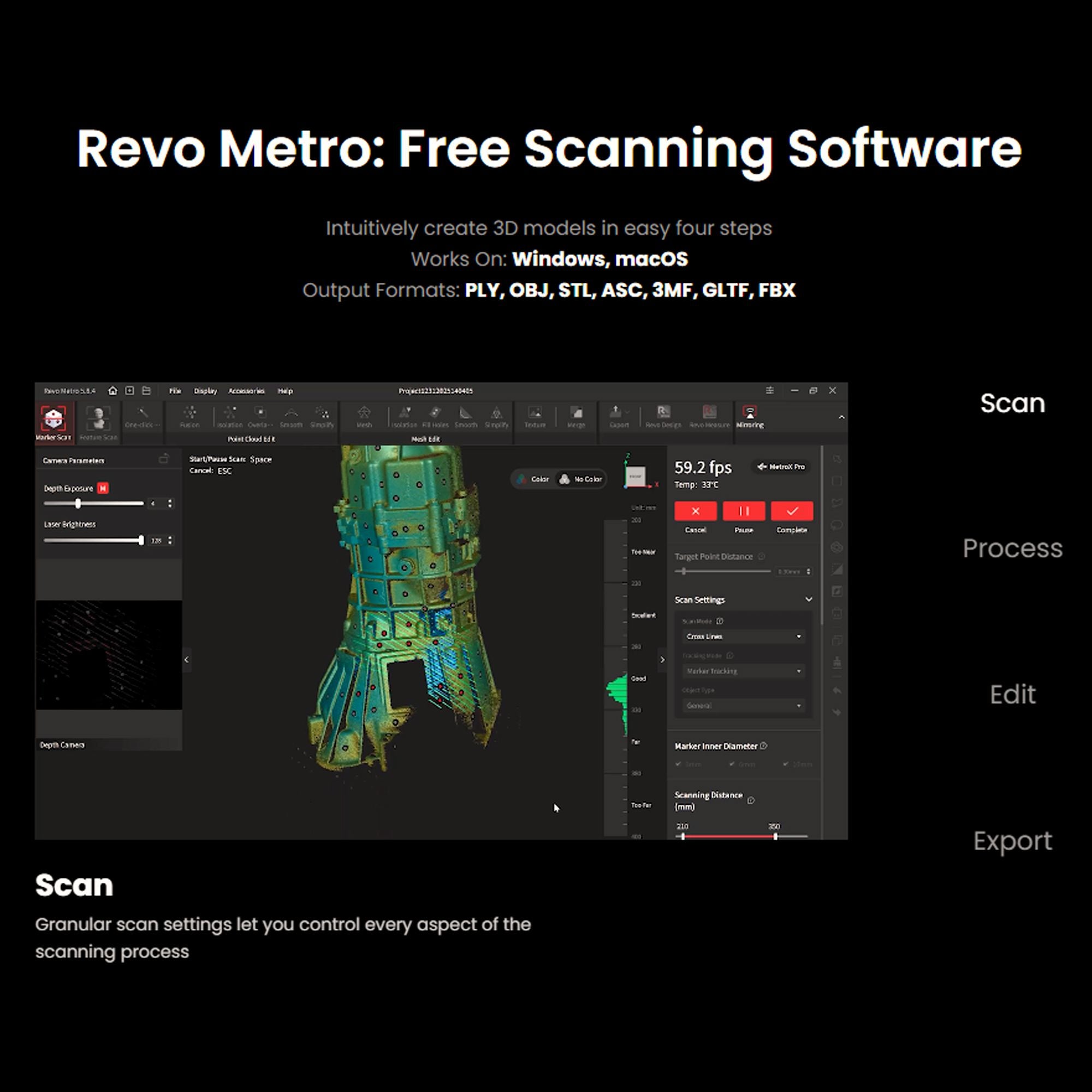

• Broad Compatibility: Works with Windows 10/11 and macOS via the powerful free Revo Metro software; exports to OBJ, STL, PLY, ASC, 3MF, GLTF, FBX and more — ready for 3D printing, CAD, and metrology workflows

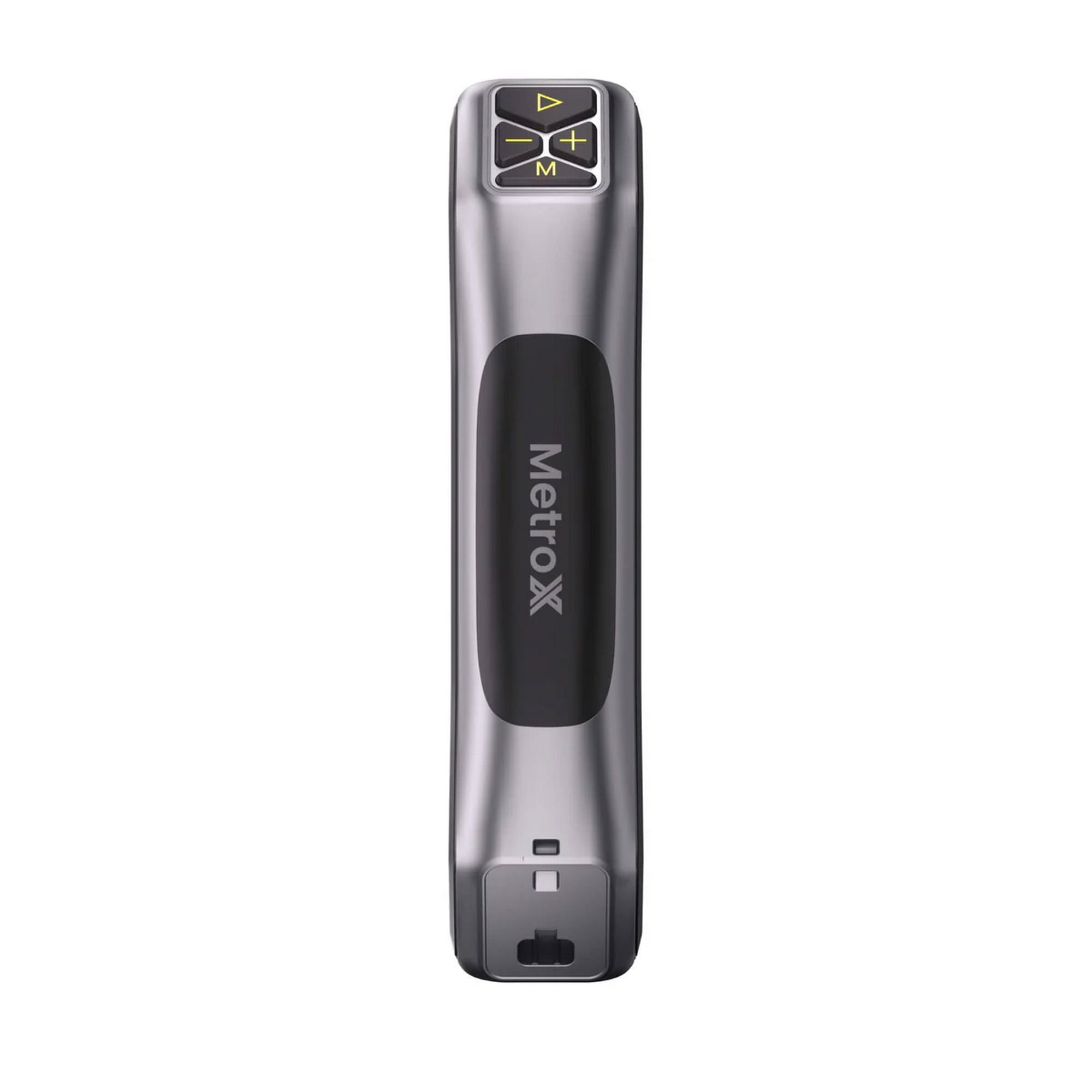

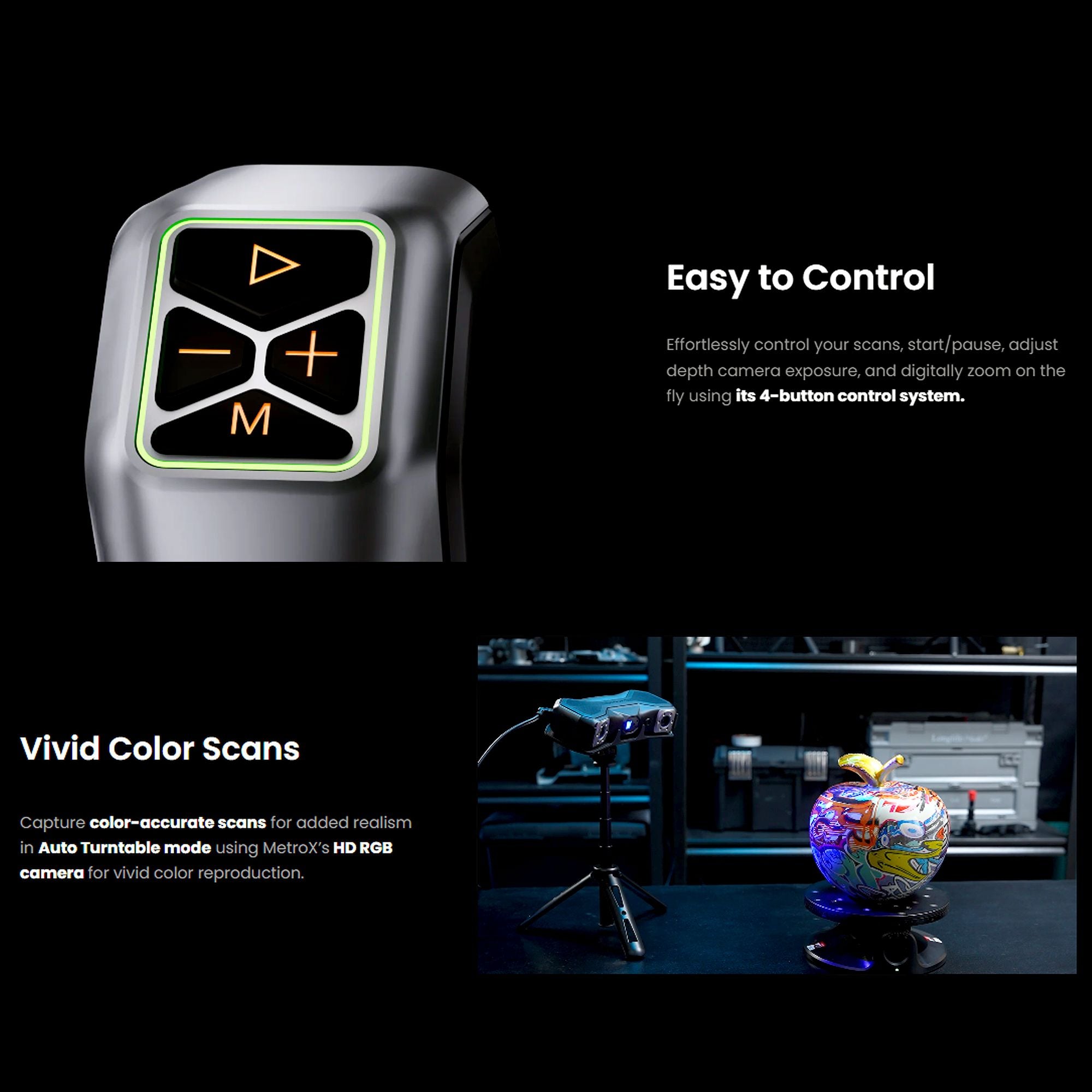

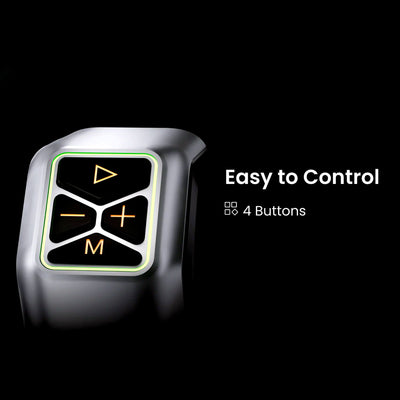

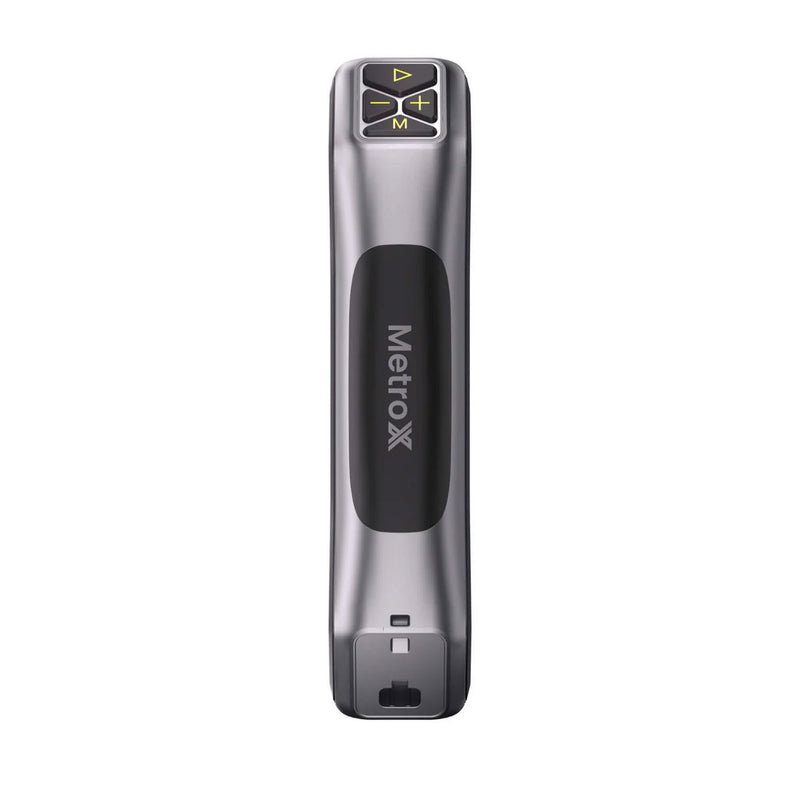

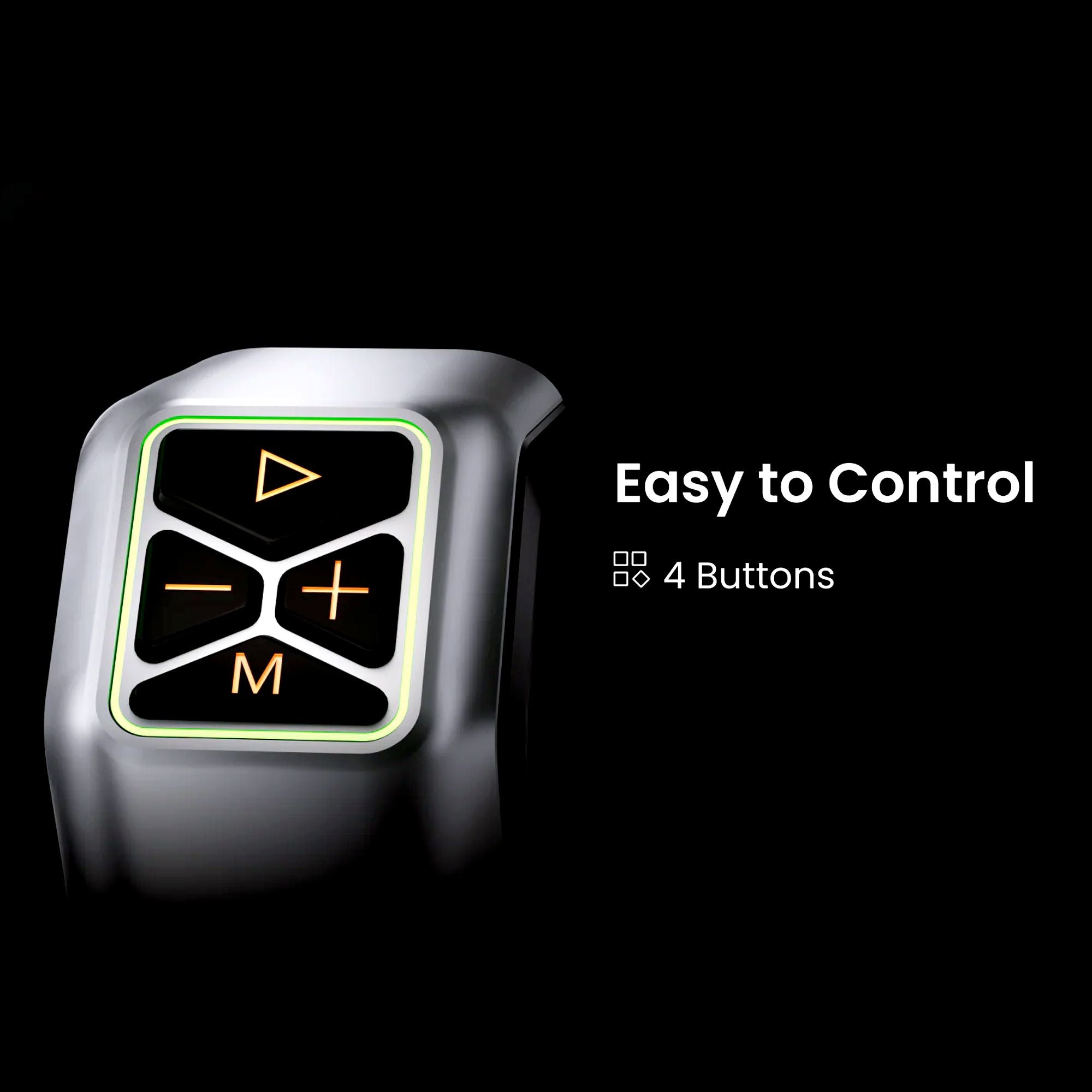

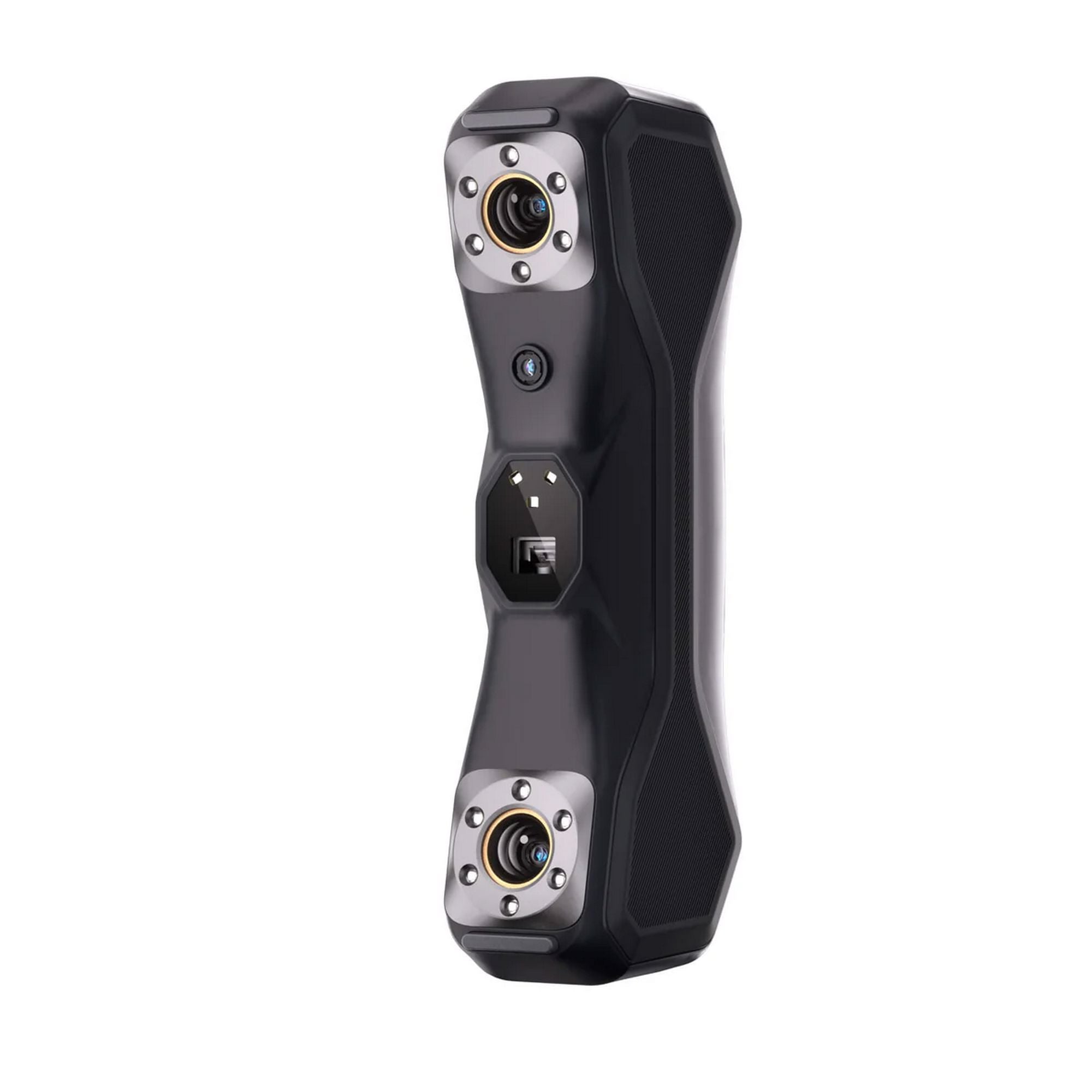

• Portable & User-Friendly: Lightweight (508g) handheld design with USB-C connectivity, 4 control buttons, built-in 4-core ARM processor, and support for tripod and dual-axis turntable

The MetroX PRO stands out with significantly enhanced laser performance, higher accuracy, and faster data processing, delivering professional results that rival much more expensive industrial scanners while remaining accessible for desktop and workshop use.

Why Professionals Choose the Revopoint MetroX PRO 3D Scanner:

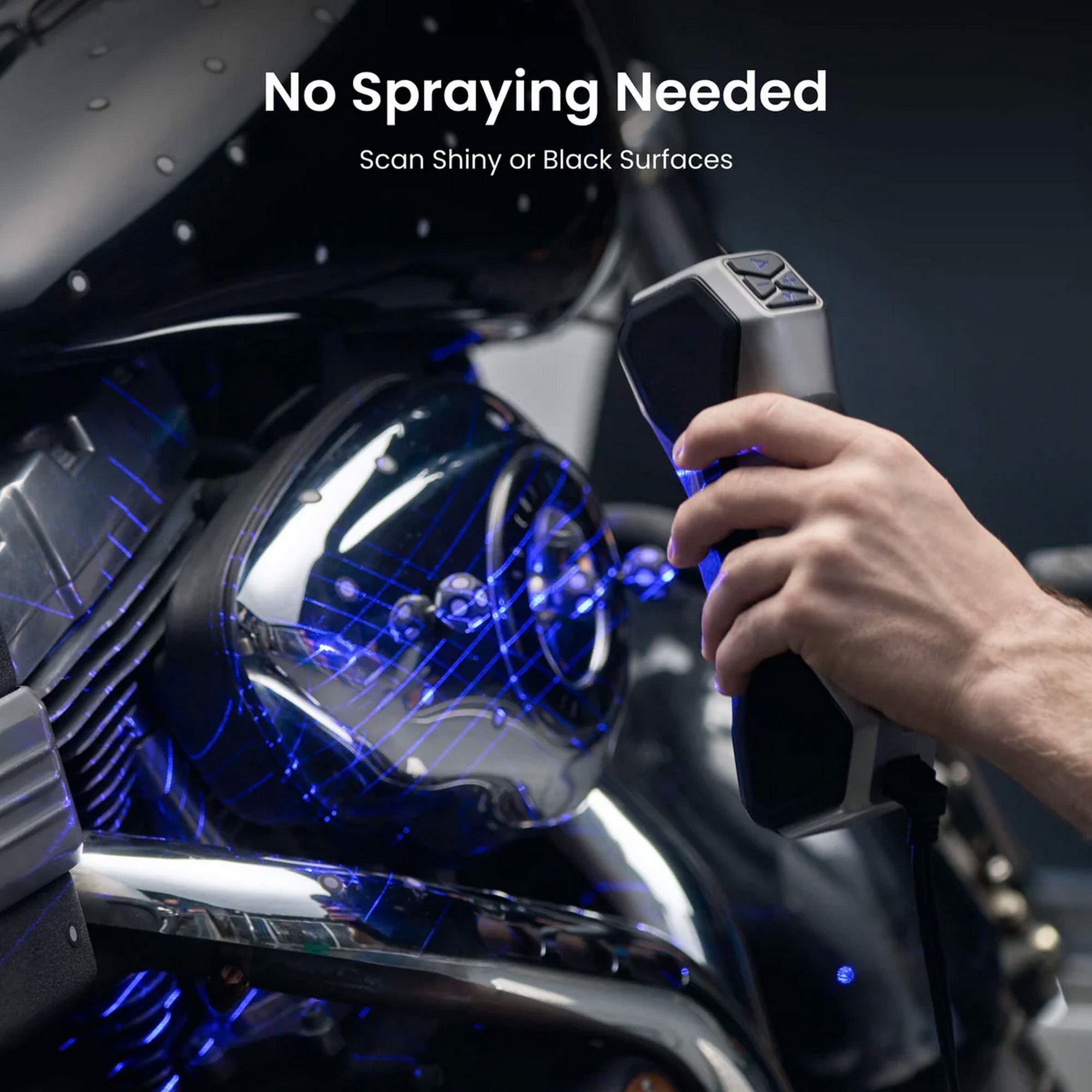

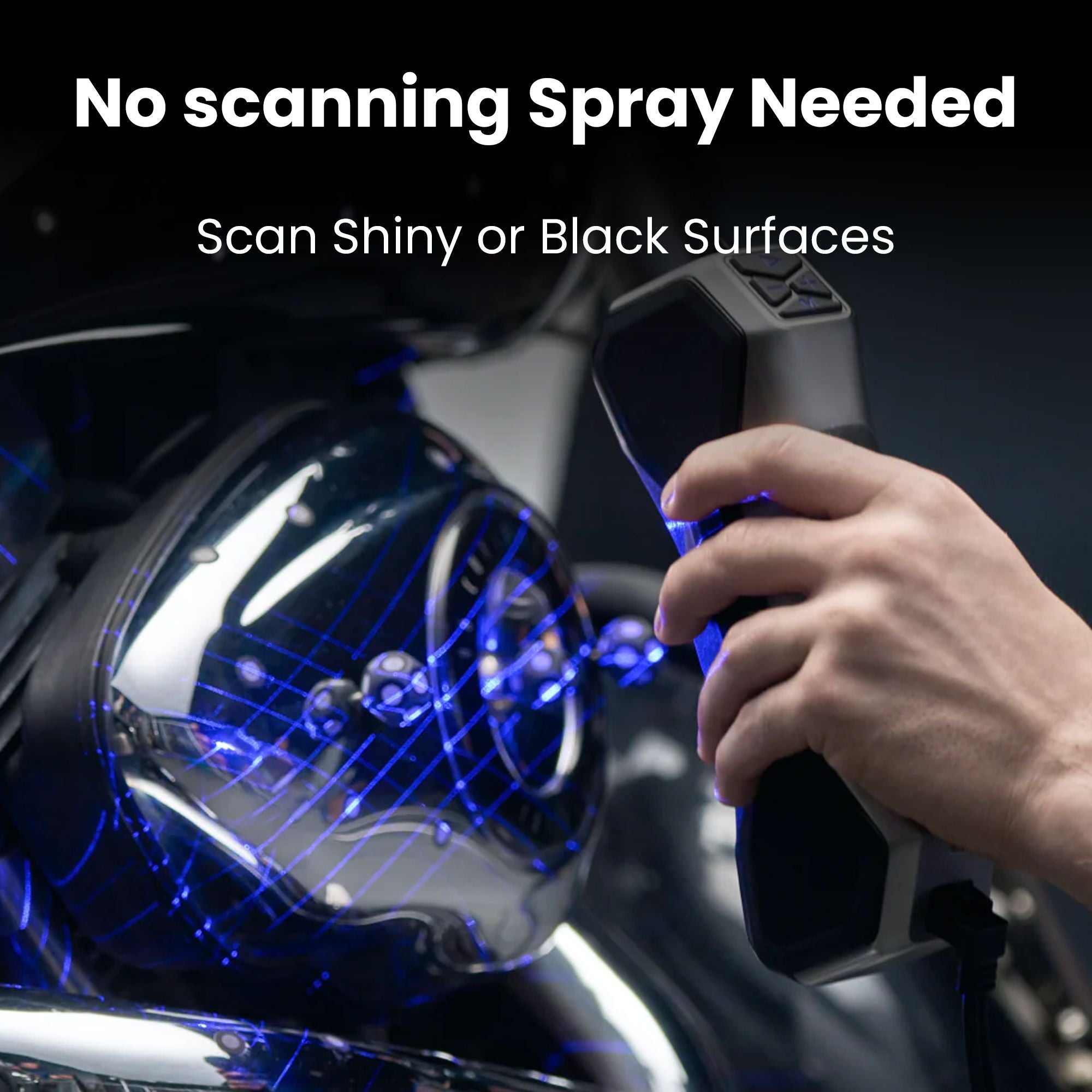

• Superior performance on shiny, black, or dark surfaces without spray
• Faster and more accurate scanning for time-sensitive workflows
• Complete end-to-end solution from scanning to ready-to-print or CAD-ready models
• Excellent value for high-precision reverse engineering and quality control
• User-friendly software with GPU acceleration for smooth real-time processing

Elevate your 3D scanning capabilities with the Revopoint MetroX PRO — the professional hybrid blue laser 3D scanner that combines speed, accuracy, and versatility in one powerful handheld device.

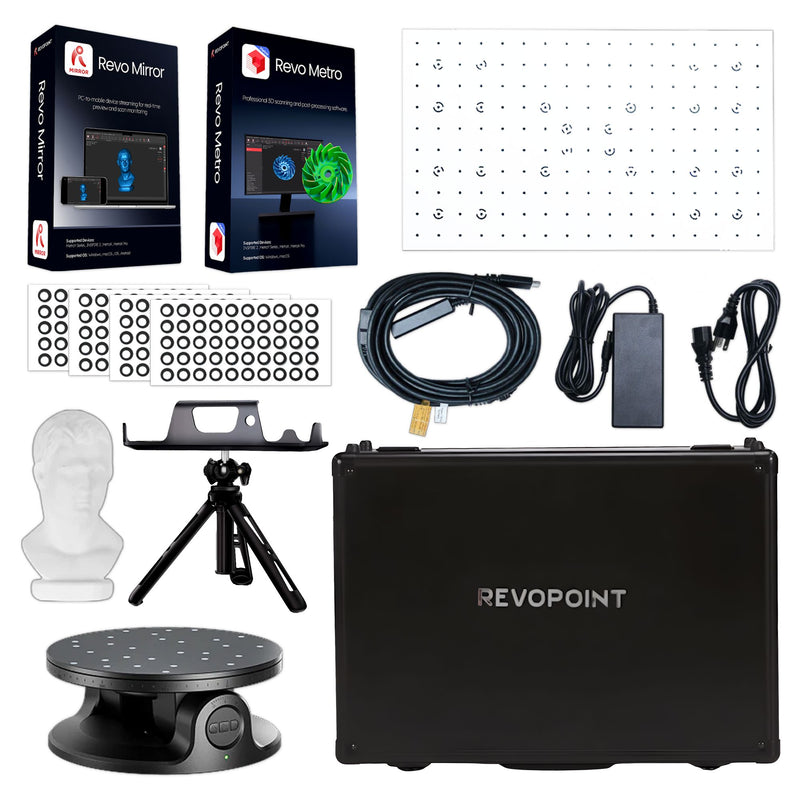

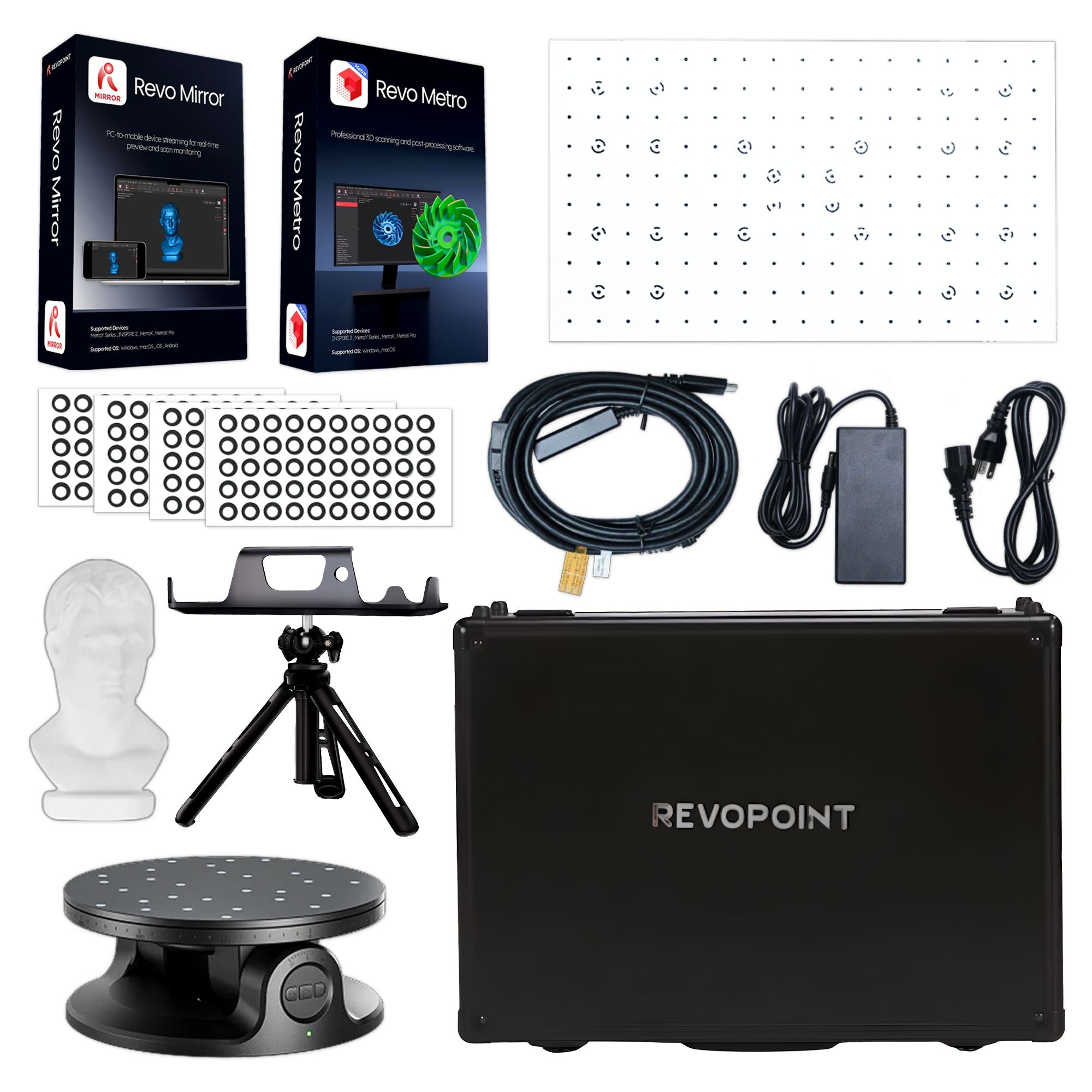

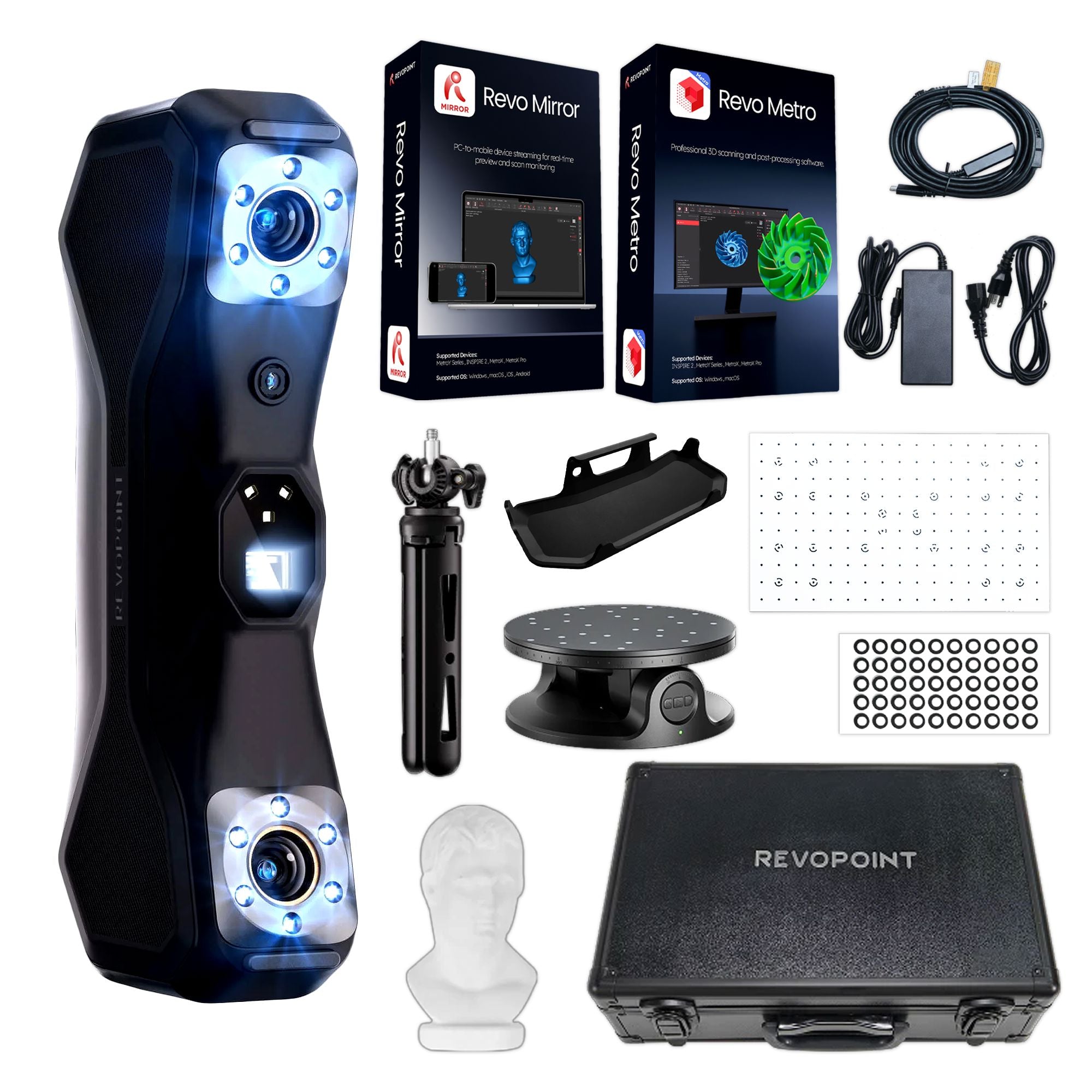

Standard PRO Bundle Includes:

• MetroX PRO Wireless 3D Scanner
• Hard-shell Carrying Case
• Mobile Kit
• Tripod & Scanner Cradle
• Calibration Board
• 6mm 3D Scan Markers x500
• Dual Axis Turntable
• 3D Scanning Sample
• USB Type-C to Type-C Cable
• Power Adapter
• Revo Metro 3D Scanning Software Mac & PC

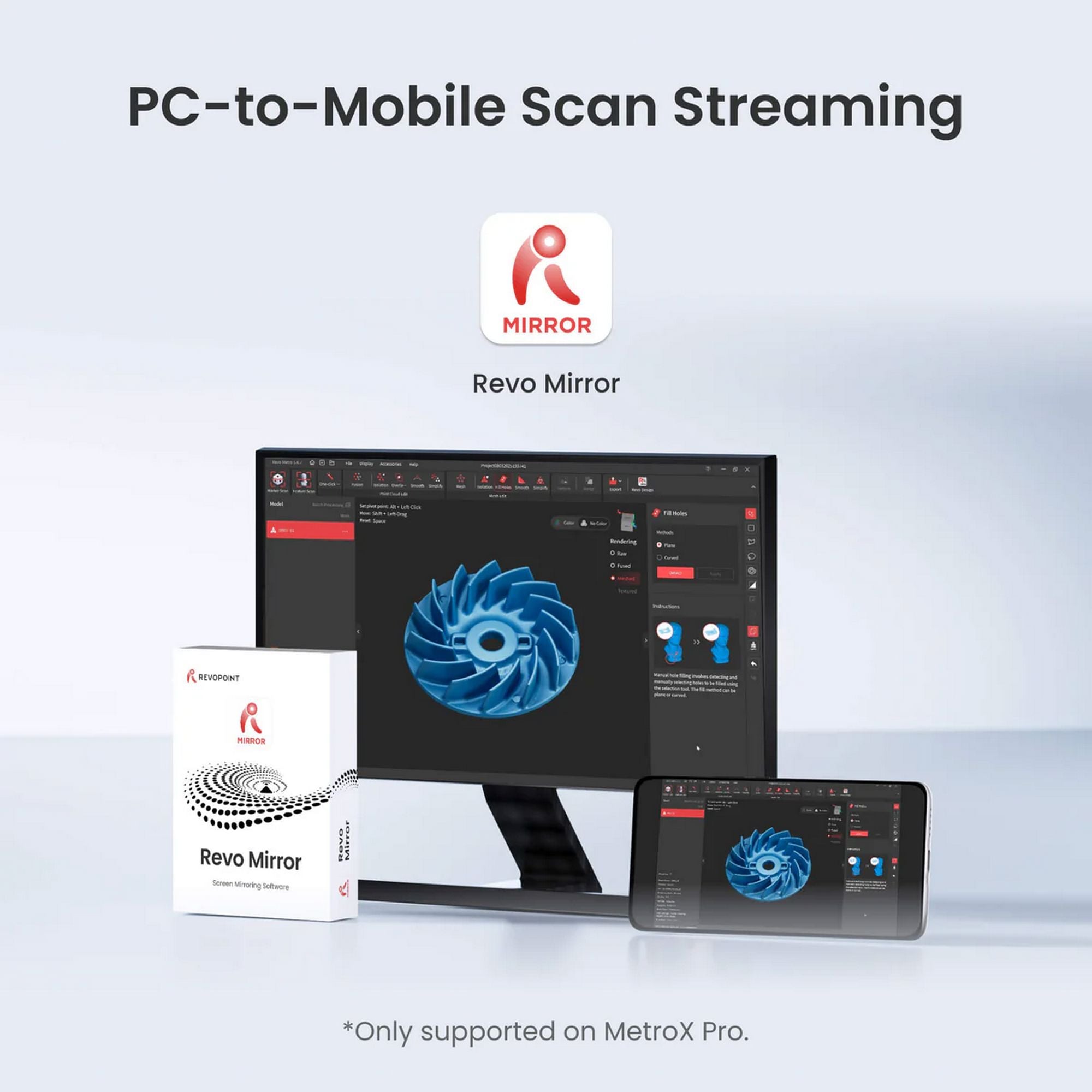

• Revo Mirror Screen Mirroring Assistant Mac & PC
• Quick Start Guide
• 2 Year Scanner Warranty / 1 Year Accessory Warranty
