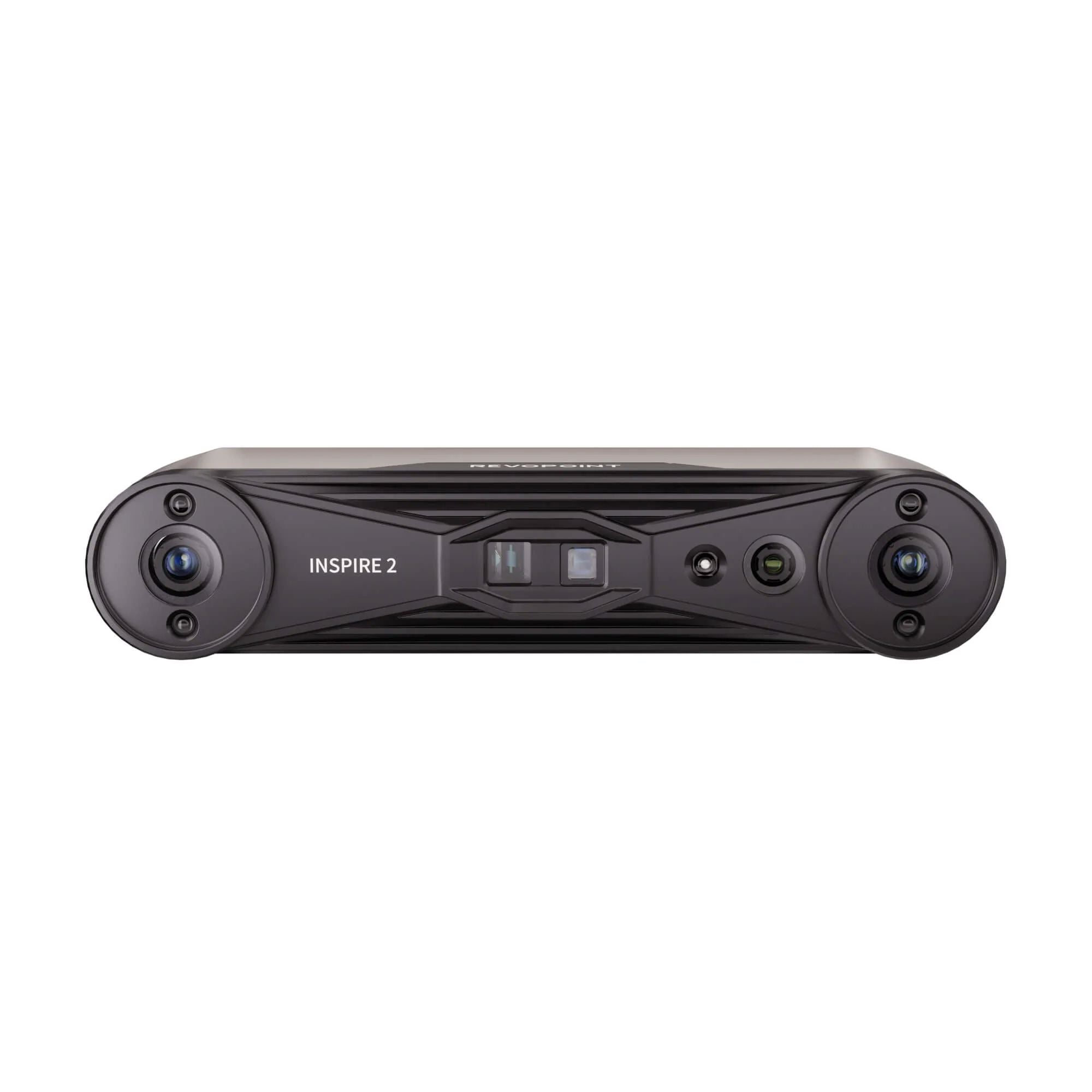

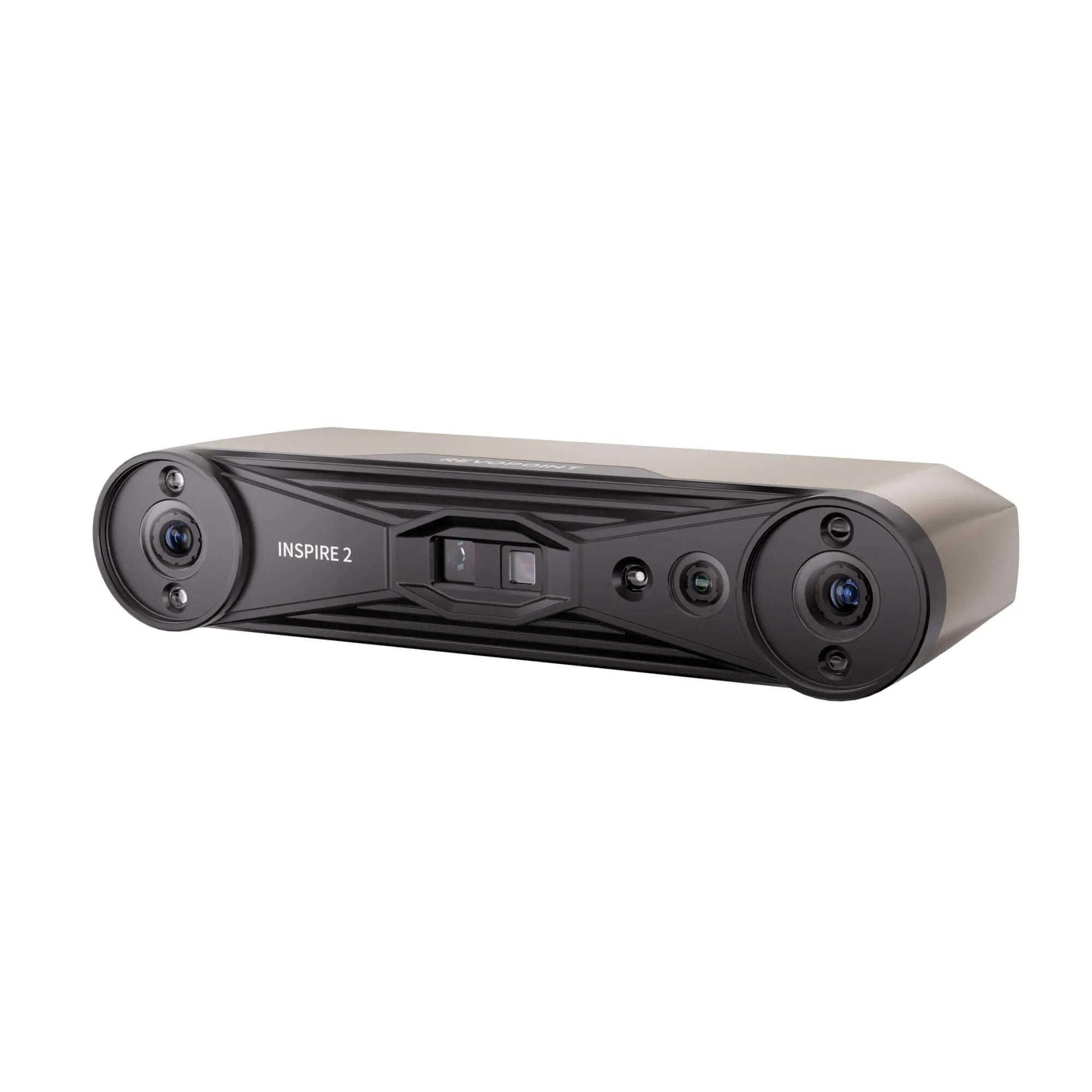

Revopoint INSPIRE 2 Wireless Infrared Laser and Structured Light 3D Scanner – Standard Edition

Capture every detail with unmatched precision using the Revopoint INSPIRE 2, the ultimate portable 3D scanner that combines infrared multi-line laser and infrared structured light technology. Whether you're a 3D printing enthusiast, product designer, reverse engineering professional, or digital artist, this lightweight, wireless 3D scanner delivers professional-grade results at an affordable price.

Revolutionary Dual Scanning Technology

The INSPIRE 2 stands out with its powerful dual-mode system:

• Infrared Multi-Line Laser Mode (11 parallel lines) — excels at scanning dark, shiny, reflective, or low-texture surfaces with minimal or no scanning spray. Achieve blazing scan speeds of up to 90 fps (GPU accelerated) or 40 fps (CPU).
• Full-Field Infrared Structured Light Mode — ideal for marker-free scanning of faces, bodies, and feature-rich objects at up to 18 fps.

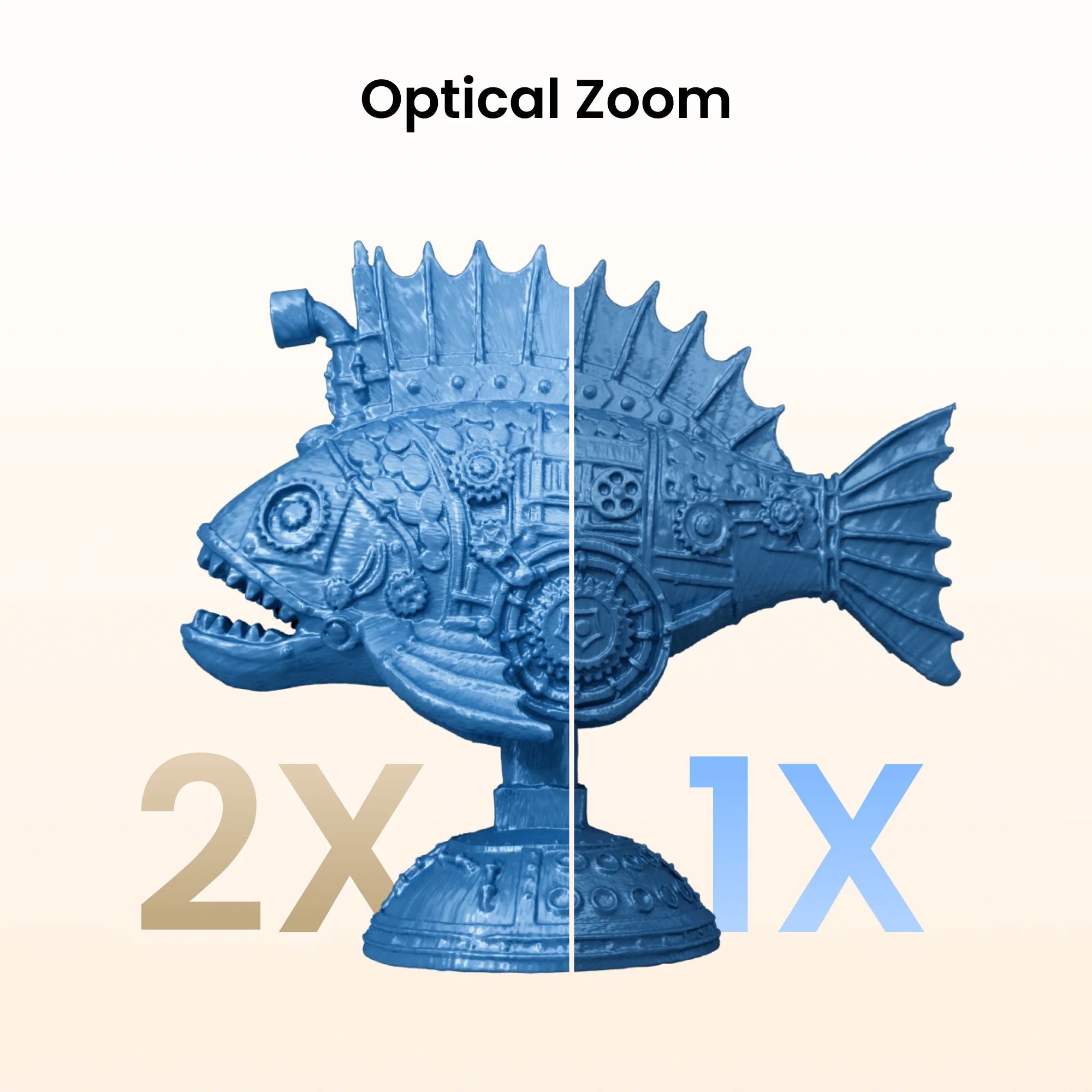

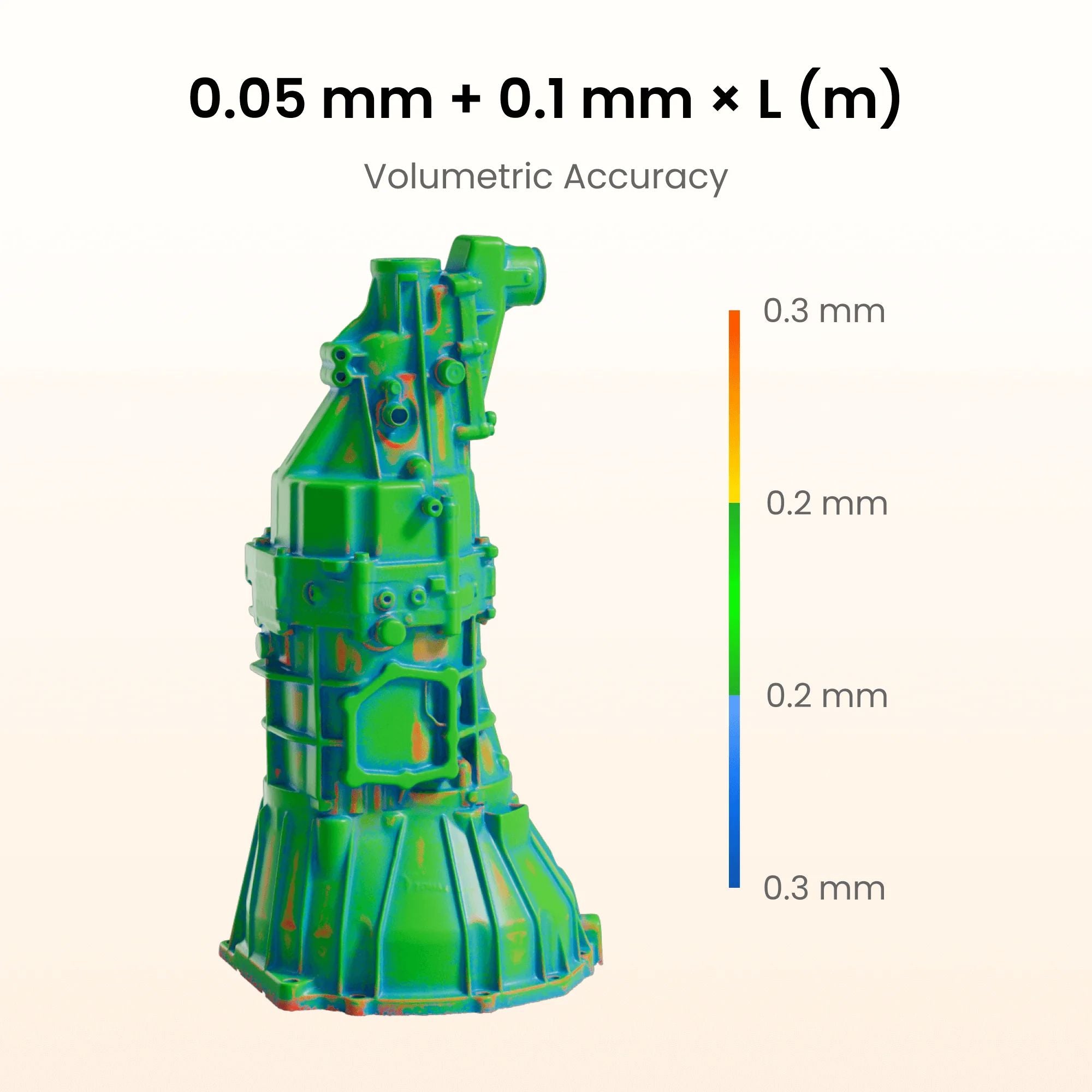

Enjoy single-frame accuracy up to 0.05 mm, precision up to 0.03 mm, and a fused point distance as fine as 0.1 mm. The enhanced optical zoom (1.5x and 2x) and 30% larger field of view provide sharper detail and easier coverage of mixed-geometry objects.

Ultra-Portable & Truly Wireless Freedom

Weighing just 190g and measuring a pocket-friendly size, the Revopoint INSPIRE 2 is built for on-the-go scanning. Connect wirelessly via Wi-Fi 6 for stable, high-speed data transfer or use Bluetooth 4.1. Stream scans from PC to mobile devices with Revo Mirror, or scan independently on compatible smartphones and tablets.

It supports both handheld and desktop modes, with a versatile working distance (indoor: 200–400 mm; outdoor: 150–250 mm) and the ability to handle bright environments up to 20,000 lux — perfect for outdoor 3D scanning without direct sunlight.

High-Resolution Color Scanning & Broad Compatibility

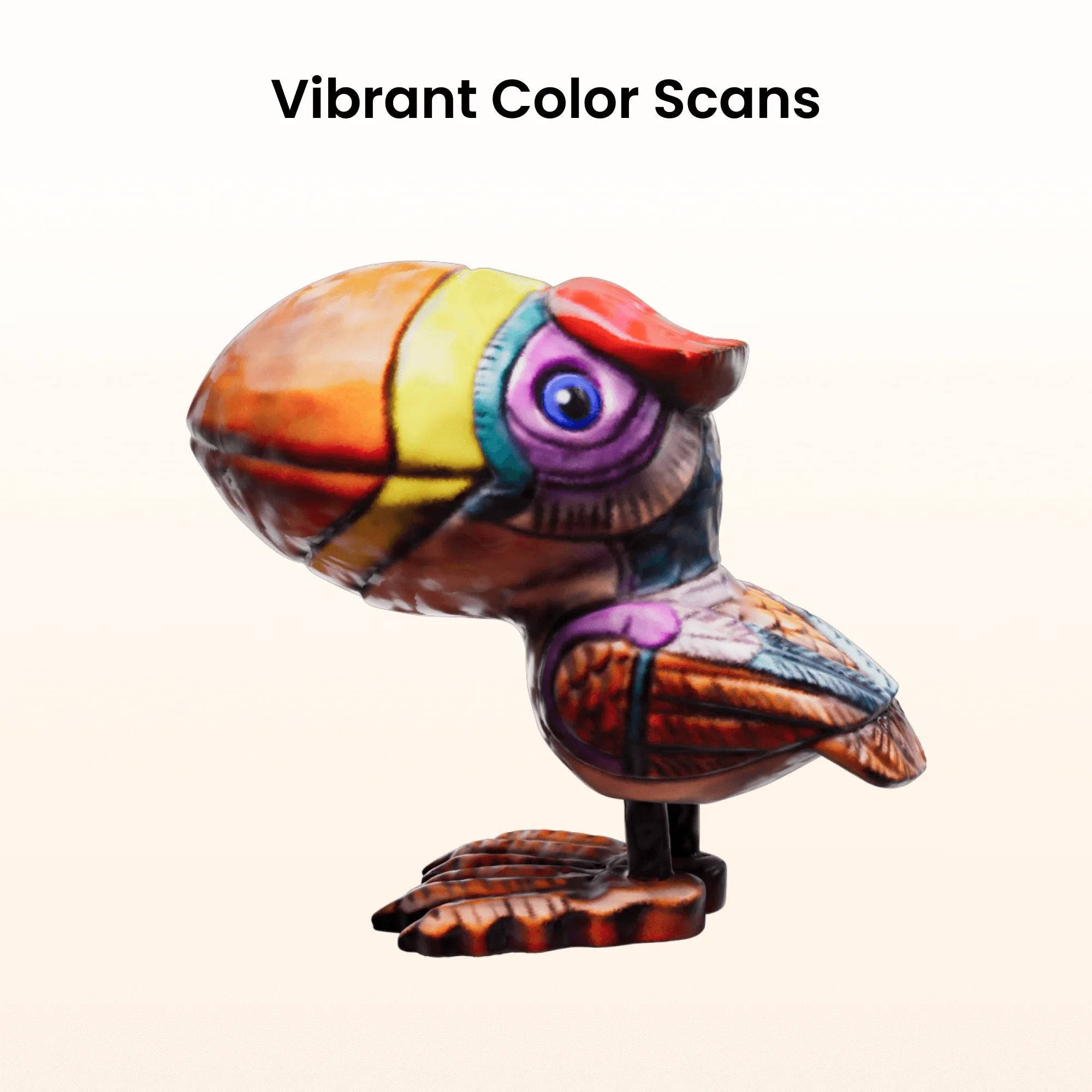

A built-in 1280 × 800 RGB camera captures true-to-life colors and textures, creating vibrant, ready-to-use 3D models. Export in popular formats including OBJ, STL, PLY, FBX, and more.

The INSPIRE 2 works seamlessly with free Revo Metro (PC) and Revo Scan (mobile) software. Compatible with:

• Windows 10/11
• macOS 11.0+
• Android 9.0+ (8GB+ RAM recommended)
• iOS 14.0+ (iPhone X or newer)

Please see the Minimum PC requirements below to ensure smooth performance; higher specs unlock maximum laser scanning speed.

Ideal For a Wide Range of Applications

• 3D Printing: Create accurate, print-ready models of prototypes, replacement parts, or figurines.
• Reverse Engineering: Capture precise dimensions for mechanical parts, restorations, or custom designs.
• Product Design & Prototyping: Scan objects from 20 × 20 × 20 mm up to 2 × 2 × 2 m.
• Digital Art, Animation & VR: Generate high-quality assets with rich textures.
• Heritage Preservation & Education: Archive artifacts or create educational 3D models.

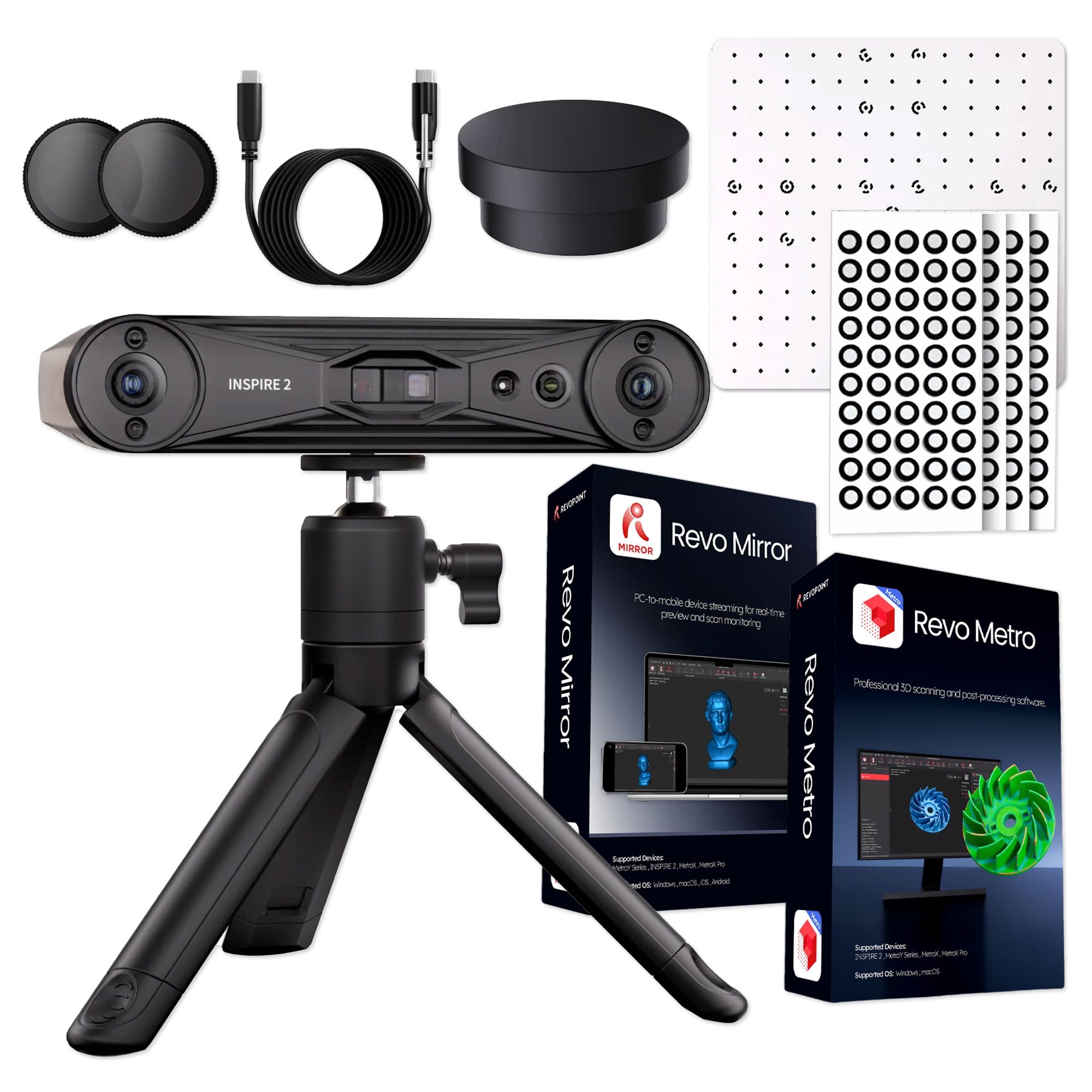

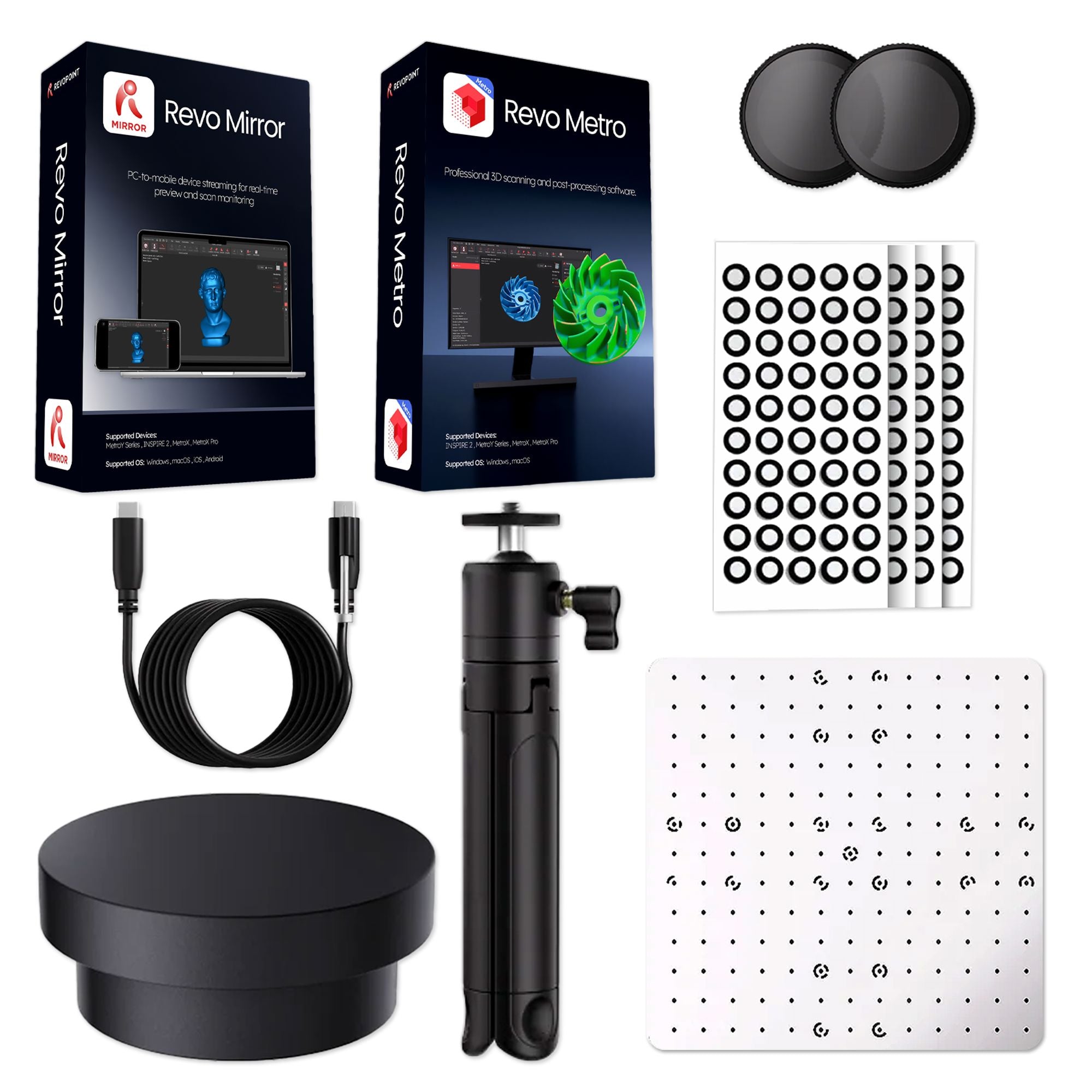

What's Included in the Standard Edition

• Revopoint INSPIRE 2 3D Scanner

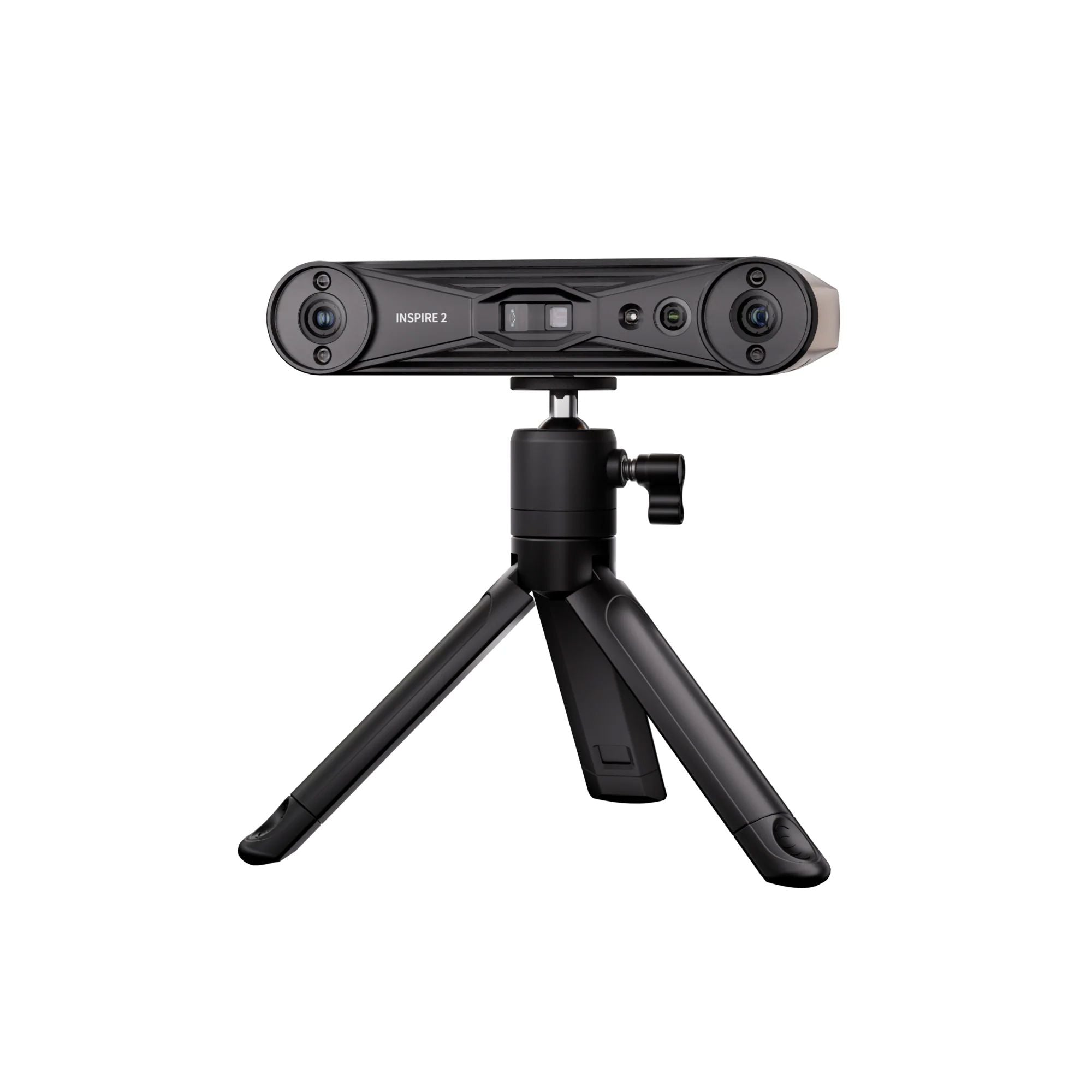

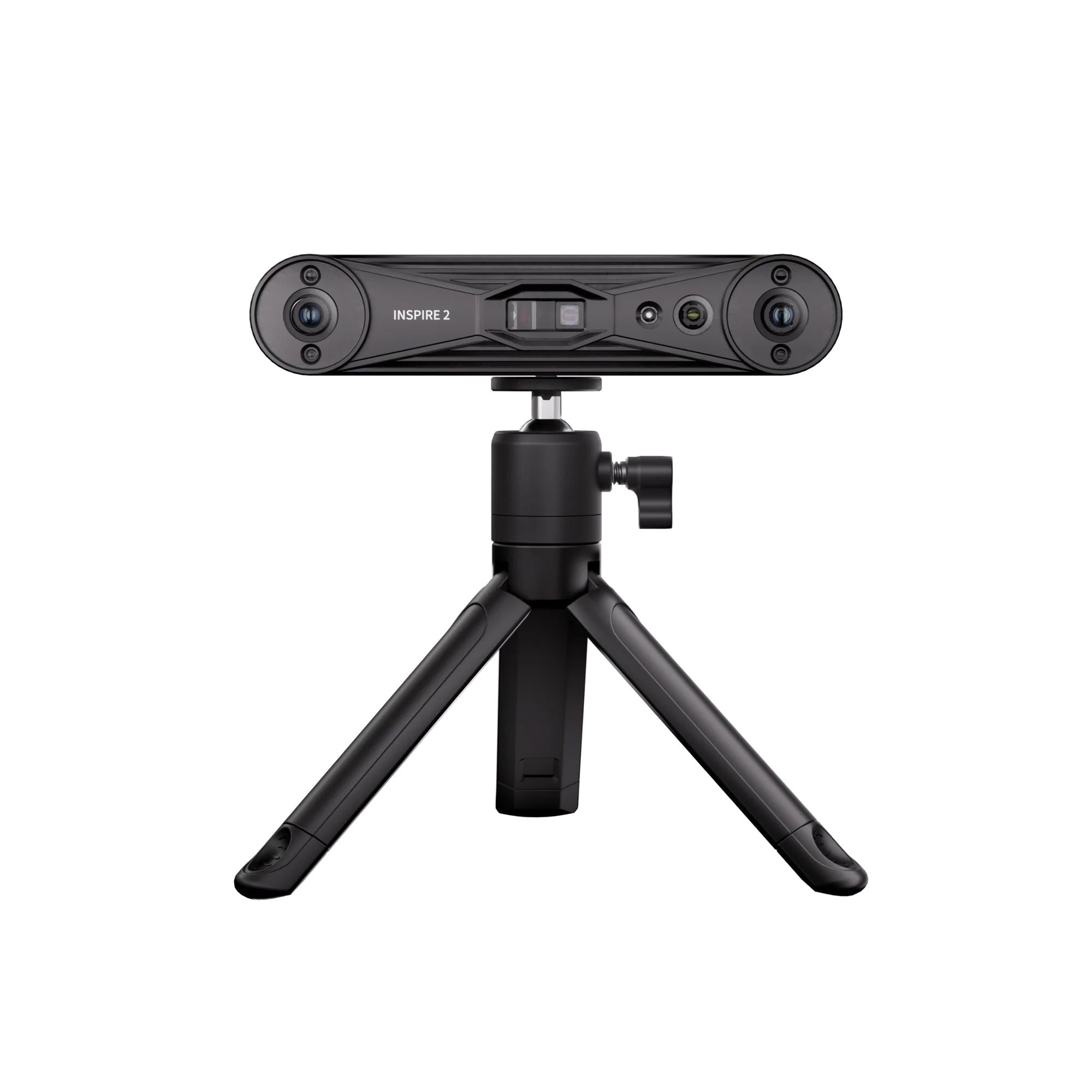

• Tripod
• 2m USB Type-C to Type-C cable
• Mini turntable
• 200 highly reflective markers
• Outdoor filters
• High-precision calibration board
• Revo Metro 3D Scanning Software Mac & PC
• Revo Mirror Screen Mirroring Assistant Mac & PC
• Quick Start Guide
• 2 Year Scanner Warranty / 1 Year Accessory Warranty

Why Choose the Revopoint INSPIRE 2?

This next-generation portable 3D scanner outperforms many in its class with superior handling of challenging surfaces, faster wireless workflows, and outdoor capability — all while remaining incredibly affordable. Users praise its ease of use, clean results for 3D printing, and excellent value compared to previous models like the POP 3.

Ready to bring your ideas to life in 3D? Add the Revopoint INSPIRE 2 Wireless Infrared Laser and Structured Light 3D Scanner to your toolkit today and experience professional scanning power in the palm of your hand.
