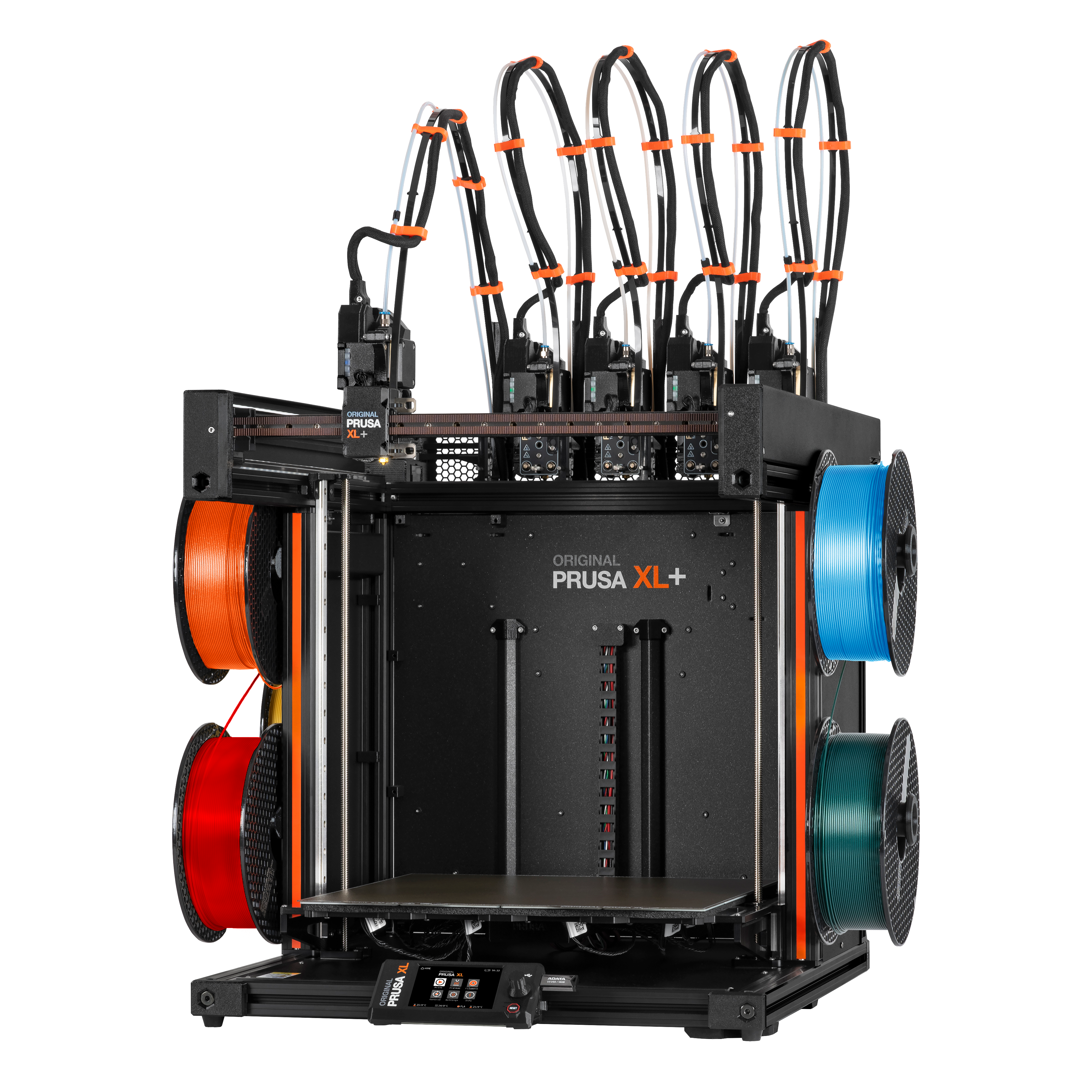

Prusa XL+ Five-Tool Head 3D Printer with Optional Enclosure

Original Prusa XL+ Five-Tool Head (Extruder) 3D Printer | 360×360×360 mm Large Format, Optional Enclosure

Print the whole part — not the puzzle. The Original Prusa XL+ Five-Tool Head is the full Prusa large-format toolchanger platform. You get a full 360 × 360 × 360 mm cubic build volume — about 46.7 liters, roughly 3× a CORE One+ and 1.5× a CORE One L+ — so props, jigs, architectural models, cosplay armor, fixtures, and production parts come off the bed as one piece instead of a glue-up. Five independent Nextruders stay loaded and ready, so you can run five materials, five colors, or five nozzle sizes in one job with automatic tool changes and virtually no purge waste.

This is the second-generation XL. Compared with the original Prusa XL, the XL+ prints about 10–15% faster, uses new 1.5 mm GT belts, adds a nozzle wiper, improves toolhead and electronics cooling, and ships with fully automatic tool-offset calibration via a dedicated electronic sensor. All five docks are populated from day one: this is the configuration Prusa uses for multi-material production work.

Key specifications

• Build volume: 360 × 360 × 360 mm (46.7 L)
• Architecture: CoreXY, 1.5 mm GT belts, Input Shaper, Phase Stepping
• Extruder: Five Nextruder direct drive
• Max nozzle / bed: 290 °C / 120 °C (16-tile segmented bed)
• Chamber (optional): ~50 °C with Enclosure for Prusa XL+; ~60 °C with upcoming heater
• Toolheads: 5 independent toolheads with automatic tool changing
• Calibration: LoadCell first layer; electronic tool-offset sensor
• Print surface: Removable double-sided satin sheet
• Filament: 1.75 mm, any brand
• Connectivity: Ethernet, optional Wi-Fi; offline capable
• Size / weight: ~700 × 900 × 720 mm, ~30 kg

Built for big parts, multi-material production, and engineering filaments

CoreXY motion with Input Shaper and Phase Stepping keeps layers smooth at speed. Each Nextruder direct-drive extruder handles PLA and PETG as easily as TPU and carbon-fiber composites, with a max nozzle temperature of 290 °C. Keep five materials or five nozzle strategies loaded at once — model materials, soluble supports, flexible inserts, a second color, and a high-flow nozzle can all stay hot and ready. Quick-swap nozzles cover fine detail (0.25 mm), everyday work, high-flow bulk (0.6 / 0.8 mm / CHT), and abrasives (hardened steel).

The segmented heatbed uses 16 individually controlled tiles up to 120 °C. Only the area under the part heats, which cuts power draw on smaller jobs and improves first-layer consistency across a 360 mm plate. Automatic LoadCell first-layer calibration measures real nozzle-to-sheet distance — including after nozzle changes, sheet swaps, and thermal expansion. Five-head tool offset is calibrated automatically with the dedicated electronic sensor.

Open materials policy: any brand of 1.75 mm filament. No chips, no lock-in, no subscriptions. Supported families include PLA, PETG, ASA, ABS, PC, PA (nylon), TPU, PVA, HIPS, PP, CPE, PVB, and carbon-fiber composites. A silicone printing toolhead is planned for Q4 2026.

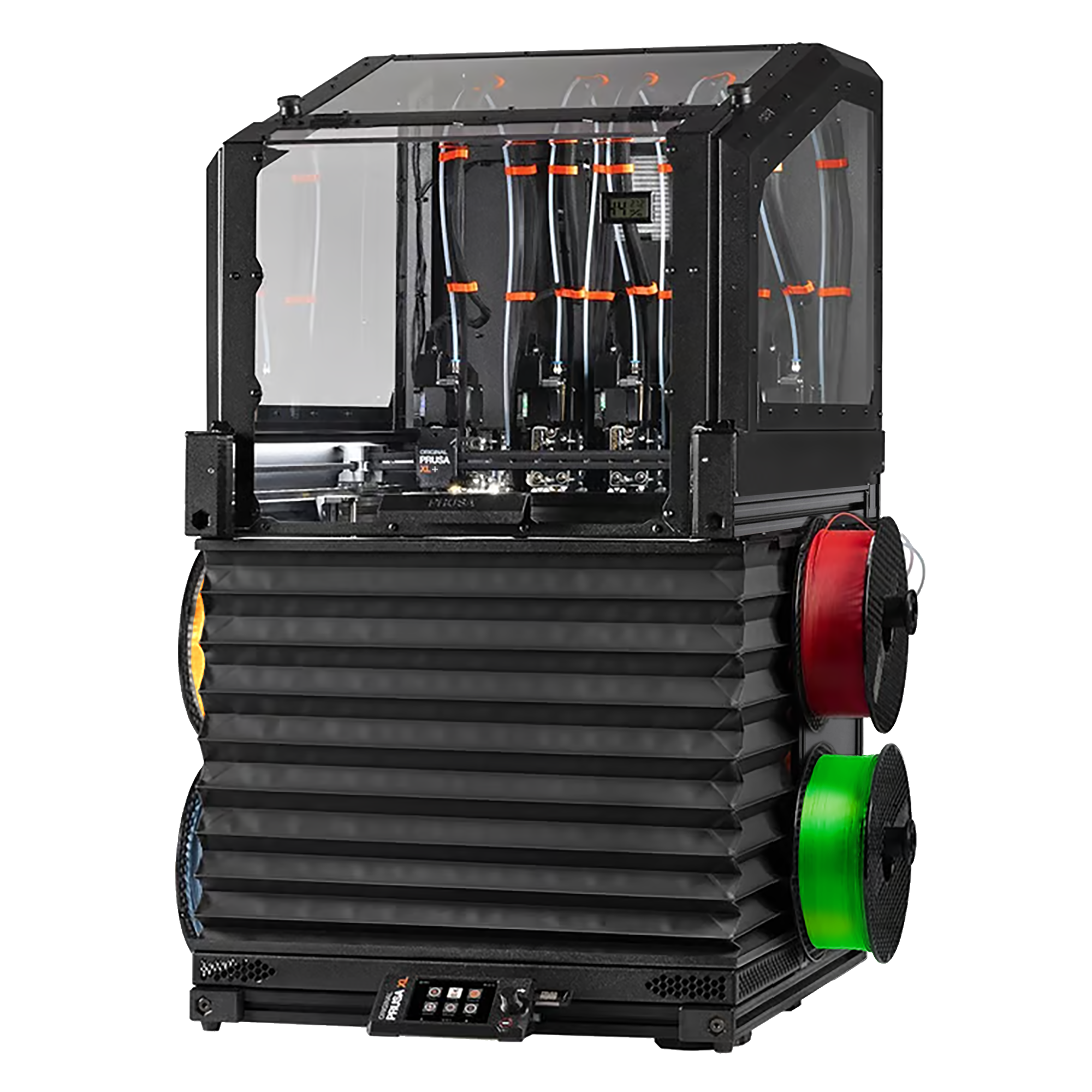

Enclosure option: stable chamber for ASA, ABS, PC, and nylon

The XL+ is designed from the factory for elevated chamber temperatures. Add the official Enclosure for Prusa XL+ whenever you need a sealed, draft-free environment:

• Passive chamber heat from the XL+ bed: up to about 50 °C
• Upcoming external heater add-on: up to about 60 °C
• 99.9% HEPA Advanced Filtration System for odors and ultra-fine particles when printing ABS, ASA, PA, and similar
• Metal frame, Plexiglas/PETG panels, bellows access cover, LED strip, camera/electronics mounting points, quieter operation, and moving parts covered
• Installs on the printer and can be removed; kit ships complete (no printed parts required)
• XL+ only — the new enclosure is not compatible with the original Prusa XL. An enclosure upgrade kit exists for owners moving from XL Enclosure + XL+ hardware.

You do not need the enclosure for PLA, PETG, or many composites. Add it when large ASA, ABS, PC, PA11CF, or other engineering parts start to warp, or when you want filtration and a quieter shop. Pair the enclosure with the upcoming heater when you need the full 60 °C chamber for big, boxy technical parts.

Ready on day one, serviceable for years

Ships assembled. Attach the five toolheads, run the calibration wizard, and print. Connectivity is Ethernet with optional Wi-Fi and optional Prusa Connect; the printer is fully usable offline, with a removable Wi-Fi module and no forced cloud. Smart filament runout pauses the job; power-loss recovery resumes after an outage. Five 2 kg spools can stay loaded for long unattended multi-material runs.

Firmware is open source. The machine is user-serviceable with a screwdriver — no glued assemblies or proprietary locks. Spare parts are intended to stay available for 5+ years. Designed, made, and tested in the EU and USA. Typical package includes the printer, handbook, Prusament PLA 1 kg, satin print sheet, five toolheads with high-flow nozzles, USB samples, toolset, and wipes.

Who the Five-Tool XL+ is for

• Shops that need one-piece large parts and true multi-material production on day one
• Product design, automotive fixtures, architecture, healthcare models, and cosplay
• Teams that want five materials, five colors, or five nozzle sizes loaded and ready
• Print farms and production cells that run unattended multi-material jobs
• Teams that print engineering filaments later with the Enclosure for Prusa XL+

If most of your work is single-material only, Single-Tool is the lower-cost starting SKU. If you need two materials or two nozzle strategies now, Dual-Tool is the better mid-range starting SKU. If most of your work is soluble supports, multi-color, or multi-material production, Five-Tool is the smart buy.

Highlights

• 360 × 360 × 360 mm large-format CoreXY 3D printer
• Five Nextruder toolheads with automatic tool changing
• 10–15% faster than Original Prusa XL, with nozzle wiper and 1.5 mm GT belts
• Segmented 16-tile heatbed to 120 °C; nozzle to 290 °C
• Optional Enclosure for Prusa XL+: ~50 °C chamber, 99.9% HEPA; heater add-on to 60 °C
• Open 1.75 mm filament, offline-first, user-serviceable, EU + USA built

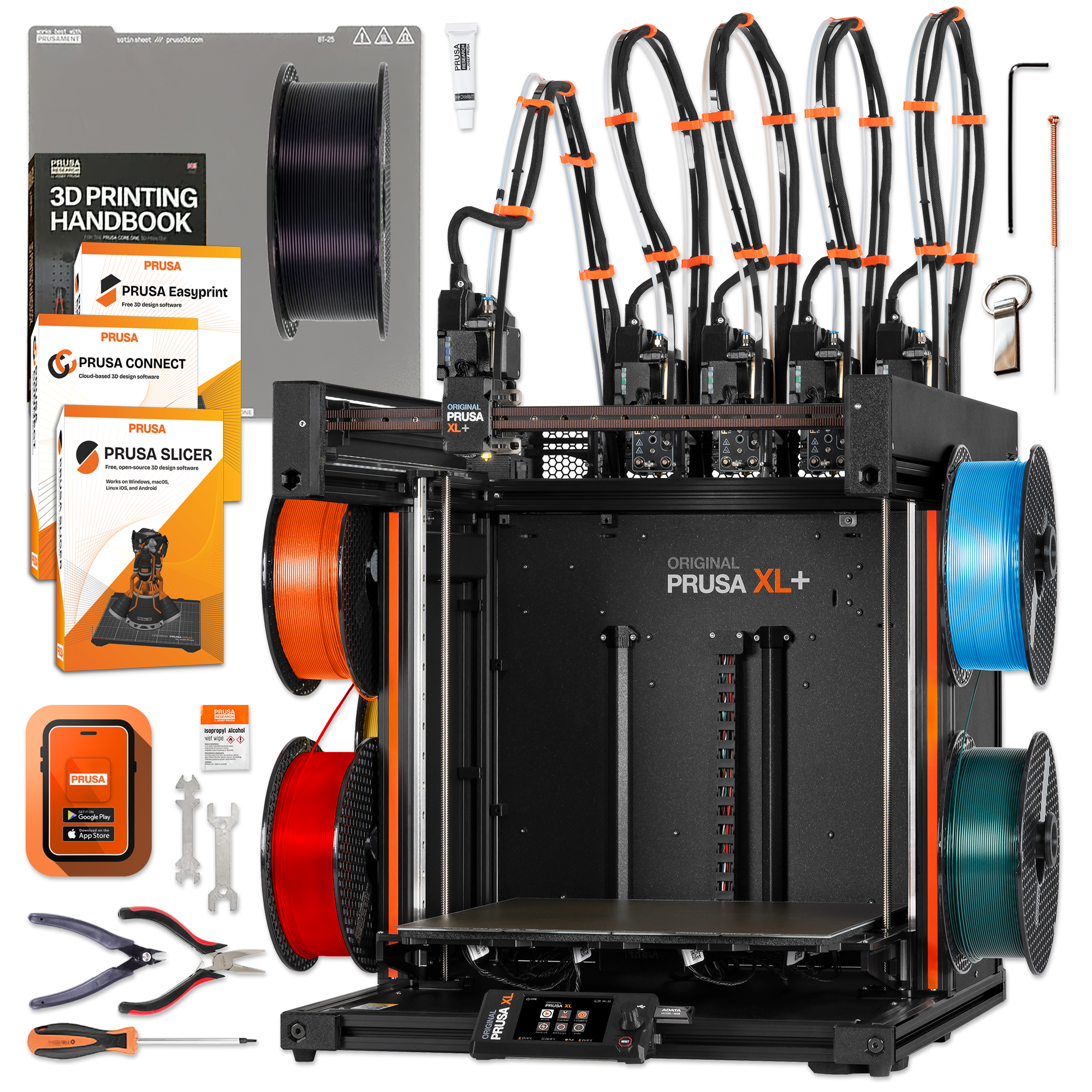

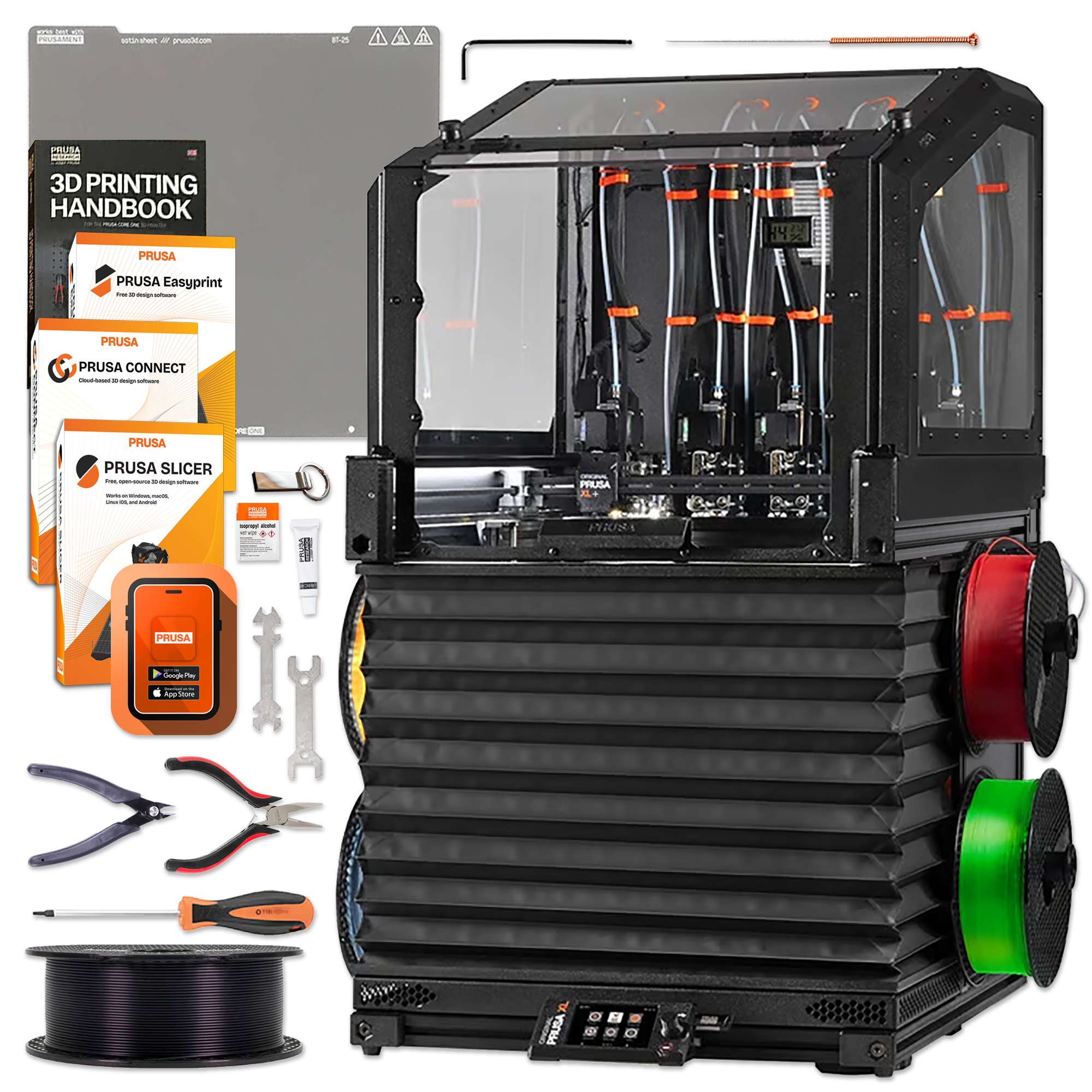

Prusa XL+ Five-Tool Head Bundle Includes:

• Fully Assembled Prusa XL+ 3D Printer
• Optional Printer Enclosure
• 5 Nextruder Toolheads With High-Flow Nozzles
• LCD Display Screen
• Removable Double-Sided Satin Print Sheet
• 1 Kg Spool of Prusament PLA
• 5 Filament Spool Holders
• USB Drive With Sample Prints (G-Codes)
• Toolset
• Alcohol-Saturated Wipes
• Prusa Lubricant for Bearings
• Prusa Academy Course (Digital)
• Haribo Gummy Bears
• Power Cable
• Wi-Fi Antenna
• 3D Printing Handbook
• U.S. Based Lifetime Product Support
• 1 Year Prusa Warranty

Included Software

• PrusaSlicer
• EasyPrint
• Prusa Connect
• Prusa App
• Printer firmware and firmware updates
• 200+ factory-tuned material profiles in PrusaSlicer

PrusaSlicer, EasyPrint, Prusa Connect, the Prusa App, and firmware updates are included and available at no additional software cost.
