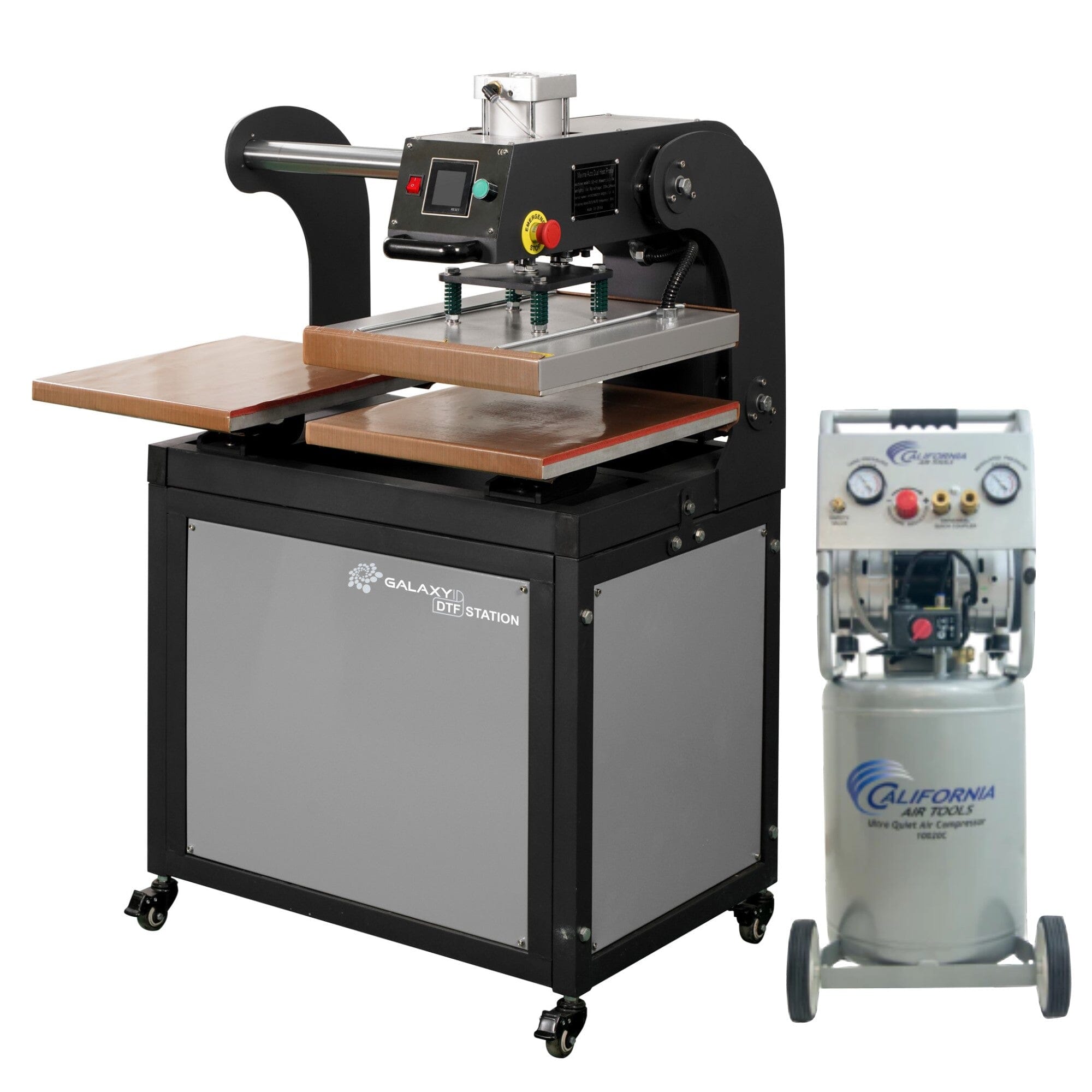

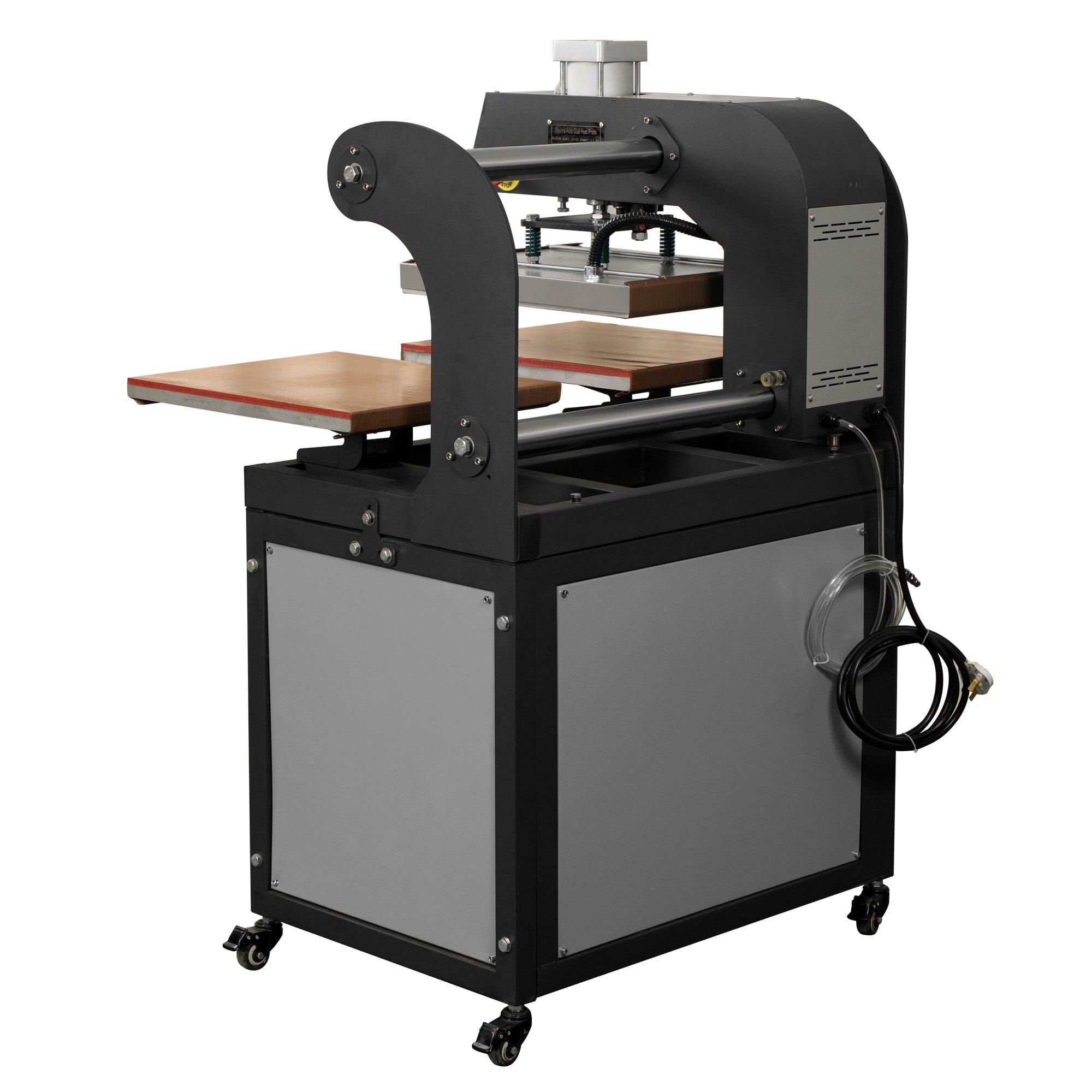

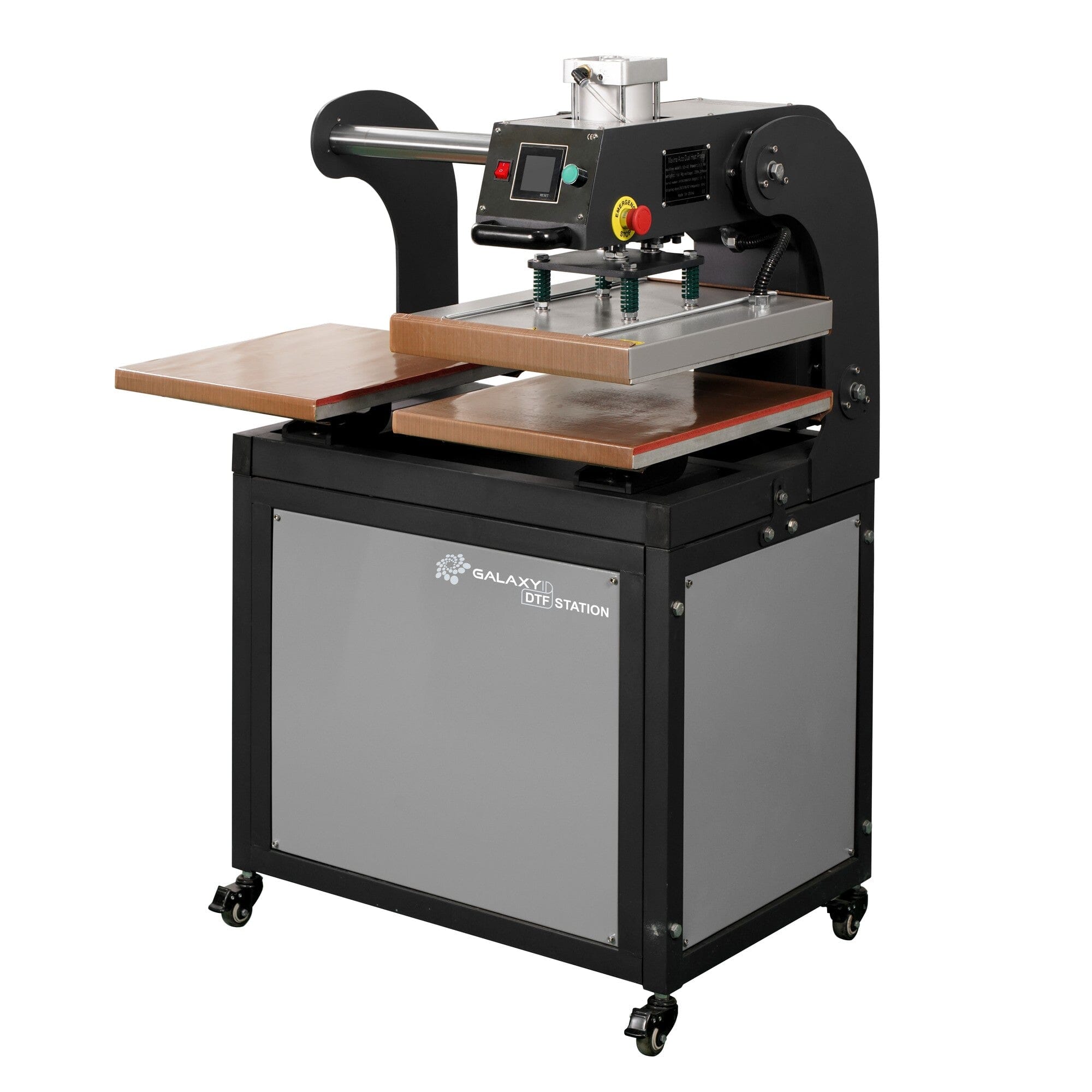

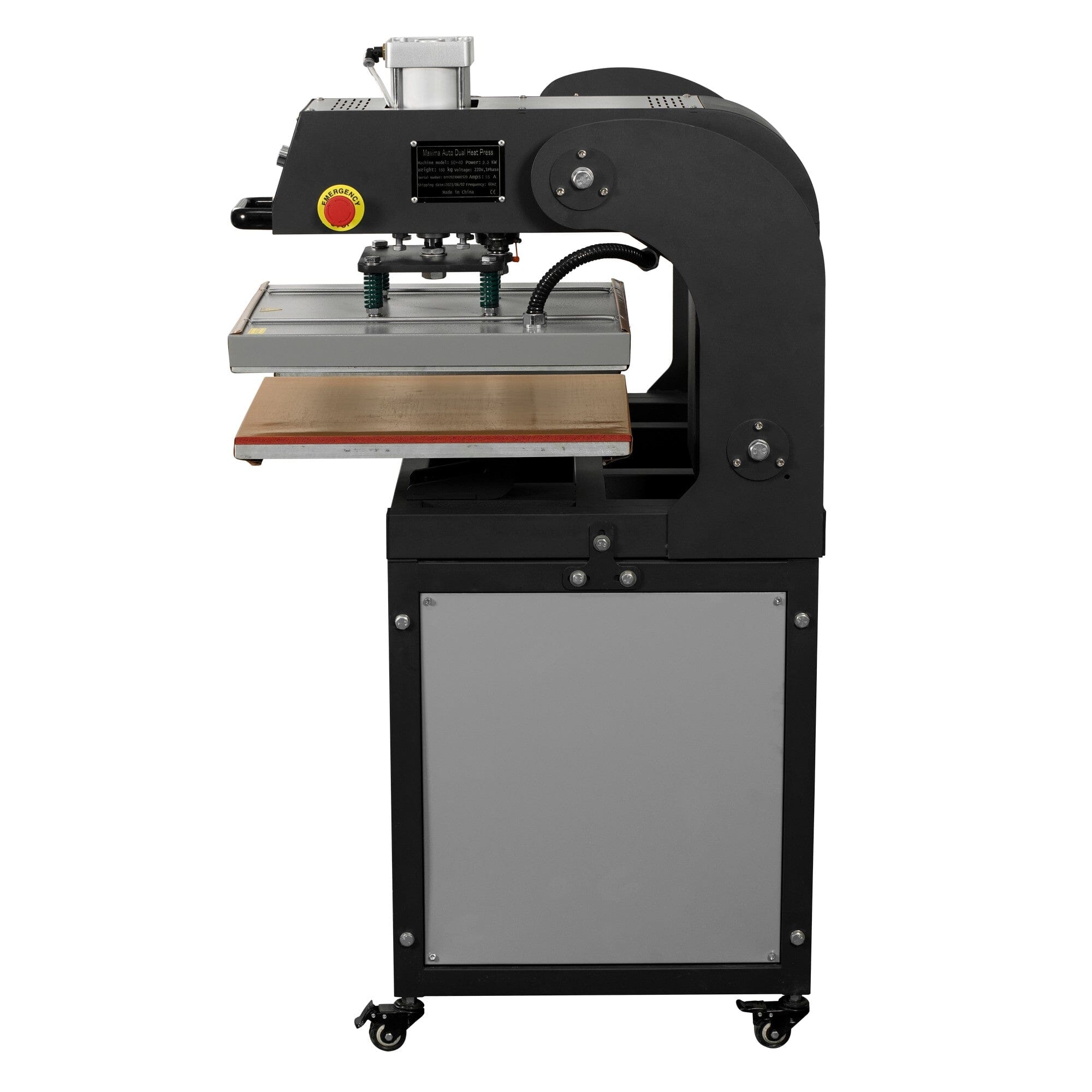

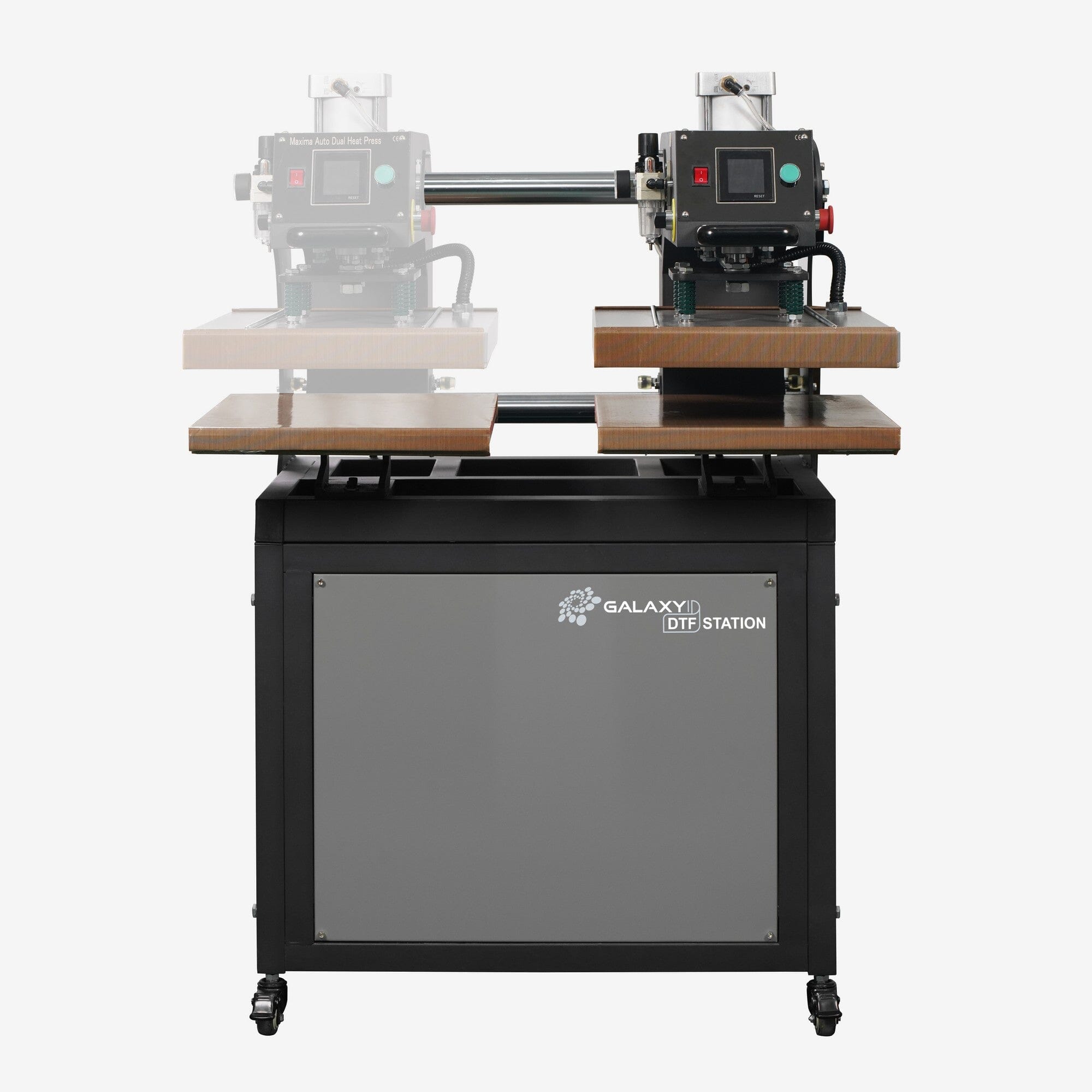

Prestige Maxima Semi-Auto Dual Heat Press w/ Air Compressor

Prestige Maxima Semi-Auto Dual Heat Press & California Air Tools 10020C Ultra Quiet & Oil Free Air Compressor

Heat Press Features:

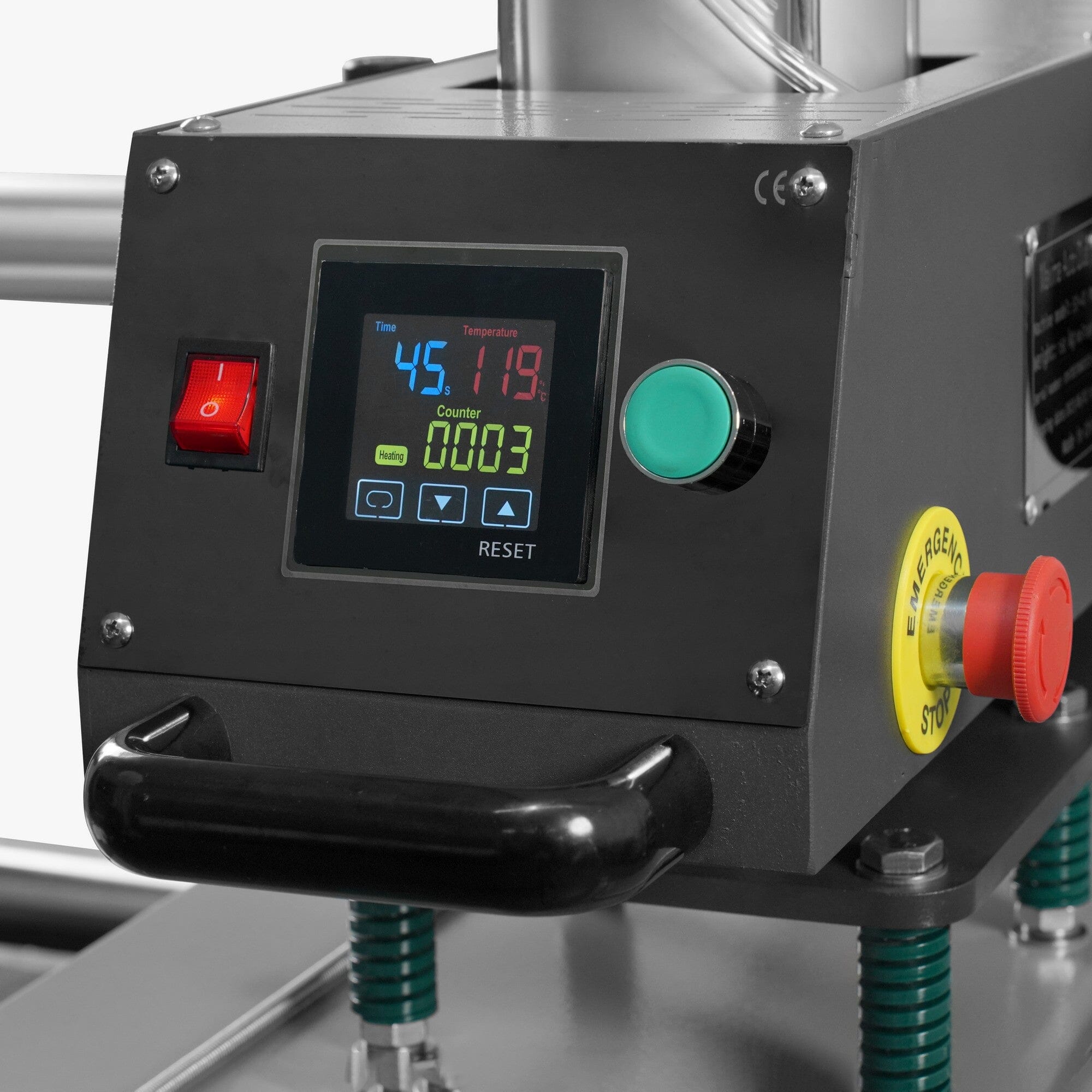

  • Digital temperature and time control

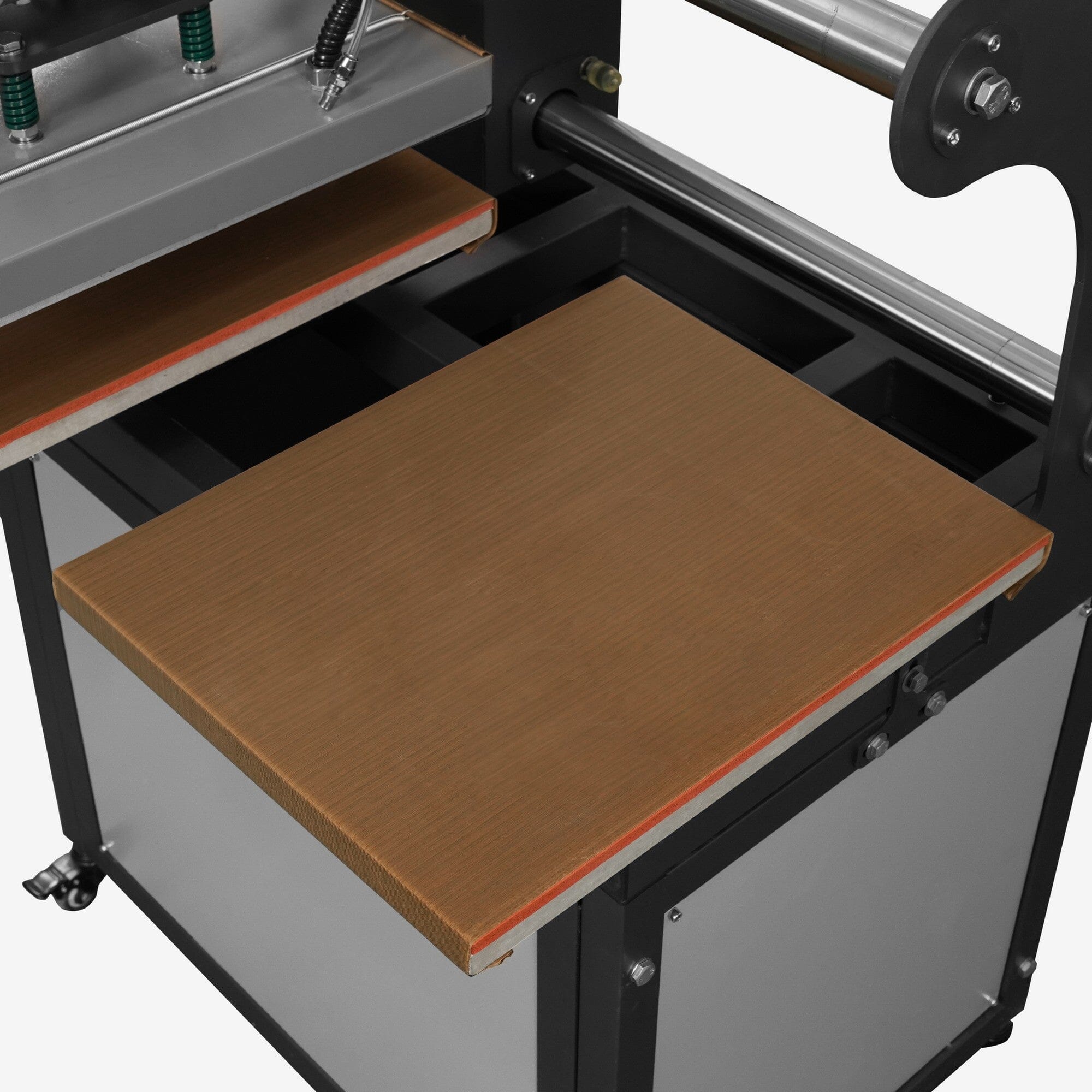

  • Double press bed to make your work more efficient
  • Extra thick heat platen enables high pressure
  • Well-suited for transferring graphics to textiles, large canvas bag, small format flags, banners, awnings, canopies, etc.
  • Good build quality
  • Baked on powder coating, Scratch-resistant
  • Faster, more efficient than single heat press
  • 1 year warranty on all parts
  • 5 year limited warranty on heating elements

Heat Press Specifications:

  • Platen size (LxW): 16" x 20"
  • Current voltage: 110V
  • Power: 3,500W / 15 Amps

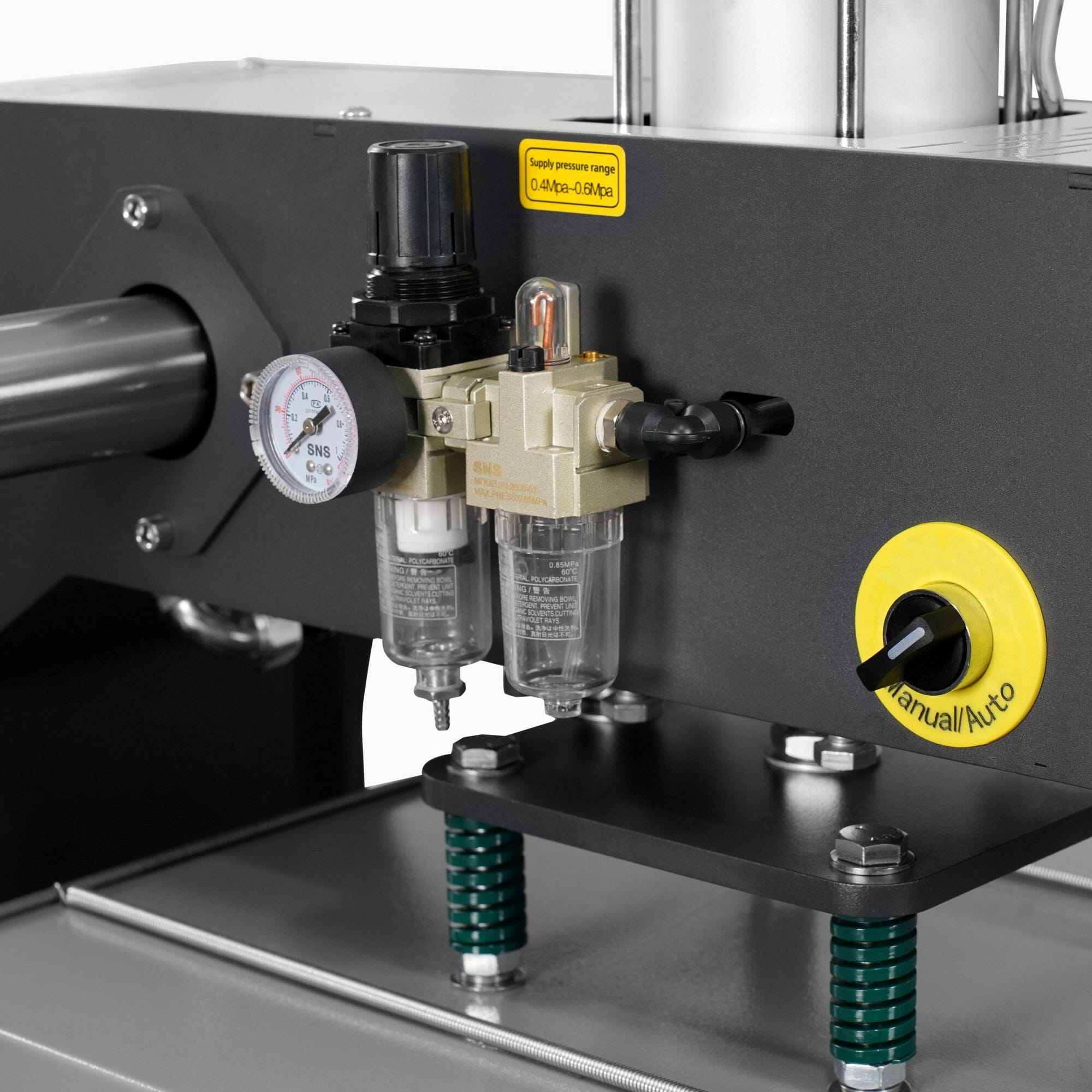

  • Requires use of air compressor - may need additional power requirements
  • Temperature range: 0-750°F
  • Recommended heating temperature: 320°F
  • Timing range: 0-999 Seconds
  • Machine size (LxWxH): 22" x 36.75" x 54.5"
  • Packaging size (LxWxH): 23.65" x 40" x 60"
  • Net weight: 265 lbs.

Air Compressor Features:

  • Two pressure control gauges
  • Two - 1/4″ Industrial female quick connectors
  • Easy Start Valve - For Less Starting Amperage
  • Condor Pressure Switch
  • Thermal Overload Protector
  • 125 PSI Maximum Pressure
  • Ultra Quiet - Only 70 decibels
  • Oil-Free Pump – Cleaner air for better tool operation.
  • Less maintenance and Costs

Specifications:

  • 2.0 HP (Rated/Running)
  • 10 Gallon Steel Tank
  • 6.40 CFM @ 40 PSI
  • 5.30 CFM @ 90 PSI
  • 110v / 60 hz
  • Low Amp Draw - 14 Amps
  • Dedicated 15 amp outlet -14 gauge 25ft cord - Min. 5500 Watt Generator
  • Time to fill tank from empty to full - 120 Seconds
  • Recovery time from 95 PSI to 125 PSI - 25 Seconds
  • Duty Cycle - 70/30
  • Maximum continuous running 30-60 min. (Depending PSI & CFM)
  • Less heat which dissipates more efficiently
  • 10 Gal. Steel Air Tank With Wheel Kit - Easy to move around.
  • L (16") x W (15.1") x H (35.9")
  • 82.5 lbs
  • 1 Year Limited Warranty
  • Comes complete with Wheel Kit & Two Air Filters
  • UL Certified
