Insta Graphic 907 Dual Station Shuttle Heat Press Machine - 6" x 6"

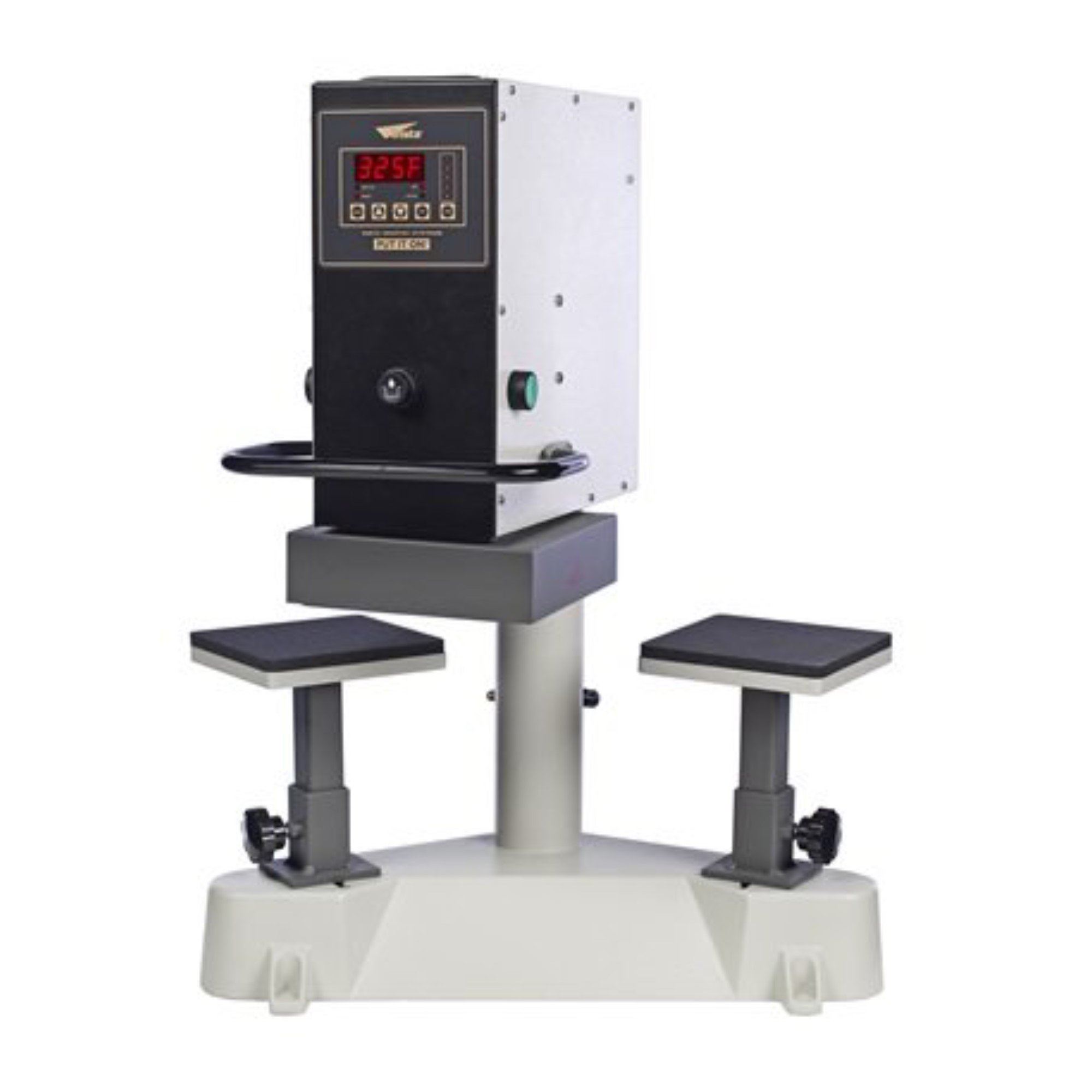

Insta 907 Heat Press Machine – Dual Station Shuttle

Insta answered the industry’s request for high-speed label application with the Insta 907 Dual Station Shuttle Press. This pneumatic heat press machine is air-operated to prevent operator fatigue and is equipped with two independent lower platens, with an upper heated platen that swings between the two, for optimal efficiency and high volume production.  The Insta 907 dual station heat press is used for its high-speed shuttle capability and its ability to produce consistent results under 24/7 use – maximizing profits and minimizing risks.

Performance You Can Depend On

The Insta 907 pneumatic heat press has been purposefully constructed to create and evenly distribute consistent pressure throughout the entire platen. Its cast-in tubular heating element heats the metal from within, producing constant, even, and long-lasting heat. A successful heat transfer application requires perfect time, temperature, and pressure – three key components needed to work together in harmony. Having mastered all three, the Insta 907 performs perfectly every time under 24/7 use.

Dual Lower Platens

The Model 907 features two independent 6”x6” lower platens and a 6”x6” upper heated platen that swings between the two for optimal efficiency. While one side is engaged, the other side can be loaded – there is no downtime. The result is increased production which adds to your bottom line.

Interchangeable Lower Platens

Its lower platens can be easily lifted out and replaced with smaller 2.5”x2.5” lower accessory platens for the application of small tagless labels.

Over the Center Pressure Distribution

The Model 907’s pressure source is strategically placed over the center of its upper platen and uses struts to drive that pressure out to all corners. The result is an even and heavy-duty distribution of pressure that is unparalleled by other heat presses in the market today.

 Cast-In Tubular Heating Element

The tubular heating element is cast into the aluminum upper platen, heating the metal from within. The element is coiled throughout the upper platen to provide a reliable and even circulation of heat out to all corners. Cast Aluminum Assembly Machines made from cast metal are considered to be of the highest quality and are strong enough to withstand heavy use without warping or bending. The 907 is extremely durable and, if cared for properly, can last up to 25 years.


  • Dual 6”x 6” lower platens (15.2 cm x 15.2 cm) with a 6”x 6” moveable shuttle upper platen
  • Optional 2.5″ x 2.5″ accessory platens
  • Worry-free automatic open
  • Made of cast aluminum for maximum durability.
  • Fully adjustable pneumatic pressure control.
  • Integrated digital controller with five-programmable application features controls for time, temperature (Fahrenheit or Centigrade) & cycle counter.
  • Built-in cycle counter displays up to 9999 applications
  • Warranty – Lifetime warranty on the upper heating element, 1 year on parts & 90 days on labor.
  • UL, CuL & CE approved. RoHS/WEE compliant.
  • Space-saving design. Unobstructed view of the platens with its swing-away feature
  • Made in USA
  • Warranty: Lifetime on the upper heating element, 1 year on parts, 90 days on labor
