More production, increased efficiency.

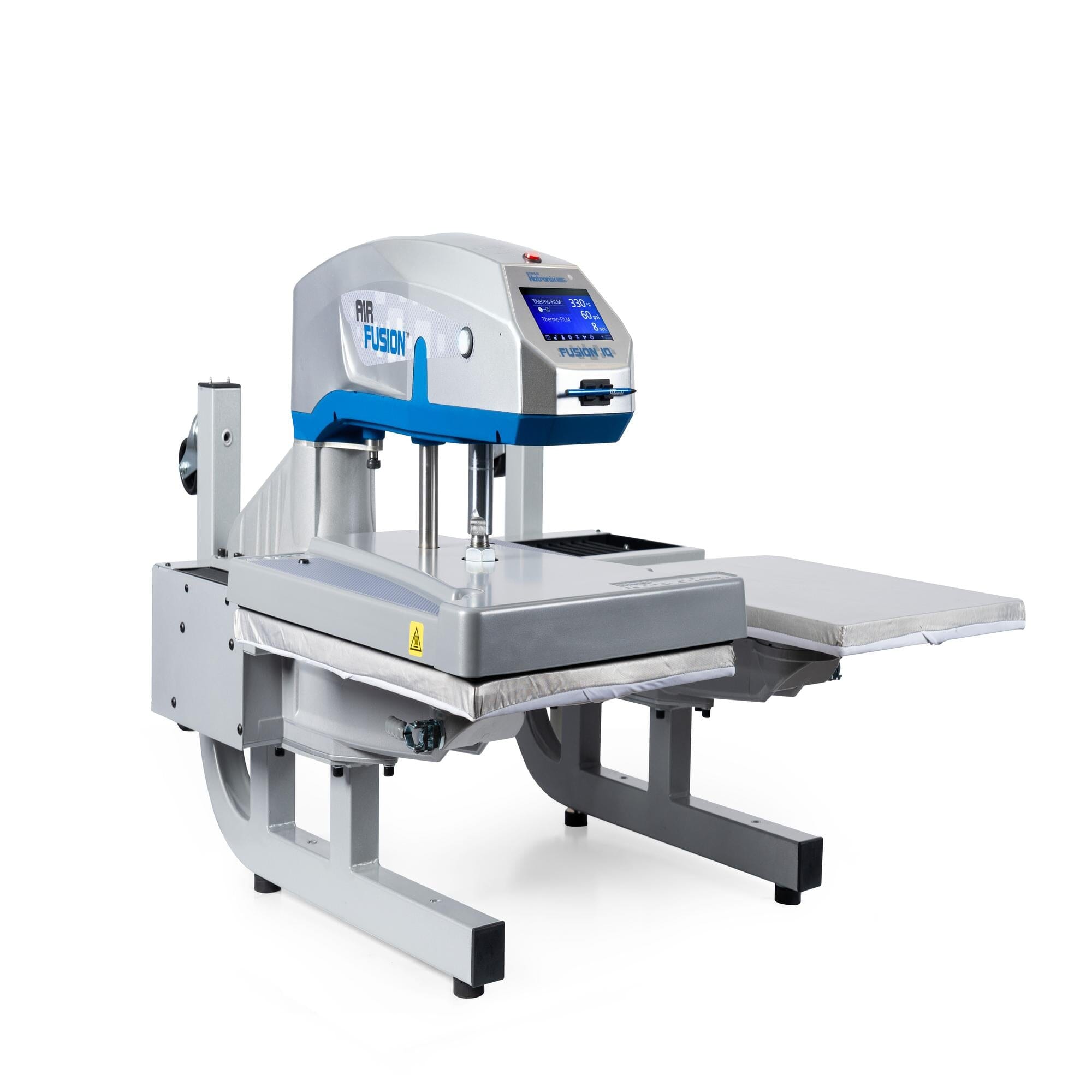

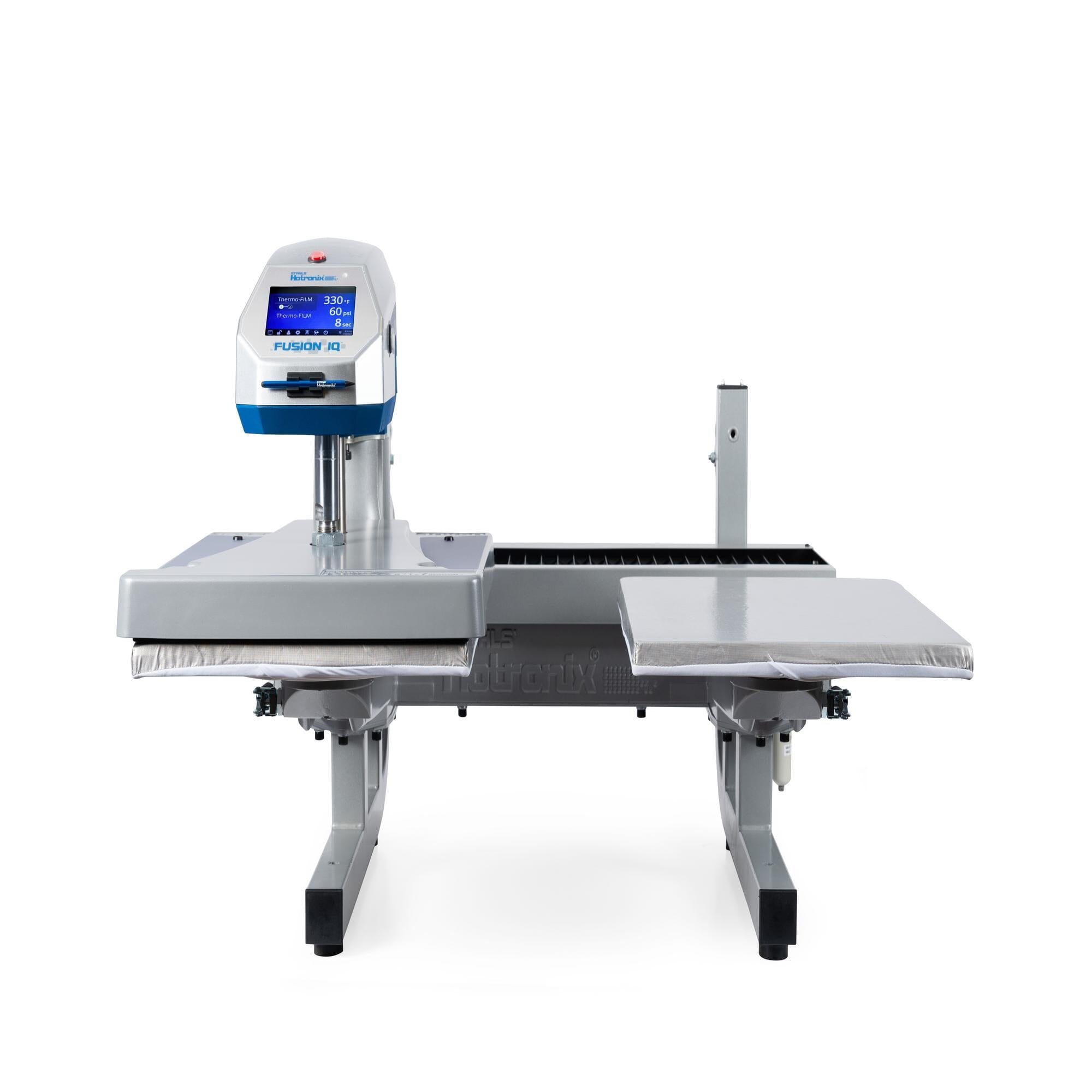

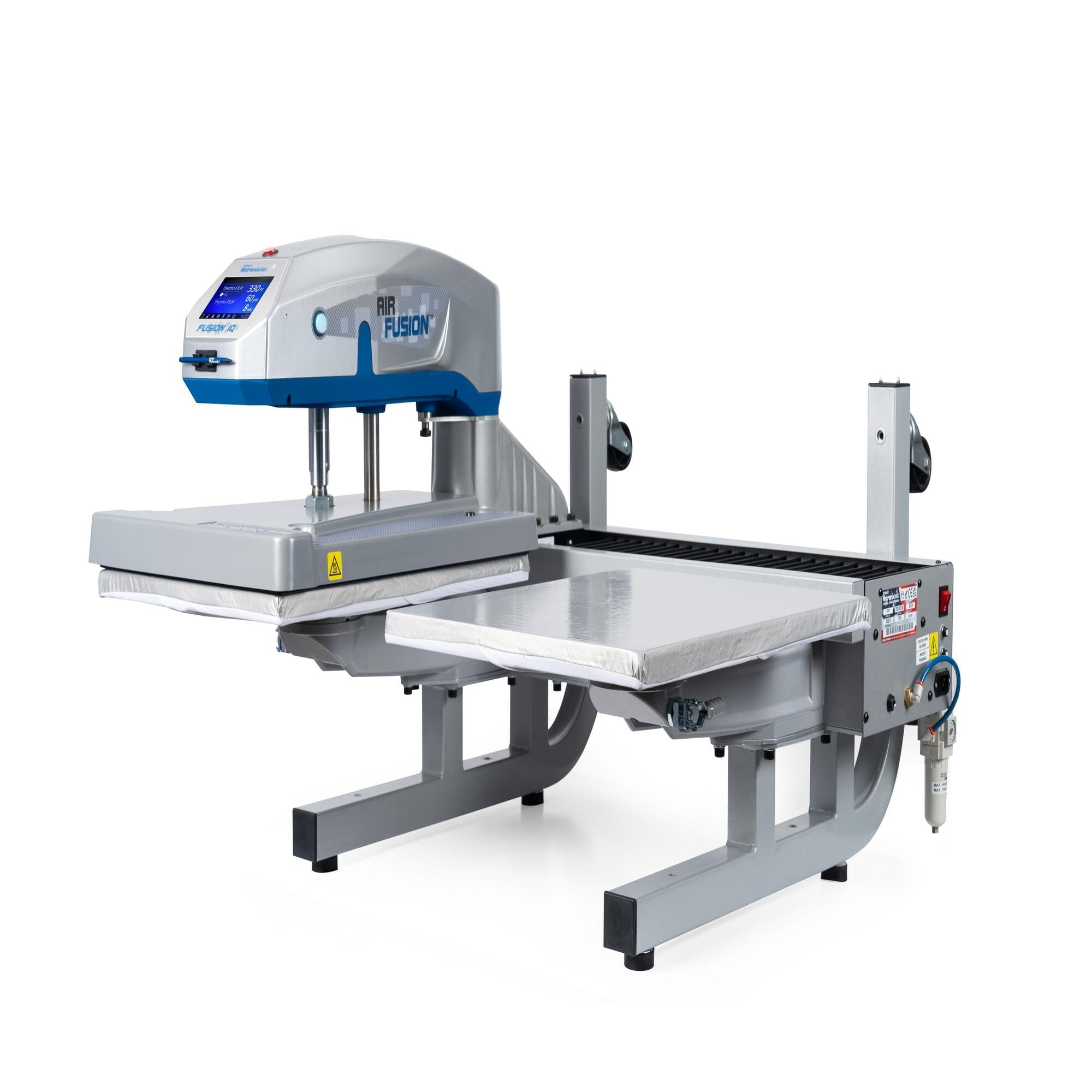

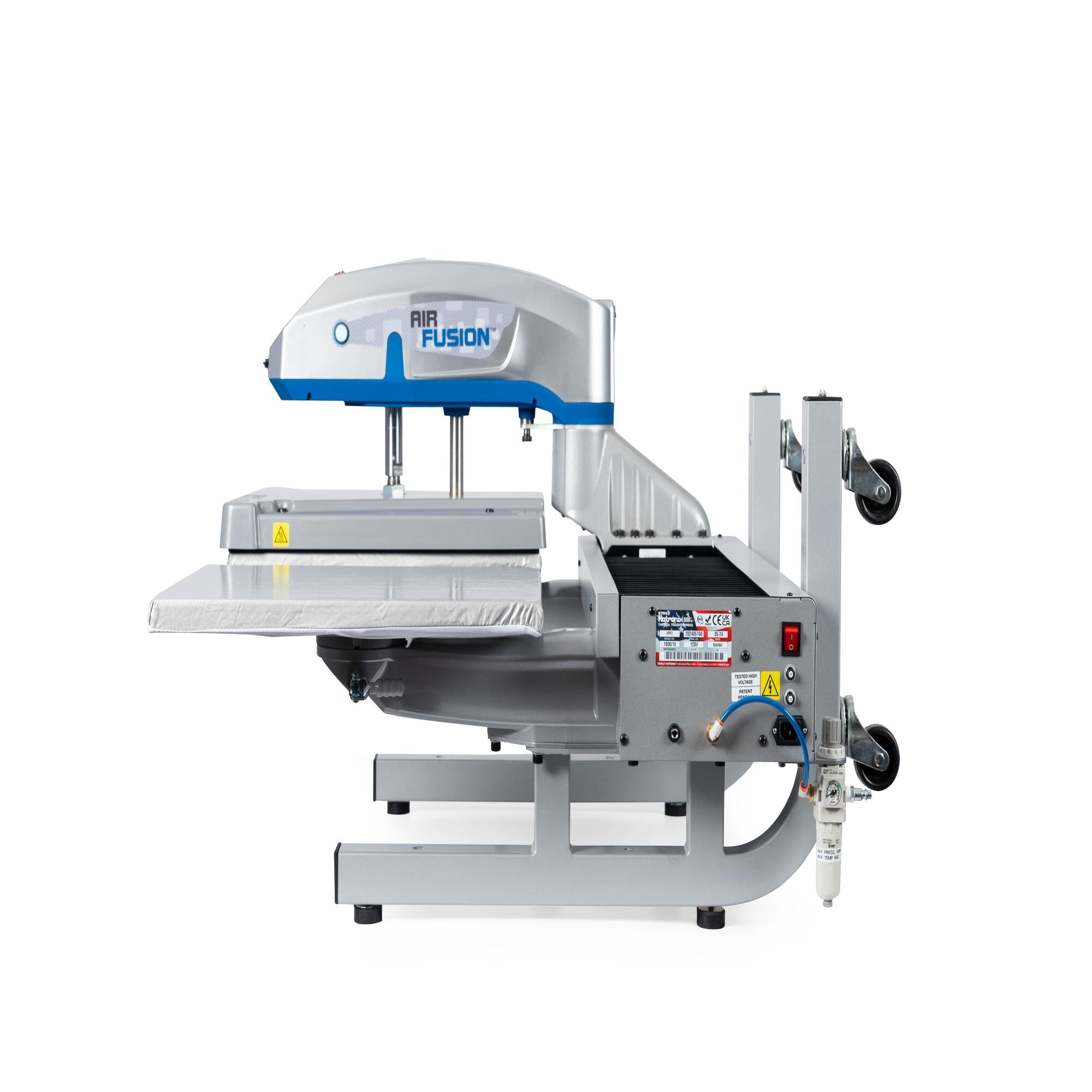

With two heat printing stations, the Dual Air Fusion IQ heat press increases efficiency by allowing threading and layout on one station while the other is being pressed. It's perfect for high-volume operations and for DTG printing – set one station for pre-treatment, the other for post-curing.

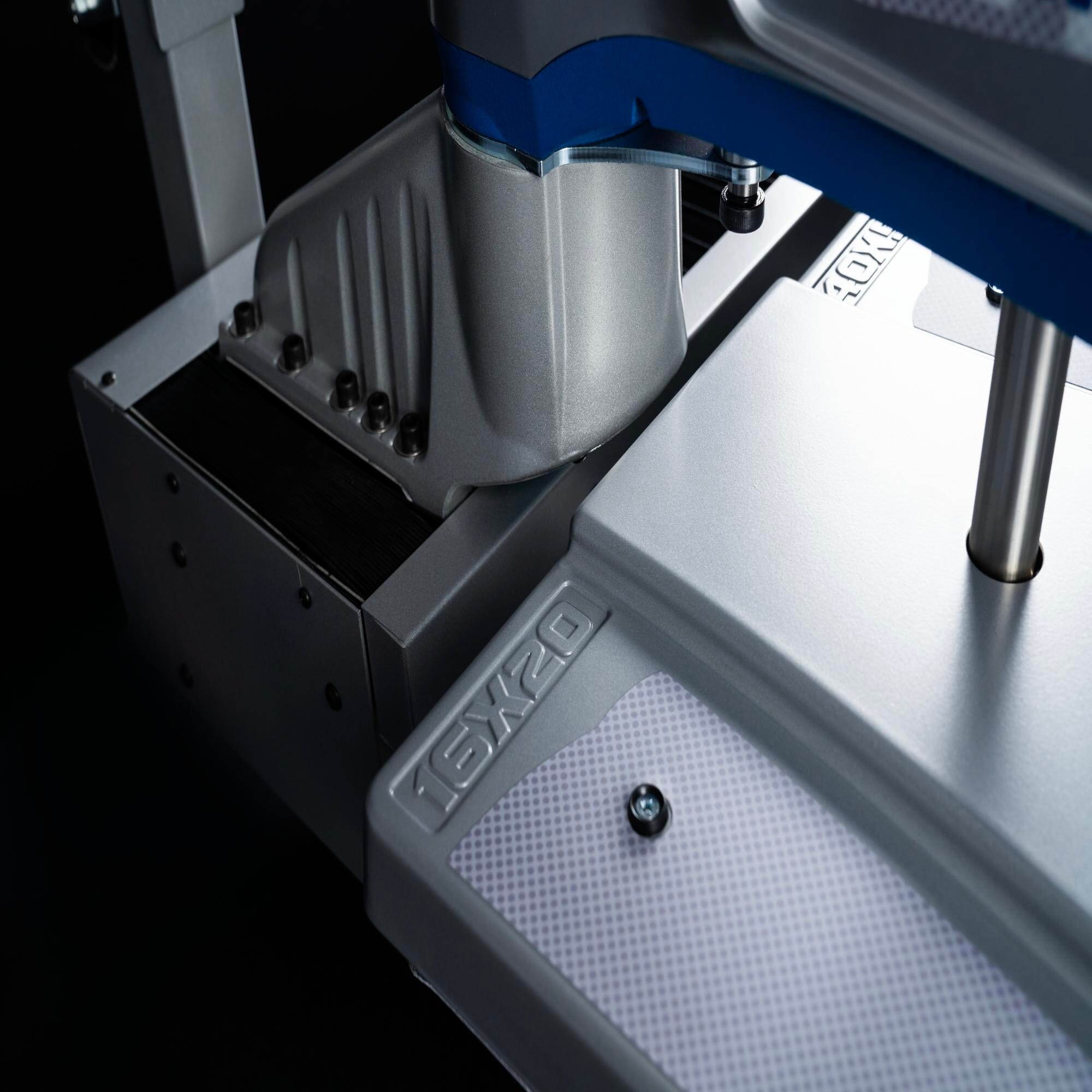

- 16" x 20" Dual Quick Change Platens
- New Fusion IQ controller with larger, higher-resolution screen, plus troubleshooting and self-diagnostic capabilities
- Generate performance reports and manage users online with the new Hotronix Online Portal
- Program each station to work independently or in unison with Position-Based Recipe printing
- Dual Quick Change 16" 20" lower platens (additional platens available separately)
- Full Threadability on lower platens: position the garment, rotate, and decorate any area
- Auto Adjust Pressure: Set four different time and pressure settings that adjust automatically for your recipe
- Digital time, temperature, and pressure readouts
- Operates in full-auto, semi-auto, or manual modes
- Smooth, quiet rodless transmission
- Auto Shuttles Back & Forth
- Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
- 120 PSI for heavy-pressure application
- Die pressure cast, corrosion-free base and assemblies
- Requires air compressor (not included) with minimum: 1 horsepower and 8-gallon hold tank. Uses 3.8 CFM
- Choose from: 240 v; 15 amps; 3500w OR 120v; 20 amps; 1800w
- Must have dedicated circuit breaker
- Proudly made in the USA
- Warranty - Heating Element Lifetime, Framework 5 Year, Circuit Board 2 Year, Parts & Labor 1 Year. Tech Support Based in the U.S.A

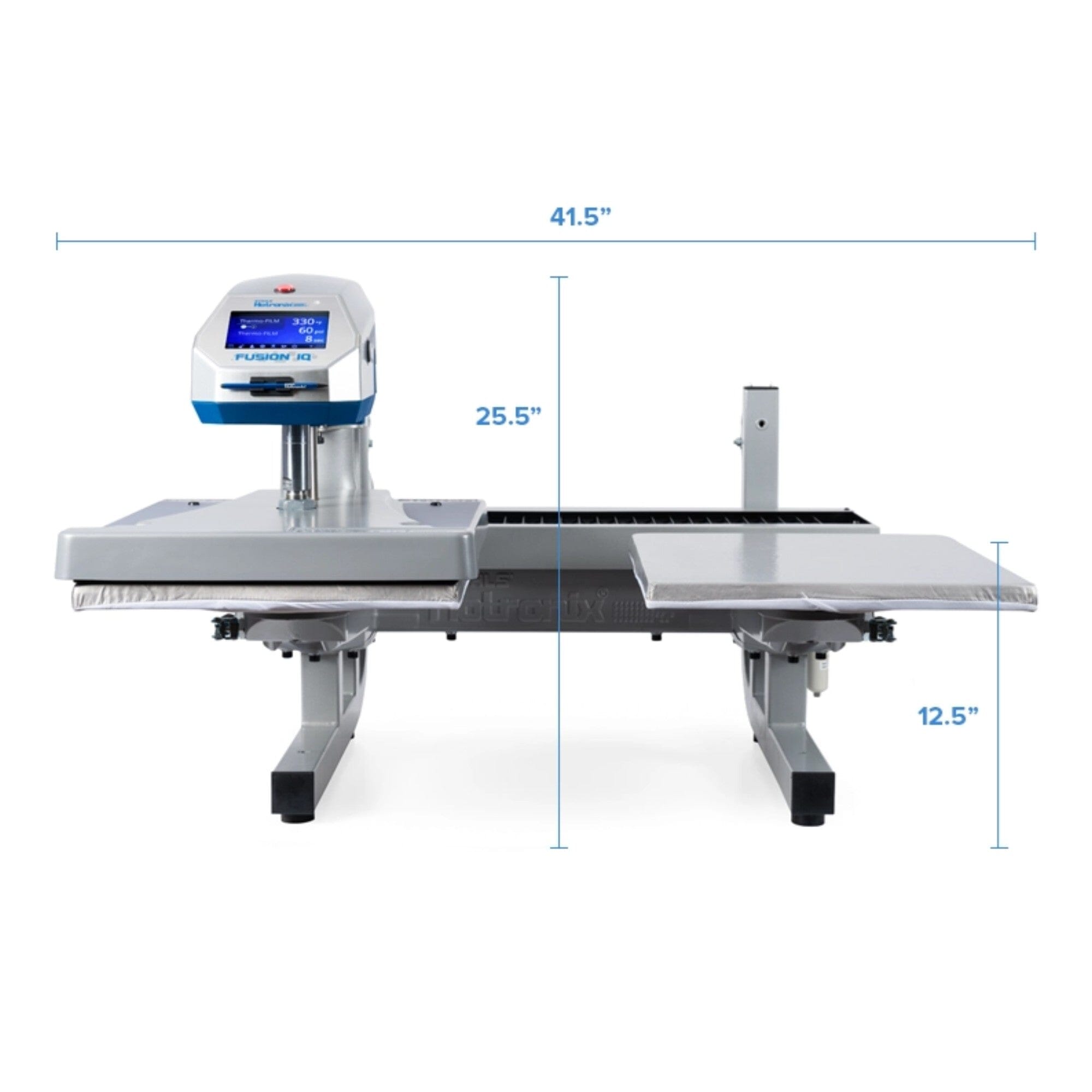

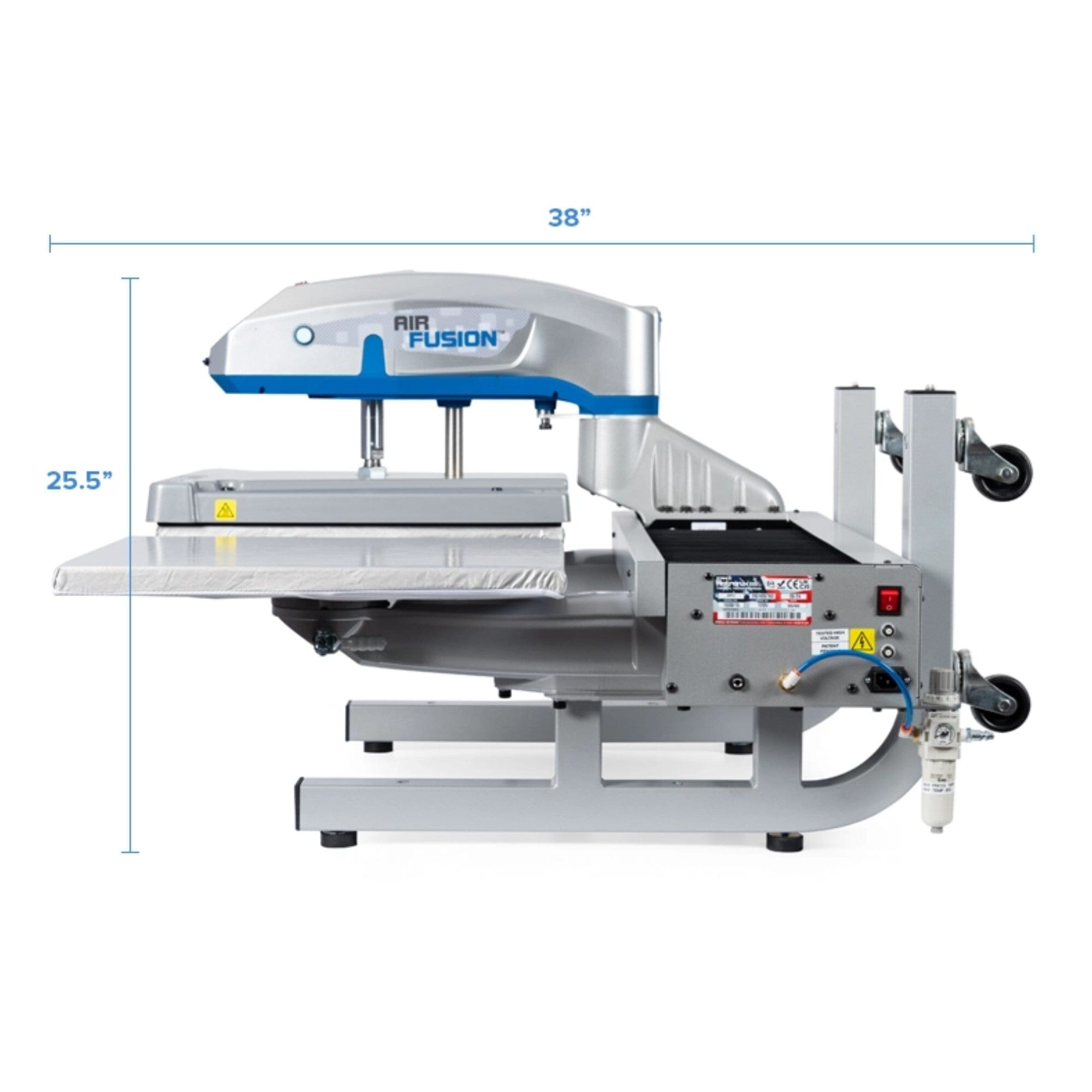

Actual weight: 260 lbs.
Ship weight: 410 lbs.
Ship dim. 45” x 45” x 30”
