Graphtec FCX2000-180 Flatbed Cutter - 70" x 36” with Bonus Software

With Graphtec's medium to large flatbed cutting plotters, the FCX2000 Series provides the best solution for package prototyping and short production runs of rigid materials, eliminating the need for a cutting die. The included dedicated software enables contour cutting, reducing media waste and processing time. This makes the FCX2000 Series the ultimate choice for those looking for a seamless and efficient package prototyping and short production run solution.

Users are empowered to create custom orders at low cost with short delivery times. Redesigned Y bar and cutting table deliver high precision cutting and creasing. New dedicated design software and plug-ins provide all of the tools necessary to create elegant, professional products.

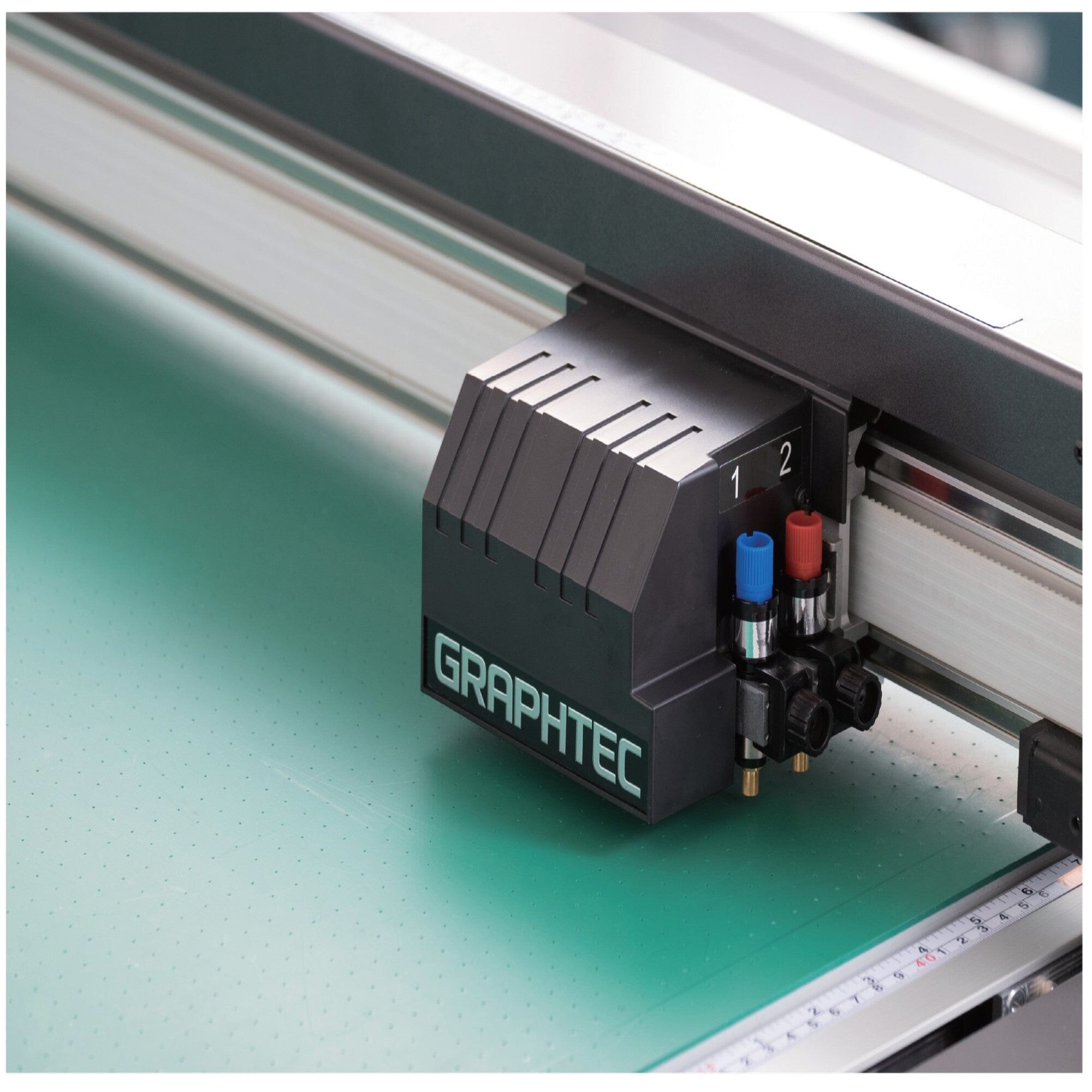

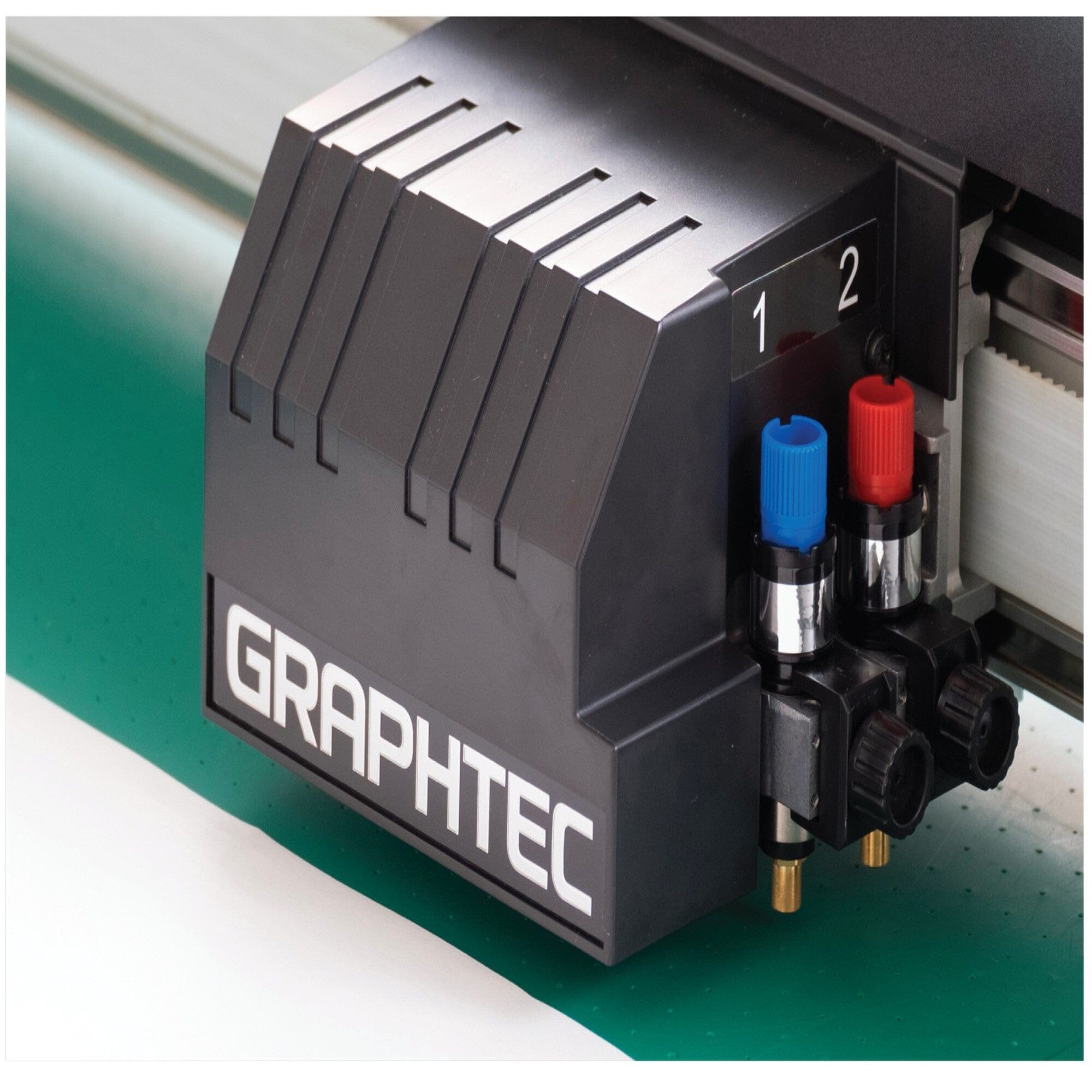

Dual head design delivers 500G and 1000G of force at speeds up to 400mm/s. Process materials thick or thin including: Rubylith, Static Cling Film, Vinyl, Rubber Sandblast, Diamond Grade Reflective, Chipboard, E-flute and more.

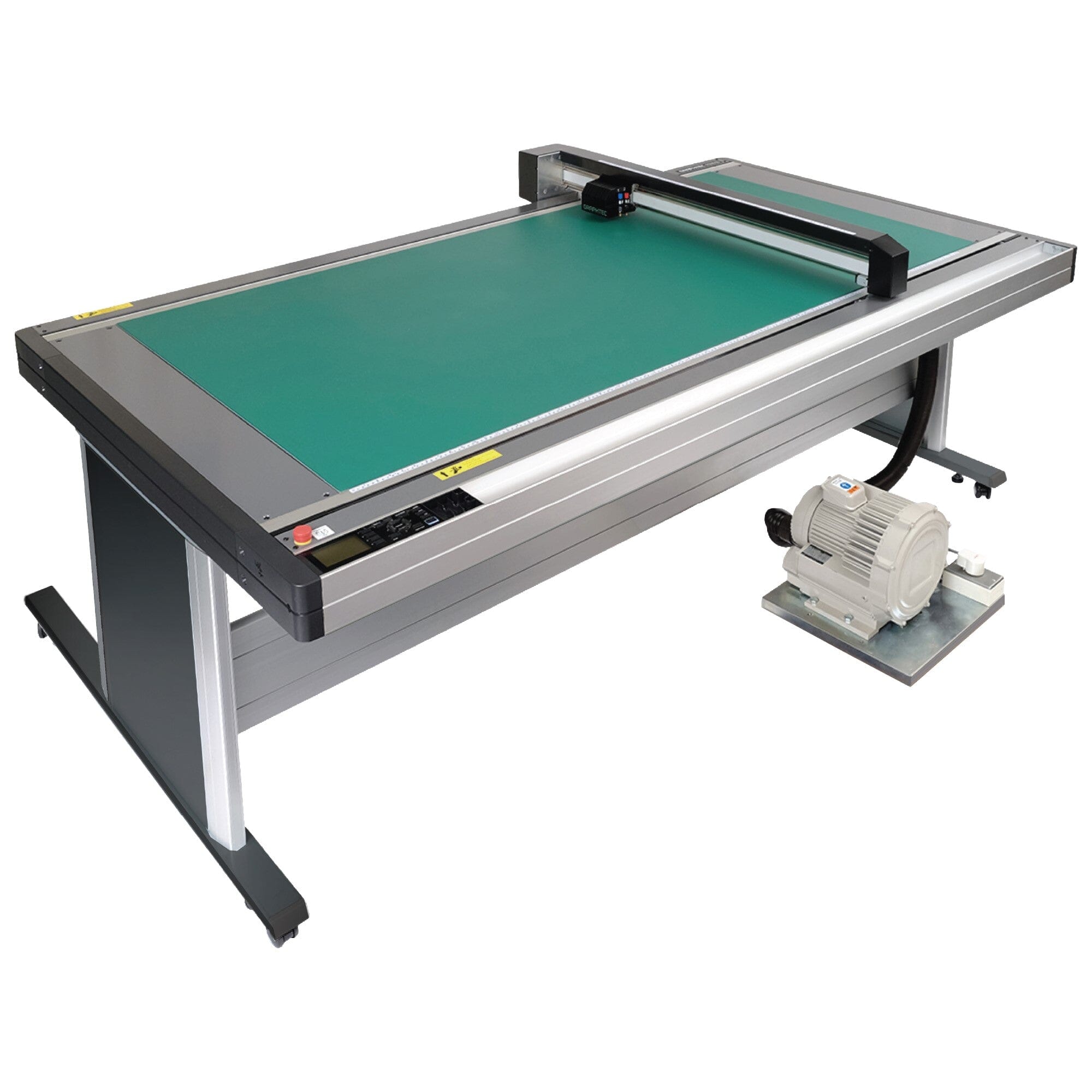

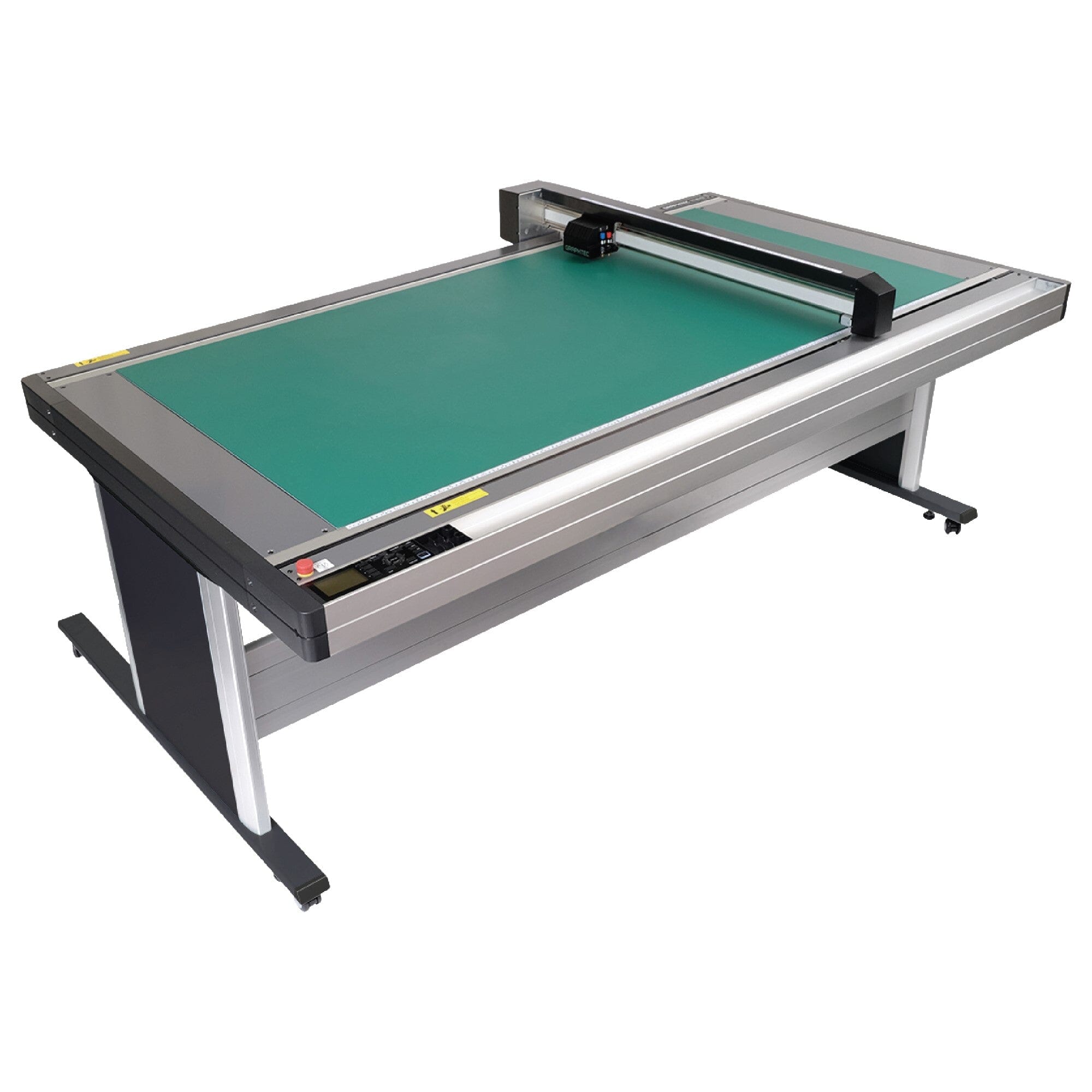

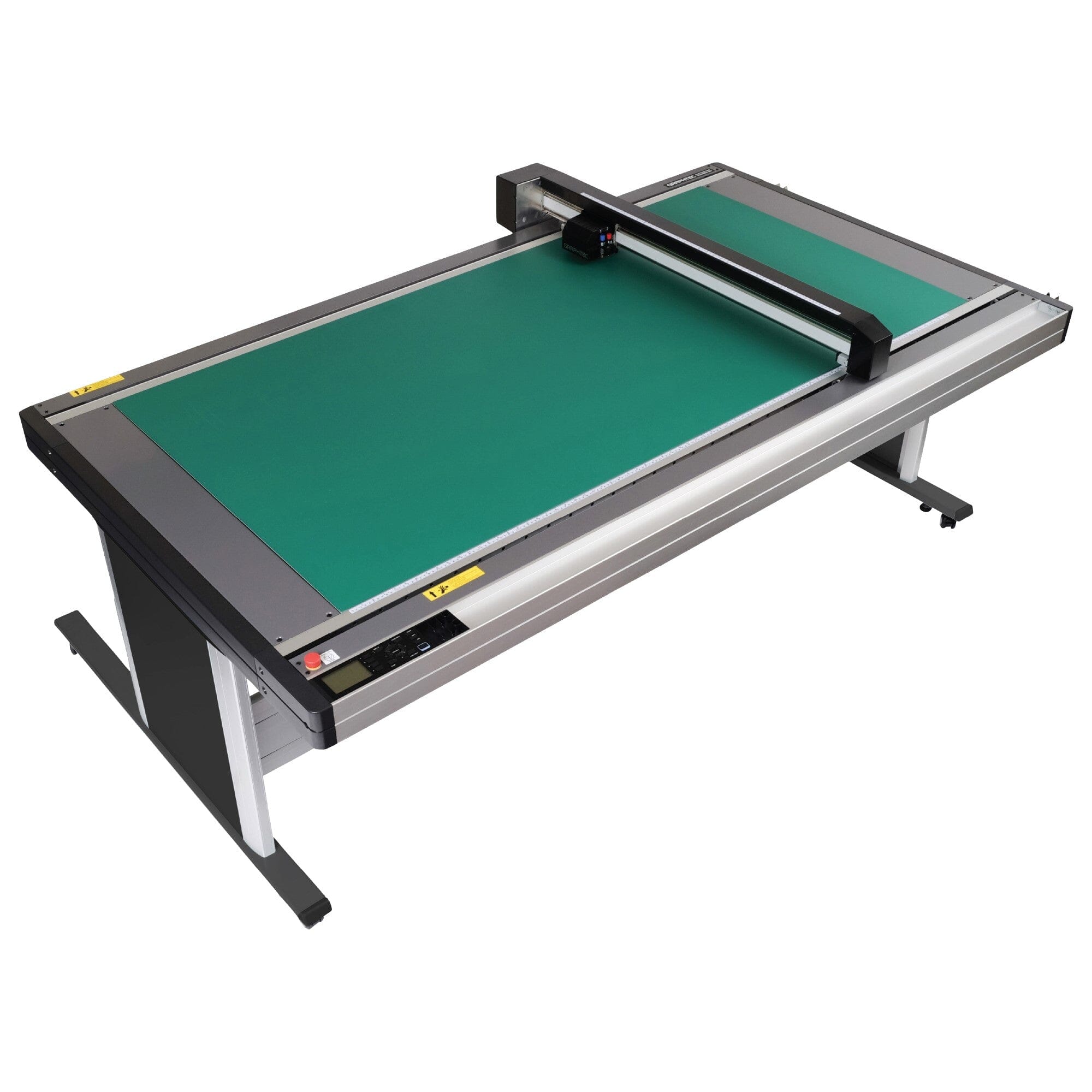

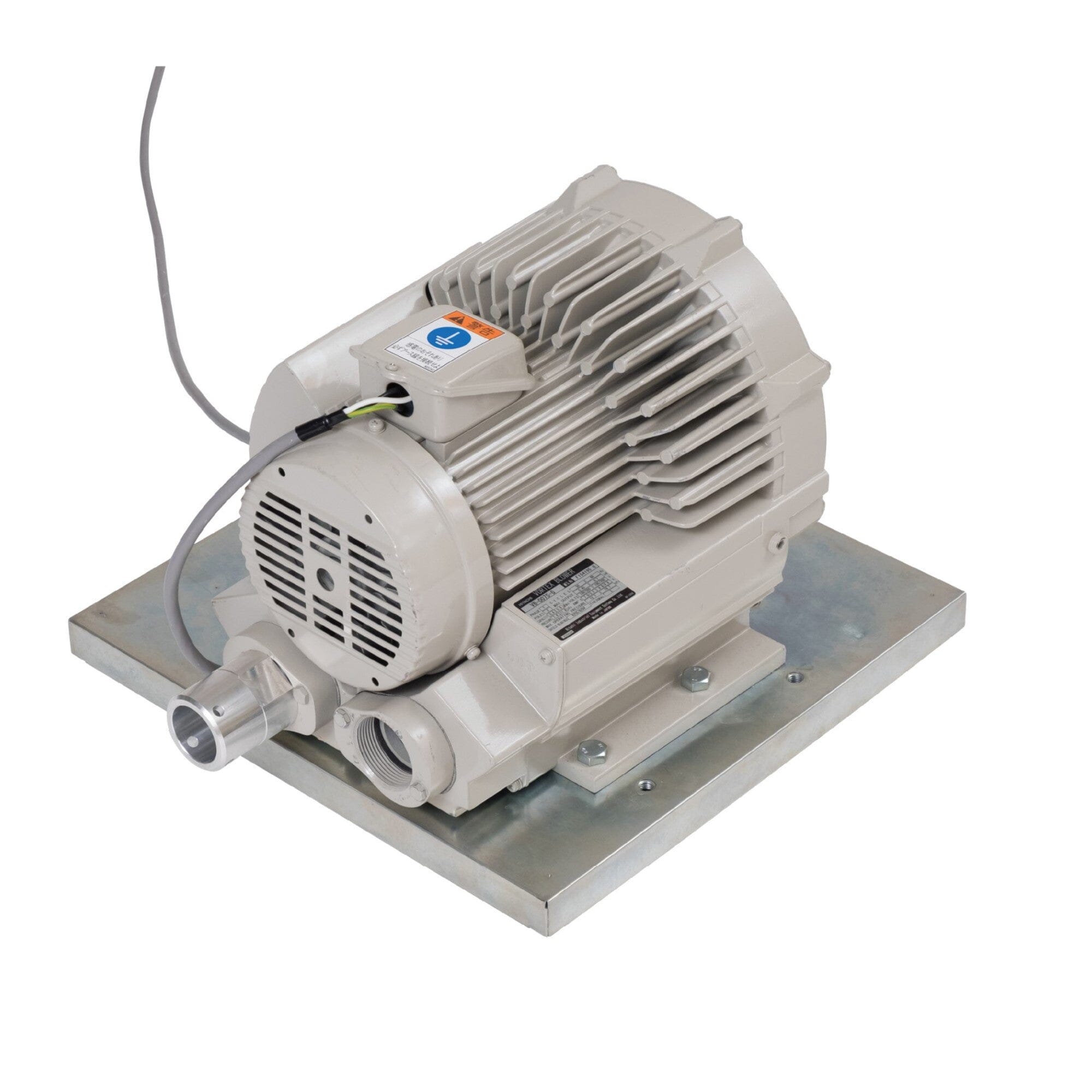

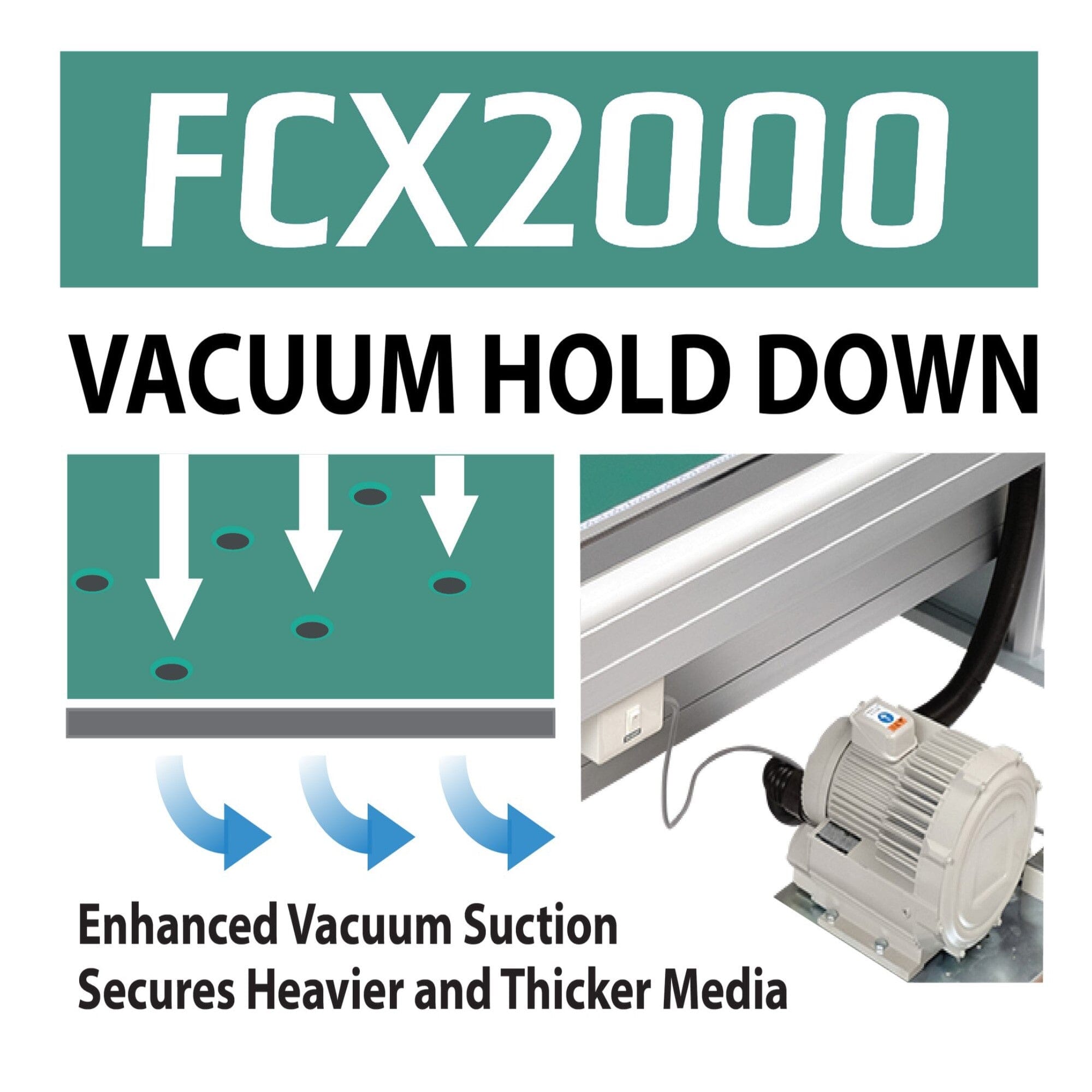

Three table sizes of 24 x 36”, 48 x 36” and 70 x 36” are available utilizing enhanced vacuum suction media hold down.

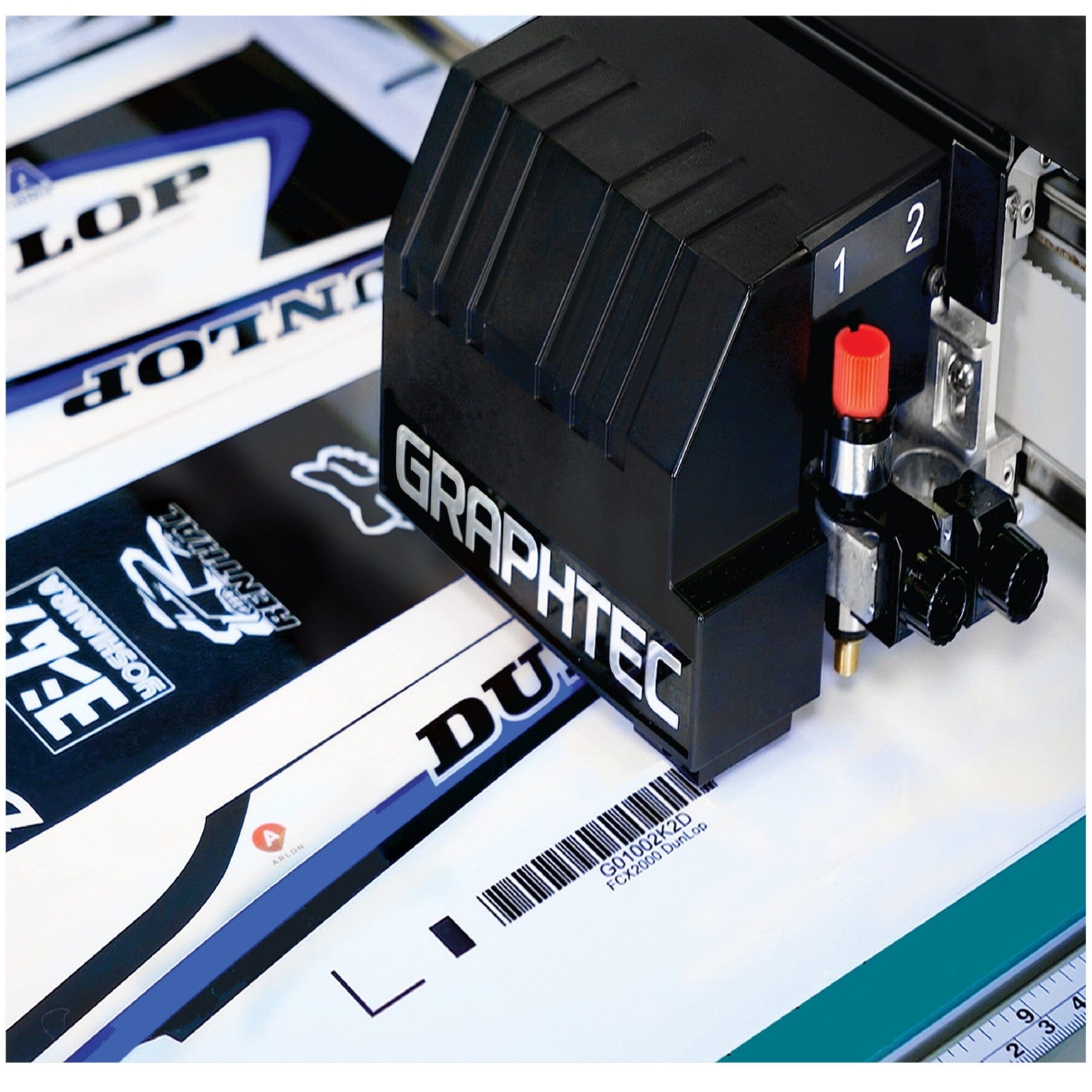

With Offline USB Operation, individuals with minimal experience can operate the machine directly without requiring a computer. USB operation allows operators of all skill levels to handle various types of media for cutting. Once the designer has created the plot file, it can be shared with users of any experience level to produce. All that is needed is to insert the USB and select the file from the user-friendly 3.7 inch Graphic LCD screen. The cutting conditions are automatically applied, and the job is executed. Additionally, barcodes can be generated for print and cut applications. The cutting data is automatically selected from the USB flash memory by scanning the barcode printed on the media, allowing for seamless contour cutting and reducing the possibility of operator errors.

The FCX2000 Series is equipped with Graphtec’s renowned ARMS system (Advanced Registration Mark Sensing) technology that allows users to accurately contour cut pre-printed graphics with ease. Auto-scanning of four point registration marks compensate for distortion in both X & Y directions to ensure precise cutting.  Version 6.0 is packed with high productivity features such as ARMS Copy, One Point Compensation, Scan Start Position, and Expanded Cutting Area capability.

Graphtec’s Cutting Master 4 plug-in for Adobe Illustrator and CorelDRAW is used to send cut designs, as well as control parameters of the plotter. This is where registration marks can be added, large designs tiled; matrix copies created, and weed lines added.  Graphtec Pro Studio design software offers an array of design tools and extensive file format compatibility – including EPS, CMX and PDF.  In addition, Graphtec Pro Studio PLUS is an upgrade to unlock advanced features such as true shape nesting, arranging the cut order of objects, and rhinestones.

Improved Y-bar Rigidity: For precision cutting accuracy

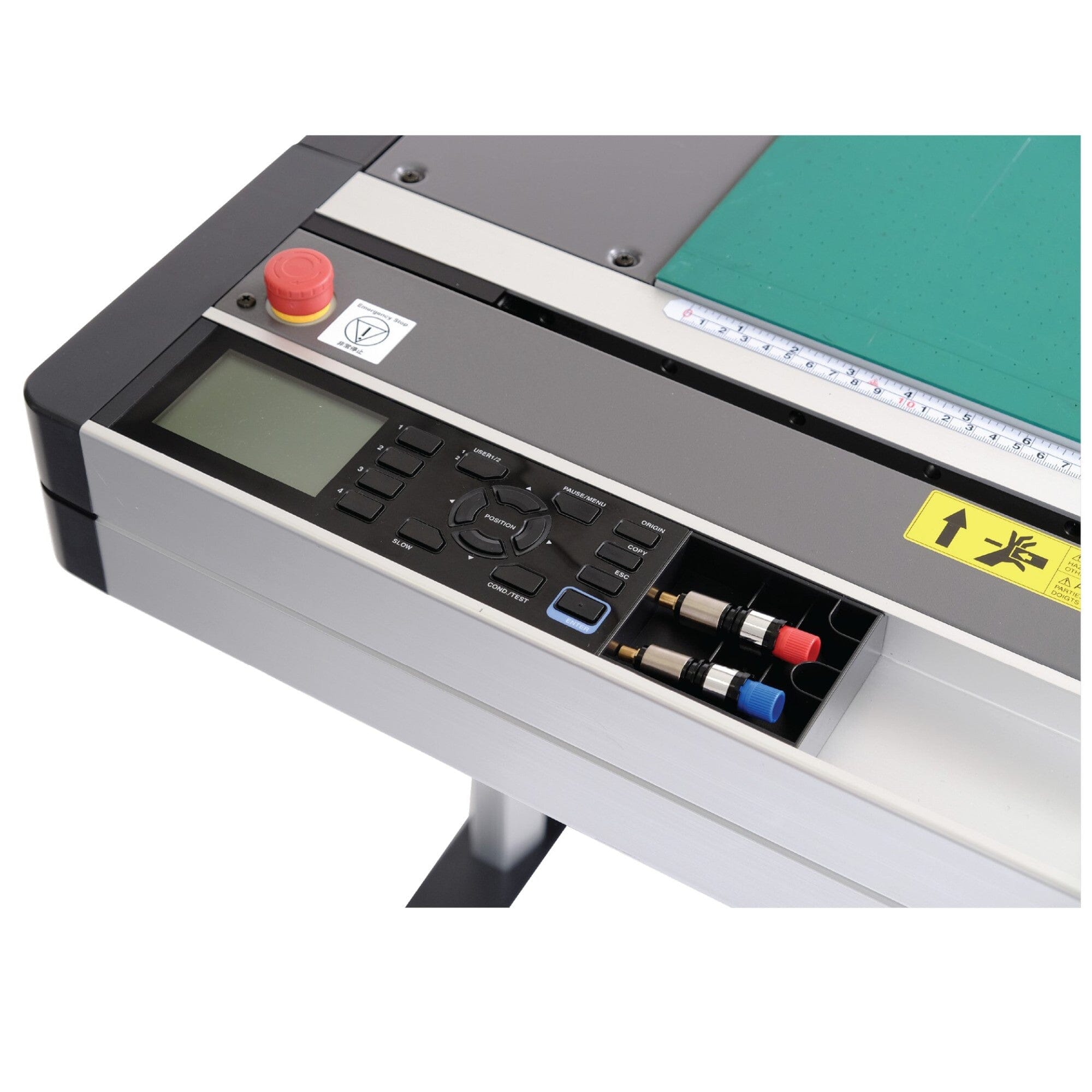

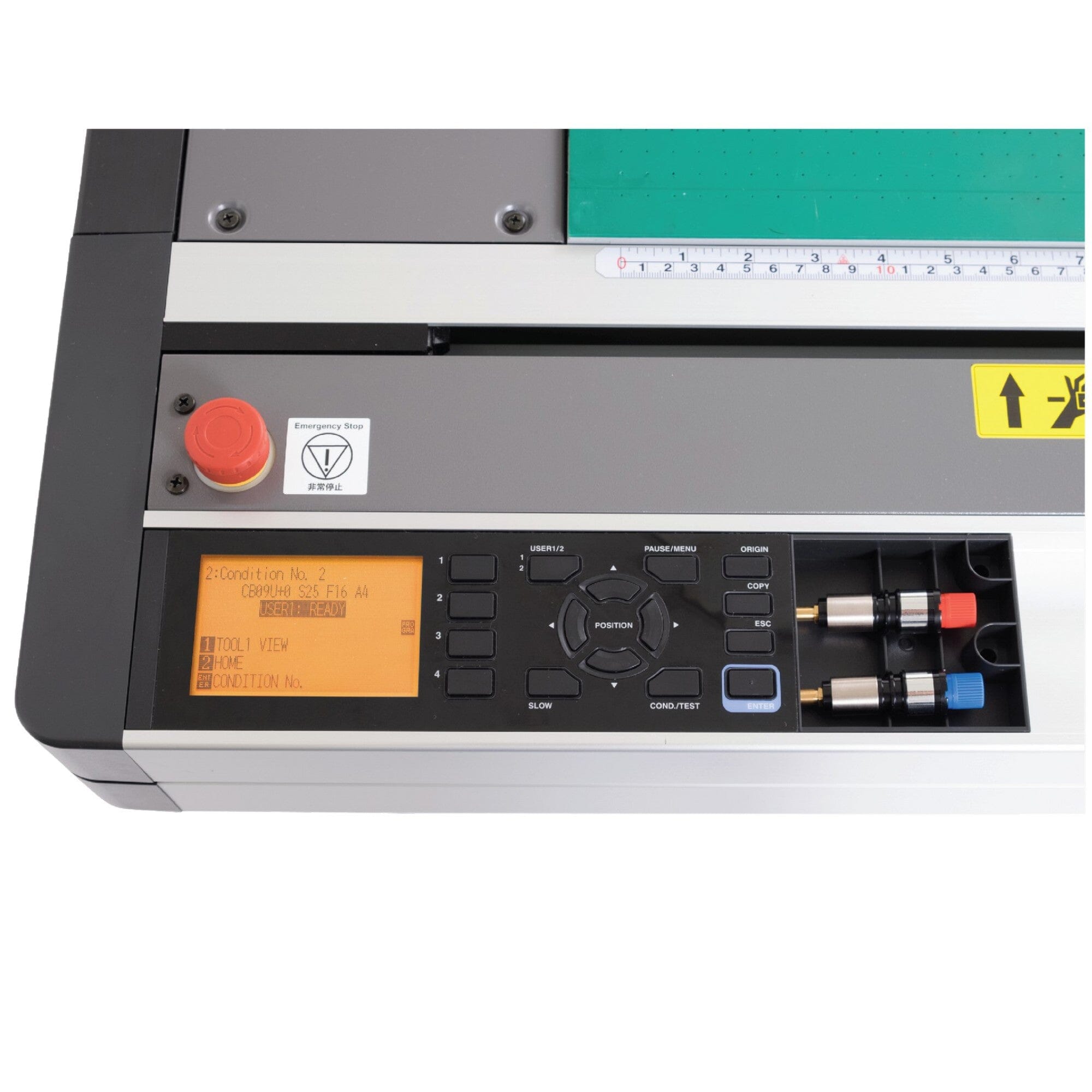

Safety enhancement: A new, dedicated emergency STOP switch is at the ready.
Supports a dedicated stop switch for stopping the machine when emergency case is occurred.

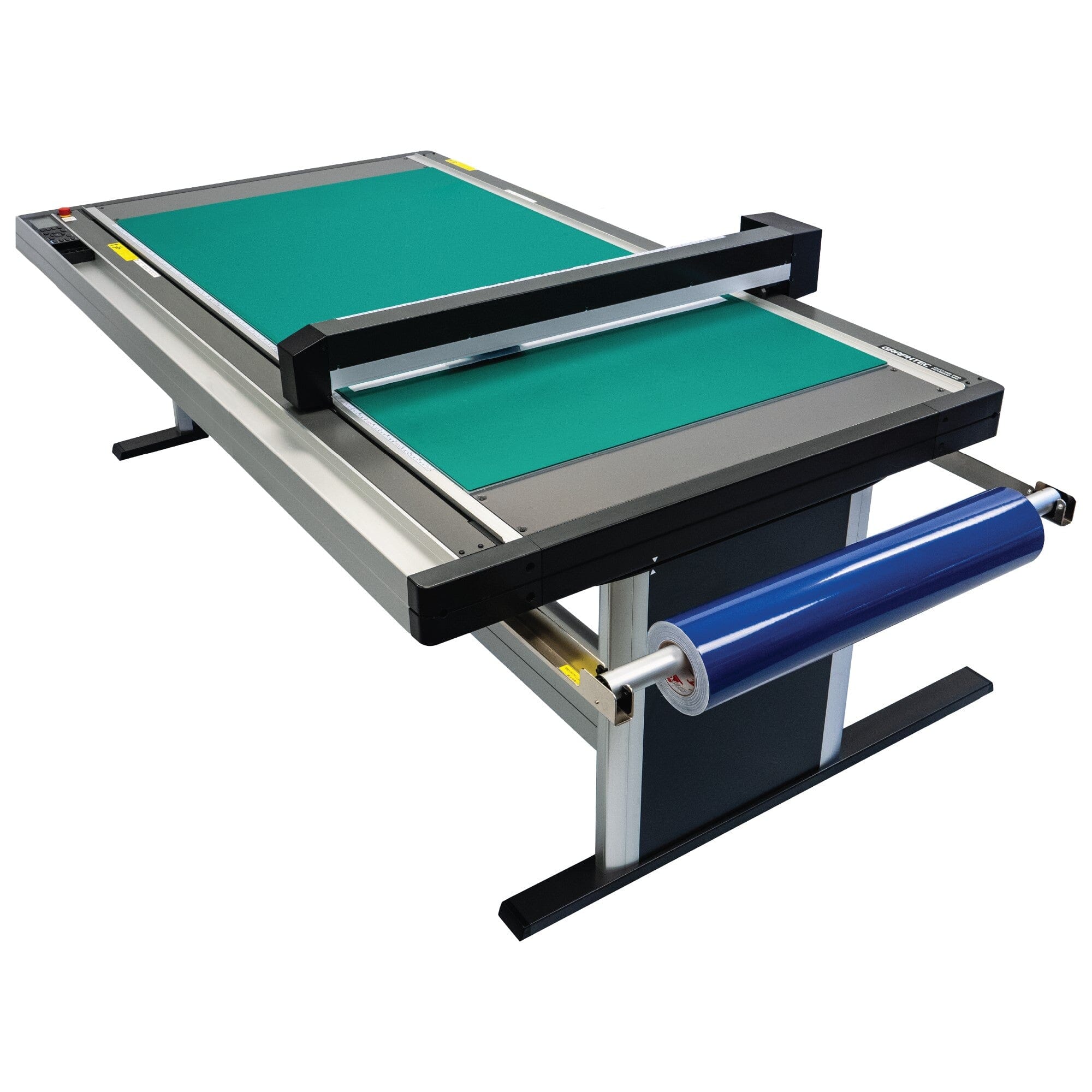

Roll-media stocker: The FCX2000 comes equipped with a mounted roll-media stocker.
Supports media width up to 37.4” and weight up to 11 lbs.
Expanded Contour Cutting Area: This included function expands the print and cut area to include objects outside of the registration marks! Production efficiency is enhanced and media waste is reduced.
Supports Standard Crop Marks: Contour cutting pre-printed media is also possible using “standard crop marks.” This operation is available with the included Cutting Master 4 plug-in workflow.
Reversed Color Registration Marks: Registraiton marks are detectable when there is sufficient contrast against the mark and its background. Ultra glossy and reflective media offer challenges for accurate registration mark detection. With this reversed color output, the sufficient contrast is brought back for the ability to contour cut pre-printed ultra glossy and reflecting sheeting.

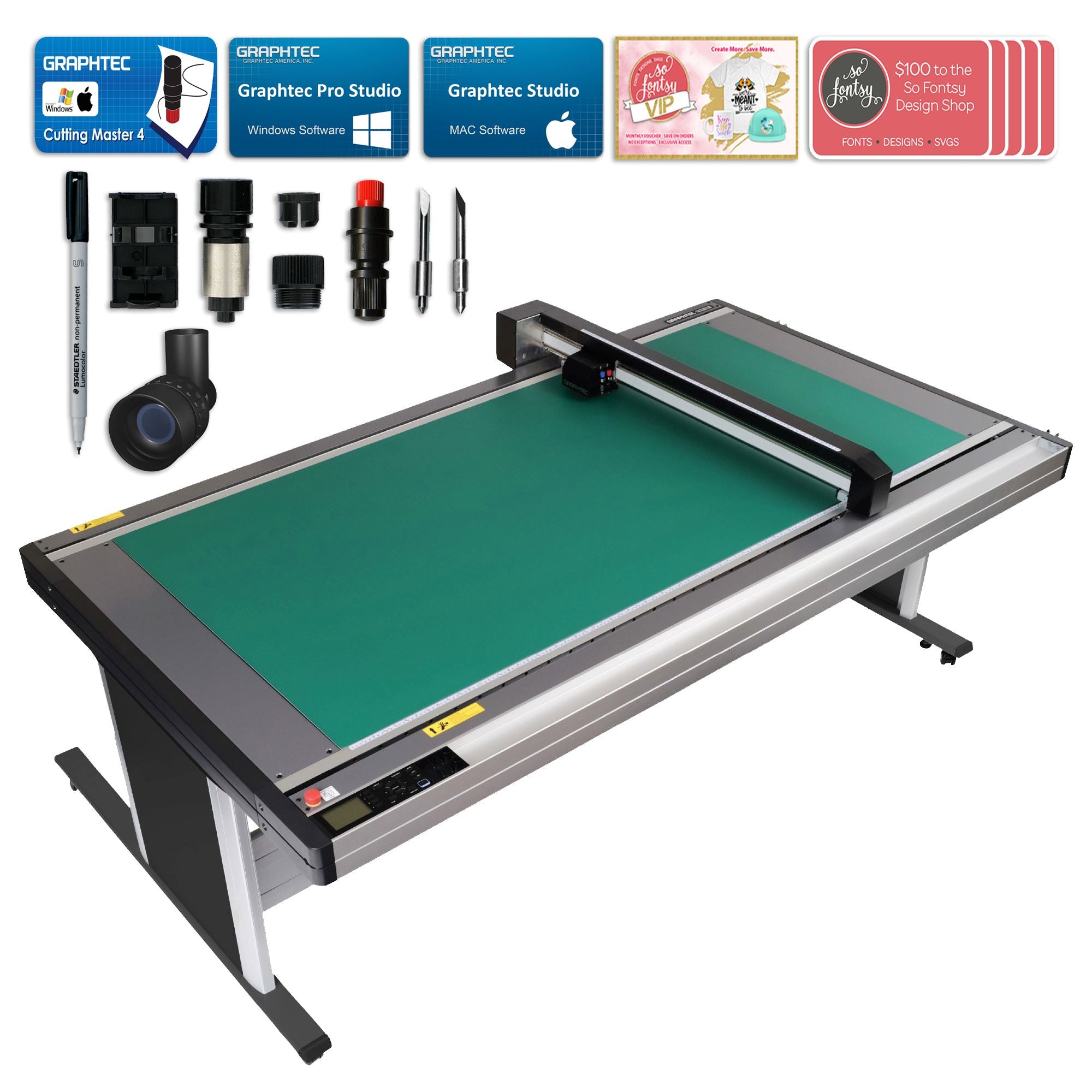

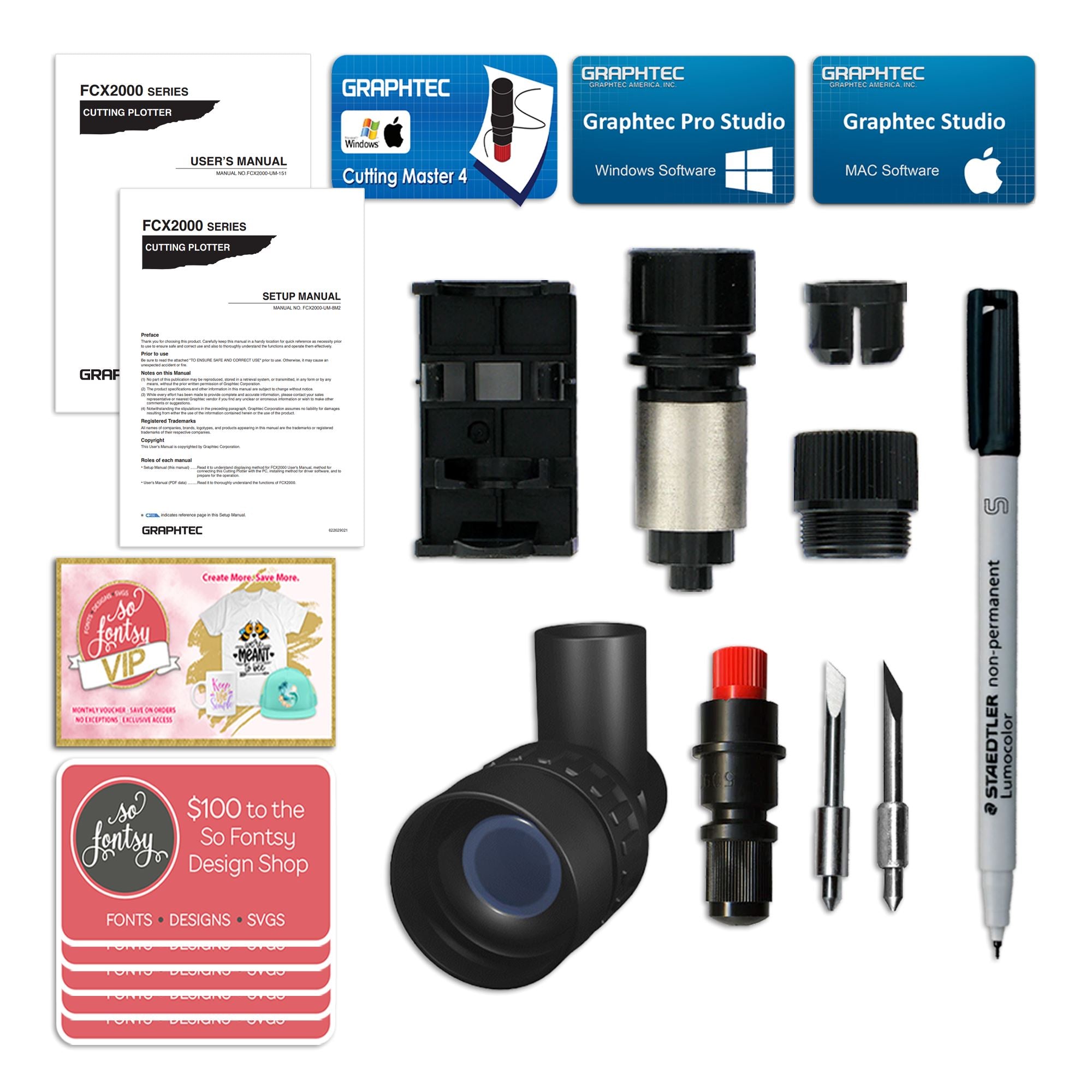

Bundle Includes:
  • Graphtec FCX2000-120 - 48" x 36"
  • 3.7" LCD Screen
  • BONUS: Graphtec PRO Studio Software - 1 License: Powerful Design Software - $1999 Value
    • Design Creation, Registration Marks, Tiling, Weed Lines, Tool Assignment
    • Offline Use via USB, Outline, Fill, Auto Trace, Line Patterns, & Much More
    • Use in replacement of Adobe Illustrator and CorelDRAW or Import from Adobe Illustrator and CorelDRAW without Converting the File
  • Cutting Master 4 - Plugin
  • Graphtec Studio (MAC OS Software)
  • 1st Month Membership to SoFontsy VIP Enterprise
  • $500 in Designs from So Fontsy - SVGs, JPGs, Commercial Use (Please note that the card is valid for the card redemption portion of the site)

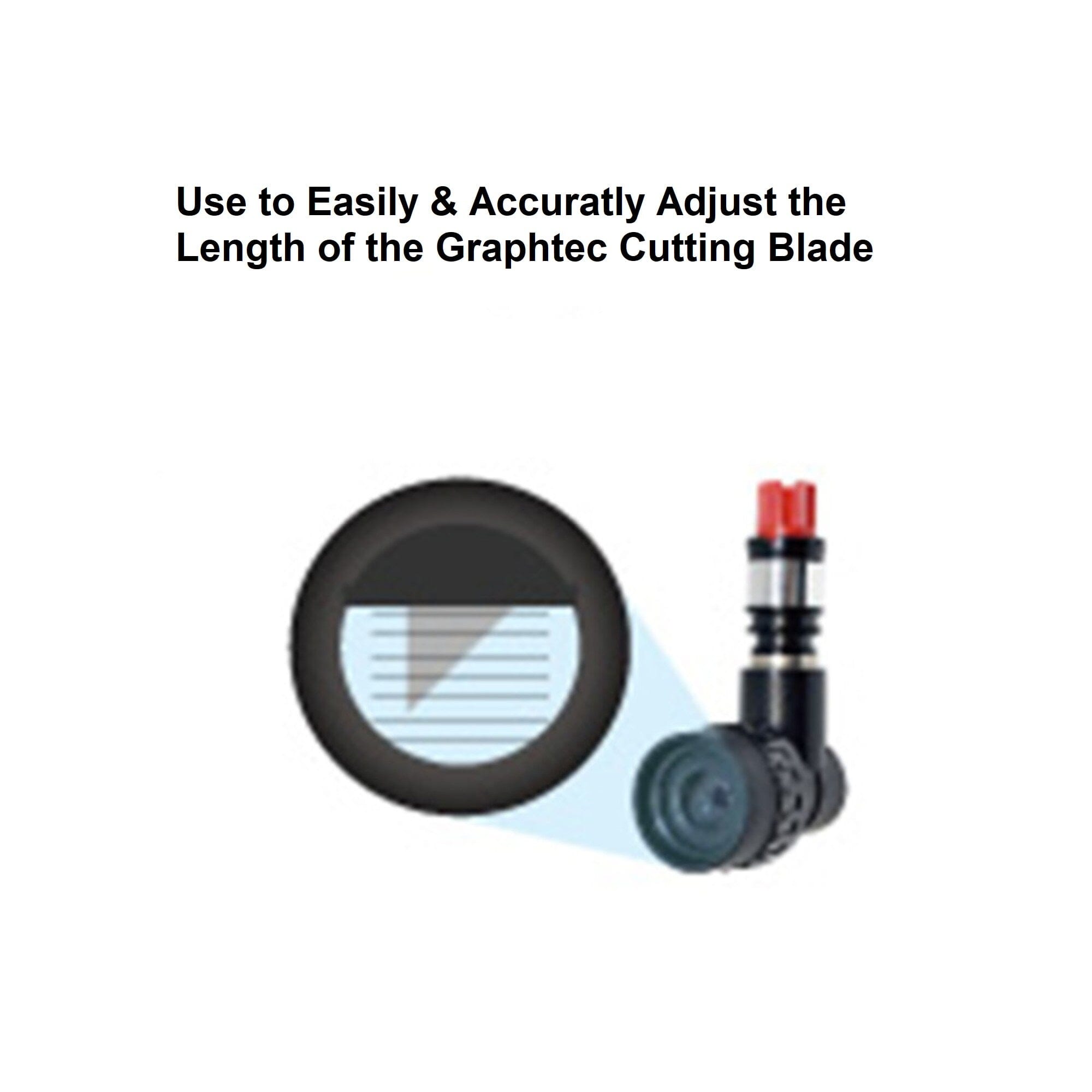

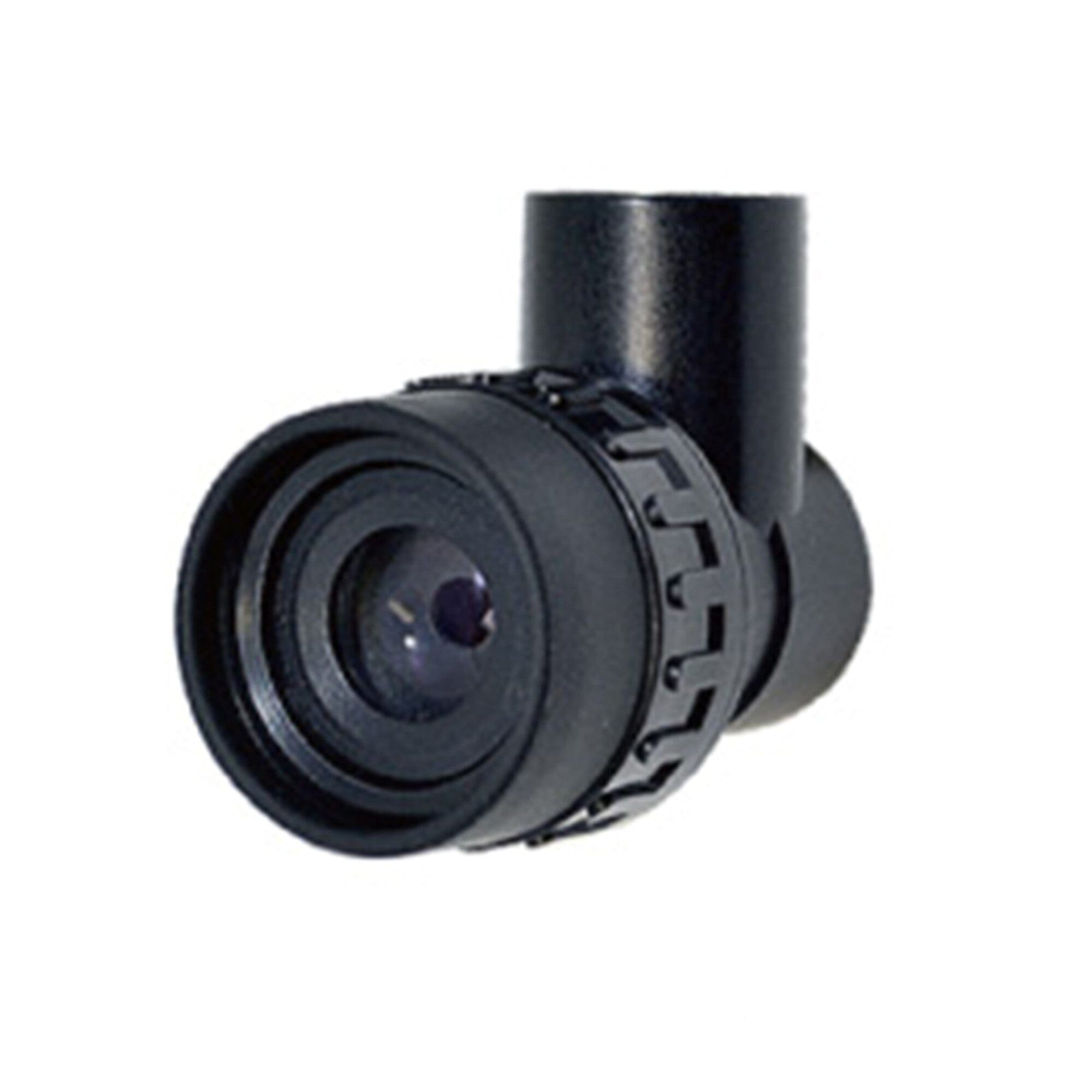

  • Blade Loupe

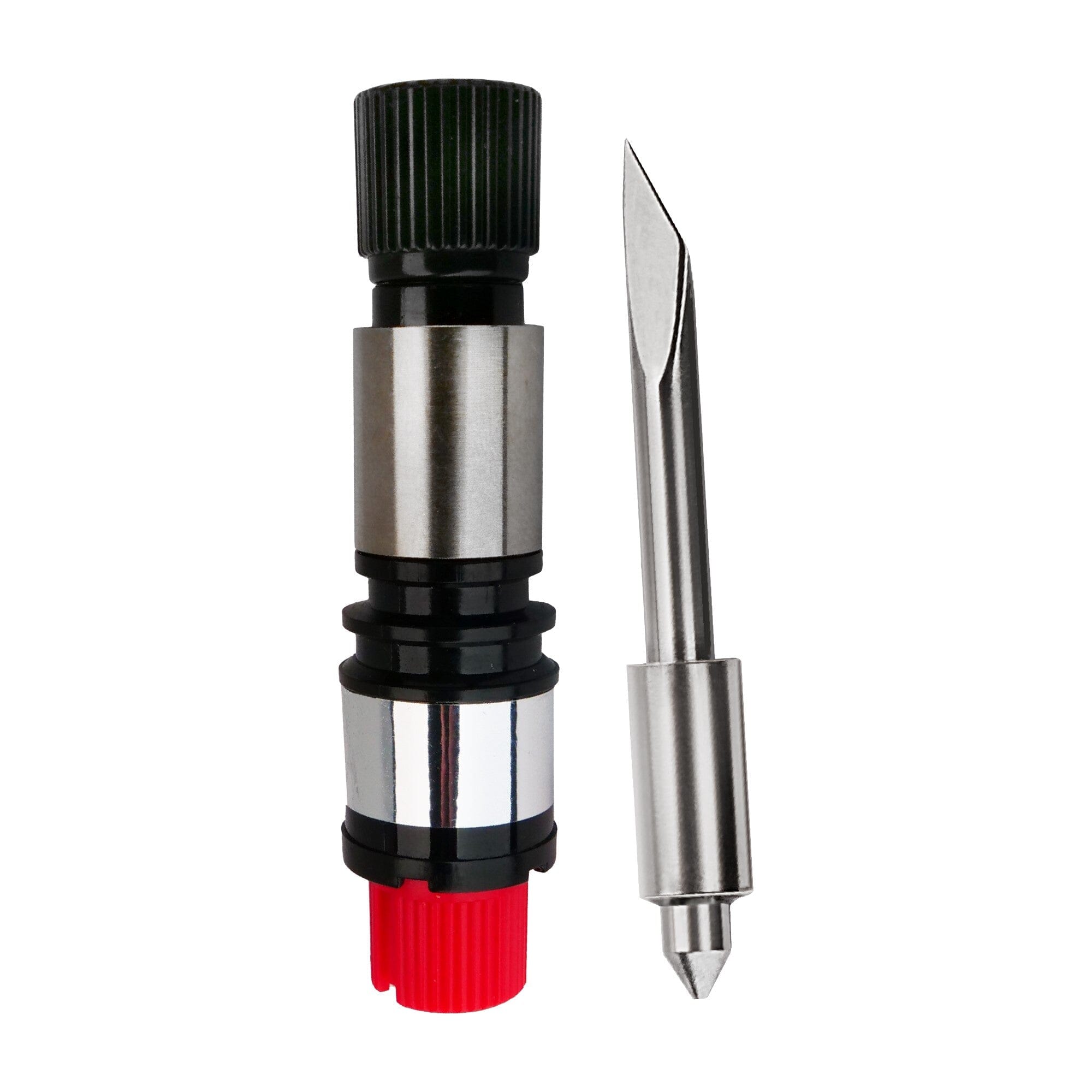

  • PHP35-CB15-HS Blade Holder
  • CB15U Blade
  • CB15U-K30 Blade

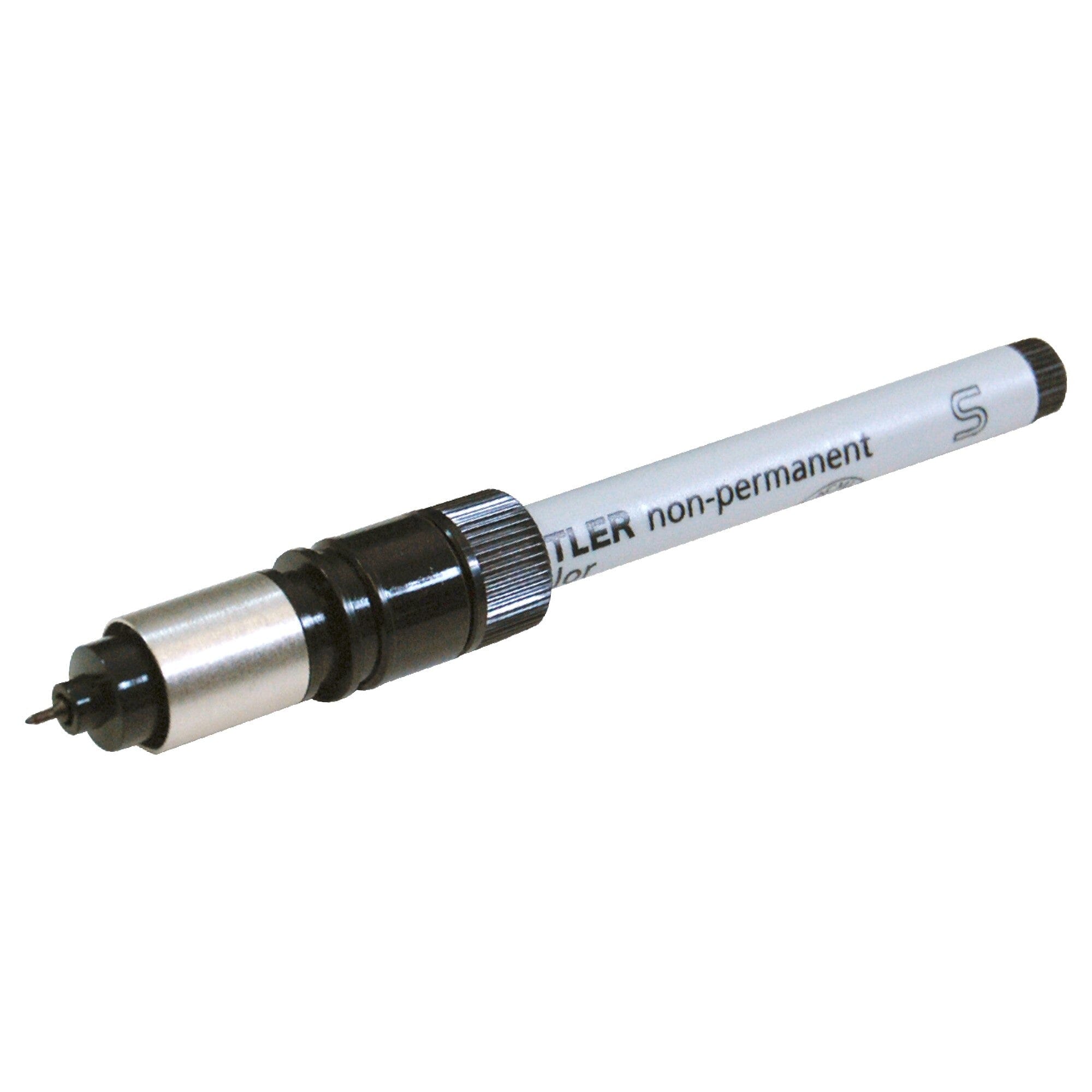

  • Lumocolor-311 Black Fiber Pen
  • PHP31 Pen Adaptor
  • 10 mm Jig
  • Roll Media Stocker
  • Windows Driver
  • Includes Graphtec ARMS (Advanced Registration Mark Sensor)
  • Dual Tool Holder - Tool 1: 500gf | Tool 2: 1000gf
  • Digital Servo System

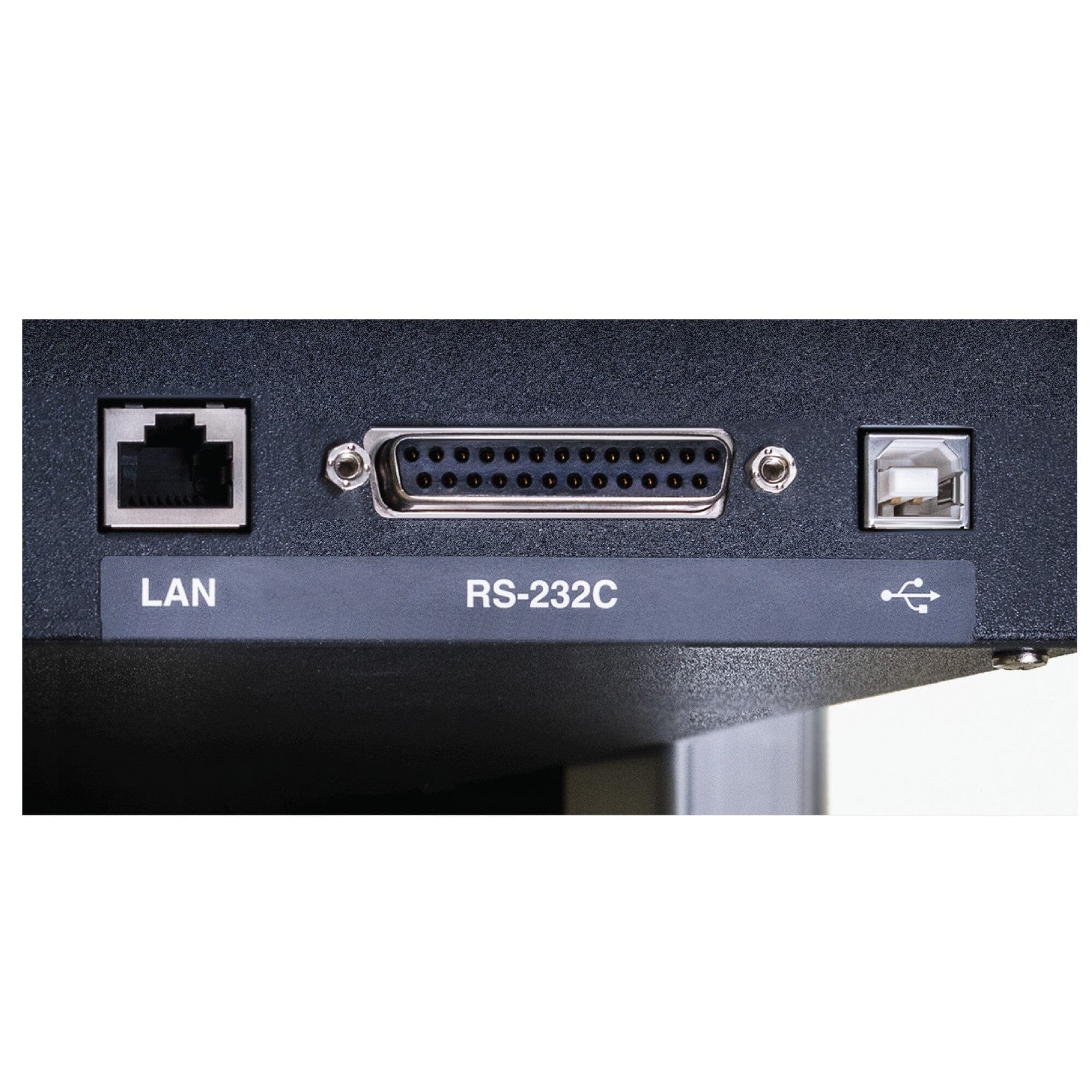

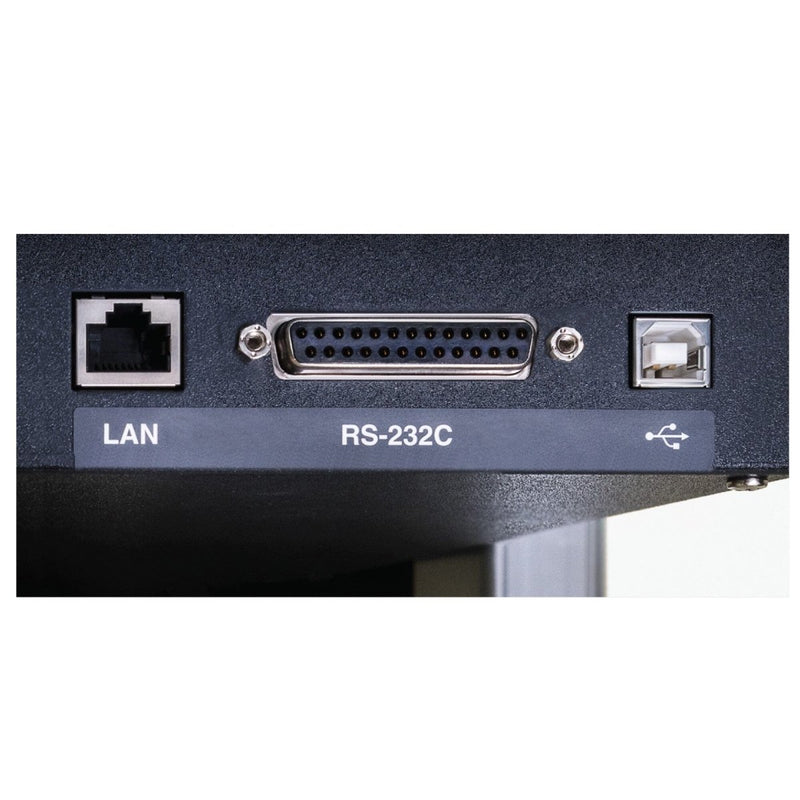

  • USB Connector
  • 2 Year Warranty
