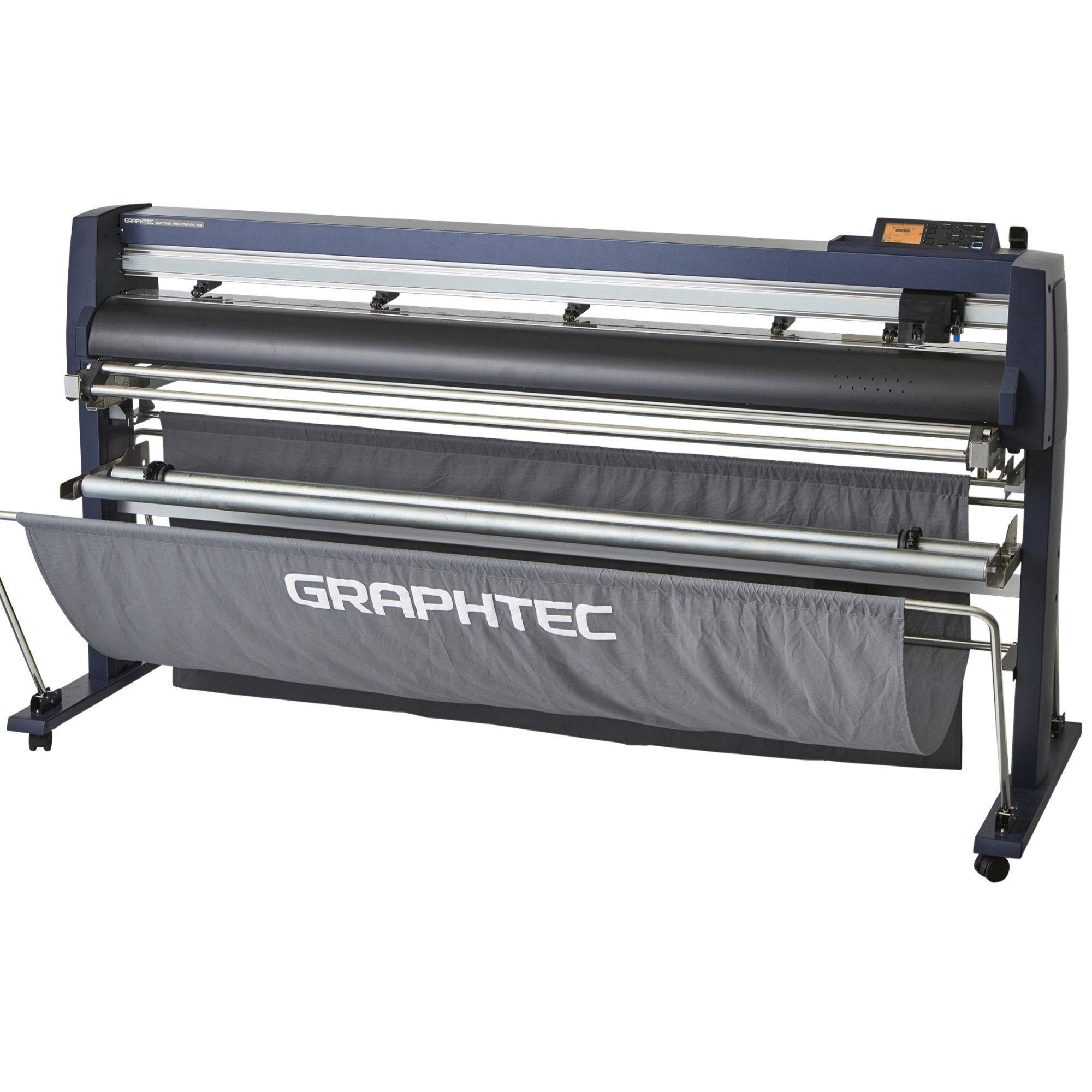

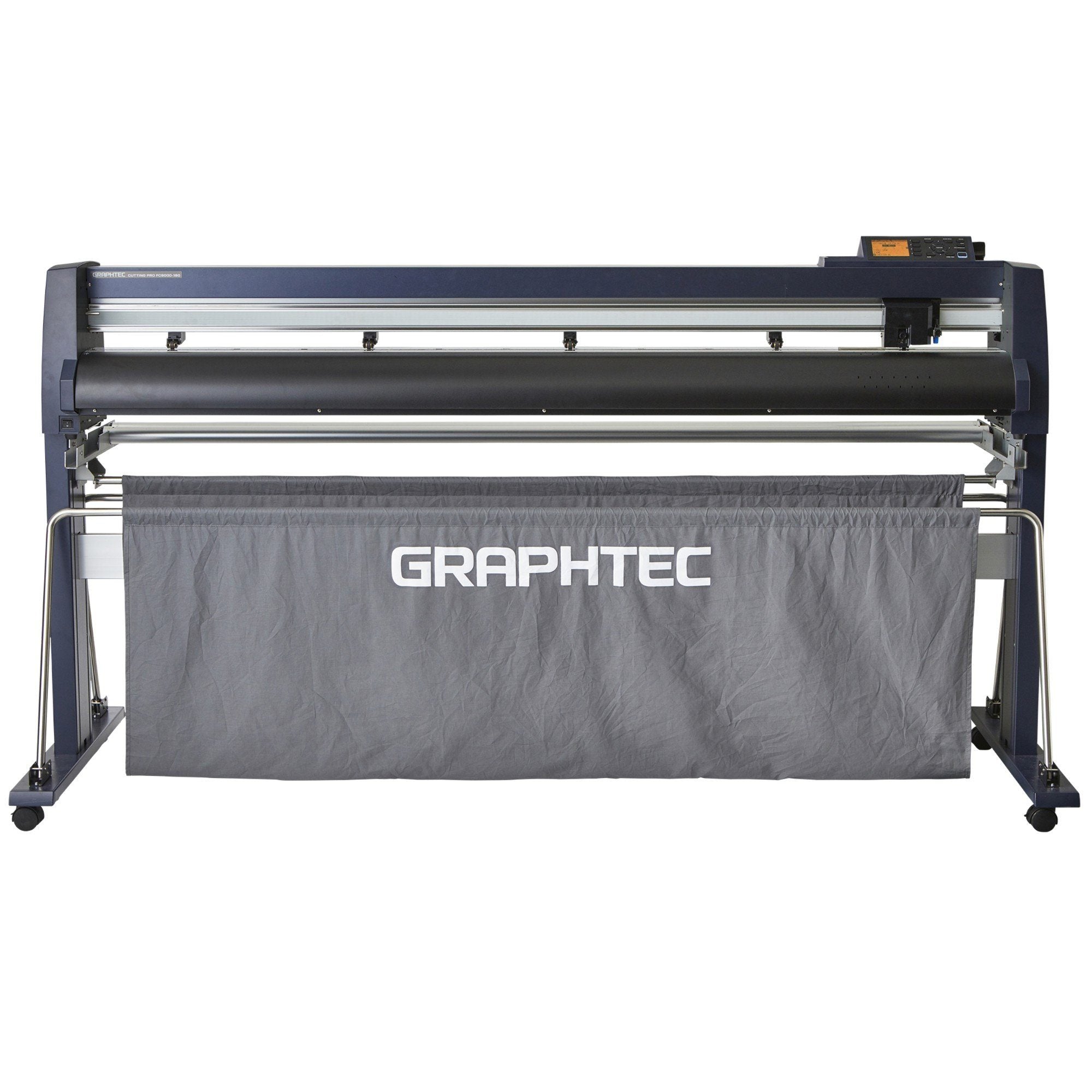

Graphtec FC9000-160 64" Vinyl Cutter w/ Software & 3 Year Warranty

⚠️ Important Shipping Details: Read Product Info Carefully

Graphtec Black Friday Special: Order any FC9000 between now and December 31th 2026 and receive an extra 2 Year Graphtec Warranty valued at $200.  Find out more HERE

With its renowned reputation worldwide for dependable, high-precision cutting capabilities on both printed and unprinted materials, the FC Series serves as the ultimate finishing solution for a wide range of industries, including wide-format signage, apparel, automotive window tint, and vehicle wraps including XPEL, vinyl wraps and more.

The FC9000 Series features a newly developed feeding system and cutting head, resulting in even better cutting quality for thin and thick materials, ranging from delicate window tint to high-intensity reflective materials.

A re-engineered feeding system has greatly enhanced the cutting capabilities of thin and thick media types. Add additional push rollers for increased precision when cutting heavy, rigid materials such as magnet, rubber, and diamond-grade high intensity reflective. Three pressure settings ensure strong media hold-down without leaving track marks.

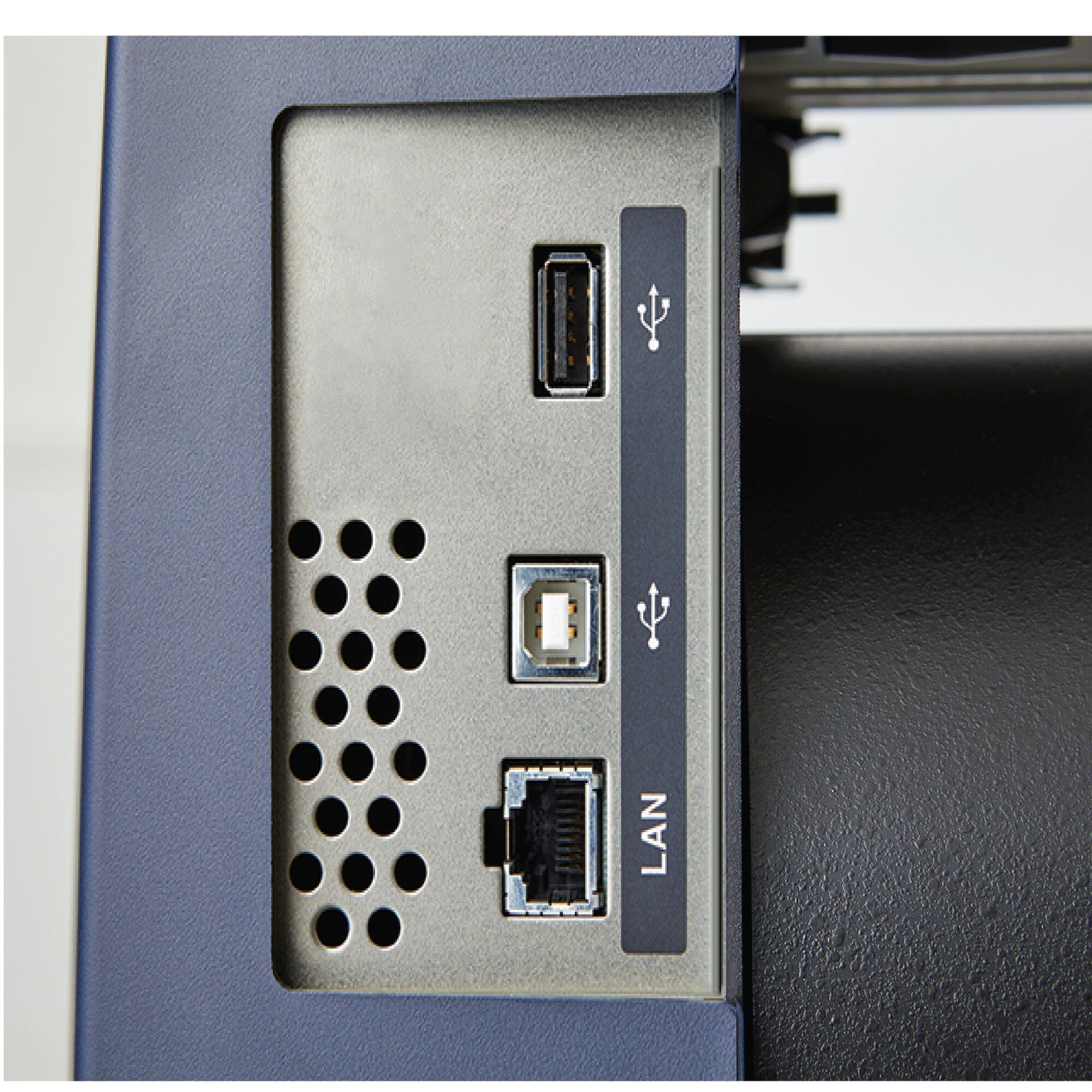

Software - The FC9000 Series comes complete with our full complement of Graphtec Software along with Ethernet Connectivity. Software includes Cutting Master 5 plug-in for Adobe & Corel Users and our popular Graphtec Studio 2 software for design & cut graphics. The software works with both PC and MAC platforms, or use the handy new USB Thumb Drive Port if needed.
Datalink Barcode -
By utilizing barcodes, you can save time and minimize the risk of production errors when handling numerous tasks with just a button press. DataLink can accommodate any blend of RIP software and printer, along with the bundled software of Cutting Master and Graphtec Pro Studio. The FC9000 can identify cutting data linked to barcodes from the user's PC or USB flash memory, access the appropriate file, adjust the cutting settings, and initiate the cutting process automatically.

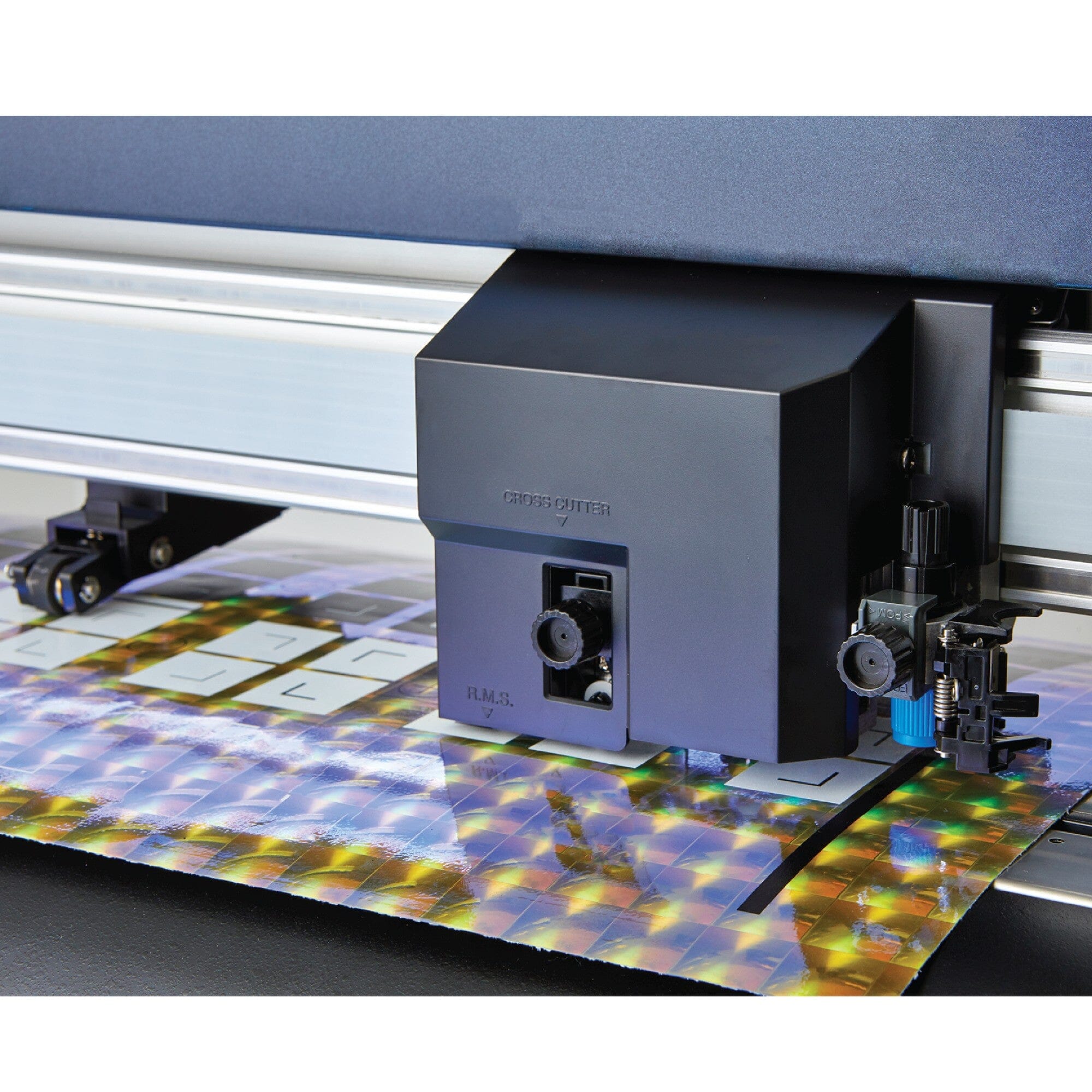

Print & Cut Accuracy - Graphtec’s Advanced Registration Mark Sensing (ARMS) technology delivers precise Print & Cut results in addition to efficiency boosting features.
Easily Accommodates Reflective Media - The new white LED sensor and improved search algorithm accurately read registration marks printed from any printer onto a large variety of media types including high gloss, metallic, glitter, and high intensity reflective.
Contour & Die Cut w/ Ease -
Separate tool positions for contour and die cutting ensures the longevity of your blades and cutting strip when creating decals and graphics that are effortlessly popped out of sheet and roll media.

Key Features

  • Fast, Strong Cutting: The FC9000-160 reaches 58.5 inches per second at a 45 degree direction, with cutting force up to 600 gf in 48 steps and acceleration up to 4G. It handles vinyl, fluorescent, reflective, and high-intensity reflective film up to 0.25 mm thick. It also cuts window tint, paint protection film, and sandblast resist rubber up to 1 mm thick.

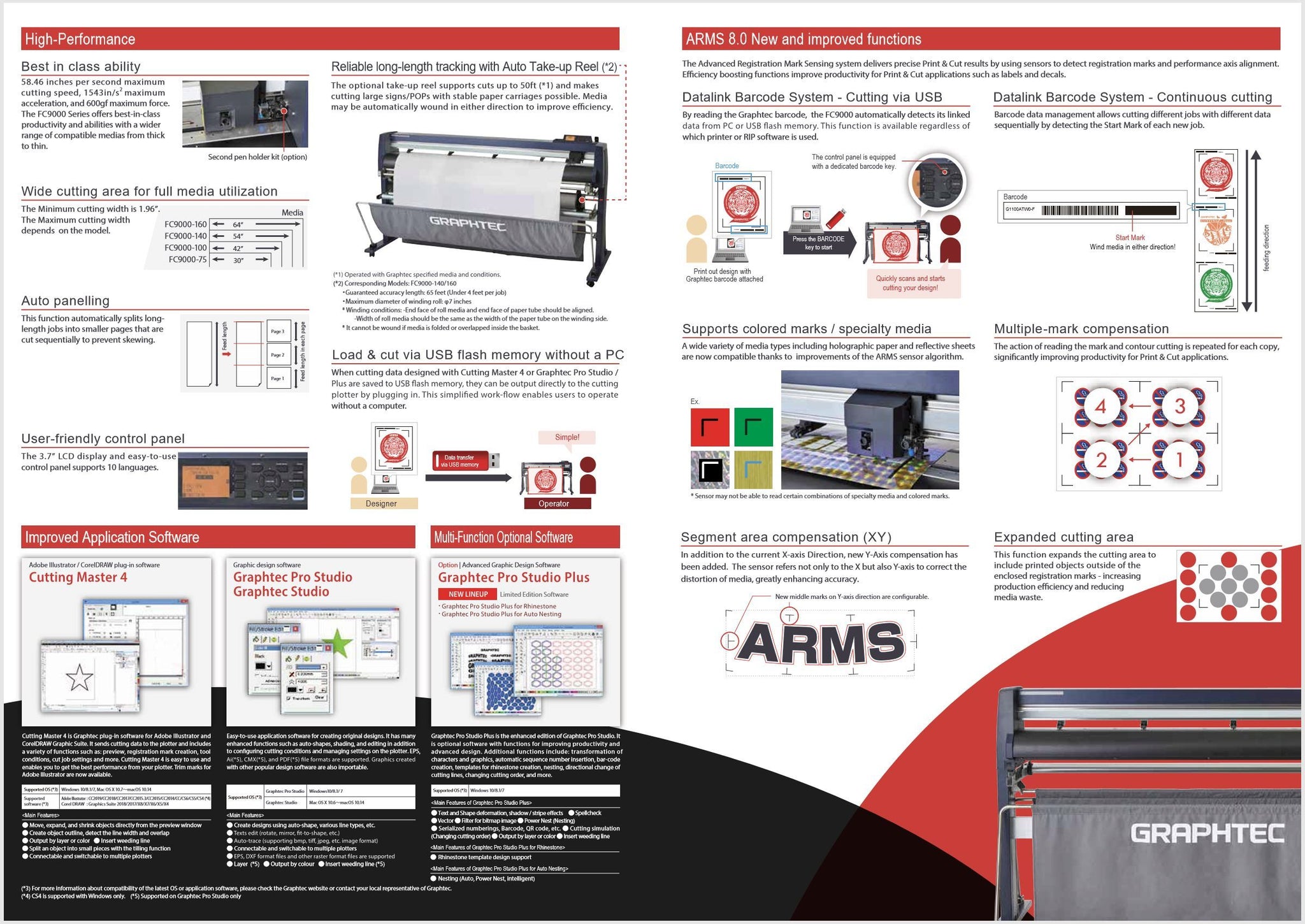

  • ARMS 8.0 and DataLink Barcodes: A white LED sensor reads registration marks from nearly any printer, including glossy, metallic, glitter, and reflective media. Multiple mark compensation and segment area compensation keep long print-and-cut jobs accurate. The DataLink barcode system loads the right file and cutting conditions for each job.
  • Four Push Rollers for Wide Media: The FC9000-160 comes with four push rollers to hold 64-inch-wide jobs steady. The newly engineered feeding system handles delicate tint film and heavy materials alike. Three pressure settings hold media down without leaving track marks, and you can add a push roller for heavy or rigid media.
  • Optional Auto Take-Up System: The FC9000-160 is one of only two FC9000 models that accept Graphtec's automatic take-up system, sold separately. It winds finished media forward and back using an infrared sensor. Paired with DataLink barcodes, it tracks multiple jobs on a single roll, up to 65 feet of media.

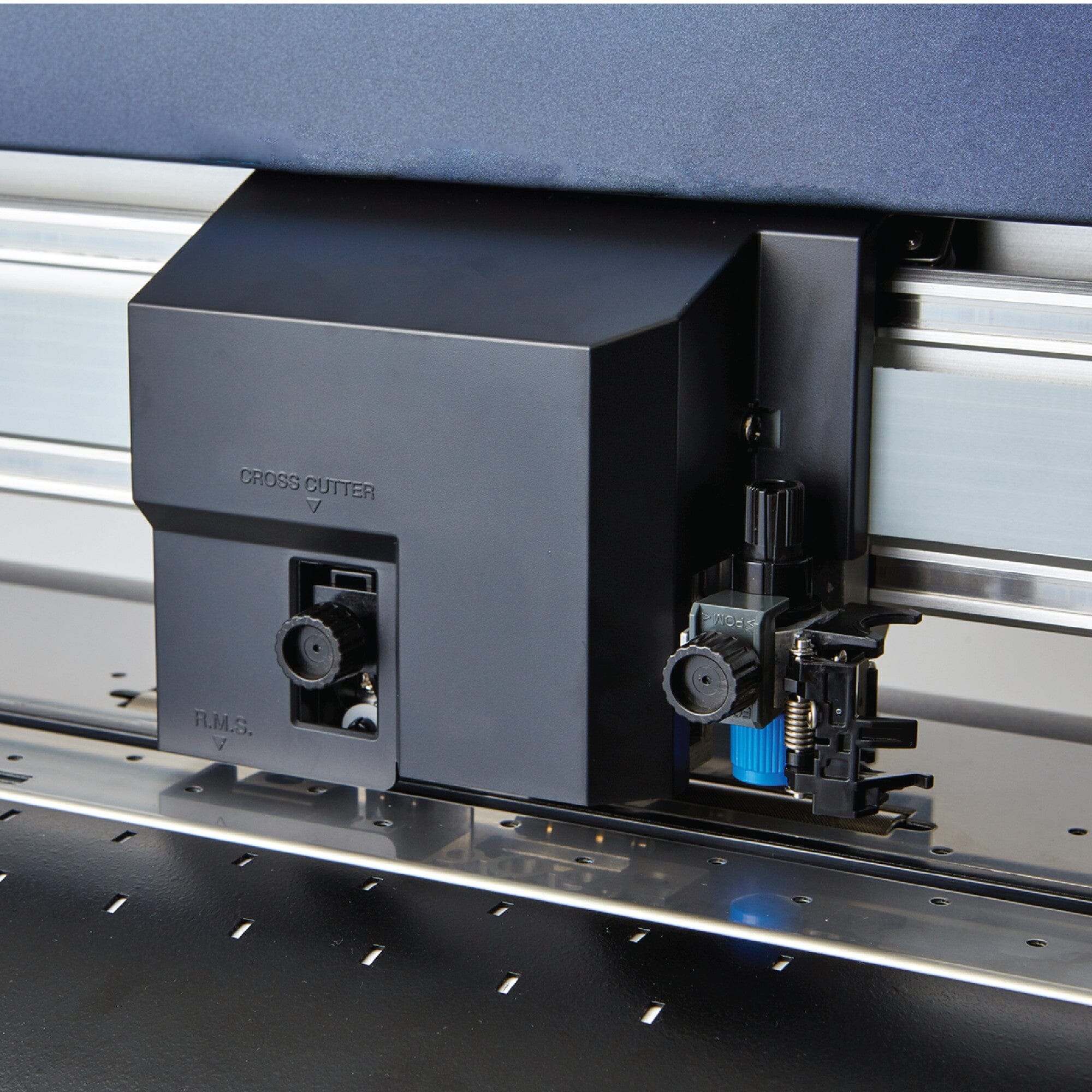

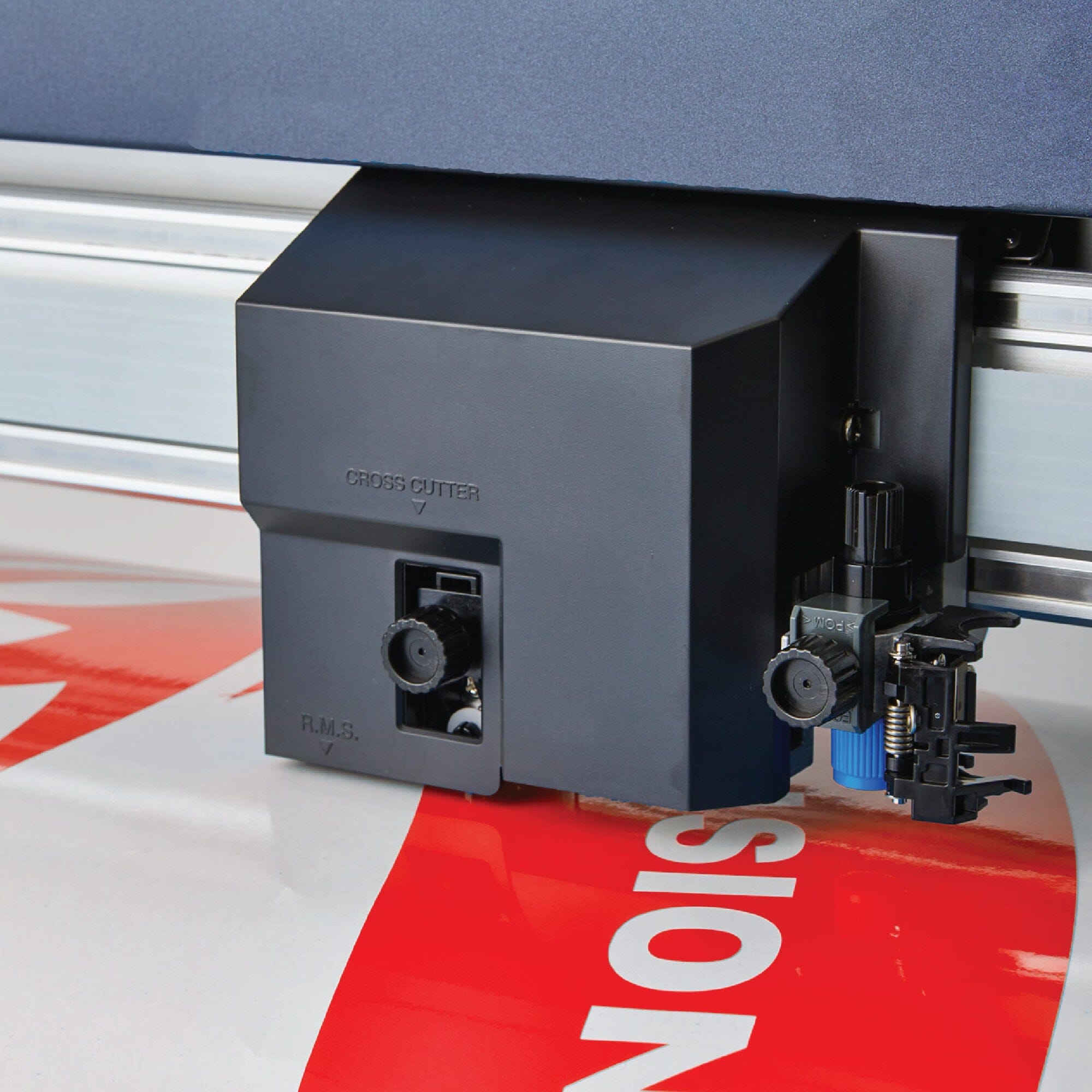

  • Contour, Die, and Cross Cutting: Dedicated tool positions help extend the life of your blades and cutting strip. A built-in cross cutter makes clean cuts across the roll, and perforation cutting is supported too.
  • Ready to Run: The stand, media basket, blade, blade holder, and blade loupe all come standard. You also get Cutting Master 5 and Graphtec Studio 2 for Windows and Mac, backed by a 3-year parts and labor warranty.

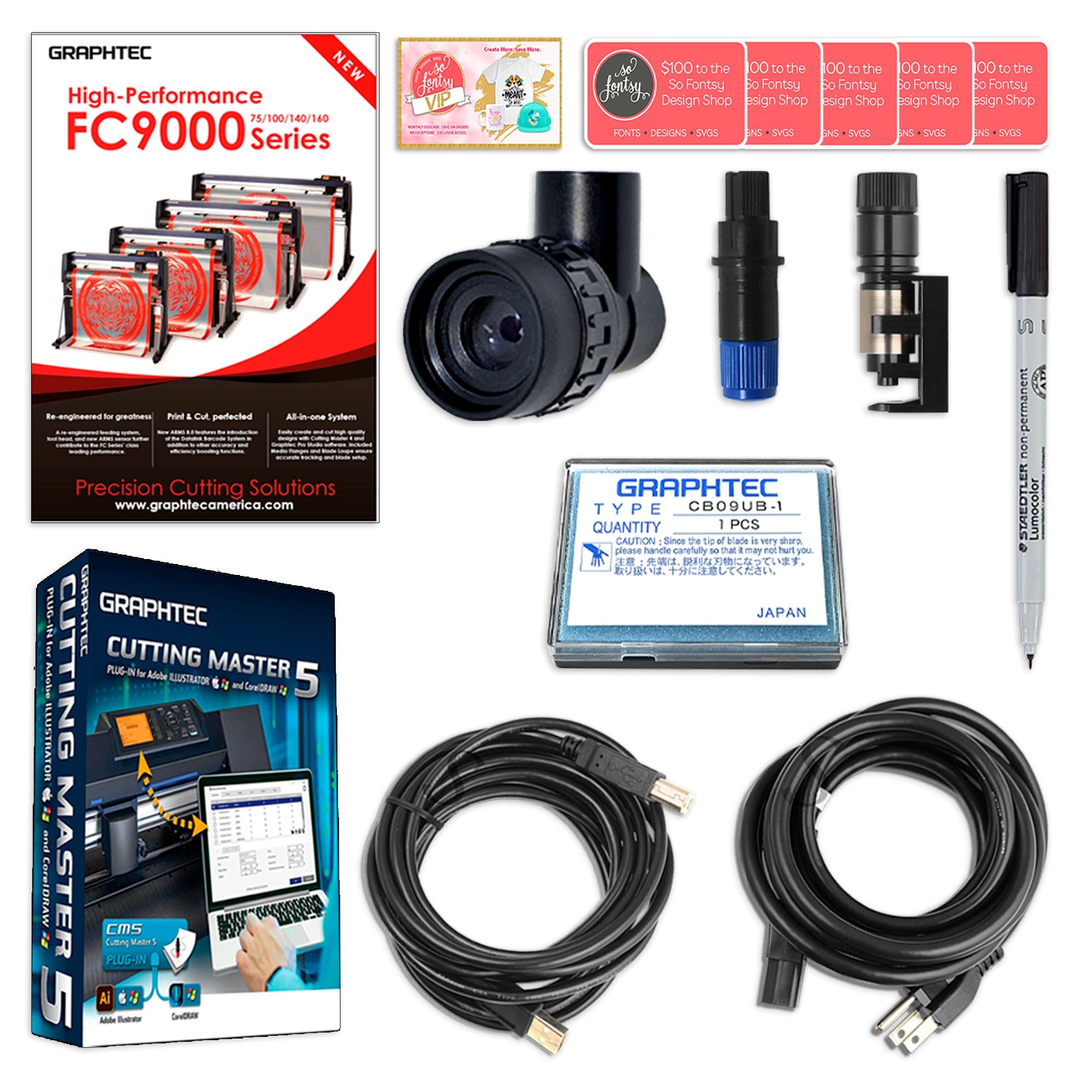

Bundle Includes:

  • 64 Inch High Quality Industrial Grade Cutting Machine
  • Media Catch Basket
  • Stand
  • Load & Cut via USB Flash Memory
  • 3 Year Warranty

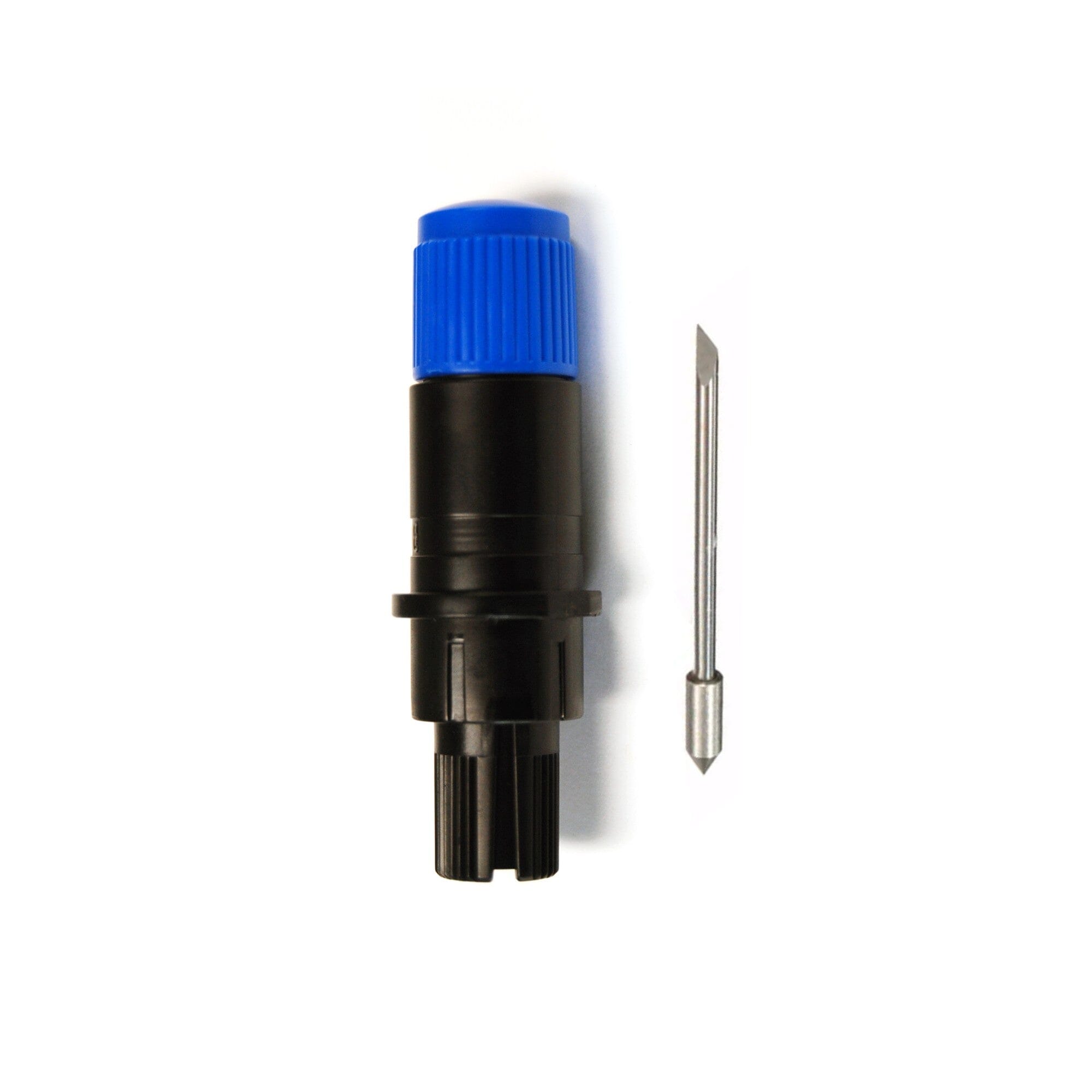

  • CB09UB Blade Holder
  • CB09UB Blade - .9mm Diameter - 45 Degree
  • Includes Graphtec ARMS (Advanced Registration Mark Sensor)
  • 450 grams of cutting force - strongest in the market
  • Roll Feeder

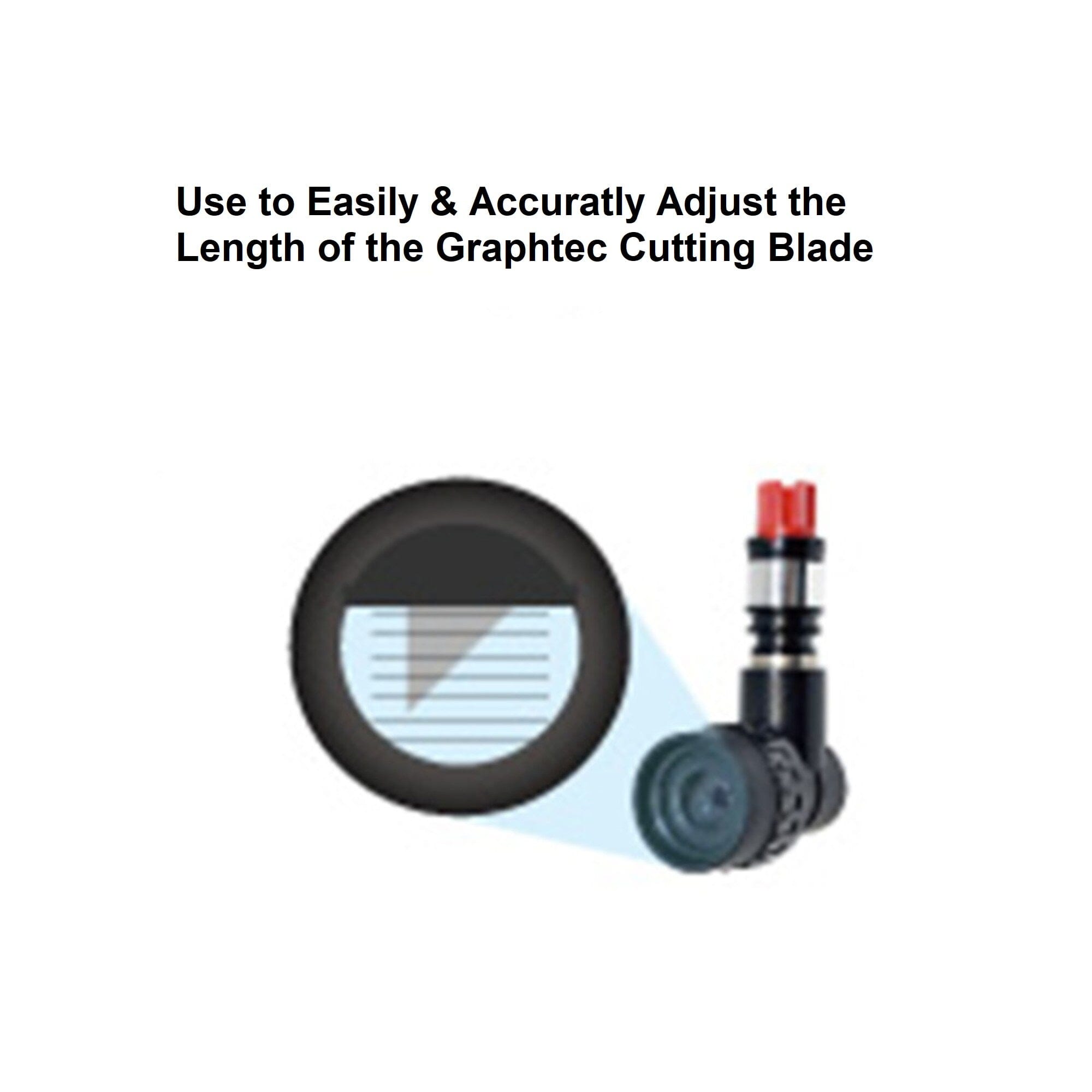

  • Loupe
  • Vinyl Trimmer
  • USB Connector
  • Graphtec Studio Software - PC and MAC
  • Cutting Master 5 Plug-In
  • $500 So Fontsy Designs - SVGs, JPGs, Commercial Use (Choose from 5,000 Designs with new content added daily. Valid on the card redemption portion of the site.)
  • FC9000 Machine Training Video
  • Set Up Manual
  • Cutting Blade Manual
  • Safety Manual

Graphtec FC9000 Users Manual
Ships in 2 boxes - Machine, Stand & Accessories. Please note this item ships via insured freight.

Who It's For

  • Sign Shops: Cut wide-format vinyl graphics, reflective film, and long-run decals fast.
  • Print-and-Cut Shops: Contour cut printed labels and graphics, including glossy and metallic media.
  • Automotive and Wrap Shops: Cut window tint, paint protection film, and high-intensity reflective film.
  • Apparel Makers: Cut heat transfer vinyl and other apparel transfer materials.
  • Safety and Industrial Shops: Cut safety graphics and sandblast masking.

FAQ

How wide can the Graphtec FC9000-160 cut?
It cuts up to 64 inches wide and takes media from 2 to 72 inches wide.

How fast is the FC9000-160?
It cuts at up to 58.5 inches per second at a 45 degree direction.

How much cutting force does the FC9000-160 have?
Up to 600 gf, adjustable in 48 steps.

Does the FC9000-160 support print and cut?
Yes. ARMS 8.0 reads registration marks and includes the DataLink barcode system, multiple mark compensation, and segment area compensation.

What materials can the FC9000-160 cut?
It cuts vinyl, fluorescent film, reflective film, high-intensity reflective film, window tint, paint protection film, and sandblast resist rubber. Self-adhesive film can be up to 0.25 mm thick, and rubber up to 1 mm.

Can it use a pen or pouncing tool?
Yes. It accepts an oil-based ballpoint pen, and pouncing is supported with the optional pouncing tool (PPA33-TP12).

Can the FC9000-160 cut without a computer?
Yes. USB offline operation lets you cut files from a flash drive, and it holds up to 64 files.

What software works with the FC9000-160?

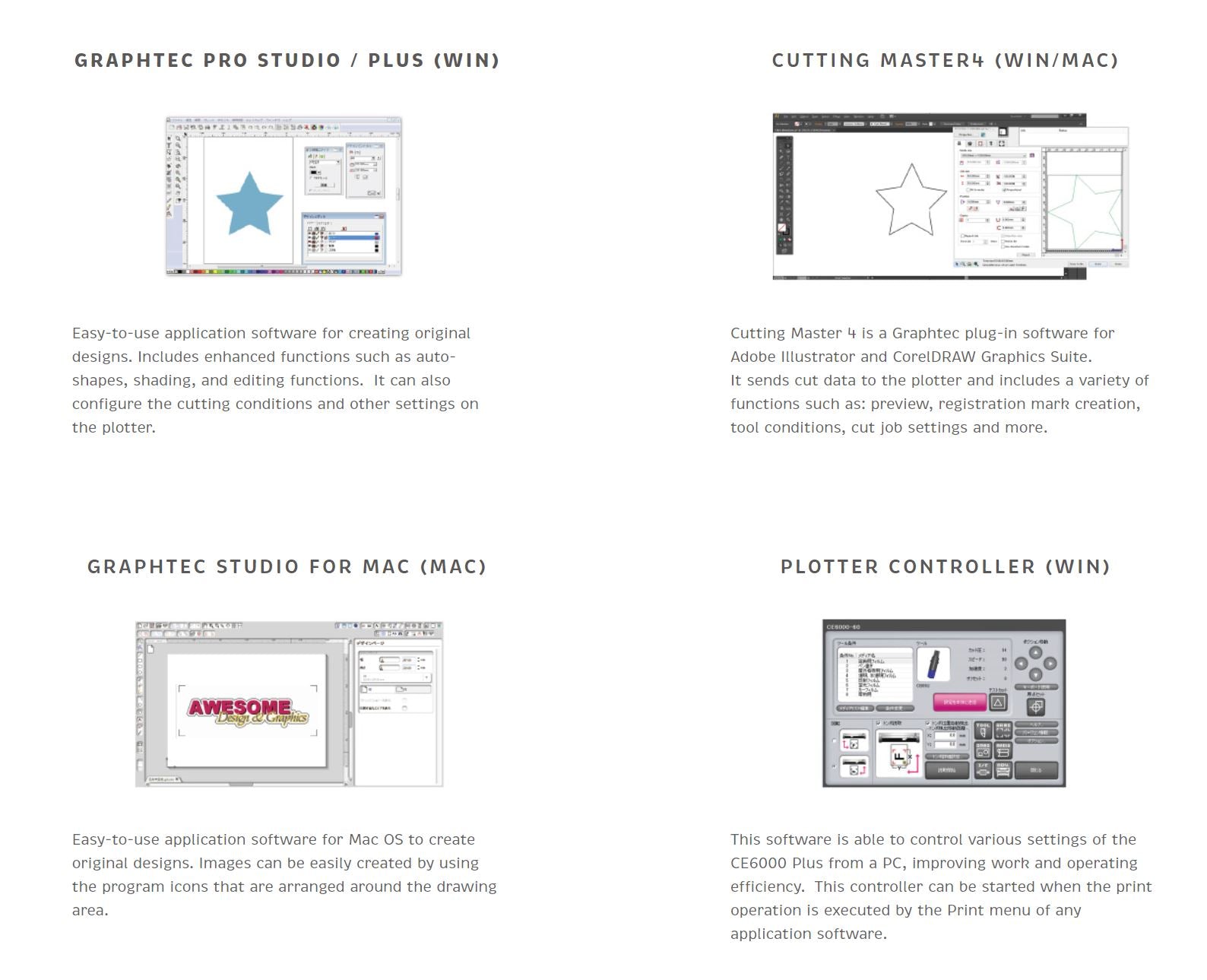

It works with Cutting Master 5, a plug-in for Adobe Illustrator and CorelDRAW, and with Graphtec Studio 2. Both run on Windows and Mac.

Is the stand included?
Yes. The stand, media basket, and media flange set all come standard.

Does the FC9000-160 work with the auto take-up system?
Yes. The FC9000-160 Automatic Take-Up System (OPH-A44) is an optional accessory, and it isn't included with the cutter. It winds media in either direction using an infrared sensor, and with DataLink barcodes it can track multiple jobs on a roll up to 65 feet long.

What's the warranty?
It's 3 years of parts and labor with online product registration.

Why buy the Graphtec FC9000-160 from Swing Design?
Swing Design is Graphtec's largest dealer, so you get genuine Graphtec cutters, blades, and accessories, with knowledgeable help choosing the right setup for your work.

Where can I buy the Graphtec FC9000-160?
You can order it from Swing Design at www.swingdesign.com.

Order the Graphtec FC9000-160 Today

Get fast, precise roll-fed cutting at 64 inches wide, with ARMS 8.0 print and cut, an optional auto take-up system, and a 3-year warranty. Order the Graphtec FC9000-160 from Swing Design, Graphtec's largest dealer, today.
