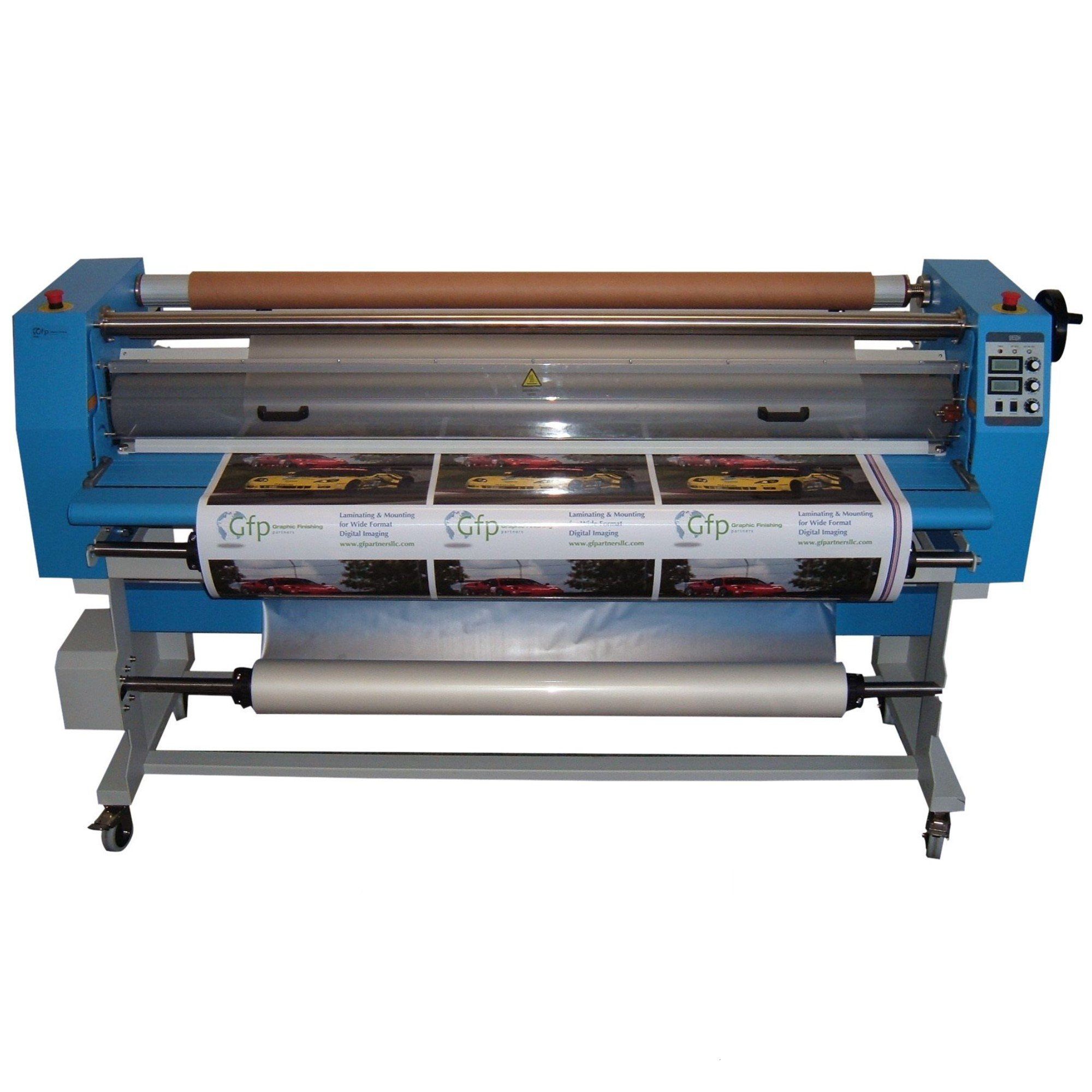

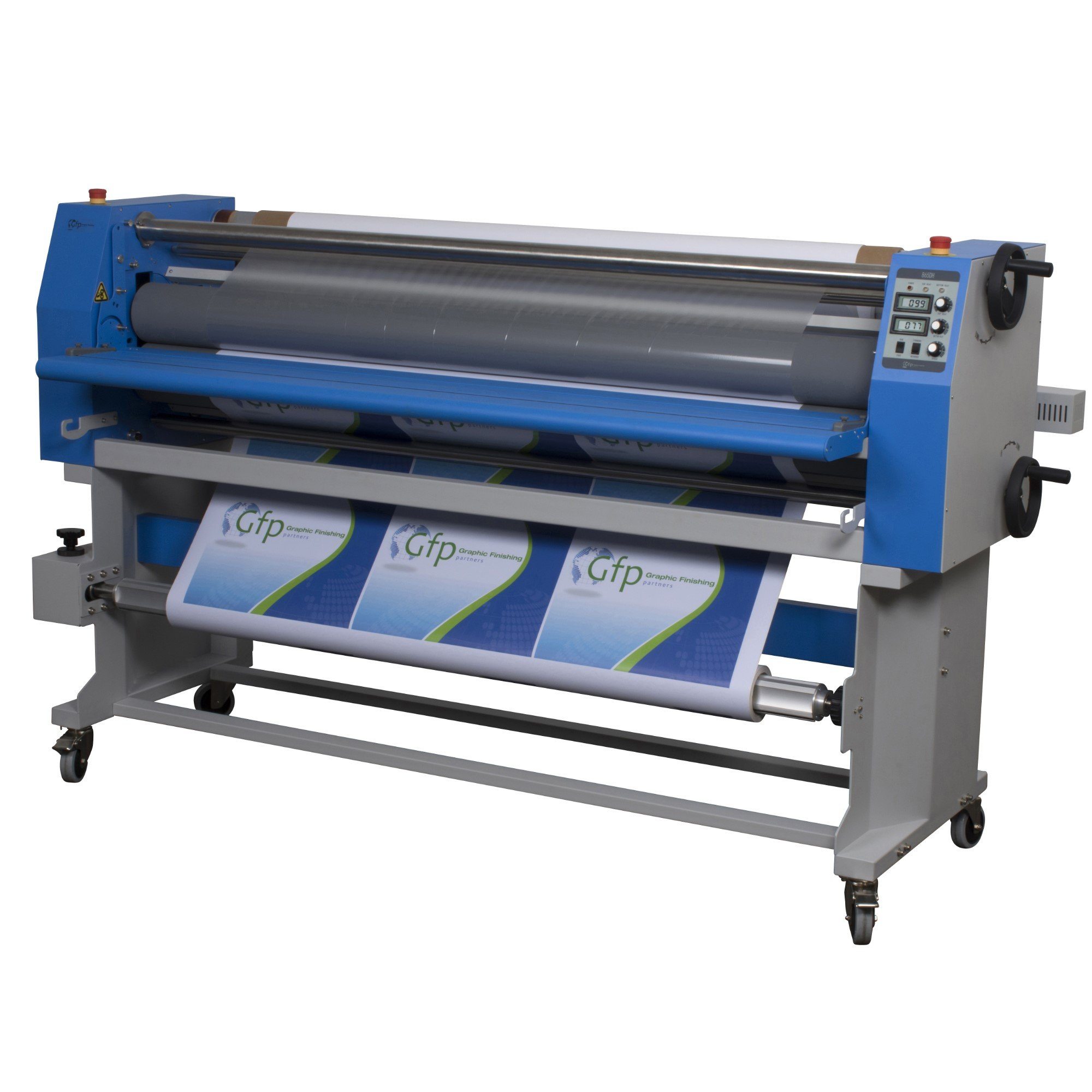

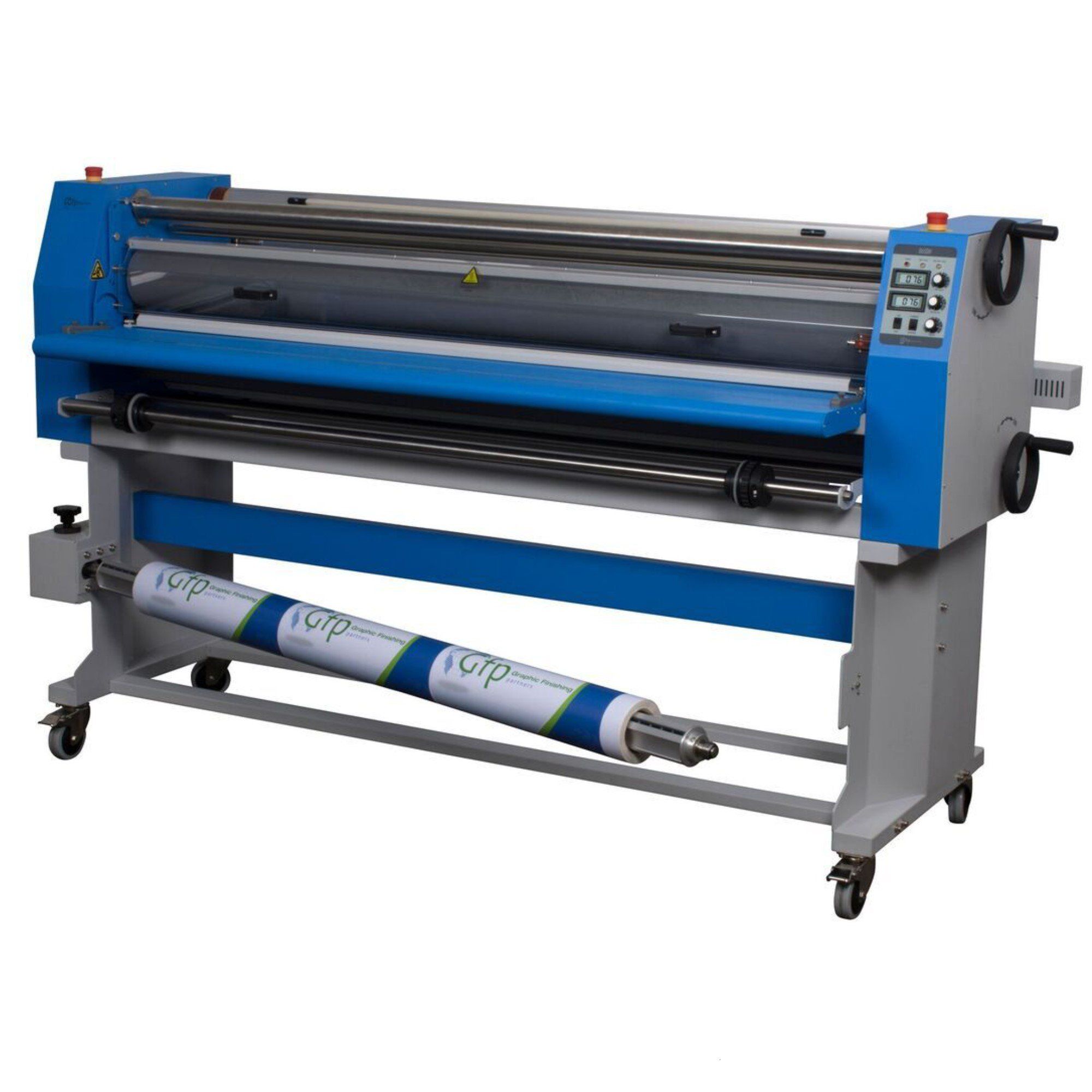

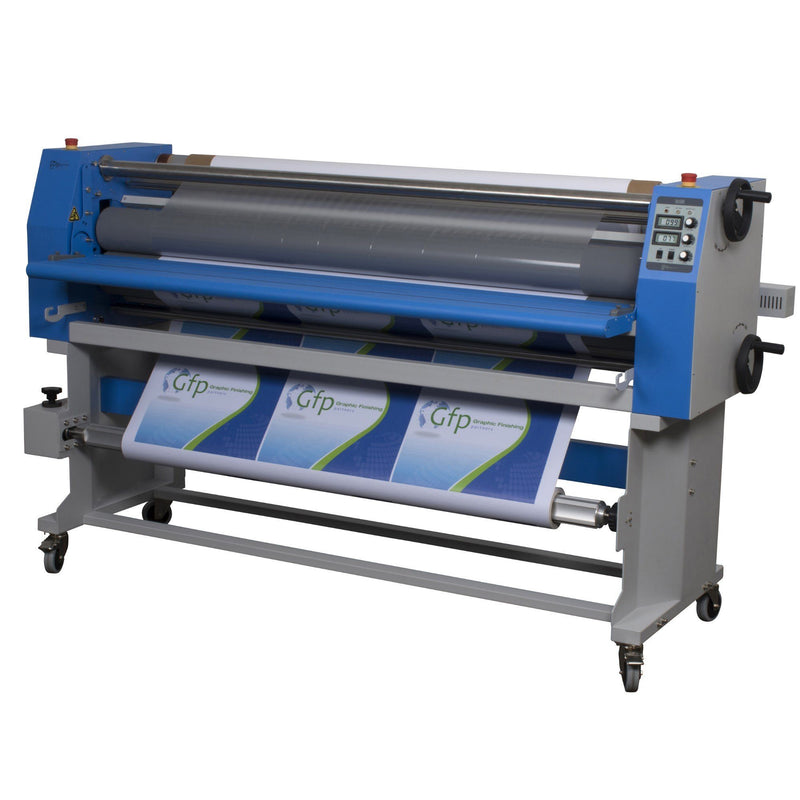

GFP 865DH-3R Professional Dual Heat Wide Format Laminator with Stand - 65"

For finishing professionals who need versatility, quality, and economy in one machine, the GFP 865DH-3 from Graphic Finishing Partners delivers. Turn out thermal encapsulation with low melt films (1.5-10mil), PSA lamination, and mounting jobs quickly and easily. Great for large format printers or print and cut machines, including the Roland VG2-640 and SG2-640. Spend less time on set-ups and changeovers with swing-out Quick-Grip supply shafts. Two front rewind shafts allow thermal encapsulation of prints from a roll.

• Dual heat for thermal & cold apps
• Labor saving front & rear swing-out supply shafts
• 3" Quick-Grip Swing-out Shafts
• Drop-in Quick-Grip rewind shafts
• Photoelectric eye for operator safety
• Independent top and bottom heaters
• Web clutch adjustment for output quality
• Motorized rear rewind
• Swing up feed table and 38" output height

GFP 865DH-3 Bundle Includes:

• GFP 865DH-3R 65" Dual Heat Laminator w/ Swing Out Shafts
• Stand
• Rear Rewind Motor & Tube
• Installation & Training Included
• Power Cord
• 1 Year Warranty

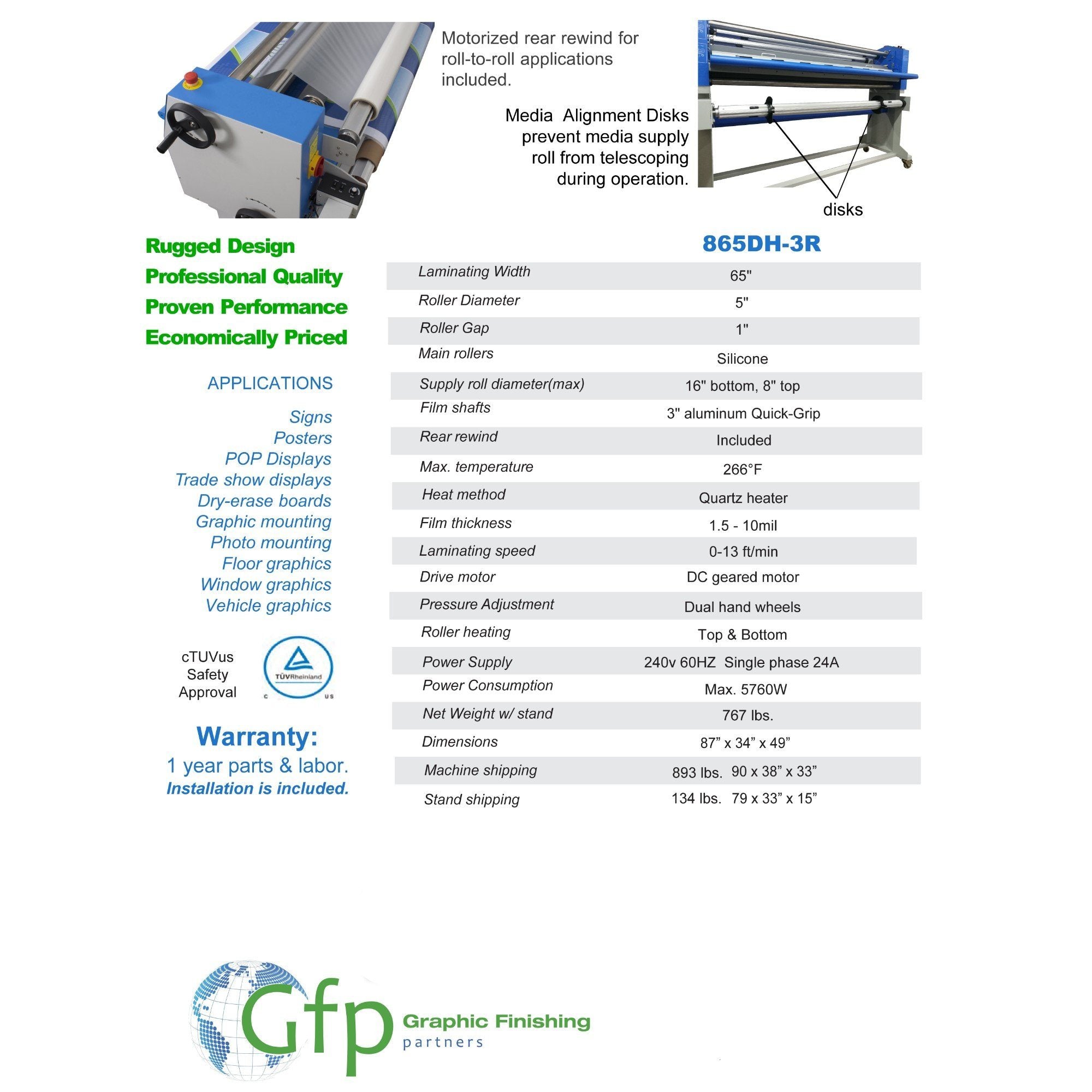

Dimensions:  87” x 34” x 49”
Weight w/ Stand" 767 lbs.

Speed:  13 ft/min
Roller Diameter: 5"

GFP 865DH-3R MANUAL
