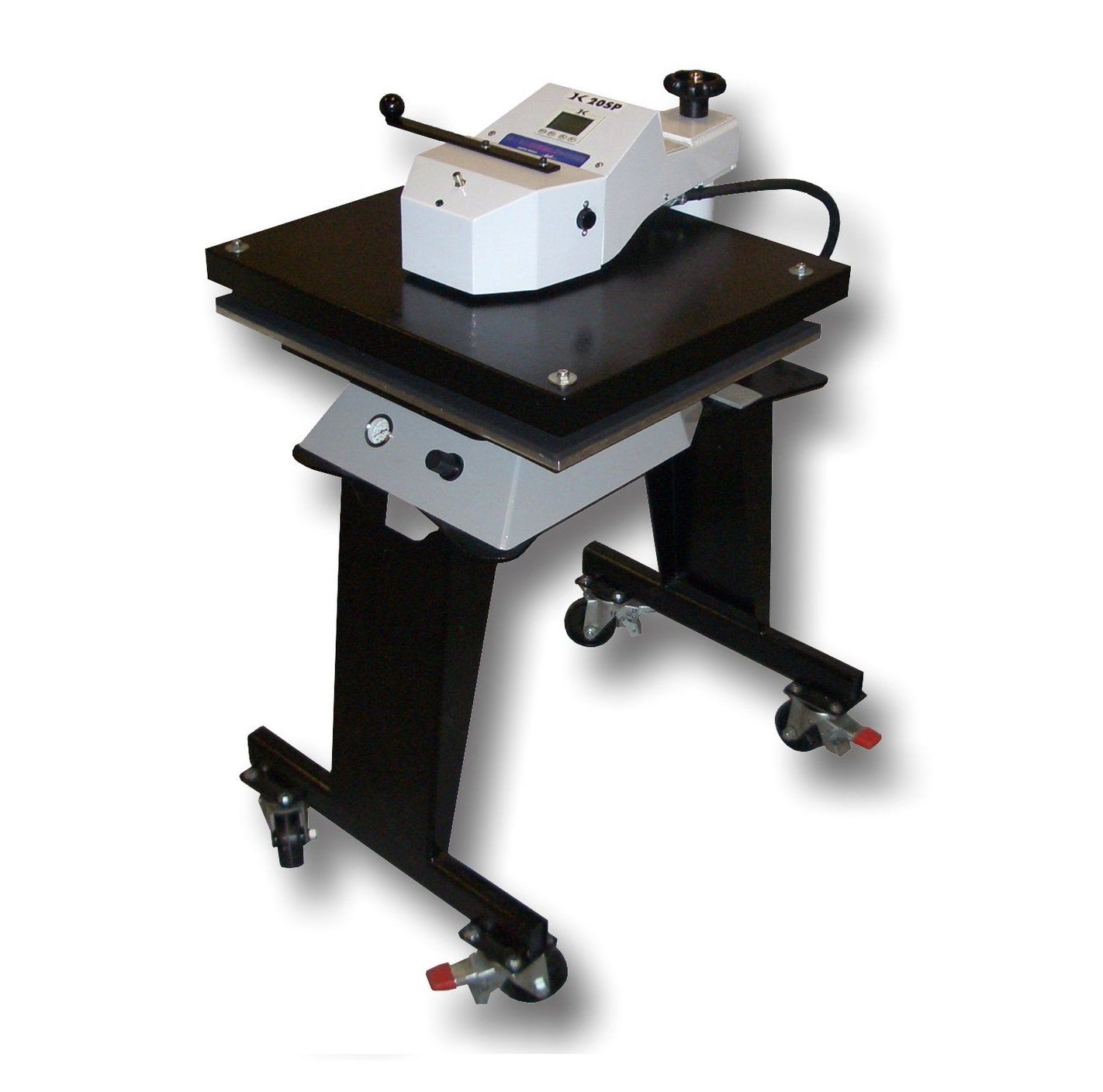

Geo Knight DK25SP Automatic Digital Swing Away Heat Press - 20" x 25"

The Digital Knight DK25SP is an air-operated, automatic 20" x 25" oversized swing away heat press with a state-of-the-art control system and heavy-duty solid steel welded framework. The smooth automatic pressing and push-button activation provides a productive, fatigue-free operation.

The extended 20" x 25" size of the heat platen is perfect for sublimation and large format materials. The heat platen uses SuperCoil-Microwinding™ heater technology, a system of embedded heater windings that wind tightly and closely together throughout the entire platen for extremely even heat, fast recovery & fast heat up times. The controller utilizes an easy to read oversized LCD display to show time and temperature simultaneously, and the temperature readout is accurate within +-2°F. The operator can use the 70 programmable presets for saving common application settings, and the press features a high accuracy pressure regulator and pressure gauge for specific psi settings. The press is adjustable to accommodate materials from fabric thickness all the way up to 1" thick substrates! Includes a stand and lockable heavy-duty casters as well.

  • 20" x 25" Heat Platen

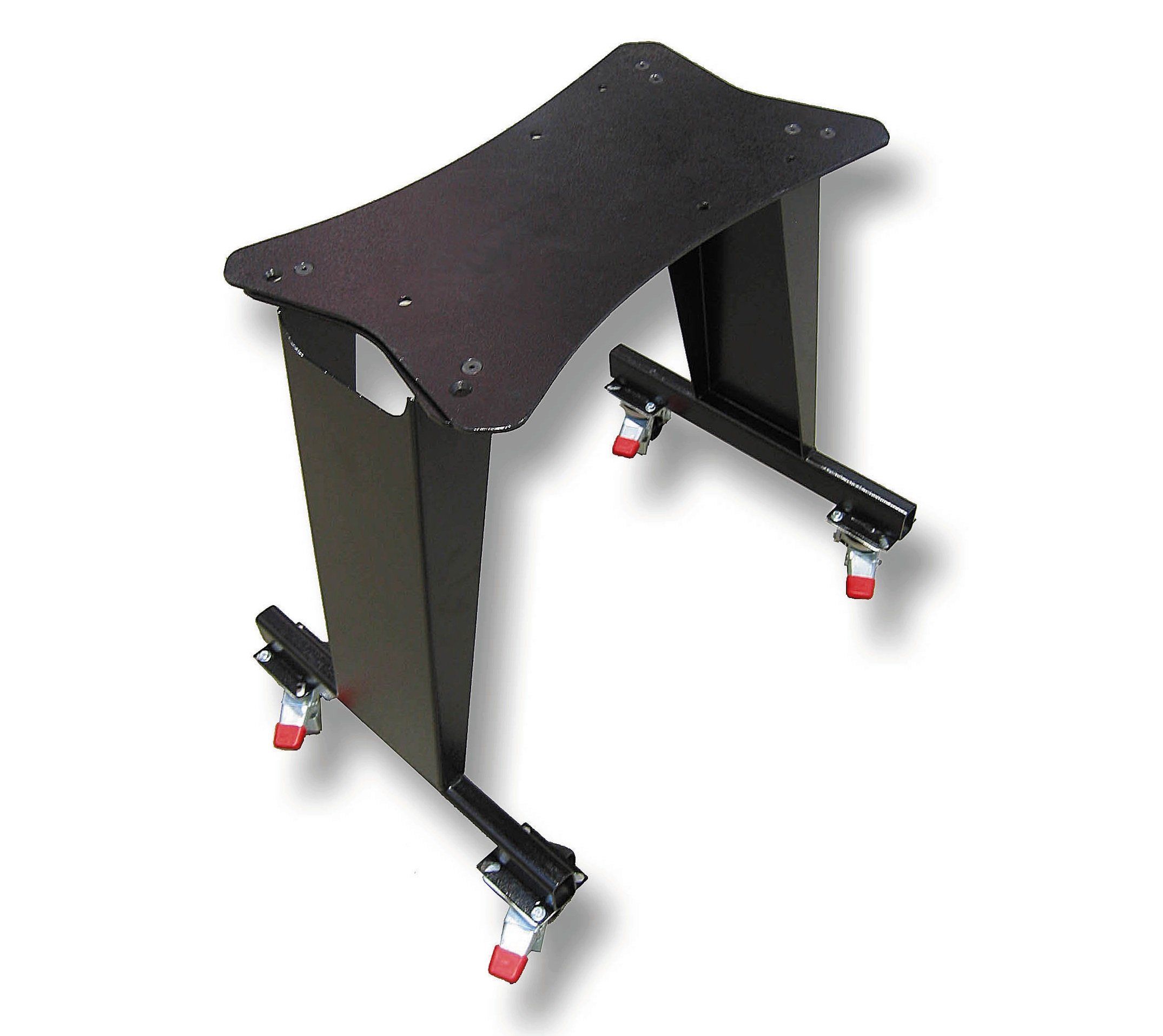

  • Includes Stand with locking casters
  • Fully digital temperature control 32°-600°F range
  • Automatic digital timer & dual pre-press timer
  • Air regulator and gauge 20-100 PSI range (compressor req)
  • Total applied force of 3000 lbs max
  • 70 Programmable presets
  • Solid steel welded framework
  • Interchangeable tables
  • SuperCoil-Microwinding™heater technology
  • Accommodates materials up to 2" thick
  • Temperature readout accuracy +-2°F - can show °C or °F
  • User selectable end-of-cycle alarms
  • Records number of pressing cycles done
  • Teflon-coated 3/4" thick heat platen
  • Heavy duty stand with lockable casters
  • Handmade in the U.S.A!
  • Lifetime Support

WARRANTY

  • Lifetime warranty on heat platen
  • 5-year warranty on frame
  • 3-year warranty on controller
  • 1 year warranty on parts
