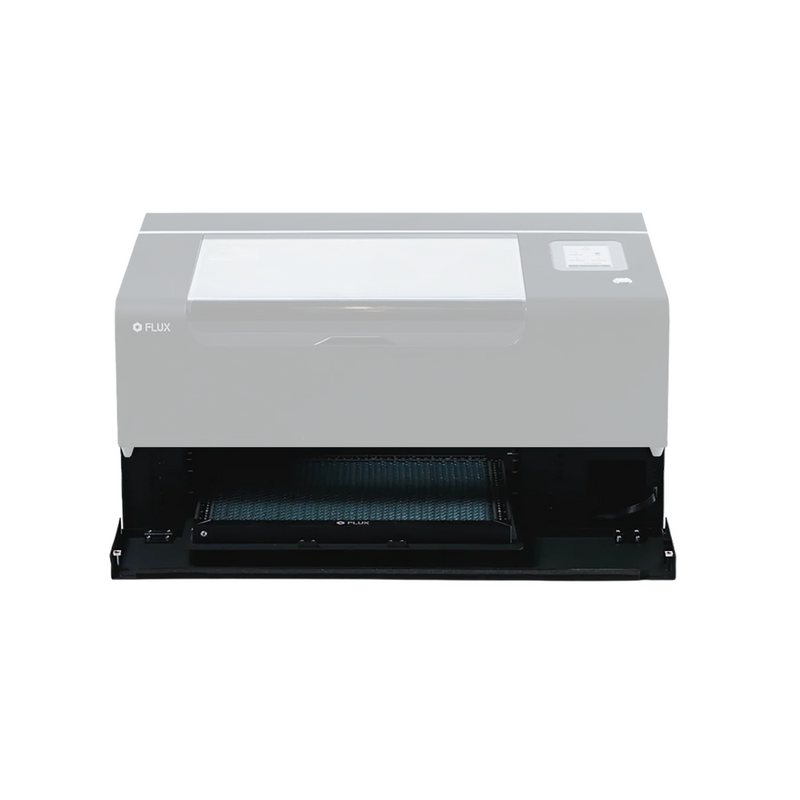

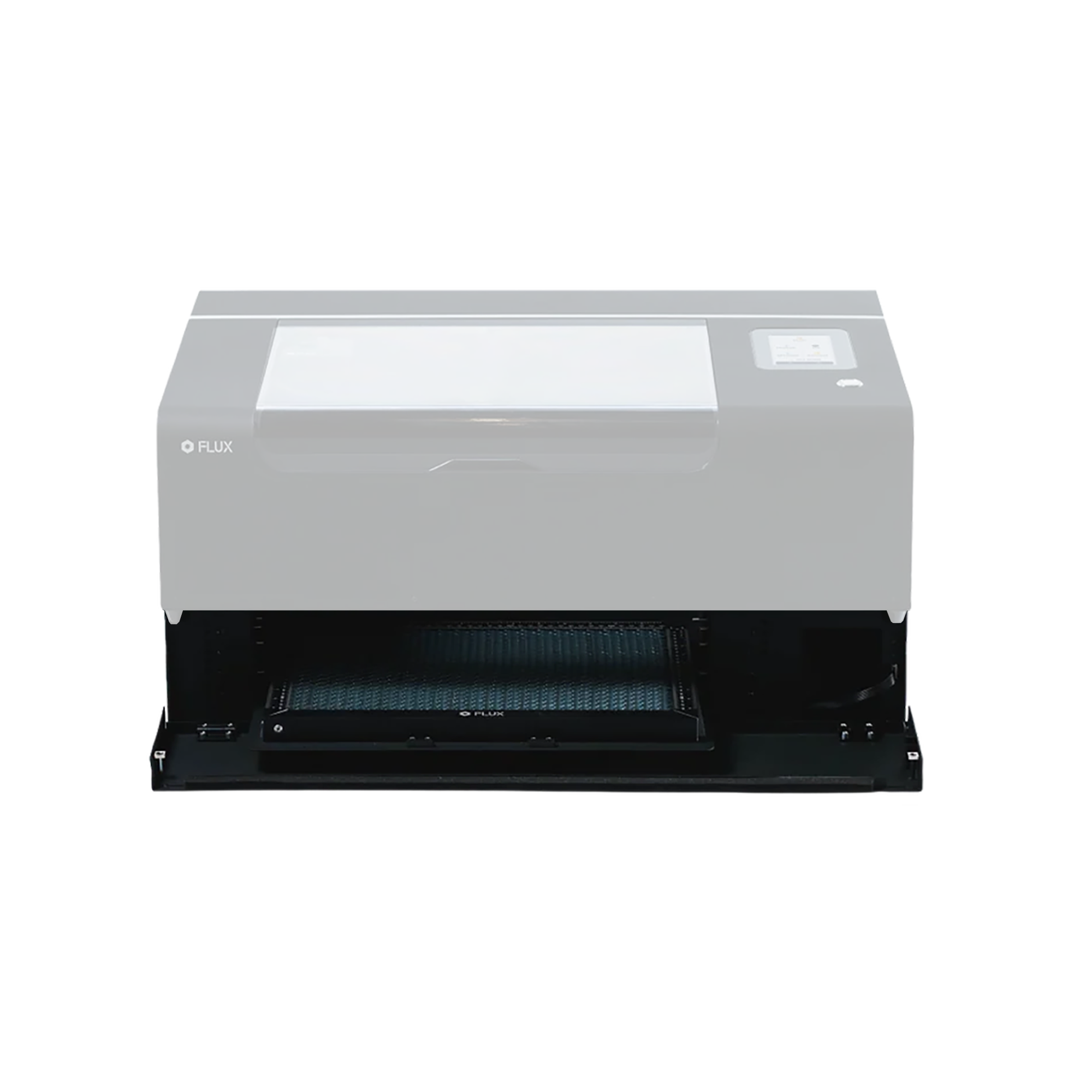

FLUX Beamo II Extension Base Riser
Shop the official FLUX Beamo II Extension Base Riser and give your Beamo II more height, more clearance, and more project range. This official beamo II Extension Base Add-on lifts the machine, deepens the work envelope to 6.10" (155 mm), and unlocks pass-through processing plus the Chuck Rotary and Auto Feeder add-ons.
Without it, Beamo II is limited to a shallow desktop bed. With it, you can cut and engrave thicker stock, wrap cylindrical objects, and feed longer boards through the machine instead of cutting everything down to fit the standard bed.
Why this riser matters
Stock Beamo II working depth is about 1.18" (30 mm) without the honeycomb, or only 0.28" (7 mm) with it. Mount the Extension Base and usable height jumps to 6.10" / 155 mm—enough for thick hardwood, stacked assemblies, bottles, tumblers, and other pieces that will not sit under a standard lid.
This is not a generic stand. It is the FLUX-designed base the machine sits on, with pass-through openings and the clearance required for official Beamo II rotary and feeder kits. Available now at Swing Design.
What you can do with it
- Cut and engrave thicker materials up to 6.10" (155 mm) deep for signs, boxes, layered wood, and bulky blanks.
- Pass through longer stock instead of tiling every job. Official pass-through specs: 16.14" (410 mm) material width, 13.39" (340 mm) work-area width, and 3.94" (100 mm) pass-through depth.
- Unlock the Beamo II Chuck Rotary for wrap engraving on cylinders, rings, and spheres. FLUX notes the Chuck Rotary needs the Extension Base for proper use.

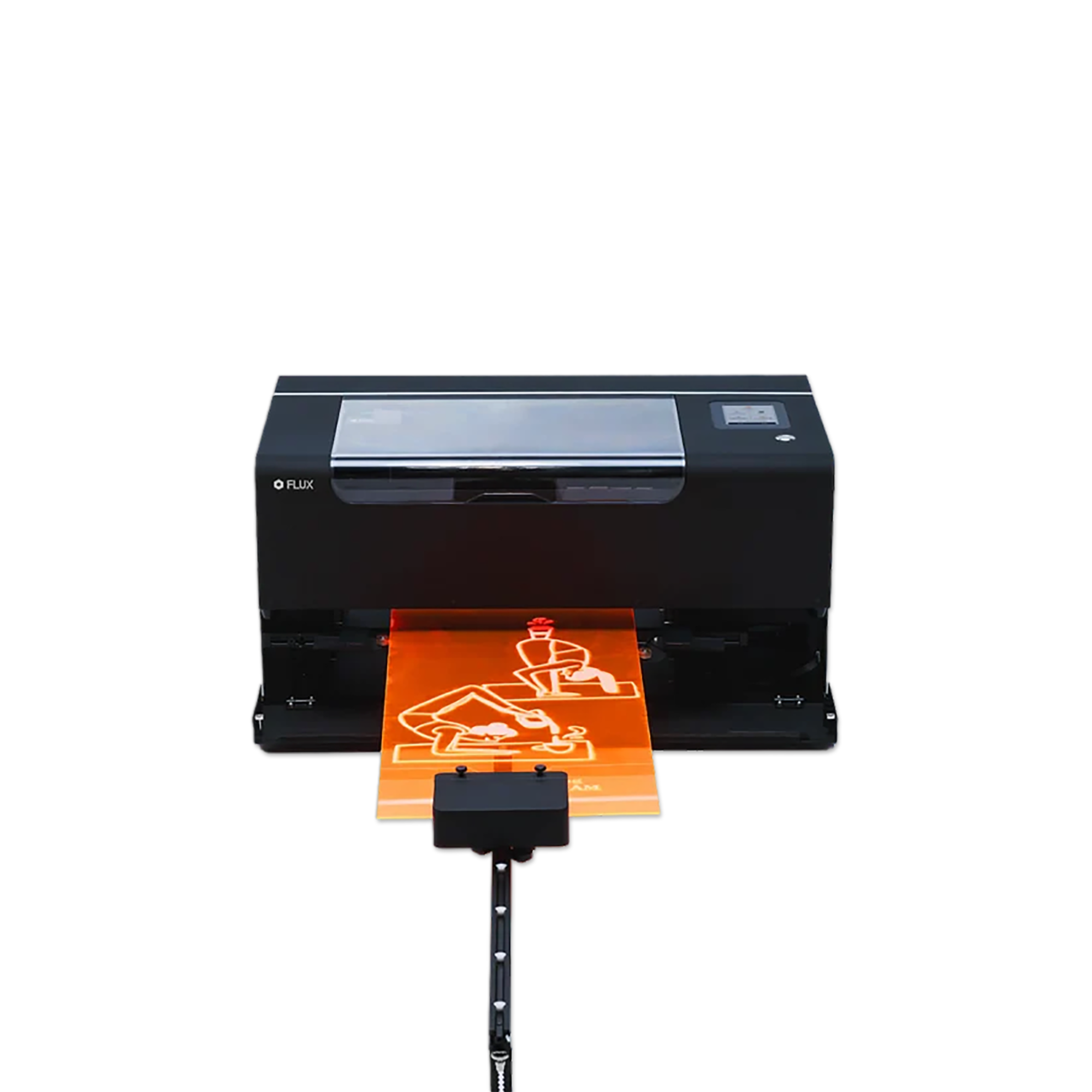

- Unlock the Beamo II Auto Feeder for aligned, repeatable runs on long sheet and strip material. Official compatibility: Auto Feeder and rotary on Beamo II require the Extension Base.
- Take on bigger finished goods—drinkware, bottles, longer plaques, architectural strips, and production batches that outgrow the standard enclosed bed.
Key features
- Official FLUX Beamo II Extension Base / riser add-on
- Raises usable work depth to 6.10" (155 mm)
- Built-in pass-through processing
- Required platform for Chuck Rotary and Auto Feeder
- Adjustable material-height layers (with or without honeycomb)
- Drawer-style base with removable front/rear covers for feeder and pass-through workflows
- Designed only for FLUX Beamo II—not Beamo I, Beambox, or Beambox II
- Sold and supported at SwingDesign.com
Technical specifications
| Spec | Value |
|---|---|
| Official name | beamo II Extension Base Add-on |
| Compatibility | FLUX Beamo II only |
| Extension / work depth | 6.10" (155 mm) |
| Pass-through material width | 16.14" (410 mm) |
| Pass-through work area width | 13.39" (340 mm) |
| Pass-through depth | 3.94" (100 mm) |
| Base size (retailer spec) | 27.56" × 17.87" × 6.10" (700 × 454 × 155 mm) |
| Base weight (retailer spec) | 22.05 lb (10 kg) |
| Wide engraving width (retailer spec) | 13.39" (340 mm) |
| Stock Beamo II depth, no honeycomb | 1.18" (30 mm) |
| Stock Beamo II depth, with honeycomb | 0.28" (7 mm) |
Material-height ranges from FLUX’s install guide:
Without honeycomb: Layer 1: 23–50 mm · Layer 2: 51–58 mm · Layer 3: 81–110 mm · Layer 4: 111–140 mm · drawer removed: 141–155 mm
With honeycomb: Layer 1: 0–27 mm · Layer 2: 28–57 mm · Layer 3: 58–87 mm · Layer 4: 88–117 mm · drawer removed: 118–132 mm
What’s in the box
- Extension Base (1)
- 3 mm hex wrenches (2)
- 2.5 mm hex wrench (1)
- Mounting screws (4)
- Drawer handle (1)
- Jumper cable for Auto Feeder / open-cover kits (1)
- Safety goggles (1)
Compatibility notes
This riser is Beamo II only. It does not fit original beamo, Beambox, Beambox Pro, Beambox II, HEXA, or Ador.
Buy it if you plan to add:
- Beamo II Chuck Rotary Add-on
- Beamo II Auto Feeder
- Pass-through jobs on boards, moldings, and long sheet goods
Chuck Rotary and Auto Feeder are sold separately. The Extension Base is the required foundation for both. Pair them together when you shop at Swing Design.
Best for
Makers, small shops, and classrooms that already own a Beamo II and need more than a shallow desktop bed: custom tumblers and bottles, thick wood signs, longer cutting runs, gift production, and any workflow that outgrows the factory enclosure.
Good to know

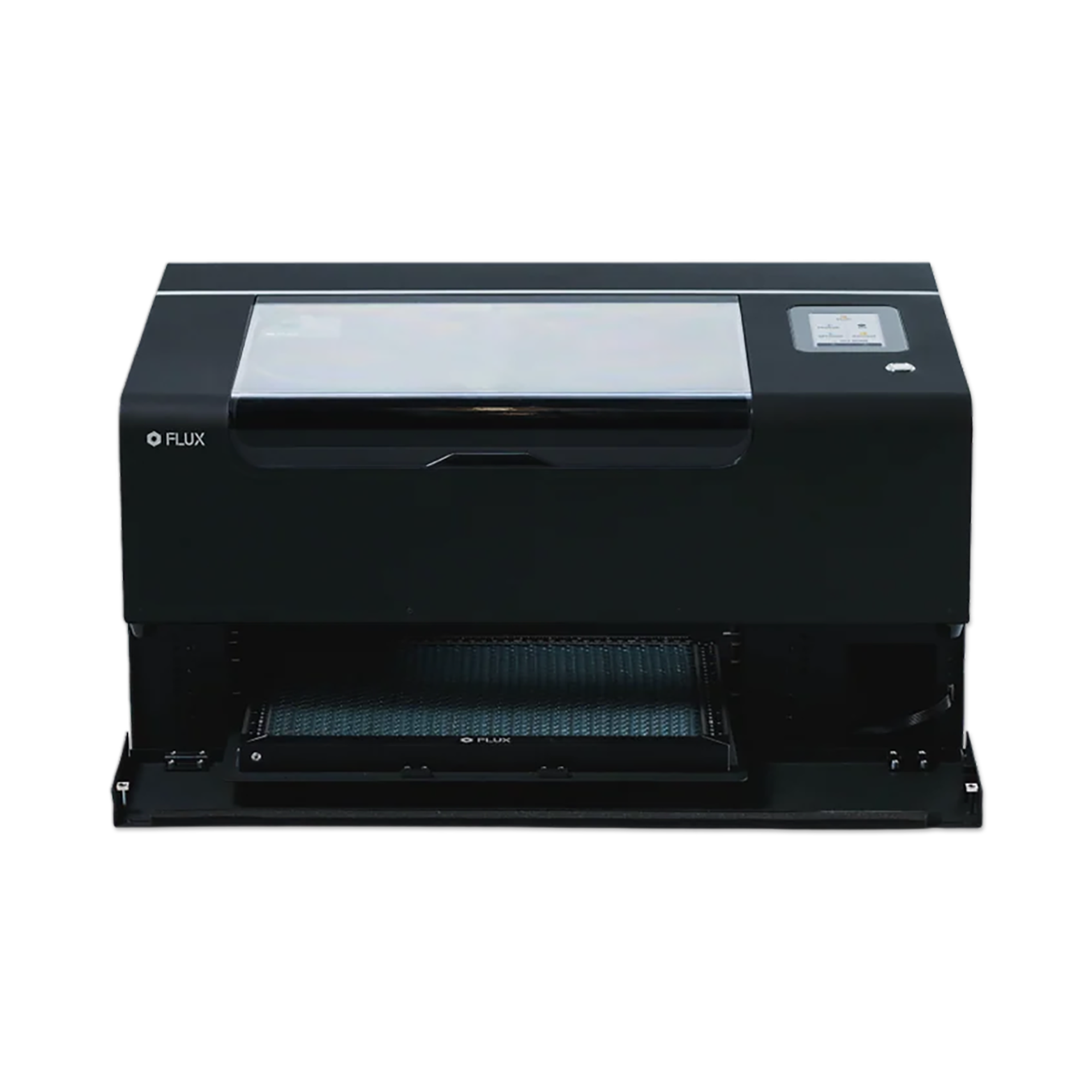

Installation mounts the Beamo II onto the Extension Base and removes the machine’s bottom plate. FLUX recommends two people for placement. After install, choose the correct height layer for your material and honeycomb setup. Pass-through is included with this base; you do not need a separate pass-through kit for Beamo II.
Ready to expand your Beamo II? Order the FLUX Beamo II Extension Base Riser at SwingDesign.com and turn your compact desktop cutter into a taller, pass-through-ready workstation.
