FLUX Beamo II 4-in-1 Rotary Attachment with Extension Riser Base
$459.99$549.99
$459.99
FLUX Beamo II Rotary Tool with Chuck Riser plus Extension Base
This three-piece Beamo II kit is the full drinkware setup: the Chuck Rotary Tool, the Rotary Chuck Riser, and the Extension Base. You get wrap engraving on cylinders, rings, and spheres, extra jaw height for handled tumblers, and the machine riser FLUX requires before the chuck will run on Beamo II.
The Beamo II laser is not included. Original beamo rotary kits do not fit this machine.
What each piece does

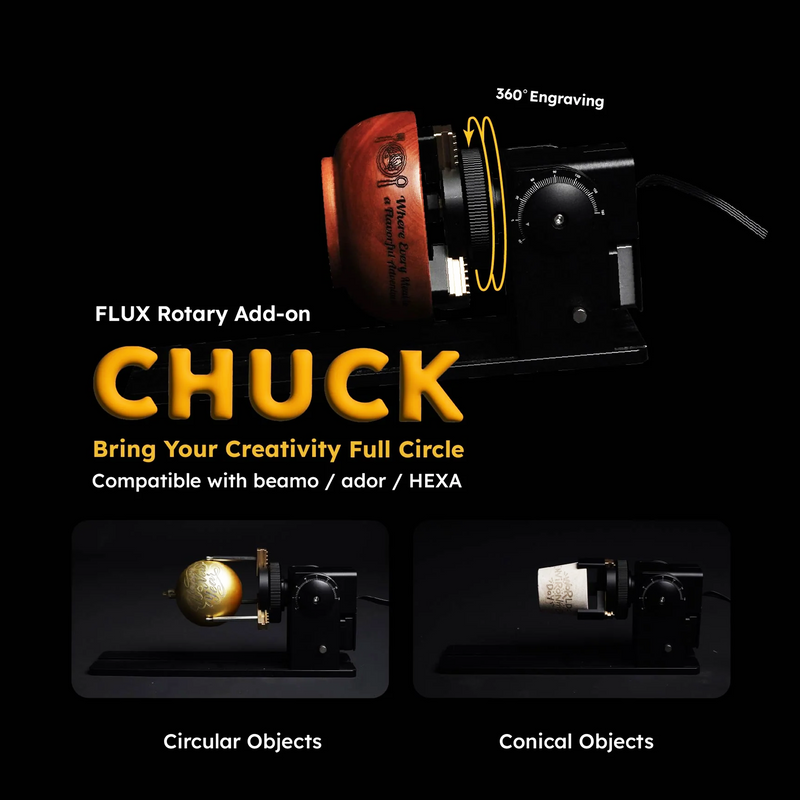

1. Rotary Tool (Chuck Rotary)

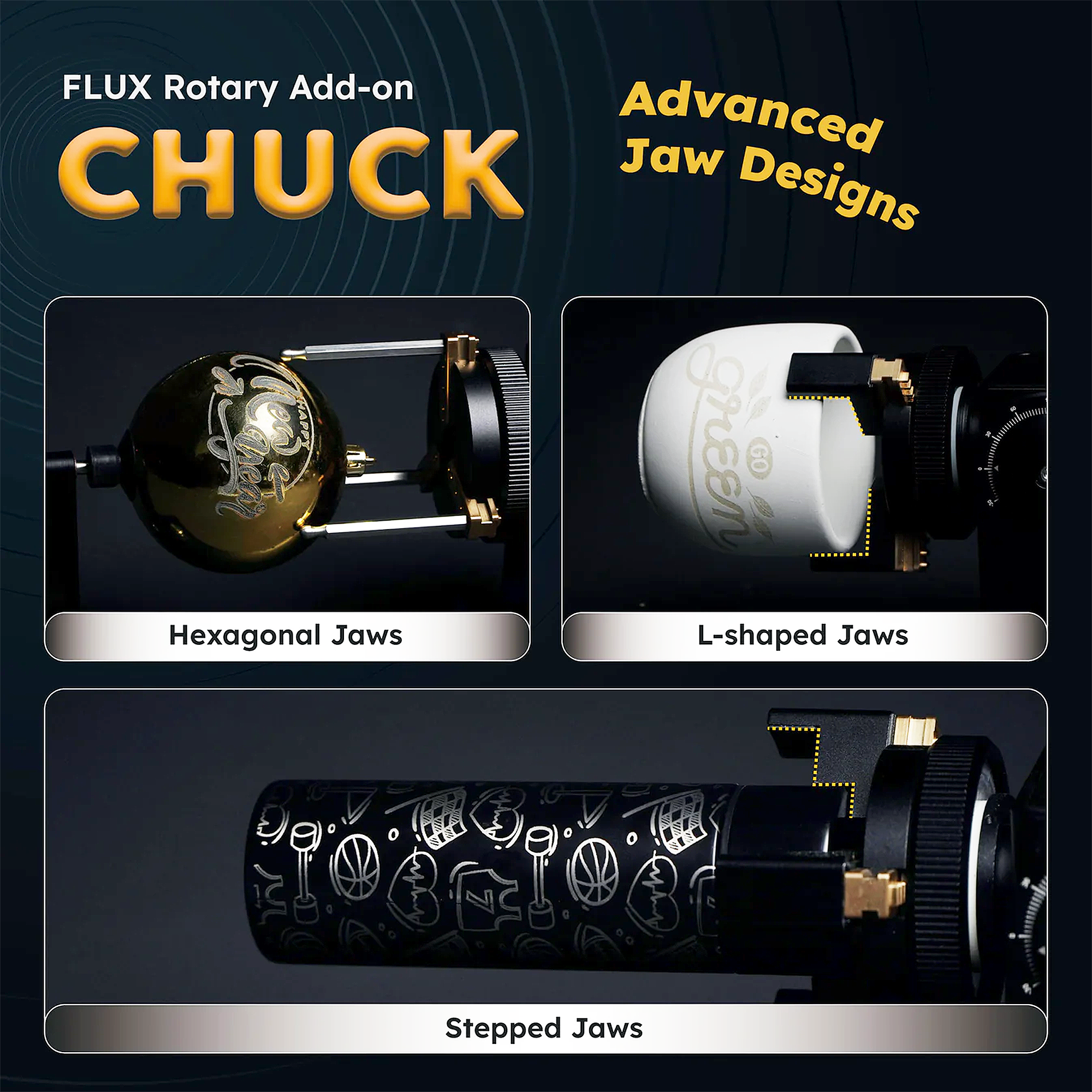

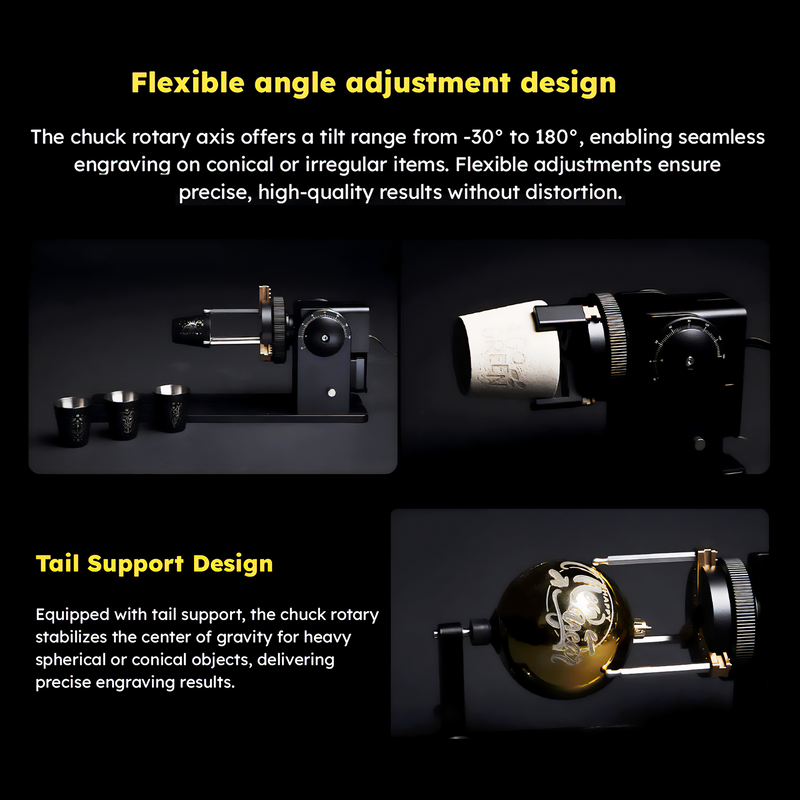

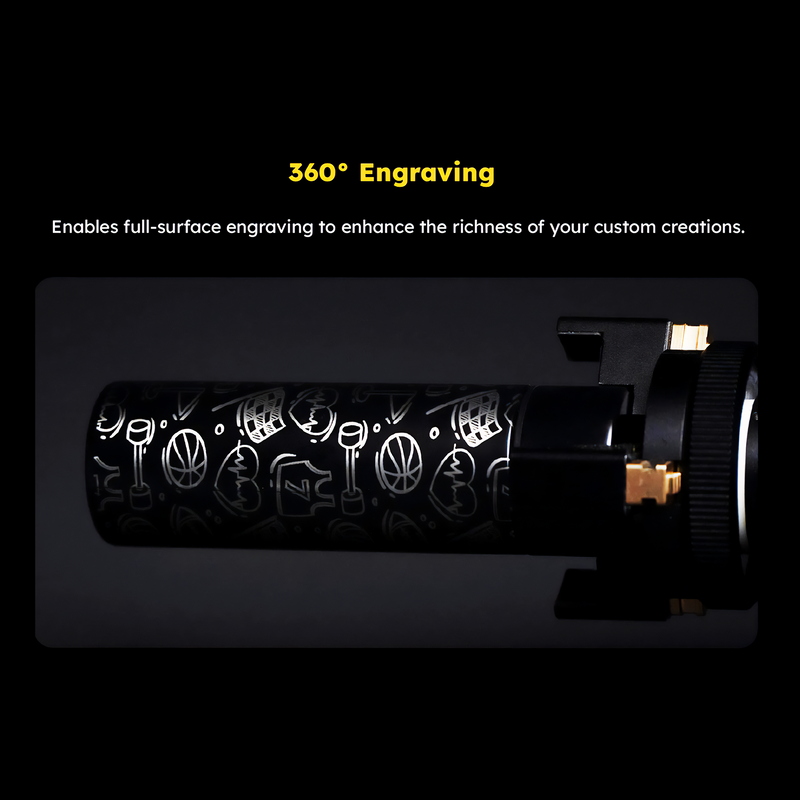

Holds the workpiece and turns it for 360° engraving. Step, L-shaped, and hexagonal jaws cover pens, bottles, tumblers, rings, and spheres.
2. Rotary Chuck Riser
Sits under the chuck and lifts the head so handles and wider drinkware clear the jaws. FLUX’s riser set is the extra block plus taller tail support used for big-handle mugs and larger spheres. Dealers list about 0.63" of added chuck height.

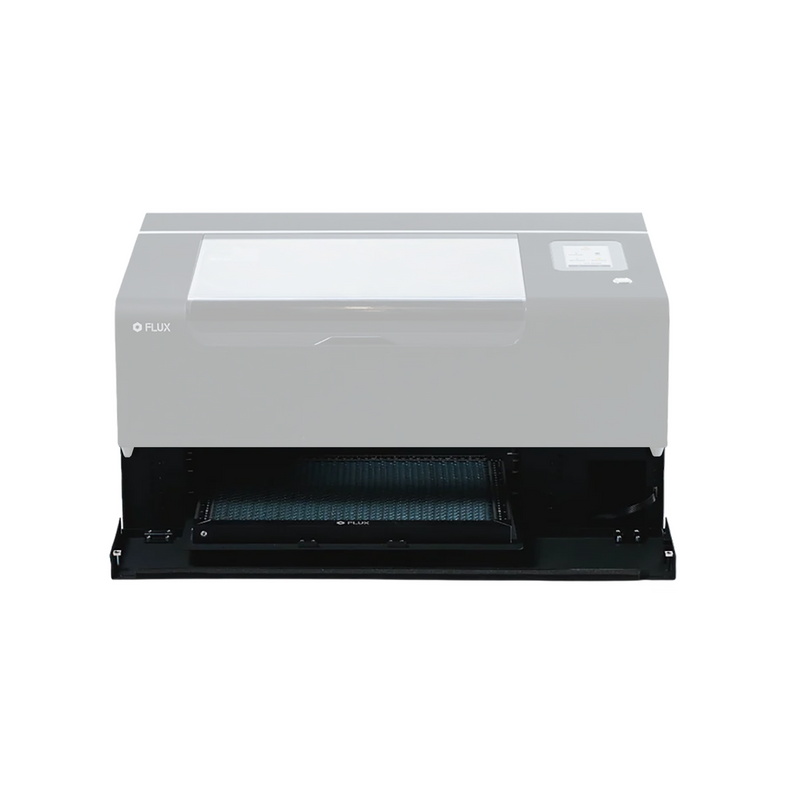

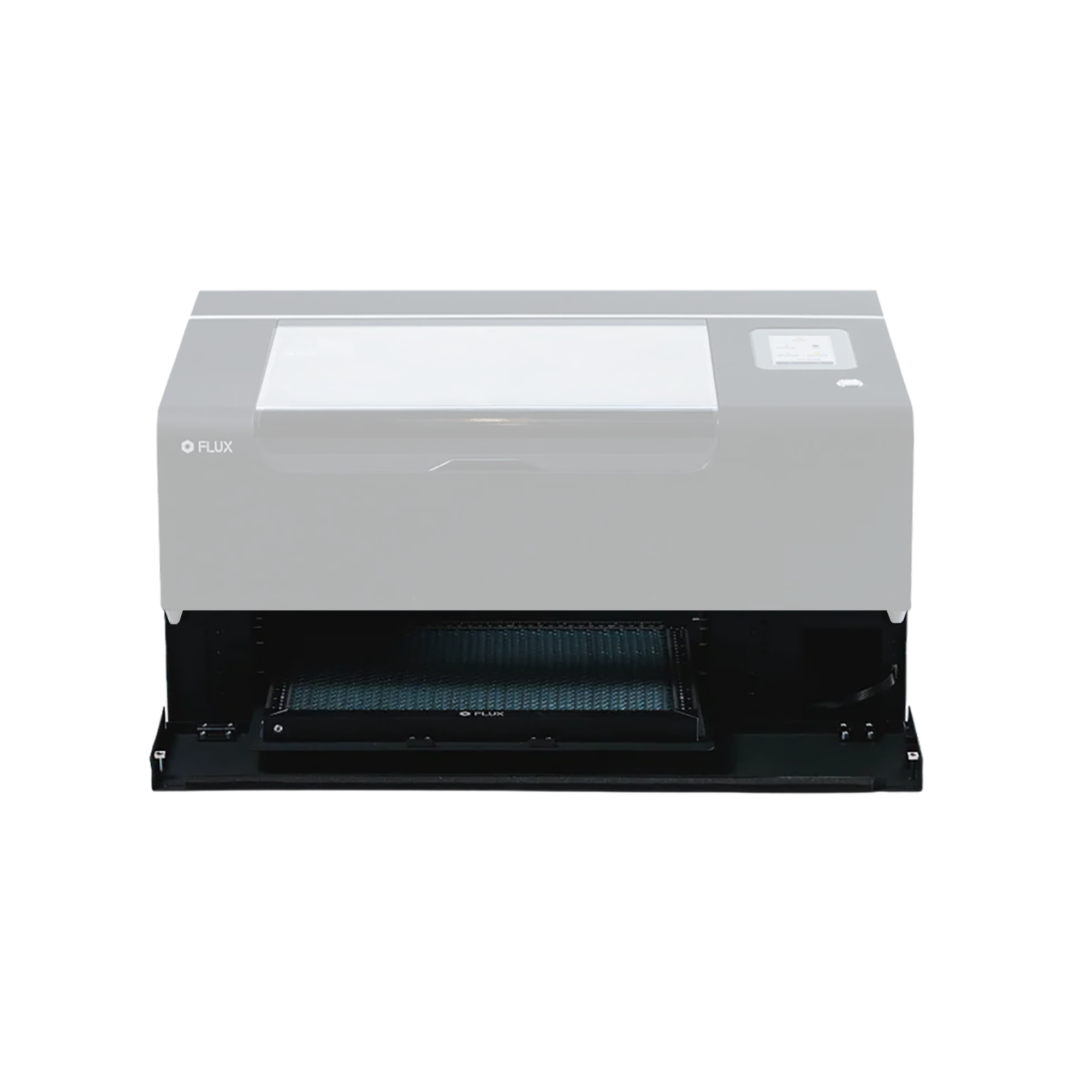

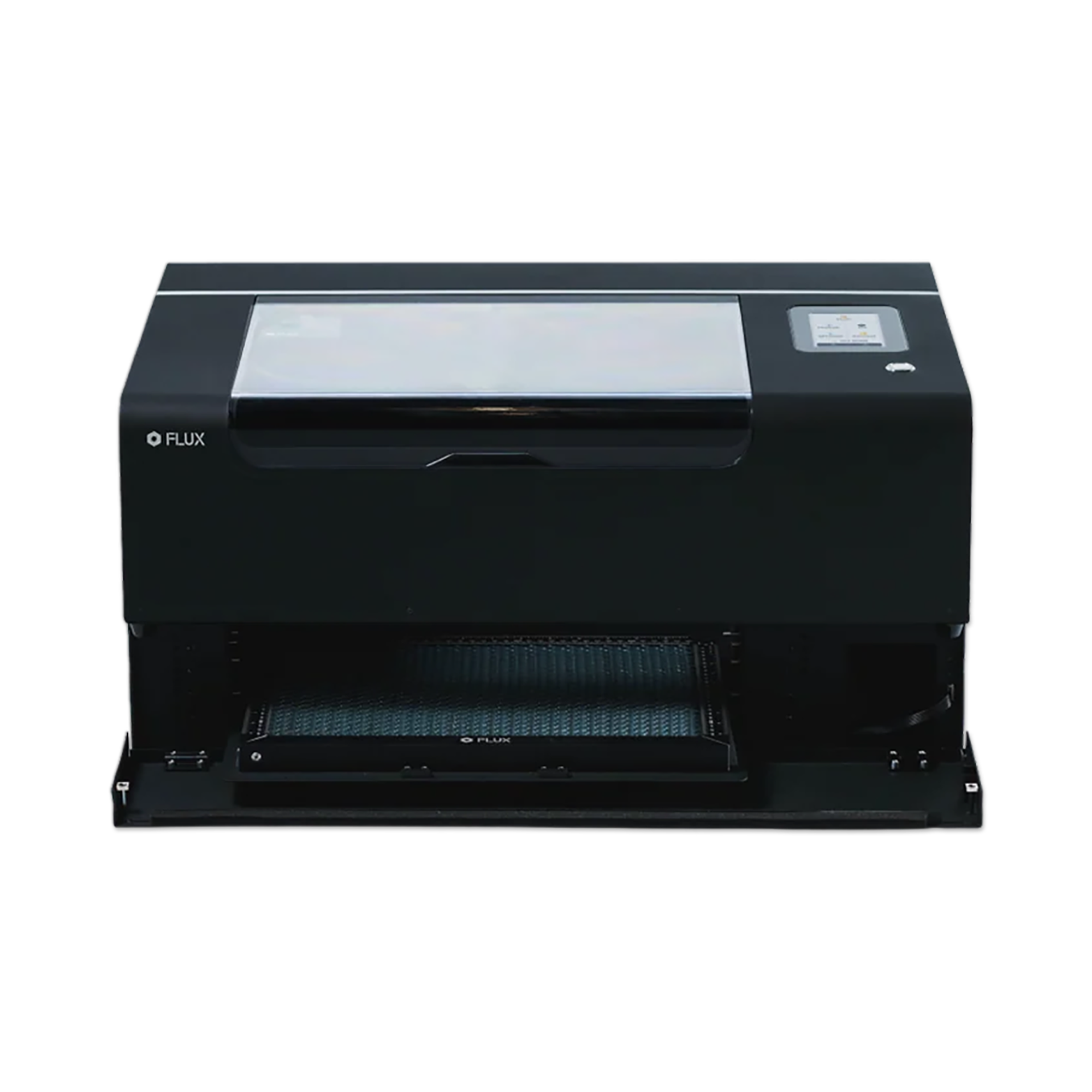

3. Extension Base
The machine riser. Beamo II must sit on this base for the chuck to work. It adds 6.10" (155 mm) of work depth and opens pass-through for longer stock.
Buy all three together so you are not missing the base the rotary needs or the riser handled cups need.
What you can engrave
- Tumblers and handled drinkware within the chuck’s diameter range
- Bottles, mugs, glasses, and thermoses
- Rings, bracelets, and small cylinders
- Spheres and ornaments
- Pens and short production runs
Key features
- Complete Beamo II rotary kit: tool + chuck riser + Extension Base
- Cylinder diameter 0.04"–5.51" (1–140 mm)
- Ring diameter 0.43"–5.51" (11–140 mm)
- Sphere diameter 0.98"–5.12" (25–130 mm)
- Engraving length 10.83" (275 mm)
- Chuck riser for handle and sphere clearance
- Extension Base depth 6.10" (155 mm)
- Pass-through on the base: 16.14" material width, 13.39" work-area width, 3.94" pass-through depth
- Beam Studio chuck / rotary mode
- Beamo II only
Technical specifications
| Spec | Value |
|---|---|
| Bundle | Chuck Rotary Tool + Rotary Chuck Riser + Extension Base |
| Compatibility | FLUX Beamo II only |
| Cylindrical diameter | 0.04"–5.51" (1–140 mm) |
| Ring diameter | 0.43"–5.51" (11–140 mm) |
| Sphere diameter | 0.98"–5.12" (25–130 mm) |
| Max engraving length | 10.83" (275 mm) |
| Chuck riser | Lifts chuck head for handled / bulky objects (~0.63" extra height) |
| Extension / work depth | 6.10" (155 mm) |
| Pass-through material width | 16.14" (410 mm) |
| Pass-through work area width | 13.39" (340 mm) |
| Pass-through depth | 3.94" (100 mm) |

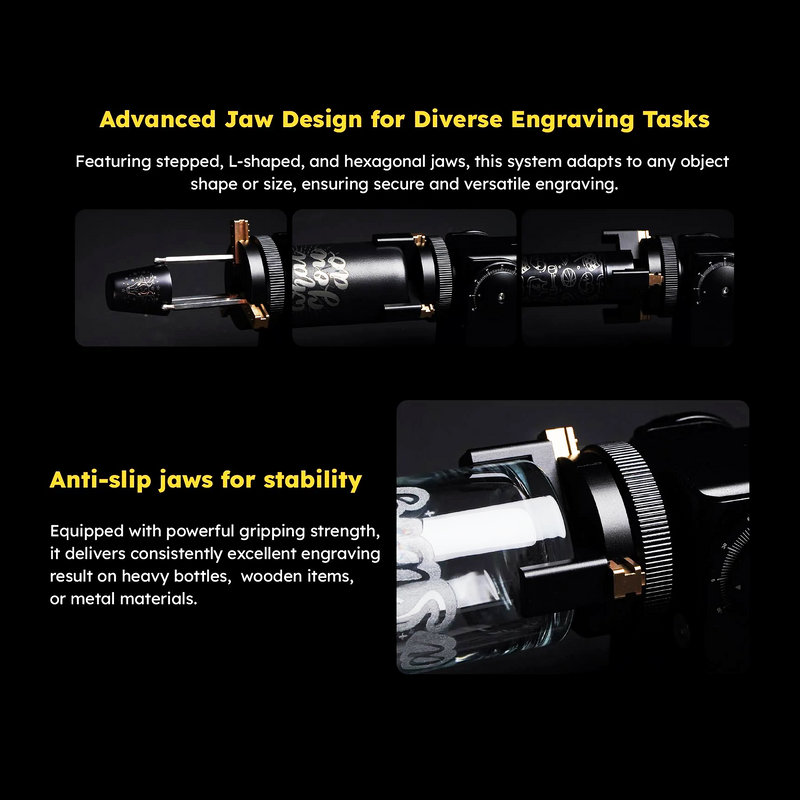

| Jaws | Step, L-shaped, hexagonal |
| Required machine | Beamo II (sold separately) |

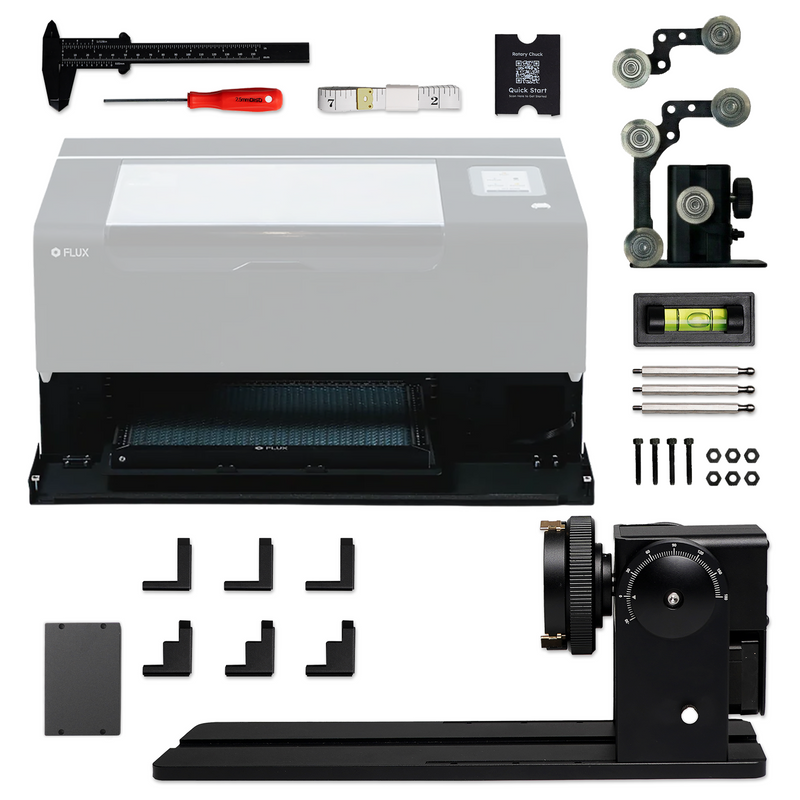

What’s included

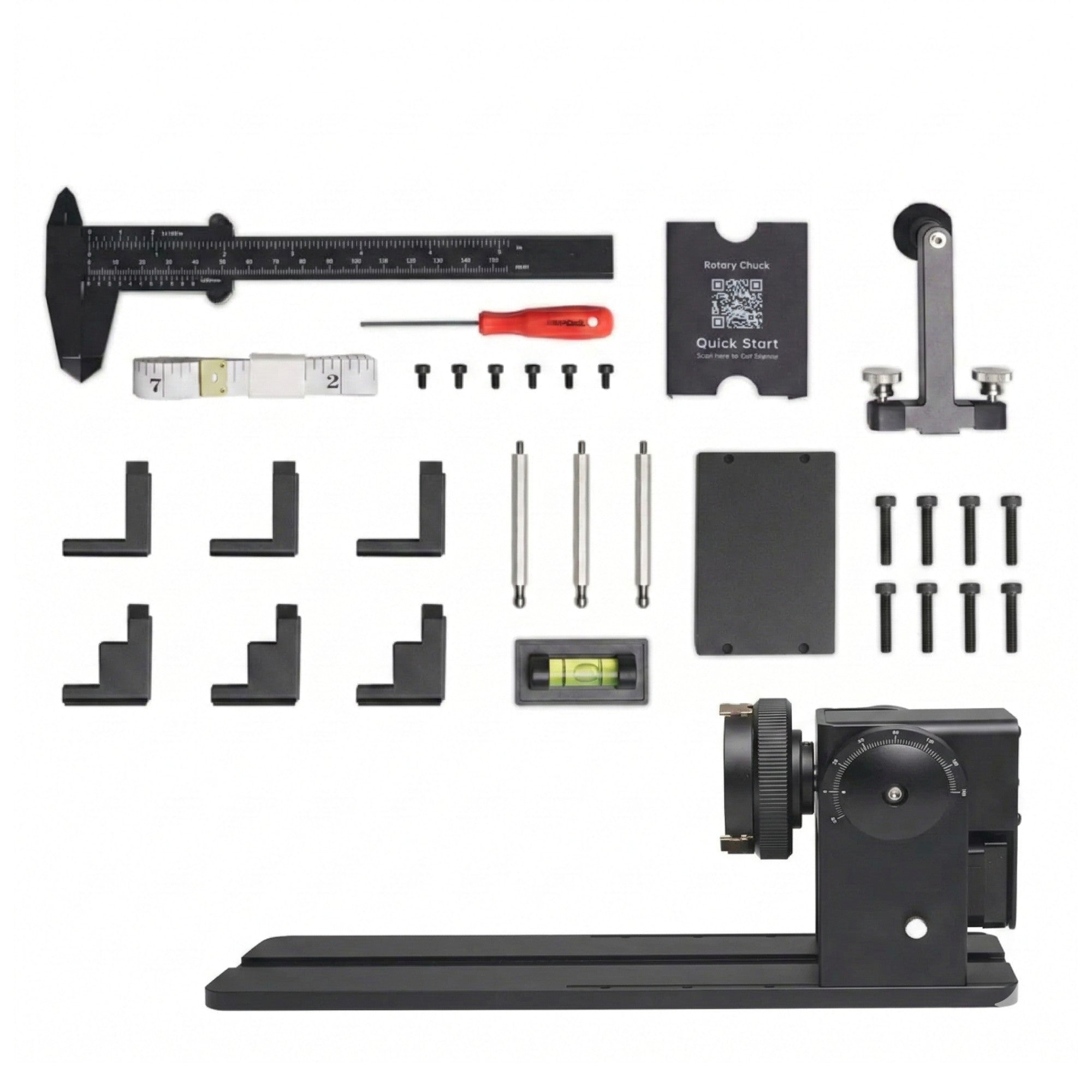

- Beamo II Chuck Rotary Tool — chuck body, interchangeable jaws, tail support, connection cable, level, and setup tools

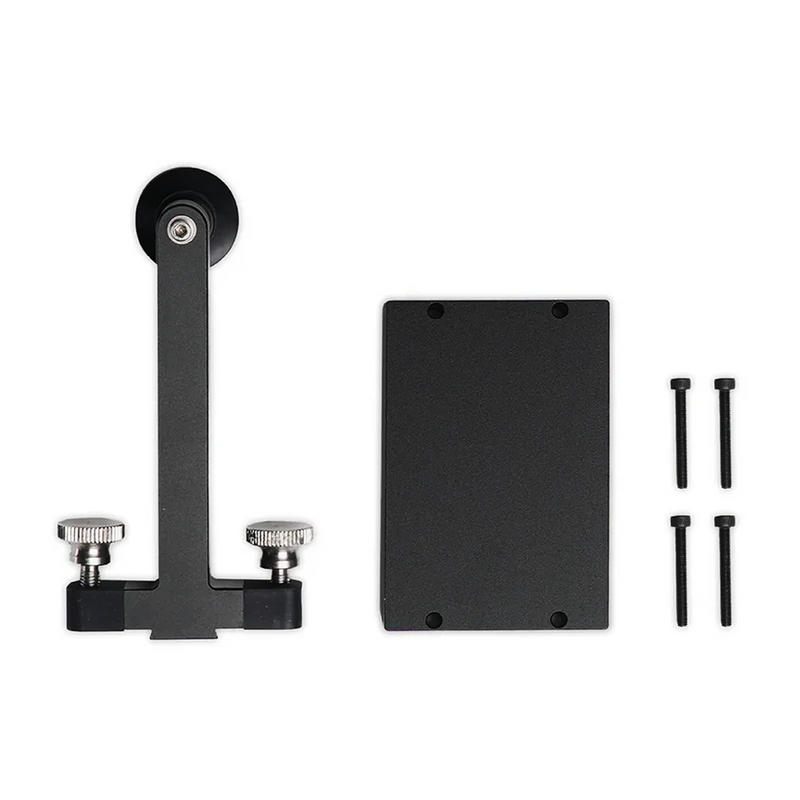

- Rotary Chuck Riser — riser block (and taller tail support when supplied with the FLUX riser set) for handled drinkware and larger spheres
- Beamo II Extension Base — machine riser/base, mounting hardware, drawer handle, jumper, wrenches
Compatibility notes
Fits FLUX Beamo II only.
Will not fit original beamo, Beambox, Beambox Pro, Beambox II, HEXA, or Ador.
Stay inside 5.51" diameter and 10.83" length. The chuck riser helps handles clear the jaws; the object still has to fit the Beamo II enclosure after the Extension Base is installed. Test fit oversized 40 oz cups before a production run.
Good to know
Install the Extension Base first, mount the chuck riser on the rotary when you need handle clearance, then clamp, level, and run Beam Studio in chuck mode with a border preview.
Why buy from Swing Design
Authorized FLUX dealer with US stock, real support after checkout, and the three Beamo II rotary pieces in one kit so you do not buy a chuck that cannot run. Questions on tumbler size or Beamo vs Beamo II? Contact Swing Design before you order.
