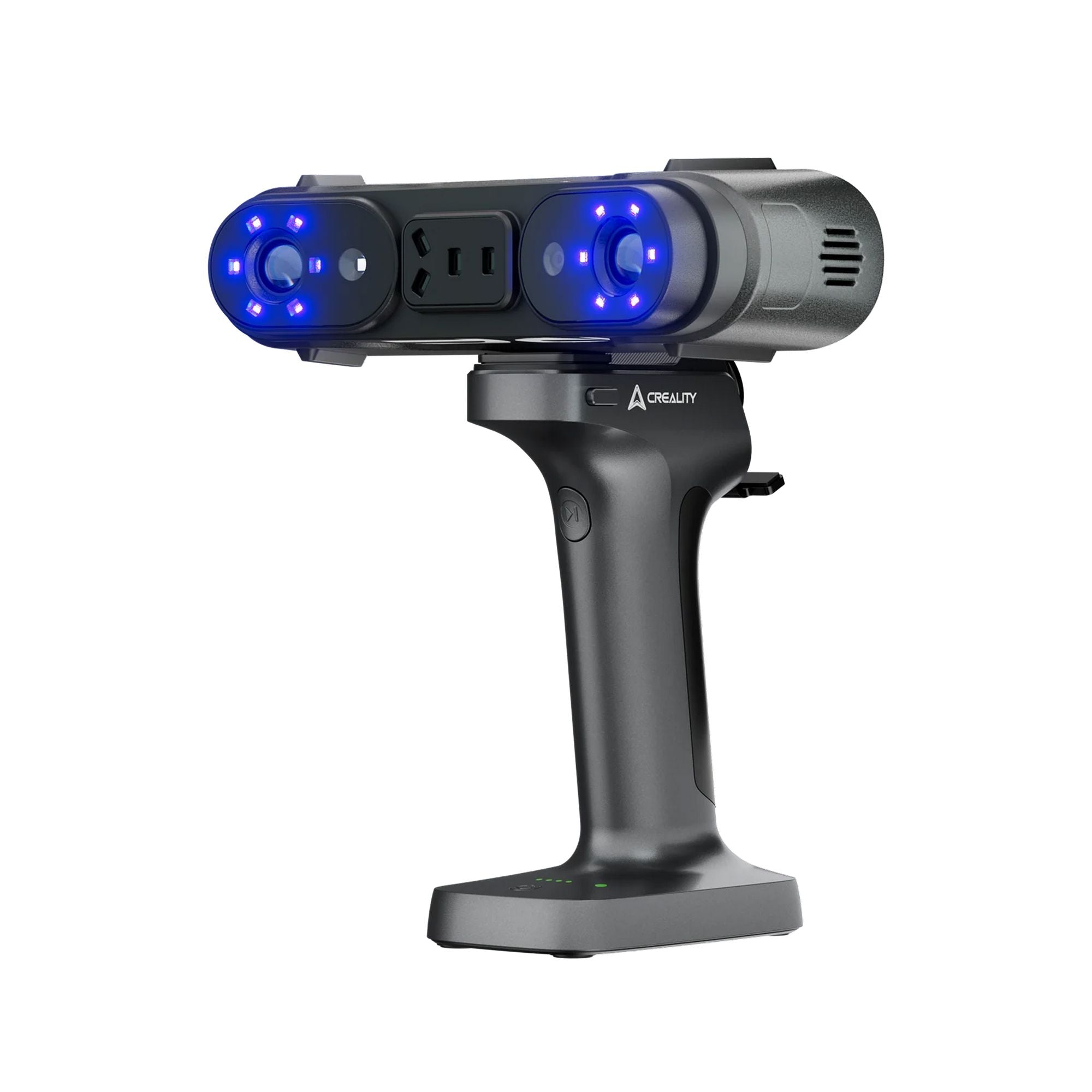

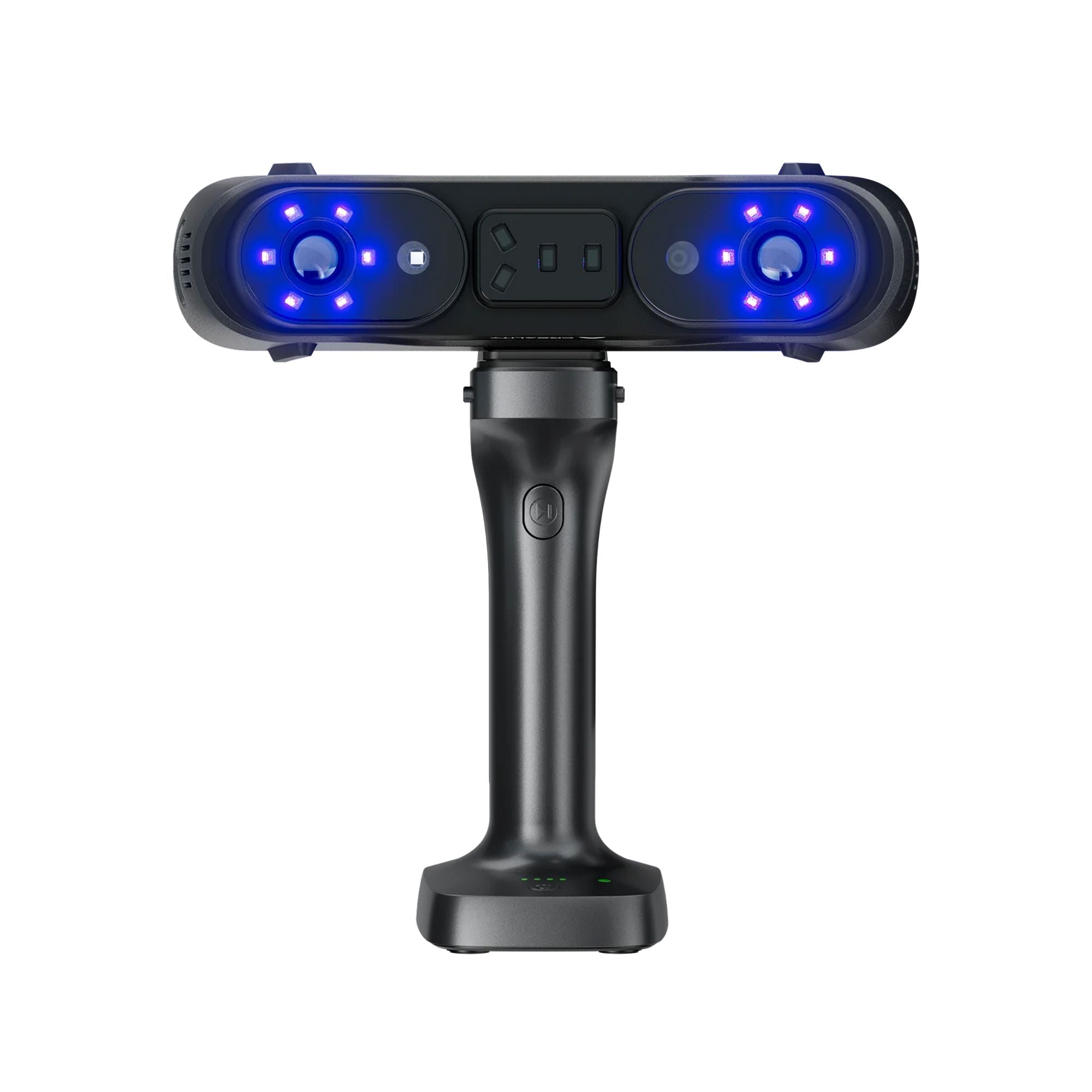

Creality Sermoon X1 Industrial Handheld Wireless 3D Scanner
$5,999.00$6,999.00
$5,999.00
The Creality Sermoon X1 Industrial Handheld 3D Scanner is a cutting-edge, metrology-grade wireless 3D scanner built for rigorous industrial demands, including non-destructive inspection, reverse engineering, manufacturing quality control, automotive components, mold scanning, engineering analysis, restoration, and large-scale 3D data acquisition. Combining multi-mode blue laser lines (1 single-line for deep holes up to 6:1 depth-to-diameter ratio, 7 parallel lines for ultra-fine details, 34 cross lines for high-speed large-area capture) with NIR binocular structured light, the Sermoon X1 delivers 0.02 mm point accuracy and volumetric accuracy of 0.02 mm + 0.04 mm/m (upgradable to 0.02 mm + 0.03 mm/m with included scale bars and built-in photogrammetry for automatic dimensional correction).
Scan effortlessly from tiny intricate parts (5 × 5 × 5 mm³) to massive objects (4000 × 4000 × 4000 mm³), with lightning-fast performance: up to 90 FPS (single/7 parallel lines), 1,734,000 measurements per second (cross lines), and 5,000,000 measurements per second in NIR mode—making it one of the fastest industrial handheld 3D scanners for efficient, high-volume workflows.
Key Features & Benefits
- Industrial-Grade Precision & Stability — CNC one-piece construction with all-metal optoelectronic mount for superior rigidity, vibration resistance, and thermal stability; AI-driven temperature compensation ensures consistent output in demanding environments.
- Deep Hole & Zero Blind Spot Mastery — Single-line blue laser excels at capturing recessed areas, narrow gaps, and deep holes (tested 6:1 ratio on 28.68 mm diameter / 172.7 mm depth).
- Marker-Free & Spray-Free Versatility — NIR structured light enables markerless scanning of feature-rich objects; handles black, metallic, reflective surfaces without sprays; full-color texture capture via 2 MP RGB camera, Qualcomm ISP chip, and dual-color/auxiliary LED lighting (12 white + 12 blue LEDs).
- Wireless Freedom with Wi-Fi 6 — Cable-free operation up to 4+ hours on 5000 mAh battery (Type-C charging, battery indicator); low-latency (10 ms), high-speed (4.7 Gbps) data transfer for seamless fieldwork, workshops, or outdoor use.
- Built-in Photogrammetry & Scale Bars — 2× magnetic carbon fiber scale bars included for automatic accuracy correction, reducing cumulative errors on large scans and requiring 17.36% fewer markers per unit area.
- High-Speed & Adaptive Modes — Switch modes seamlessly: 34 cross lines for rapid medium/large object coverage (up to 70 FPS), 7 parallel for sharp edges/fine features (up to 90 FPS), single-line for precision, NIR for large-area/marker-free efficiency.
- Outdoor & Harsh Environment Ready — Reliable scanning under <100,000 lux (34 lines), <50,000 lux (single/7 lines), <30,000 lux (NIR); operating range -10°C to 40°C, 10–90% RH.
- User-Friendly & Compatible — Pairs with CrealityScan 4.0 (AI-powered, GPU-accelerated, one-click processing, intuitive editing, AI repair tools); exports to STL/OBJ/PLY/ASC for integration with QuickSurface, Geomagic Design X, SolidWorks, Fusion 360, and Creality 3D printers.
- Portable & Professional Design — Lightweight 530 g handheld (216 × 74 × 51 mm), ergonomic grip, safety strap, and compact carry-on protective case for scanner, scale bars, and accessories.

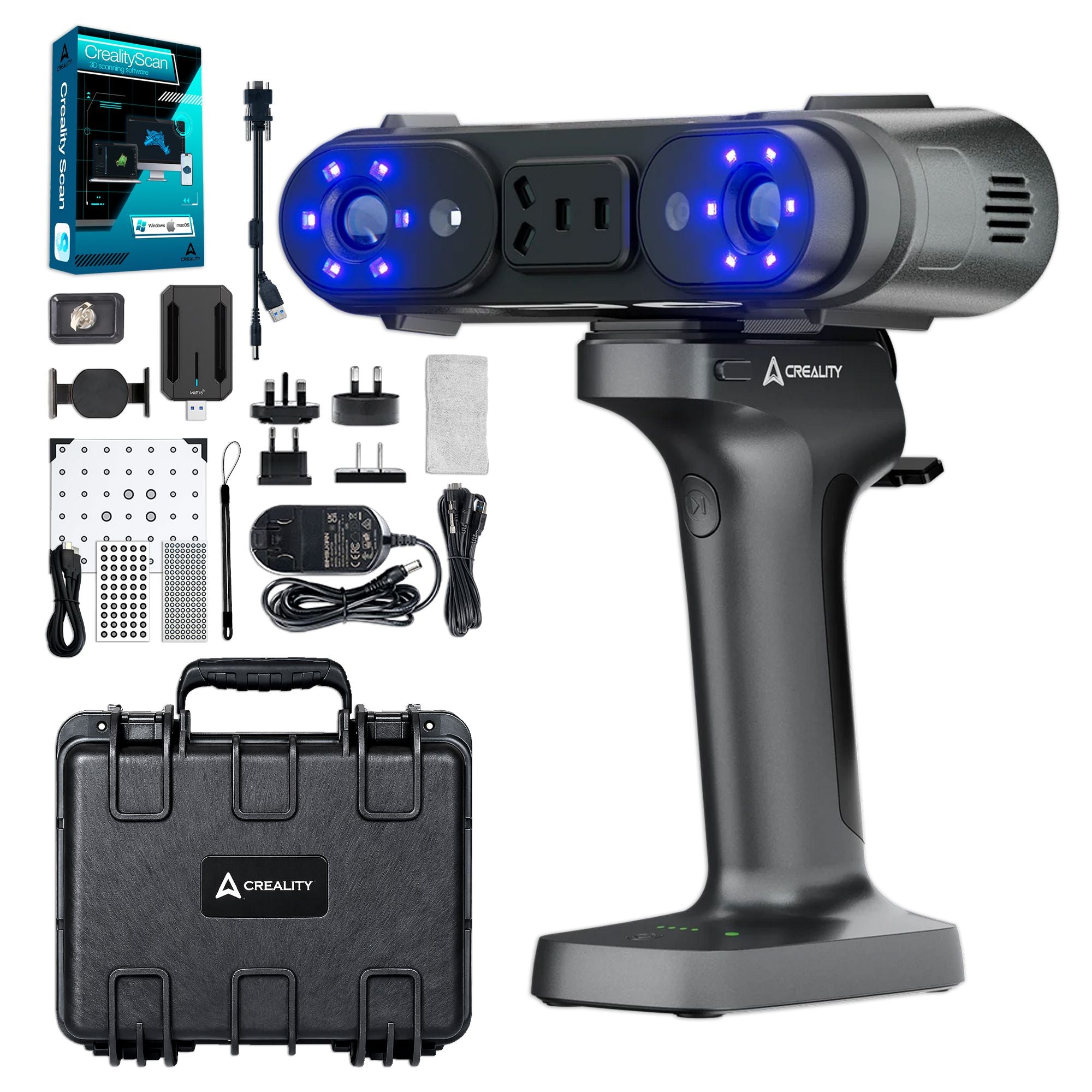

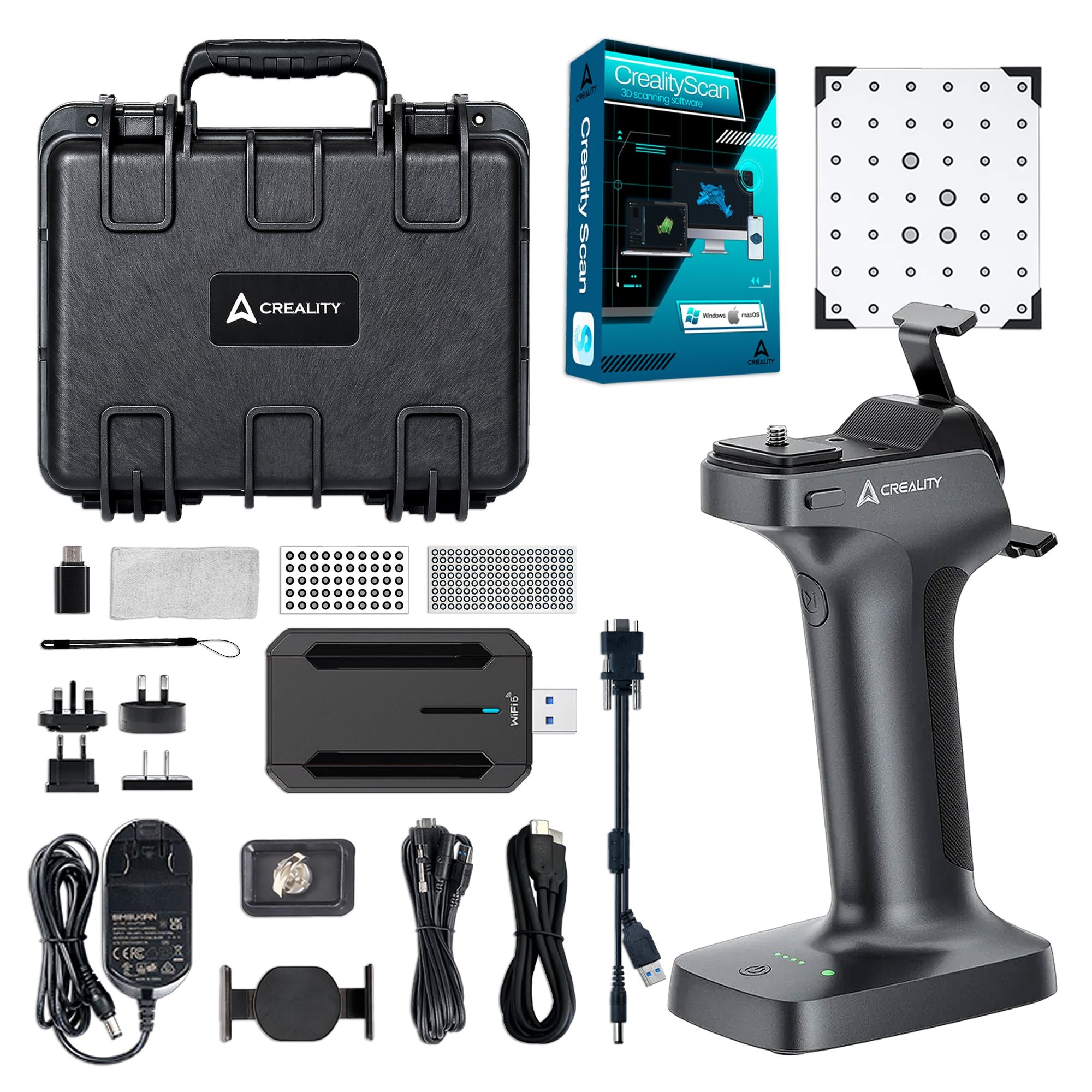

Creality Sermoon X1 3D Scanner Bundle Includes:
- Creality Sermoon X1 Handheld 3D Scanner
- Waterproof Carrying Case
- Reflective Markers (D6mm*40 sheets,D3mm*40 sheets)
- High Precision Glass Calibration Plate
- 2 Scale Bars
- Scan Bridge Data Cable
- Scan Bridge Fast Charging Data Cable
- Hand Tightening Quick Release Card
- Magnetic Phone Holder
- WiFi6 Wireless Adapter
- Cleaning Cloth
- Lanyard
- Creality Scan Software (Windows & MAC)
- Power Adapter + Power Connectors
- Type A USB 3.0 Data Cable with Type C Adapter
- Quick Start Guide
- 1-Year Manufacturer Warranty
- Lifetime U.S. Based Support
Whether you're an industrial engineer requiring reliable metrology data for quality inspection, a manufacturer tackling reverse engineering of complex parts, an automotive specialist scanning full vehicles or components, or a professional digitizing artifacts and large objects for 3D printing/analysis, the Creality Sermoon X1 delivers unmatched industrial precision, wireless mobility, and exceptional adaptability in a rugged, portable package.
Detailed Technical Specifications
- Scanning Technology — Blue laser (1 single line + 7 parallel + 34 cross lines) + NIR binocular structured light.
- Accuracy — Up to 0.02 mm (single/7-line modes); up to 0.05 mm (NIR).
- Volumetric Accuracy — 0.02 mm + 0.04 mm/m (standard); 0.02 mm + 0.03 mm/m (with scale bars/photogrammetry).
- 3D Resolution — 0.05–2 mm (laser modes); 0.1–2 mm (NIR).
- Scanning Rate — 84,000 measurements/s (single line); 756,000 measurements/s (7 parallel); 1,734,000 measurements/s (34 cross); 5,000,000 measurements/s (NIR).
- Scanning Speed — Up to 90 FPS (single/7 parallel); up to 70–85 FPS (34 cross); up to 30 FPS (NIR modes).
- Working Distance — Laser: 200–600 mm; NIR: 170–1200 mm.
- Single Capture Range (examples) — Laser: 215 × 167 mm @ 200 mm to 650 × 531 mm @ 600 mm; NIR max: 1300 × 935 mm @ 1200 mm.
- Object Size Range — 5 × 5 × 5 mm³ to 4000 × 4000 × 4000 mm³ (laser); 150 × 150 × 150 mm³ to 2000 × 2000 × 2000 mm³ (NIR).
- Alignment Modes — Marker/Global Marker/Geometry/Texture (laser); Marker-free (NIR).
- Hardware — 2 MP full-color RGB camera; Qualcomm ISP chip; 12 dual-color LEDs + 12 white/blue LEDs; Wi-Fi 6 connectivity; 5000 mAh battery (4+ hours); USB 3.0 interface.
- Laser Safety — Class II (eye-safe).
- Environmental — Operating temp: -10°C to 40°C; Humidity: 10–90% RH; Outdoor capable.
- Additional — Built-in photogrammetry; high-precision glass calibration board; certifications (CE, RoHS, FCC, etc.).
Industrial Strength. Scan Precise.

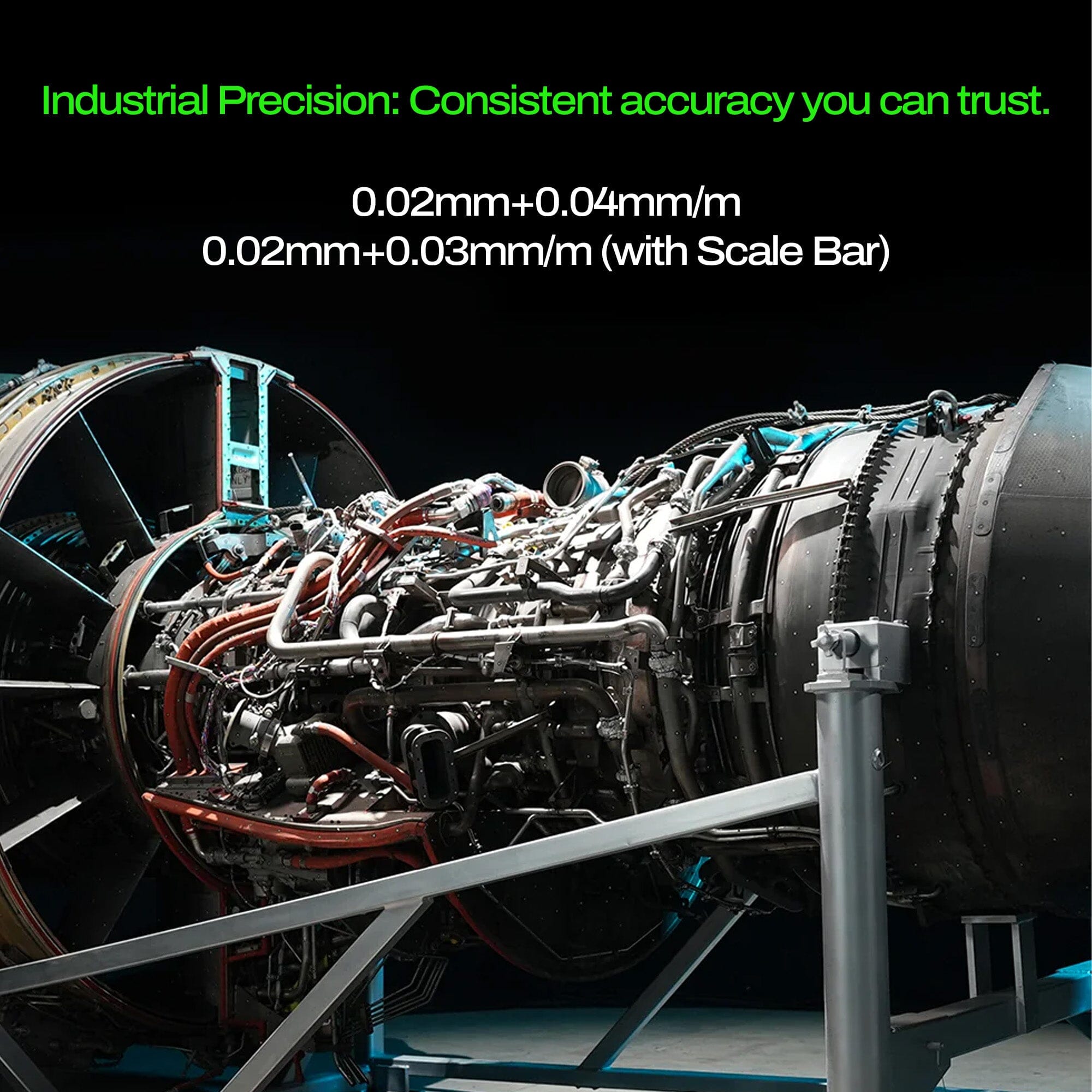

Industrial Precision: Consistent accuracy you can trust. 0.02mm+0.04mm/m | 0.02mm+0.03mm/m (with Scale Bar)

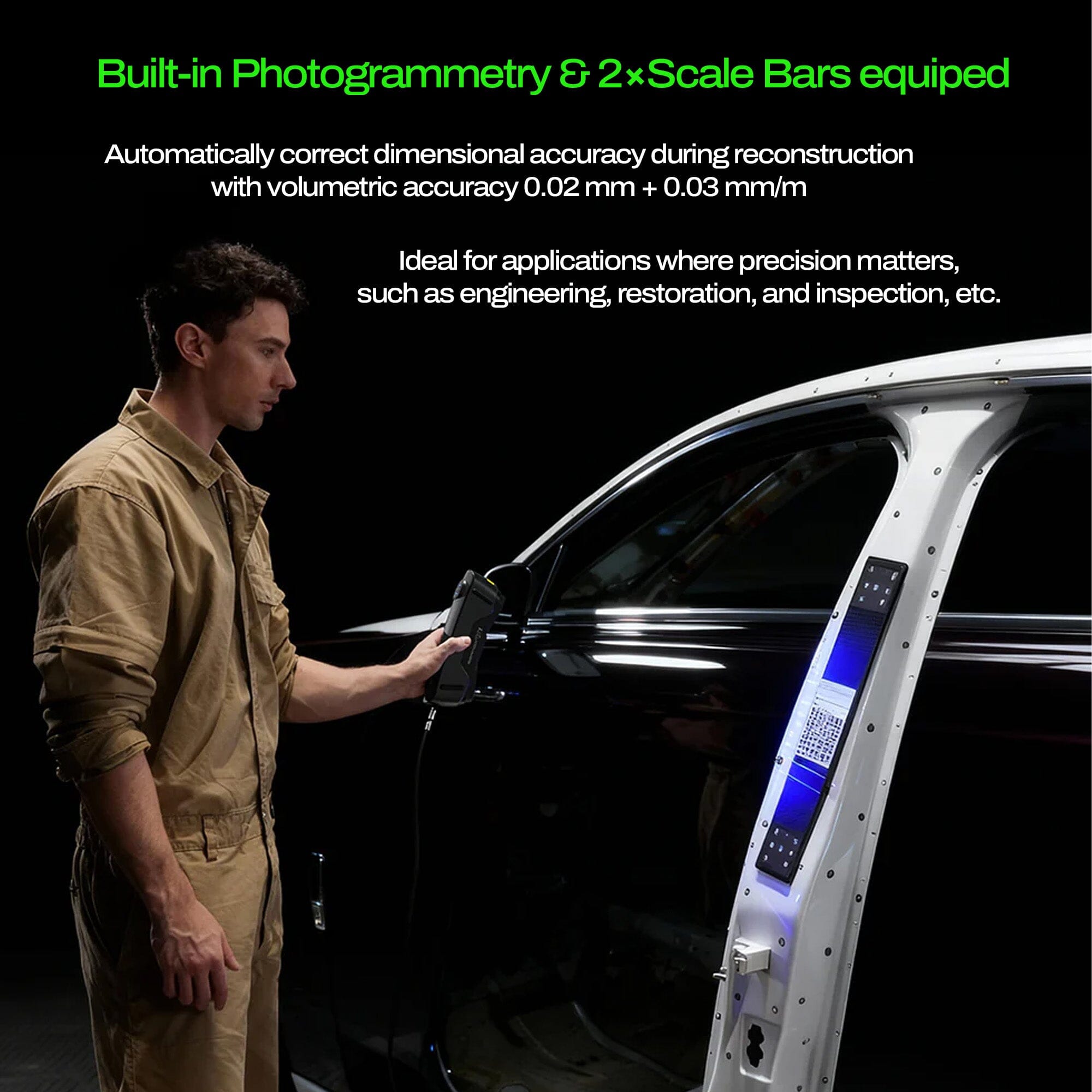

Built-in Photogrammetry & 2× Scale Bars equipped
Single-Line Laser, Mastering Deep Holes (Up to depth-to-diameter ratio 6:1)
Ideal for applications where precision matters, such as engineering, restoration, and inspection, etc. Automatically correct dimensional accuracy during reconstruction with volumetric accuracy 0.02 mm + 0.03 mm/m. The X1 single laser deep-hole scanning mode easily captures 3D data from hard-to-reach areas such as deep holes, narrow gaps, and recesses. It supports scanning narrow holes with a depth-to-diameter ratio of up to 6:1, delivering more complete 3D data for applications in design, inspection, analysis, and beyond.
*Test based on a 28.68 mm diameter pipe, with a measured depth of 172.7mm.

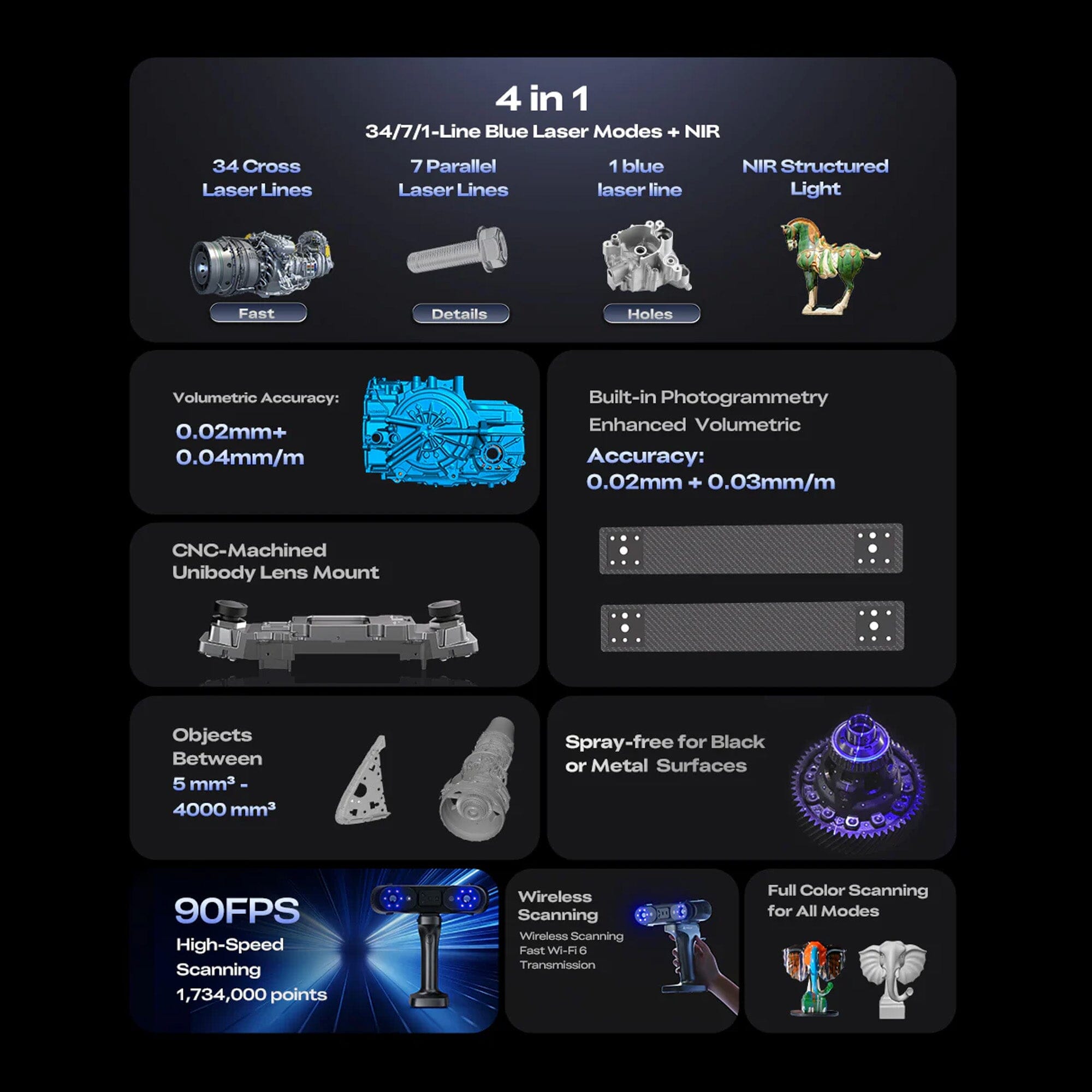

4 in 1 — 34/7/1 — Line Blue Laser Modes + NIR

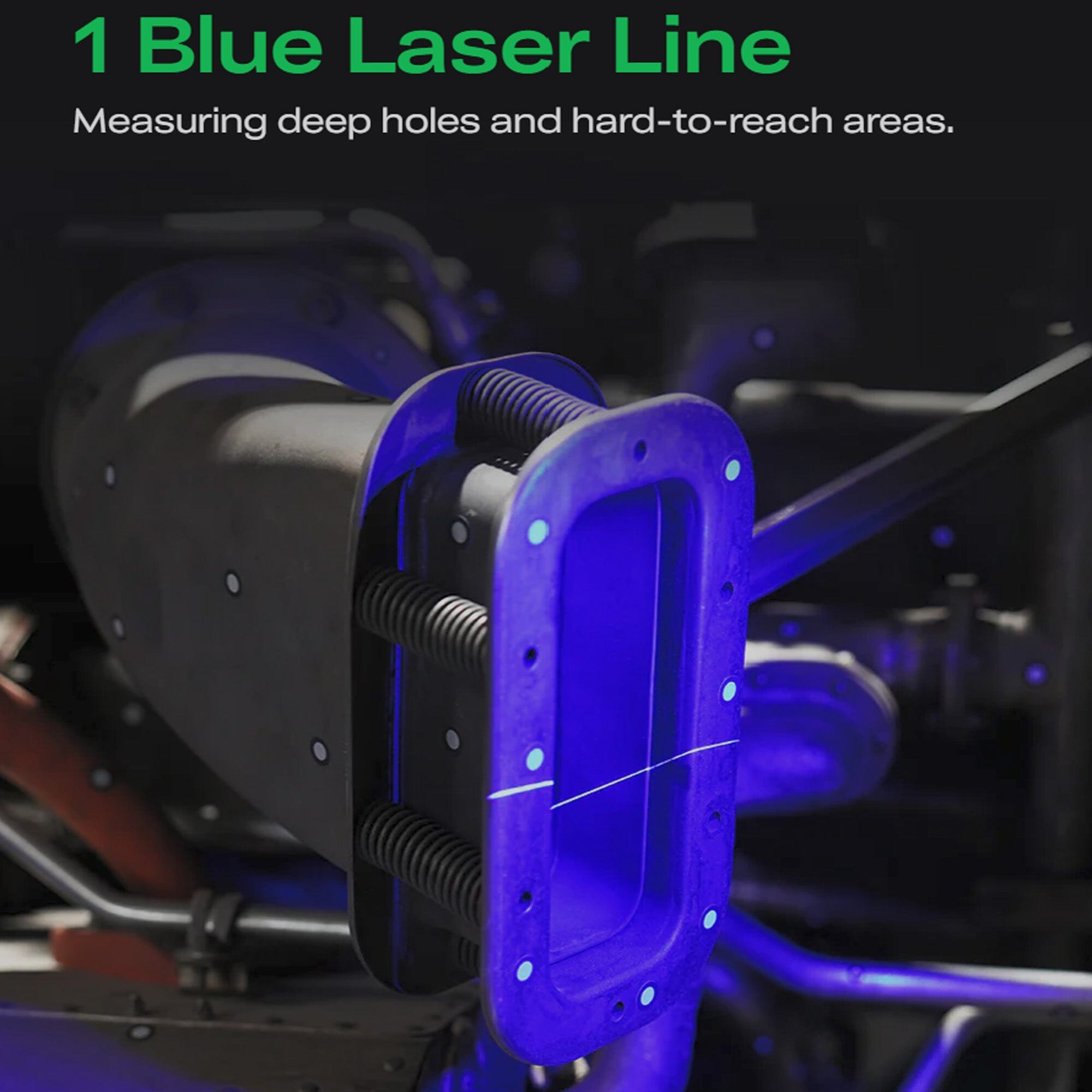

- Blue Laser Line Measuring deep holes and hard-to-reach areas.

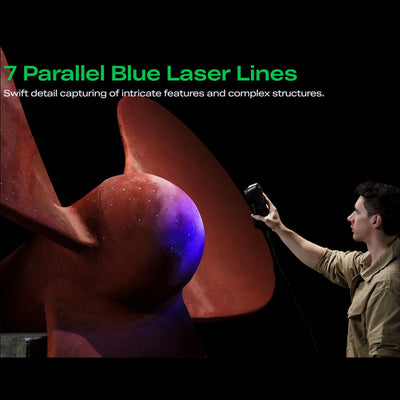

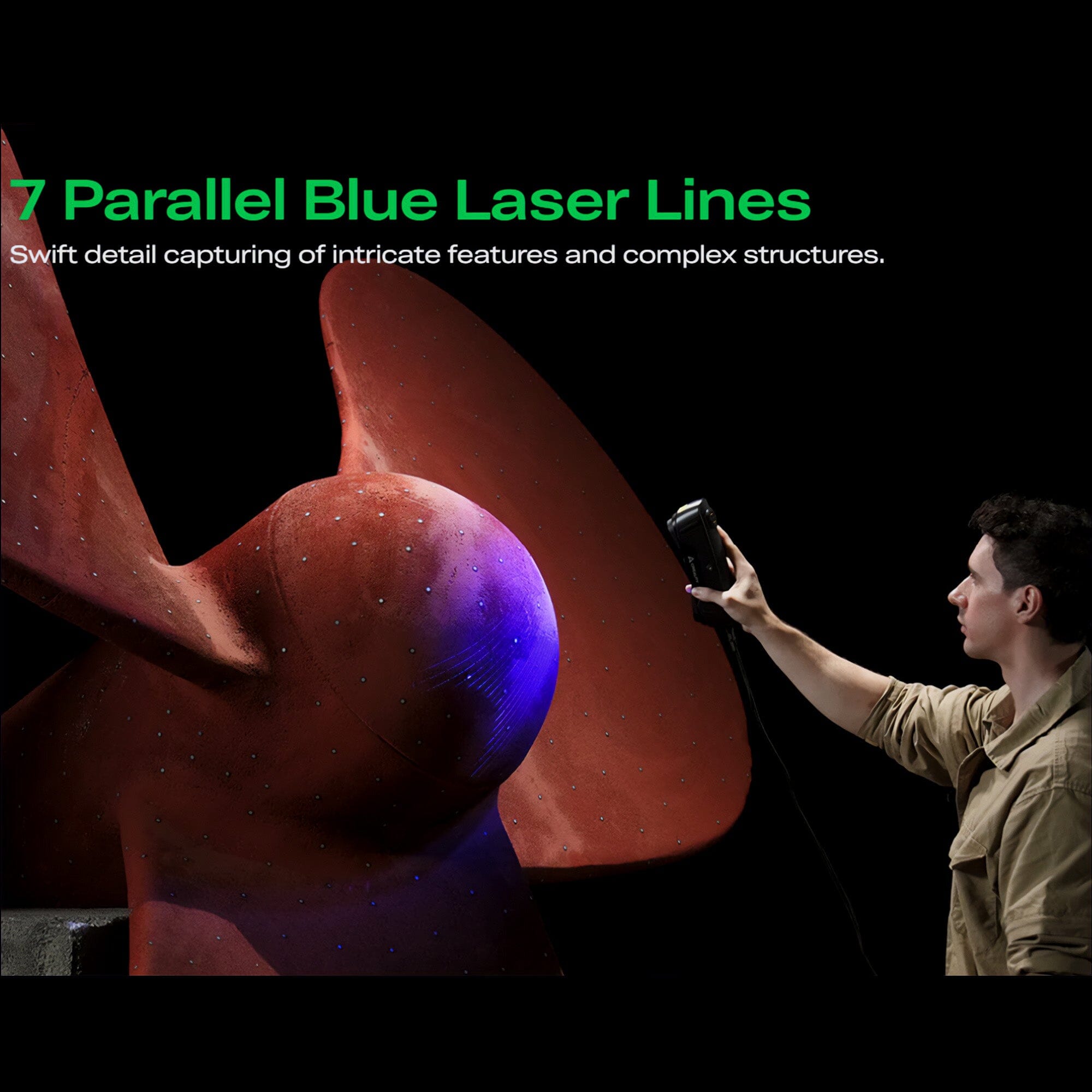

- 7 Parallel Blue Laser Lines Swift detail capturing of intricate features and complex structures.

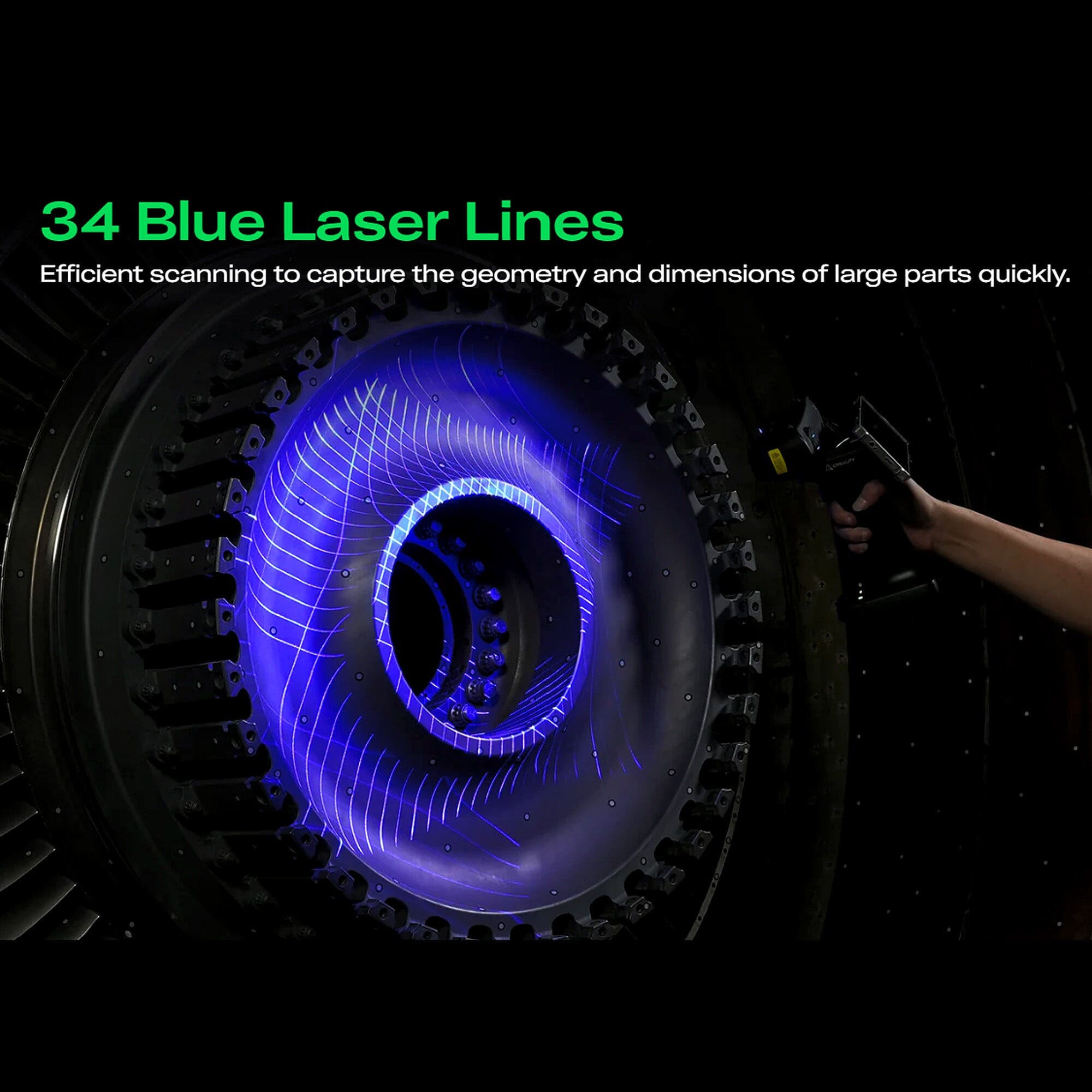

- 34 Blue Laser Lines Efficient scanning to capture the geometry and dimensions of large parts quickly.

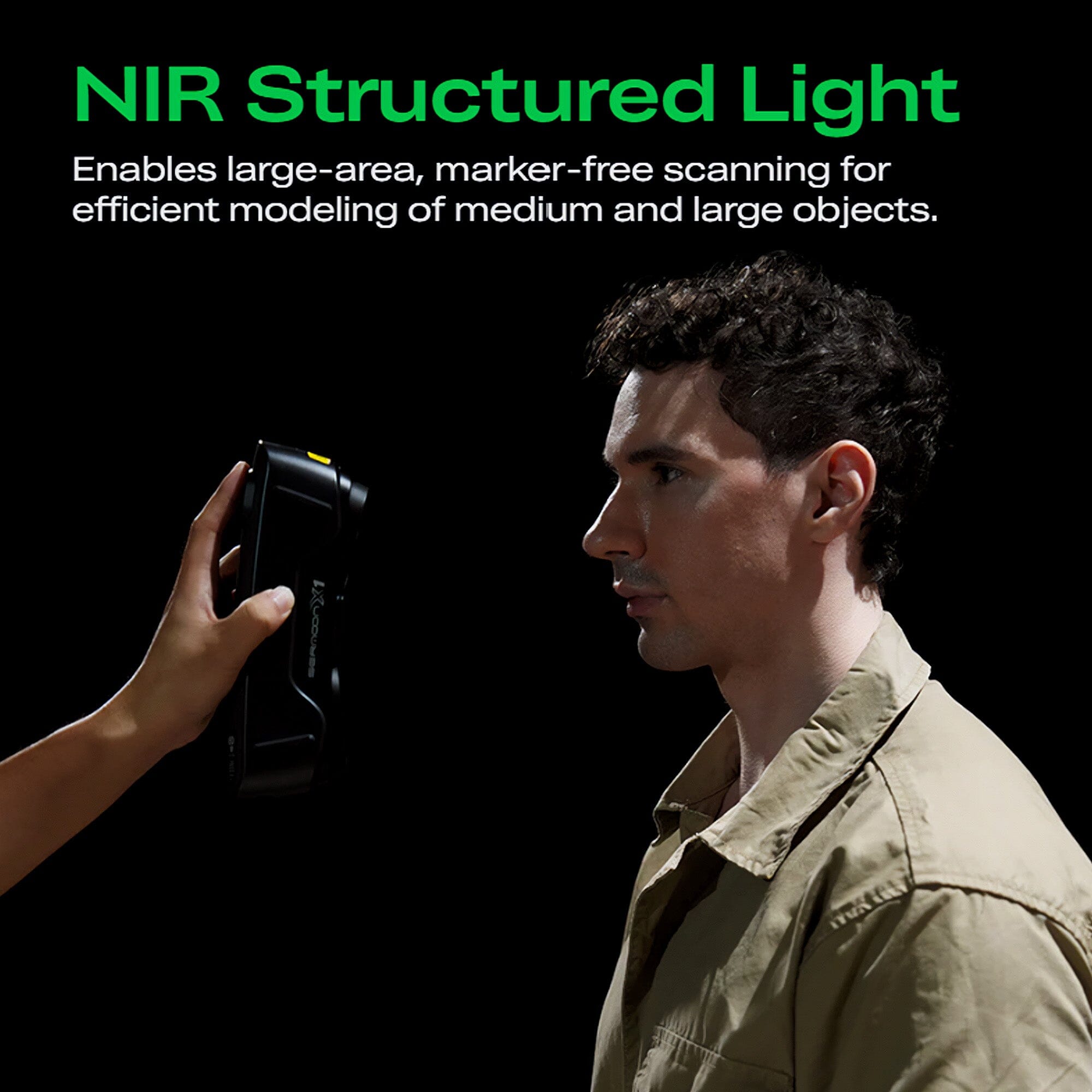

- NIR Structured Light Enables large-area, marker-free scanning for efficient modeling of medium and large objects.
Versatile Applications
Switch between different scanning modes, handling parts of various materials, shapes, and sizes to meet diverse needs for data acquisition and inspection.

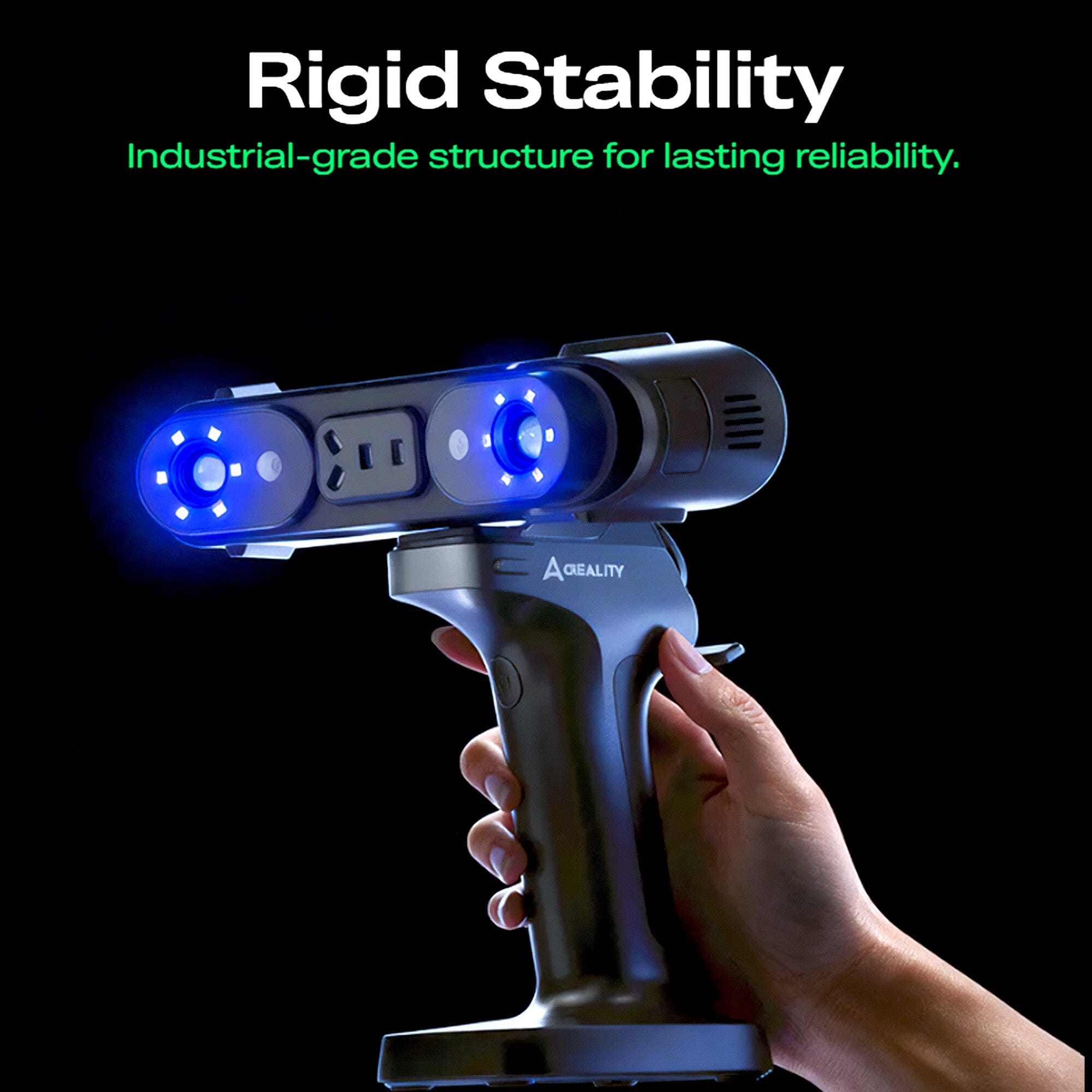

Rigid Stability
Industrial-grade structure for lasting reliability.

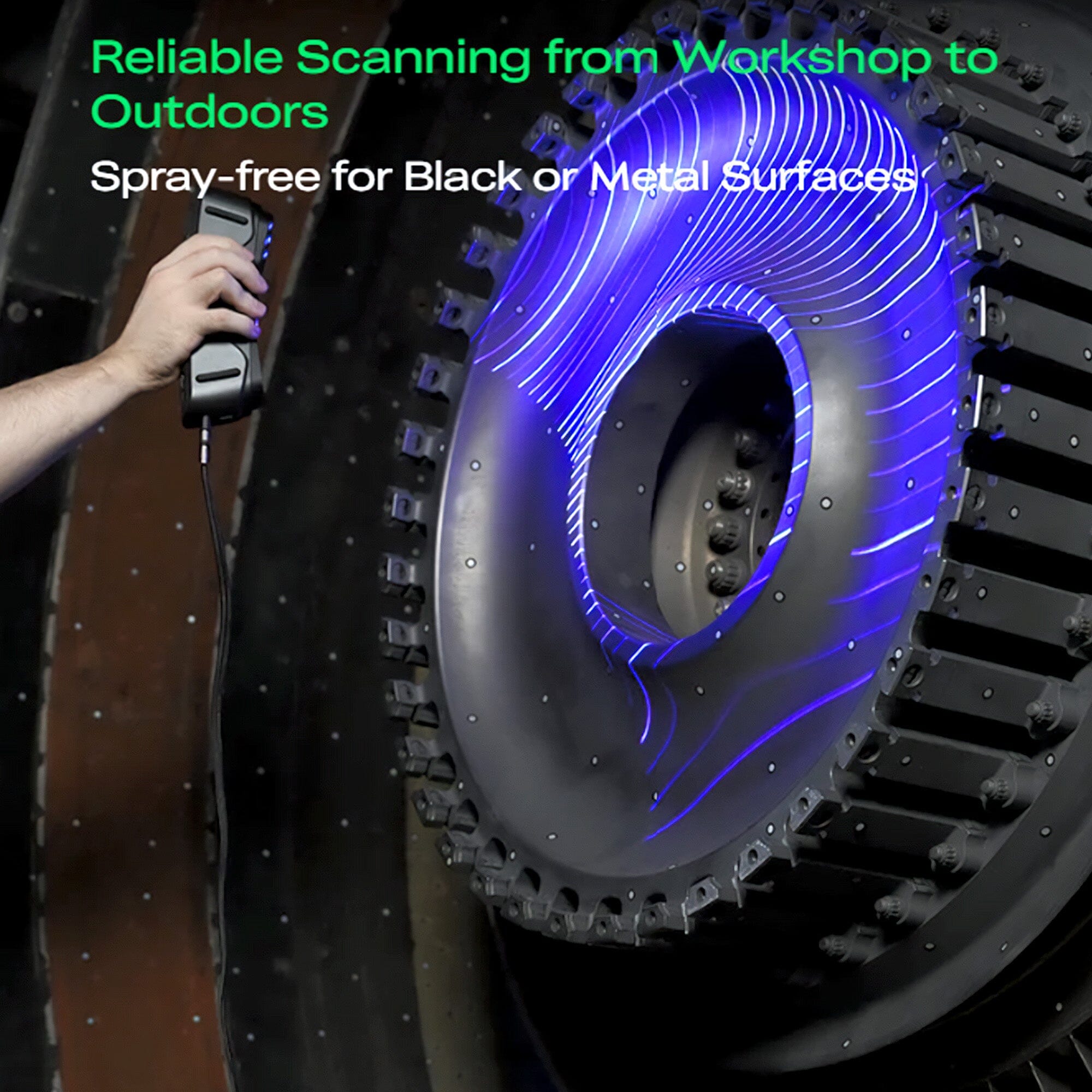

Reliable Scanning from Workshop to Outdoors
Spray-free for Black or Metal Surfaces
Working efficiently in sunlight outdoors
Single/7-line laser: <50k lux
34 cross lines: <100k lux

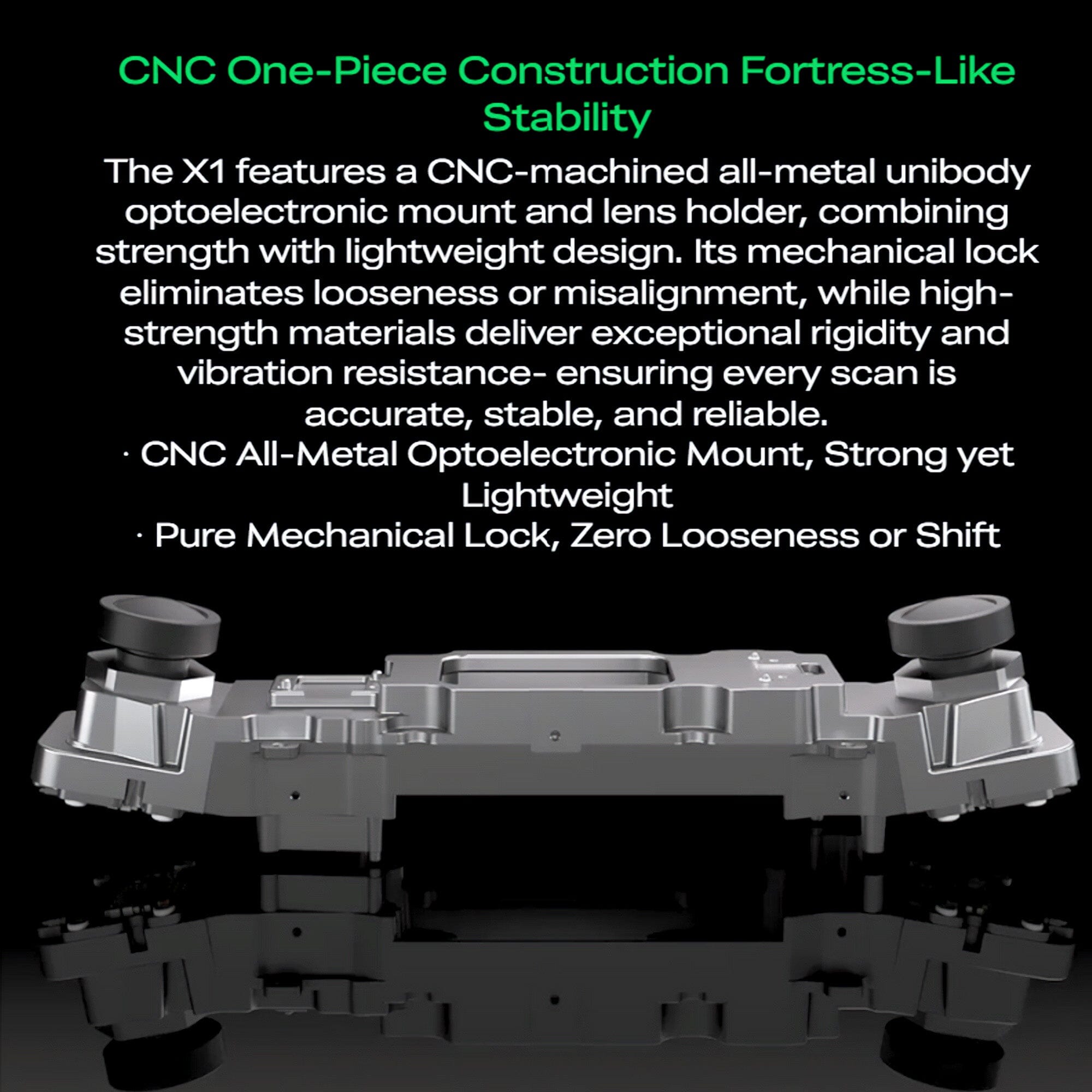

CNC One-Piece Construction —
Fortress-Like Stability
The X1 features a CNC-machined all-metal unibody optoelectronic mount and lens holder, combining strength with lightweight design. Its mechanical lock eliminates looseness or misalignment, while high-strength materials deliver exceptional rigidity and vibration resistance — ensuring every scan is accurate, stable, and reliable.
- CNC All-Metal Optoelectronic Mount
- Strong yet Lightweight
- Pure Mechanical Lock
- Zero Looseness or Shift

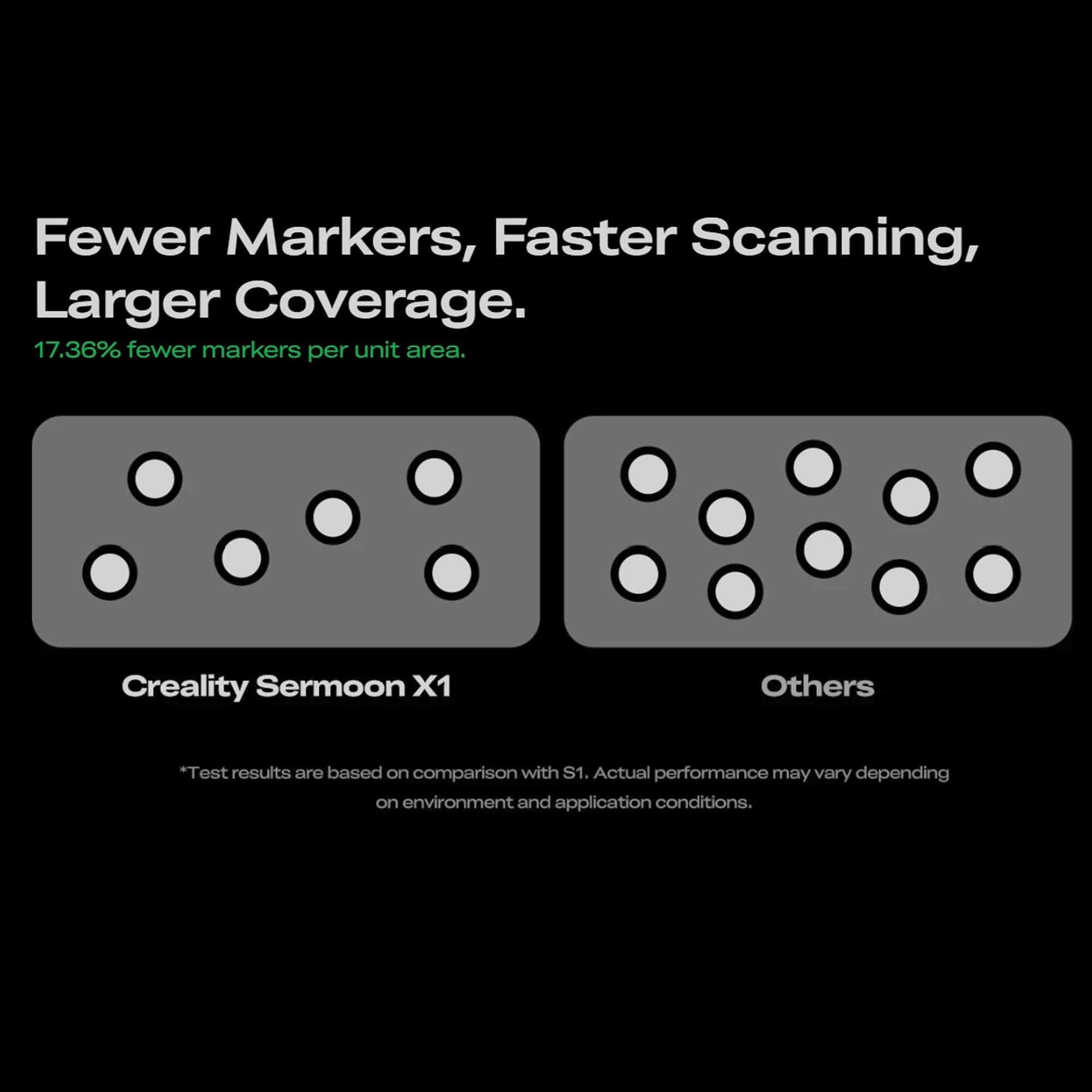

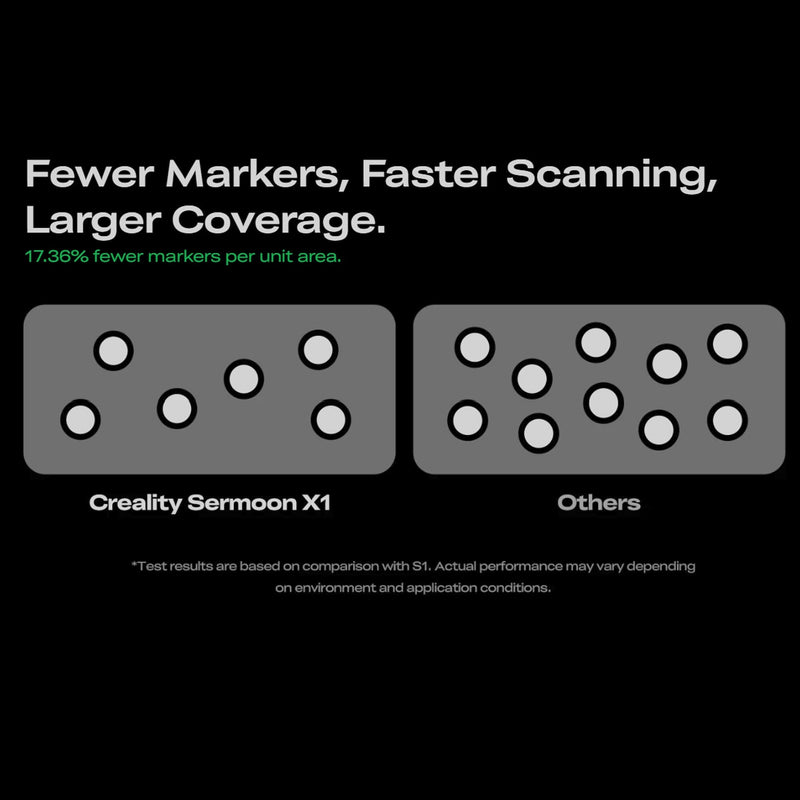

Fewer Markers, Faster Scanning,
Larger Coverage.
17.36% fewer markers per unit area.
*Test results are based on comparison with S1. Actual performance may vary depending on environment and application conditions.
Larger Field Scan, Vaster and Faster
Powered by proprietary algorithm optimizations, the Sermoon X1 delivers an expansive scanning field for capturing large workpieces in a single pass. Requiring significantly fewer markers, it enables a faster, smoother, and superior scanning workflow.
Line Laser Maximum: FOV of 650 × 531 mm
Infrared Maximum: FOV of 1300 × 935 mm
Scanning Range 5 mm³ – 4000 mm³
With a hybrid system combining blue laser lines and infrared structured light, the Sermoon X1 supports a wide scanning range — from as small as 5×5×5 mm³ to as large as 4000×4000×4000 mm³. Ideal for automotive components, coins, bolts, figurines, or even the human body.

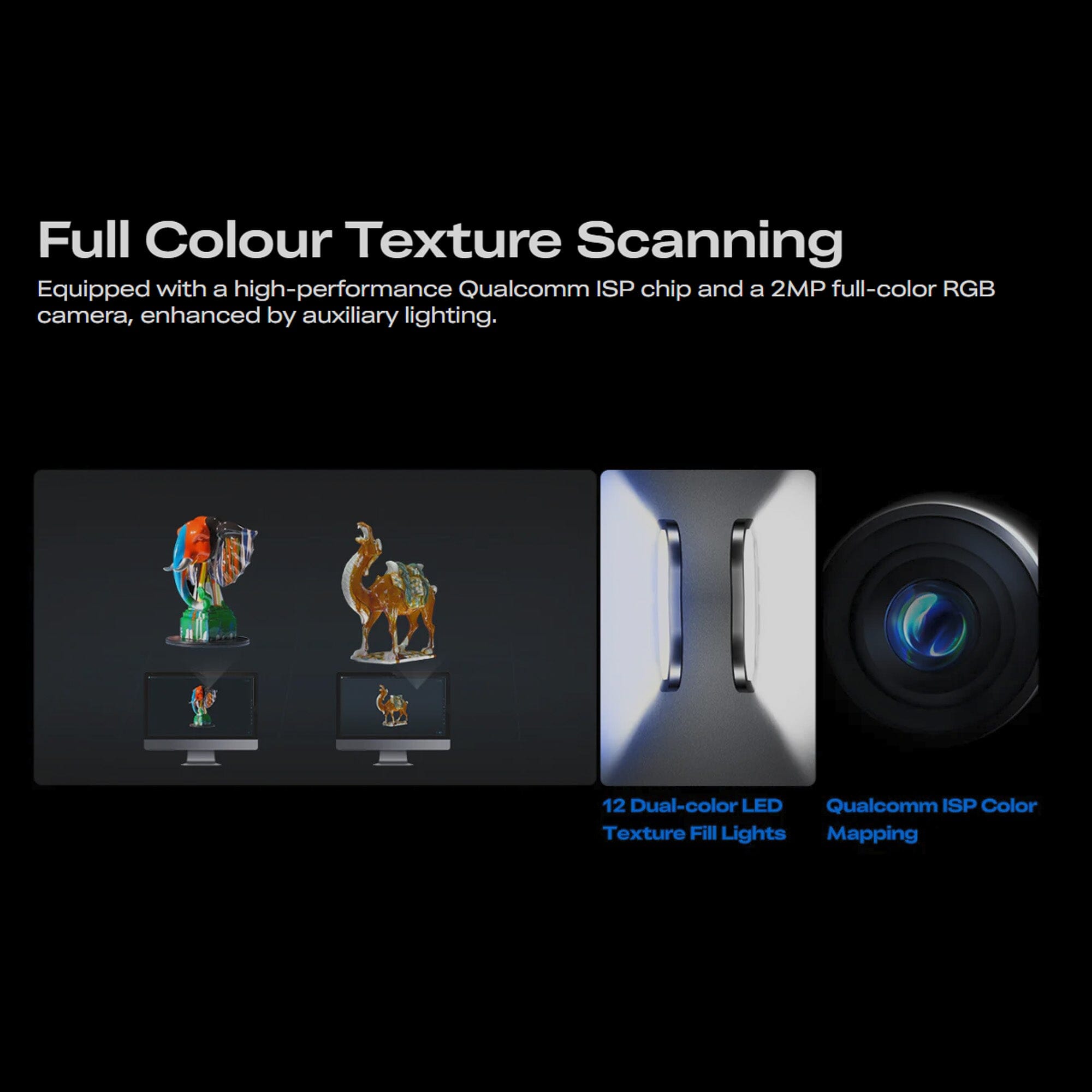

Full Colour Texture Scanning
Equipped with a high-performance Qualcomm ISP chip and a 2MP full-color RGB camera, enhanced by auxiliary lighting.

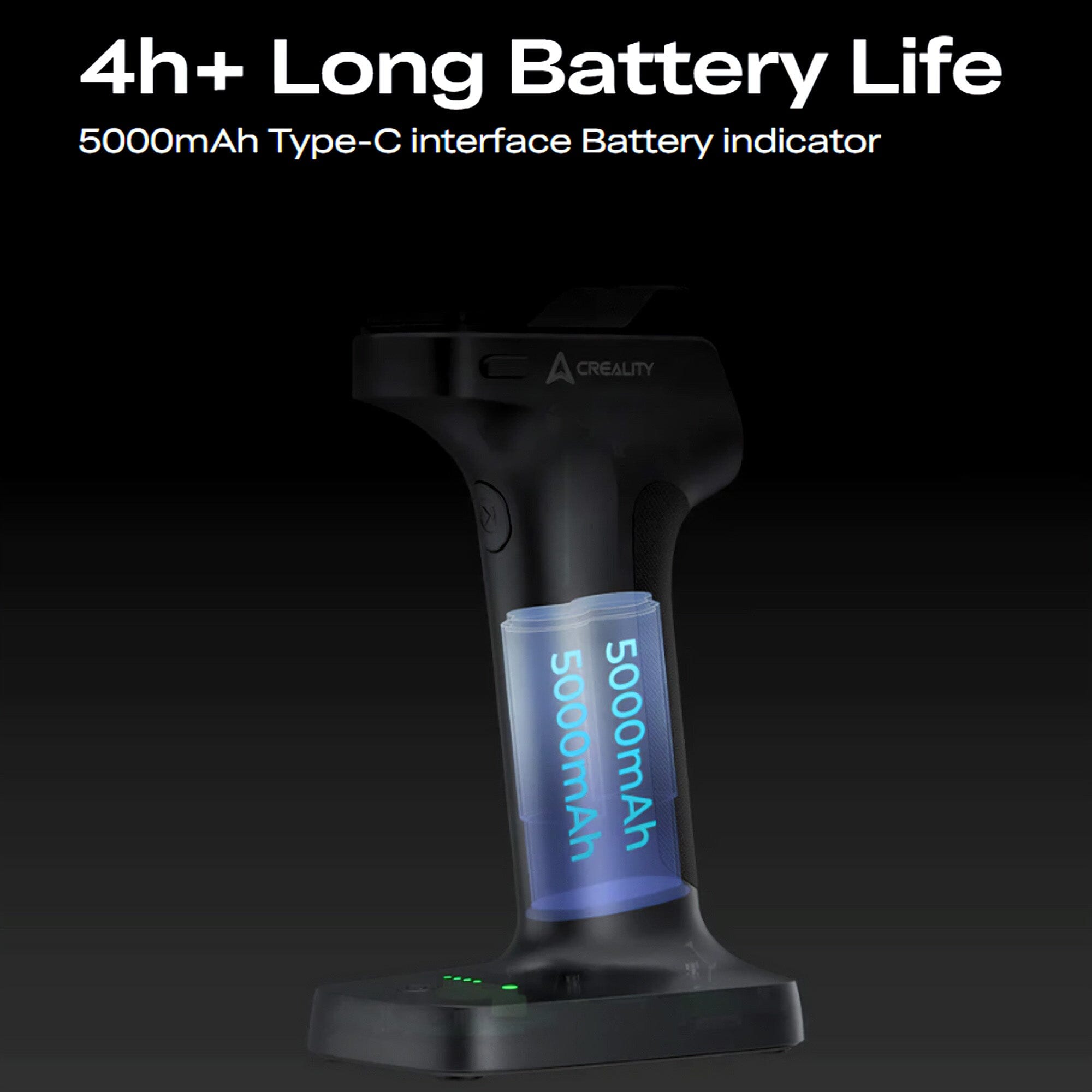

4h+ Long Battery Life
5000mAh | Type-C interface | Battery indicator

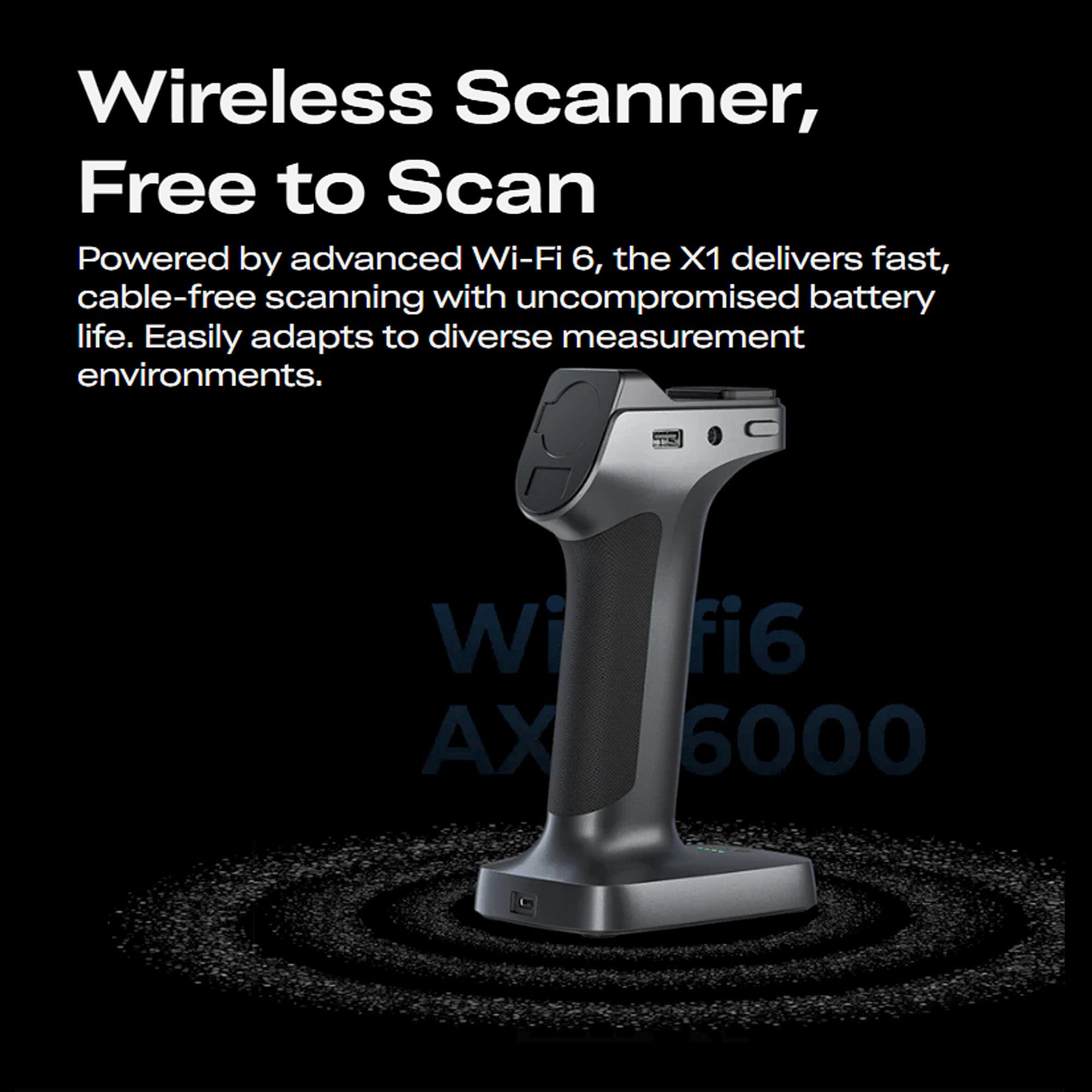

Wireless Scanner, Free to Scan
Powered by advanced Wi-Fi 6, the X1 delivers fast, cable-free scanning with uncompromised battery life. Easily adapts to diverse measurement environments.

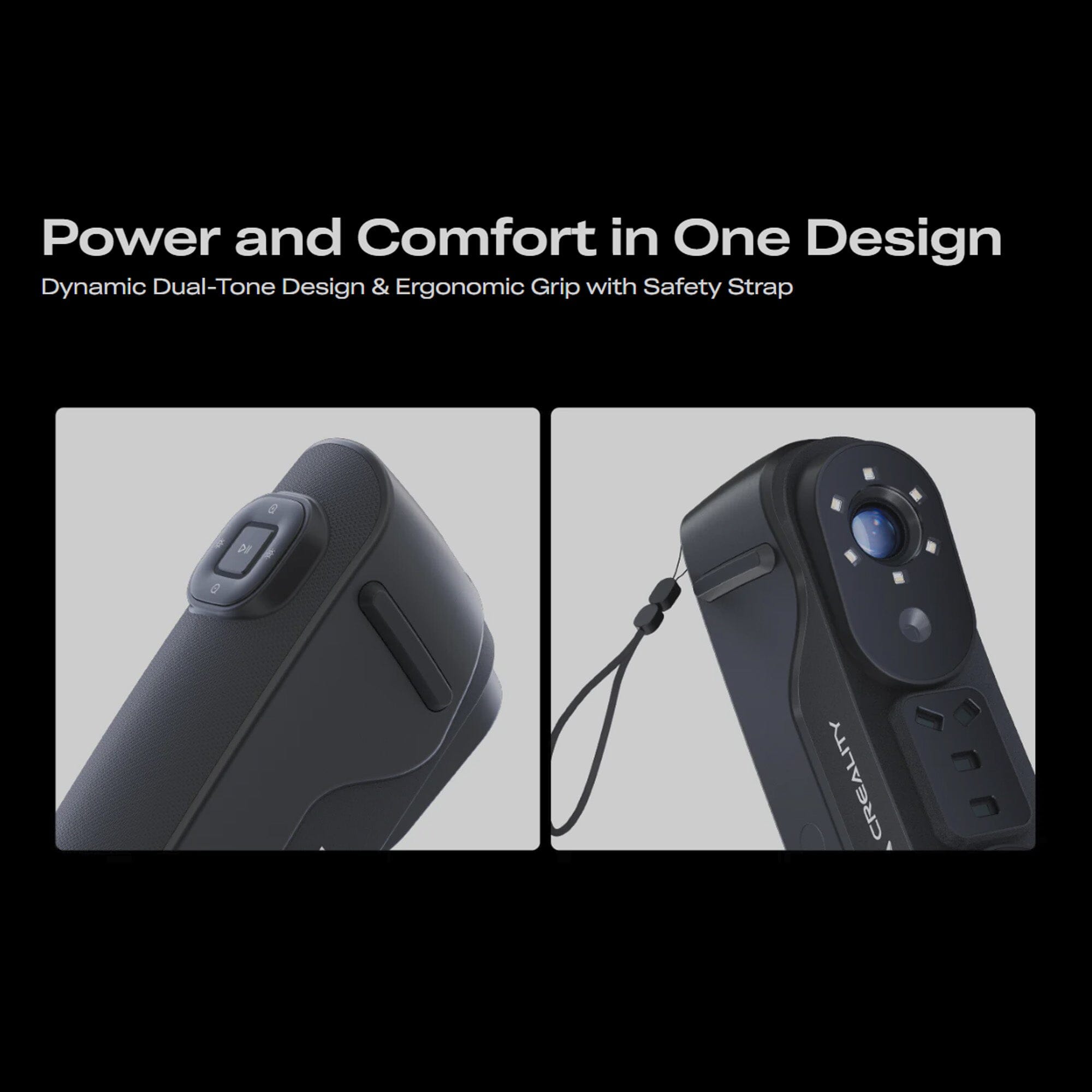

Power and Comfort in One Design
Dynamic Dual-Tone Design & Ergonomic Grip with Safety Strap
Compact & Ready to Go
Compact, carry-on-sized protective case for easy transport. Versatile case for storing 3D scanner, scale, and accessories securely.
Smart Stabilization for a Smoother Scan
Powered by an AI-driven temperature compensation algorithm and an efficient thermal management system, the Sermoon X1 maintains stable output even during prolonged sessions.

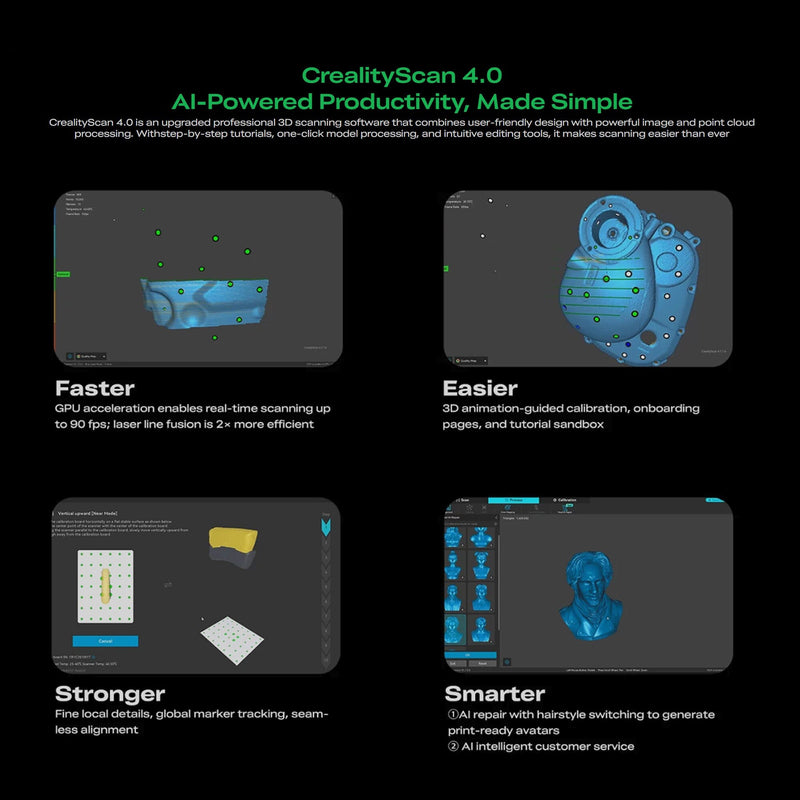

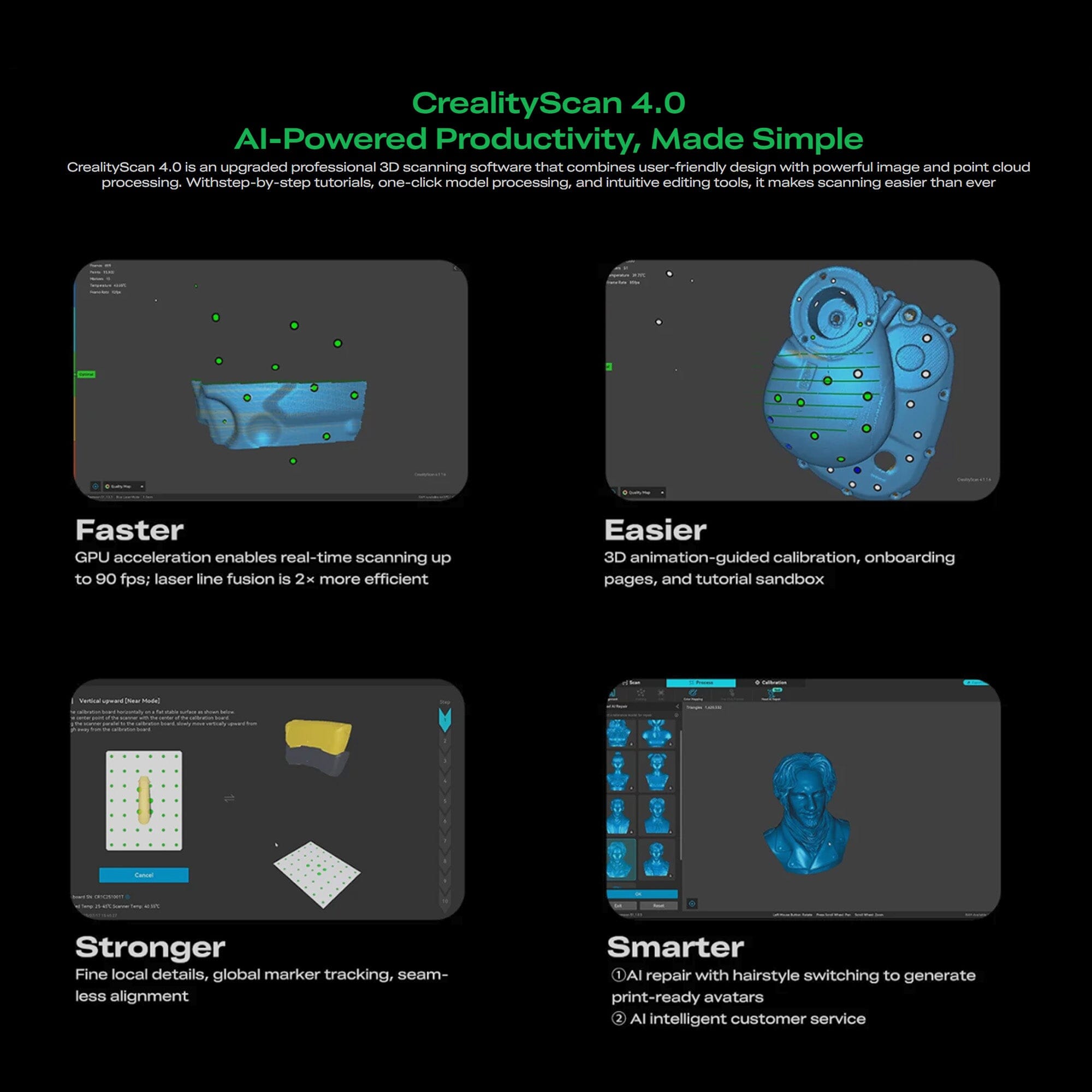

CreativityScan 4.0 — AI-Powered Productivity, Made Simple
CreativityScan 4.0 is an upgraded professional 3D scanning software that combines user-friendly design with powerful image and point cloud processing. With step-by-step tutorials, one-click model processing, and intuitive editing tools, it makes scanning easier than ever.
Faster
GPU acceleration enables real-time scanning up to 90 fps; laser line fusion is 2× more efficient.
Easier
3D animation-guided calibration, onboarding pages, and tutorial sandbox.
Stronger
Fine local details, global marker tracking, seamless alignment.
Smarter
1 – AI repair with hairstyle switching to generate print-ready avatars
2 – AI intelligent customer service

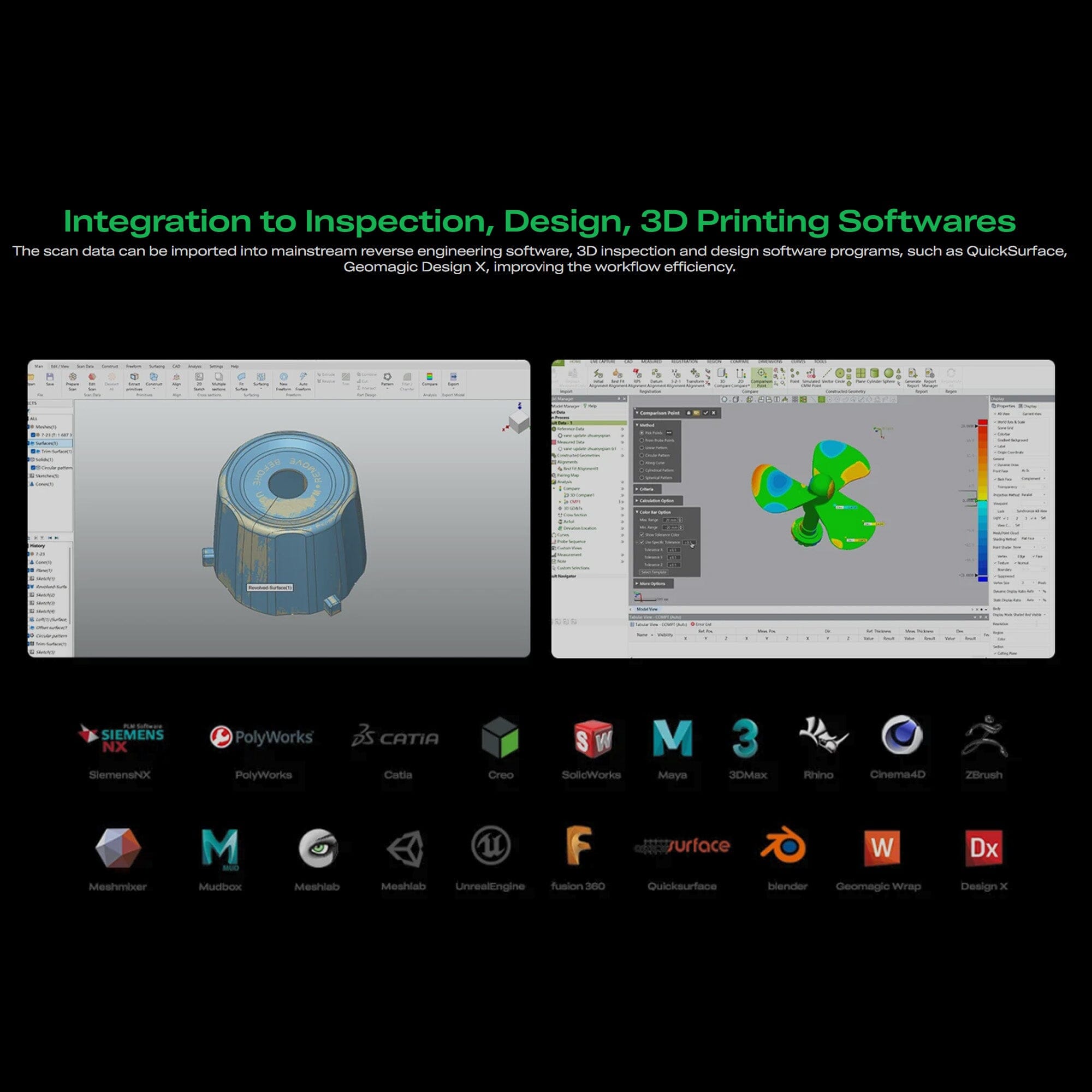

Integration to Inspection, Design,
3D Printing Softwares
The scan data can be imported into mainstream reverse engineering software, 3D inspection and design software programs, such as QuickSurface and Geomagic Design X, improving the workflow efficiency.
Applications for 3D Scanning
Using a 3D scanner for 3D printing enables fast, precise capture of real-world objects, making it an essential tool across industries like manufacturing, inspection, automotive, and reverse engineering. It also opens new possibilities for preserving and replicating art and antiques with incredible detail, allowing creators and professionals to reproduce, restore, or modify physical objects with accuracy.
