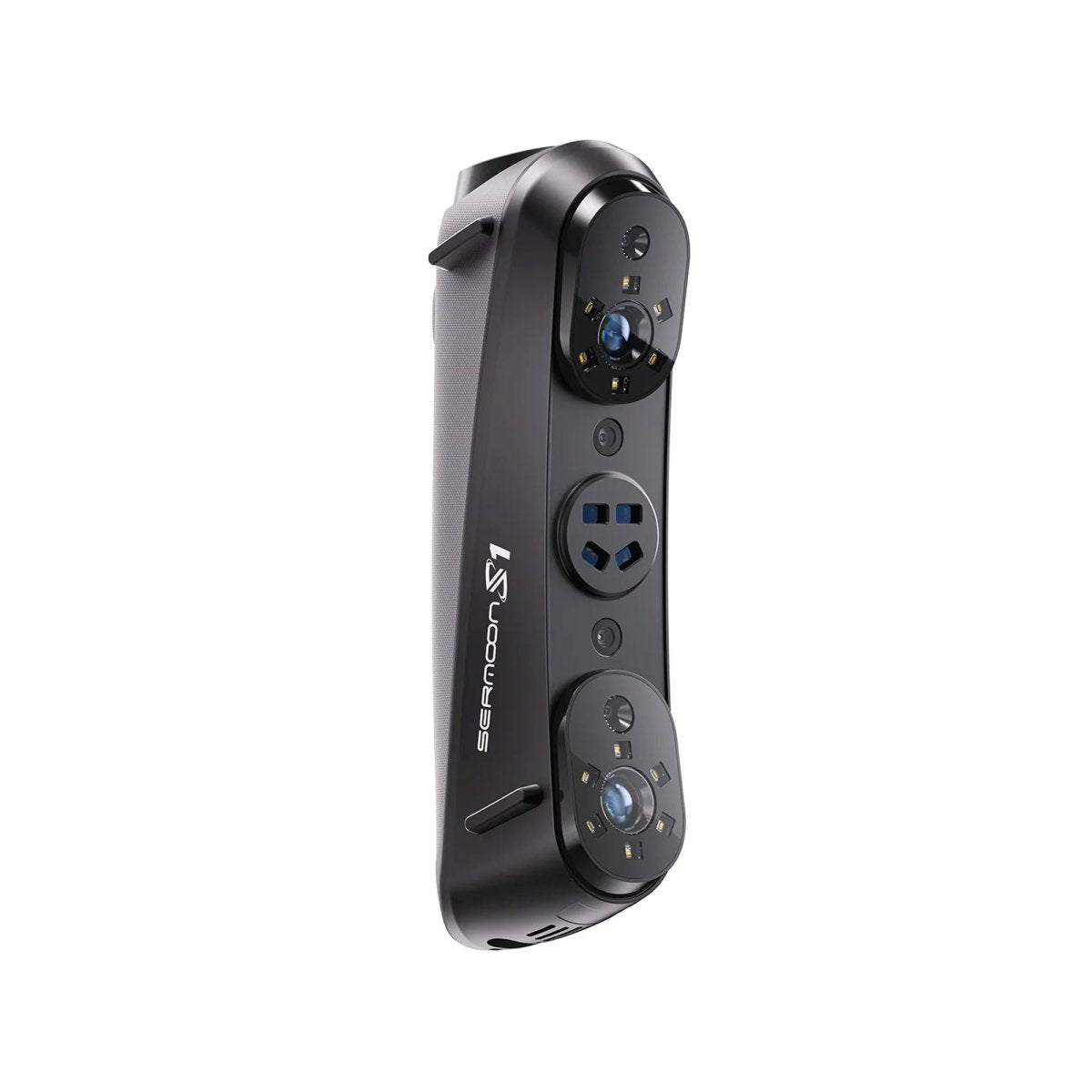

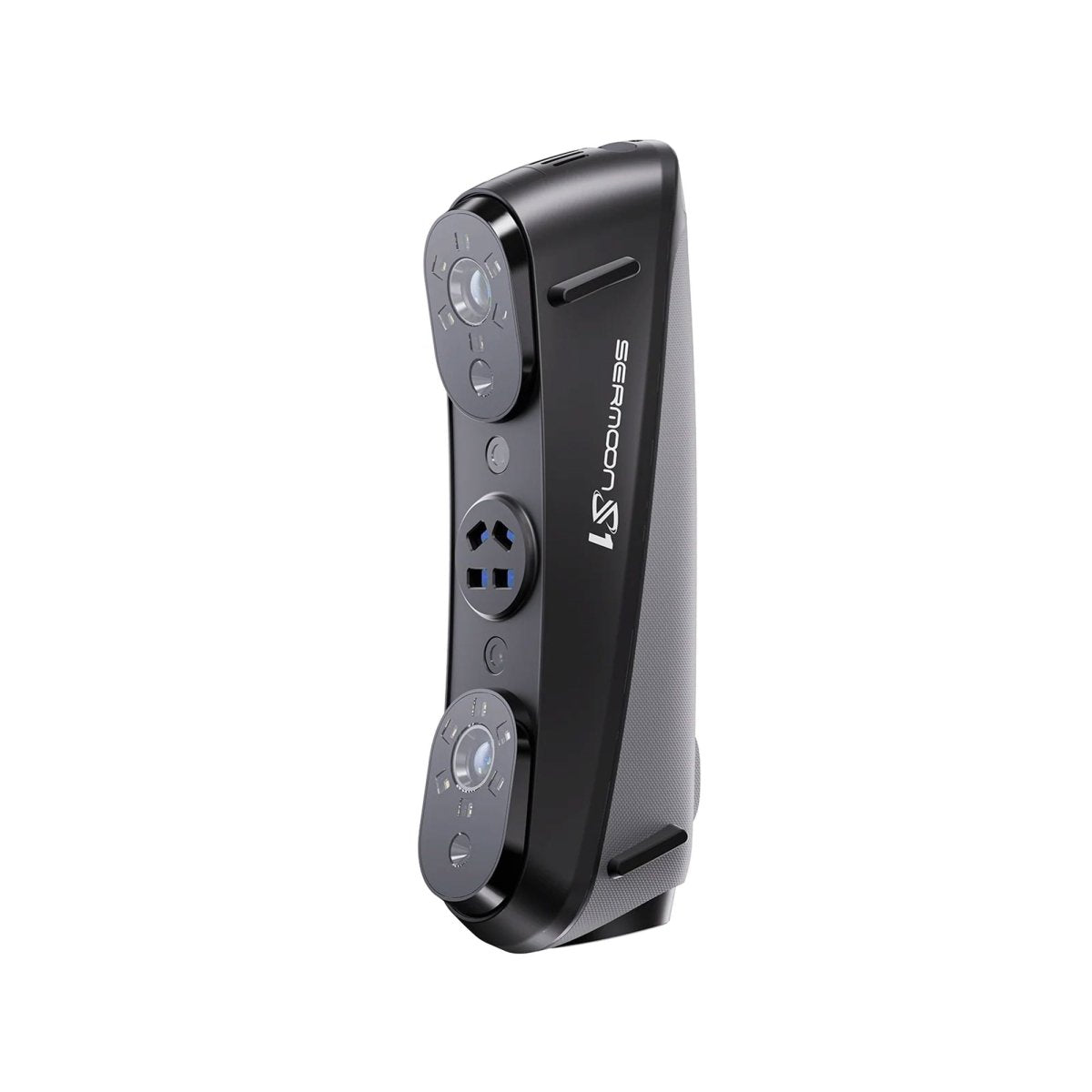

The Creality Sermoon S1 3D Scanner is a professional-grade, high-precision powerhouse designed for demanding reverse engineering, industrial inspection, digital design, non-destructive testing, and metrology-level 3D capture tasks.

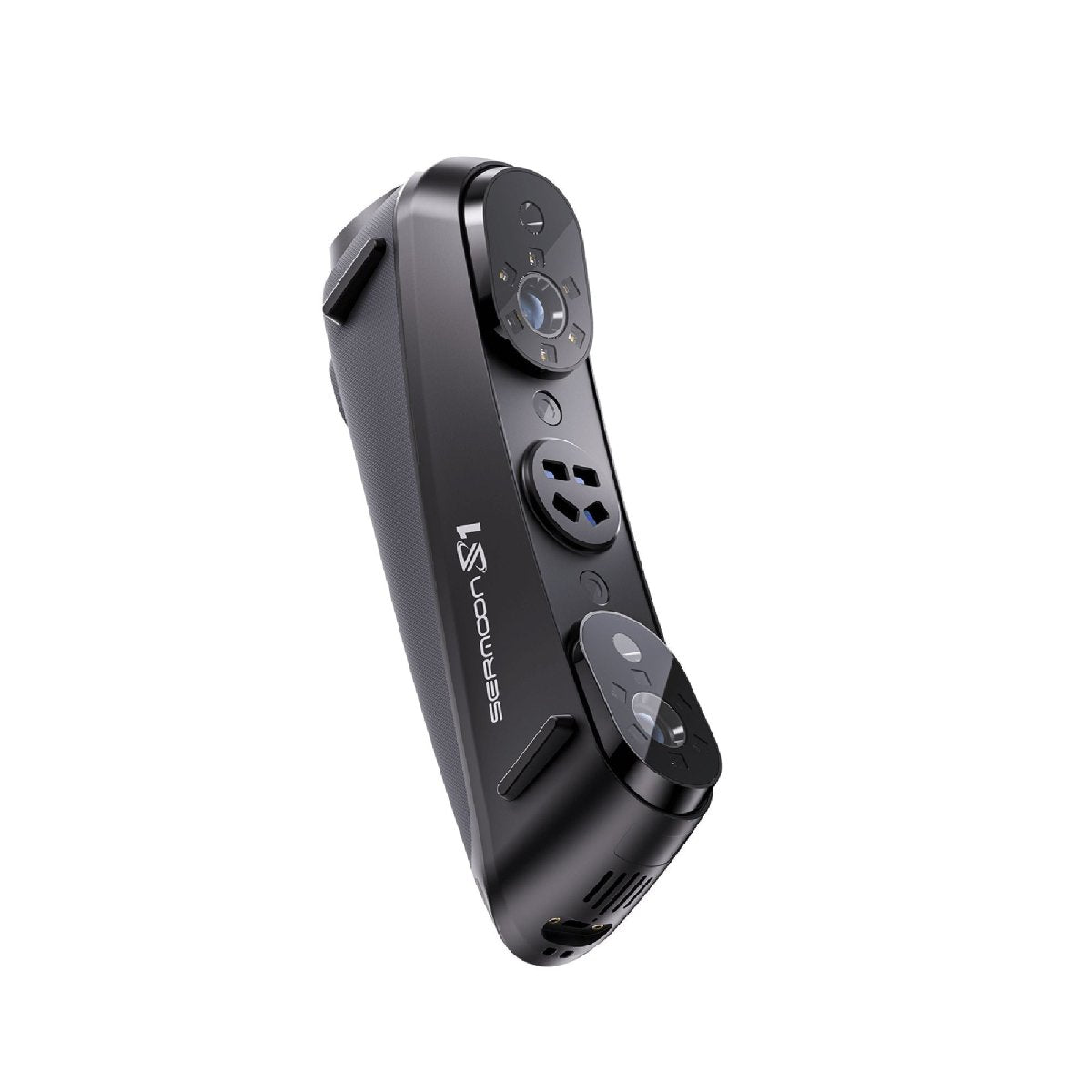

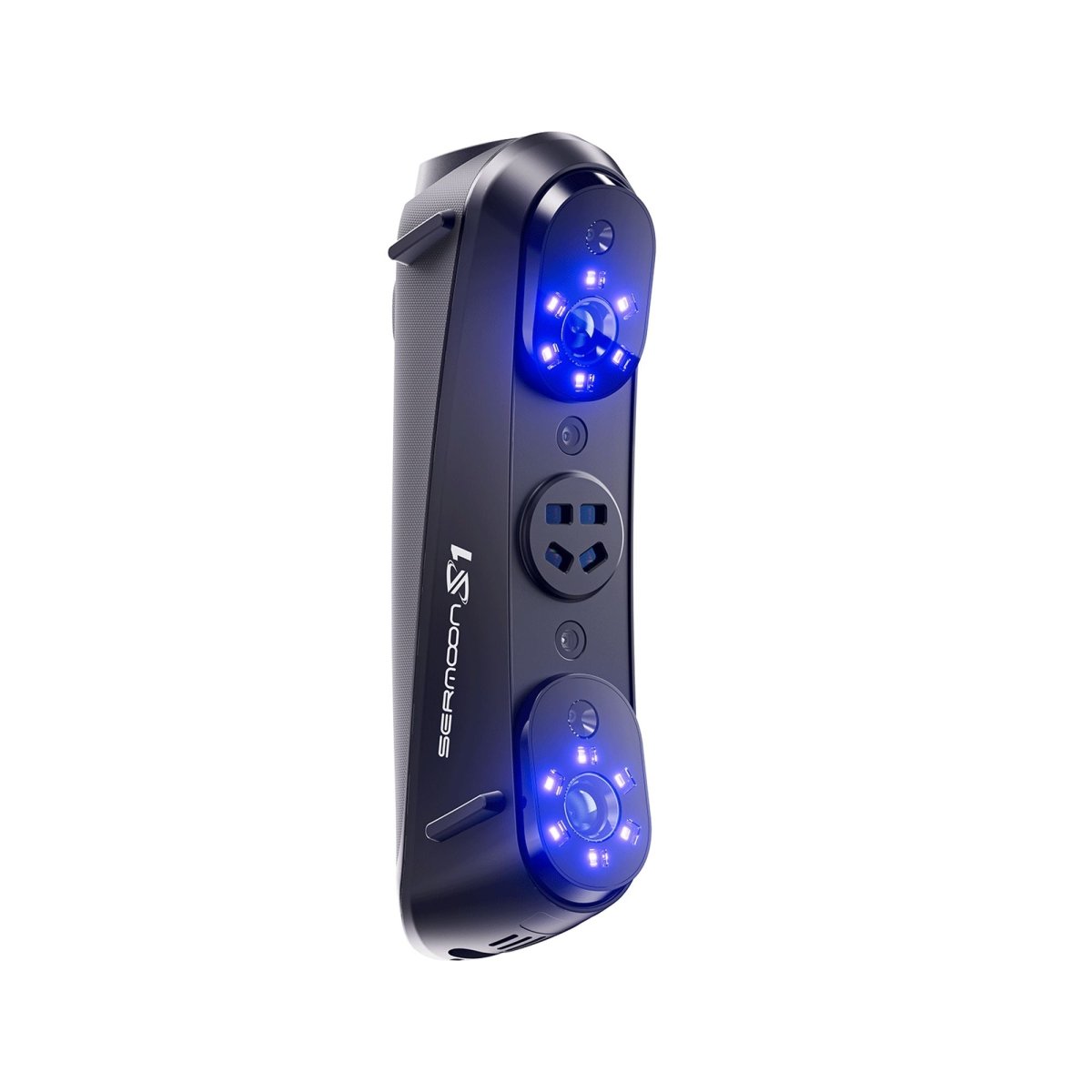

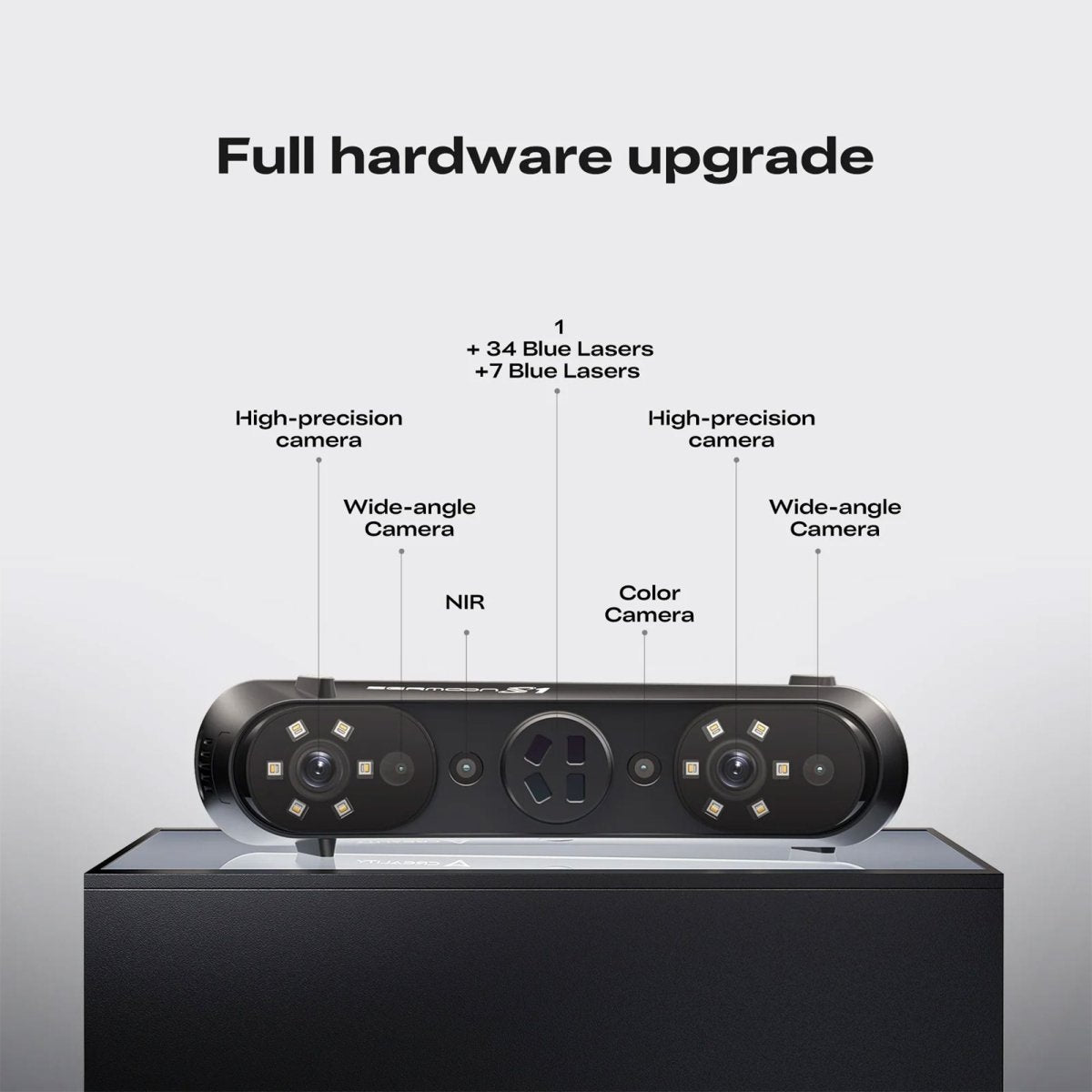

Featuring an advanced multi-light scanning system with 1 precise single-line blue laser + 7 parallel blue laser lines + 34 cross blue laser lines combined with NIR structured light and 4-lens stereo vision, it delivers exceptional detail capture across diverse surfaces and conditions.

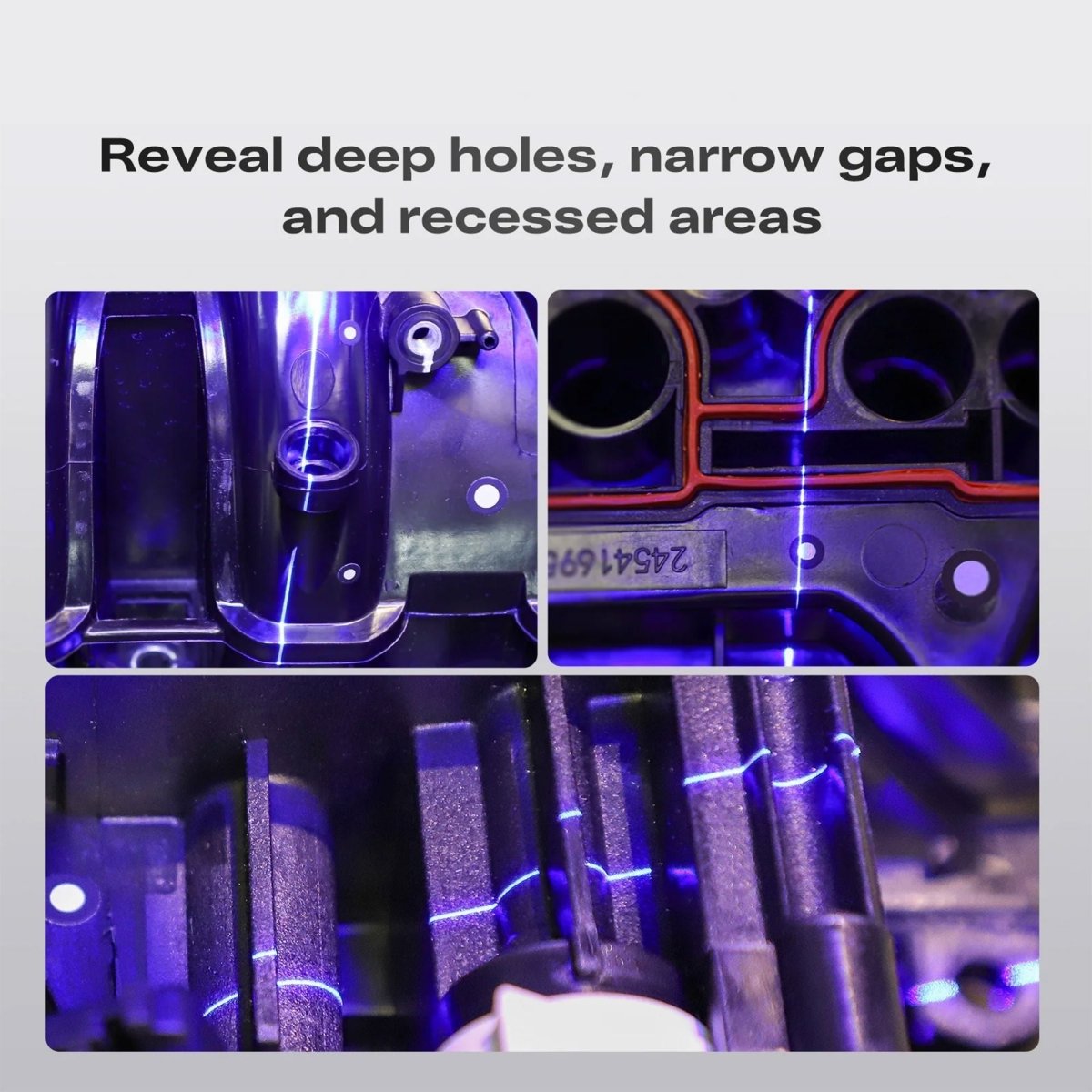

Equipped with a precise single-line blue laser and an optimized optical path, the Sermoon S1 excels at scanning deep holes, narrow gaps, and recessed areas-capturing intricate details in hard-to-reach spaces with uncompromising accuracy. Achieve data acquisition speeds of up to 1,428,000 points per second and a maximum scanning frame rate of 90 frames per second. A larger single-frame FOV reduces the number of required markers, improves tracking stability, and significantly enhances scanning efficiency.

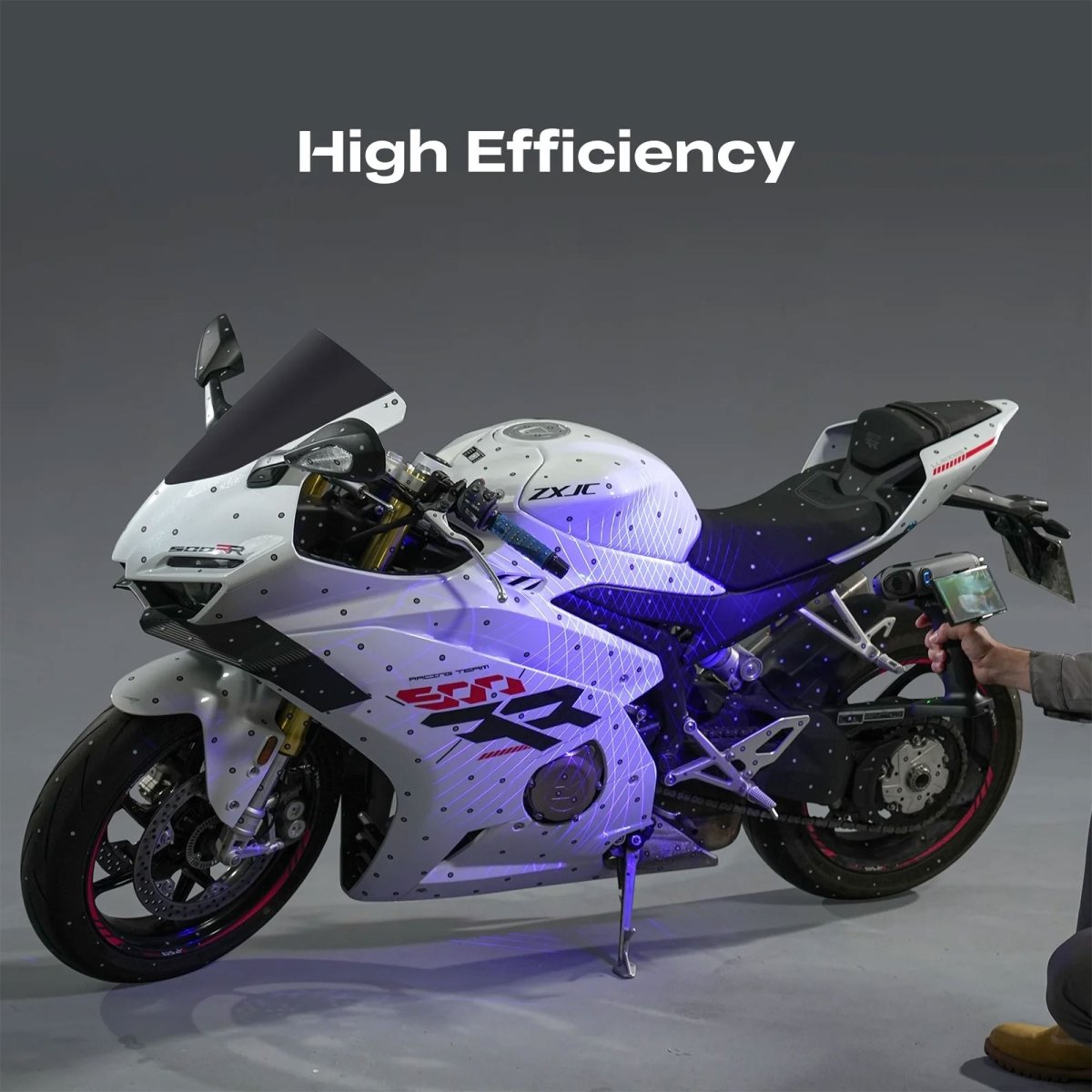

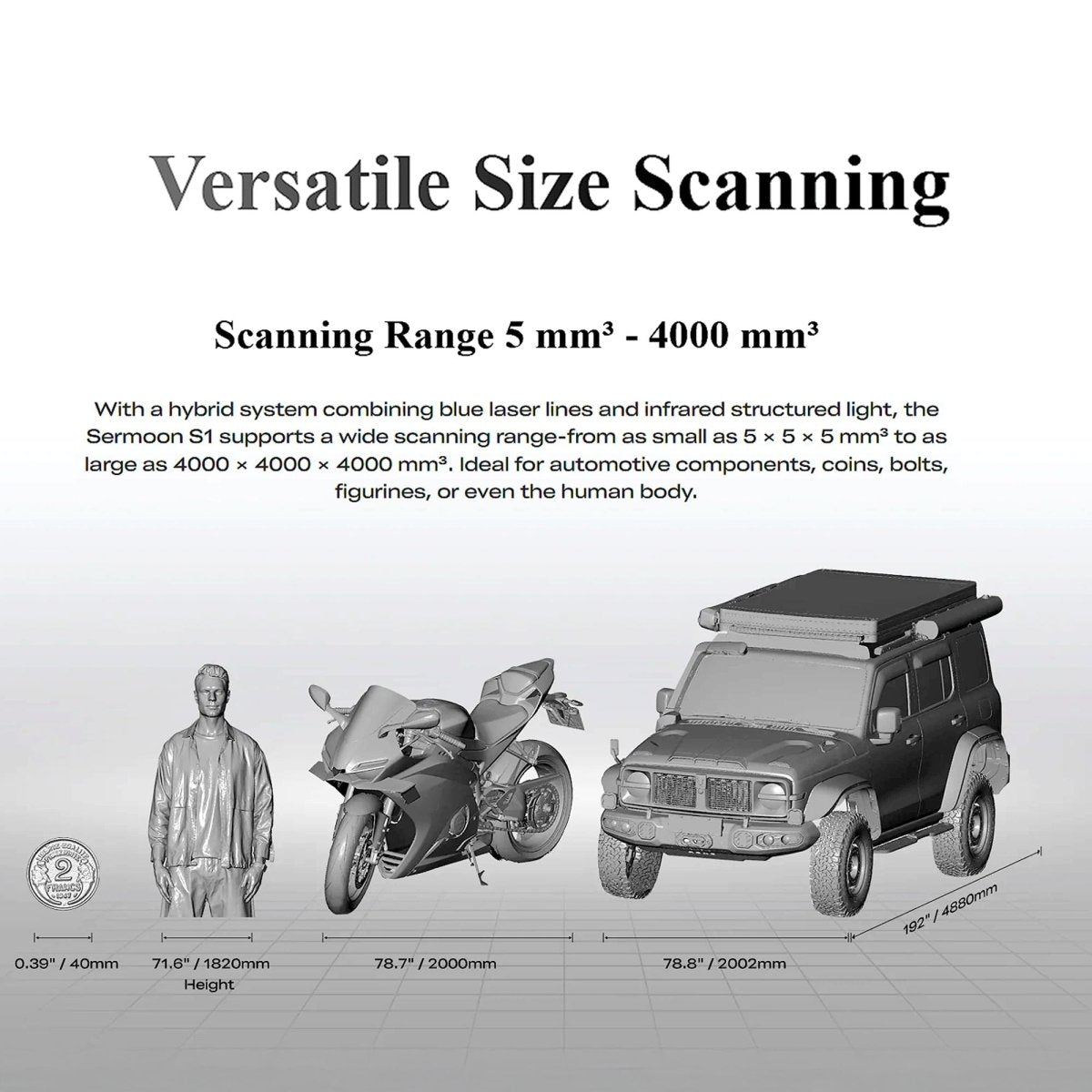

With a hybrid system combining blue laser lines and infrared structured light, the Sermoon S1 supports a wide scanning range-from as small as 5 × 5 × 5 mm³ to as large as 4000 × 4000 × 4000 mm³. Ideal for automotive components, coins, bolts, figurines, or even the human body.

Powered by an AI-driven temperature compensation algorithm and an efficient thermal management system, the Sermoon S1 maintains stable output even during prolonged sessions. Its One-Shot 3D imaging technology ensures higher tracking stability, effectively minimizing frame drops and misalignment caused by hand movement, significantly improving overall scanning accuracy and efficiency.

• Capture Tiny Details to Large Objects (5 mm³ – 4000 mm³): From jewelry and dental models to car parts and facades — one scanner covers micro to macro.

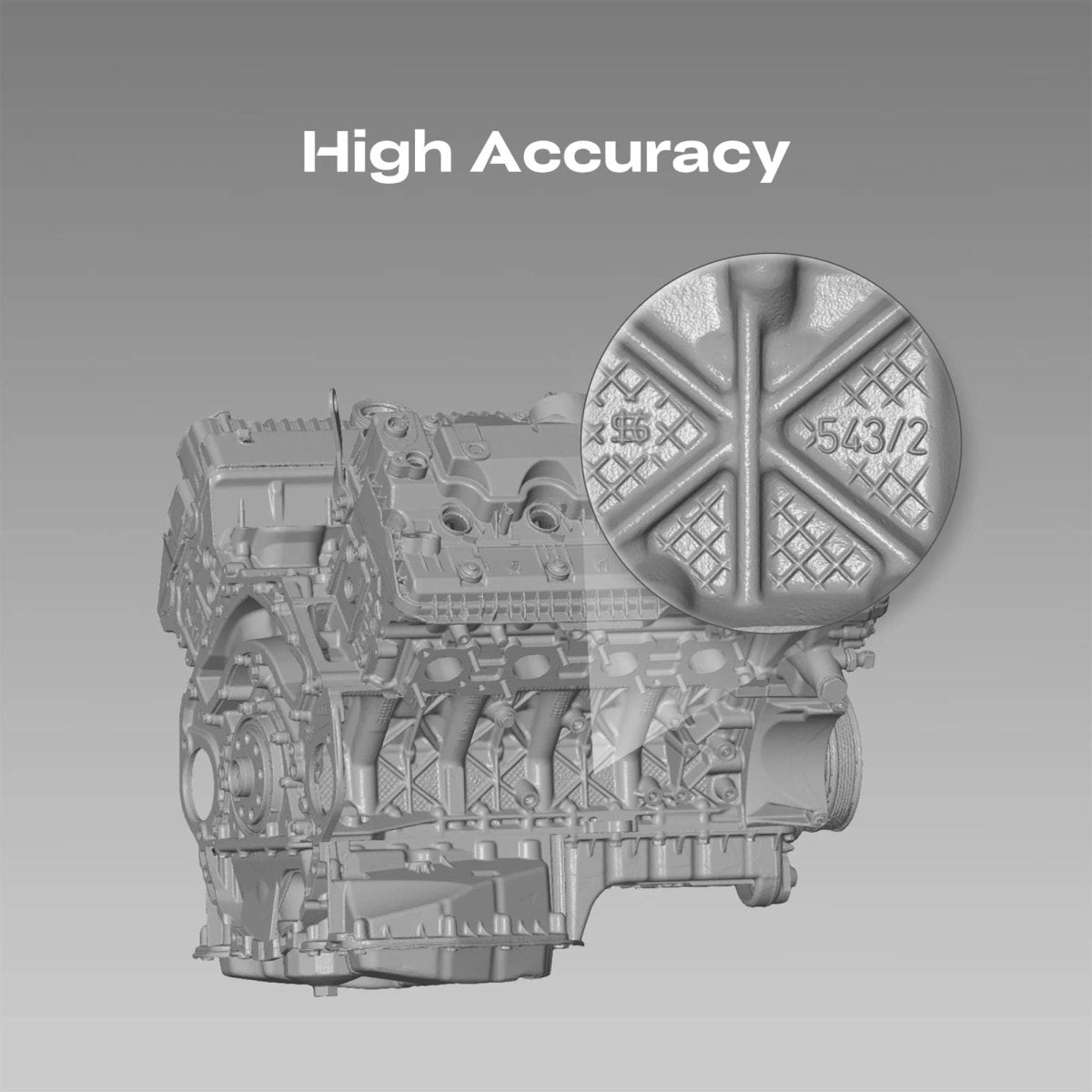

• Industry-Grade Precision & Speed: Up to 0.02 mm detail accuracy and 0.08 mm/m volumetric precision with 90 FPS, enabling fast, reliable scans.

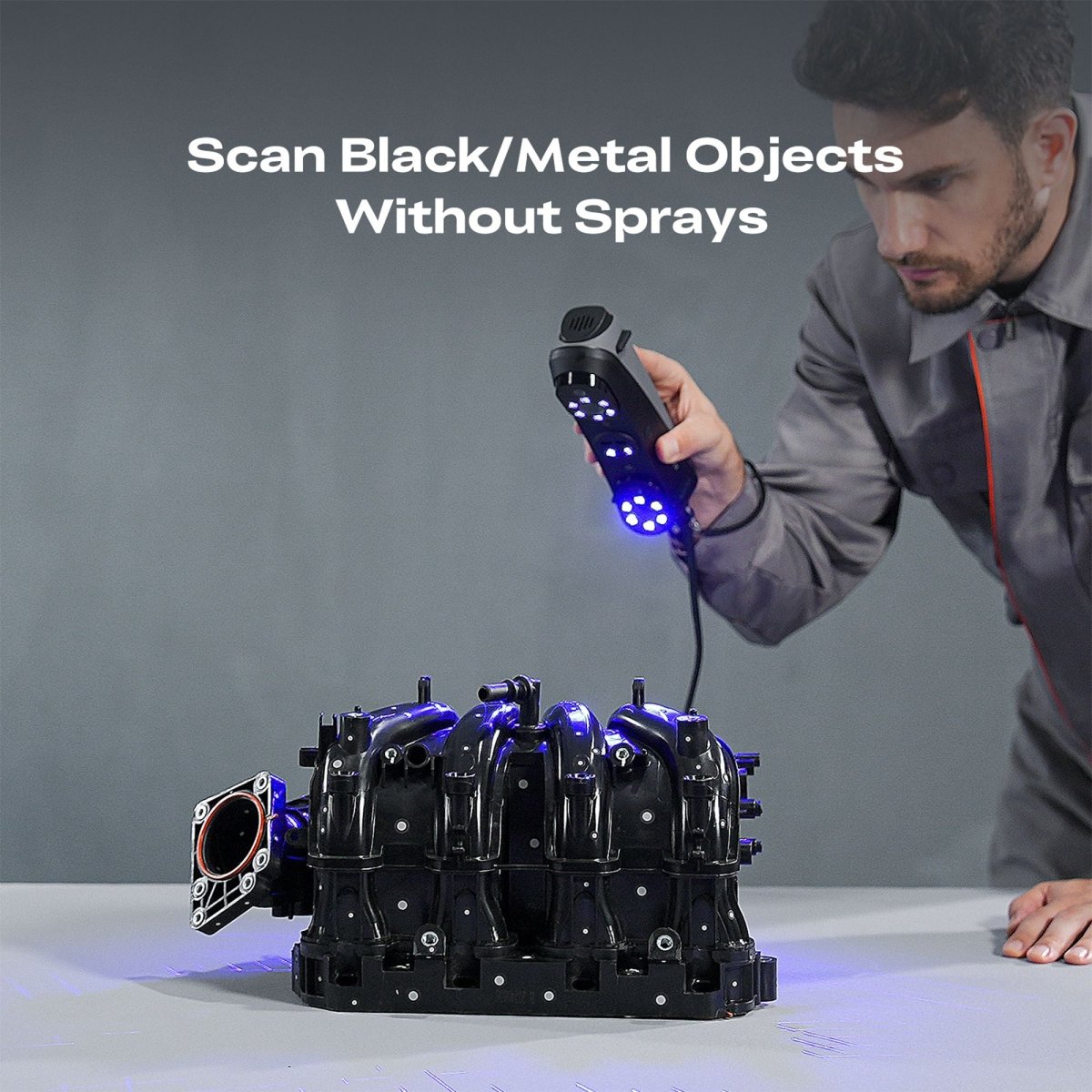

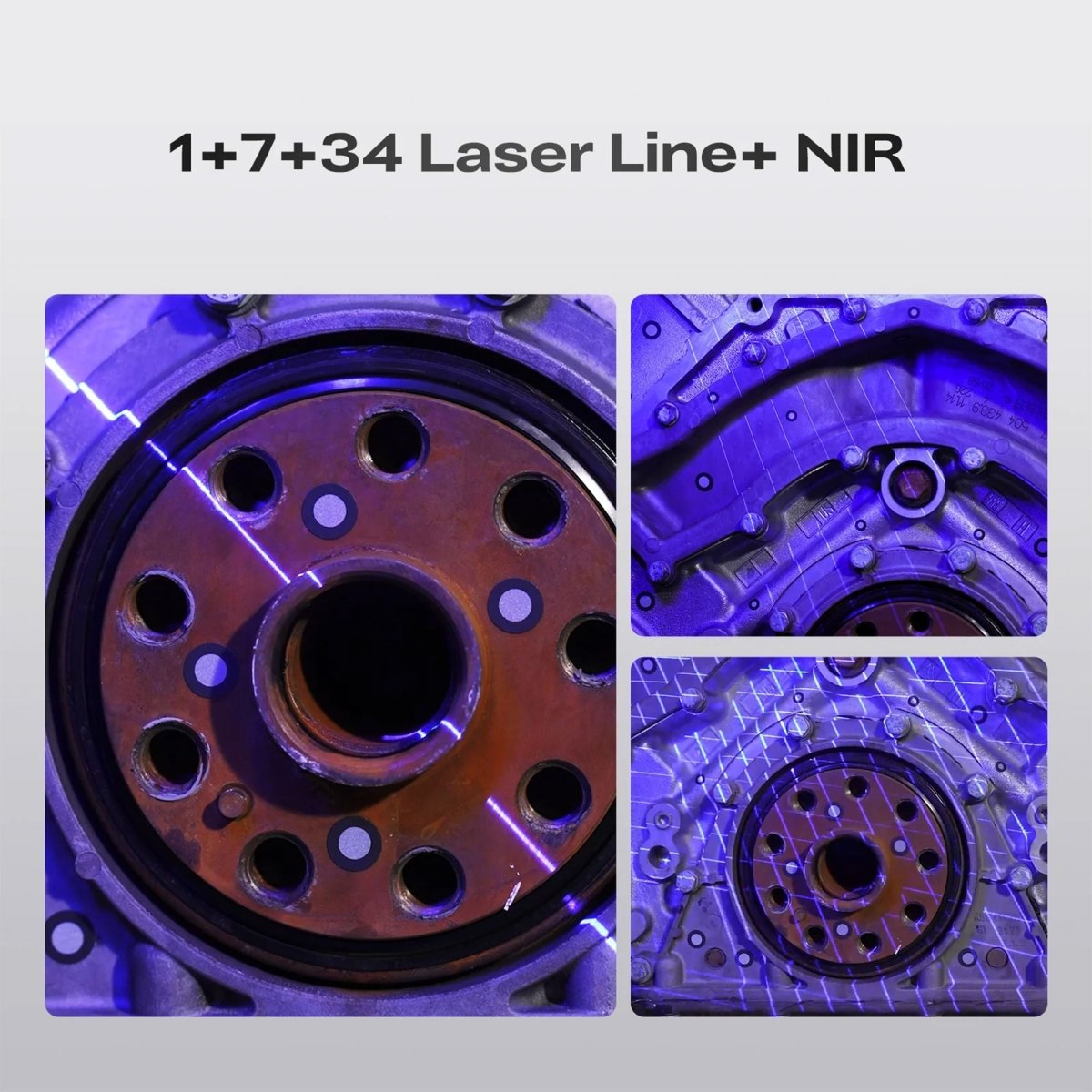

• Multi-Light System for Any Condition: 1 + 7 + 34 blue lasers plus NIR ensure consistent detail capture indoors or outdoors, even on shiny or dark surfaces.

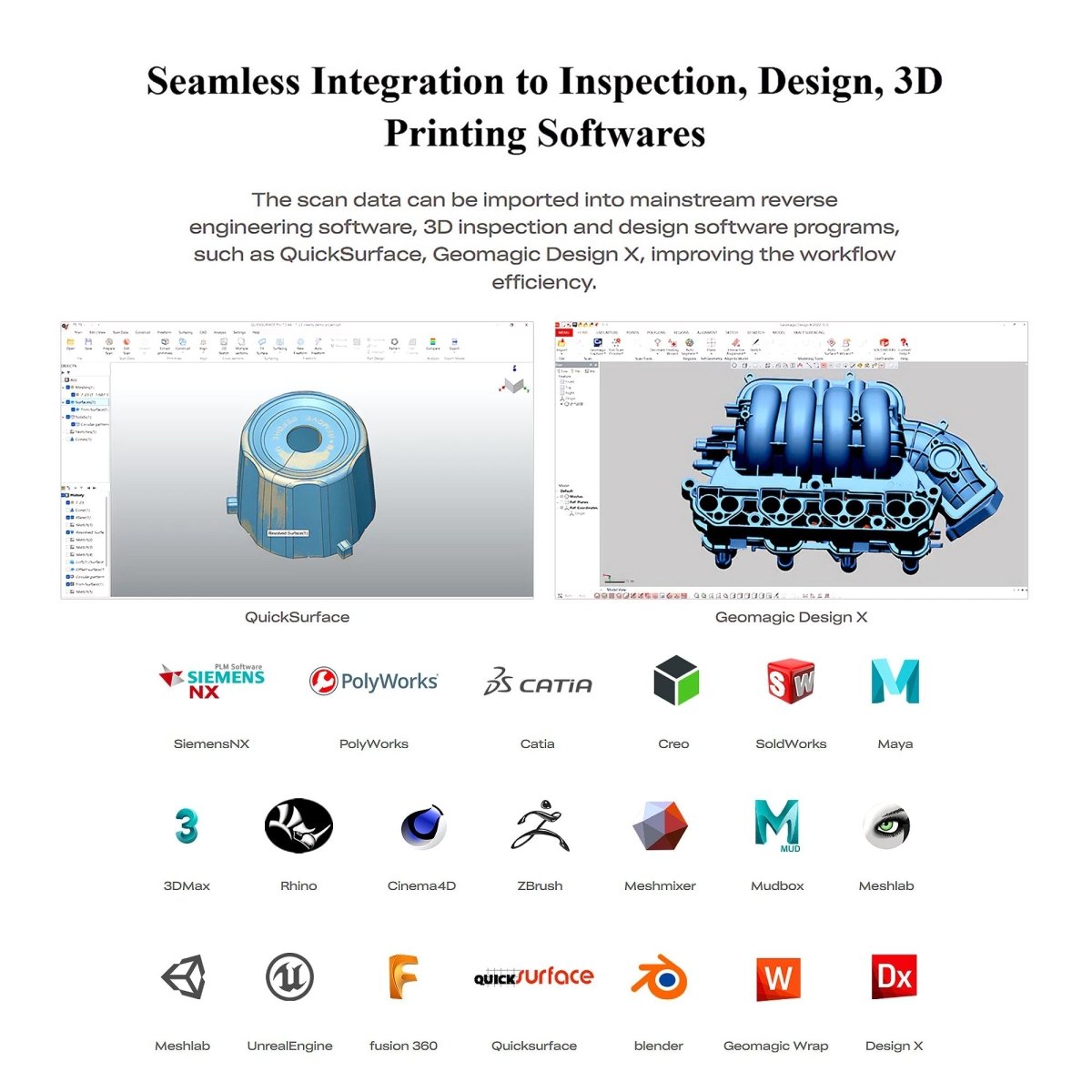

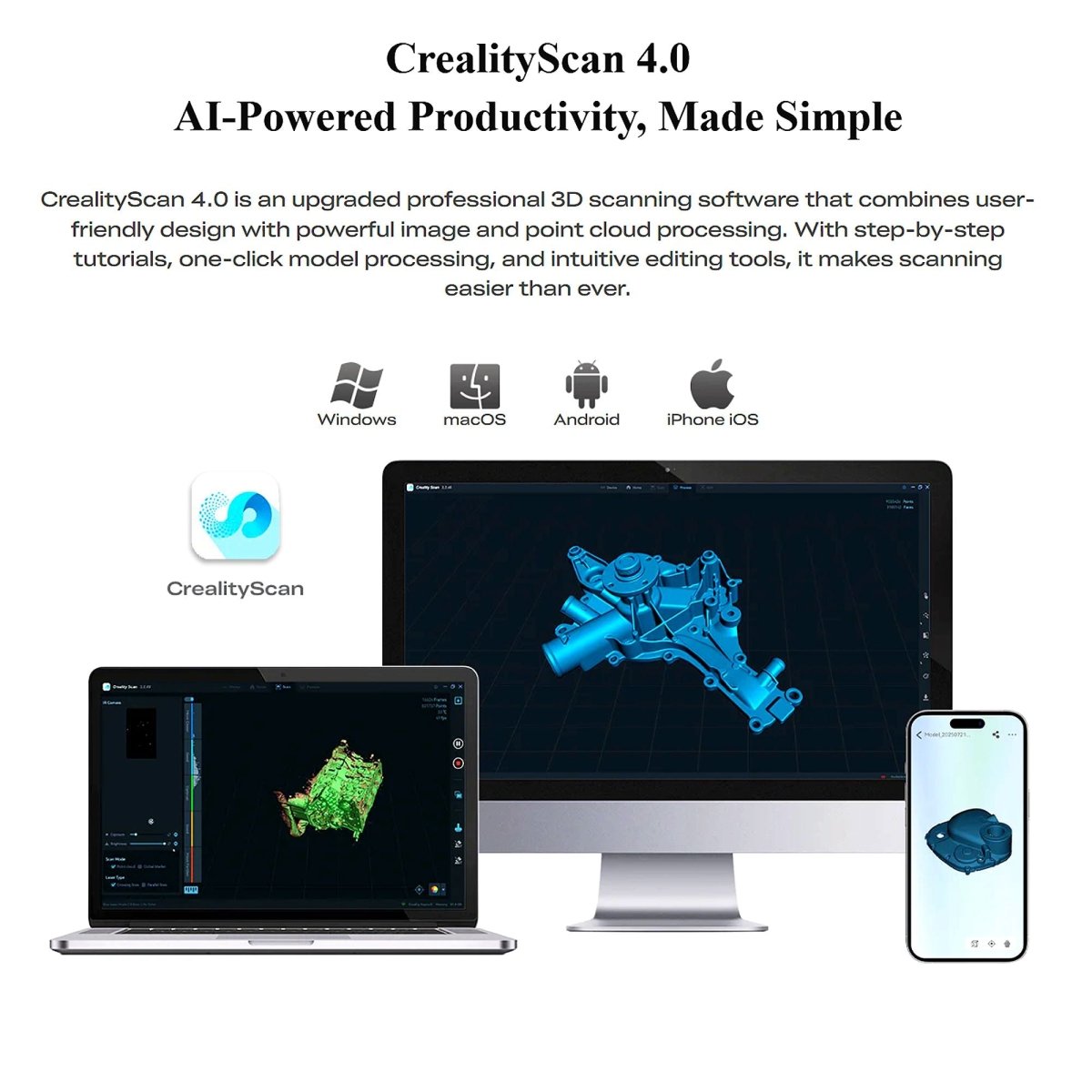

• Smart AI & User-Friendly Workflow Integration: AI-assisted software with seamless CAD/CAM/3D-printing export — less manual cleanup, faster to print-ready models.
• Zero Blind Spot Scanning: Exclusive single-line blue laser mode excels at capturing deep pockets, crevices, holes, and recessed areas where traditional scanners fail.

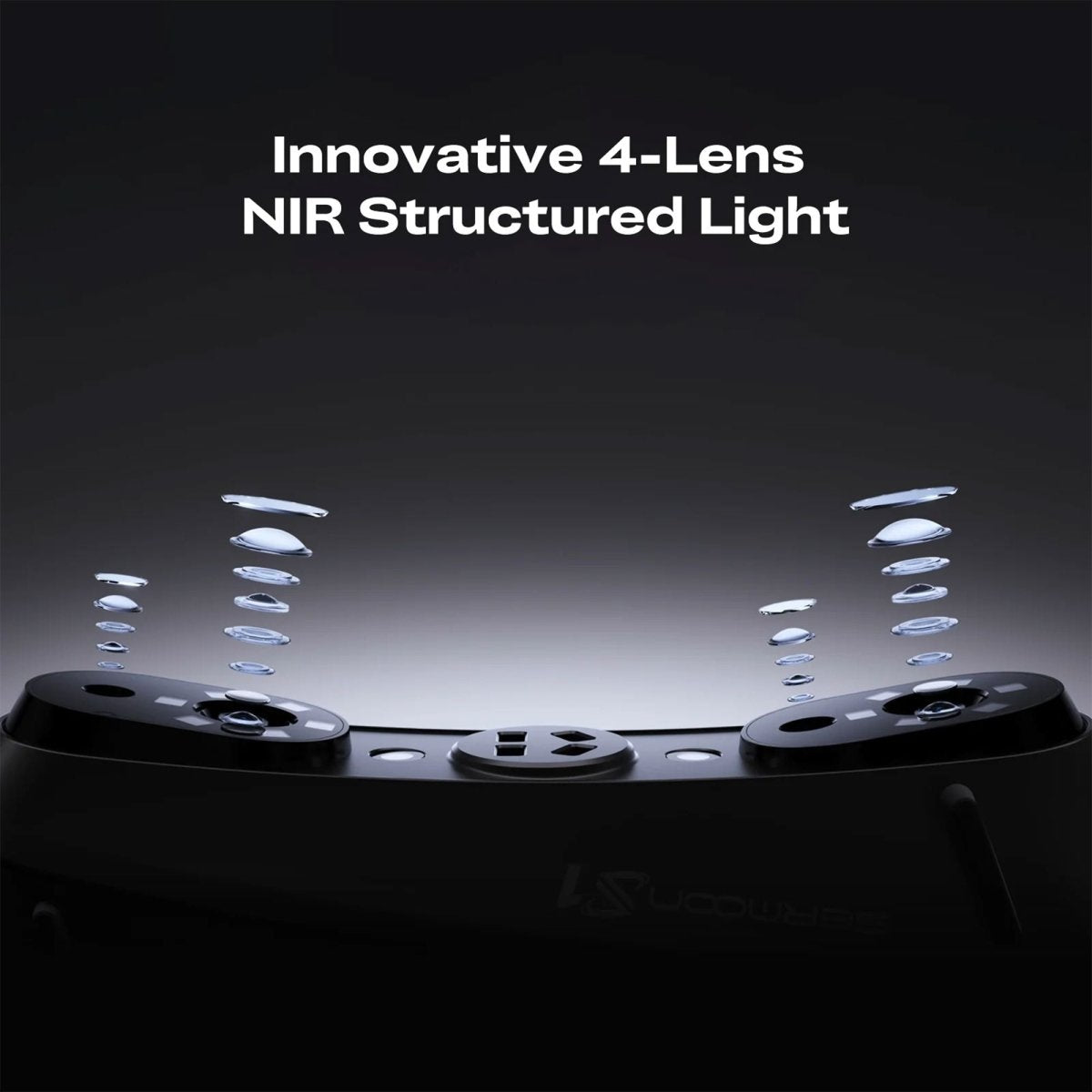

• Marker-Free & Spray-Free Versatility: Advanced 4-lens NIR structured light + infrared mode enables stable, markerless tracking (even outdoors under <50,000 lux), plus full-color RGB capture for vivid textured models
• High-Speed & High-Detail Modes: Switch seamlessly: 34-line mode for quick overviews of medium/large objects, 7-line for razor-sharp edges and fine features, single-line for precision in complex geometries.

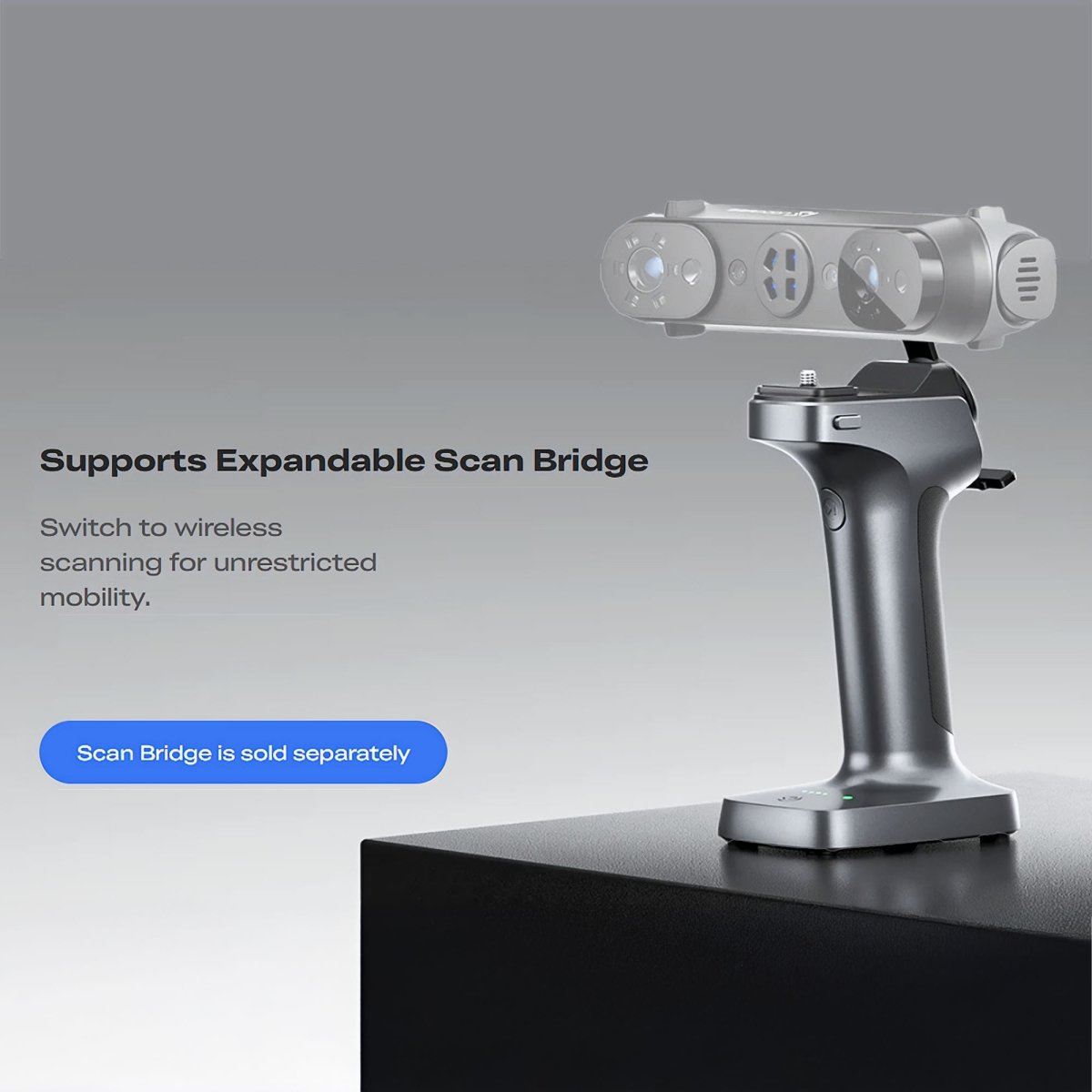

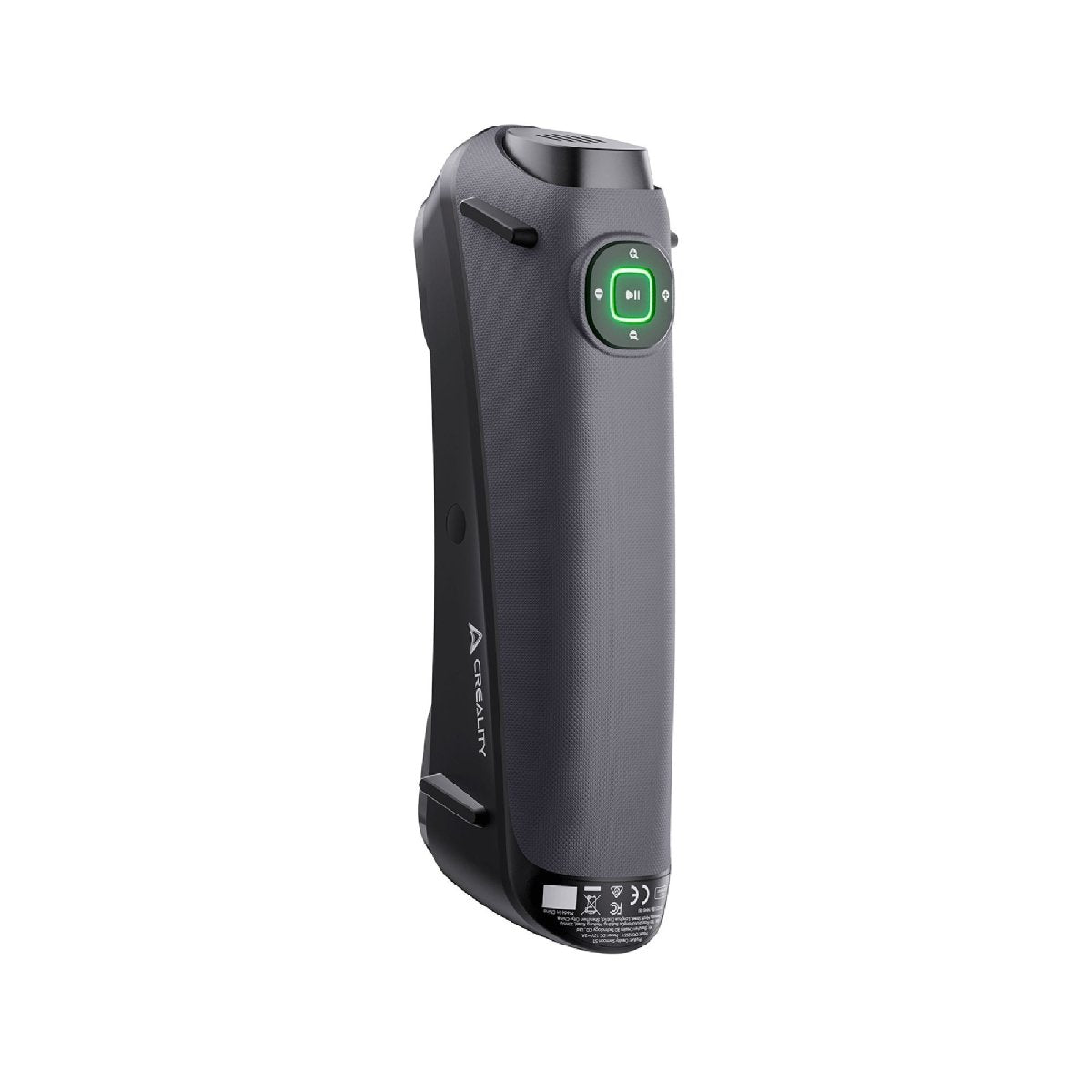

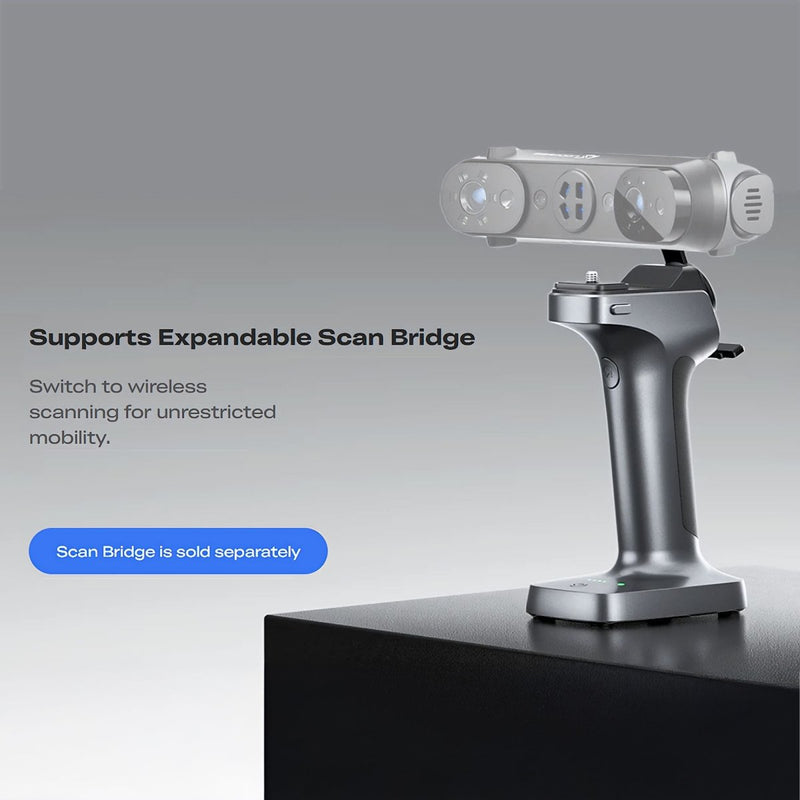

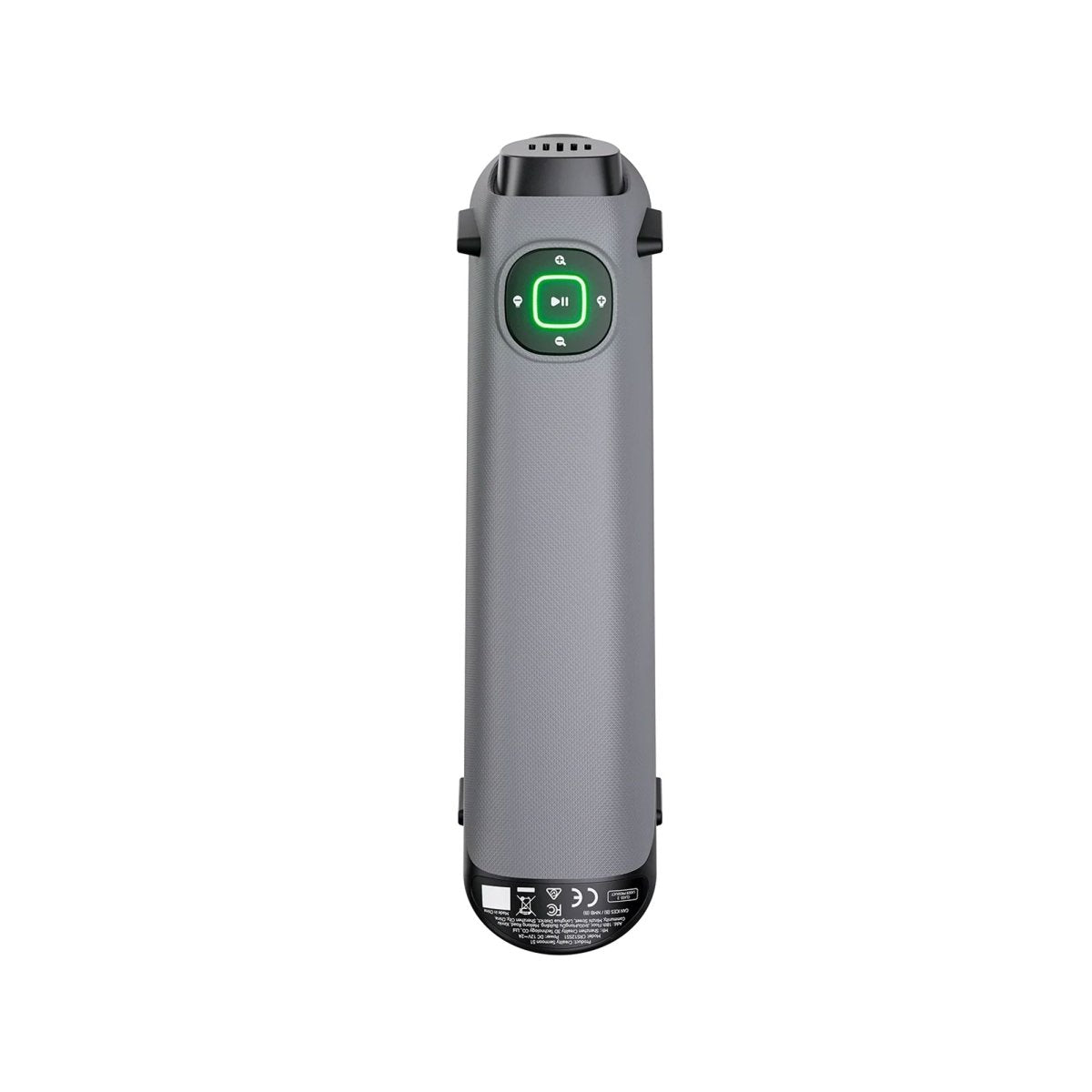

• Portable & Durable: Lightweight handheld design (~485g) with robust build; optional wireless Scan Bridge accessory available for cable-free freedom.

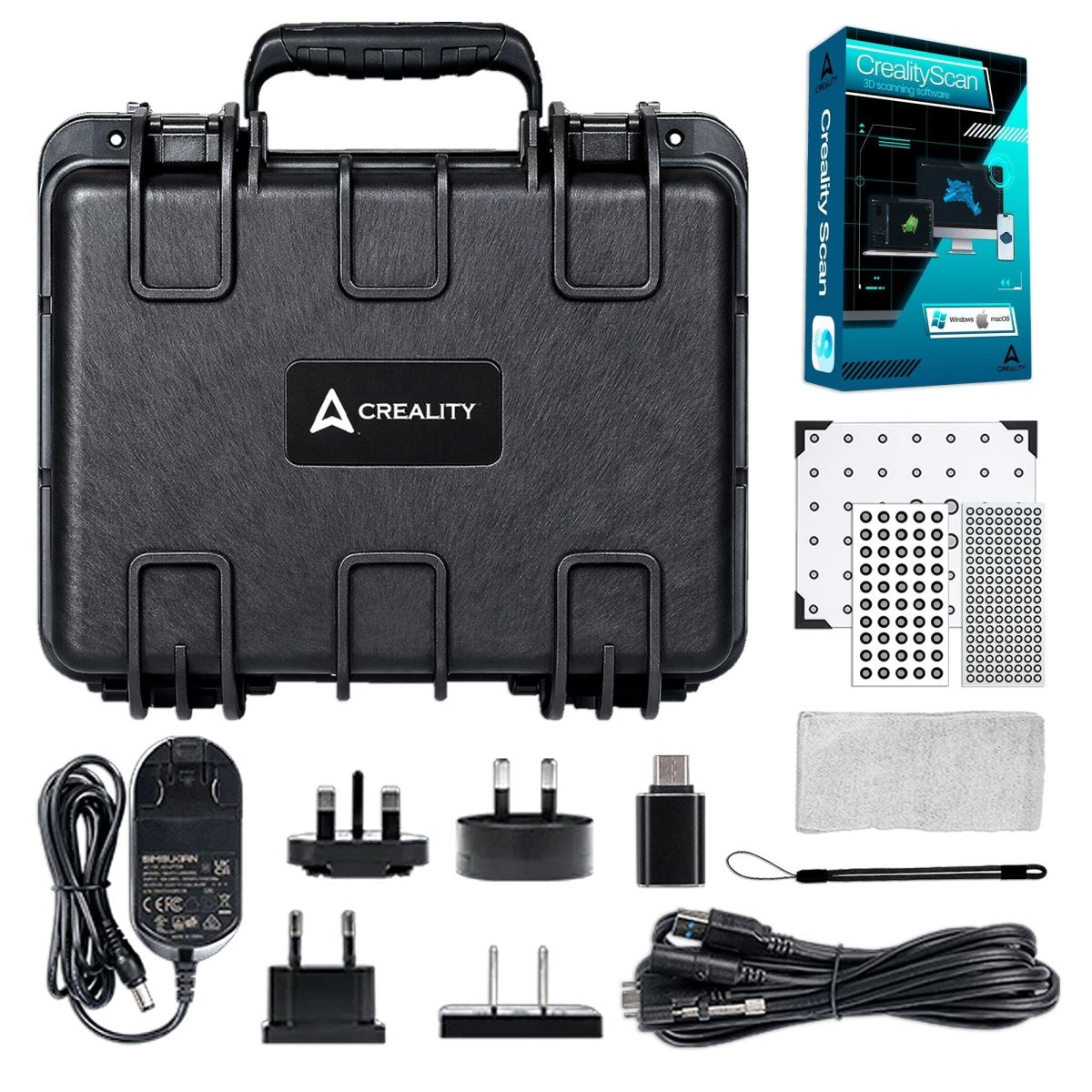

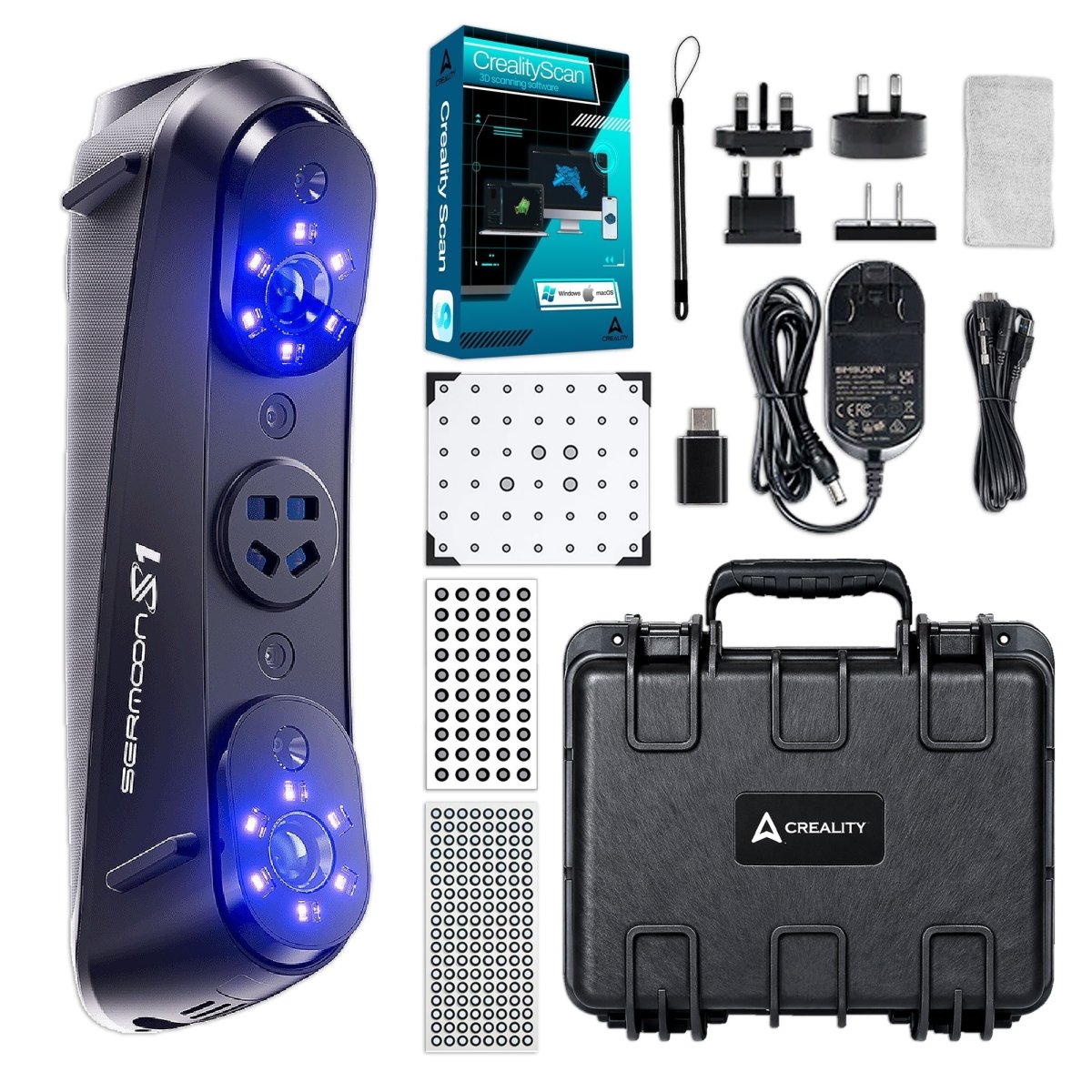

Creality Sermoon S1 3D Scanner Bundle Includes:

• Creality Sermoon 3D Scanner
• Reflective Markers (D6mm*10 sheets,D3mm*10 sheets)
• High-Precision Glass Calibration Plate
• Cleaning Cloth
• Water Proof Box
• Creality Scan Software (Windows & MAC)
• Power Cord
• USB 3.0 Data Cable
• Type C Adaptor
• Lanyard
• Quick Start Guide
• 1-Year Manufacturer Warranty
• Lifetime U.S. Based Support

NOTE: Windows & macOS Supported. Wireless scanning requires handle mount (PC supported) | Mobile app: screen mirroring only

Whether you're an engineer tackling reverse engineering challenges, a designer creating precise digital twins, a 3D printing enthusiast capturing real-world objects for replication, or an industrial pro needing reliable metrology data, the Creality Sermoon S1 stands out as a versatile, high-performance solution that combines pro-level accuracy, blazing speed, and exceptional adaptability.

Detailed Technical Specifications

• Scanning Accuracy — Up to 0.02 mm (single blue laser line); up to 0.075 mm (7 parallel blue laser lines / infrared modes).
• Volumetric Accuracy — 0.02 mm + 0.08 mm/m (single blue laser line); 0.075 mm + 0.1 mm/m (7 parallel blue laser lines).
• 3D Resolution — 0.05–2 mm (single blue laser line); 0.1–2 mm (7 parallel blue laser lines).
• Scanning Rate — 108,000 measurements/s (single line); 756,000 measurements/s (7 parallel lines); 1,428,000 measurements/s (34 cross lines); 4,600,000 measurements/s (close-range NIR structured light).
• Scanning Speed — Up to 90 FPS (single/7 parallel lines); up to 70 FPS (34 cross lines); up to 30 FPS (infrared modes).
• Working Distance — Single line: 200–600 mm; 7 parallel lines: 150–400 mm; 34 cross lines: 200–600 mm; Close-range NIR: 170–500 mm; Long-range NIR: 200–1200 mm.
• Single Capture Range (examples) — Single line: 205 × 147 mm @ 200 mm to 506 × 433 mm @ 600 mm; 7 parallel: 293 × 217 mm @ 300 mm to 417 × 361 mm @ 500 mm; 34 cross: 689 × 375 mm @ 500 mm to 1245 × 754 mm @ 1000 mm.
• Alignment Modes — Marker/Global Marker (laser modes); Marker/Global/Geometry/Texture (7 parallel & NIR modes).
• Environmental — Operating temperature: -10°C to 40°C; Humidity: 10–90% RH; Outdoor capable (≤100,000 lux single/cross lines, ≤50,000 lux 7-line, ≤30,000 lux close-range NIR).
• Laser Safety — Class II (single/cross lines); Class I (7-line & NIR modes).
• Additional Hardware — 2 MP RGB camera; 12 white LEDs (color) + 12 blue/white LEDs (marker enhancement); High-precision glass calibration board.
