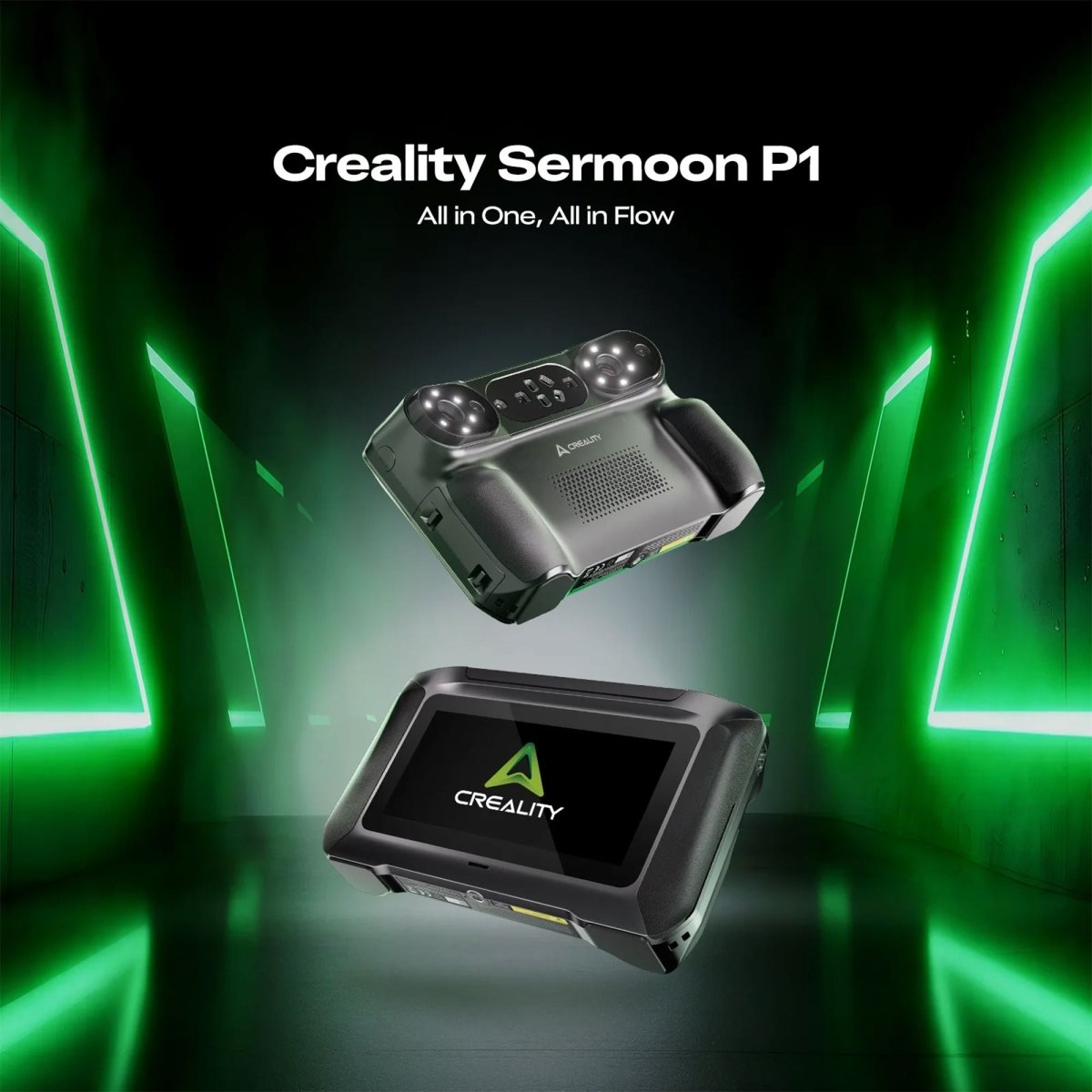

Creality Sermoon P1 All-in-One Professional Wireless 3D Scanner
$3,299.00$3,999.00
$3,299.00
The Creality Sermoon P1 All-in-One Professional 3D Scanner is a groundbreaking standalone handheld 3D scanner that redefines professional scanning with its powerful onboard processing, triple-mode operation (Standalone, Wired PC, Wireless PC), and hybrid blue laser + NIR structured light system. Engineered for reverse engineering, industrial inspection, product design, modified vehicles, cultural relic digitization, human body scanning, and 3D printing workflows, the Sermoon P1 delivers metrology-grade precision up to 0.02 mm accuracy without sprays or markers in many modes—capturing everything from tiny intricate parts (5 × 5 × 5 mm³) to massive objects (up to 4000 × 4000 × 4000 mm³).
Featuring a Qualcomm high-performance processor (8-core 3.36 GHz CPU, Adreno 740 GPU, FPGA acceleration), 24GB LPDDR5X RAM, 256GB UFS 4.0 storage, and Wi-Fi 7 connectivity, it enables real-time scanning, processing, editing, and previewing directly on-device via a vibrant 6-inch Full HD touchscreen with 160° wide viewing angle—ideal for outdoor use and instant collaboration through screen casting.
Key Features & Benefits
- Hybrid Light Source Versatility — 22 cross-line + 7 parallel-line + 1 single-line blue laser for fast coverage, fine details, and deep-hole scanning (up to 5:1 depth-to-diameter ratio); NIR structured light for marker-free, safe scanning of faces, bodies, sculptures, and large objects.
- Triple Operation Modes — Standalone for true wireless freedom, Wired PC for maximum speed, Wireless PC for flexible setups—seamless switching with lossless data transfer.
- Ultra-High Speed & Frame Rates — Up to 100 FPS (PC-wired), 60 FPS (standalone), enabling lightning-fast capture of complex geometries and large surfaces.
- Full-Color Texture Scanning — High-performance Qualcomm ISP chip, full-color RGB camera with global shutter, and auxiliary lighting for rich, realistic textured models.
- Superior Adaptability — Scans black, metallic, and reflective surfaces without sprays; reliable outdoor performance; AI temperature compensation and efficient thermal design for stable long-session output.
- Swappable Dual-Battery System — Two hot-swappable 3300 mAh batteries (extra pack included), fast charging to 80% in 50 minutes, and smart power-saving for uninterrupted fieldwork.
- User-Friendly Onboard Workflow — Integrated software for calibration, scanning, fusion, mesh editing, and export; intuitive interface; exports to standard formats compatible with QuickSurface, Geomagic Design X, CAD tools, and Creality 3D printers.
- Large Single-Frame FOV & Wide Range — Reduces markers needed, boosts tracking stability, and accelerates efficiency across small-to-giant objects.

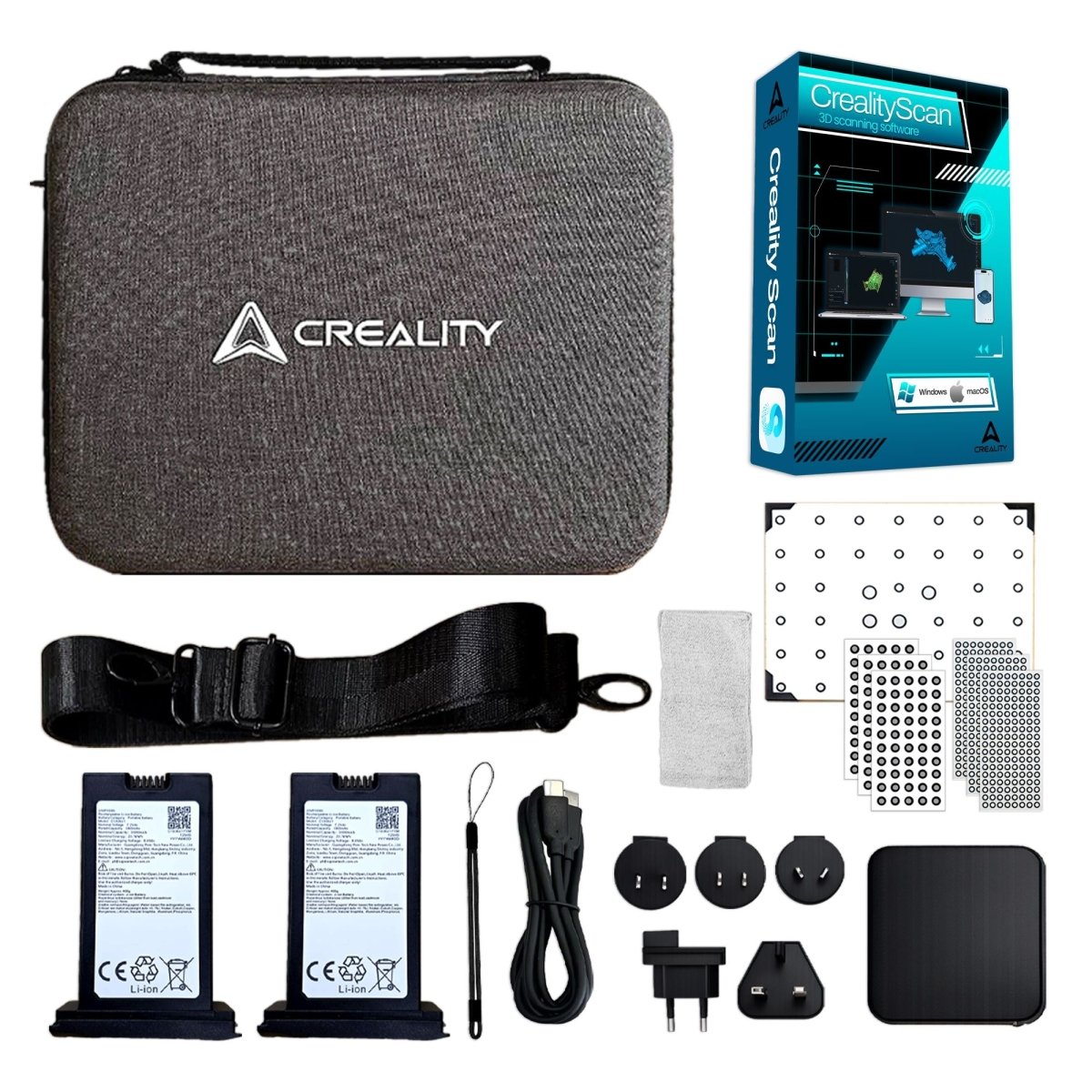

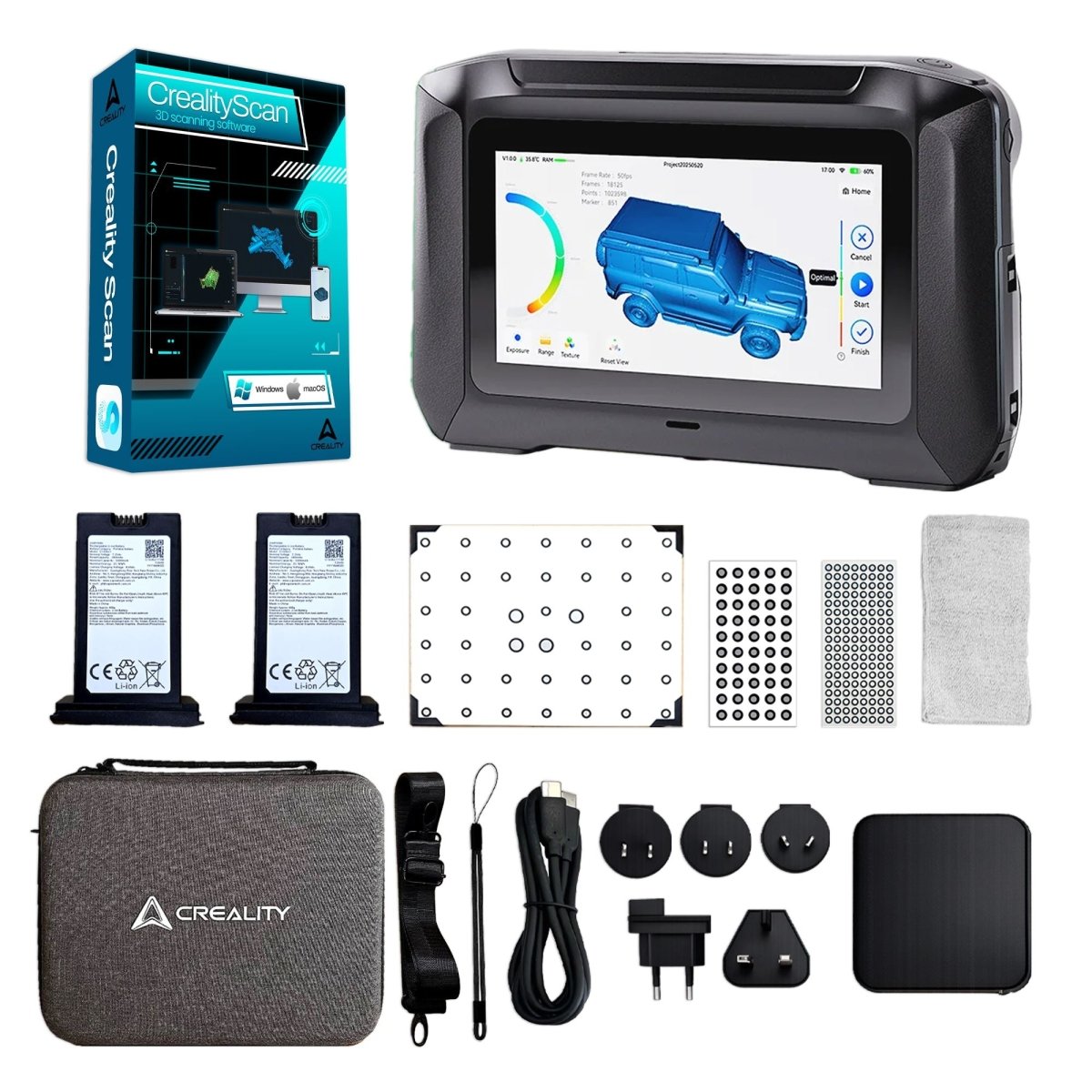

Creality Sermoon P1 3D Scanner Bundle Includes:
- Creality Sermoon P1 Handheld 3D Scanner
- Reflective Markers (D6mm*10 sheets,D3mm*10 sheets)
- High-Precision Glass Calibration Plate
- 2 Rechargeable Batteries
- Portable Carrying Case
- Lanyard
- Cleaning Cloth
- Creality Scan Software (Windows & MAC)
- Power Adapter + Power Connectors
- USB 3.0 Data Cable - Type C
- Quick Start Guide
- 1-Year Manufacturer Warranty
- Lifetime U.S. Based Support
Whether you're an engineer performing precise reverse engineering on mechanical parts, an industrial pro conducting metrology inspections, a designer digitizing prototypes or cultural artifacts, or a 3D printing specialist capturing human forms and large objects for replication, the Creality Sermoon P1 delivers unmatched standalone power, speed, and adaptability in a portable, professional package.
Elevate your 3D scanning game with the Creality Sermoon P1—the ultimate all-in-one blue laser + NIR handheld 3D scanner for zero-compromise precision, wireless freedom, and seamless workflows. Order now and transform real-world objects into high-fidelity digital models effortlessly!
Detailed Technical Specifications
- Scanning Technology — Blue laser (22 cross + 7 parallel + 1 single lines) + NIR structured light.
- Accuracy — Up to 0.02 mm (laser modes); up to 0.075 mm (NIR modes).
- Volumetric Accuracy — 0.02 mm + 0.06 mm/m (laser); 0.075 mm + 0.1 mm/m (NIR).
- 3D Resolution / Point Distance — 0.05–2 mm (laser); 0.1–2 mm (NIR).
- Frame Rate / Scanning Speed — Up to 100 FPS (PC-wired), 60 FPS (standalone); up to 18 FPS in some NIR modes.
- Working Distance — Laser: 160–550 mm; NIR: 170–1200 mm.
- Single Capture FOV (examples) — Blue laser max: 380 × 365 mm @ 550 mm; Infrared max: 1245 × 754 mm @ 1000 mm (supports 1-minute full-body scans).
- Object Size Range — From 5 × 5 × 5 mm³ to 4000 × 4000 × 4000 mm³.
- Alignment Modes — Markers (laser); geometry/markers/texture (NIR); markerless for large/human scans.
- Hardware — Qualcomm 8-core 3.36 GHz CPU, Adreno 740 GPU, FPGA; 24GB LPDDR5X RAM, 256GB UFS 4.0 ROM; 6-inch Full HD touchscreen (160° viewing angle).
- Connectivity — Wi-Fi 7 (fast, stable, lossless), USB-C (wired mode).
- Battery — Dual hot-swappable 3300 mAh batteries + extra pack; Type-C fast charging (80% in 50 min); smart power management.
- Environmental — Strong outdoor adaptability; scans reflective/black/metal surfaces without spray.
- Additional — Full-color RGB camera with auxiliary lighting; AI temperature compensation; efficient thermal design.

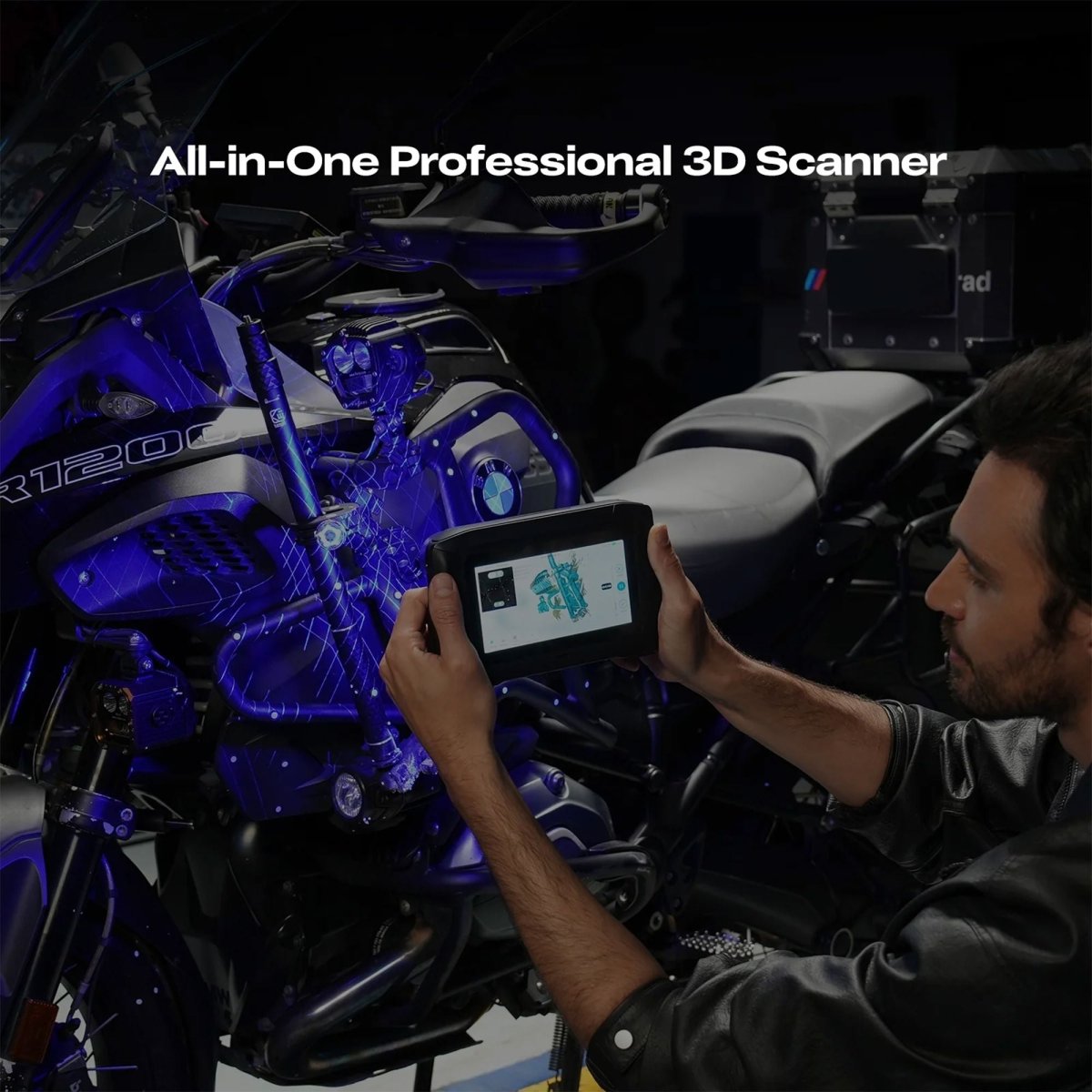

All-in-One Professional 3D Scanner
Integrated with a blue multi-line laser scanning system, dual infrared structured light scanning system, a high-performance processor (CPU/GPU/FPGA), a 6-inch high-definition screen, 24GB RAM, 256GB storage, and a Wi-Fi 7 chip, it enables high-precision scanning and data post-processing without the need for a computer.
Triple Work Modes, Flexible Operation
Switch seamlessly between Standalone, Wired PC, and Wireless PC modes — adapt easily to any scanning environment or workflow.
0.02 mm + 0.06 mm/m, Reliable Consistent Accuracy
Designed for repeatable, reliable results in professional workflows such as reverse engineering and automotive customization.

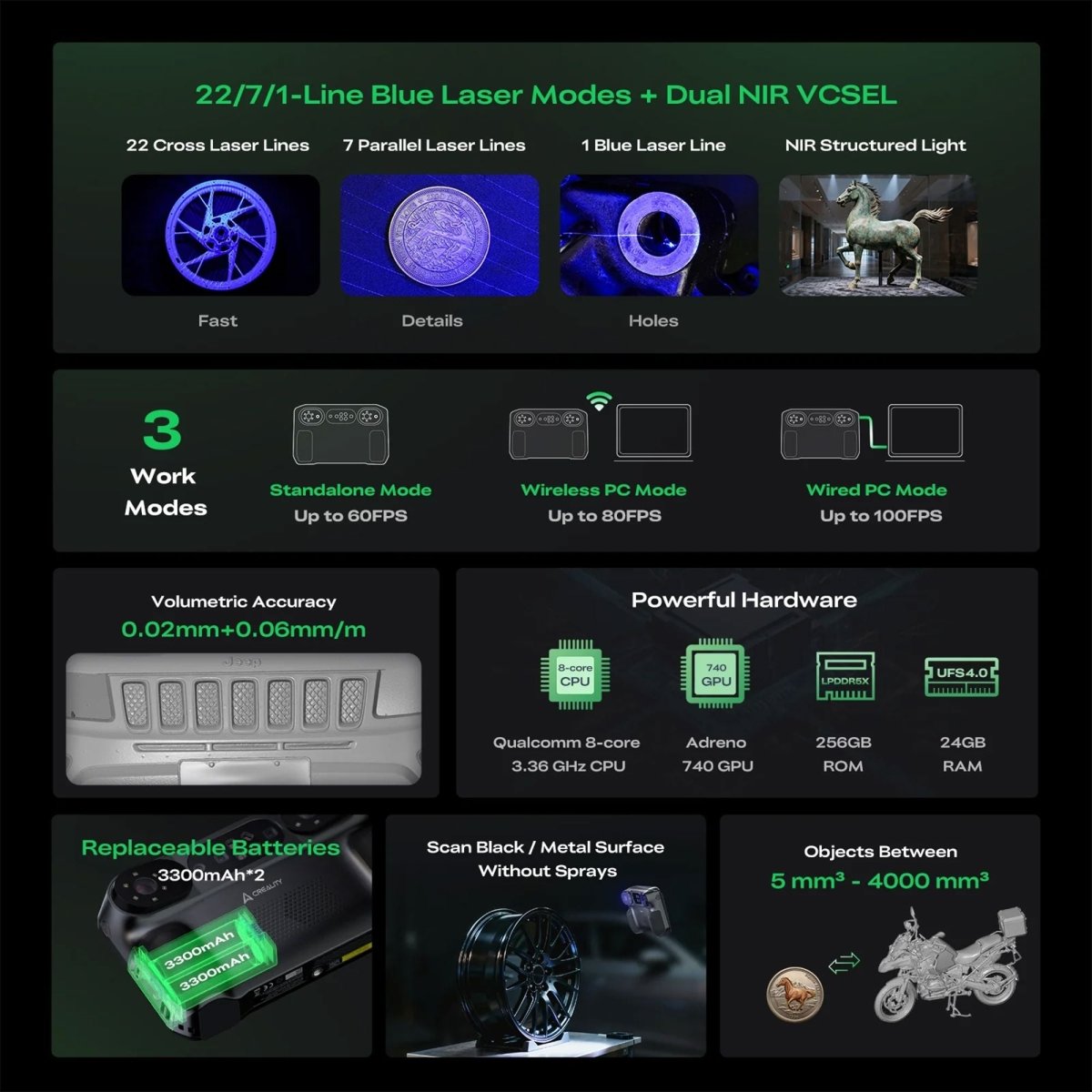

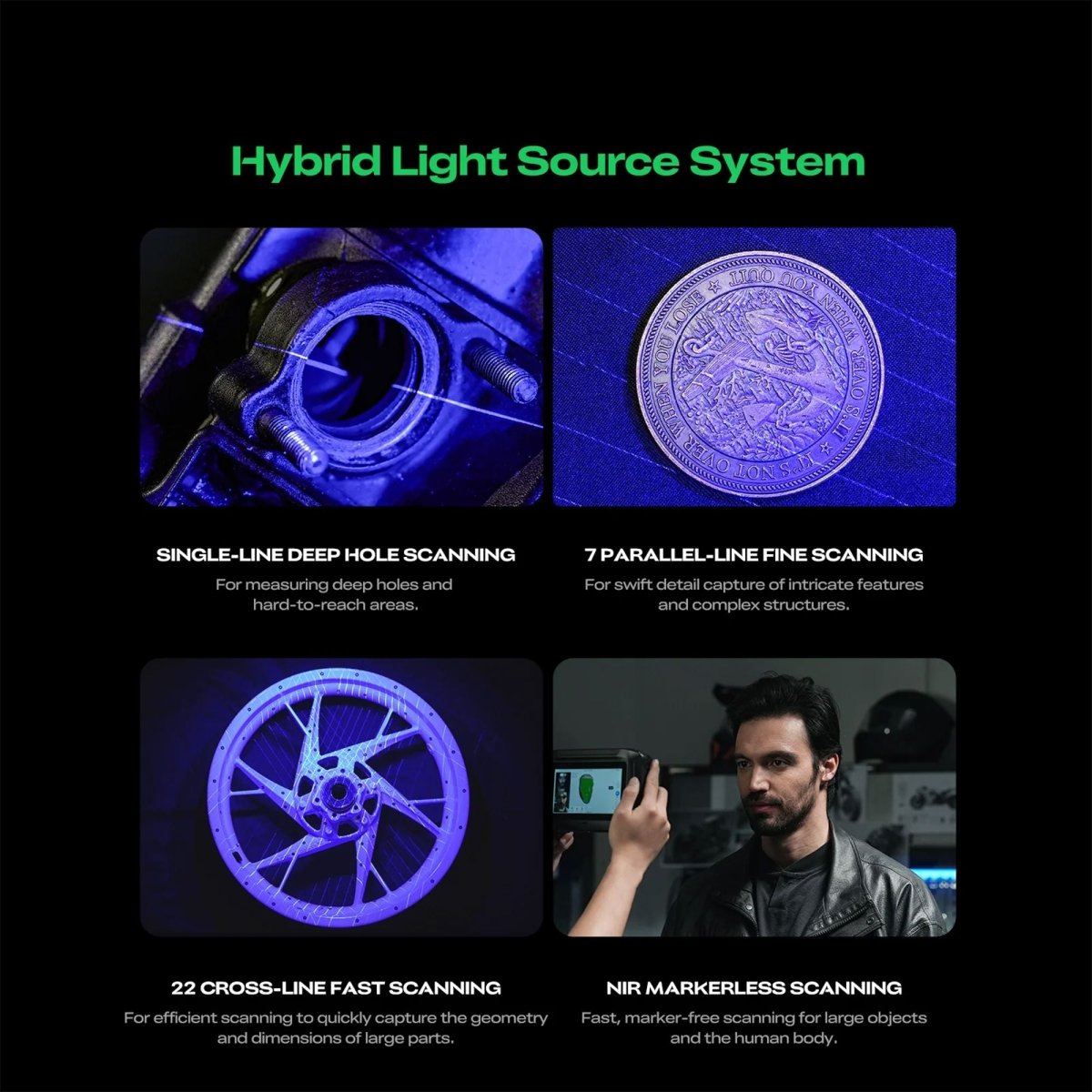

Hybrid Light Source System
Featuring 22 + 7 + 1 blue laser lines + NIR structured light
*Sermoon P1 adapts to different surfaces and materials.
For measuring deep holes and hard-to-reach areas.
For swift detail capture of intricate features and complex structures.
For efficient scanning to quickly capture the geometry and dimensions of large parts.
Fast, marker-free scanning for large objects and the human body.
Single-Line Laser, Mastering Deep Holes (Up to depth-to-diameter ratio 6:1)
The P1 single-line laser deep-hole scanning mode captures accurate 3D data from hard-to-reach areas such as deep holes, narrow gaps, and recesses. It supports scanning narrow holes with a depth-to-diameter ratio of up to 6:1, delivering more complete 3D data for design, inspection, analysis, and beyond.
*Test based on a 28.68 mm diameter pipe, with a measured depth of 172.7 mm.

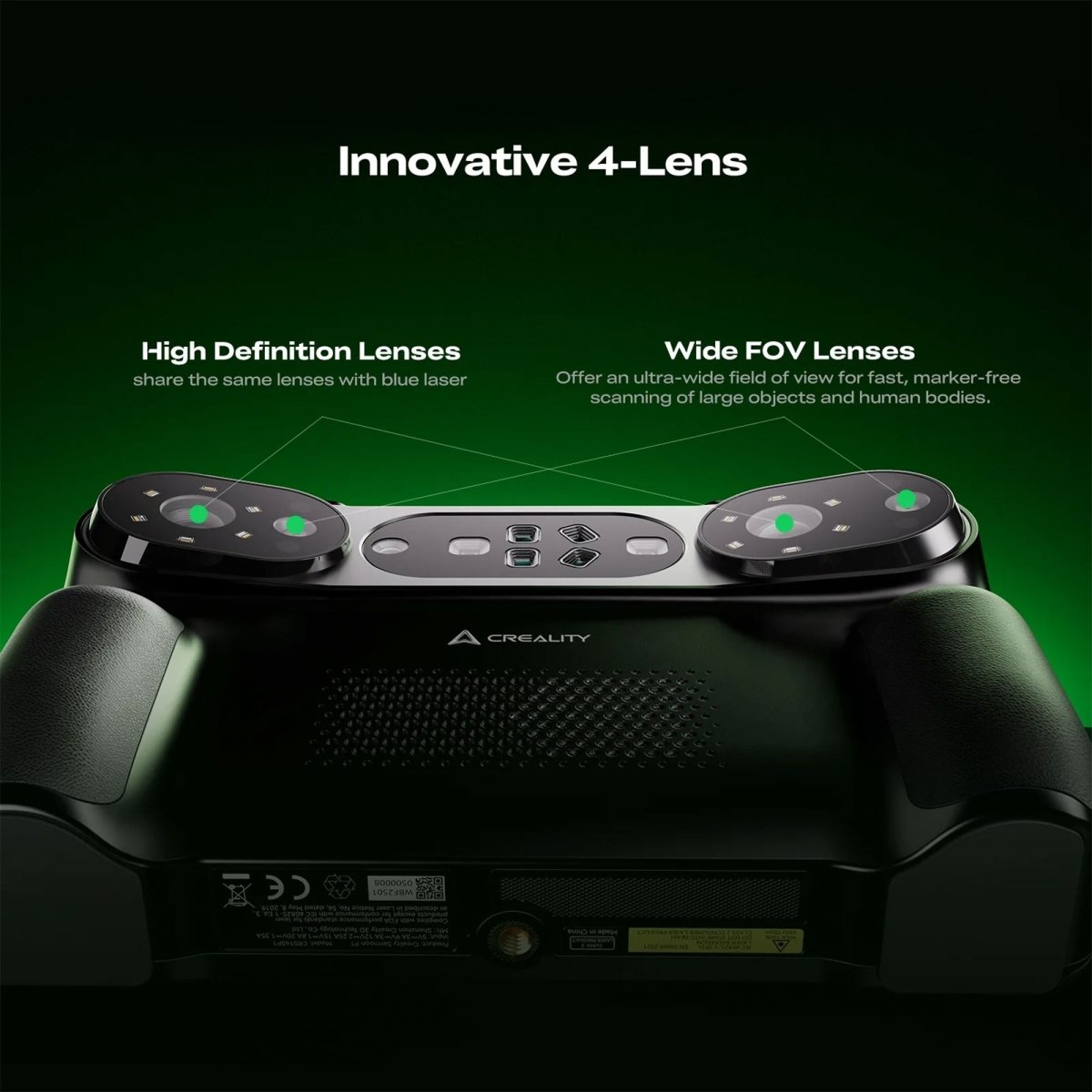

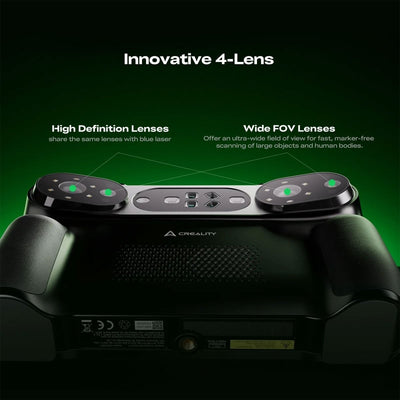

Innovative 4-Lens
Fast Scanning, Smooth Capture
High-speed data acquisition ensures smooth, accurate real-time reconstruction — even during complex scans.
Blue Laser Mode: up to 60 FPS (Standalone) / 100 FPS (PC)
Infrared Mode: up to 18 FPS (Standalone) / 30 FPS (PC)

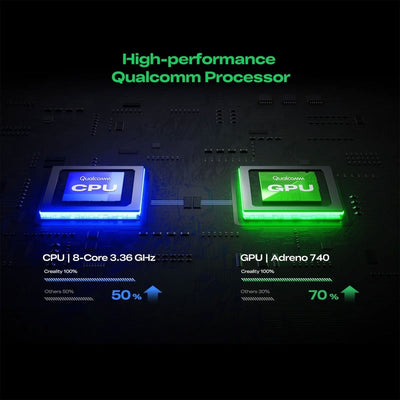

High-performance Qualcomm Processor
Powered by a Qualcomm high-performance processor with CPU/GPU/FPGA acceleration for fast, real-time scanning and data processing.

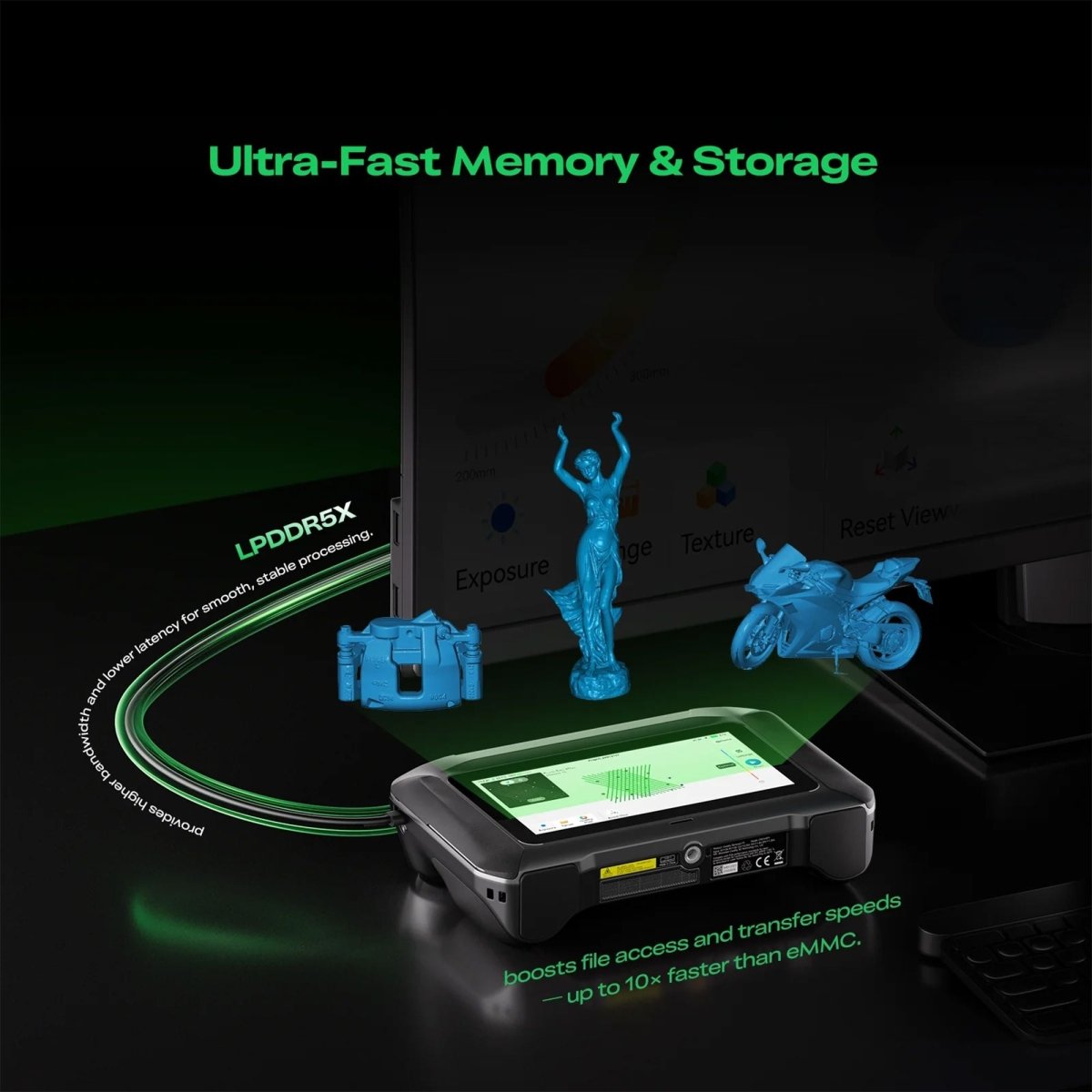

Ultra-Fast Memory & Storage
24GB LPDDR5X RAM and 256GB UFS 4.0 ROM.

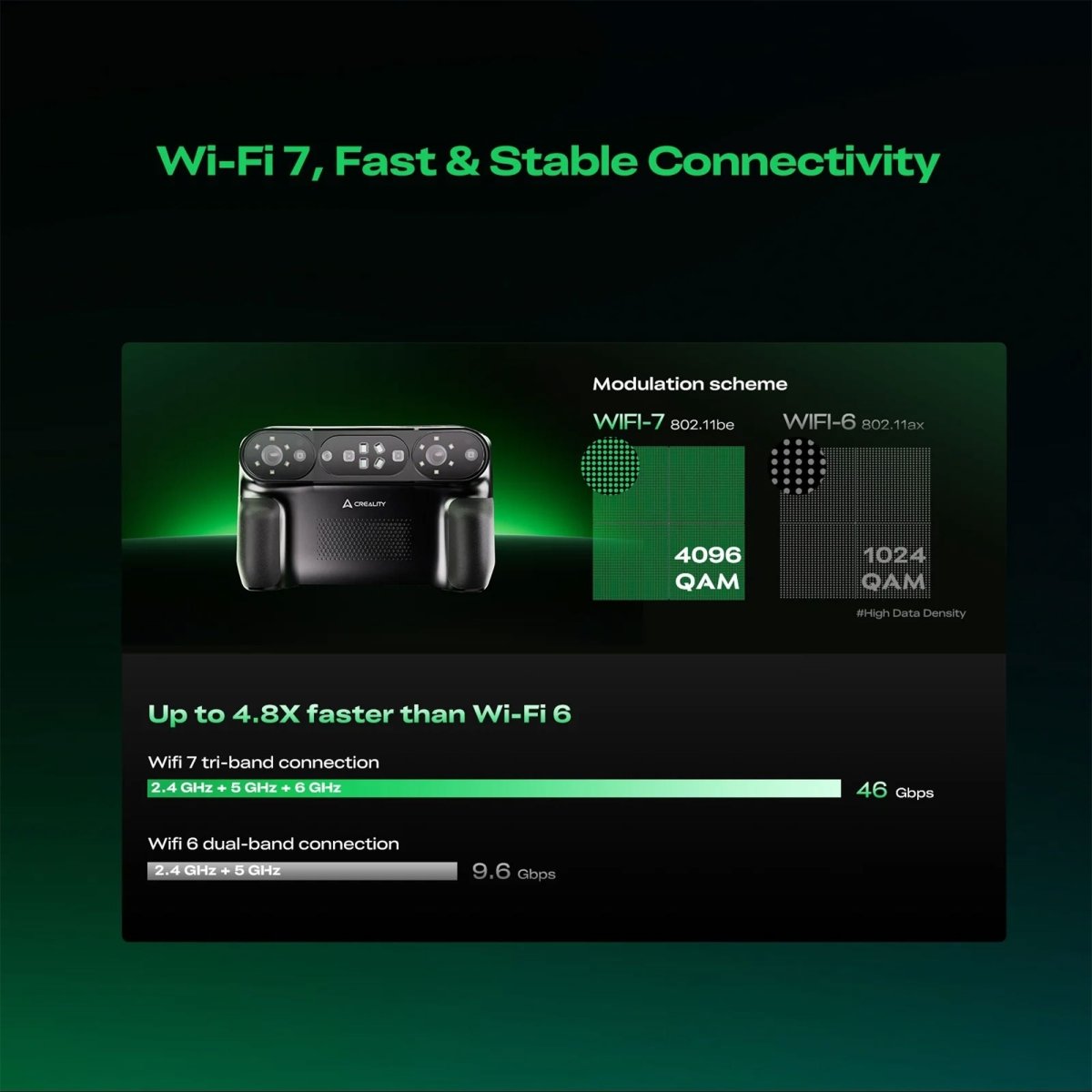

Wi-Fi 7, Fast & Stable Connectivity
Built-in Wi-Fi 7 and advanced lossless compression algorithms ensure faster, safer, and more reliable data transfer.

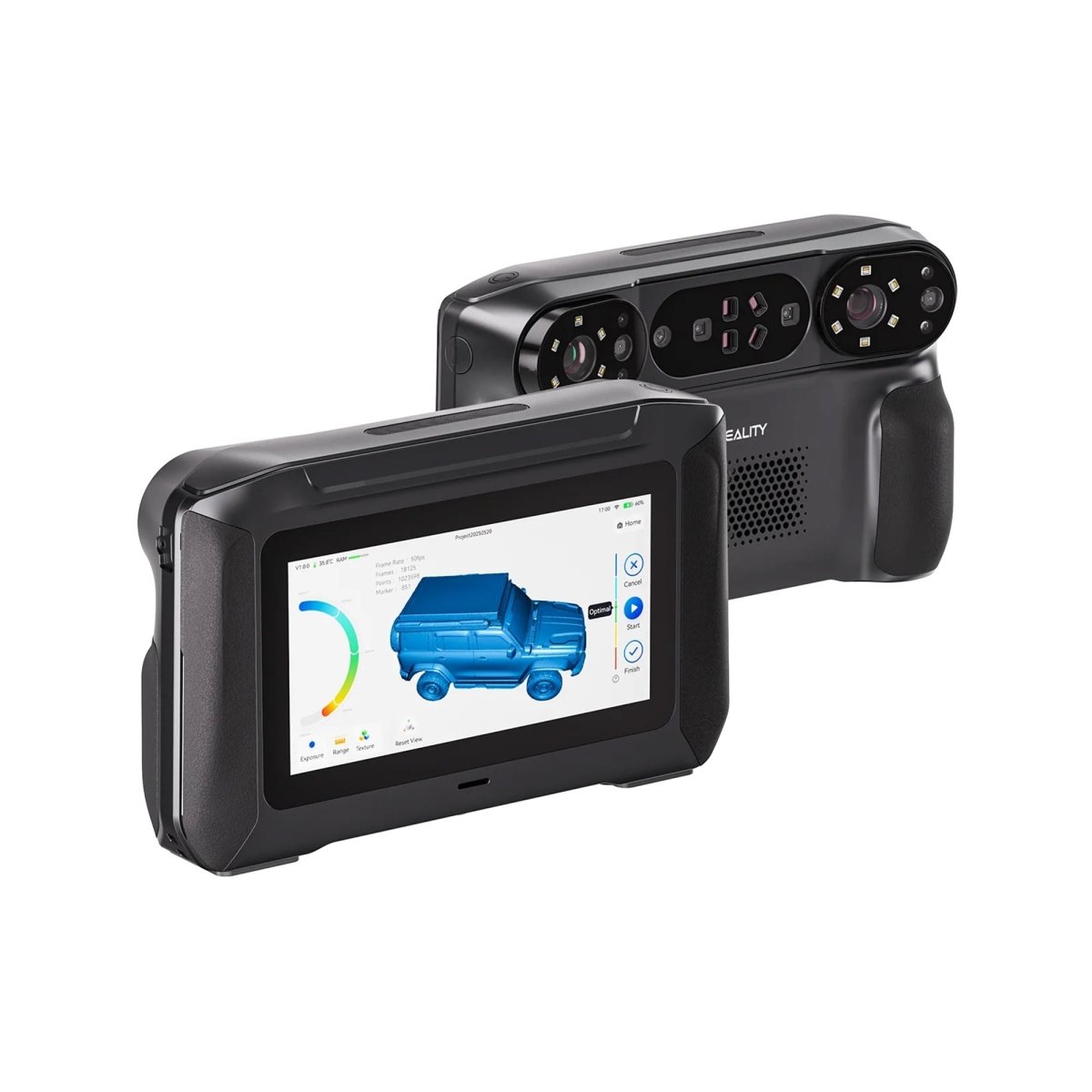

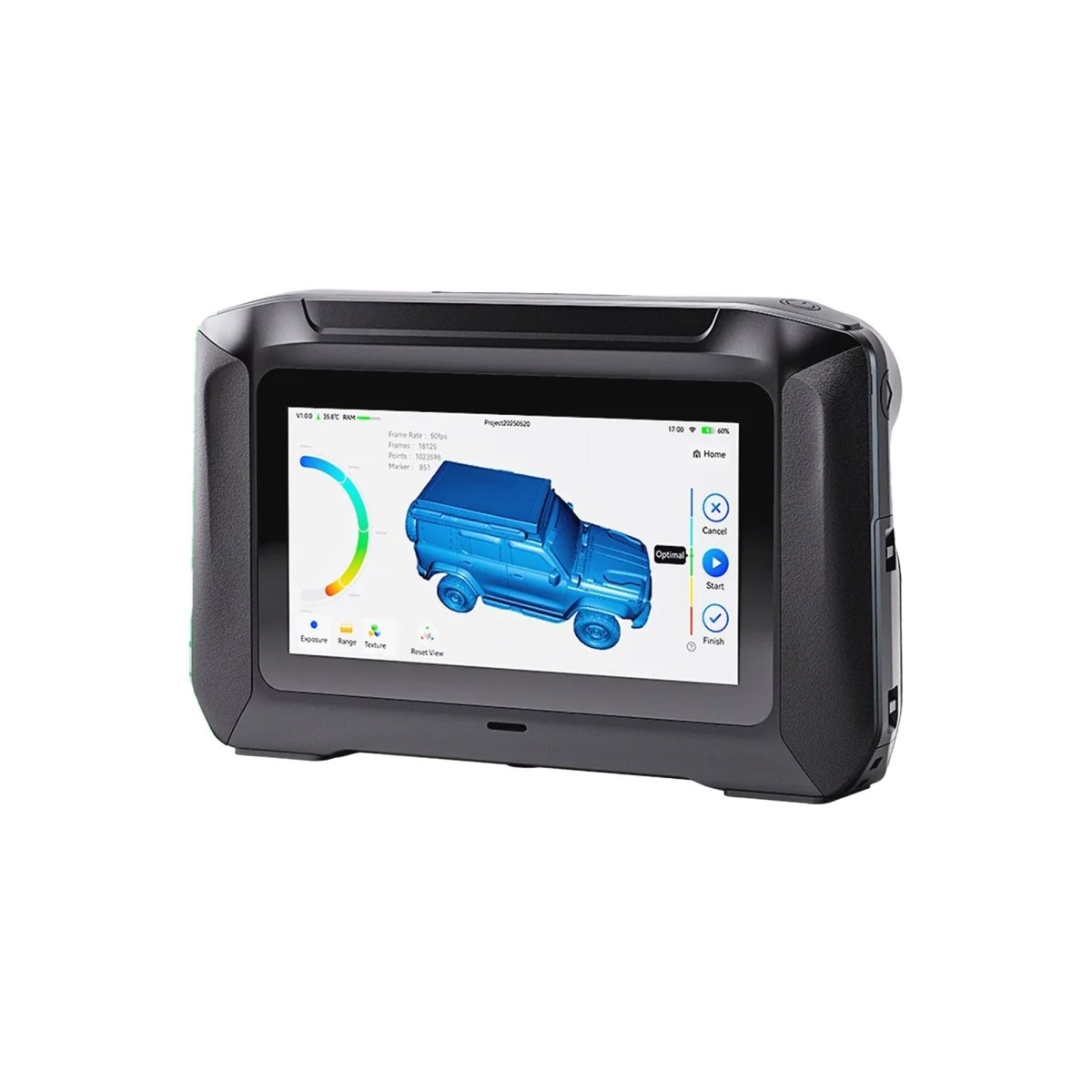

6-Inch HD Touchscreen — Clear & Intuitive
A 6-inch Full HD display with crisp visuals and a 160° wide viewing angle, ensuring clear visibility even outdoors. Scan, process, and preview — all on a single device.
Swappable Dual-Battery Design
Equipped with two swappable batteries (1 installed, 1 included separately). An extra battery pack enables seamless, uninterrupted operation.
Power That Keeps You Going
A smart power-saving system automatically enters sleep mode to extend battery life.
Fast Charging
Charges to 80% in just 50 minutes, making outdoor scanning more convenient and worry-free. Each battery features a Type-C charging port for independent charging.
Efficient Scanning at Large FOV
A larger single-frame FOV reduces marker requirements while improving tracking stability and scanning efficiency.
Blue Laser Max: 380 × 365 mm @ 550 mm
Infrared Max: 1245 × 754 mm @ 1000 mm (1-minute full-body scan)
Wide Scanning Range, All-in-One Efficiency
By combining blue laser lines and NIR structured light, the Sermoon P1 supports a wide scanning range — from 5×5×5 mm³ up to 4000×4000×4000 mm³.
Blue Laser Scanning
Minimum Scan Size: 5×5×5 mm³
Maximum Scan Size: 4000×4000×4000 mm³
NIR Structured Light Scanning
Ideal for medium to large objects. Scanning objects ranging from 150×150×150 mm³ to 2000×2000×2000 mm³.
Superior Material & Environmental Adaptability
Both blue laser and NIR structured light offer strong environmental resistance and multi-material adaptability, delivering reliable performance even outdoors.
Efficient Operation in Sunlight
- Single/22 Cross Lines: ≤100k lux
- 7 Parallel Lines: ≤50k lux
Scan Black/Metal Objects Without Sprays
Captures black, metal objects without scanning sprays.
Full Color Texture Scanning
Equipped with a high-performance Qualcomm ISP chip and a full-color RGB camera with global shutter, enhanced by auxiliary lighting, the P1 delivers richer, more realistic textures.
12 Dual-color LED Fill Lights
Blue light is used for blue laser scanning.
White light enhances color texture brightness.
Qualcomm ISP Color Mapping
Advanced color mapping algorithms ensure accurate and vivid color reproduction.
AI Temperature Compensation – Driven Stabilization
An AI-based temperature compensation algorithm works with efficient thermal design to ensure stable output and consistent scanning during extended use.
Powerful and User-Friendly Onboard Software
An all-in-one onboard software integrates Calibration, Scanning, Point-cloud Fusion, Mesh Editing, and Multi-scan Merging, enabling complete model processing directly on the device.
Intuitive Interaction
A clean, visual interface guides users from scanning to model creation with ease.
Modular & Flexible Design
Customizable workflow adapts to different scanning needs and user preferences.
One-Click OTA Updates
Regular over-the-air updates ensure your device stays current with the latest features.
Seamless Compatibility with Inspection, Design, and 3D Printing Software
Scan data can be easily imported into mainstream reverse engineering, inspection, and design software such as QuickSurface and Geomagic Design X, streamlining workflows.
Quick-swap battery for field efficiency
Optimized thermal structure for stable output
Comfortable grip for extended scanning sessions
Compact & Ready to Go
Compact, carry-on-sized protective case for easy transport. Versatile case for storing the 3D scanner, scale, and accessories securely.
Applications for 3D Scanning
Using a 3D scanner for 3D printing enables fast, precise capture of real-world objects, making it an essential tool across industries like manufacturing, inspection, automotive, and reverse engineering. It also opens new possibilities for preserving and replicating art and antiques with incredible detail, allowing creators and professionals to reproduce, restore, or modify physical objects with accuracy.
