Bambu Lab Vision Encoder for H2 Series

Accuracy Taken to a New Level

Unlock a new standard of precision with the Bambu Lab Vision Encoder, an advanced motion calibration solution designed exclusively for the Bambu Lab H2 Series. By enhancing motion accuracy to below 50μm, the Vision Encoder actively compensates for unavoidable mechanical tolerances, long-term wear, and belt aging—ensuring consistent, repeatable accuracy throughout the life of your machine.

Unlike traditional calibration methods, Vision Encoder accuracy is distance-independent, delivering reliable dimensional precision regardless of print size. In fact, its impact becomes even more pronounced on larger models, making it ideal for architectural components, large functional parts, and assemblies that demand tight tolerances.

Below 50μm Motion Accuracy

Compensating Inevitable Mechanical Uncertainties

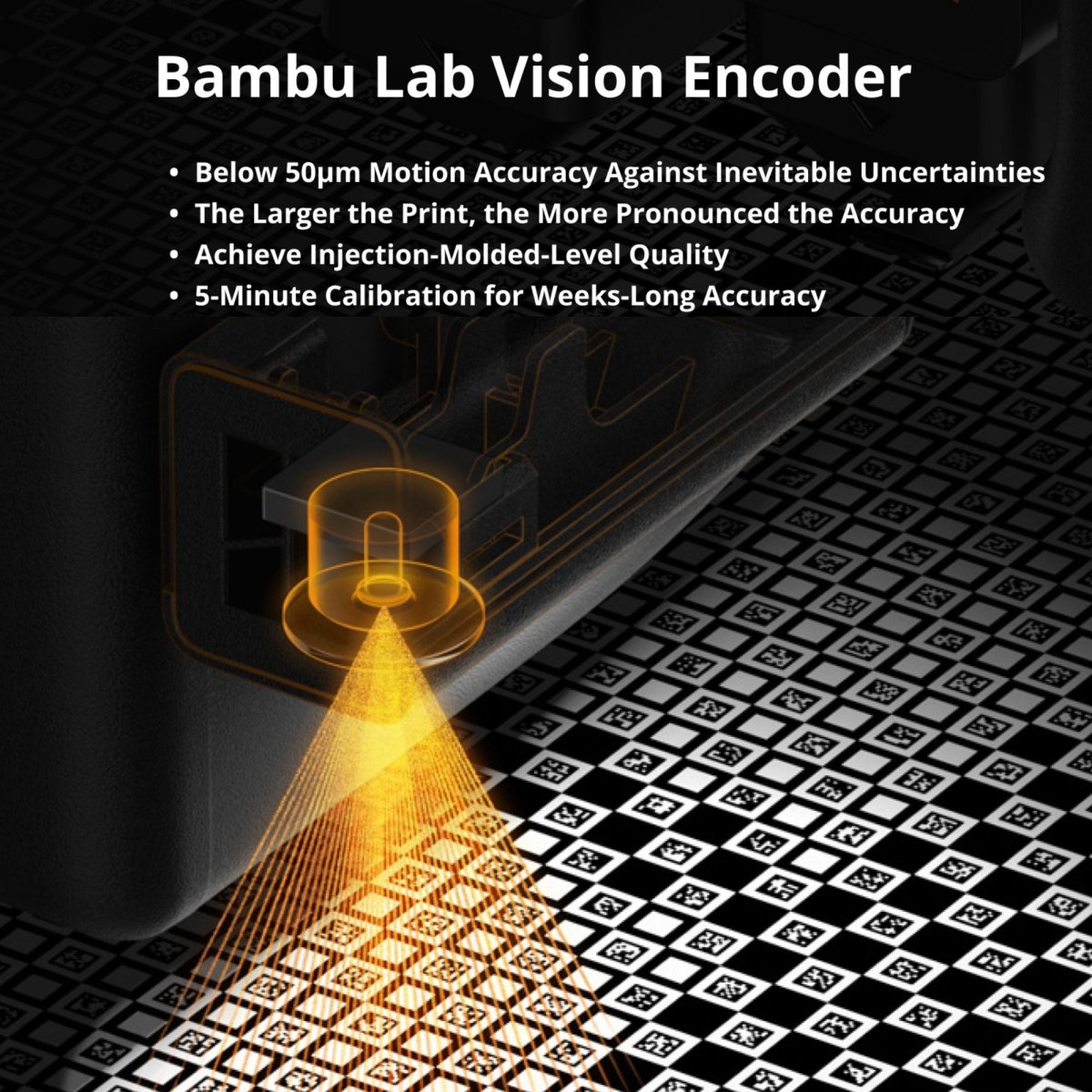

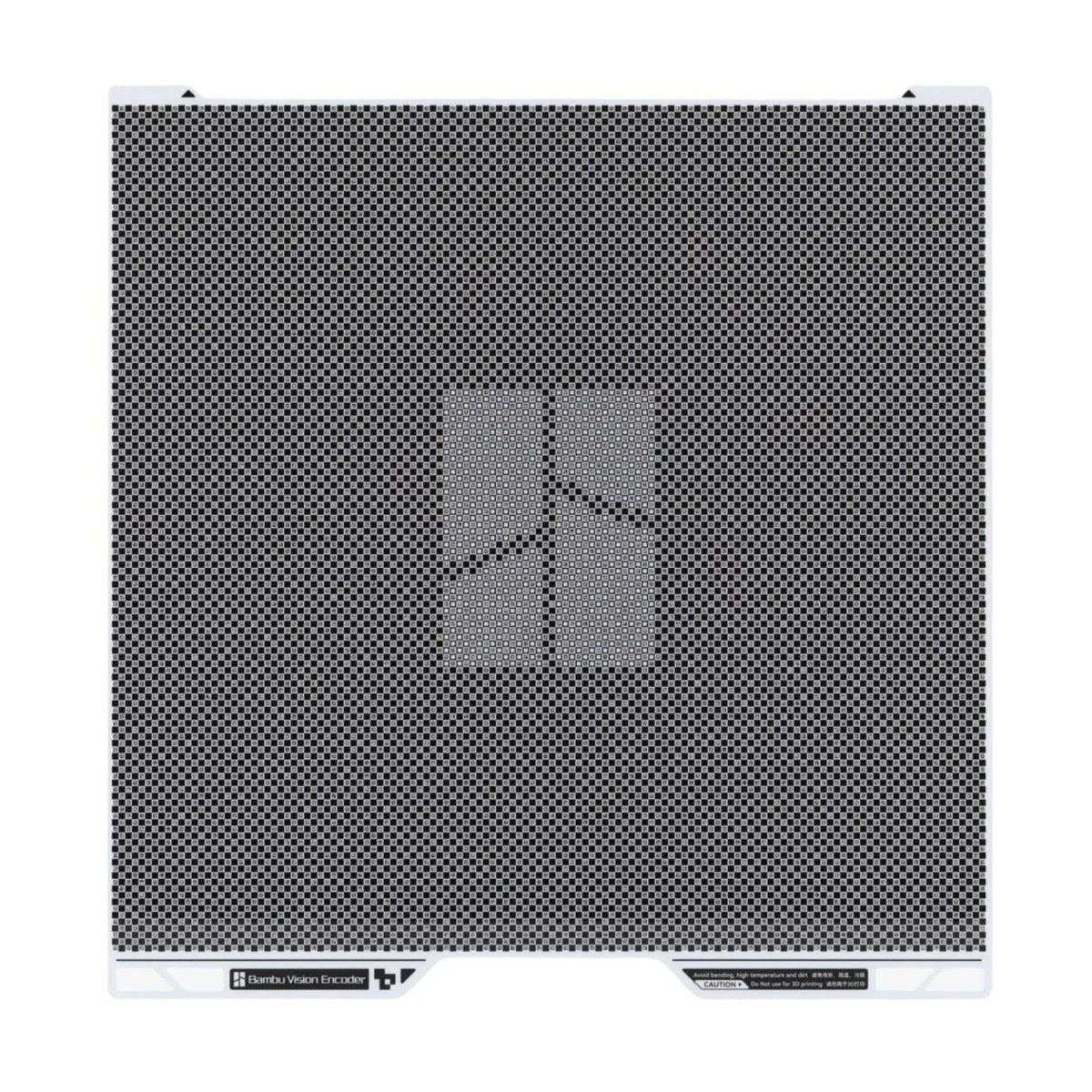

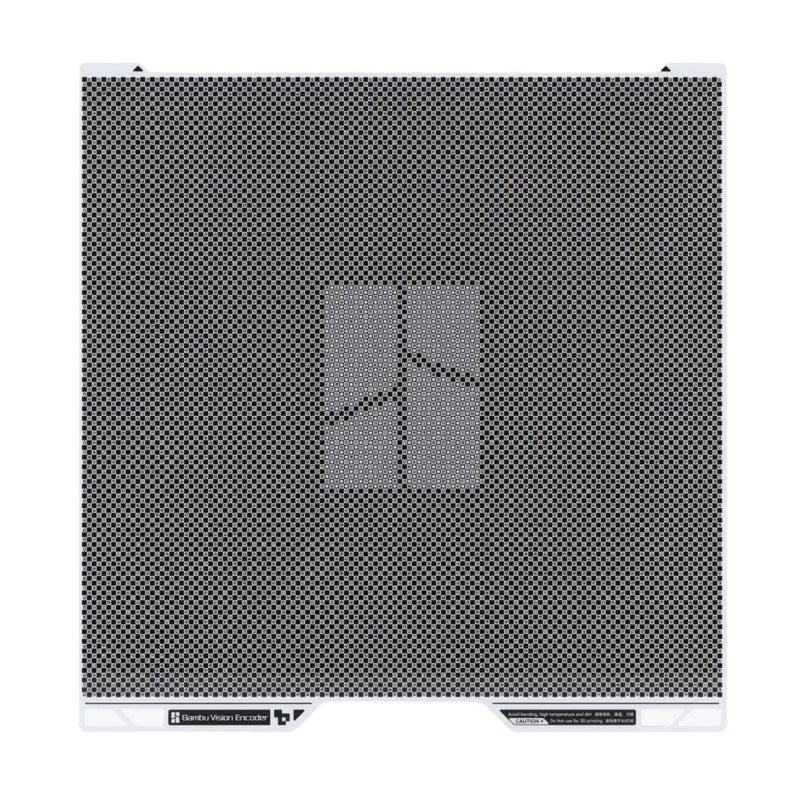

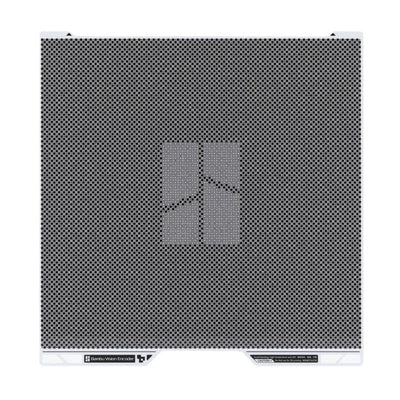

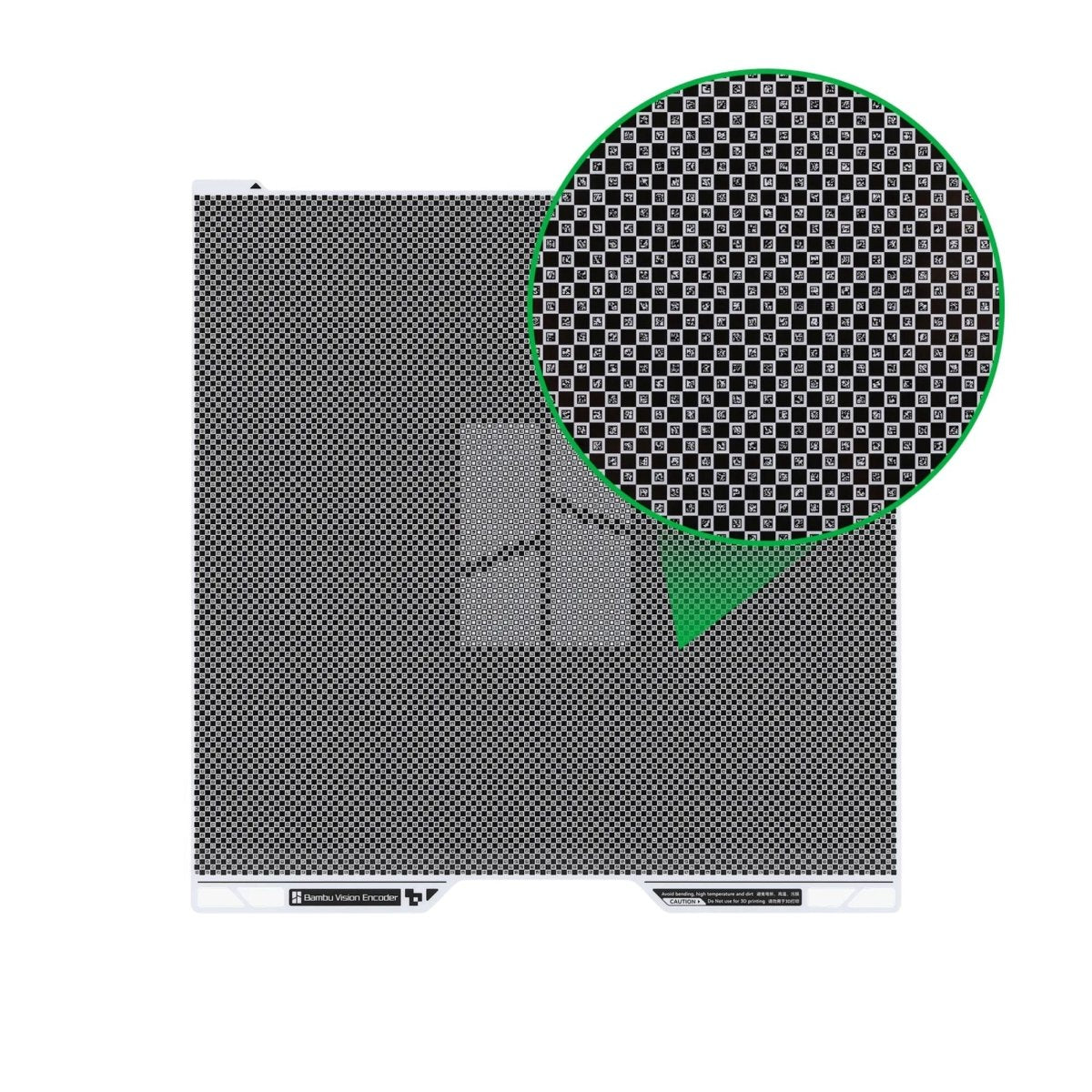

Even the most precisely engineered 3D printers experience mechanical variation over time. The Vision Encoder eliminates those variables with a high-resolution XY-axis calibration system featuring a matrix of 10⁴ encode markers and 5μm-resolution optical measurements. The result is motion accuracy within 50 microns—thinner than a human hair—without sacrificing speed or reliability.

Designed to adapt as your machine ages, the Vision Encoder continuously corrects for belt loosening and mechanical wear, maintaining peak performance long after initial setup.

The Larger the Print, the Greater the Advantage

With motion accuracy that remains consistent regardless of distance, the Vision Encoder excels where traditional systems fall short. Larger prints benefit the most, achieving precise dimensions and alignment across expansive build areas without cumulative error.

Injection-Molded-Level Fit and Finish

Paired with exclusive Bambu Studio features such as Auto Hole-Contour Compensation, pre-tuned filament profiles, and the H2’s temperature-controlled chamber, the Vision Encoder enables parts that assemble with injection-molded-level accuracy. Components fit cleanly straight off the build plate—dramatically reducing post-processing, rework, and manual adjustments.

Design. Print. Install. It’s that simple.

5-Minute Calibration, Weeks of Accuracy

Setup is fast and effortless. A simple 5-minute calibration delivers weeks of ultra-high-precision printing, automatically compensating for ongoing mechanical changes. Minimal downtime, maximum consistency—and accuracy you can rely on for every project.

Compatible with: Bambu Lab H2 Series
Ideal for: Functional parts, assemblies, large-format prints, and precision-critical applications

USAGE GUIDE
