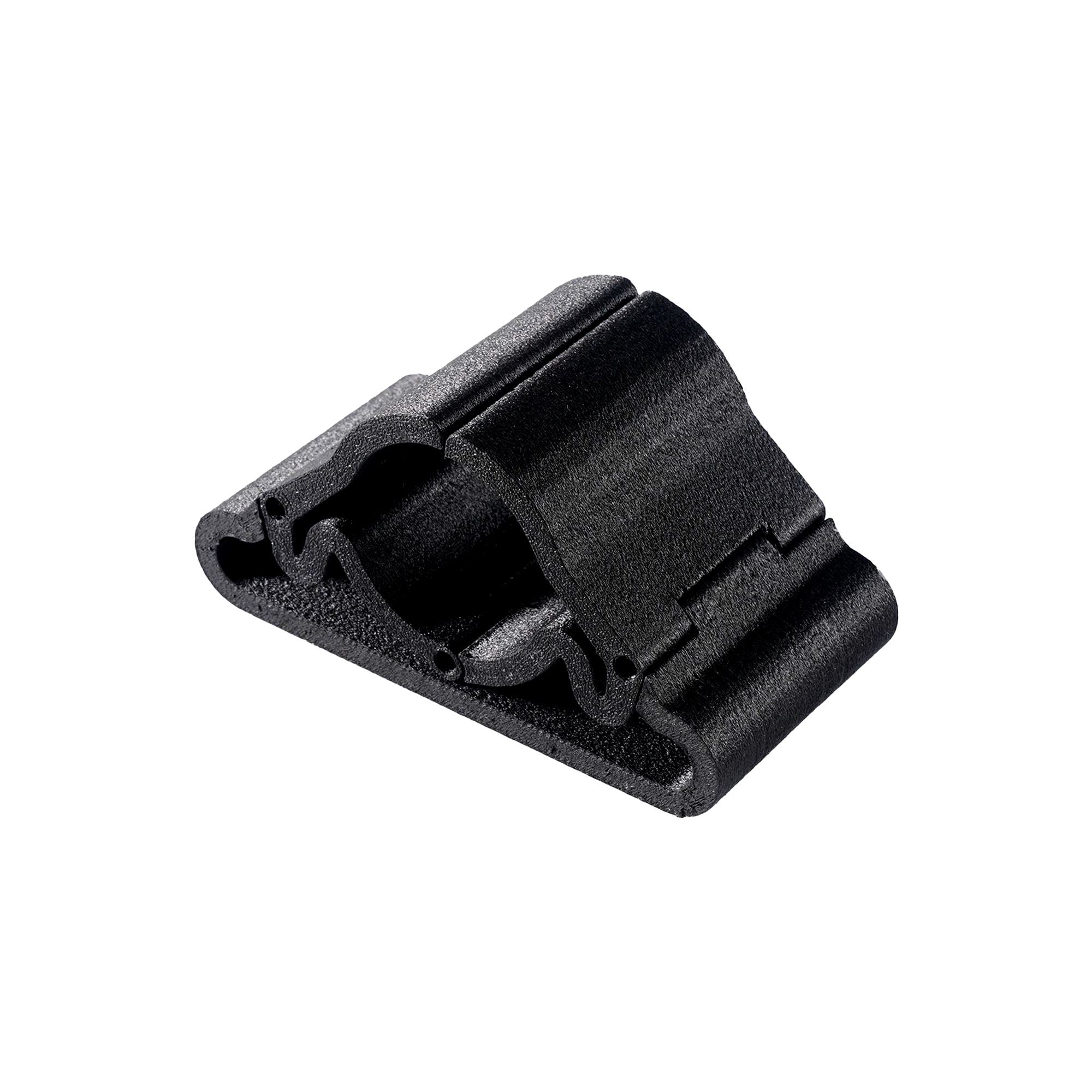

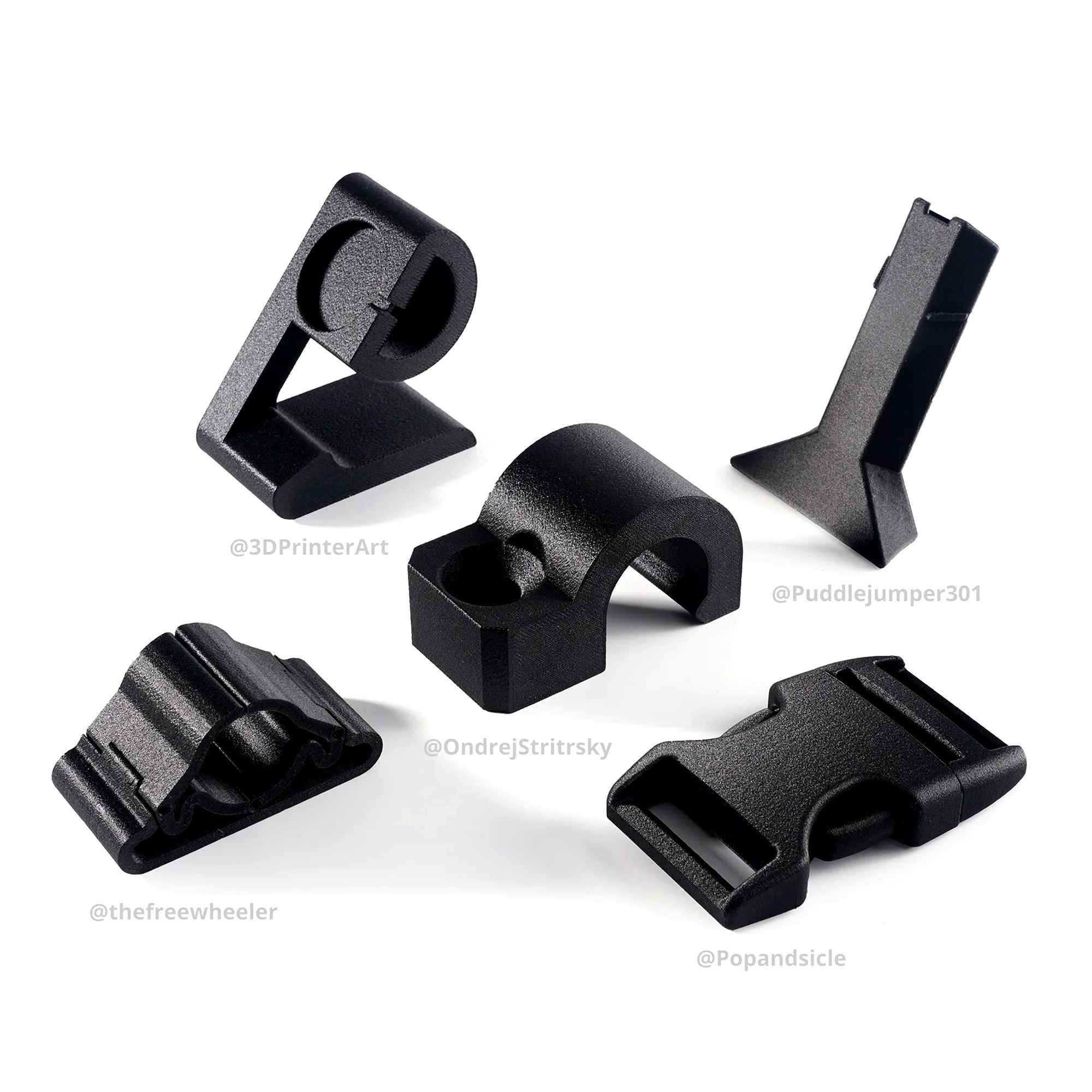

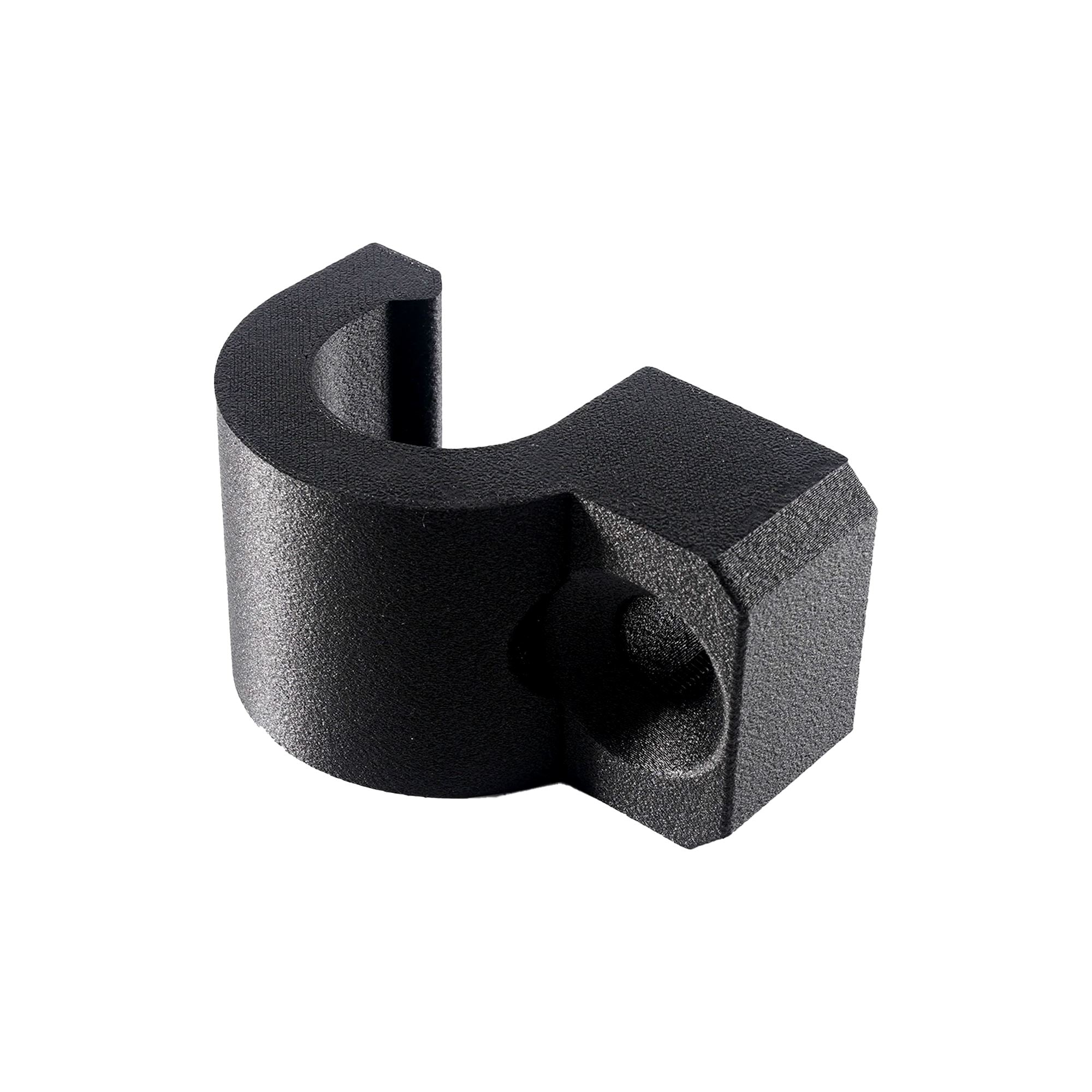

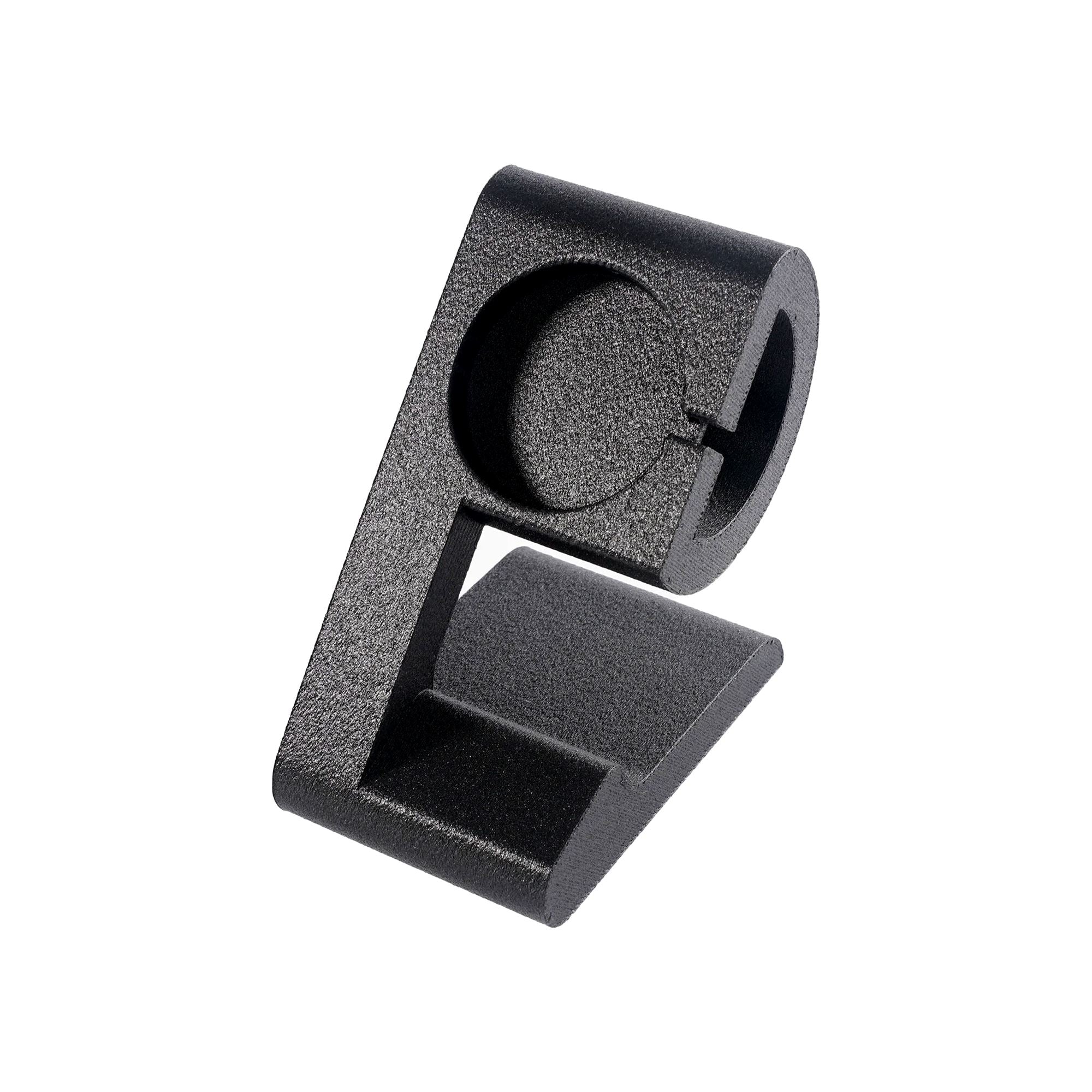

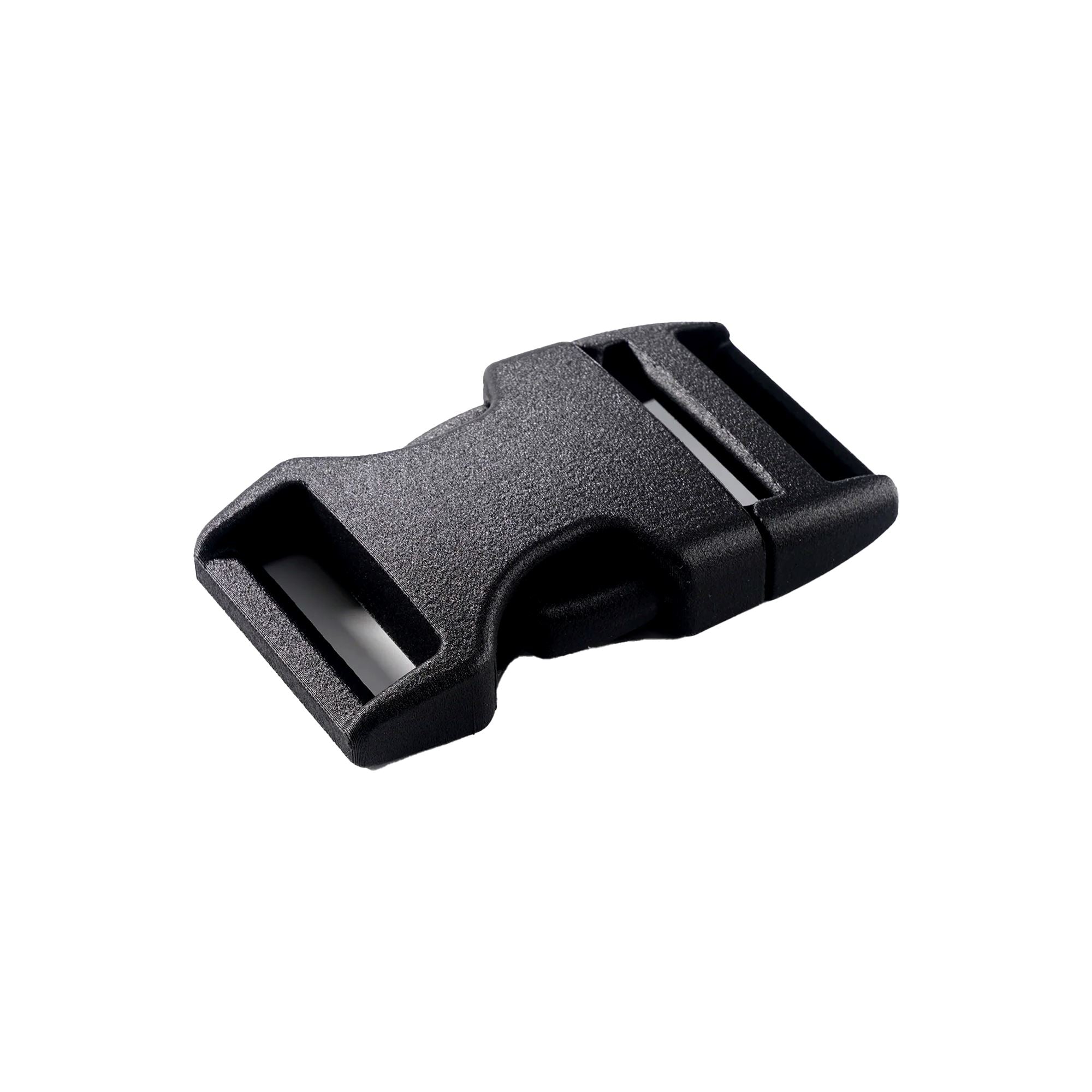

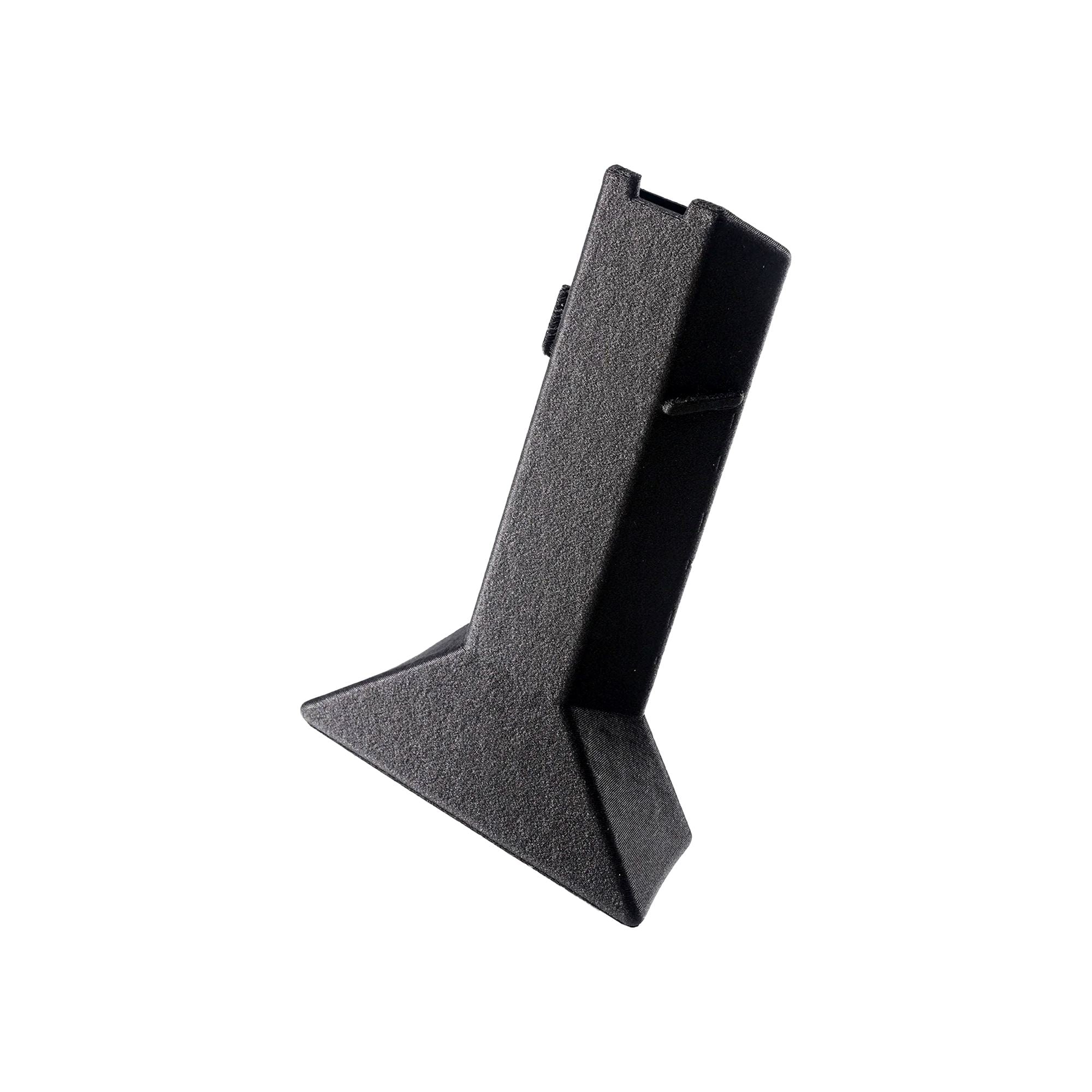

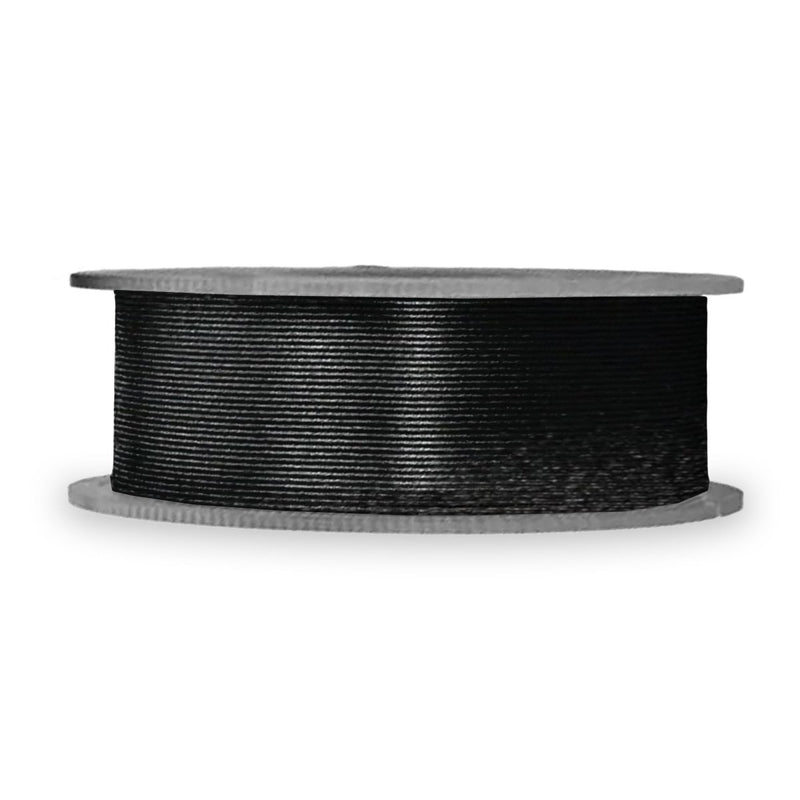

Bambu PAHT-CF is a composite of PA12 and carbon fiber. Inheriting the advantages of low water absorption from PA12 and high-performance carbon fiber, Bambu PAHT-CF offers excellent mechanical and thermal properties that can be maintained well even when the prints get wet. Higher Z adhesion layers and flexibility make it ideal for creating engineering parts such as functional prototypes, machining fixtures, injection molds, jigs, and low-volume production parts.

• Low Moisture Absorption
• Exceptional Mechanical Properties & Layer Adhesion
• High Tensile Strength
• Comes with High Temperature Reusable Spool
• Diameter: 1.75mm +/- 0.03mm
• 0.6 mm Nozzle Recommended
• 0.2 mm Nozzle Not Compatible
• Stainless Steel Nozzle Not Recommended
• Dry Out before Use
• AMS Compatible
• AMS lite NOT Compatible
• Enclosure Printer Required

• Build Plate: Smooth PEI Plate, Textured PEI Plate
• Hotend: Hotend with Hardened Steel 0.4mm / 0.6mm (recommended) / 0.8 mm

With a 50% lower water absorption rate compared to normal PA-CF, Bambu PAHT-CF maintains excellent mechanical properties and dimensional stability even when exposed to high humidity. Bambu PAHT-CF shows much higher adhesion in Z layers compared to normal PA-CF, bringing it the ability to withstand high levels of impact or stress without breaking or deforming. Bambu PAHT-CF is designed to meet the demands of various industrial and engineering applications where high strength and durability are required.

The heat deflection temperature of Bambu PAHT-CF is up to 194℃ (0.45MPa)*, making it useful in applications where the printed parts may be exposed to high temperatures without deforming or losing their strength.

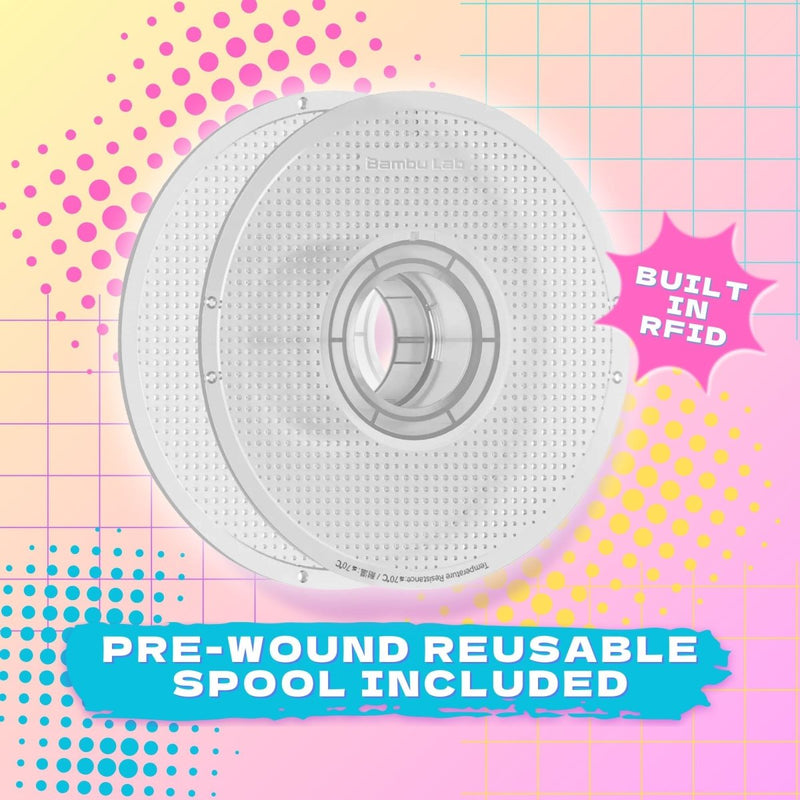

Bambu PAHT-CF comes with a high-temperature resistant spool, which is not prone to deformation in the drying process. Continuing our concept of reducing plastic waste, the spool can also be reused with other Bambu refills.
