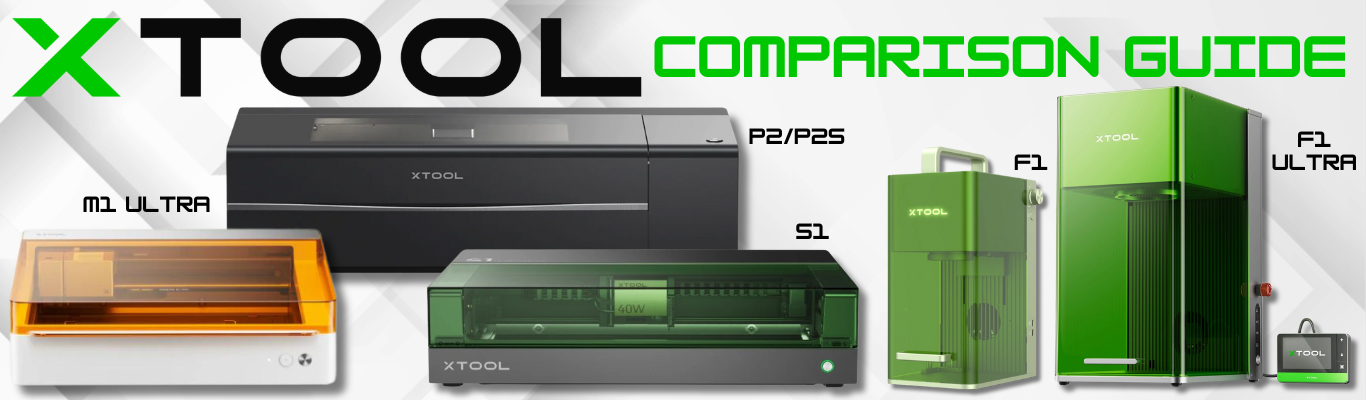

| M1 ULTRA | P2/P2S | S1 | F1 | F1 ULTRA | |
|---|---|---|---|---|---|
| USER TYPE | Small Business or Serious Crafter | Small Business & High Protection | Side Business or Serious Crafter | Craft Fair and Portable | Small Business & High Protection |
| LASER OUTPUT POWER | 10W/20W | 55W | 20W/40W, 2W(IR) | 10W, 2W (IR) | 20W |
| LASER TYPE | Diode, Blade Cutting, Inkjet printer, Pen | CO2 Laser | Diode Laser, IR Laser module available | Diode & IR Laser | Blue Diode Laser & Fiber Laser |
| WORKING AREA | Laser Mode: 11.8" × 11.8" (300 mm × 300 mm) +11.8" x 11.6" (300 mm x 295 mm) for cutting blade Inkjet Mode: 11" x 11.3" (286 mm x 286 mm) |
23.6" × 12" (600 mm × 305 mm) Up to 118" with full conveyor extension |
40W: 19.6" × 12" (496 mm × 319 mm) 20W: 19.6" × 13" (498 mm × 330 mm) Up to 118" with full conveyor extension |
4.53" × 4.53"(115mm × 115mm) 15.75" × 4.53"(400mm × 115mm) with Extension |
8.6" × 8.6" (220 mm × 220 mm) With conveyor: 8.6" × 19.6" (220 mm × 500 mm) |
| ENCLOSURE | Fully Enclosed | Fully Enclosed | Fully Enclosed | Fully Enclosed | Fully Enclosed |
| CAMERA TYPE | N/A | 1080P Dual HD Camera | N/A | N/A | 16 MP Smart Camera |
| POSITIONING METHOD | Pin-Point™ Positioning | Dual-Camera Positioning | Pin-Point™ Positioning | Rectangular & Outline Framing | Camera Positioning |
| MAXIMUM PROCESSING HEIGHT | Laser Mode: With Riser Base: 4.92" (125 mm) Without Riser Base: 0.79" (20 mm) Inkjet/Pen/Module/Blade Mode/Foiling: With Riser Base: 5.43" (138 mm) Without Riser Base: 0.79" (20 mm) |
With riser base: 8.46" (215 mm) With tray: 2.52" (64 mm) Without tray: 2.80" (71 mm) |
With riser base: 133.5 mm Without riser base: 42 mm |
4.45" (113mm) | 145 mm |
| MAX ROTARY ENGRAVING DIAMETER | With Riser Base: 0" - 3.90" (0 - 99 mm) | With riser base: 0" - 7.09" (0 - 180 mm) Without riser base: 0.12 - 1.97" (3 - 50 mm) |
With Riser Base 100 mm | 4.45" (113mm) | 145 mm |
| MAXIMUM CUTTING THICKNESS IN ONE PASS (BASSWOOD) | 20W: 0.39" (10 mm) 10W: 0.24" (6 mm) |
0.71" (18 mm) | 40W: 15 mm 20W: 10 mm |
8mm in multiple passes | 15 mm in multiple passes |
| MAXIMUM CUTTING THICKNESS IN ONE PASS (ACRYLIC) | 20W: 0.31" (8 mm) 10W: 0.20" (5 mm) Black: 8 mm Transparent: No |
0.79" (20 mm) Transparent: Yes |
40W: 15 mm 20W: 8 mm Black: 8 mm Transparent: No |
6 mm in multiple passes Black Acrylic Transparent: No |
12 mm in multiple passes Black Acrylic Transparent: No |
| MAX SPEED | 400 m/s | 600 m/s | 600 m/s | 4000 mm/s | 10000 mm/s |
| CUTTING BLADE | Fine-point Blade: 0.06" (1.5 mm) Cutting Blade: 0.10" (2.5 mm) |
N/A | N/A | N/A | N/A |
| MACHINE DIMENSIONS | 24.41" × 19.61" × 7.01" (620 mm × 498 mm × 178 mm) |
39.4" × 25.1" × 10.6" (1000 mm × 639 mm × 268 mm) |
30.1" × 22.09" × 7.20" (765 mm × 561 mm × 183 mm) |
7.05" × 9.25" × 13.15" (179mm × 235mm × 334mm) |
10.74" × 11.81" × 11.81" (273 mm × 373 mm × 402 mm) |
| MACHINE WEIGHT | 37.48 lb (17 kg) | 99.21 lb (45 KG) | 44.09 lb (20 kg) | 10.14 lb (4.60kg) | 32.4 lb (14.7 kg) |
| SOFTWARE | xTool Creative Space | xTool Creative Space | xTool Creative Space | xTool Creative Space | xTool Creative Space |
| SUPPORTED FILES | SVG/DXF/JPG/JPEG/PNG/BMP/TIF | SVG/DXF/JPG/JPEG/PNG/BMP/TIF | SVG / DXF / JPG / JPEG /PNG / BMP / TIF | SVG / DXF / JPG / JPEG /PNG / BMP / TIF | SVG / DXF / JPG / JPEG /PNG / BMP / TIF |
| CONNECTION TYPE | USB/Wi-Fi/OTG | USB/Wi-Fi | USB/Wi-Fi | USB/Wi-Fi | USB/Wi-Fi/Hotspot |
| AIR ASSIST | Separate, Easy Install | Installed | Separate, Easy Install | N/A | N/A |
| SPECIAL FEATURES | 4-in-1 Capable with swap of modules, Snapshot Preview with Phone | 3D Curved Surface Engraving | Snapshot Preview with Phone | Portable with removeable bottom | Cuts thin metal |
| COMMON COMPATIBLE MATERIALS - CUT | Wood, Opaque Acrylic, Paper, Cardstock, Cardboard, Foam, MDF, Leather, Felt | Wood, Opaque Acrylic, Transparent Acrylic, Paper, Cardstock, Cardboard, Foam, MDF, Leather, Felt | Wood, Opaque Acrylic, Paper, Cardstock, Cardboard, Foam, MDF, Leather, Felt | >Wood, Opaque Acrylic, Paper, Cardstock, Cardboard, Foam, MDF, Leather, Felt | Wood, Opaque Acrylic, Paper, Cardstock, Cardboard, Foam, MDF, Leather, Thin Metal, Felt |
| COMMON COMPATIBLE MATERIALS - ENGRAVE | Wood, Opaque Acrylic, Transparent Acrylic, Leather, Stainless Steel, Aluminum, Plated Metal, Paper, MDF, Cardboard, Felt, Rubber, Glass, Plastic, Cork, Ceramic | Wood, Opaque Acrylic, Transparent Acrylic, Leather, Plated Metal, Paper, MDF, Cardboard, Felt, Rubber, Glass, Plastic, Cork, Ceramic | Wood, Opaque Acrylic, Transparent Acrylic, Leather, Stainless Steel, Aluminum, Plated Metal, Paper, MDF, Cardboard, Felt, Rubber, Glass, Plastic, Cork, Ceramic | Wood, Opaque Acrylic, Transparent Acrylic, Leather, Stainless Steel, Aluminum, Plated Metal, Paper, MDF, Cardboard, Felt, Rubber, Glass, Plastic, Cork, Ceramic | Wood, Opaque Acrylic, Transparent Acrylic, Leather, Stainless Steel, Aluminum, Plated Metal, Paper, MDF, Cardboard, Felt, Rubber, Glass, Plastic, Cork, Ceramic |
| ACCESSORIES AVAILABLE | Ink Module, Fabric Rotary Blade, Foil & Debossing Tip, RA2 Pro 4-in-1 Cup & Tumbler Rotary Tool, Riser Base, Air Assist, Fire Safety Set, M1 Ultra 20W Upgrade, Desktop Air Purifier | Screen Printing Kit, Riser Base, Honeycomb Panel, RA2 Pro 4-in-1 Cup & Tumbler Rotary Tool, Fire Safety Set, Automatic Conveyor Expansion Feeder, SafetyPro AP2 | Screen Printing Kit, Riser Base, Honeycomb Panel, RA2 Pro 4-in-1 Cup & Tumbler Rotary Tool, 40W Laser Upgrade, 1064nm Infrared Laser Module, Air Assist, Fire Safety Set, Automatic Conveyor Expansion Feeder, SafetyPro AP2 | RA2 Pro 4-in-1 Cup & Tumbler Rotary Tool, Slide Extension, Rolling Hard Case, Pedal Switch, Button Switch, Desktop Purifier | RA2 Pro 4-in-1 Cup & Tumbler Rotary Tool, Automated Conveyor Belt, Pedal Switch, Button Switch, SafetyPro AP2 |
| COLORS AVAILABLE | White/Orange | Grey/Green, White/Orange | Grey/Green, White/Orange | Grey/Green | Grey/Green |
