BAi Multi Needle Embroidery Machine Comparison Chart
BAi Embroidery Machines · Comparison Guide
Mirror vs. Vision vs. Vision Dual Head
All three run on the same Institch i5 platform — the difference is speed, embroidery area, and how much volume you need to run. Compare specs side by side to find the right fit for your shop.
Same platform, three levels of production
The BAi Mirror, BAi Vision, and BAi Vision Dual Head all share the same Institch i5 control system, 15-needle color changes, and the training and support that comes with every BAi machine. What changes as you move up the line is embroidery area, stitching speed, build quality, and — with the Dual Head — the ability to run two jobs at once. Use the comparison below to match a machine to where your business is today.
Entry-Level
BAi Mirror
The Startup Workhorse- 15 needles, 1 head
- 13.8" x 19.7" embroidery area
- 1200 SPM on flat goods
Most Popular Upgrade
BAi Vision
The Single-Head Powerhouse- 15 needles, 1 head
- 15.7" x 19.7" embroidery area
- 1200 SPM flat / 800 SPM caps
Highest Output
BAi Vision Dual Head
Double The Production- 15 needles per head, 2 heads
- 15.7" x 19.7" area per head
- 1200 SPM flat / 950 SPM caps
Full Specifications
Side-by-Side Comparison
| BAi Mirror Shop ↗ | BAi Vision Shop ↗ | BAi Vision Dual Head Shop ↗ | |
|---|---|---|---|
| Best For | Startups & home-based shops | Growing commercial shops | High-volume production |
| Heads | 1 | 1 | 2 |
| Needles | 15 | 15 | 15 per head |
| Max Embroidery Area | 350 x 500mm (13.8" x 19.7") | 400 x 500mm (15.7" x 19.7") | 400 x 500mm (15.7" x 19.7") per head |
| Max Speed — Flat Goods | 1200 SPM | 1200 SPM | 1200 SPM |
| Max Speed — Caps | Not specified | Up to 800 SPM | Up to 950 SPM |
| Hoop Sizes Supported | 6 | 6 | 6 |
| Included Frames | Cap frame + assorted hoops | Full cap & hat frames + 10 flat frames | Two full cap & hat frames + 20 flat frames |
| Control System | Institch i5, 10" touchscreen | Institch OS5, 10" HD touchscreen | Institch OS5, 10" HD touchscreen |
| Connectivity | USB / Wi-Fi | USB / Wi-Fi + Institch Cloud | USB / Wi-Fi + Institch Cloud |
| Cap Rotation | 270° | 270° | 270° |
| Build Materials | Standard commercial components | Japanese & German quality parts, refined transmission structure | Japanese & German quality parts, refined transmission structure |
| Machine Size | 75 x 70 x 159cm (29.5" x 27.6" x 62.6") | 166 x 108 x 106cm (65.4" x 42.5" x 41.7") | 150 x 87 x 167cm (59.1" x 34.2" x 65.7") |
| Machine Weight | 118kg / 260lbs | 207kg / 456lbs | 260kg / 537lbs |
| Package Size | 113 x 83 x 88cm (44.5" x 36.7" x 34.6") | 118 x 113 x 88cm (46.5" x 44.5" x 34.6") | 167 x 113 x 88cm (65.7" x 44.5" x 34.6") |
| Package Weight | 186kg / 410lbs | 312kg / 688lbs | 409kg / 902lbs |
| Voltage | AC110V–230V, 50/60 Hz | AC110V–230V, 50/60 Hz | AC110V–230V, 50/60 Hz |
| Financing Available | Yes | Yes | Yes |
Match It To Your Shop
Which BAi machine is right for you?
You're just getting started
If you're launching a home-based or small custom embroidery business and need an affordable, reliable 15-needle machine to start taking orders, the BAi Mirror gets you into commercial-grade embroidery without the up-front investment of a larger machine.
You're ready to scale
Already have steady orders and outgrowing your current setup? The BAi Vision steps up embroidery area, cap speed, and build quality — with full cap and hat frames, 10 flat frames, and the refined mechanics behind Superior Performance.
You're running at full volume
For shops filling bulk orders, team uniforms, and tight deadlines, the BAi Vision Dual Head runs two heads at once — doubling your daily output without doubling your floor space or your team.
See Each Machine In Action
What sets each one apart
BAi Mirror
A compact single-head machine built for hats, apparel, and everyday embroidery — easy to assemble, place, and move around a small shop.
BAi Vision
A larger embroidery area, faster cap speeds, and a refined mechanical structure — engineered spare parts, transmission, and motion control for consistent, precise stitching.
BAi Vision Dual Head
Two heads, two 15-needle setups, one machine — run two jobs simultaneously and get up to 16 hats out in an hour without adding floor space or staff.
Institch OS5 Touchscreen
A guided 13-step workflow
The BAi Mirror, BAi Vision, and BAi Vision Dual Head all feature the advanced Institch OS5 system on a large 10-inch HD display. Its guided 13-step workflow simplifies setup, design editing, hoop selection, and operation — approachable for beginners, capable enough for pros, and identical no matter which BAi machine you're running.
- Simply input your own designs
- Combine and decompose patterns
- Batch production of patterns
- Batch import, export, and delete of patterns
Institch Cloud
Manage your fleet from anywhere
Built for the embroidery industry, Institch Cloud supports 10W+ pieces of equipment online, cross-equipment and multi-model batch pattern file operations, and automatic cost calculation for every order. It's included on the BAi Vision and BAi Vision Dual Head — a genuine production tool, not just a design app, for shops running more than one machine.
Design & Digitize
Ready for Wilcom EmbroideryStudio
Wilcom EmbroideryStudio is the gold-standard embroidery software for professional digitizers, embroidery shops, apparel decorators, industry educators, and high-volume production teams worldwide. Since pioneering the first desktop embroidery design system in 1983 and the industry-leading .EMB file format in 1996, Wilcom has powered over 395,000 users across 120+ countries with unmatched stitch precision, creative freedom, and seamless machine integration.
Whether you need full manual digitizing, auto-digitizing, lettering, editing, or cloud-based workflow tools, Wilcom EmbroideryStudio 2026 pairs with any BAi machine — Mirror, Vision, or Vision Dual Head — for the fastest, most accurate design workflow available today.
Available Add-Ons
Accessories & bundles for every BAi machine
Thread, stabilizer, and extra hoops pair with any machine in the lineup — browse the full BAi accessories catalog, or jump straight to bundles built for your specific machine.
All BAi Bundles & Accessories
Mirror Bundles & Accessories
Vision Bundles & Accessories
Dual Head Bundles & Accessories
Embroidery Thread
Pair any BAi machine with Richword embroidery thread in the colors your designs need.
Shop Thread

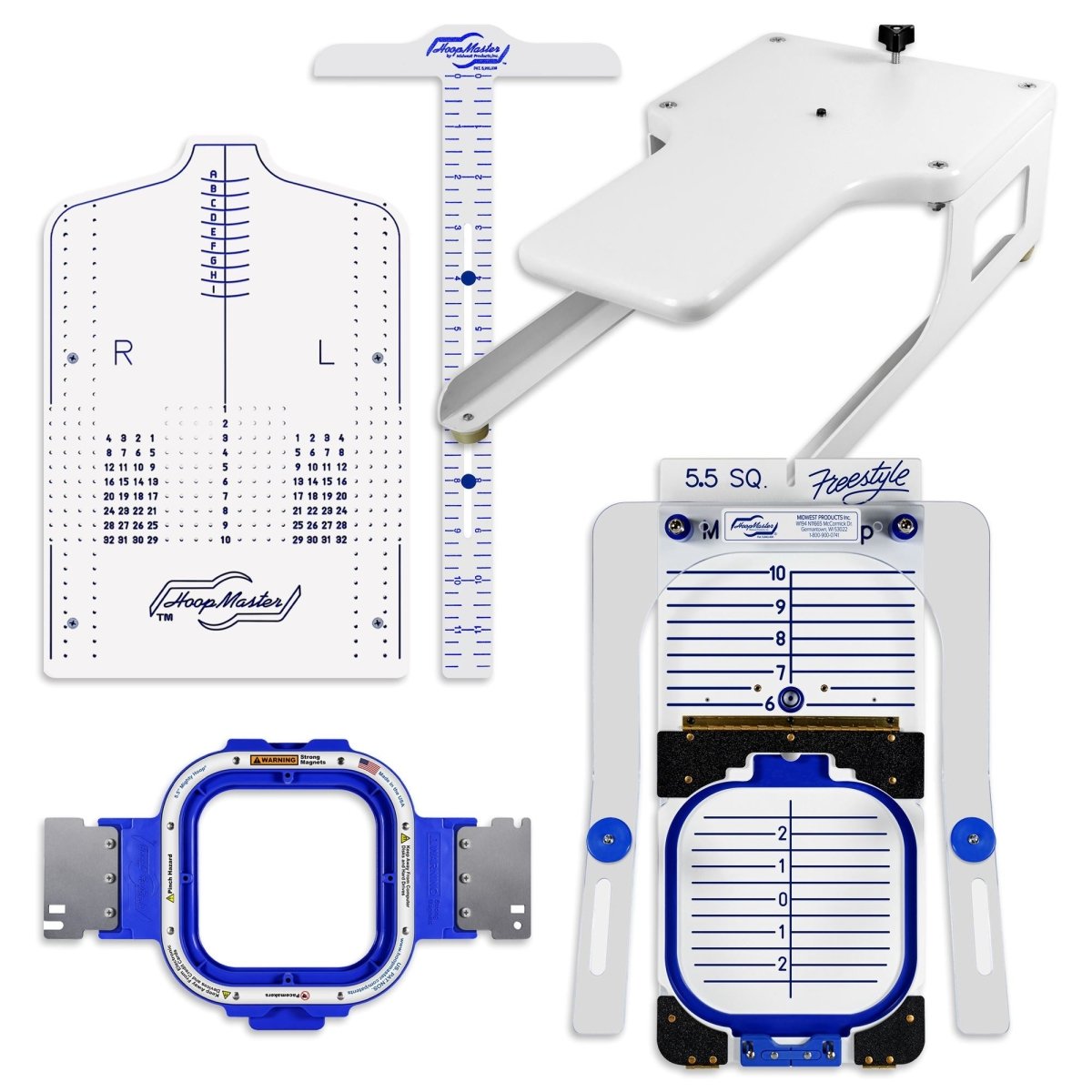

Mighty Hoops
Add the Mighty Hoop kit for more hooping options, compatible across the BAi lineup.
Shop Mighty Hoops
Stabilizers & Hat Foam
Get clean, consistent stitch-outs with Richword universal stabilizers and hat foam.
Shop Stabilizers
Every BAi Machine Includes
The same platform you can count on
- Institch i5 electronic control with intuitive touchscreen
- Automatic 15-color thread changes per head
- 270° cap rotation for full hat coverage
- USB and Wi-Fi pattern transfer
- Free training & technical support from Swing Design
- Personal and Business Financing available
- Compatible with 6 hoop sizes and the Mighty Hoop kit
- Wooden-case commercial shipping and setup support
Still Not Sure Which One?
Talk to a real person about your shop
Tell us what you're producing and how much volume you're running, and we'll help you land on the right machine the first time.
Frequently Asked Questions
Choosing a BAi Machine — Common Questions
What's the real difference between the Mirror, Vision, and Vision Dual Head?
They all share the same Institch control platform, but scale up in embroidery area, cap speed, build quality, and — with the Dual Head — number of heads. The Mirror covers 350mm x 500mm at 1200 SPM; the Vision covers 400mm x 500mm at 1200 SPM flat / 800 SPM caps; the Vision Dual Head matches the Vision's specs on two independent heads, up to 950 SPM on caps.
Which one should I buy if I'm just starting out?
The BAi Mirror. It's the most affordable entry point into commercial-grade, 15-needle embroidery, and it's a proven starting machine for home-based and small custom shops.
When should I upgrade from a Mirror to a Vision?
When you're consistently filling orders and need a bigger embroidery area, faster cap speeds, or the refined build quality behind the Vision's Superior Performance engineering — full cap and hat frames and 10 flat frames come included as well.
Is the Vision Dual Head worth the extra cost over a single-head Vision?
If you're regularly filling bulk orders, team uniforms, or tight deadlines, the Dual Head roughly doubles your output without doubling your floor space or your team — for many shops that pays for itself quickly. If your order volume doesn't yet require that throughput, a single-head Vision is the more efficient buy.
Can I upgrade a Mirror or single-head Vision into a Dual Head later?
No — each machine's configuration is fixed at the factory. If you outgrow a single-head machine, the move is to purchase a Vision Dual Head rather than convert your existing machine.
Do all three machines run the same software and controls?
Yes. All three use the Institch i5 / OS5 touchscreen with the same guided 13-step workflow. Institch Cloud — for managing multiple machines and calculating job costs automatically — is included on the Vision and Vision Dual Head.
Are accessories interchangeable across all three machines?
Yes. Richword embroidery thread, stabilizers and hat foam, and the Mighty Hoop kit all work across the Mirror, Vision, and Vision Dual Head.
Is financing available, and does it apply to all three machines?
Yes — Swing Design offers both Personal and Business Financing on every BAi embroidery machine, including the Mirror, Vision, and Vision Dual Head.
Still not sure which one is right for my shop?
Reach out to our team — tell us what you're producing and how much volume you're running, and we'll help you land on the right machine the first time.
