xTool RA3 Lite MagSwap 5-in-1 Rotary Tool for M2 Lasers
$259.00$299.00
$259.00

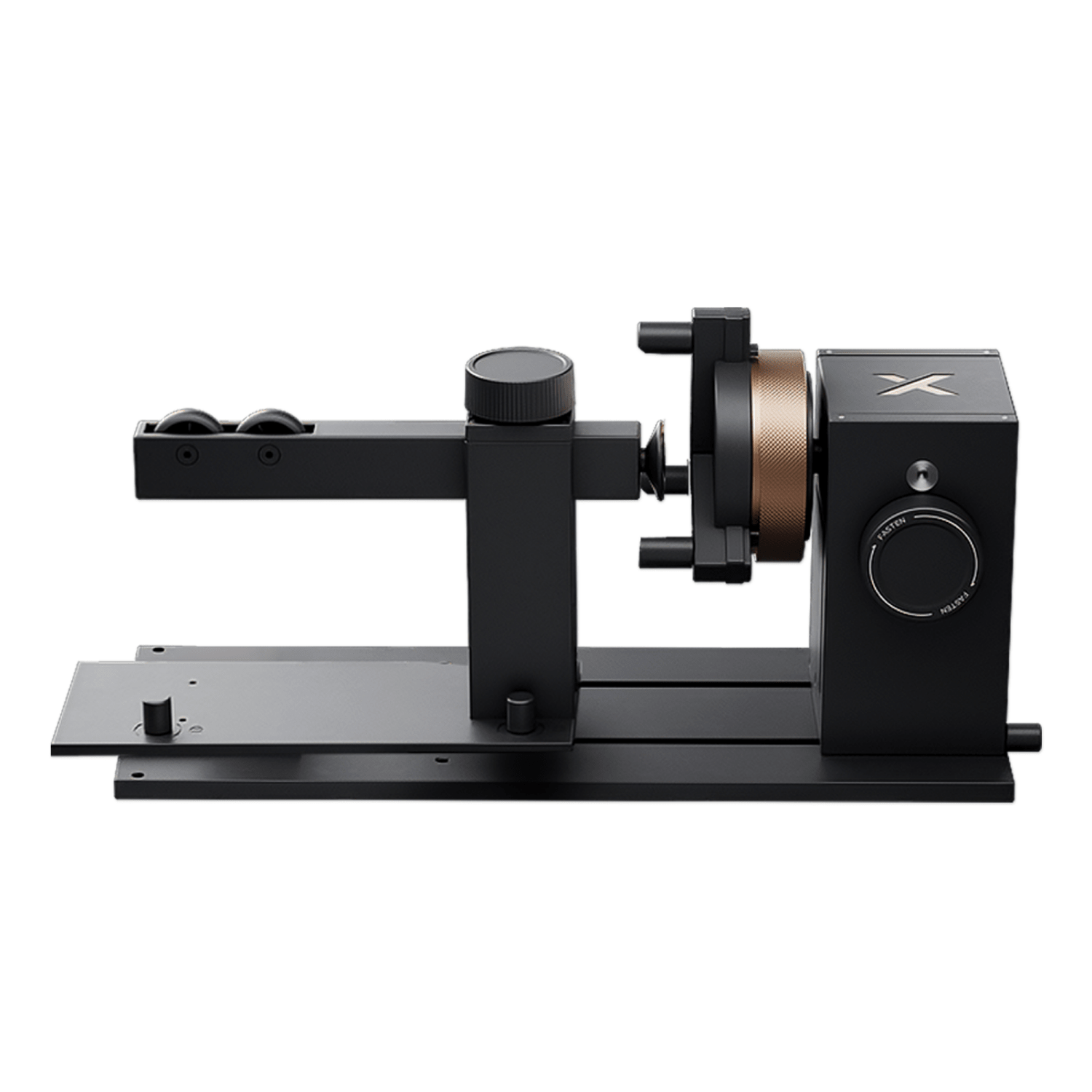

xTool RA3 Lite for M2 Laser
Turn your xTool M2 into a 360° customization station. The xTool RA3 Lite is the MagSwap™ rotary attachment built exclusively for the xTool M2 Color Craft Laser, made for engraving tumblers, mugs, bottles, rings, ornaments, spheres, and curved vases with wrap-around precision.
xTool calls the RA3 family the world’s first smart MagSwap™ rotary. On the M2, that means tool-free magnetic assembly, a secure T-type jaw grip, and fast swaps between chuck, sphere, ring, and vase setups. No riser base. No screwdriver. Just snap it in, load the piece, and engrave.
Make Any Round Surface Your Canvas
The RA3 Lite expands the M2 beyond flat blanks and into products people actually buy: personalized drinkware, engraved jewelry, holiday ornaments, branded merch, and gift-shop bestsellers.
Supported rotary modes:
- Chuck rotary for cylinders and cones, including tumblers, mugs, bottles, glasses, and pens
- Sphere rotary for balls, ornaments, and rounded blanks
- Ring rotary for bands and jewelry
- Full-wrap vase engraving for 360° designs on revolving and curved vessels
Working diameter: 0–100 mm. That covers the most common drinkware, rings, and decorative pieces used in laser personalization.
MagSwap™ Design: Assemble, Adjust, and Swap in Seconds
MagSwap™ is the reason setup stops being the slowest part of the job.
- Seconds to assemble. The power module, main baseplate, and jaw chuck lock together magnetically. No tools. No screws.
- Seconds to adjust. Reconfigure the jaws and clamping diameter to match the object in front of you.
- Seconds to swap. Pull the chuck straight off and switch from a tumbler to a ring or sphere without rebuilding the fixture.
If you run mixed orders—drinkware in the morning, rings in the afternoon—the RA3 Lite keeps you engraving instead of reassembling hardware.

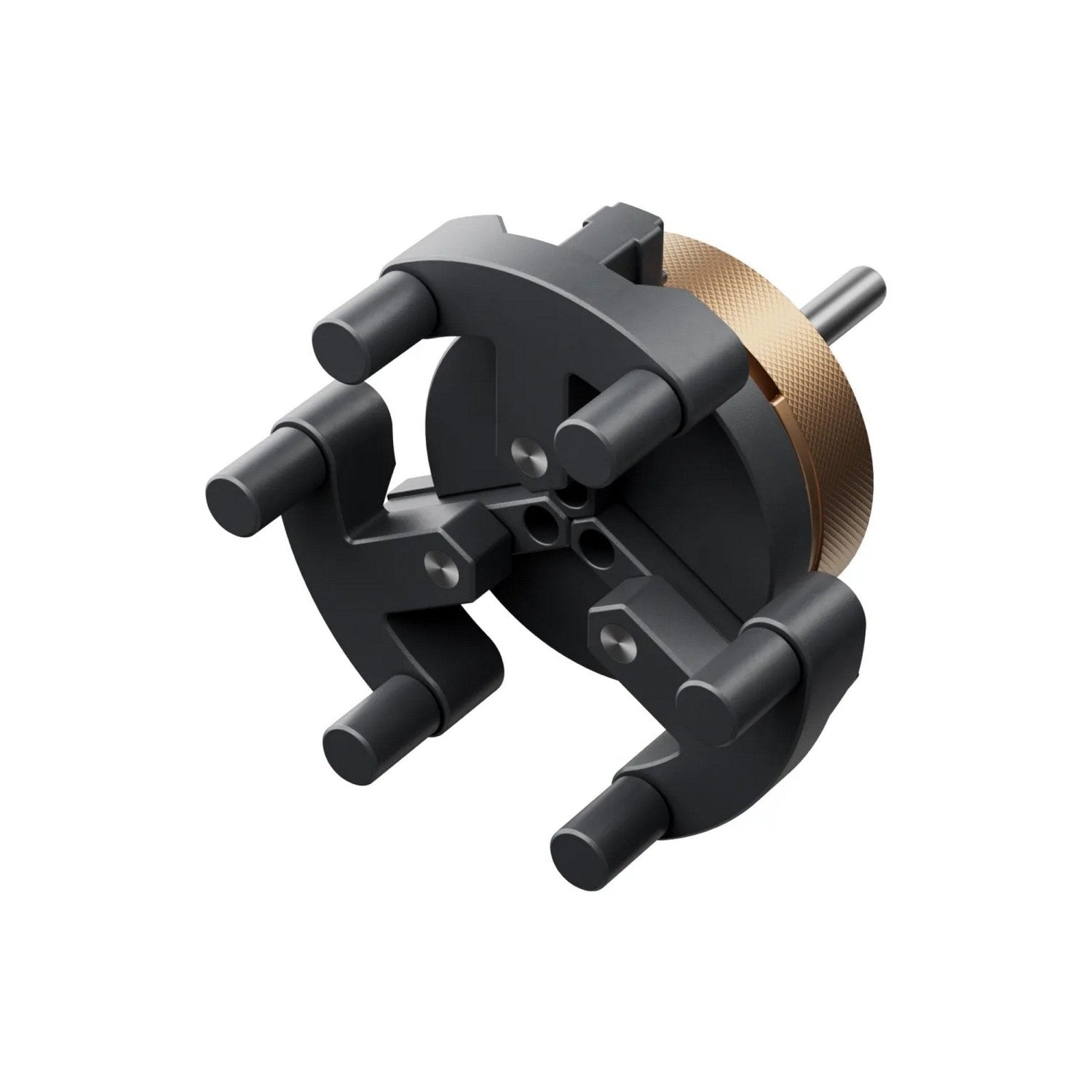

Secure Grip for Cleaner Wraps
Rotary jobs fail when the piece slips, tilts, or sits off-center. The RA3 Lite uses a T-type jaw design with added contact points for a firmer, slip-resistant hold on smooth rims and larger cylindrical items within the 0–100 mm range.
Jaw options included:
- Cylindrical Jaws for smaller round workpieces
- T-Shaped Jaws for extra grip on larger or smoother pieces
- Extended Jaws for workpieces under 80 mm
- Stud Components for rings
A support module steadies longer items. For pieces 55 mm or smaller, leave the support module off to avoid laser-head collision. Use Framing in xTool Studio before every job to check clearance against the lid, handle, baseplate, and front panel.
Built for the xTool M2 Workflow
The RA3 Lite is not a generic rotary dropped onto the M2. It is designed for this machine.
- Exclusive compatibility with xTool M2
- No riser base required
- Horizontal Laser Emission Holder and Laser Shield for side-fire rotary engraving
- Positioning Plates for repeatable placement inside the machine
- Device Connection Cable for a direct M2 hookup
- Native xTool Studio rotary mode for setup, framing, and processing
First-time setup includes horizontal light calibration in xTool Studio so rotary alignment stays accurate.
One-Step Positioning for Rings and Tapered Objects
Set a 26° angle in one step and start on rings and tapered pieces without endless trial-and-error. The ring studs hold the band in place while the chuck locks into the power module with a click.
Important M2 note: inner-ring engraving may be limited because the M2 uses horizontal laser output. Outer-ring and standard band personalization remain the everyday use case.
Faster Personalized Orders
Speed is profit on custom drinkware and gifts. The RA3 Lite supports rotary speeds up to 1200 mm/s, with actual job time depending on your M2 laser module, material, and design. Swap fixtures in seconds, frame the layout, and move to the next piece.
The Roller Extension Kit used for multi-item roller batching on the full RA3 is not supported on RA3 Lite. This version is optimized for chuck, sphere, ring, and vase work on the M2—not a roller production line.
Ideal For
- xTool M2 owners adding tumbler and mug engraving
- Small shops selling personalized drinkware and event gifts
- Jewelry makers engraving rings and small bands
- Crafters moving from flat wood and acrylic into 360° products
- Gift and merch businesses that need faster changeovers between SKUs
Specifications
| Spec | Detail |
|---|---|
| Product Name | xTool Rotary Attachment 3 Lite (RA3 Lite) |
| SKU | P0103000140 |
| Compatible Machine | xTool M2 Only |
| Rotary Modes | Chuck, Sphere, Ring, Full-Wrap Vase |
| Working Diameter | 0–100 mm |
| Ring Positioning | One-Step 26° |
| Max Rotary Speed | Up to 1200 mm/s |
| Jaw System | T-Type, Cylindrical, and Extended Jaws |
| Mounting | MagSwap™ Magnetic, Tool-Free |
| Software | xTool Studio |
| Riser Base | Not Required |
| Roller Extension Kit | Not Supported |
| Inner-Ring Engraving | May Be Limited by M2 Horizontal Laser Output |

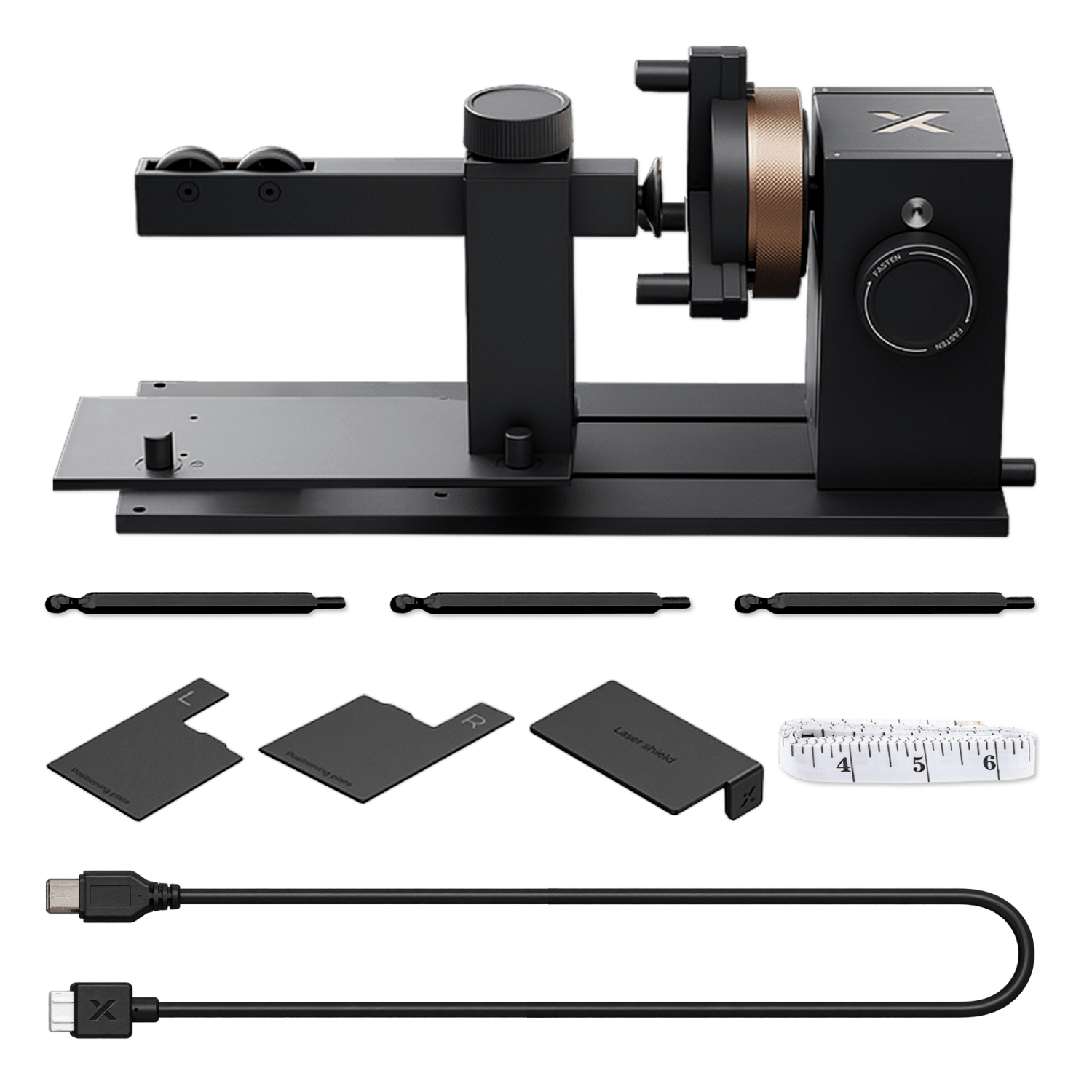

What’s In The Box
- Jaw Chuck
- Cylindrical Jaws
- T-Shaped Jaws
- Extended Jaws
- Power Module
- Main Baseplate
- Support Module
- Stud Components (Rings)
- Laser Shield
- Horizontal Laser Emission Holder
- Positioning Plates
- Device Connection Cable
- Tape Measure
RA3 Lite vs Full RA3
The RA3 Lite is the correct rotary for the xTool M2. The full RA3 is built for P-series and F-series machines and offers a larger 0–130 mm chuck range plus roller batching. RA3 Lite and RA3 share MagSwap™ construction, but they are not the same product.
| Feature | RA3 Lite for M2 | Full RA3 |
|---|---|---|
| Machine | xTool M2 Only | P / F Series |
| Working Diameter | 0–100 mm | 0–130 mm |
| Modes | Chuck, Sphere, Ring, Vase | Those Plus Roller |
| Roller Batch Kit | No | Yes |
| 360° LiDAR 3D Preview | No | Yes on P3 |
| MagSwap™ | Yes | Yes |
The Swing Design Advantage
At Swing Design, we specialize in bringing the most innovative equipment from trusted brands like xTool to the U.S. market. When you purchase the xTool RA3 Lite from Swing Design, you get more than a rotary attachment — you get expert U.S.-based support, competitive pricing, fast shipping, and access to our full ecosystem of complementary products, including xTool lasers, DTF printers, embroidery machines, and more.
Shop the xTool RA3 Lite MagSwap Rotary Tool for M2 at Swing Design — your premier source for professional-grade crafting and personalization equipment.
Frequently Asked Questions
Is the xTool RA3 Lite compatible with the xTool M2?
Yes. The RA3 Lite is designed exclusively for the xTool M2.
What can I engrave with it?
Tumblers, mugs, bottles, glasses, pens, rings, spheres, ornaments, and curved vases within 0–100 mm diameter.
Does it need a riser base?
No. Rotary work with the RA3 Lite on M2 does not require a riser.
Is setup tool-free?
Yes. MagSwap™ magnetic mounting lets you assemble, adjust jaws, and swap attachments without screws.
Can I engrave the inside of a ring?
The fixture includes one-step 26° positioning, but inner-ring work may be limited by the M2’s horizontal laser output.
Does it support roller batch production?
No. The Roller Extension Kit is not supported on RA3 Lite.
What software does it use?
xTool Studio. Select rotary attachment mode, frame the job, then process.
The xTool RA3 Lite is the fastest way to add professional rotary engraving to an M2: magnetic swaps, a secure chuck, and 360° personalization on the round products customers keep coming back for.
