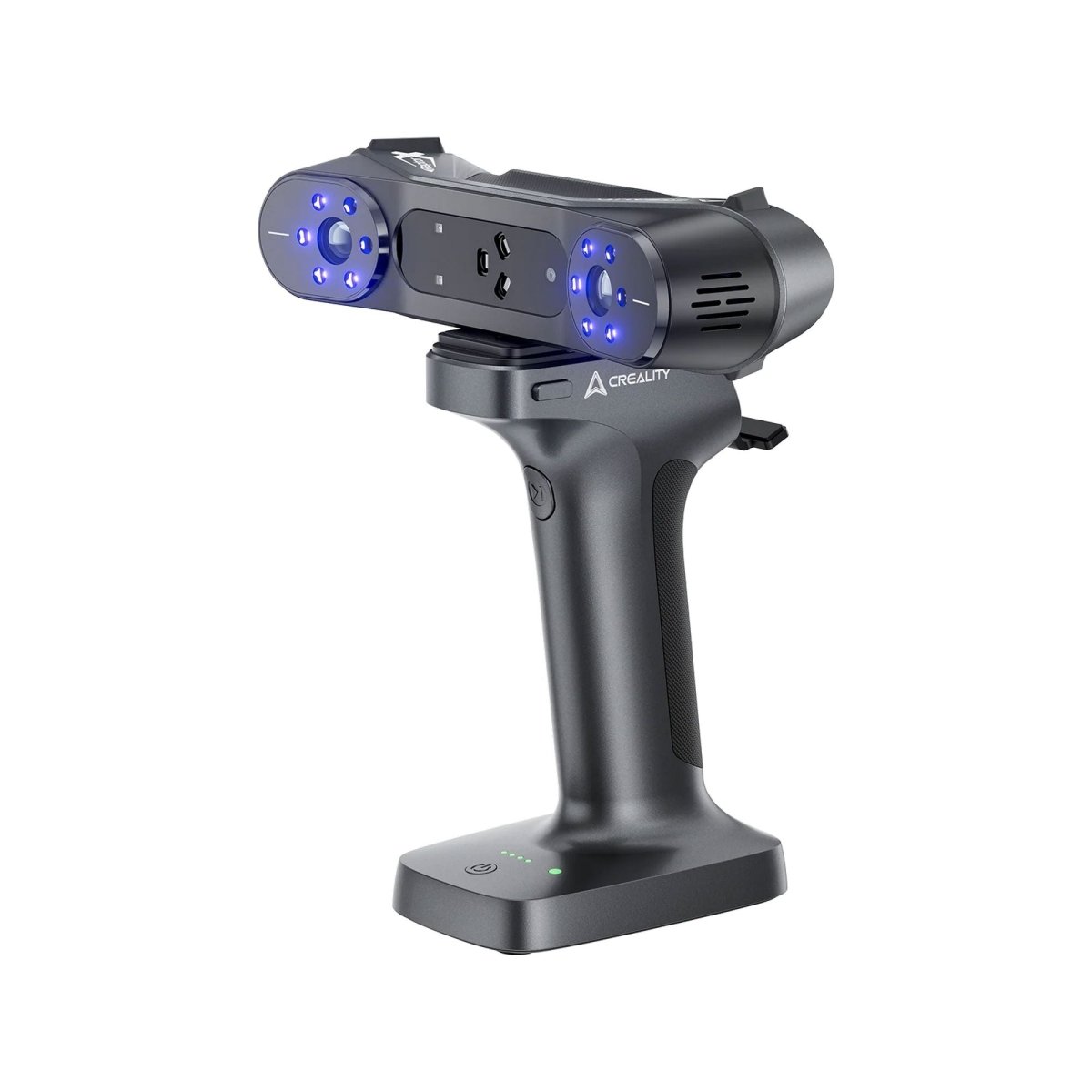

Creality RaptorX Wireless Hybrid Blue Laser & NIR 3D Scanner
$3,599.00$3,999.00
$3,599.00
The Creality RaptorX Wireless Hybrid Blue Laser & NIR 3D Scanner is the world's first truly wireless handheld 3D scanner, combining 34 cross blue laser lines, 7 parallel blue laser lines, and NIR infrared structured light for unmatched versatility, speed, and freedom. Delivering metrology-grade 0.02mm accuracy with volumetric precision of 0.02mm + 0.06mm/m, this portable powerhouse scans black, metallic, and reflective surfaces without sprays, captures full-color textures, and enables markerless full-body or face scans in as little as 2 minutes—all cable-free thanks to built-in Wi-Fi 6 (AX6000) and a massive 35,400mWh battery for up to 4 hours of continuous scanning.
Key Features & Benefits
- World's First Wireless Hybrid Scanning — True wireless freedom with Wi-Fi 6 for low-latency (10ms) data transmission up to 4.7Gbps; mirror scans in real-time on your phone (smartphone compatibility coming soon). No cables, no hassle—perfect for on-site, outdoor, or mobile workflows.
- Ultra-Precise Metrology-Grade Performance — Achieve 0.02mm single-point accuracy in blue laser modes and volumetric accuracy of 0.02mm + 0.06mm/m. NIR mode delivers reliable 0.05mm accuracy for larger or feature-rich objects with markerless tracking.
- Blazing-Fast Speeds — Up to 1,020,000 measurements/s in blue laser mode (2.4x faster than previous models) at 60fps, or 3,580,000 measurements/s in NIR at 30fps for rapid coverage of medium-to-large objects.
- Advanced Hybrid Modes — 34 cross blue laser lines for high-efficiency, wide-area scanning of medium/large parts (twice the scan width of standard models); 7 parallel lines for partial HD detail with 0.1mm line resolution; NIR structured light for markerless, full-color scans ideal for faces, bodies, hair, and organic shapes.
- Anti-Shake & Stable Tracking — One-shot 3D imaging + IMU stabilization minimizes tracking loss, even during handheld use. Advanced temperature compensation ensures consistent accuracy in varying environments.
- Versatile Object & Surface Handling — Scan from tiny 5mm x 5mm x 5mm details to massive 4000mm x 4000mm x 4000mm objects. Excels on black/metal/reflective surfaces without sprays; supports outdoor scanning up to 100,000 lux (34 lines) or 50,000 lux (7 lines).
- Full-Color Texture Capture — 24-bit RGB across all modes with a 2.3MP 3D imaging camera, low-distortion lens (<5‰), and supplementary LEDs for lifelike, high-fidelity models.
- Portable & Ergonomic Design — Lightweight at just 405g with anti-slip grip, magnetic quick setup, detachable lanyard, and ring indicator lights for intuitive operation.
- Broad Compatibility — Plug-and-play with Windows 10/11 (recommended: i7-Gen10+, NVIDIA 8GB+ VRAM, 32GB RAM) and macOS 11.7.7+ (Apple M1/M2/M3, 16GB+ RAM). Outputs OBJ, STL, PLY; integrates seamlessly with CrealityScan software, QUICKSURFACE, Geomagic Control X/Design X, Verisurf Inspect, and more.

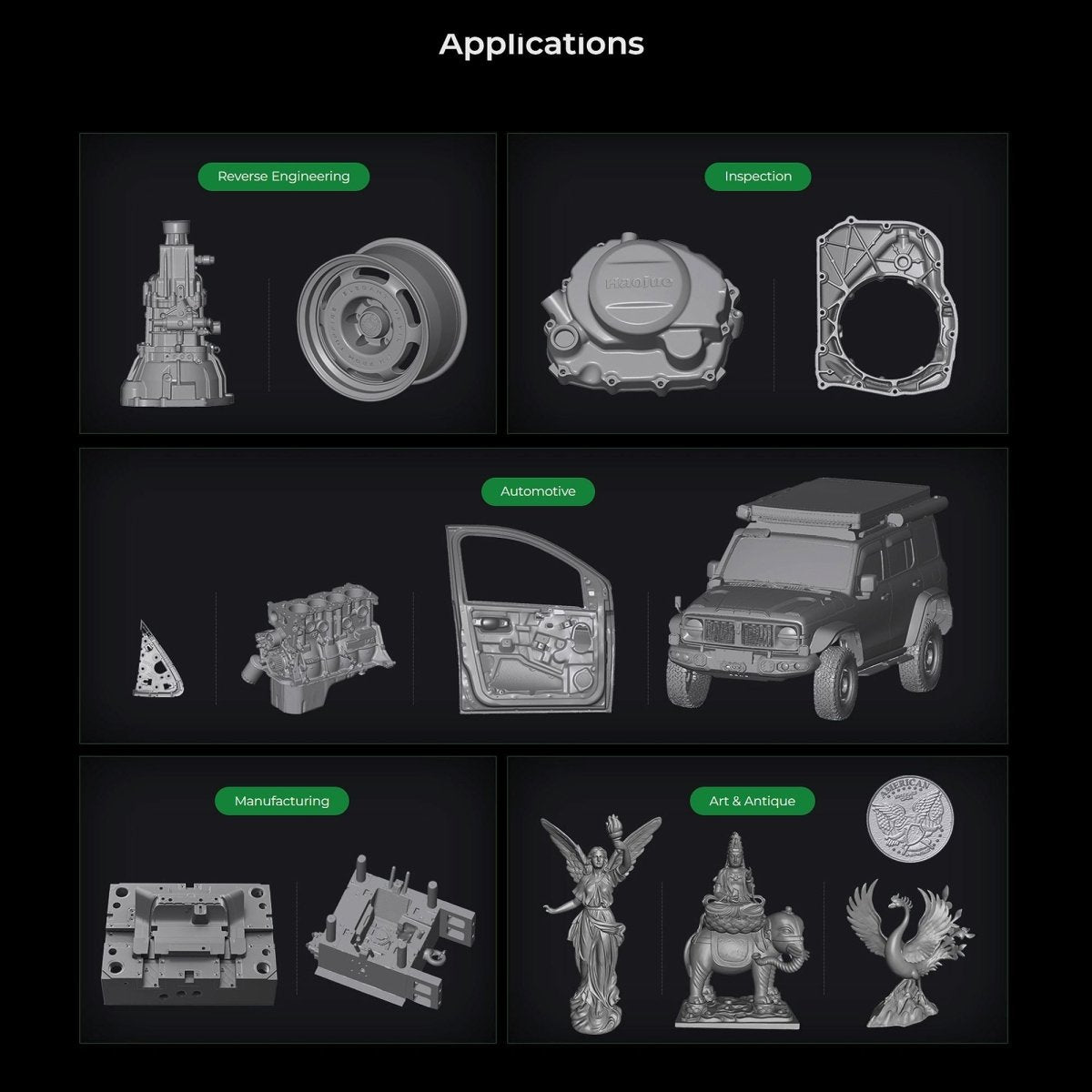

Ideal Applications
Tailored for reverse engineering, automotive parts inspection, industrial molds & prototypes, manufacturing quality control, cultural heritage digitization, art & antiques, cosplay/props, 3D printing prep, and human body/face scanning (custom prosthetics, fitness, artistic modeling). Outperforms wired scanners with true wireless mobility while delivering pro-level precision and speed.

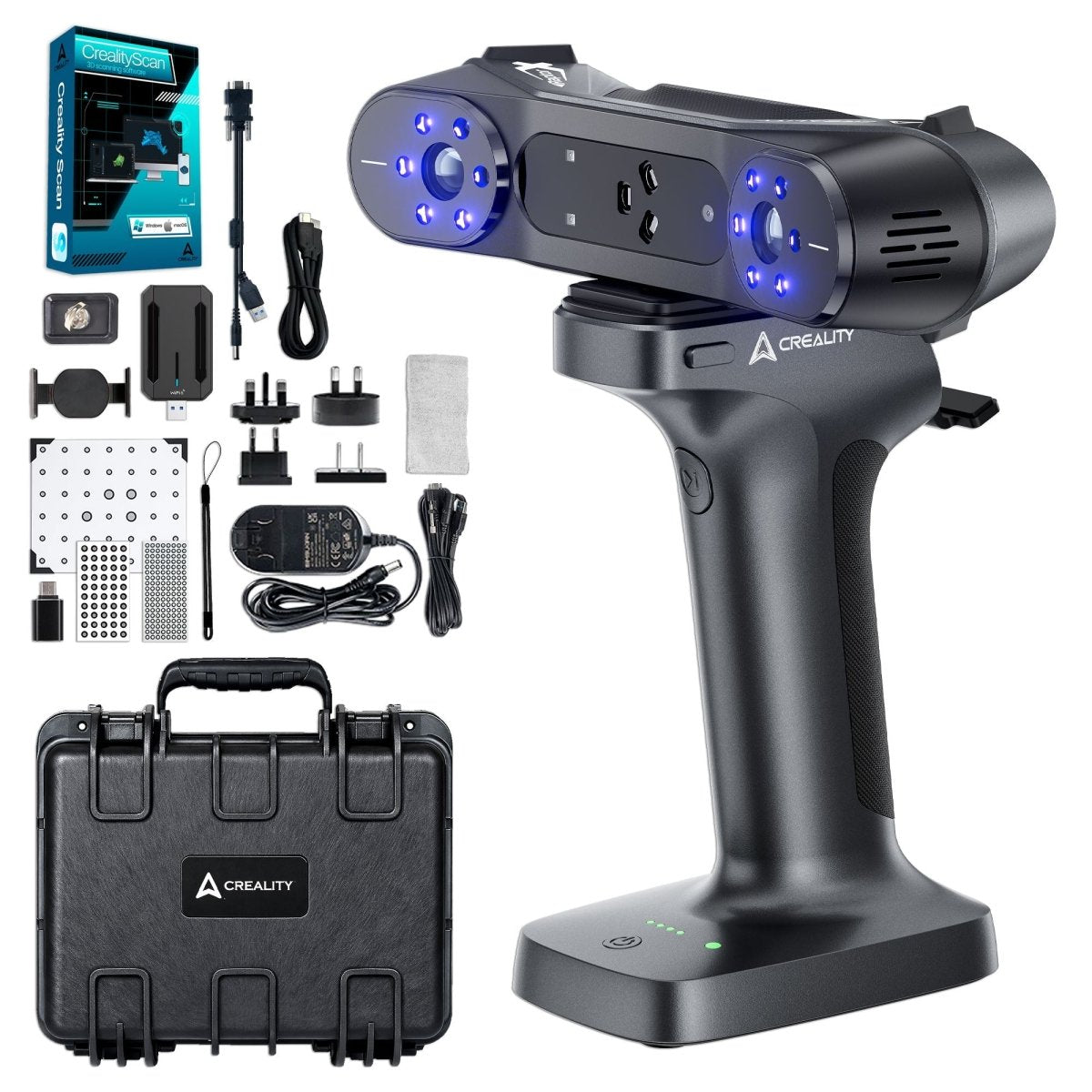

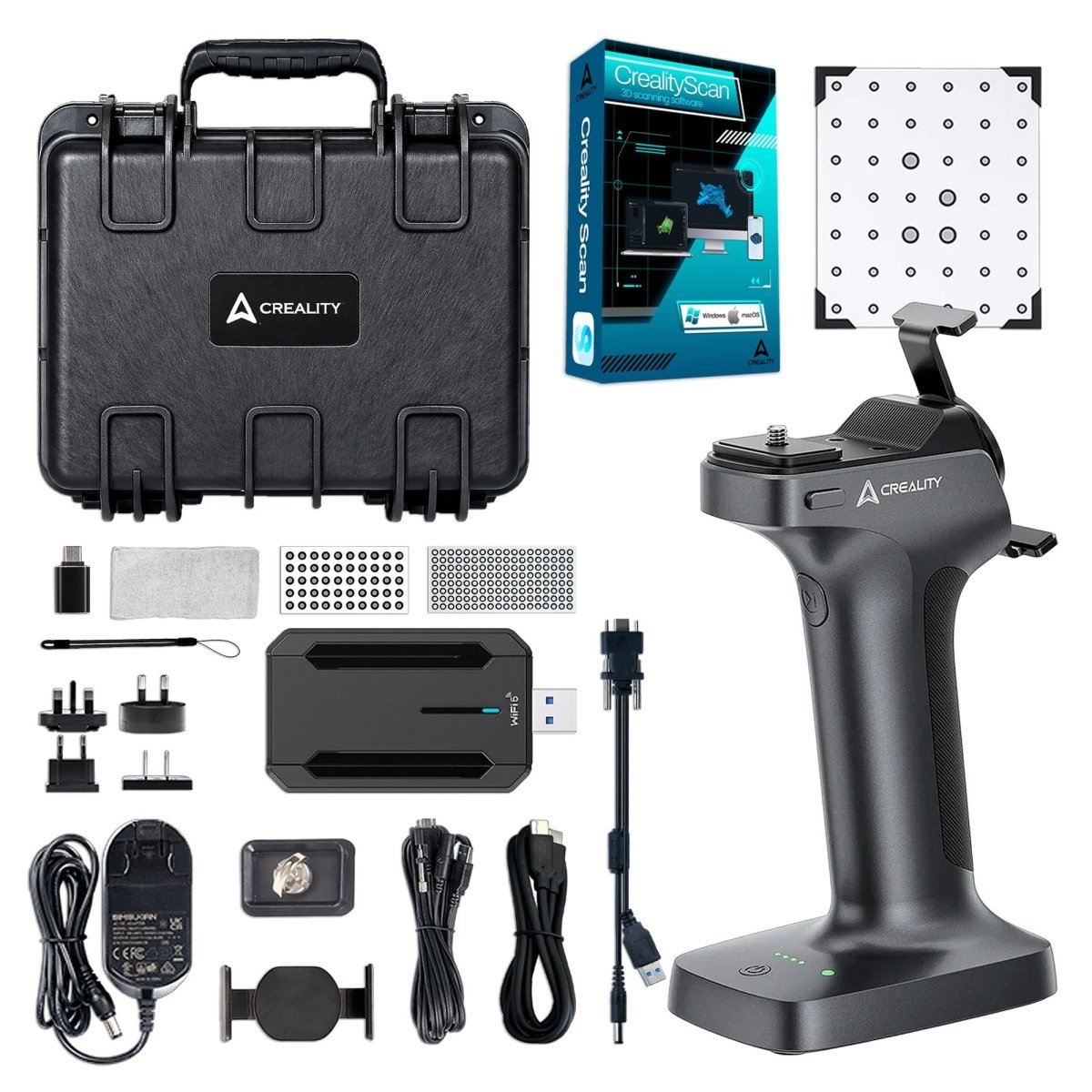

Creality RaptorX Scanner Bundle Includes:
- Creality RaptorX Handheld 3D Scanner
- Waterproof Carrying Case
- Reflective Markers (D6mm*40 sheets,D3mm*40 sheets)
- High Precision Glass Calibration Plate
- 2 Scale Bars
- Scan Bridge Data Cable
- Scan Bridge Fast Charging Data Cable
- Hand Tightening Quick Release Card
- Magnetic Phone Holder
- WiFi6 Wireless Adapter
- Cleaning Cloth
- Laynard
- Creality Scan Software (Windows & MAC)
- Power Adapter + Power Connectors
- Type A USB 3.0 Data Cable with Type C Adapter
- Quick Start Guide
- 1-Year Manufacturer Warranty
- Lifetime U.S. Based Support
Elevate your scanning game with the Creality RaptorX—the revolutionary wireless hybrid 3D scanner that blends 34+7 blue laser lines, NIR markerless efficiency, 0.02mm metrology accuracy, and cable-free convenience in one lightweight, battery-powered device. Bring ideas to life faster, anywhere, with stunning detail and professional results.

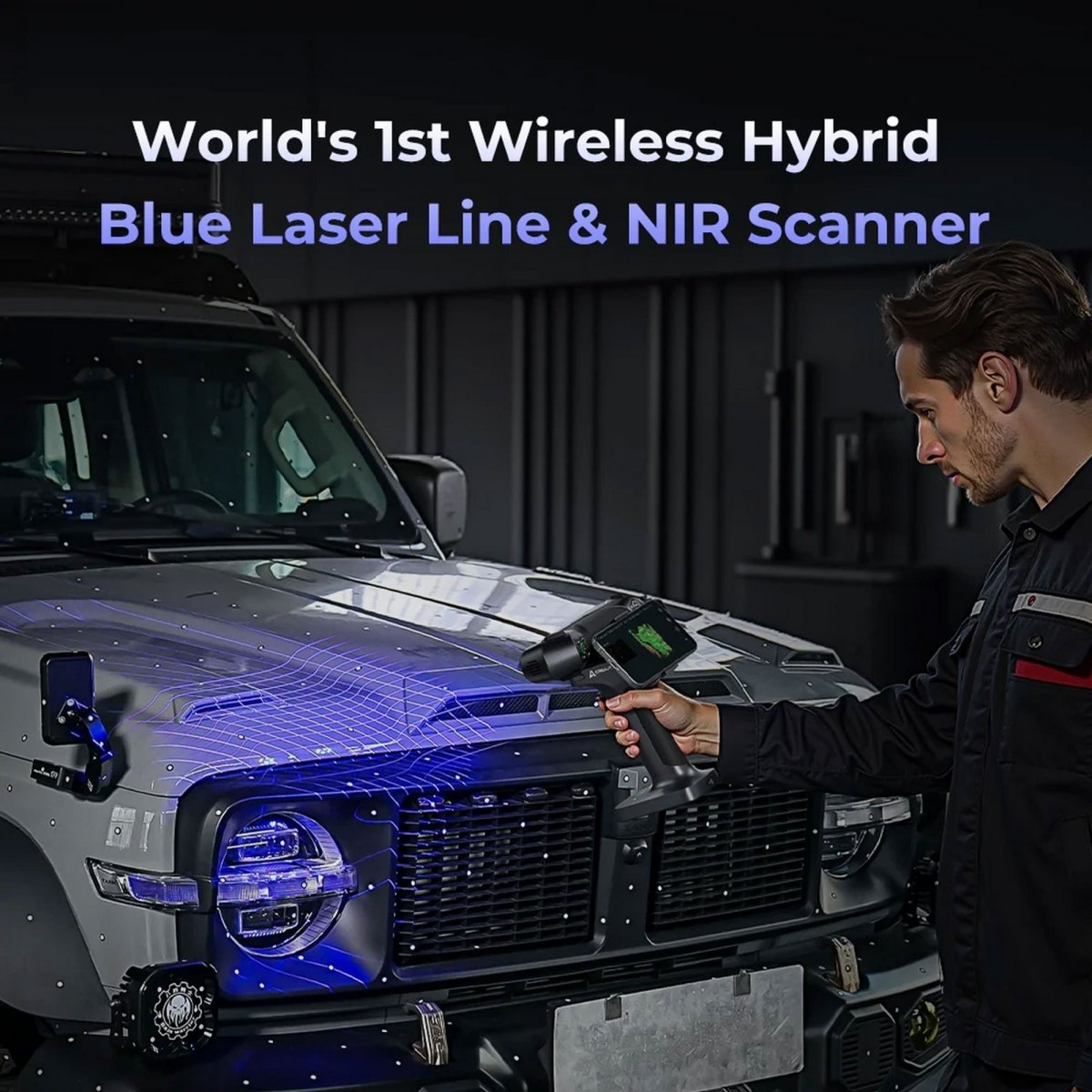

World's 1st Wireless Hybrid Blue Laser Line & NIR Scanner

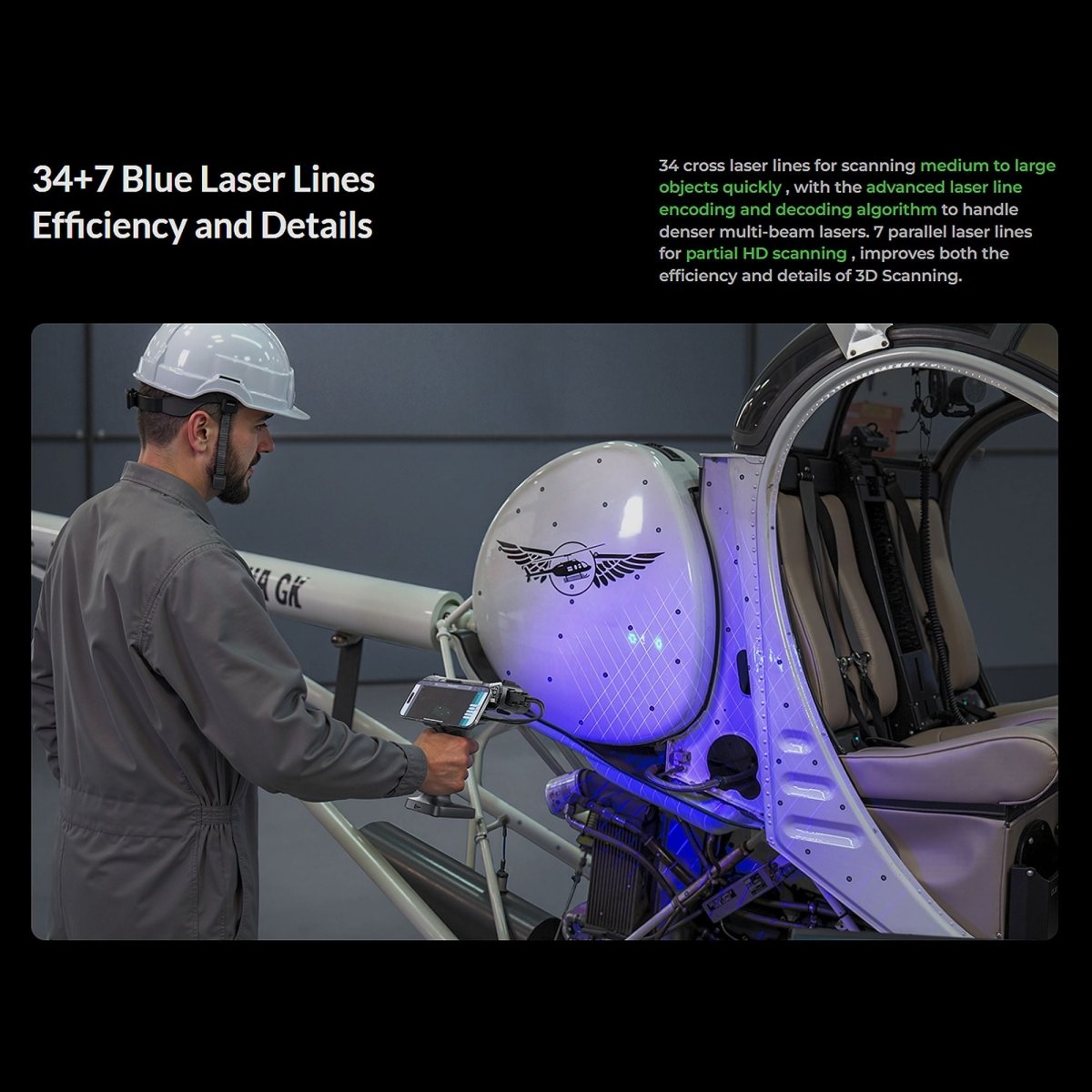

34+7 Blue Laser Lines - Efficiency and Details
34 cross laser lines for scanning medium to large objects quickly, with the advanced laser line encoding and decoding algorithm to handle denser multi-beam lasers. 7 parallel laser lines for partial HD scanning, improves both the efficiency and details of 3D Scanning.

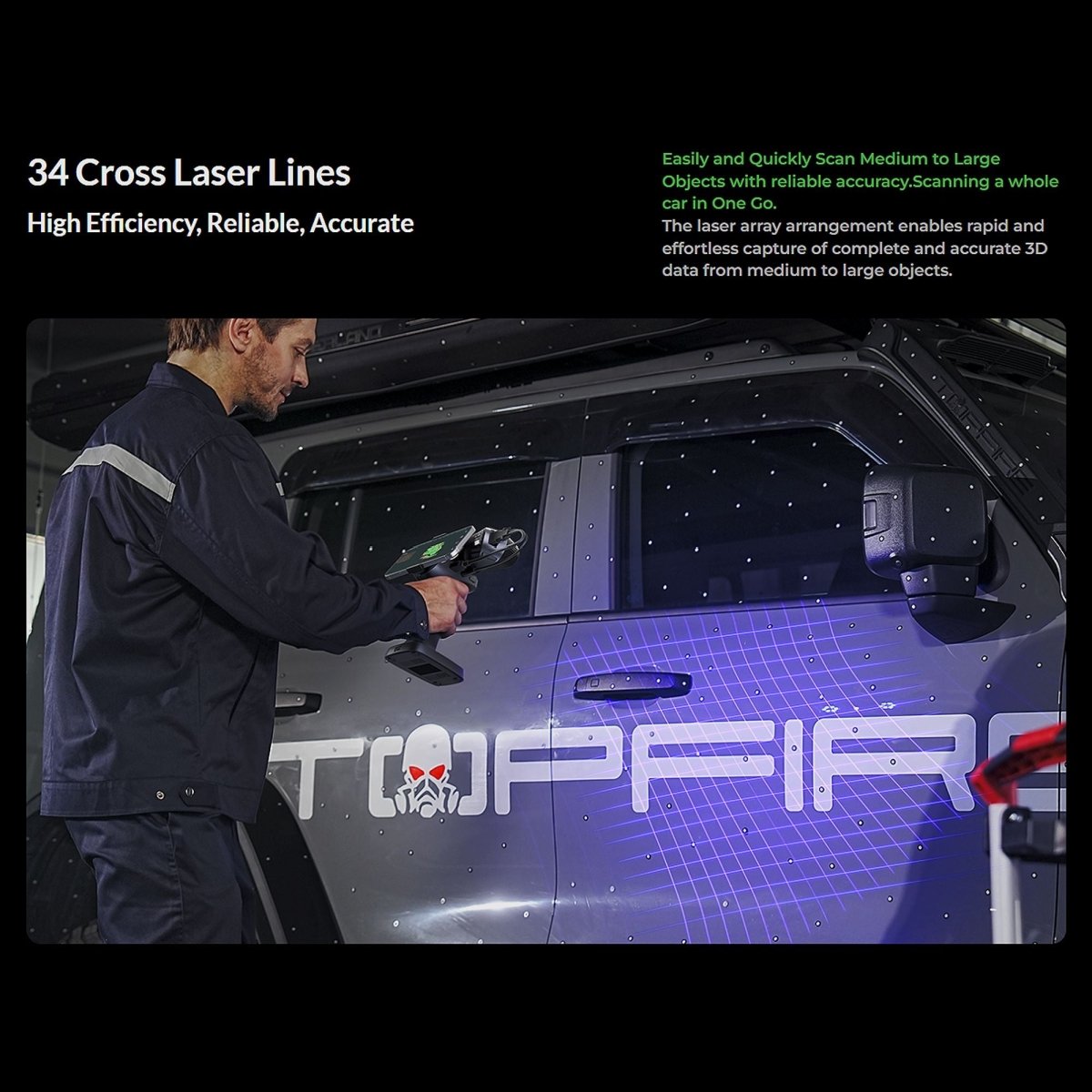

34 Cross Laser Lines - High Efficiency, Reliable, Accurate
Easily and Quickly Scan Medium to Large Objects with reliable accuracy. Scanning a whole car in One Go. The laser array arrangement enables rapid and effortless capture of complete and accurate 3D data from medium to large objects.

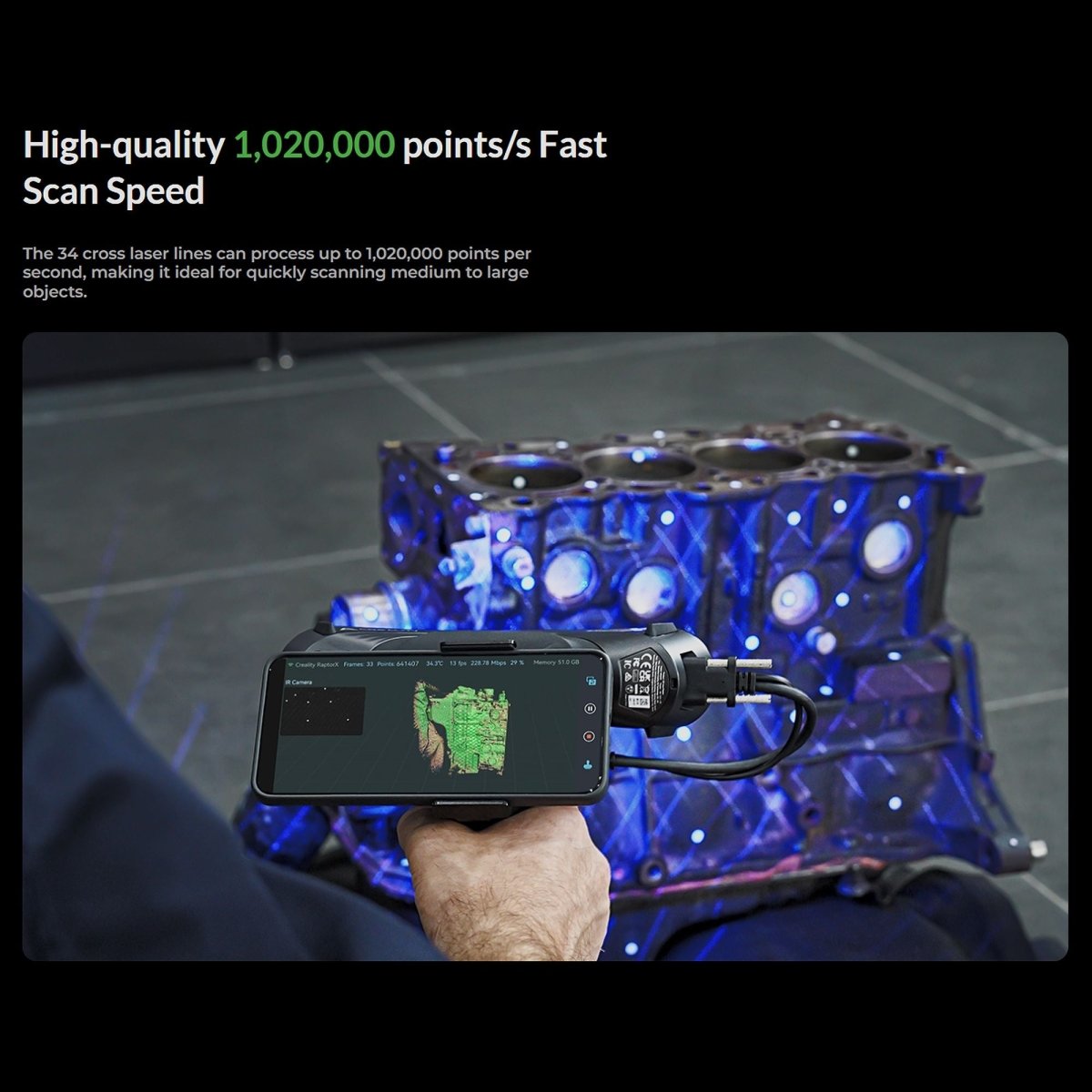

High-quality 1,020,000 points/s Fast Scan Speed
The 34 cross laser lines can process up to 1,020,000 points per second, making it ideal for quickly scanning medium to large objects.

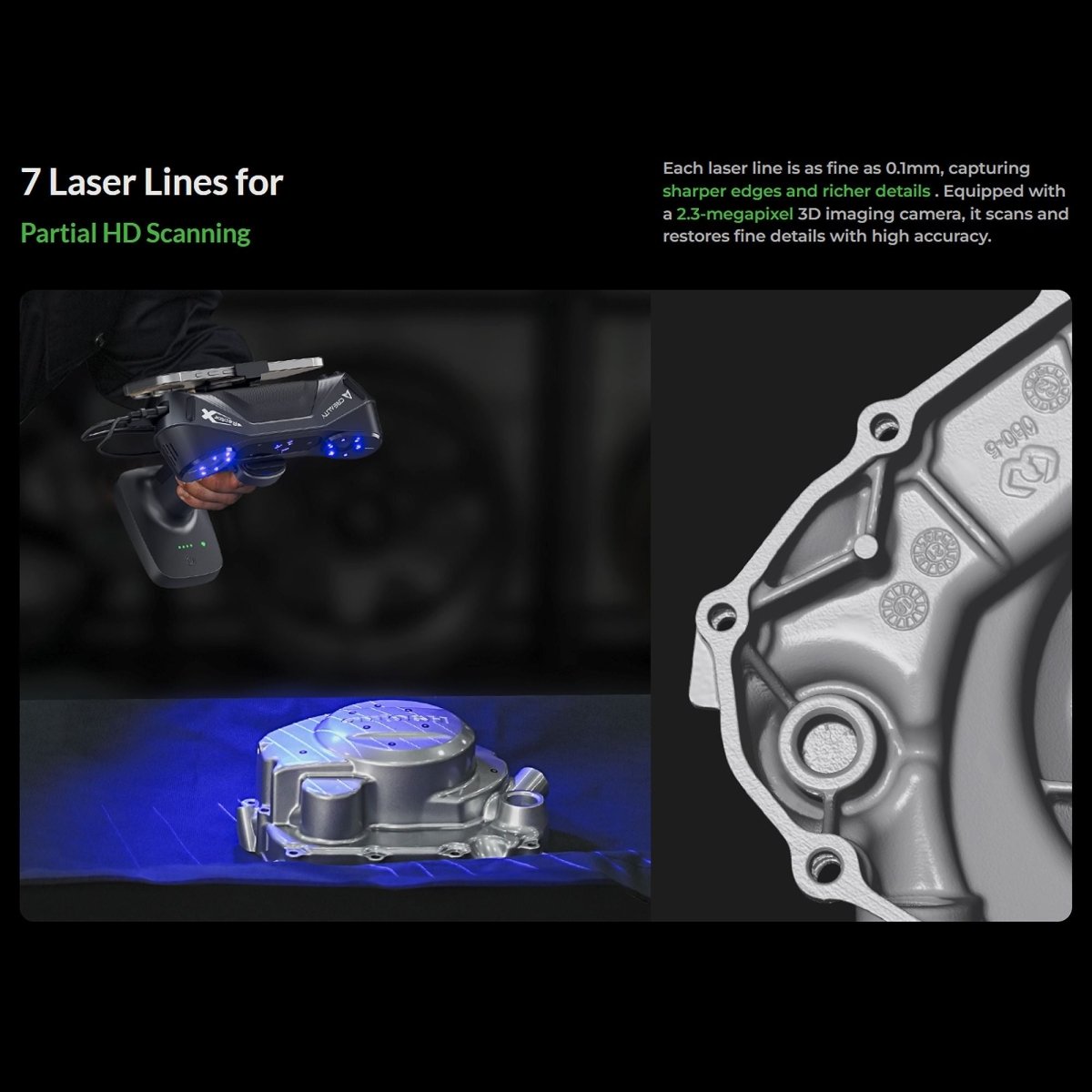

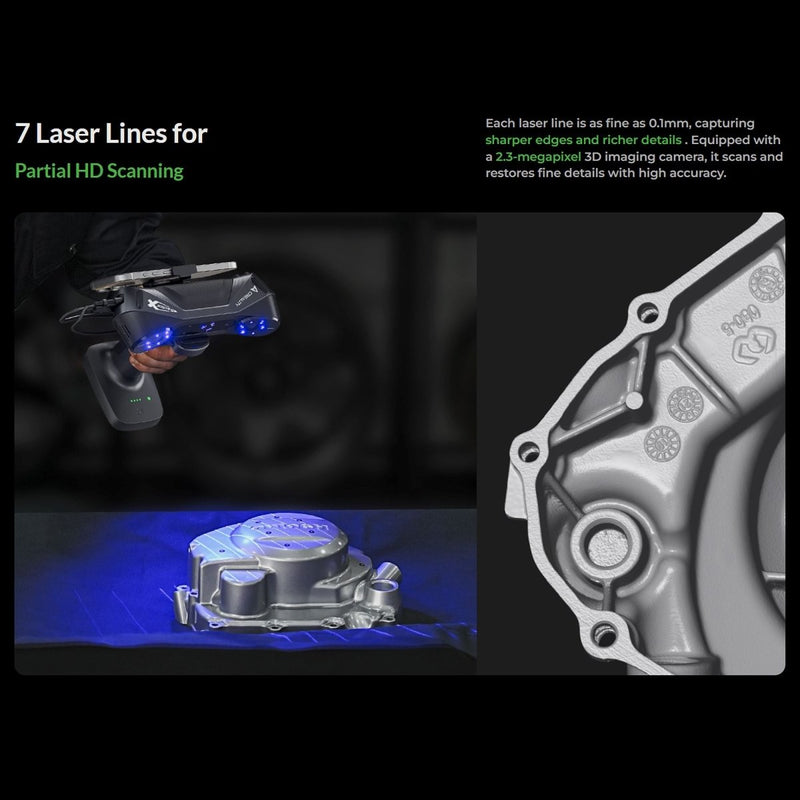

7 Laser Lines for Partial HD Scanning
Each laser line is as fine as 0.1mm, capturing sharper edges and richer details. Equipped with a 2.3-megapixel 3D imaging camera, it scans and restores fine details with high accuracy.

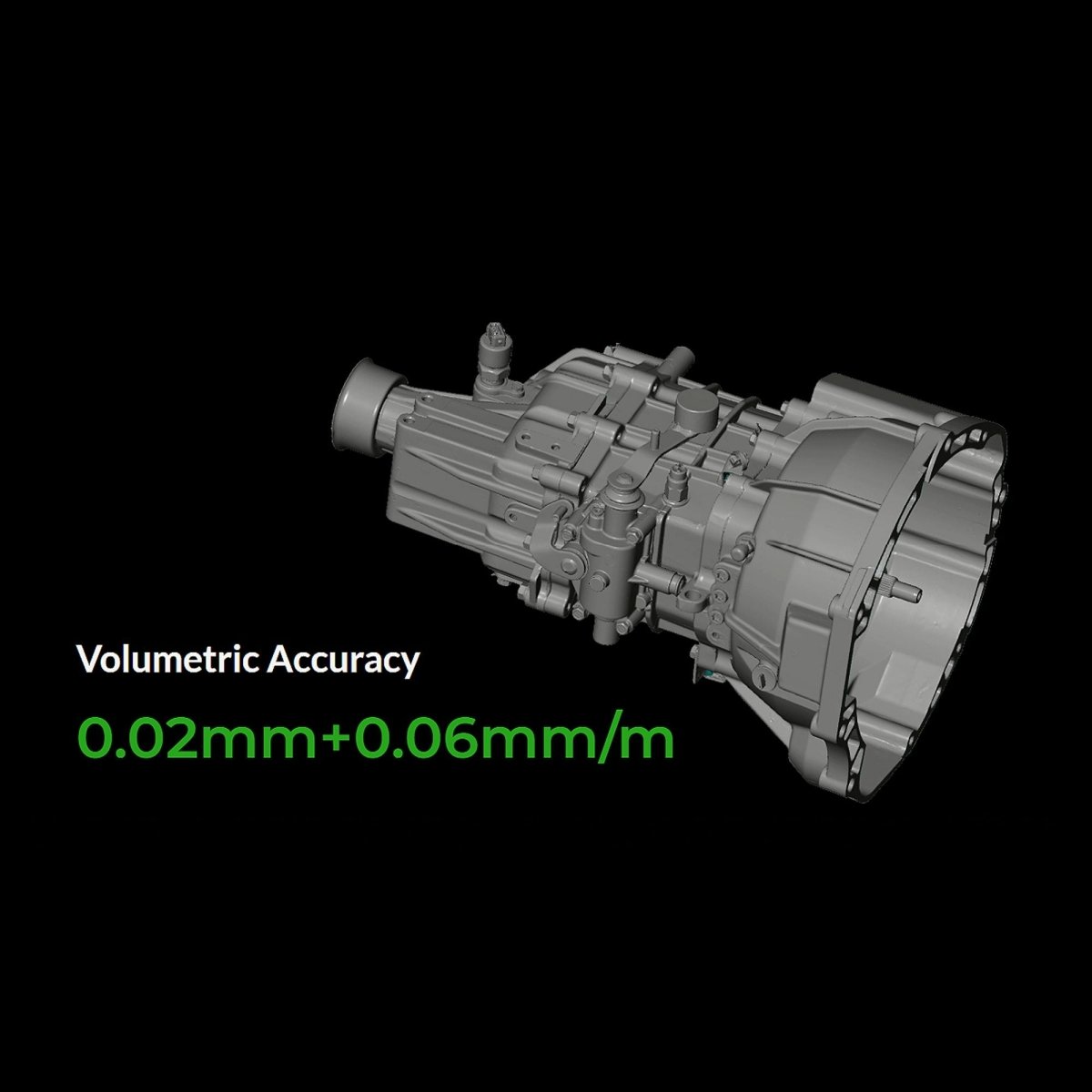

Volumetric Accuracy
0.02mm+0.06mm/m

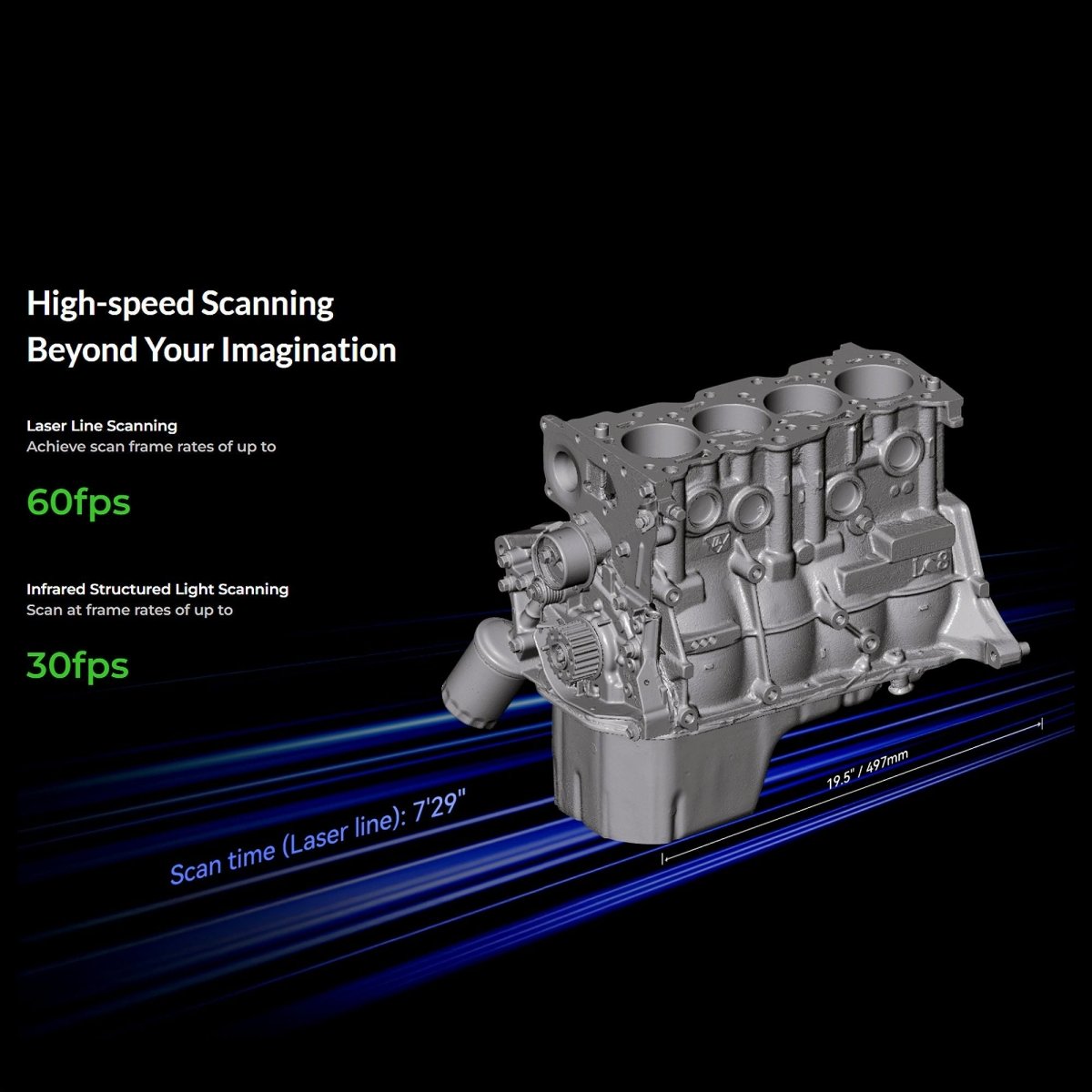

High-speed Scanning Beyond Your Imagination
Laser Line Scanning
Achieve scan frame rates of up to 60fps
Infrared Structured Light Scanning
Scan at frame rates of up to 30fps
Portable Wireless Scanner
RaptorX features a wireless handle seamless data transmission, redefining portability in blue laser 3D scanning.
*Note: With the mirroring function, the real-time scanning can be seen easily and wirelessly from the phone.

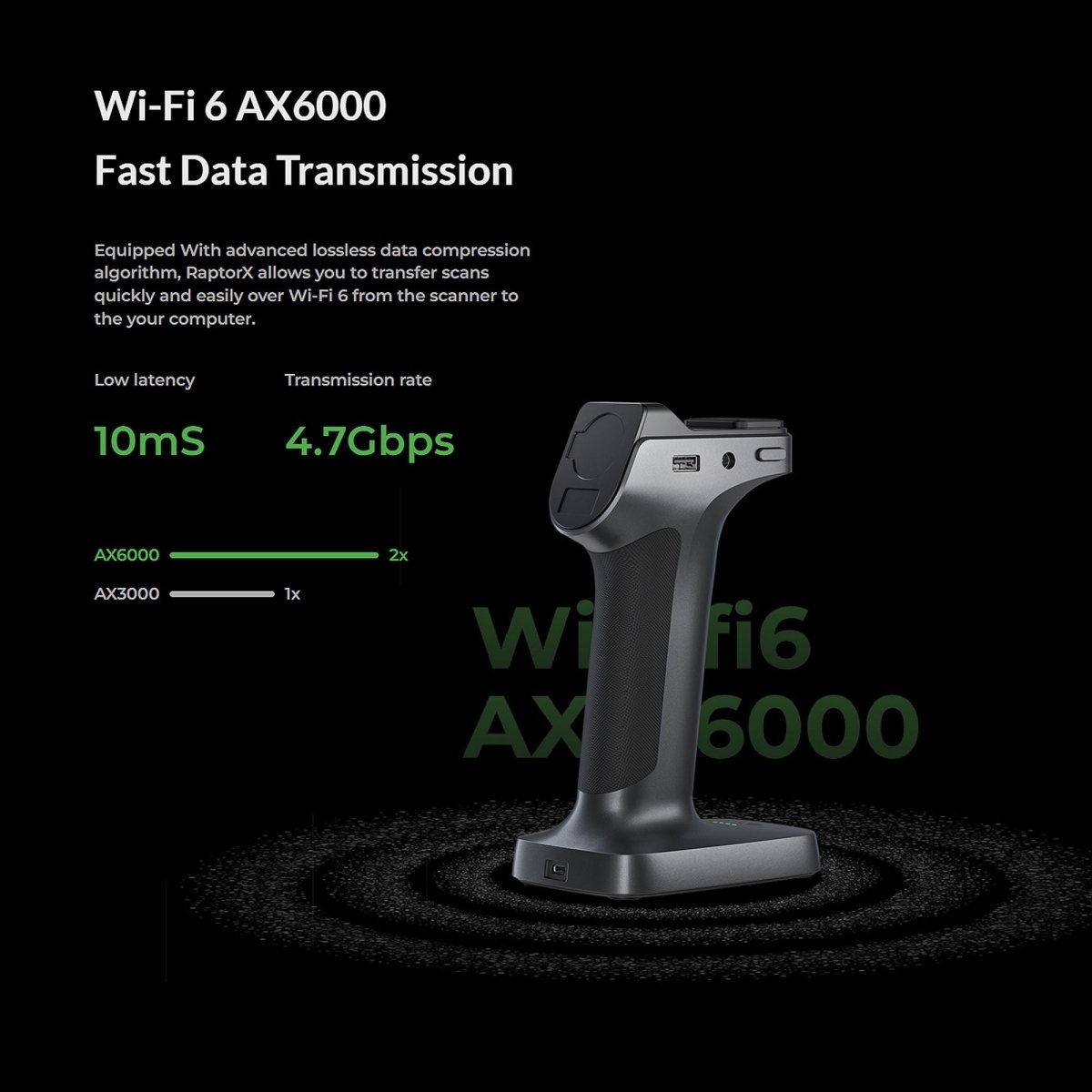

Wi-Fi 6 AX6000 Fast Data Transmission
Equipped with an advanced lossless data compression algorithm, RaptorX allows you to transfer scans quickly and easily over Wi-Fi 6 from the scanner to your computer.

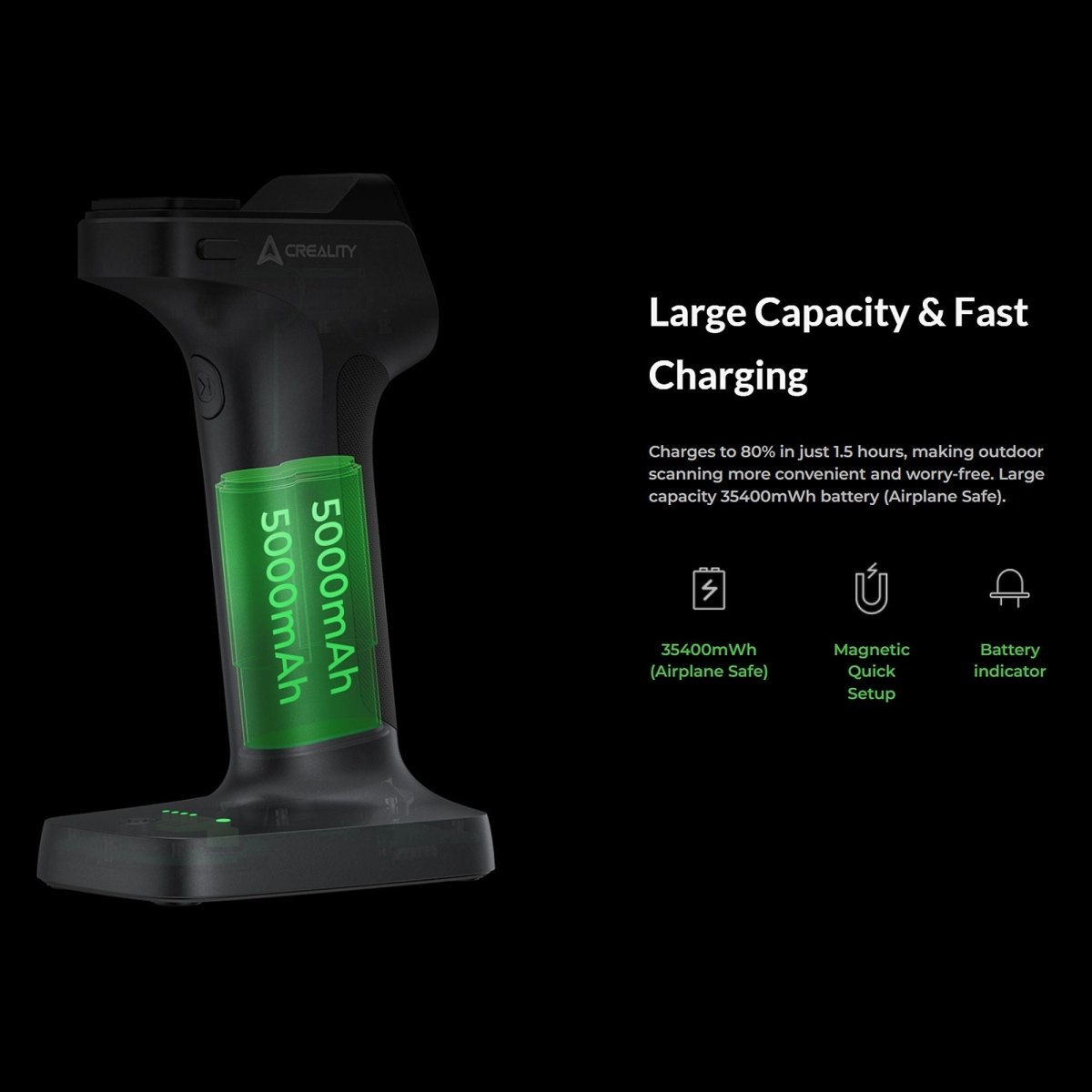

Large Capacity & Fast Charging
Charges to 80% in just 1.5 hours, making outdoor scanning more convenient and worry-free. Large capacity 35400mWh battery (Airplane Safe).

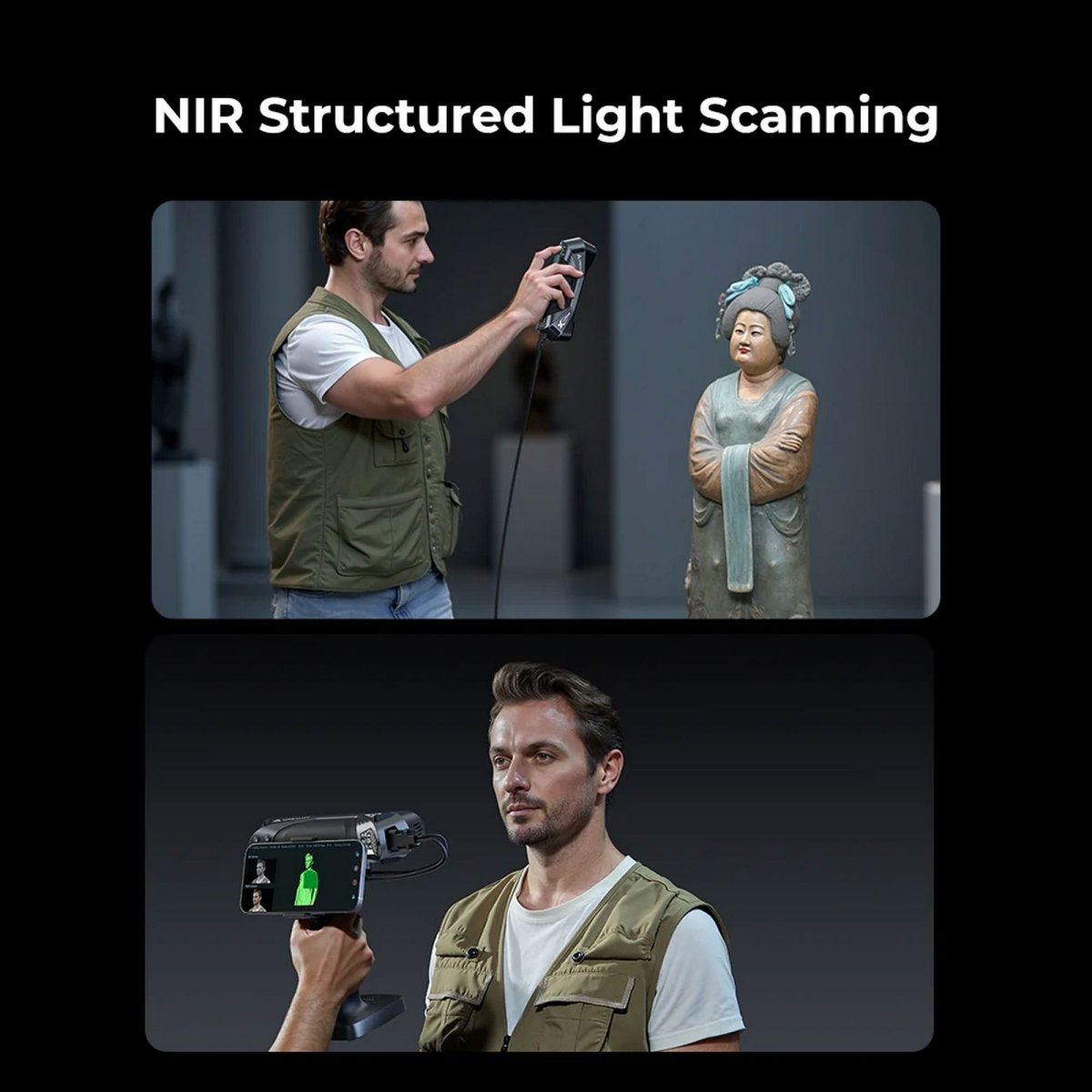

NIR Structured Light Scanning
Markerless Scanning
Equipped with One-Shot 3D imaging technology, the Creality RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Unique Face & Body Algorithm
Face & body mode is equipped with a unique face mapping algorithm that captures more details and easily scan hair, a human body scan only needs as quick as 2 minutes.

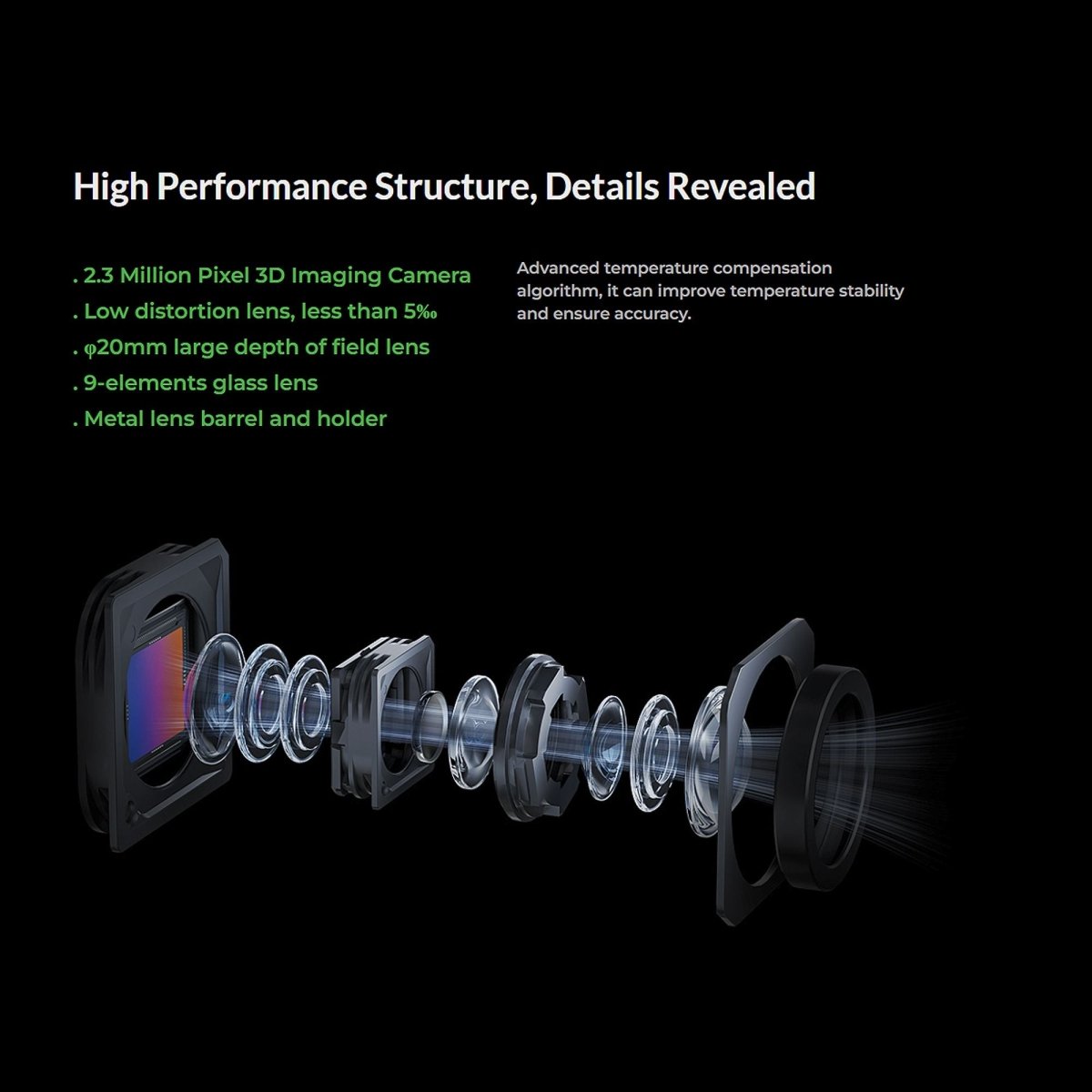

High Performance Structure, Details Revealed
Advanced temperature compensation algorithm, it can improve temperature stability and ensure accuracy.
- 2.3 Million Pixel 3D Imaging Camera
- Low distortion lens, less than 5‰
- φ20mm large depth of field lens
- 9-elements glass lens
- Metal lens barrel and holder

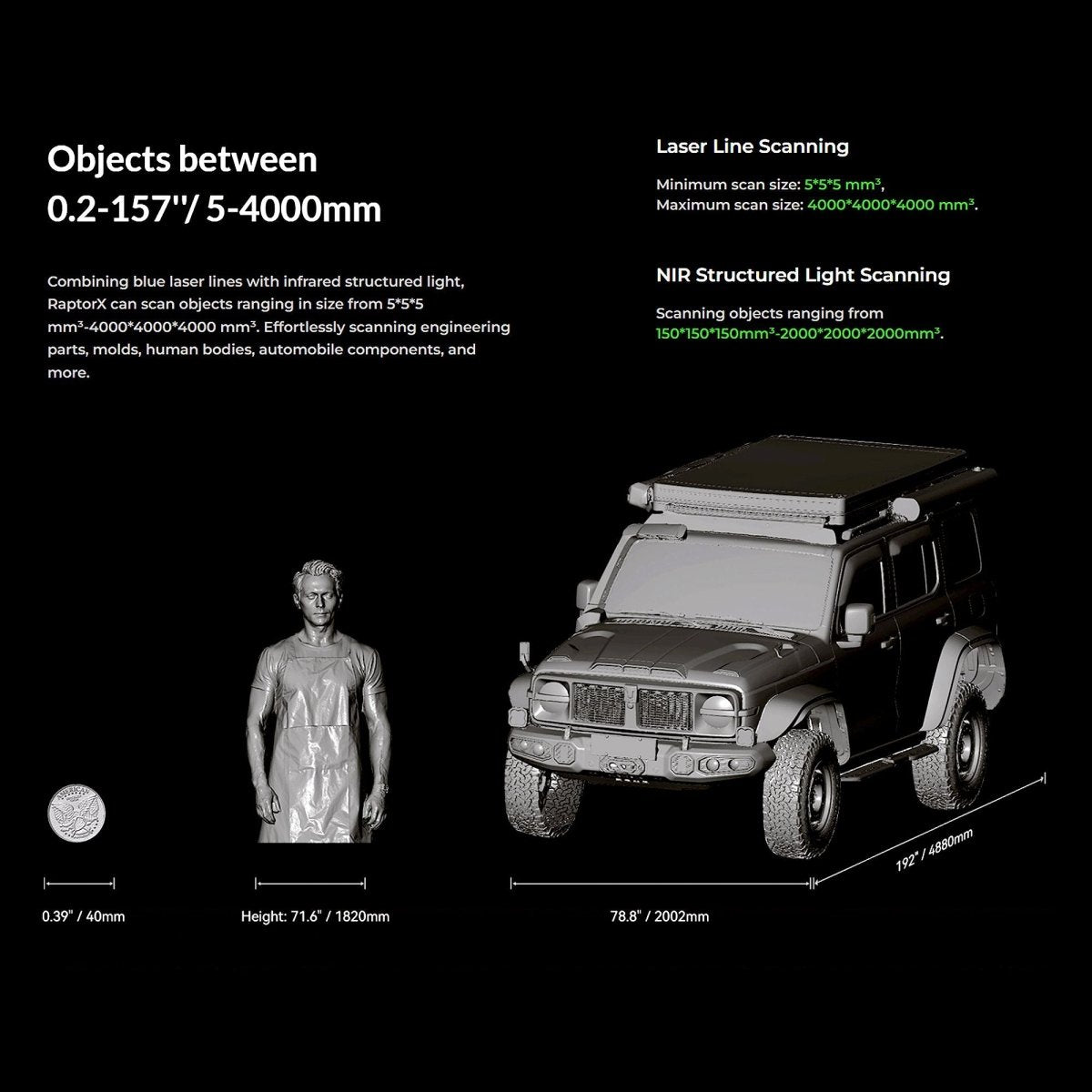

Objects between 0.2-157''/ 5-4000mm
Combining blue laser lines with infrared structured light, RaptorX can scan objects ranging in size from 5*5*5mm³–4000*4000*4000 mm³. Effortlessly scanning engineering parts, molds, human bodies, automobile components, and more.
Laser Line Scanning
Minimum scan size: 5*5*5 mm³,
Maximum scan size: 4000*4000*4000 mm³.
Maximum scan size: 4000*4000*4000 mm³.
NIR Structured Light Scanning
Scanning objects ranging from 150*150*150mm³–2000*2000*2000mm³.
Wider Applications, Better Performance
Outdoor Scanning
Blue laser with strong environmental resistance, delivers outstanding performance even in outdoor environments.
7-line laser ≤50,000 lux
34 cross lines ≤100,000 lux
7-line laser ≤50,000 lux
34 cross lines ≤100,000 lux
Scan without Sprays
With strong material adaptability, you can scan black/metal objects without sprays.
Anti-shake
Equipped with One-Shot 3D imaging technology, RaptorX is naturally stabilized and less likely to tracking loss. Fast backtracking speed ensures smoother handheld scanning.
Peaceful Scanning with LED Lights
Blue light provides supplementary light for laser line scanning.
White light is used to enhance the brightness of color textures.
White light is used to enhance the brightness of color textures.

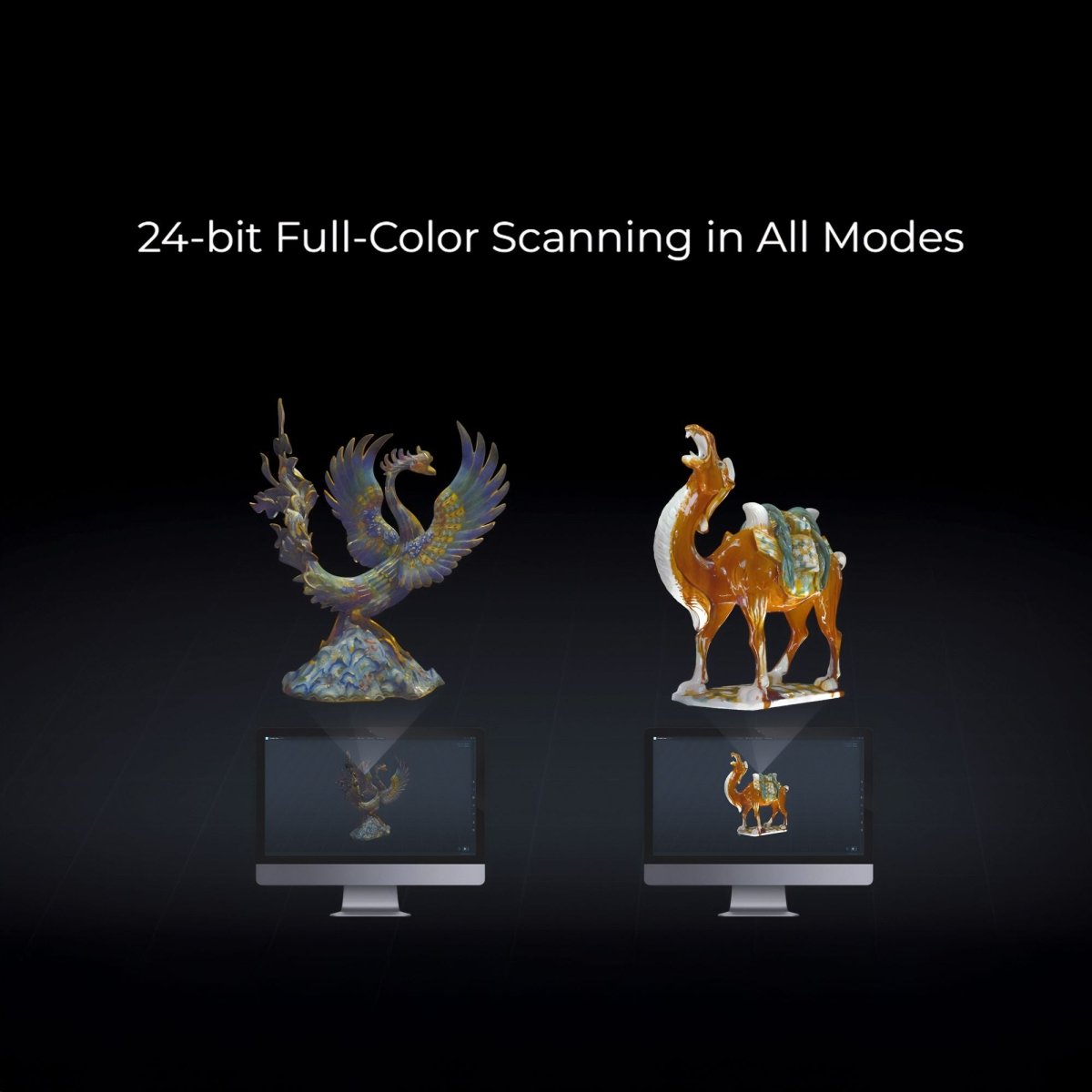

24-bit Full-Color Scanning in All Modes
Lightweight and Portable, Weighs only 405g
Ring indicator light
Paired with buttons, getting straight forward operation
Anti-slip sleeve and detachable lanyard

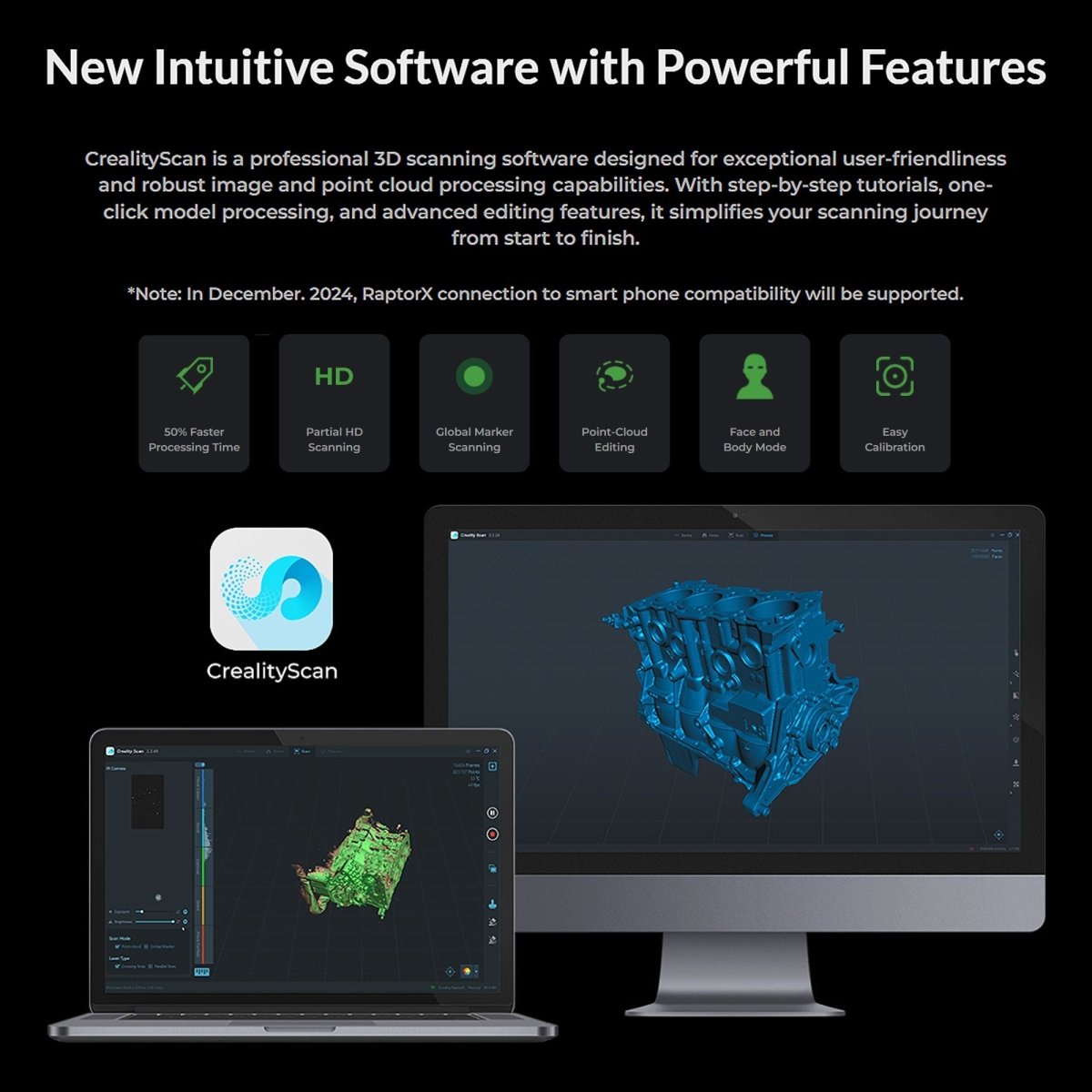

New Intuitive Software with Powerful Features
CrealityScan is a professional 3D scanning software designed for exceptional user-friendliness and robust image and point cloud processing capabilities. With step-by-step tutorials, one-click model processing, and advanced editing features, it simplifies your scanning journey from start to finish.
*Note: In December 2024, RaptorX connection to smart phone compatibility will be supported.
*Note: In December 2024, RaptorX connection to smart phone compatibility will be supported.

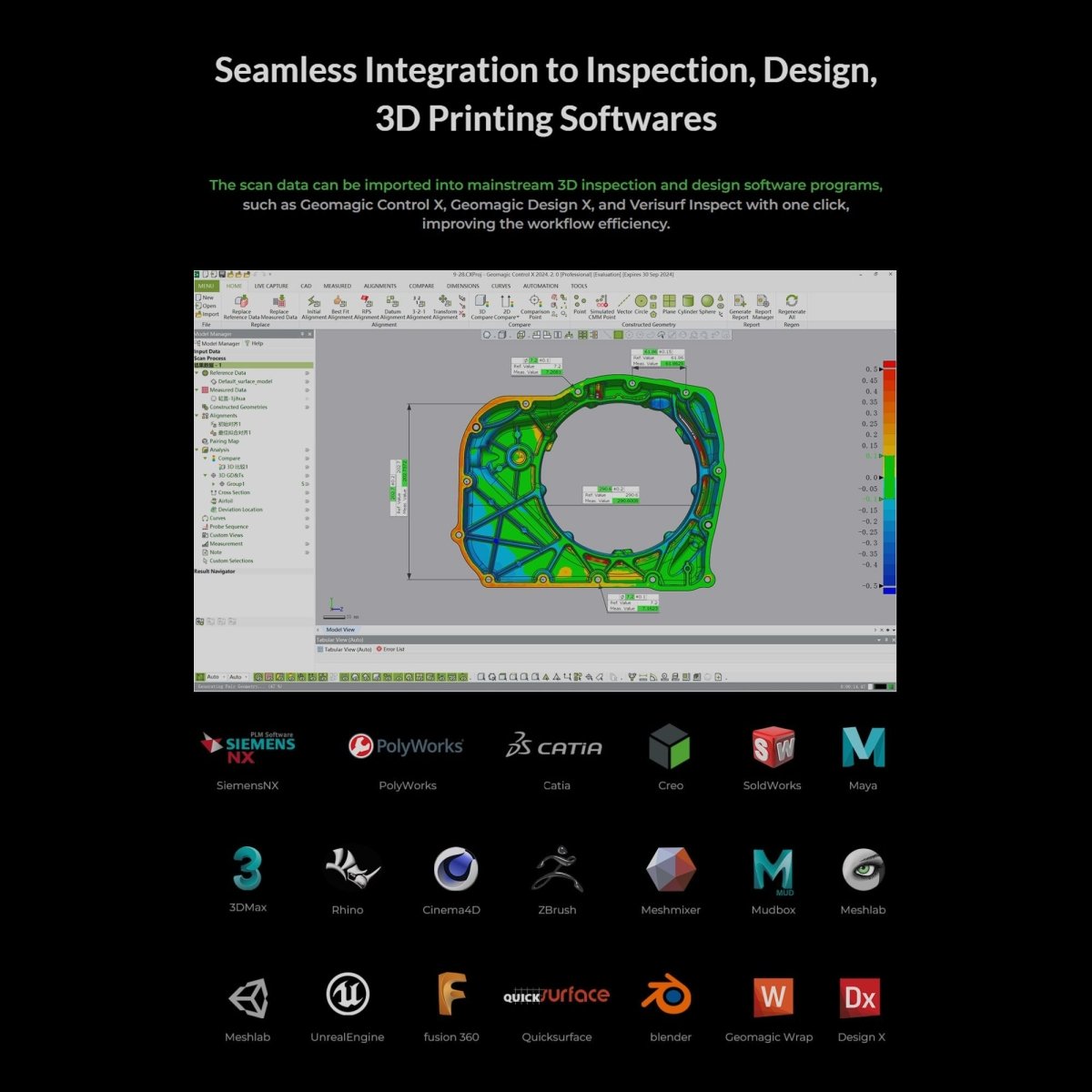

Seamless Integration to Inspection, Design, 3D Printing Softwares
The scan data can be imported into mainstream 3D inspection and design software programs, such as Geomagic Control X, Geomagic Design X, and Verisurf Inspect with one click, improving the workflow efficiency.
Geomagic Control X
Creality Print

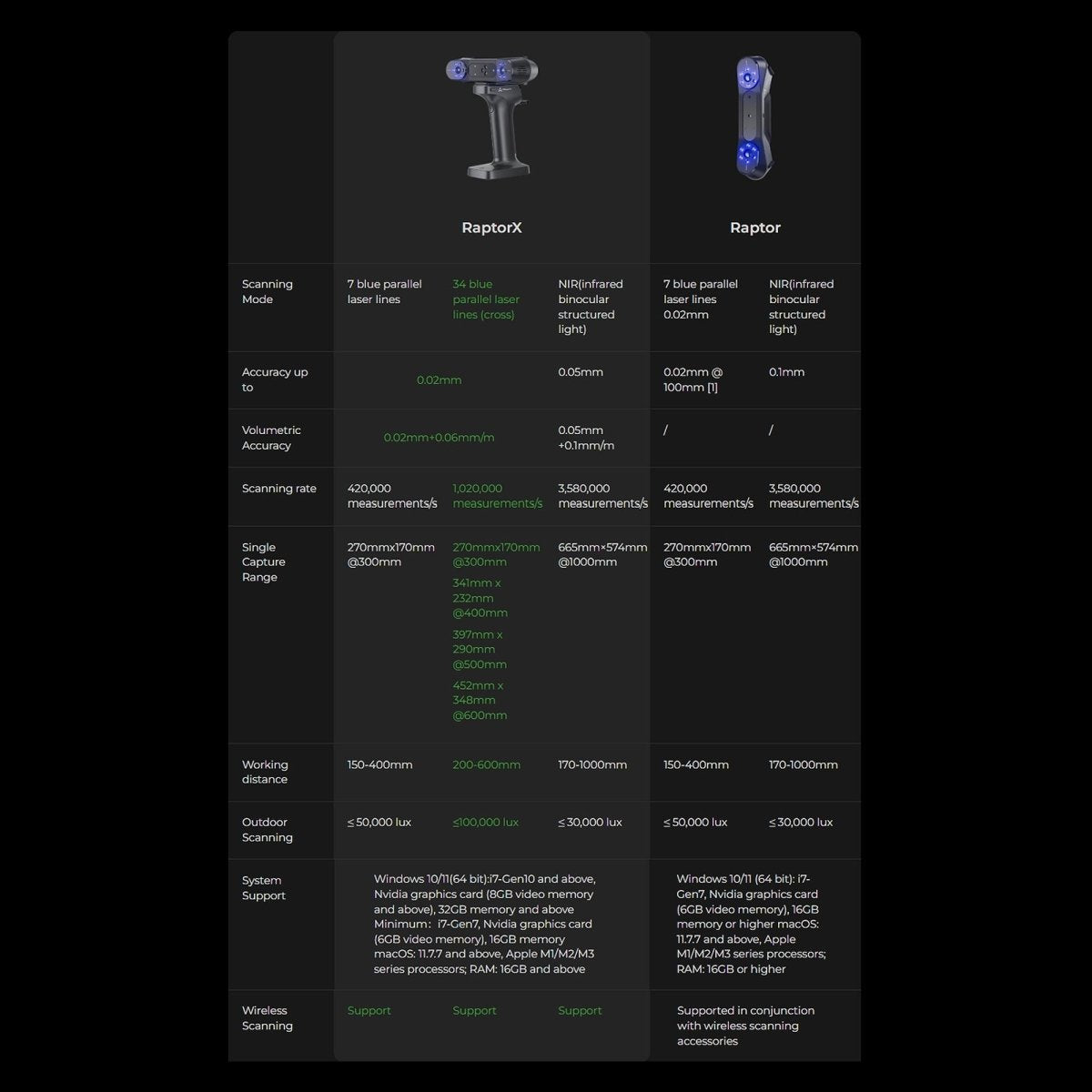

Detailed Technical Specifications
| Scanning Modes: | 34 cross blue laser lines, 7 parallel blue laser lines, NIR binocular structured light |
| Accuracy: | Blue laser up to 0.02mm; NIR up to 0.05mm; Volumetric 0.02mm + 0.06mm/m (blue) / 0.05mm + 0.1mm/m (NIR) |
| Scanning Speed: | 1,020,000 measurements/s (blue laser), 3,580,000 measurements/s (NIR); Frame rates 60fps (laser) / 30fps (NIR) |
| Scan Volume: | Min 5 x 5 x 5mm; Max 4000 x 4000 x 4000mm; NIR range 150 x 150 x 150mm to 2000 x 2000 x 2000mm |
| Working Distance: | Blue laser 150–400mm (single capture e.g., 270 x 170mm @300mm); NIR 170–1000mm (up to 665 x 574mm @1000mm) |
| Light Sources: | Blue laser lines + NIR structured light + 12 white LEDs + 12 blue LEDs for texture enhancement |
| Battery & Power: | 35,400mWh (airplane-safe), up to 4h runtime, 80% charge in 1.5h; 12V/2A adapter |
| Connectivity: | Wireless Wi-Fi 6 AX6000 + USB-C (wired fallback) |
| Weight & Dimensions: | 405g; Approx. 215 x 50 x 74mm |
| Other: | IMU stabilization, low-distortion 9-element glass lens, φ20mm large DoF, operating temp -10°C to 40°C |
