Revopoint Metrohub Trackit Robotic Automated 3D Scanning System – Marker-Free High-Precision Batch Scanning for Industrial Productivity

Transform your quality control, inspection, and reverse engineering workflows with the Revopoint Metrohub Trackit, the advanced robotic automated 3D scanning system that combines the powerful Trackit marker-free optical tracking 3D scanner with a collaborative 6-axis robot. This fully automated solution eliminates repetitive manual scanning, delivering consistent, metrology-grade results for batch processing of parts in labs, production lines, and manufacturing environments.

Designed for high-volume operations, the Metrohub enables automated batch 3D scanning and measurement without markers or scanning spray. It handles complex shapes, dark, shiny, reflective, or featureless surfaces with ease — from small intricate components (as small as 10 mm) to large parts up to 6 meters.

Fully Automated, Marker-Free Precision Scanning

Powered by the Trackit’s sophisticated optical tracking system and 30 blue cross-line lasers (plus single blue laser mode for deep holes, gear teeth, and recessed areas), the Metrohub delivers:

• Single-frame accuracy: Up to 0.02 mm
• Volumetric accuracy: 0.02 mm + 0.04 mm × L(m)
• Scanning speed: Up to 1,500,000 points per second

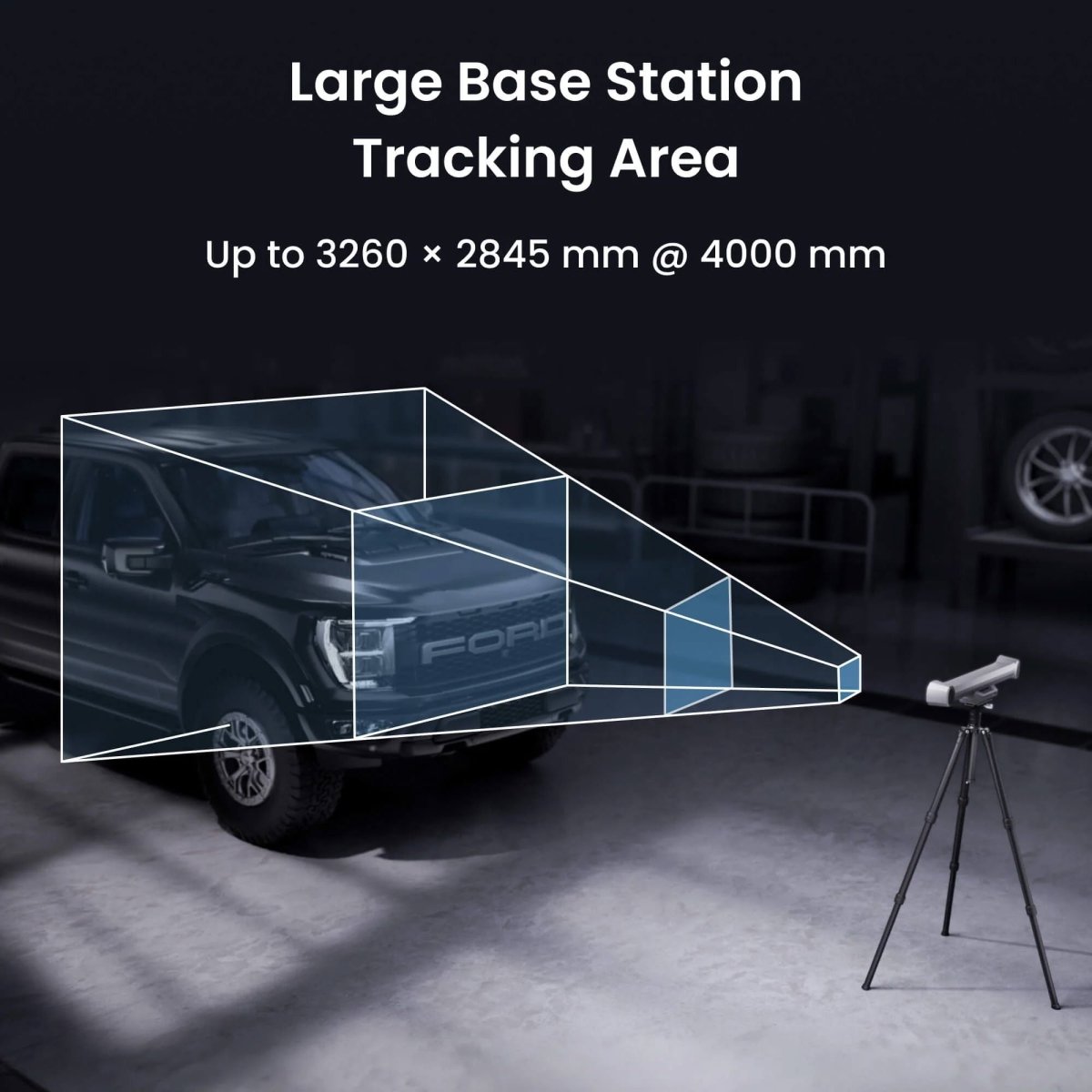

• Tracking volume: 11 m³ with a wide working range

The system features fully automated calibration, drag-to-teach programming, CAD-to-path or vision-to-path options, and ±360° robot movement with up to 919 mm reach (Metrohub 09T model). This allows seamless, repeatable scans of multiple identical or varied parts without manual intervention.

Pair it with an electric large turntable for even greater efficiency on parts up to 0.5 m in diameter. Intelligent temperature monitoring and carbon fiber construction ensure thermal stability and drift-free performance throughout long production runs.

Boost Productivity in Industrial Applications

The Revopoint Metrohub Trackit excels in:

• Automated quality inspection and GD&T measurement
• Batch reverse engineering
• Aerospace and automotive part digitization
• Mold & die verification
• Cultural heritage or high-volume manufacturing

Use the free Revo Track software for scanning, point cloud processing, meshing, and editing, or integrate Revo Measure for professional 3D measurement and comparison. The system supports easy robot programming and outputs industry-standard formats: PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX — compatible with CAD, CAM, 3D printing, and metrology tools.

Easy Deployment and Reliable Operation

The Metrohub offers plug-and-play robotic integration with minimal setup. Fully automated calibration via dual-axis gimbals eliminates tedious manual adjustments. The complete system includes the Trackit scanner, optical tracker, collaborative robot arm, calibration tools, and robust carrying cases for portability between workstations.

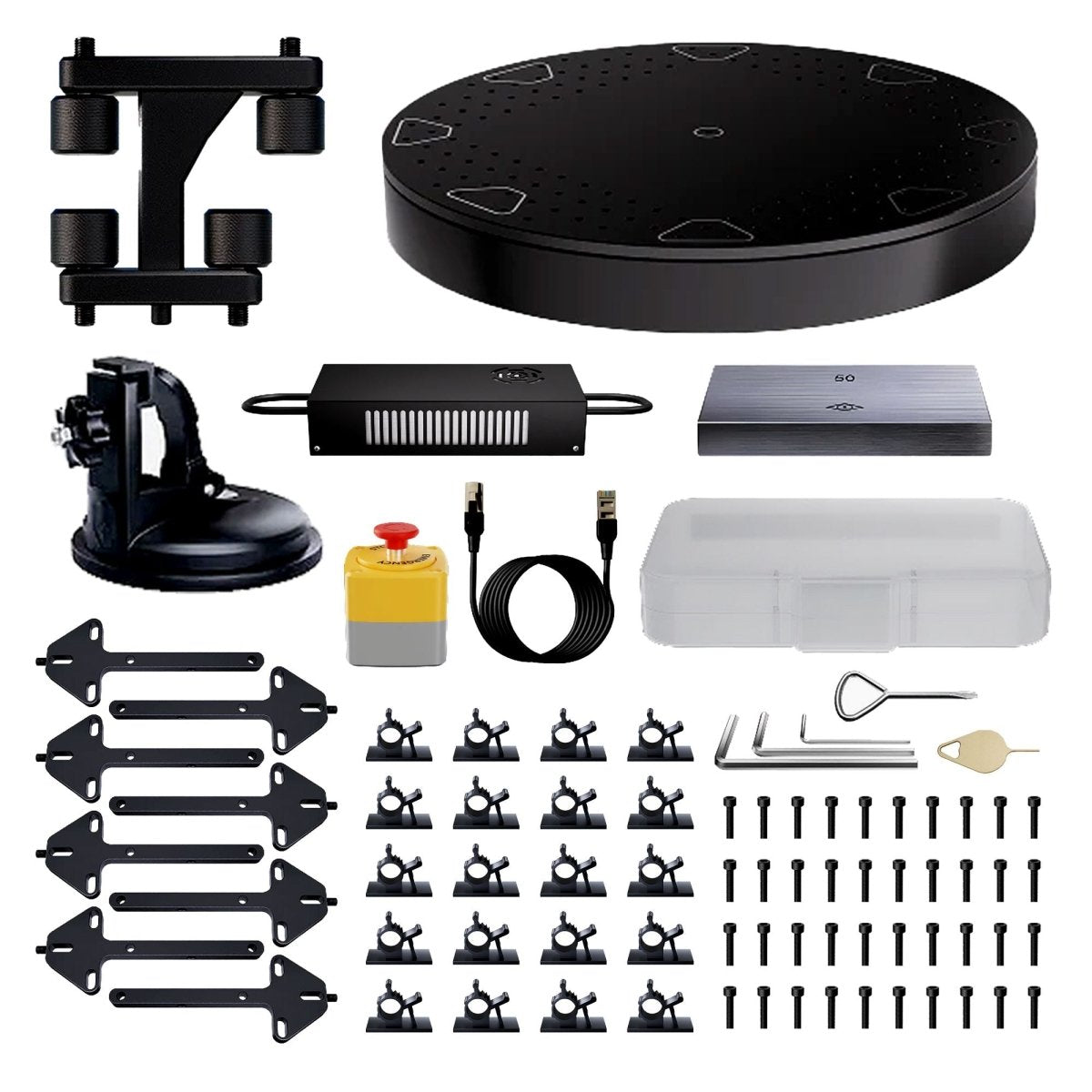

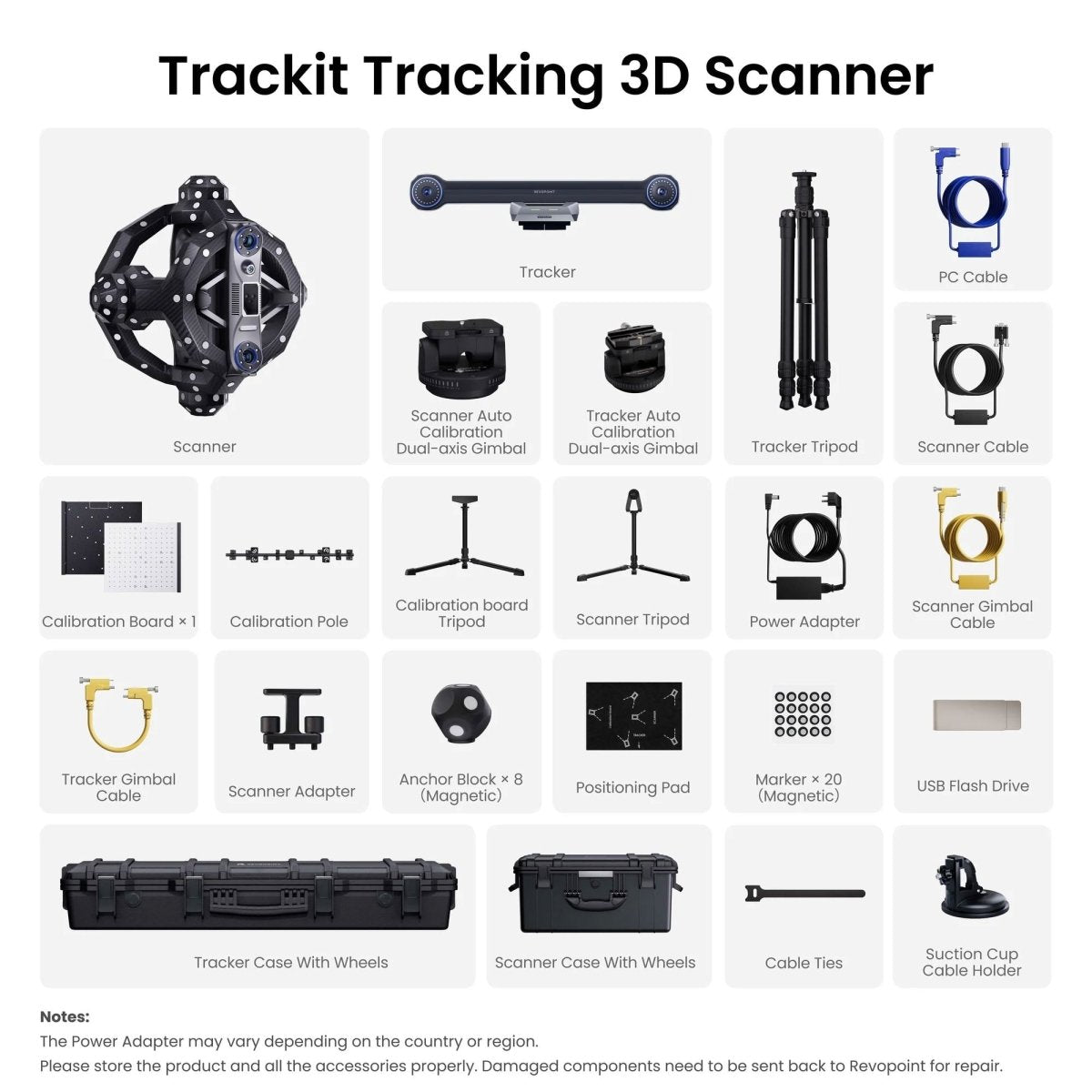

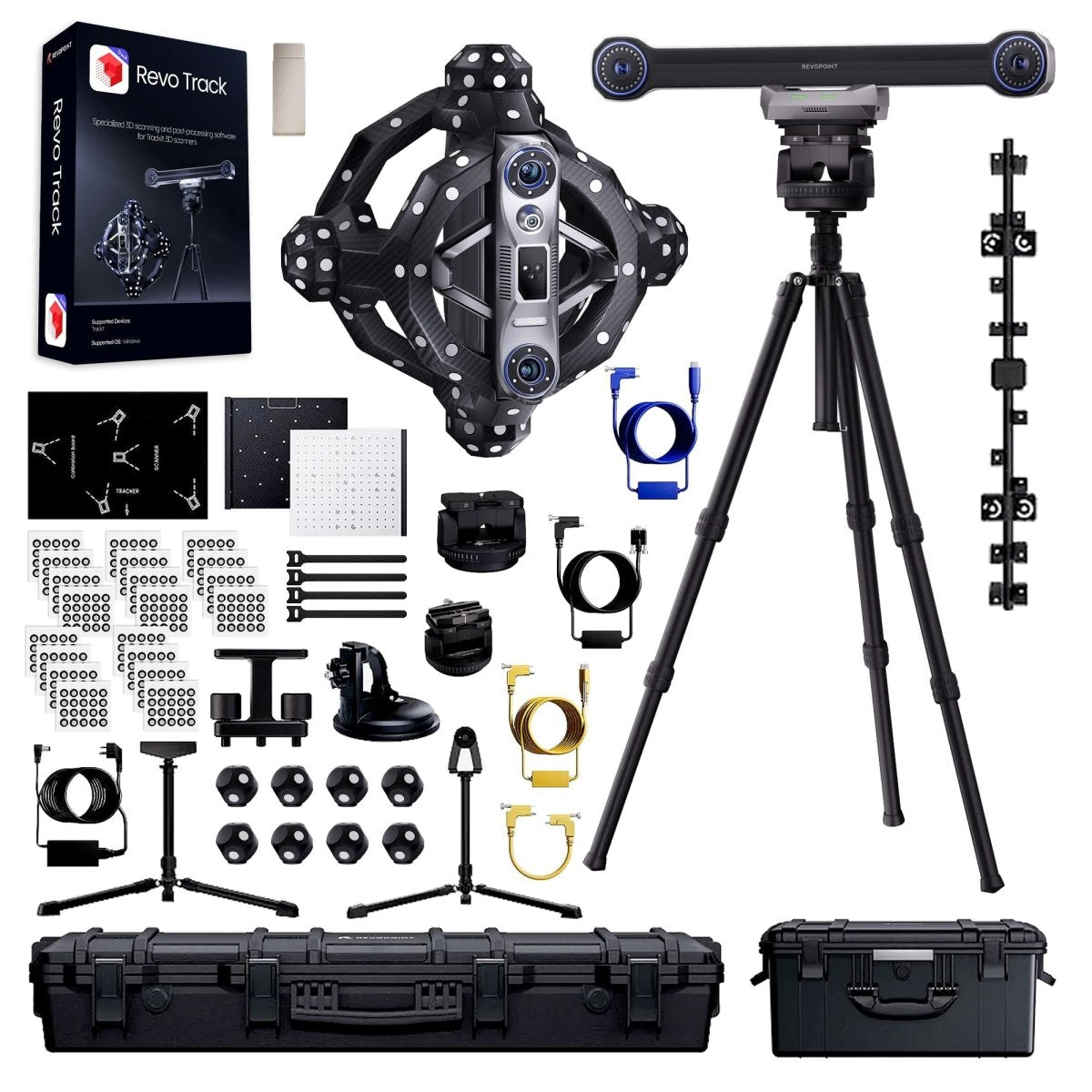

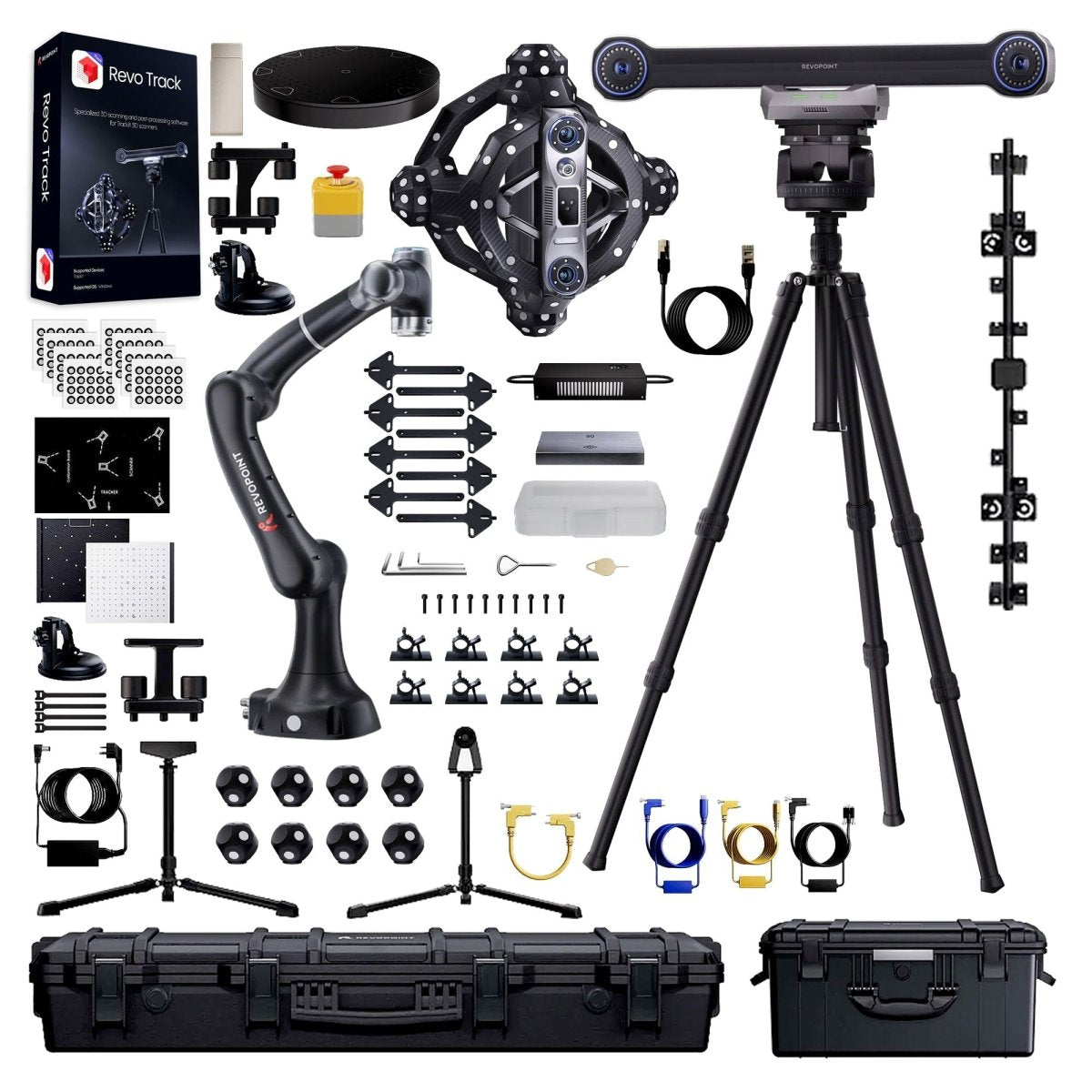

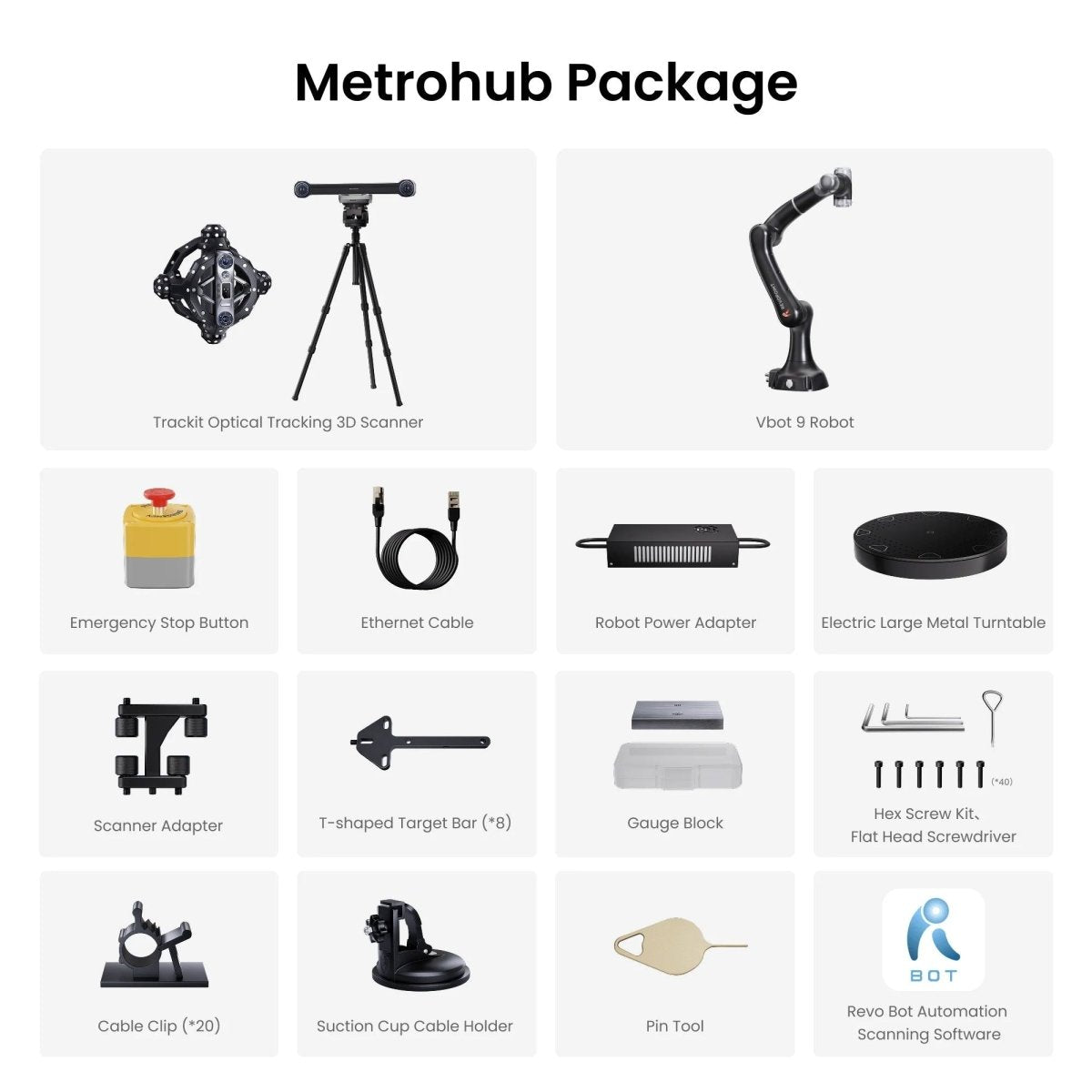

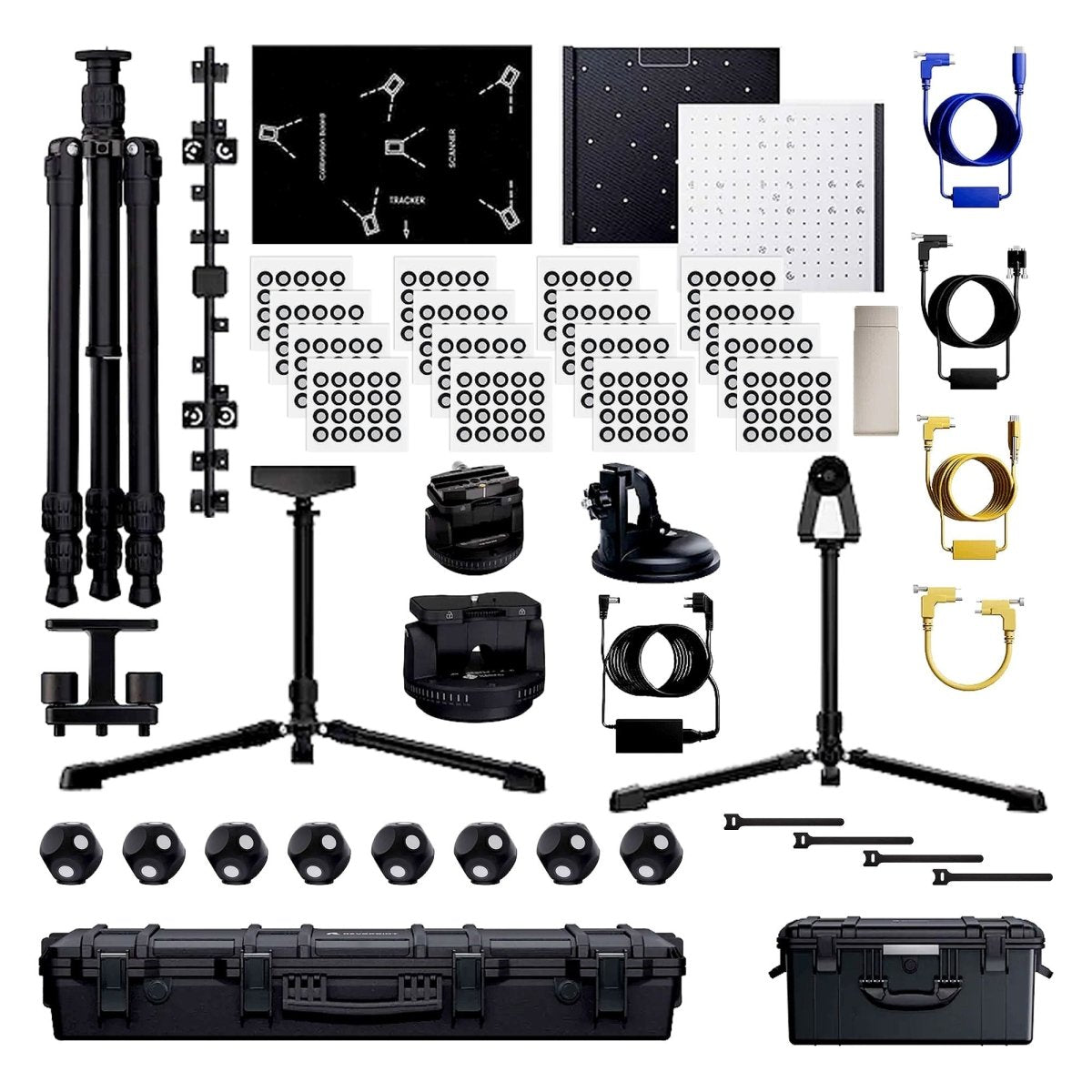

Bundle Includes:

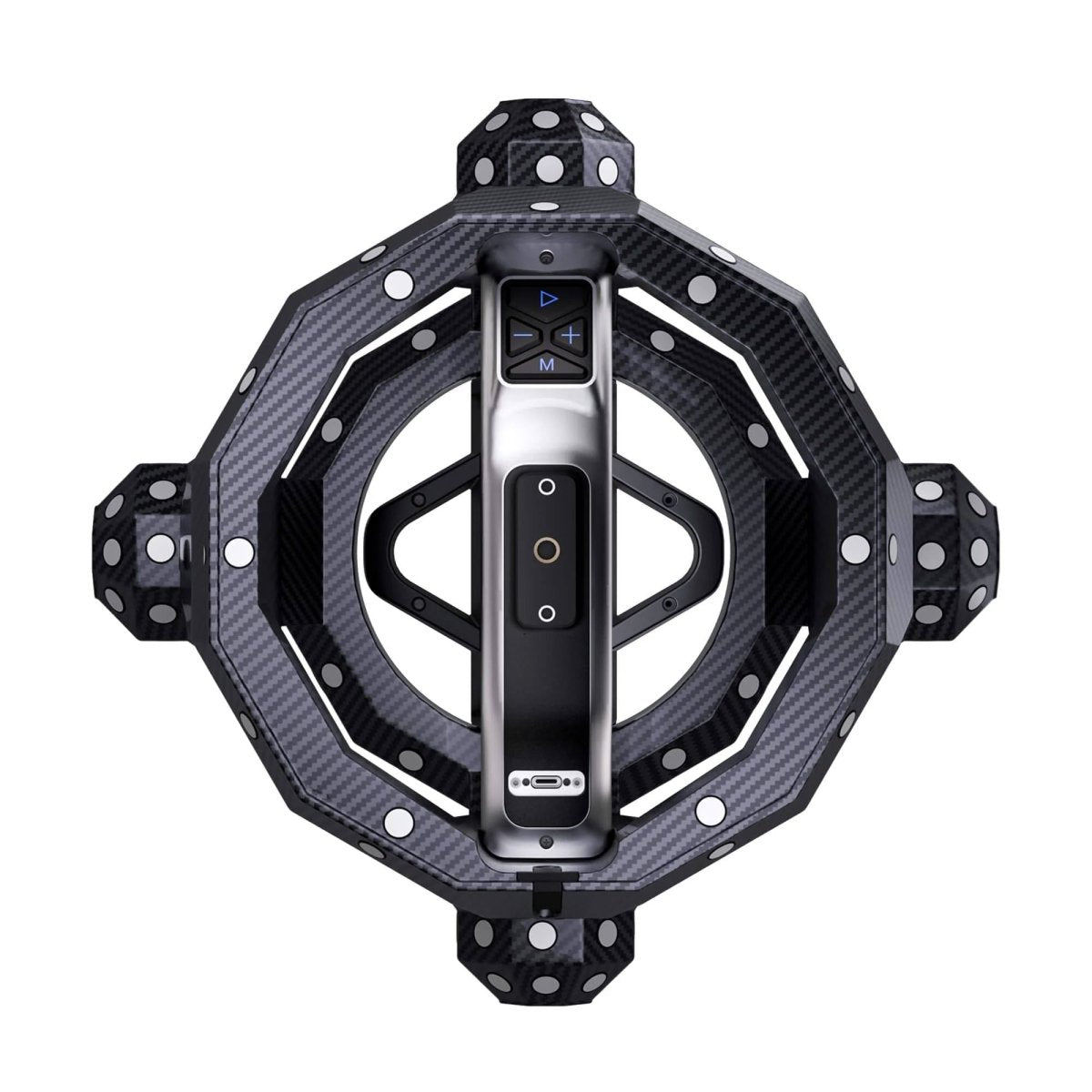

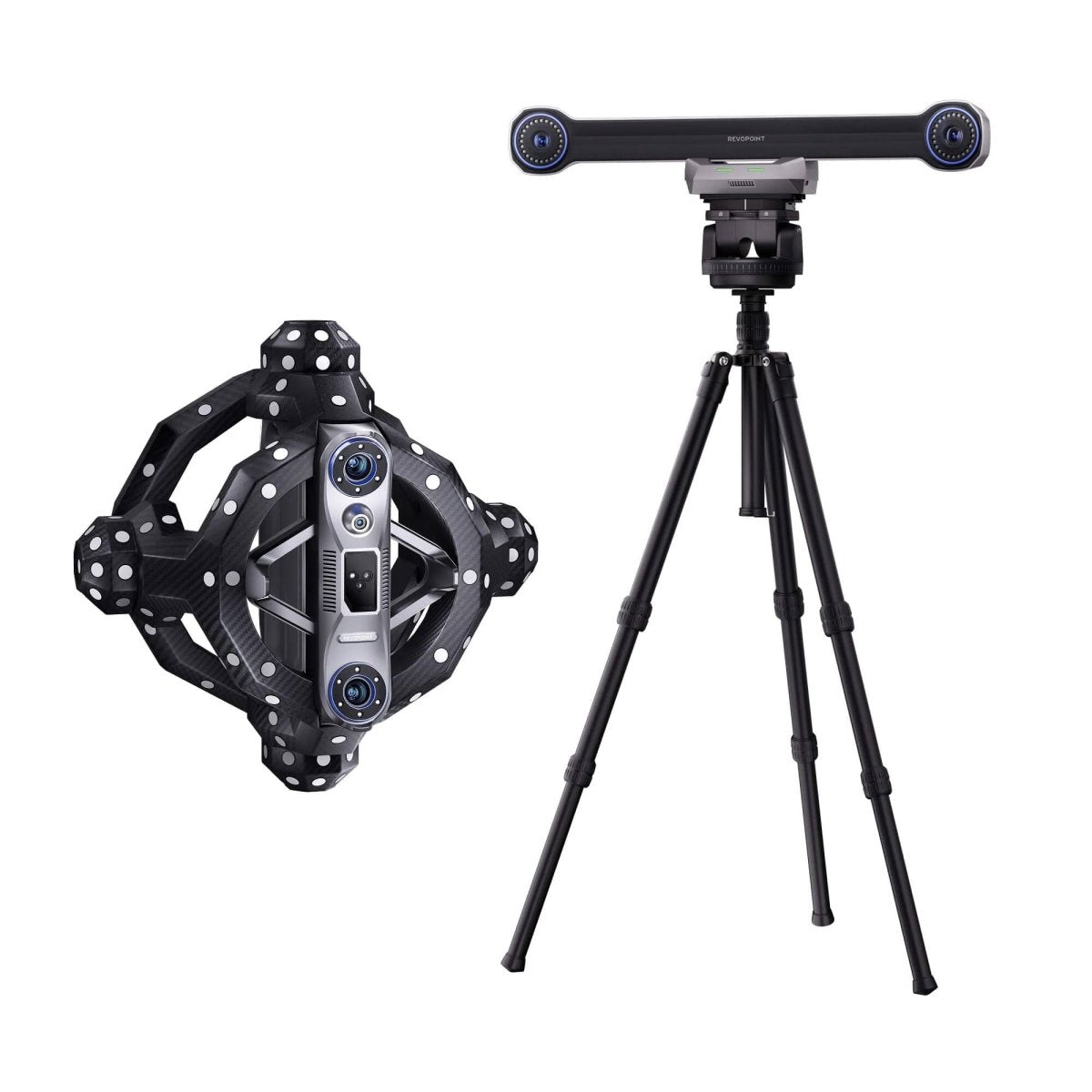

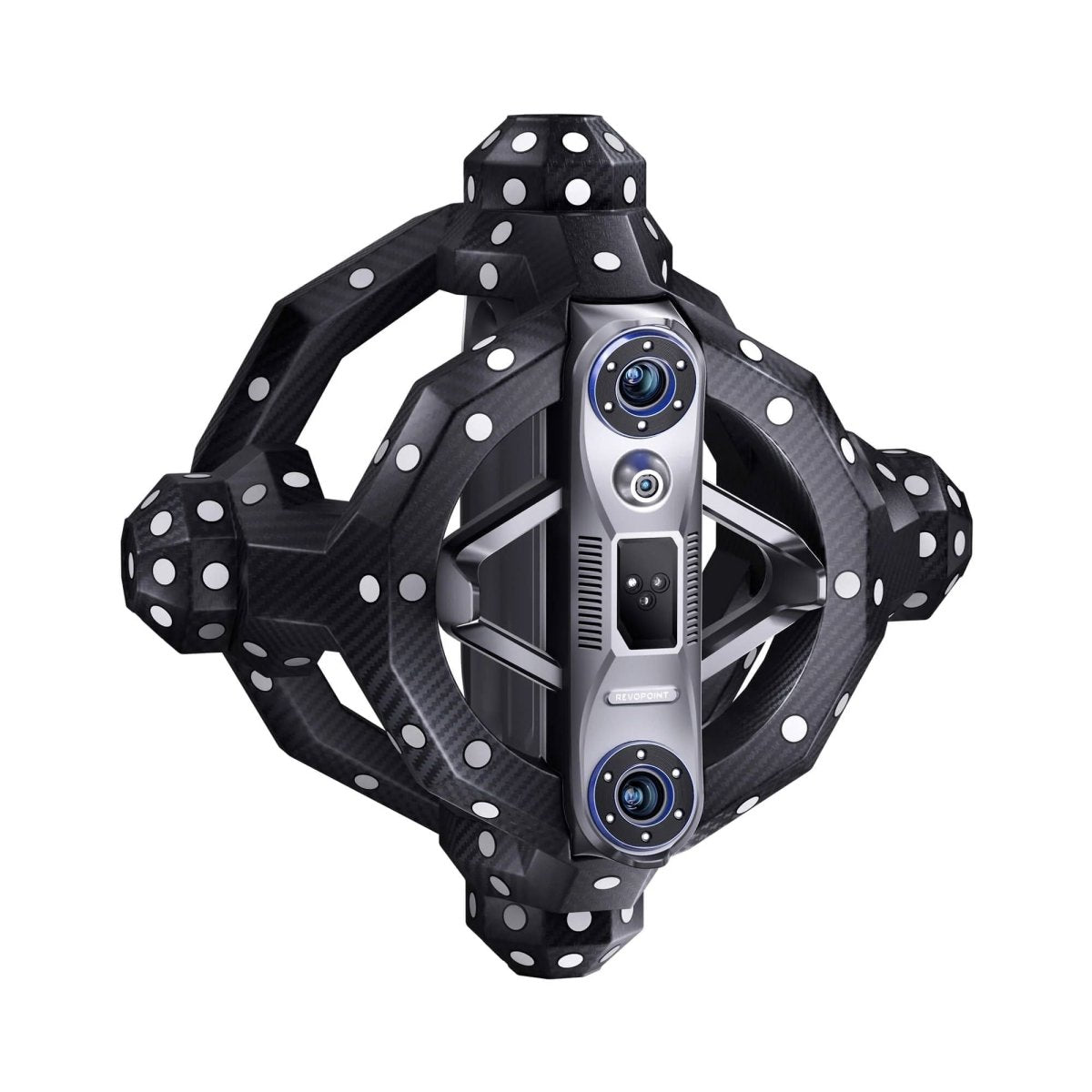

• Trackit Marker Free Handheld Optical 3D Scanner

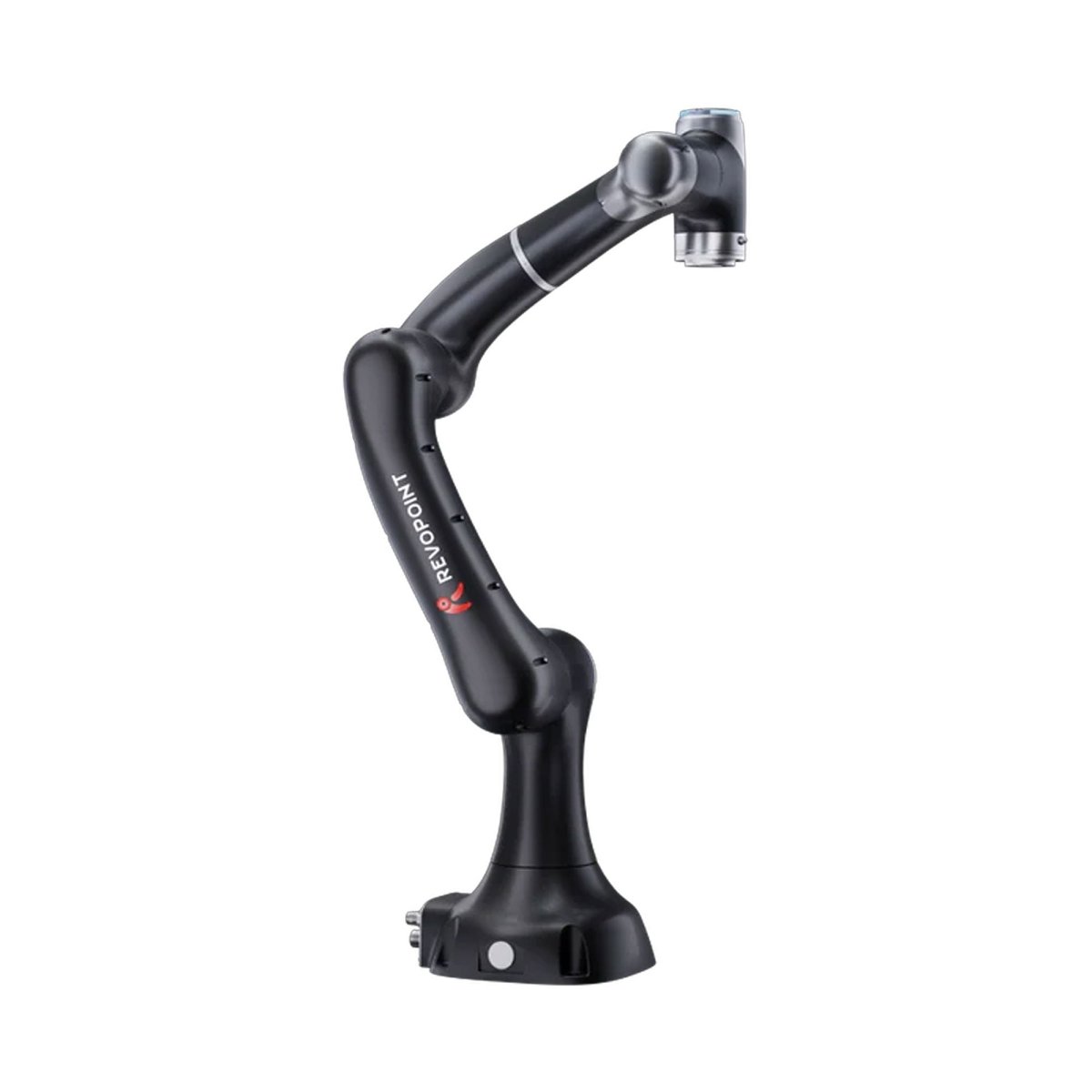

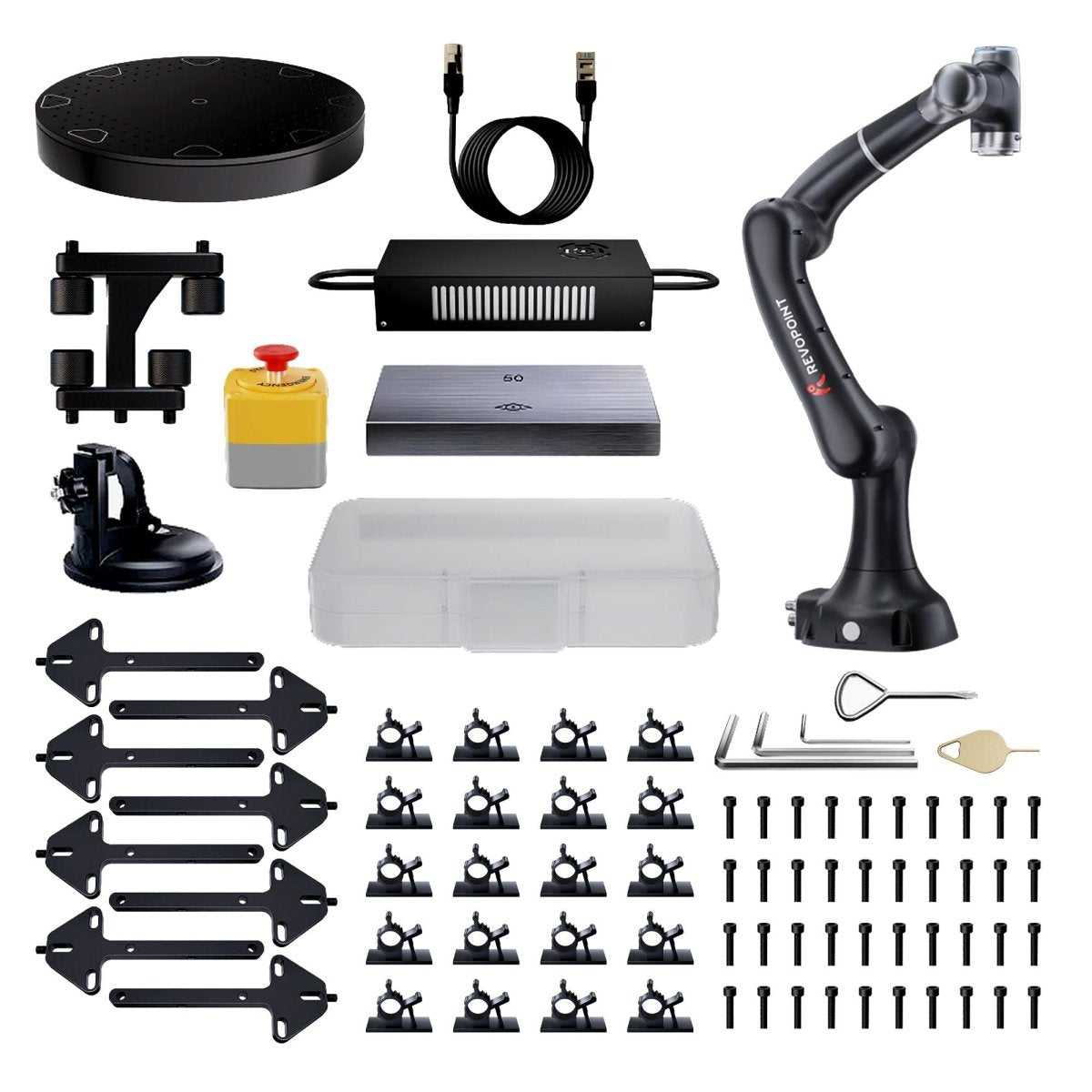

• Vbot 9 Robotic ±360° Movement Arm
• Large Electric Metal Turntable

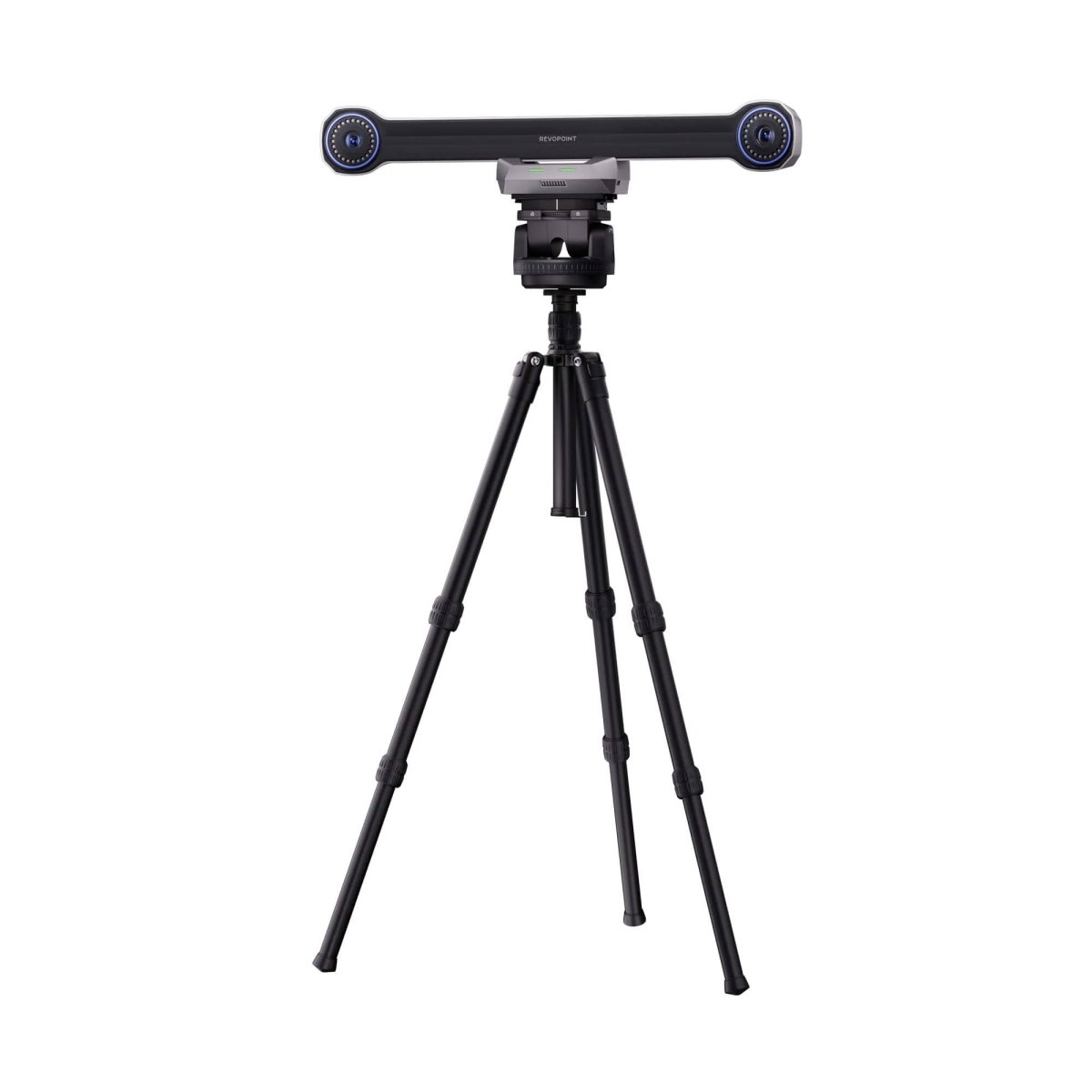

• Tracker System

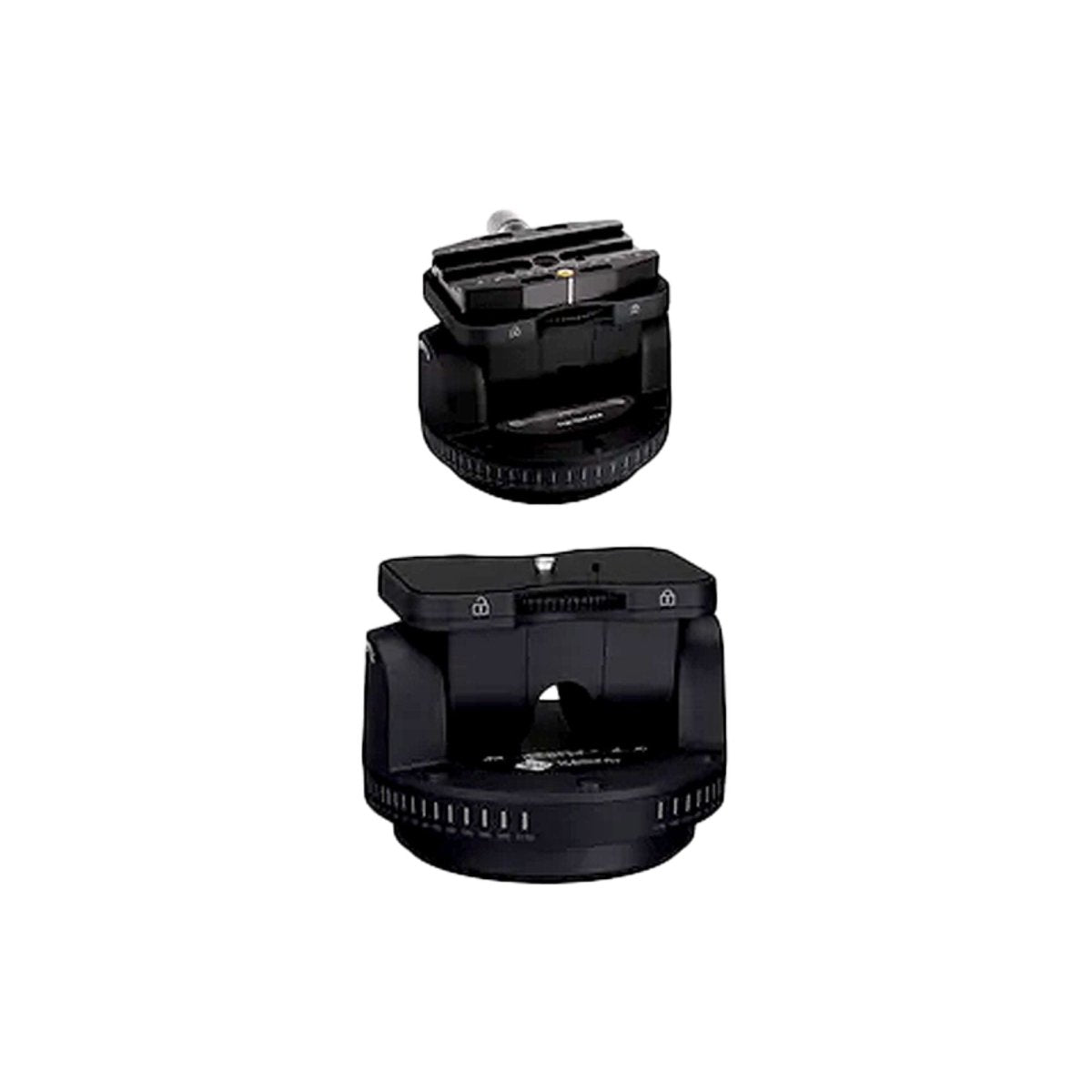

• Auto Calibration Dual Axis Scanner Gimbal
• Auto Calibration Dual Axis Tracker Gimbal

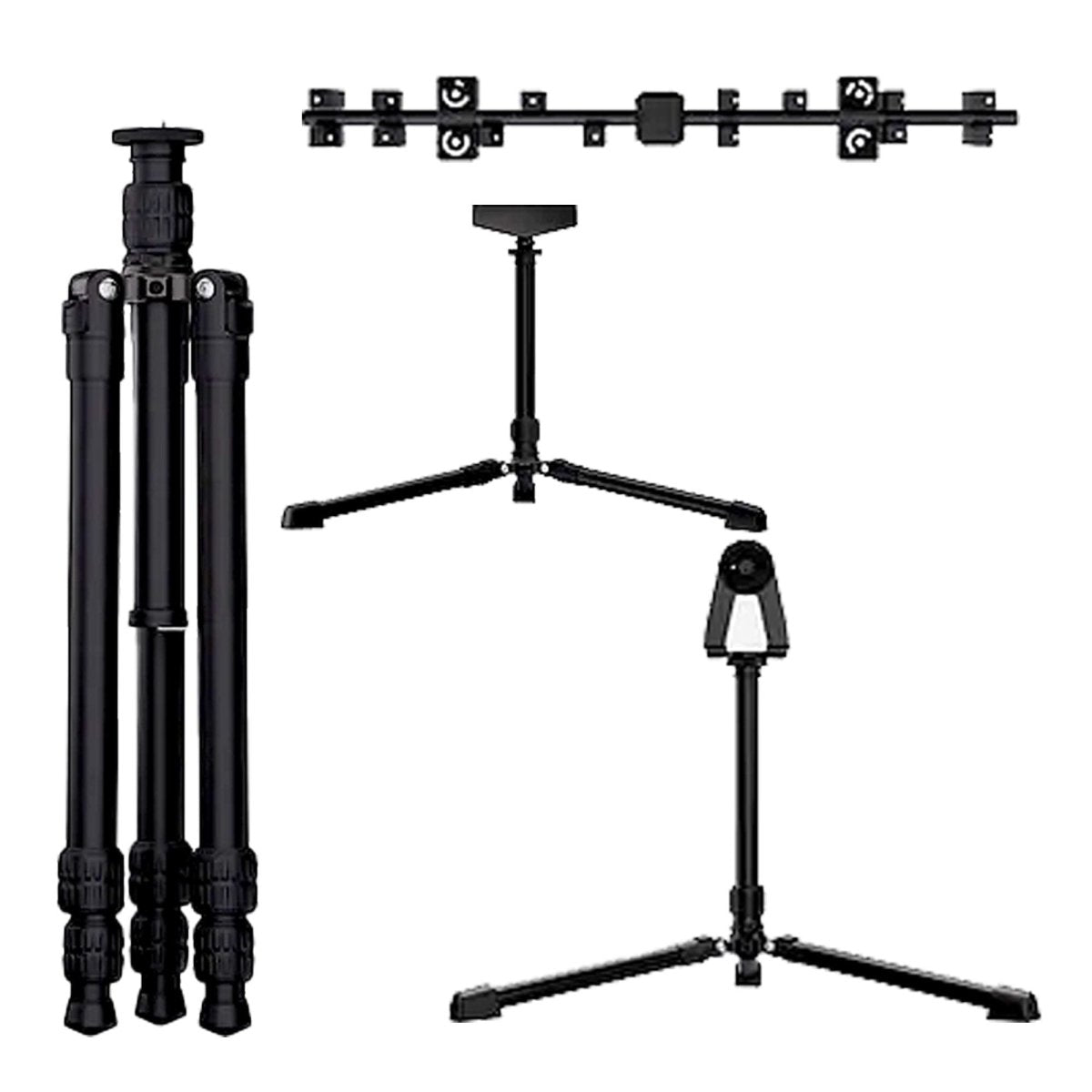

• Tracer Tripod
• Scanner Tripod

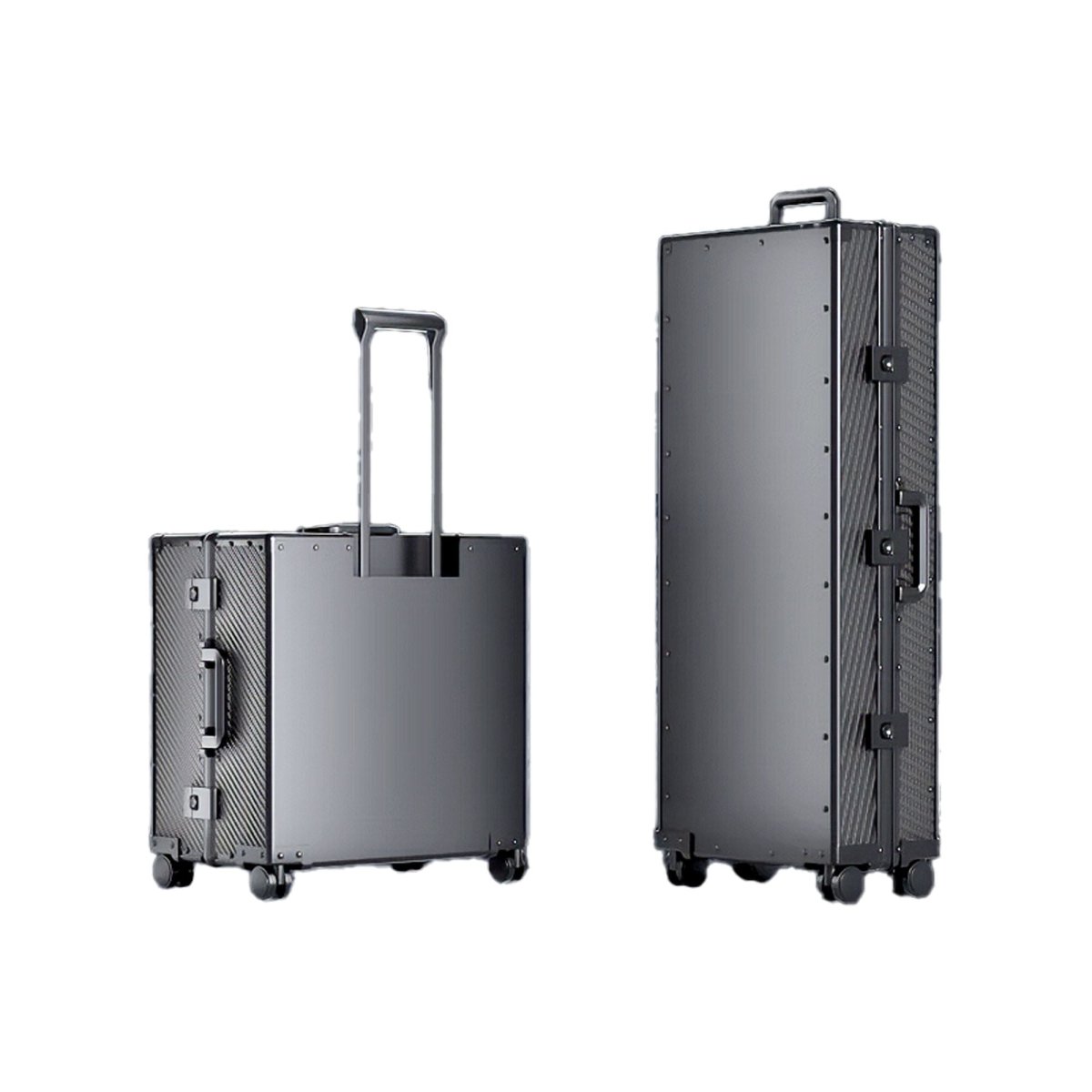

• Tracker Hard Case with Wheels
• Scanner Hard Case with Wheels

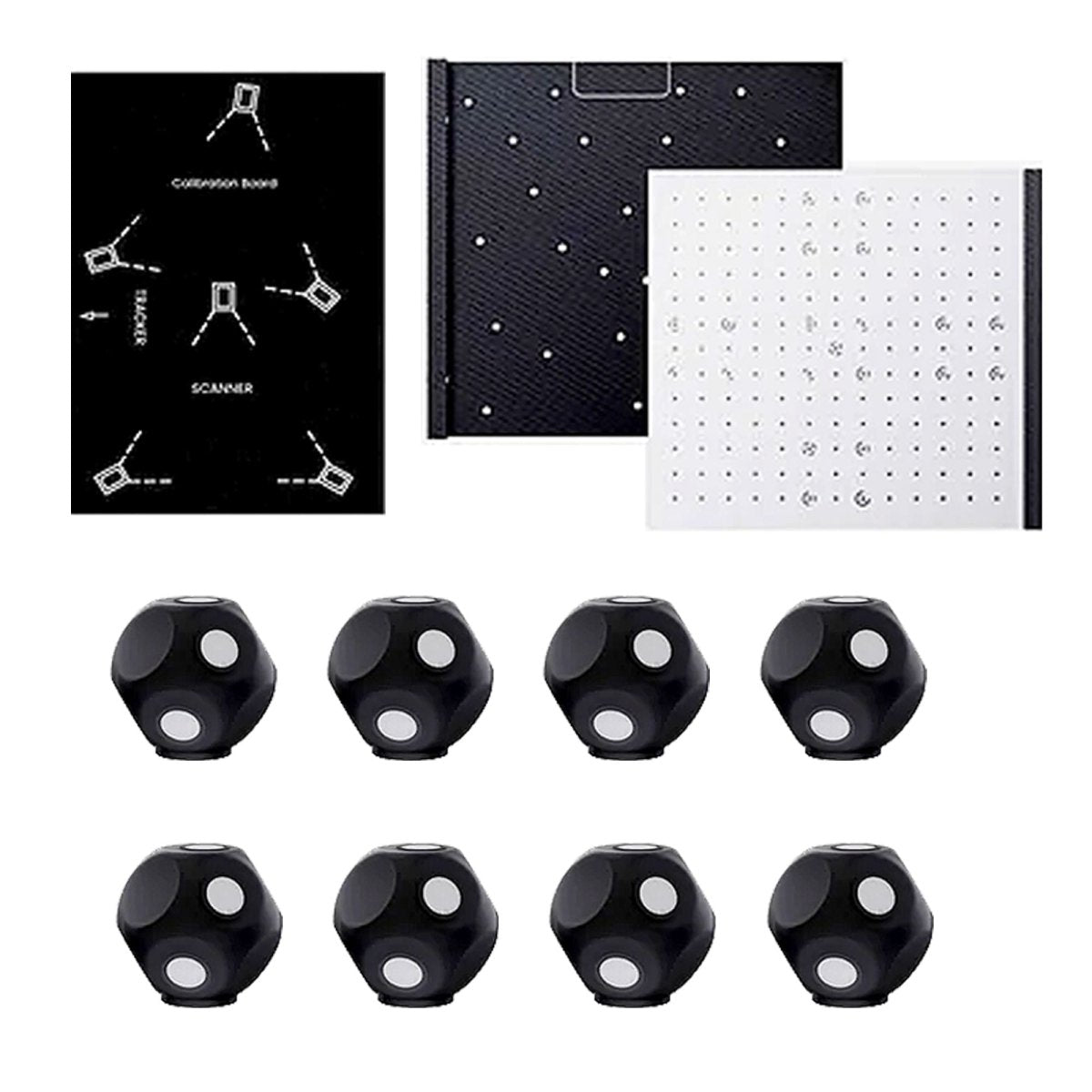

• Calibration Board & Calibration Pole
• Calibration Board Tripod

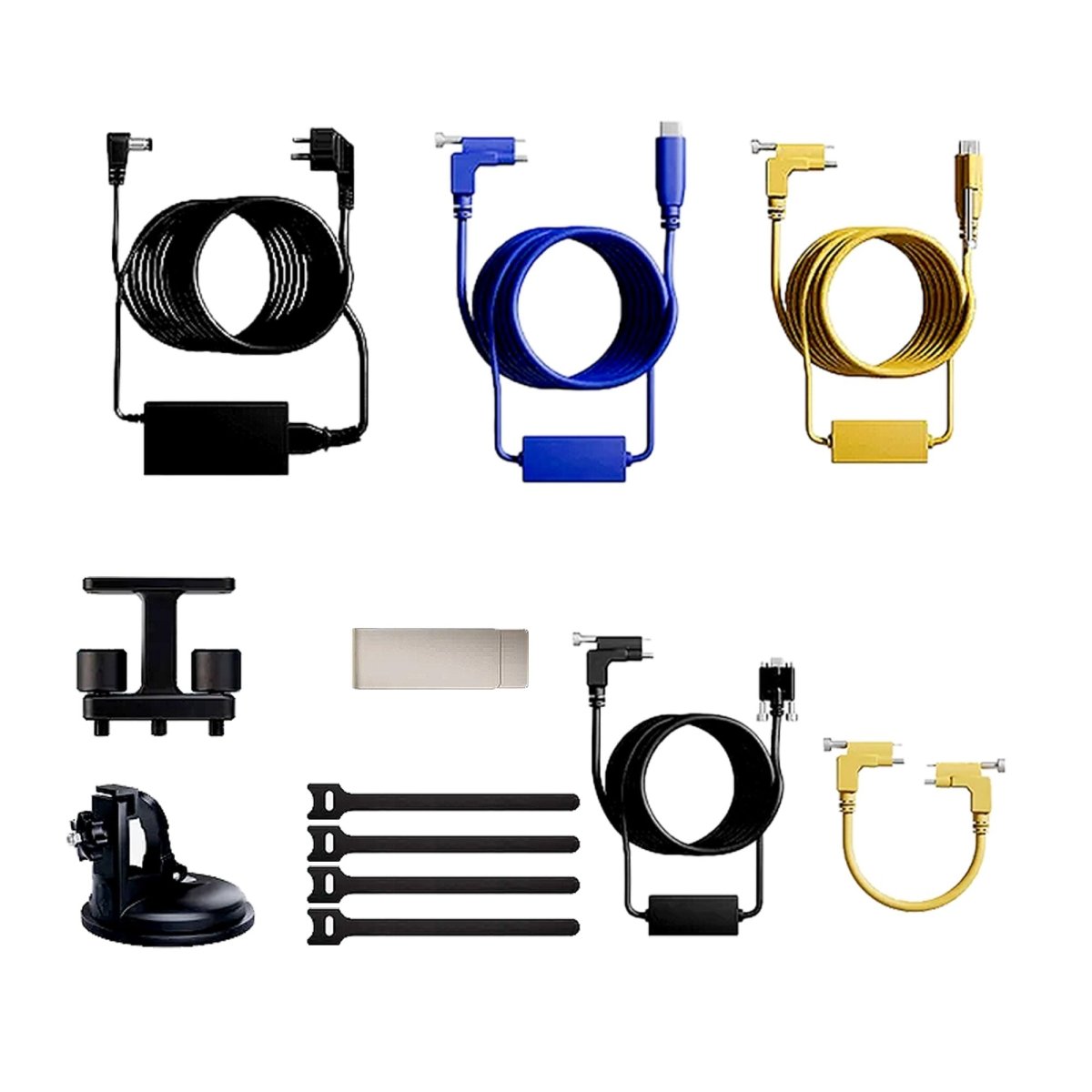

• Power Adapter
• Scanner Gimbal Cable

• Tracker Gimble Cable
• Scanner Adapter
• Anchor Blocks x8
• Positioning Pad
• Magnetic Markers x 20
• Emergency Stop Button
• USB Flash Drive
• Cable Ties
• Suction Cup Cable Holder
• Revo Track 3D Scanning Software Mac & PC

• Revo Bot Automation Scanning Software
• Quick Start Guide
• 2 Year Scanner Warranty / 1 Year Accessory Warranty
• 24/7 Customer Service
• 1-on-1 Free Training

Whether you're scaling production or seeking consistent, error-free 3D data capture, the Revopoint Metrohub Trackit robotic automated 3D scanning system delivers unmatched speed, accuracy, and efficiency — all while maintaining the marker-free convenience of the Trackit platform.
