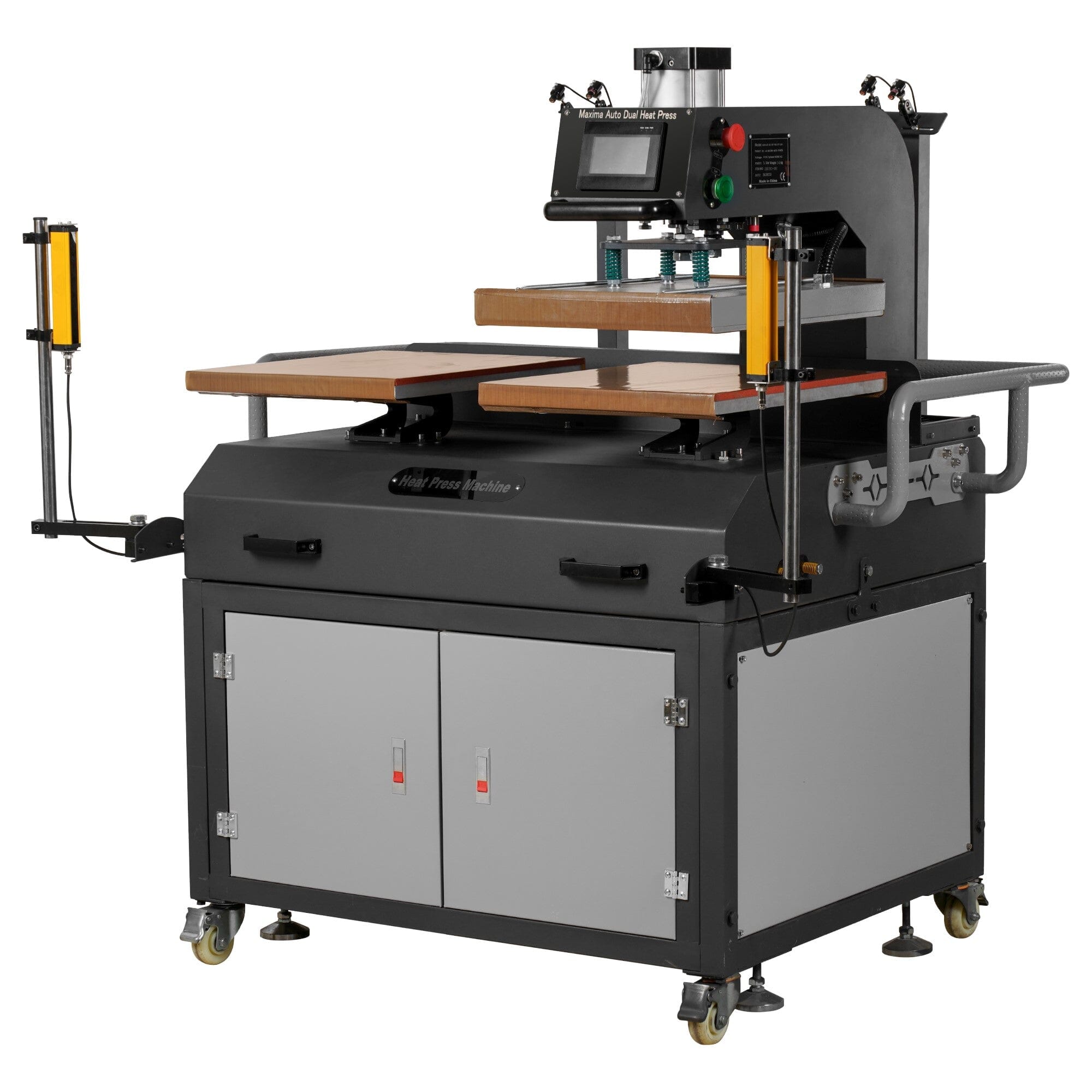

Prestige Maxima Auto Dual Heat Press w/ Air Compressor

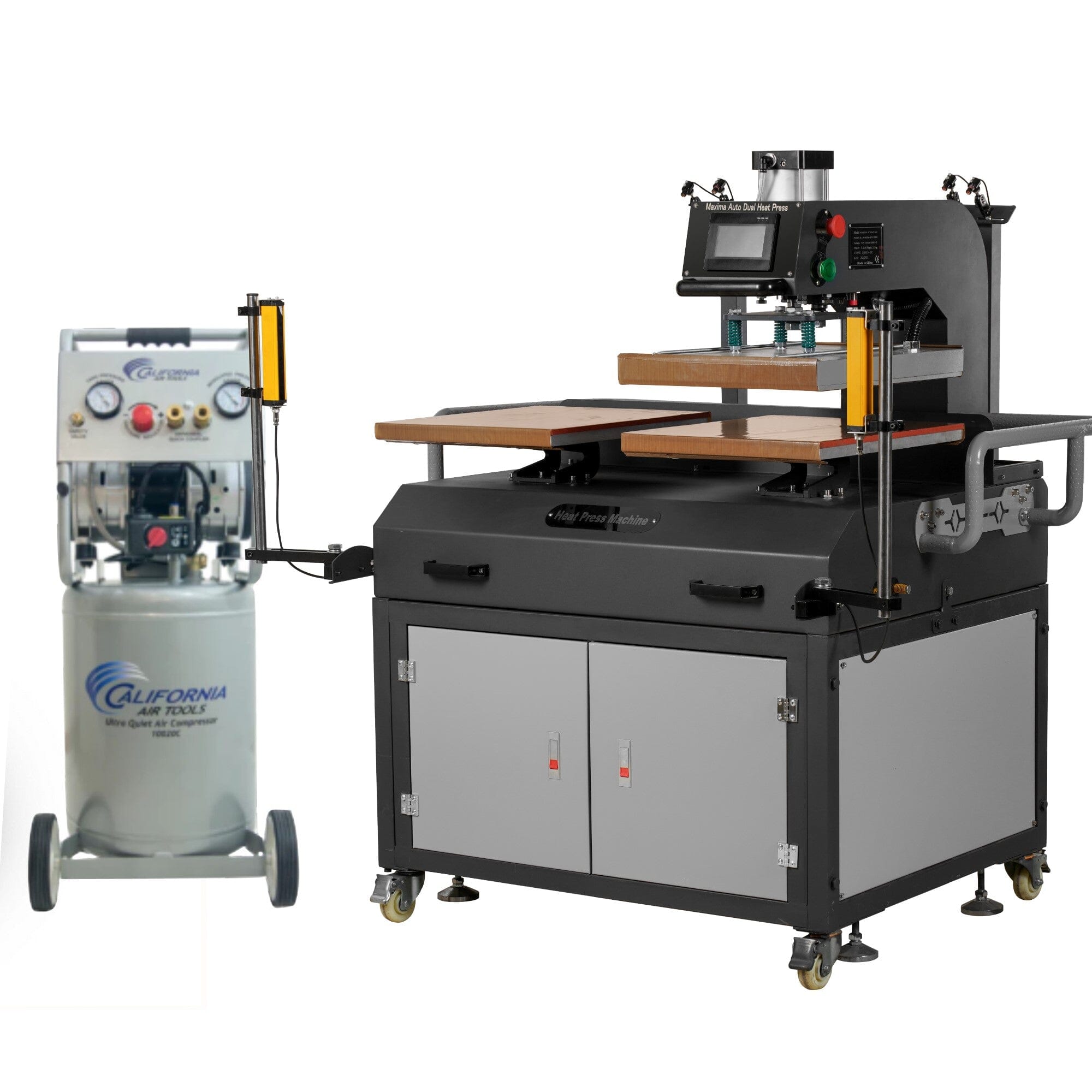

Prestige Maxima Auto Dual Heat Press & California Air Tools 10020C Ultra Quiet & Oil Free Air Compressor

Heat Press Features:

  • High quality transfer element

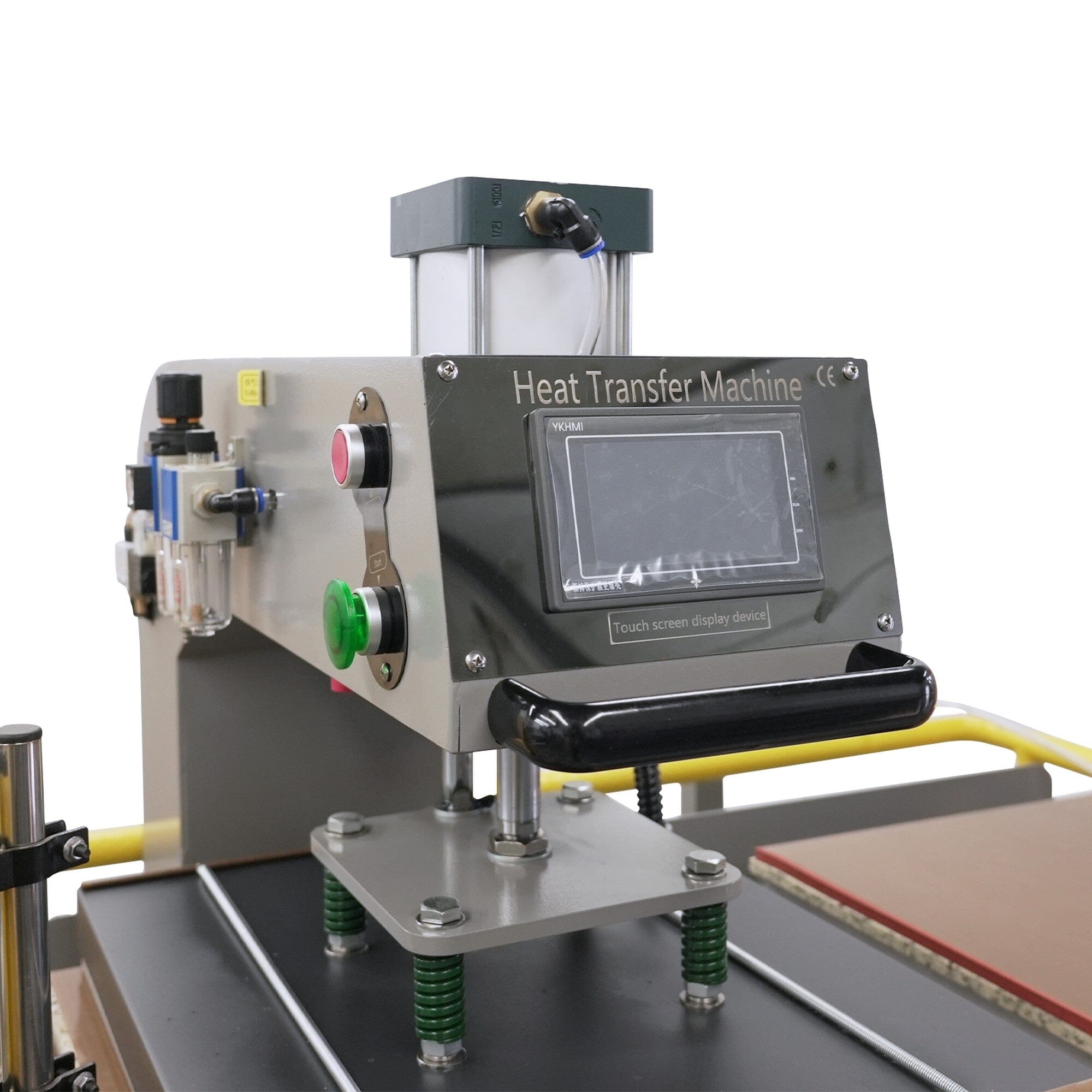

  • Digital PLC controller display with touch screen
  • V-shaped base under the workbench
  • Good build quality
  • Faster, more efficient than single heat press
  • Laser alignment system
  • Safety sensor helps to prevent injury
  • 1 year warranty on all parts
  • 5 year limited warranty on heating elements

Heat Press Specifications:

  • Platen Size (LxW): 16" x 20"
  • Voltage: 110V
  • Power: 3,800W /  15 Amps
  • Requires use of air compressor - may need additional power requirements
  • Temperature range: 0-750°F
  • Recommended heating temperature: 320°F
  • Timing range: 0-999 Seconds
  • Dimensions(LxWxH): 45" x 46.75" x 56.25"
  • Weight: 353 lbs
  • Shipping Weight: 441 lbs

Air Compressor Features:

  • Two pressure control gauges
  • Two - 1/4″ Industrial female quick connectors
  • Easy Start Valve - For Less Starting Amperage
  • Condor Pressure Switch
  • Thermal Overload Protector
  • 125 PSI Maximum Pressure
  • Ultra Quiet - Only 70 decibels
  • Oil-Free Pump – Cleaner air for better tool operation.
  • Less maintenance and Costs

Specifications:

  • 2.0 HP (Rated/Running)
  • 10 Gallon Steel Tank
  • 6.40 CFM @ 40 PSI
  • 5.30 CFM @ 90 PSI
  • 110v / 60 hz
  • Low Amp Draw - 14 Amps
  • Dedicated 15 amp outlet -14 gauge 25ft cord - Min. 5500 Watt Generator
  • Time to fill tank from empty to full - 120 Seconds
  • Recovery time from 95 PSI to 125 PSI - 25 Seconds
  • Duty Cycle - 70/30
  • Maximum continuous running 30-60 min. (Depending PSI & CFM)
  • Less heat which dissipates more efficiently
  • 10 Gal. Steel Air Tank With Wheel Kit - Easy to move around.
  • L (16") x W (15.1") x H (35.9")
  • 82.5 lbs
  • 1 Year Limited Warranty
  • Comes complete with Wheel Kit & Two Air Filters
  • UL Certified
