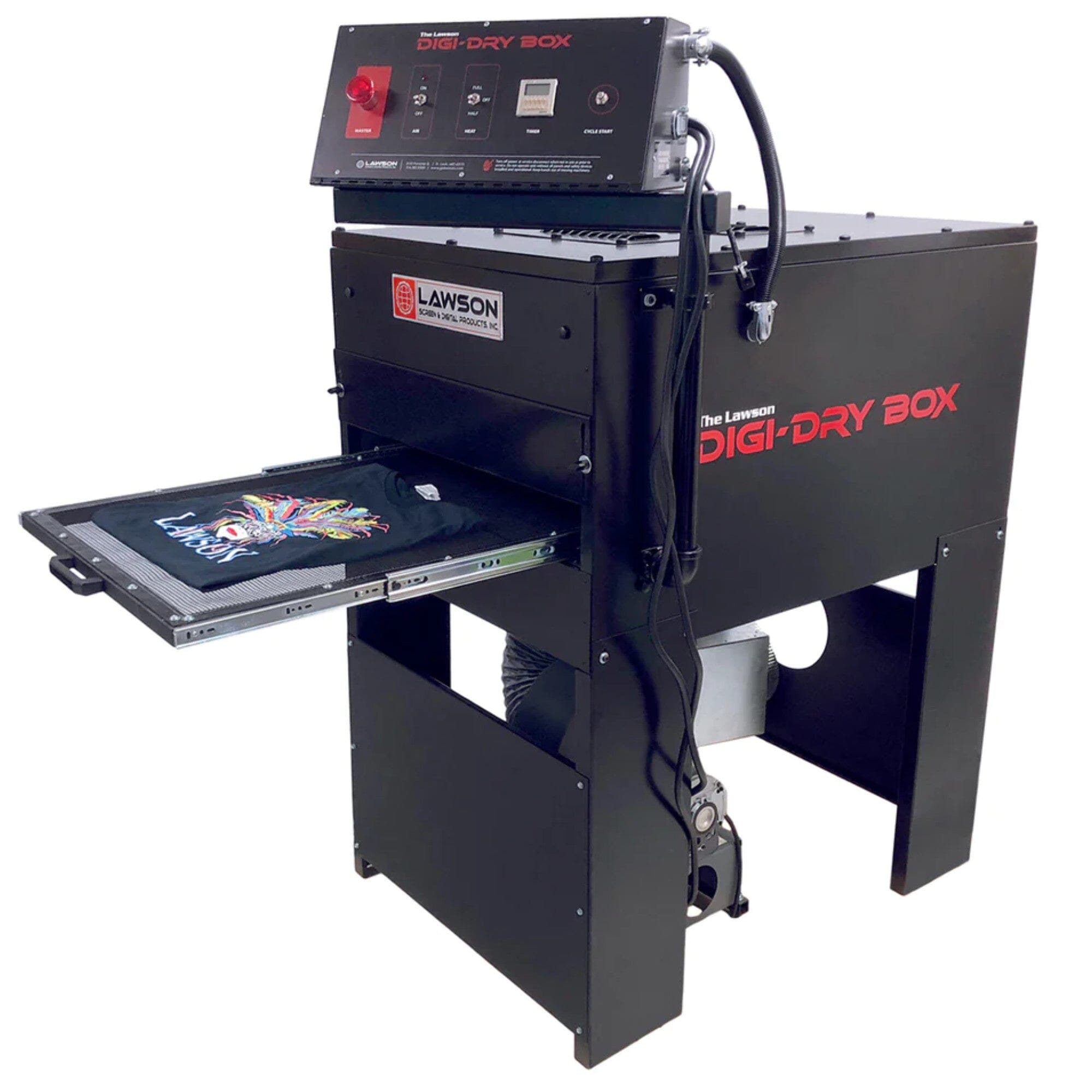

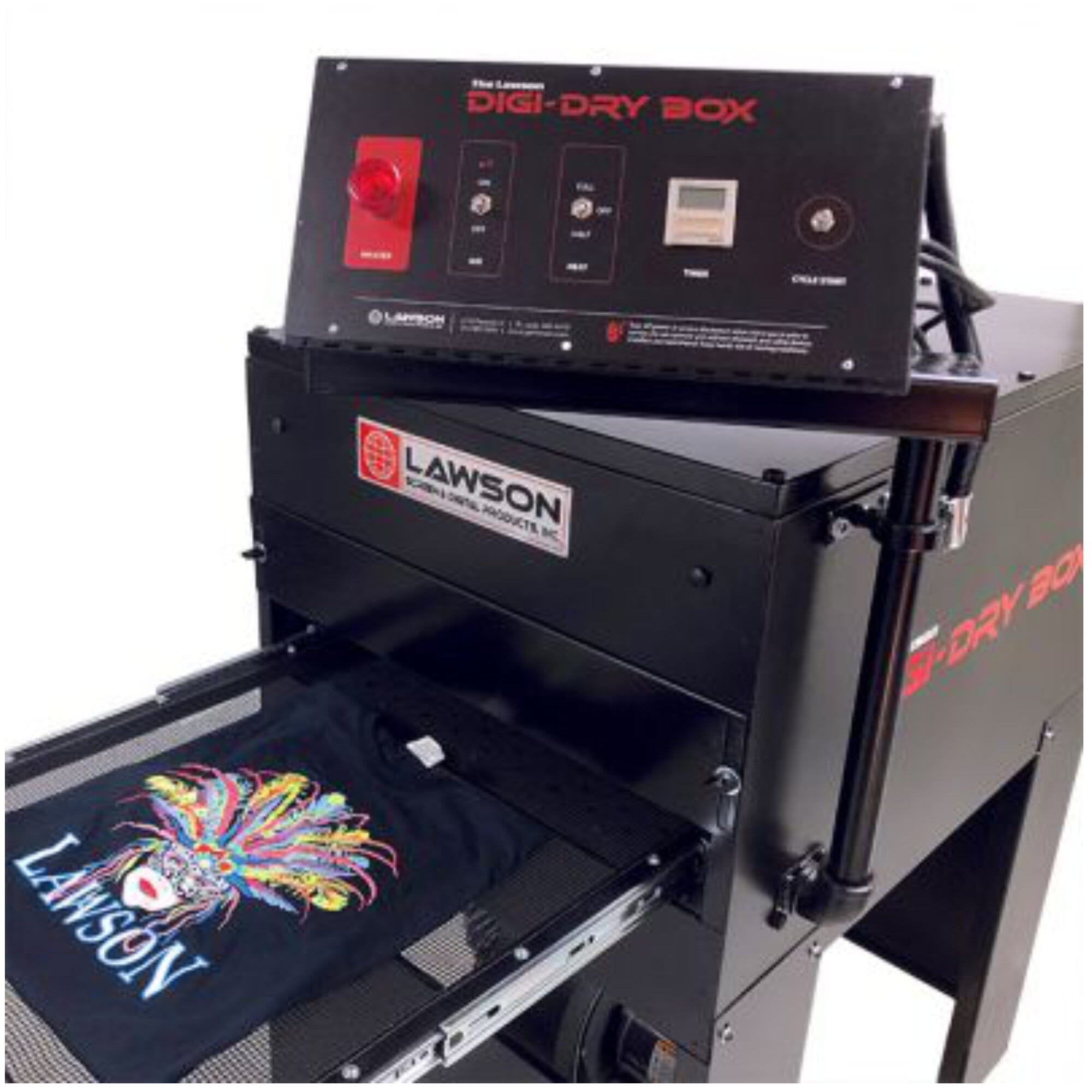

Lawson Digi Box DTG 18" x 24" Ink Curing Dryer

The Lawson Digi-Dry Box is a specialized dryer designed to properly cure water-based digital ink systems. It is compatible with all Direct-To-Garment printers and ink applications. Items cured in Lawson's Digi-Dry Box make DTG prints feel more like a traditional screen print than when cured via a heat press. The Lawson Digi-Dry Box combines powerful Quartz infra-red with a powerful air-evacuation system that pulls the moisture through and out of the garment, while curing the ink itself.

The Digi-Dry Box also cures plastisol ink even faster and minimizes scorching. An automatic timing cycle controls every aspect of the cure cycle. The energy-saving design turns the heat on and off automatically, so you don't waste energy when not curing a garment. Cure times range from 30 to 90 seconds, depending on ink deposit.

The Lawson Digi-Dry DTG Ink Curing Dryer combines powerful Quartz infra-red with a powerful air-evacuation system that pulls the moisture through and out of the garment, while curing the ink itself. It also cures plastisol ink even faster and minimizes scorching.

An automatic timing cycle controls every aspect of the cure cycle. The energy-saving design turns the heat on and off automatically, so you don't waste energy when not curing a garment.

  • Quartz/I.R. Heat + Vacuumized Jet-Air
  • Instant On/Off Cycles

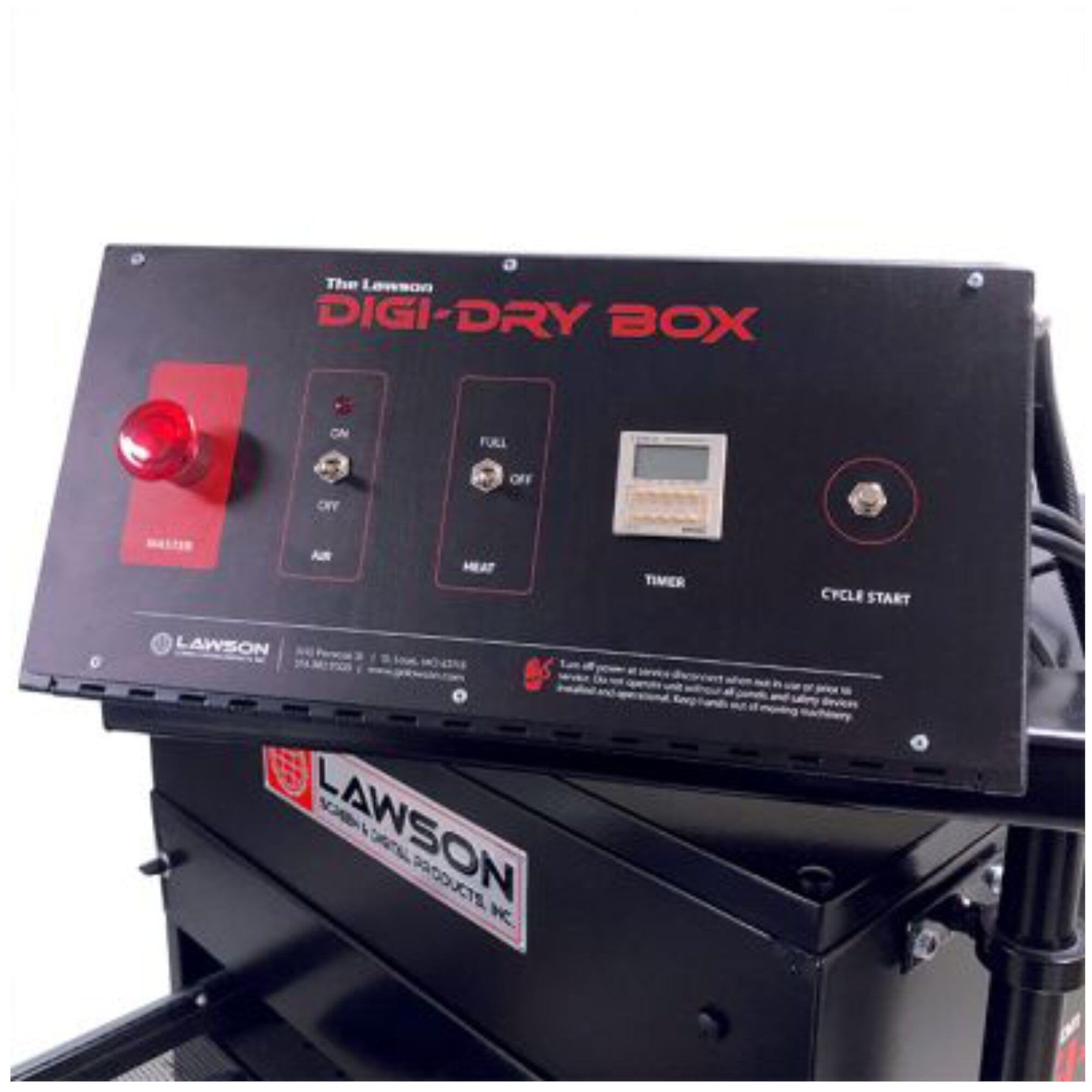

  • Digital Controls
  • Estimated Cure Area: 18" x 24"
  • Adjustable Curing/Timing Cycles
  • Sliding Cure Bed/Surface
  • Fully Insulated
  • Lawson's "Cool-Touch" Sides
  • Shipped Fully Assembled
  • Custom Sizes Available
  • 1 Year Parts Warranty
  • 220 volts; 1-Phase Wiring ** Please note that the unit does not include a plug and must be hardwired to a breaker box


Estimated Overall Depth 40" 70" with the Slide Drawer Fully Extended
Estimated Overall Width 28" 32" with Boom Control Pole
Estimated Overall Height 50" 62" with Contol Box
Estimated Curing Area 18" x 24"
Tray Area 23" x 31"
Heat Quartz Bulbs
Air Zones 1 Continuous
Flue size 8" Round (Powered Exhaust)
Wattage 7,820
AMPS (120/230 Volts) 1-Phase, 34 Amps (7,820 Watts)
120/230 volts (3 pole; 4 wire)
Estimated Crated Weight 376 lbs
Estimated Crated Size 36"W X 47"L X 71"H


DIGI BOX BROCHURE
Please note that this ships via freight, there is a creating and shipping fee for this item.
