16" Width: Longer heater/dryer than other dryers to accommodate Faster DTF roll-to-roll printers.
-
Compact Size: Smaller in comparison to other DTF powder applicators, without sacrificing quality or performance.
-
Advanced powder ventilation within the powder station: Heating fans help reduce any powder build-up in the powdering station, meaning less maintenance for the user.
-
Air vacuum conveyor system: Air vacuums at the front and back of the conveyor keep film from slipping or moving. They also help to align the DTF film to achieve even heating throughout the heater/dryer.
-
Advanced Take-Up System: Additional tension bar to roll up the finished DTF films better.
-

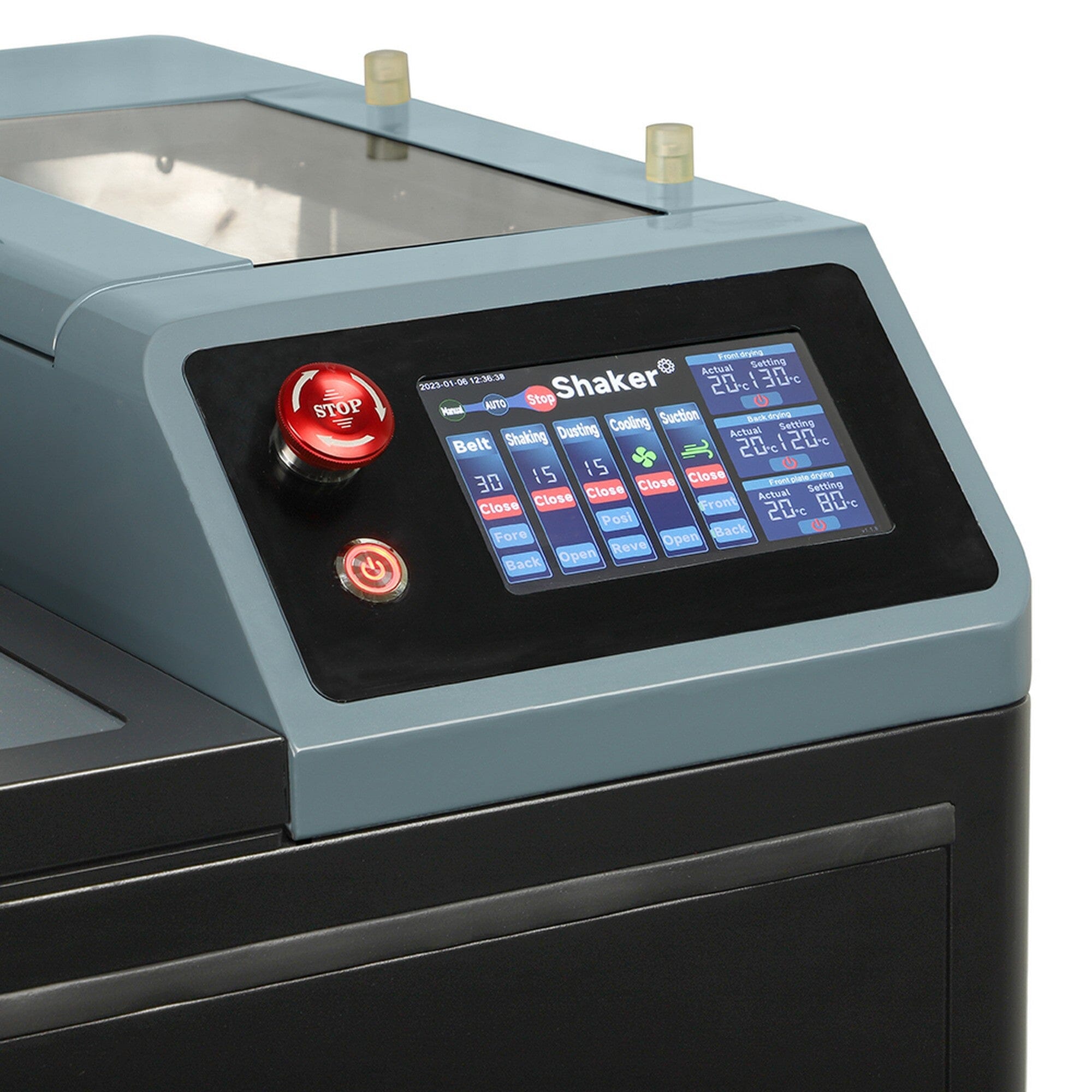

LCD Touch Screen: Easy to monitor and control
Warranty: 1 yr warranty on all parts excluding air filter/ purification system (regular maintenance required)
| Power |
3.2KW |
| Shaking Powder |
Motor vibration, automatic powder return-free |
| Heating Method |
Back baking and front baking for speed and consistency |
| Take-up and Feed Film |
Auto-sensing |
| Operation Mode |
Manual/Auto control |
| Mesh Belt |
Drum suction operation mesh belt |
| Automatic Deceleration of Film Cutting |
Prevent deformation of heating film |
| Method of Dusting |
Constant weight automatic sensing |
| Weight |
440 lbs
|
| Machine Dimensions (LxWxH) |
63" x 30" x 39" |
| Packing Dimensions (LxWxH) |
55" x 38" x 43" |
| Configuration |
With All-in-one smoke purifier |
|
