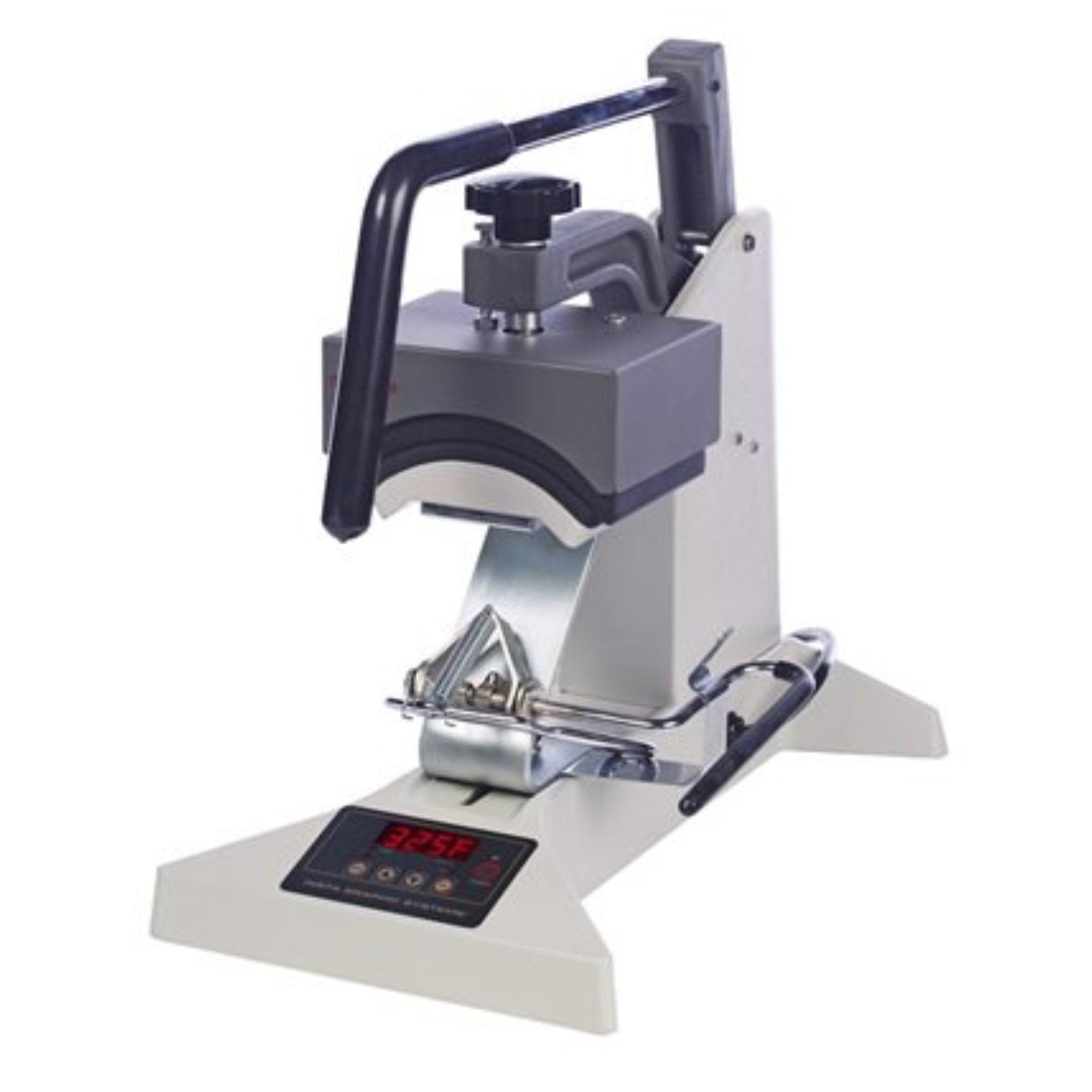

Insta Graphic 418 Hat Heat Press

Insta 418 Heat Press Machine – Curved Platens Make Printing on Hats a Breeze

The Insta 418 Digital Cap Heat Press is a terrific multi-purpose heat press. Its curved platens are perfectly molded to mirror the curves of a hat and are designed to apply heat transfers onto cap brims and bills. Although it was originally designed as a heat press machine for hats, the Insta 418 has also proven to be an effective tool for printing logos , PPE and back-neck labels onto flat garments. Its portable, compact design and quiet operation make this press perfect for use in a home or retail environment.

Reliable, Consistent Quality

The Insta 418 hat heat press has been strategically designed to bring about and evenly distribute  pressure throughout the entire platen. And, its cast-in tubular heating element heats the metal from within, which produces constant and long lasting heat. Successful heat transfer applications require perfect time, temperature and pressure – three key components needed to work together. The Insta 418 has mastered those elements and gets the job done every time.

Central Pressure Source

The pressure source is strategically placed over the center of the upper platen and uses struts to drive that pressure out to all corners. The result is an even and heavy duty distribution of pressure that is unmatched by other heat presses in the market today.

Cast-In Heating Element

The tubular heating element is cast into the aluminum upper platen, heating the metal from within. The element is coiled throughout the upper platen to provide a reliable and even circulation of heat out to all corners.

Integrated digital controller

Controls for time, temperature (Fahrenheit or Centigrade) & auto-off.

Features:

  • 4.5”x6.75” upper platen and 3.25”x6.75” lower platen
  • Curved Platen Design – hats are a breeze!
  • Lower slide adjustment to fit different hat sizes
  • Cap hold down mechanism keeps hats taut for easy application
  • Portable compact design
  • Interchangeable Larger Platen 4.5”x6.75” lower accessory platen can be purchased and easily snapped into place for printing on hats with larger brims
  • UL, CuL, CE approved, RoHS/WEEE safety compliant
  • Made in USA
  • Warranty: Lifetime on the upper heating element, 1 year on parts, 90 days on labor
